Semi-automatic Plate Sealer

Semi-automatic Plate Sealer is a benchtop unit <br>which is used to uniformly seal the plates and <br>has a sealing temperature range of 80 to 200u00c2u00b0C. <br>Features temperature control, pressure control <br>and time setting options, sample loss is prevented, <br>OLED display screen, stand-by mode etc. to ensure <br>that the sealing process is precisely completed. <br>It is easy to handle, seals the plates in seconds <br>and is compatible with different types of plates.

Eleanor96
Download Presentation

Semi-automatic Plate Sealer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

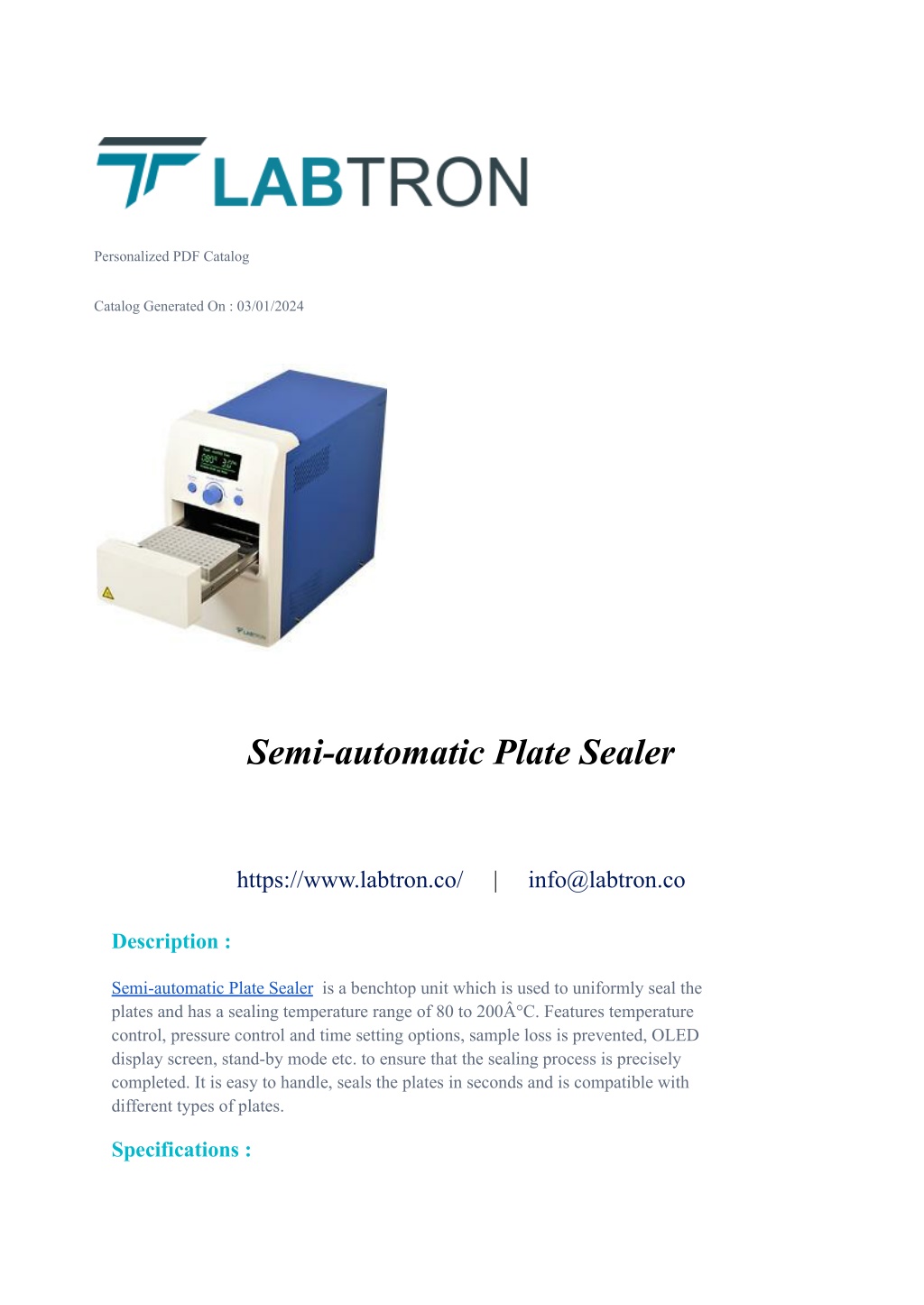

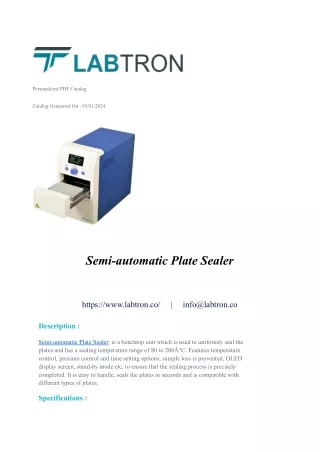

  1. Personalized PDF Catalog Catalog Generated On : 03/01/2024 Semi-automatic Plate Sealer https://www.labtron.co/ | info@labtron.co Description : Semi-automatic Plate Sealer is a benchtop unit which is used to uniformly seal the plates and has a sealing temperature range of 80 to 200°C. Features temperature control, pressure control and time setting options, sample loss is prevented, OLED display screen, stand-by mode etc. to ensure that the sealing process is precisely completed. It is easy to handle, seals the plates in seconds and is compatible with different types of plates. Specifications :

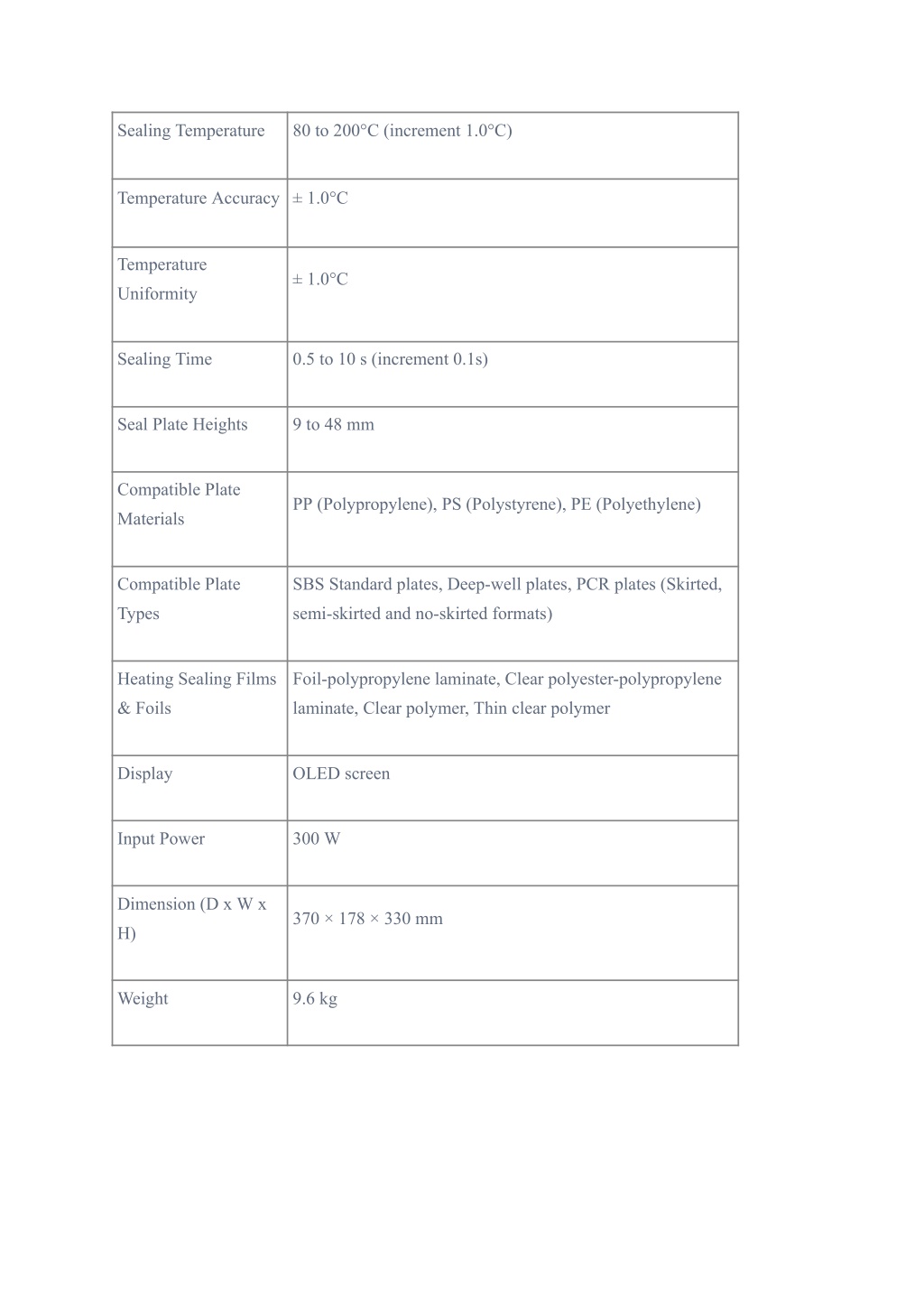

  2. Sealing Temperature 80 to 200°C (increment 1.0°C) Temperature Accuracy ± 1.0°C Temperature ± 1.0°C Uniformity Sealing Time 0.5 to 10 s (increment 0.1s) Seal Plate Heights 9 to 48 mm Compatible Plate PP (Polypropylene), PS (Polystyrene), PE (Polyethylene) Materials Compatible Plate SBS Standard plates, Deep-well plates, PCR plates (Skirted, Types semi-skirted and no-skirted formats) Heating Sealing Films Foil-polypropylene laminate, Clear polyester-polypropylene & Foils laminate, Clear polymer, Thin clear polymer Display OLED screen Input Power 300 W Dimension (D x W x 370 × 178 × 330 mm H) Weight 9.6 kg

  3. Features : Adjustable sealing temperature and pressure Automatic counting function OLED screen to view parameters Can seal various types of micro well plates Can provide standard plate adapters, 96-well PCR plate adapter, weighted sealing platen Stand-by mode adopted after 60 min of no use Auto switch-off mode after 120 min of no use Drawer moves back if any object or hand gets stuck to prevent injury Detachable drawer for easy cleaning Applications : It is widely used in biotechnology, microbiology, immunology, etc. fields to seals the test sample plates.

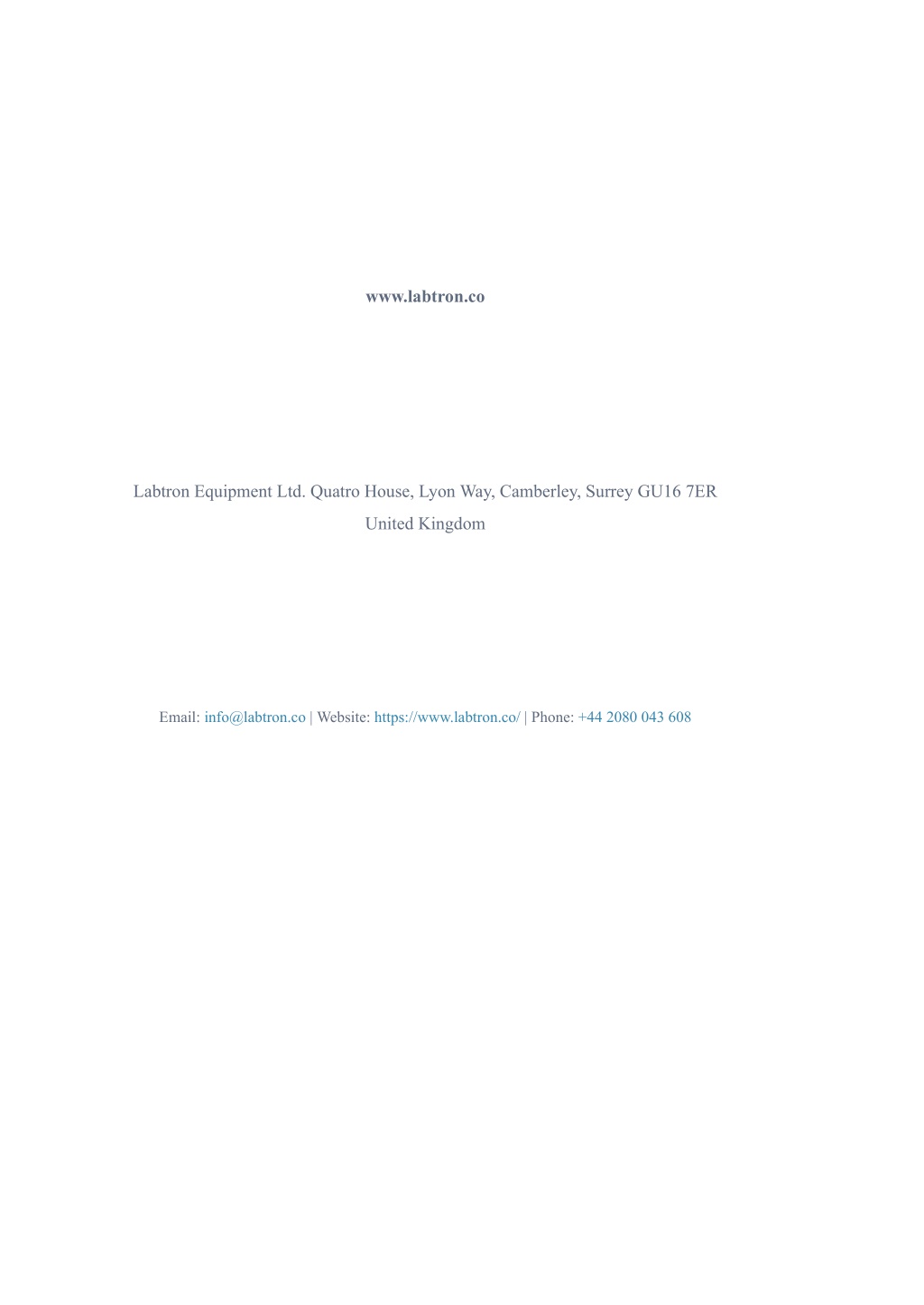

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
