SEMI AUTOMATIC TURNSTILE GATE

A semi-automatic turnstile gate is a type of gate system designed to control the flow of people through a physical barrier, typically in areas where access control is necessary. Unlike fully automatic turnstiles, which operate without any manual intervention, semi-automatic turnstiles require some level of manual effort or interaction from the user. https://www.novusapl.com/our-products.php/

Siddharth28
Download Presentation

SEMI AUTOMATIC TURNSTILE GATE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

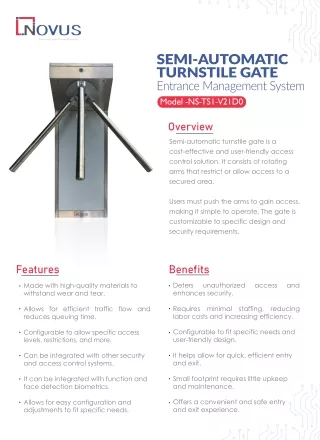

  1. SEMI-AUTOMATIC TURNSTILE GATE Entrance Management System Model -NS-TS1-V21D0 Overview Semi-automatic turnstile gate is a cost-effective and user-friendly access control solution. It consists of rotating arms that restrict or allow access to a secured area. Users must push the arms to gain access, making it simple to operate. The gate is customizable to specific design and security requirements. Features Benefits Deters enhances security. unauthorized access and Made with high-quality materials to withstand wear and tear. Requires minimal staffing, reducing labor costs and increasing efficiency. Allows for efficient traffic flow and reduces queuing time. Configurable to fit specific needs and user-friendly design. Configurable to allow specific access levels, restrictions, and more. It helps allow for quick, efficient entry and exit. Can be integrated with other security and access control systems. Small footprint requires little upkeep and maintenance. It can be integrated with function and face detection biometrics. Offers a convenient and safe entry and exit experience. Allows for easy configuration and adjustments to fit specific needs.

  2. Semi-Automatic Turnstile Gate| NS-TS1-V21D0 Technical Specifications Dimension 1200*230*980mm Material 304 original brushed stainless steel, acrylic Channel Width 510mm Thickness The full thickness of the outer box is 1.0 + 1.2mm Traffic Direction One-way traffic/two-way traffic 25~30 people/min in normally open mode and 15~20 people/min in normally closed mode; The actual traffic speed is different from the traffic environment and personnel ID / IC card swiping and other reading head verification opening, button opening, etc Traffic Speed Opening Mode Opening Signal Dry contact signal Life ≥5 million times Power 30-60W Applicable Temperature -20~75 C (add thermostat below this temperature) Disclaimer: Brief product specifications are mentioned, that may change without prior notice, please check with OEM before purchase. Images are shown for reference only; the actual product may differ due to product enhancement. www.novusapl.com Copyright © 2019, Novus Automation Private Limited
