1 / 4

Opacity Meter

Opacity Meter is a portable unit with 0 to 100 % opacity measurement range, <br>complies with international standards. It has microcomputer control system <br>which accurately determines the opacity of the test sample. Additional features <br>like data measurement, data storage, searching for data etc. are incorporated <br>for further convenience. It is suitable for laboratory use, research institutes <br>and also industrial purpose.

Eleanor96
Download Presentation

Opacity Meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

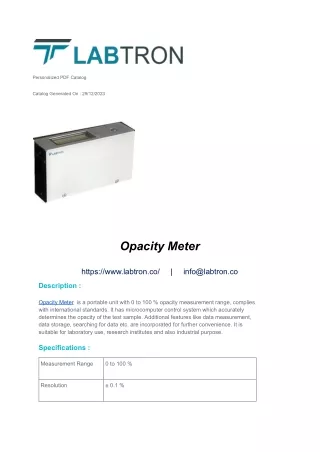

  1. Personalized PDF Catalog Catalog Generated On : 29/12/2023 Opacity Meter https://www.labtron.co/ | info@labtron.co Description : Opacity Meter is a portable unit with 0 to 100 % opacity measurement range, complies with international standards. It has microcomputer control system which accurately determines the opacity of the test sample. Additional features like data measurement, data storage, searching for data etc. are incorporated for further convenience. It is suitable for laboratory use, research institutes and also industrial purpose. Specifications : Measurement Range 0 to 100 % Resolution ± 0.1 %

  2. Repeatability ± 0.2% Reproducibility ± 0.5% Working angle 45° (irradiate) / 0° (Receive） Window size 12 × 17 mm (Oval) Environment condition Temperature: 0°C to 40°C Relative humidity: less than 85% Display LCD screen Size: 23 × 48 mm Operating voltage 0.8 V to 1.5 V Power supply One AA battery or rechargeable battery Dimension 114 × 32 × 64 mm Net Weight 300 g

  3. Features : Easily portable due to light weight and compact design Works immediately after switched on, therefore doesn’t require warm up 1 inch digital display screen to view and pre-set parameters Displays battery life, measured opacity value, various statistical value Automatic calculation of reflectance value Auto calibration mode includes black standard board and white standard board calibration USB interface to transfer data Works on 1.5V alkaline battery which can last for 60 hrs Stable light source Automatically switches off if not used for more than 2 minutes Easy to operate and analyse results Requires least maintenance Durable, long lasting metal design Complies with ISO 2814, ISO 3906,ISO 6504 BS 3900 and DIN 55984 Applications : It measures opacity of gaseous emissions, metalized films, ceramics and many other materials. It is widely used in laboratory, research institutes and industries

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
