Haze meter

Haze meter is used for haze and transmittance measurement. <br>It has open measurement area with no limit on sample size, <br>can carry out vertical measurements as well. It comes with <br>different light sources such as A, C, D65 etc. for haze, <br>transmittance measurement. Design confirms to ASTM & ISO <br>standards, where transmittance compensation measurement <br>provides high accuracy test result.

Eleanor96
Download Presentation

Haze meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

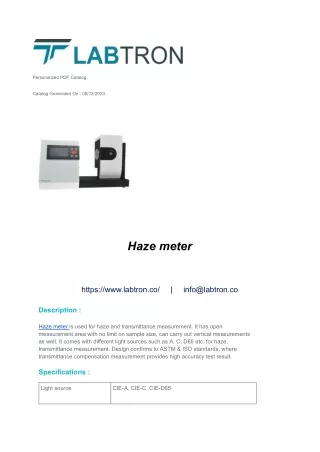

  1. Personalized PDF Catalog Catalog Generated On : 08/12/2023 Haze meter https://www.labtron.co/ | info@labtron.co Description : Haze meter is used for haze and transmittance measurement. It has open measurement area with no limit on sample size, can carry out vertical measurements as well. It comes with different light sources such as A, C, D65 etc. for haze, transmittance measurement. Design confirms to ASTM & ISO standards, where transmittance compensation measurement provides high accuracy test result. Specifications : Light source CIE-A, CIE-C, CIE-D65

  2. Standards ASTM D1003/D1044 & ISO13468/ISO14782 Parameters HAZE, Transmittance(T) Spectral response CIE Luminosity function y Wavelength 400 to 700 nm Wavelength interval 10 nm Geometry 0/d Measurement area/sample 16.5 mm/ 21 mm port Measurement range 0 to 100 % Haze resolution 0.01 Haze responsibility ≤ 0.1 Sample size Thickness ≤ 145 mm Display 5.0 inch TFT touch LCD screen Memory 20000 value Interface USB Power 220 V with power cable 0 to 45 °C, Relative humidity 80% or below (at 35 ° C), Working temperature no condensation

  3. Storage temperature 0 to 50 °C Dimension (L × W × H) 598 × 247 × 366 mm Features : 5.0 inch TFT touch screen display interface Different light sources A,C, D65 etc. for haze, transmittance measurement Open measurement area with no limit on sample size Confirms to ASTM & ISO haze measurement standard Equipped with software for haze and transmittance Different parameters can be tested like Haze, Transmittance, and Yellowness & Whiteness Index etc. Large storage capacity 100 test samples , 200 measurement records for each sample Applications : Haze meter has applications in haze and transmittance measurement of anti-glare plastic sheets, films, glass, LCD panel screens used for TV screen, car navigation screen, computer screen, mobile phone cover & other transparent & semi-transparent material color.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
