Semi-Automatic-Polarimeter-LBN-SP141

Labnic Semi-Automatic Polarimeter precisely measures optical rotation, specific rotation, concentration, and sugar content. It features 3-point calibration, a 5.6" TFT touch screen, a 200-hour LED light source, and offers a measuring range of u00b190u00b0/u00b1130u00b0Z with accuracy of u00b10.02u00b0/u00b10.05u00b0Z.

Donna58
Download Presentation

Semi-Automatic-Polarimeter-LBN-SP141

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

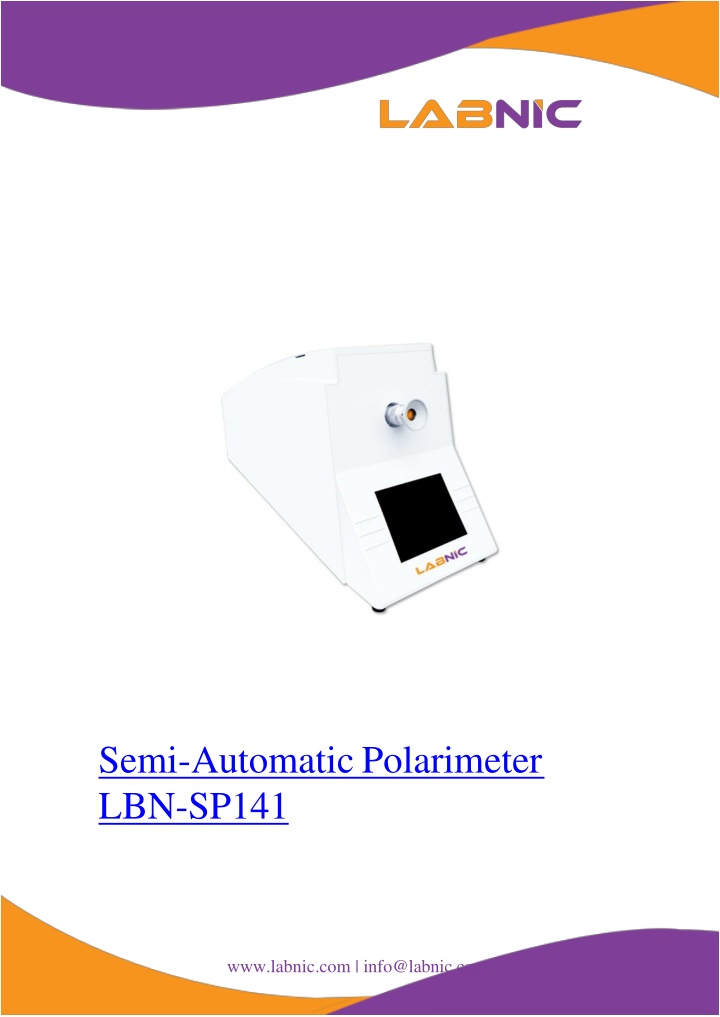

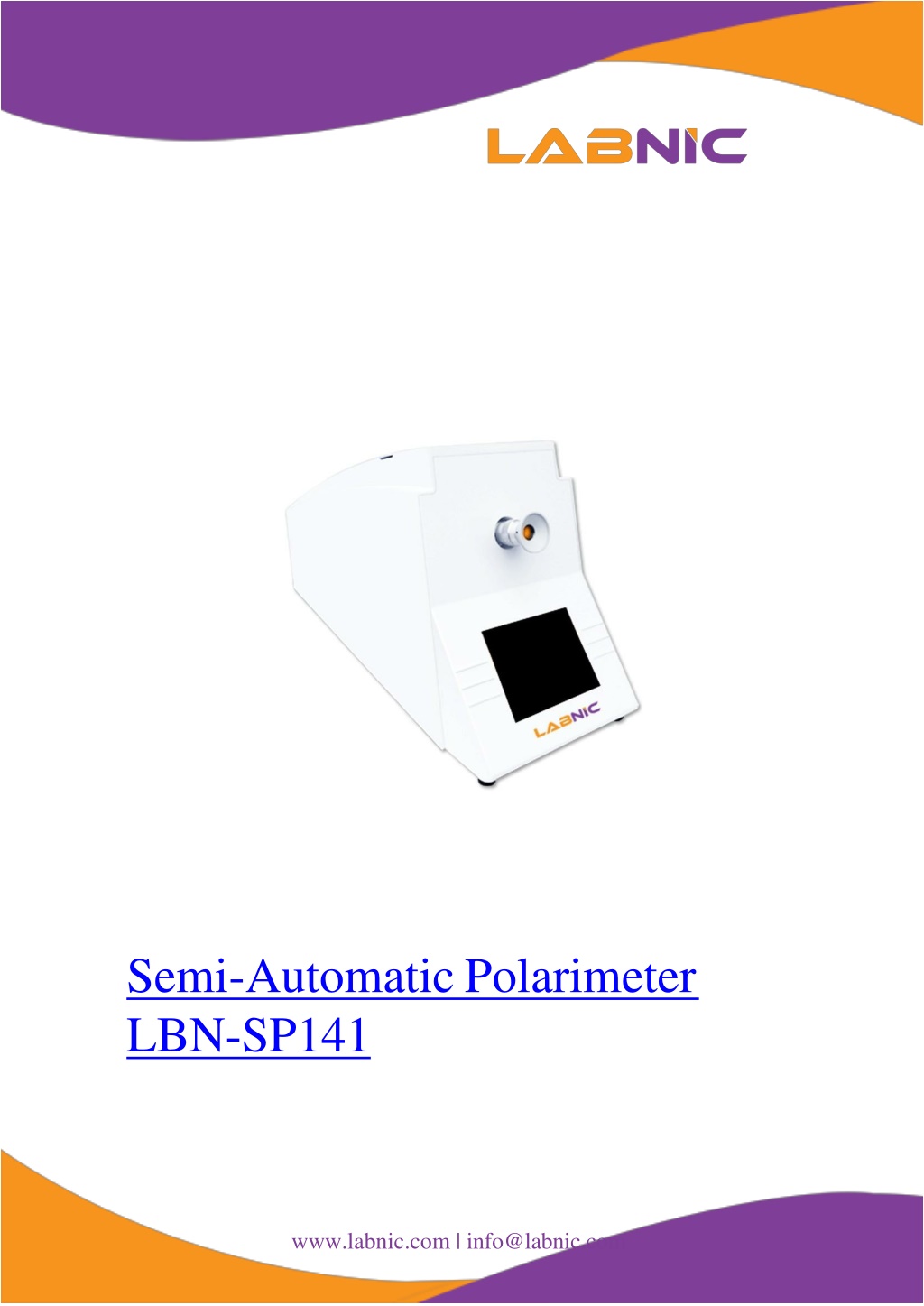

  1. Semi-Automatic Polarimeter LBN-SP141 www.labnic.com | info@labnic.com

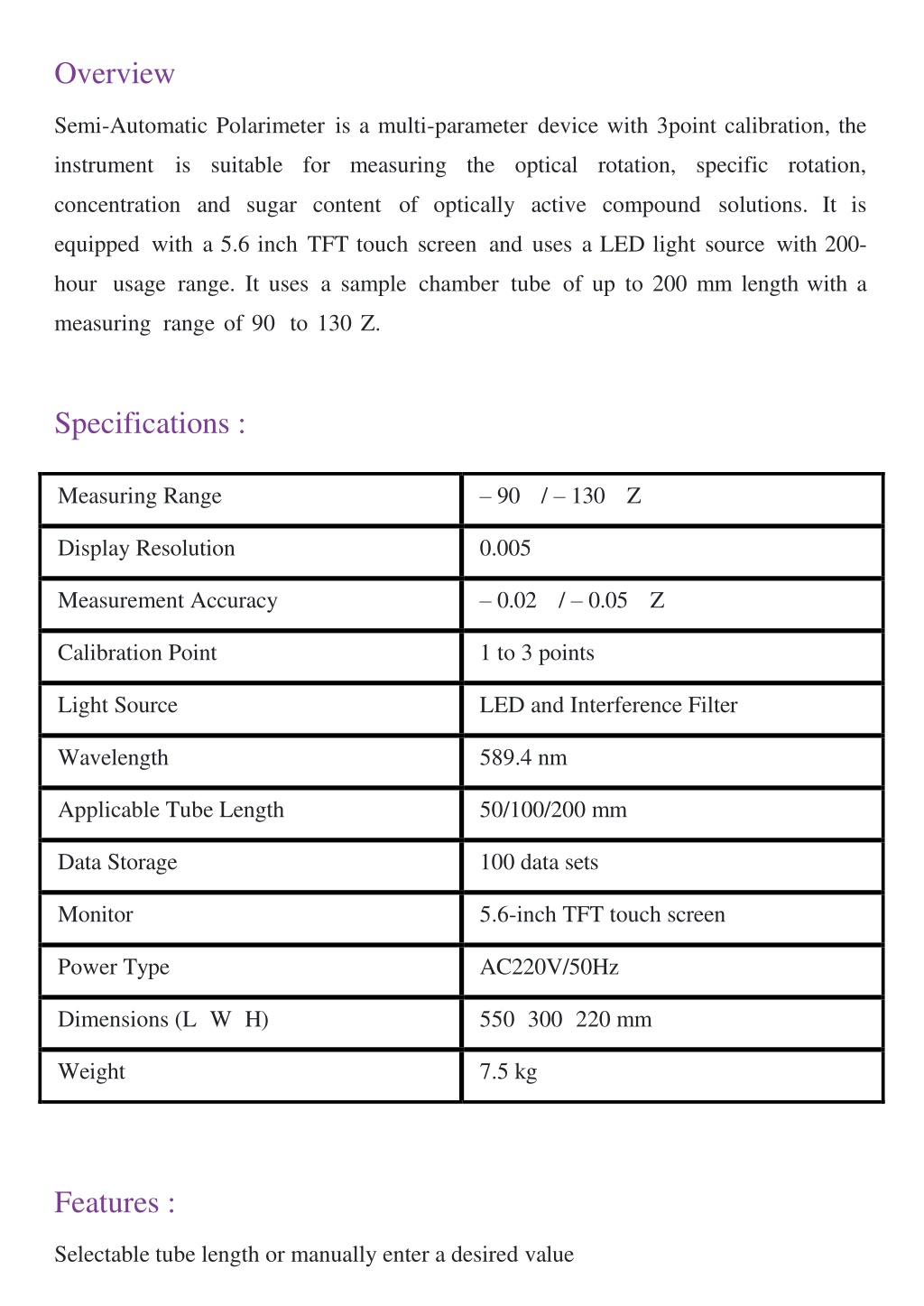

  2. Overview Semi-Automatic Polarimeter is a multi-parameter device with 3point calibration, the instrument is suitable for measuring the optical rotation, specific rotation, concentration and sugar content of optically active compound solutions. It is equipped with a 5.6 inch TFT touch screen and uses a LED light source with 200- hourusage range. It uses a sample chamber tube of up to 200 mm length with a measuring range of 90to 130 Z. Specifications : Measuring Range – 90 / – 130 Z Display Resolution 0.005 Measurement Accuracy – 0.02 / – 0.05 Z Calibration Point 1 to 3 points Light Source LED and Interference Filter Wavelength 589.4 nm Applicable Tube Length 50/100/200 mm Data Storage 100 data sets Monitor 5.6-inch TFT touch screen Power Type AC220V/50Hz Dimensions (LWH) 550300220 mm Weight 7.5 kg Features : Selectable tube length or manually enter a desired value
