Hematocrit-Centrifuge-LBN-HC122

Labnic Hematocrit Centrifuge delivers stable performance with an RCF of 18,620 g and speeds from 200 to 14,000 rpm. It offers continuous operation, 30-second to 99-minute run time, and u00b120 rpm accuracy. Powered by a 500W brushless DC motor, and efficient speed/time control.

Donna58
Download Presentation

Hematocrit-Centrifuge-LBN-HC122

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

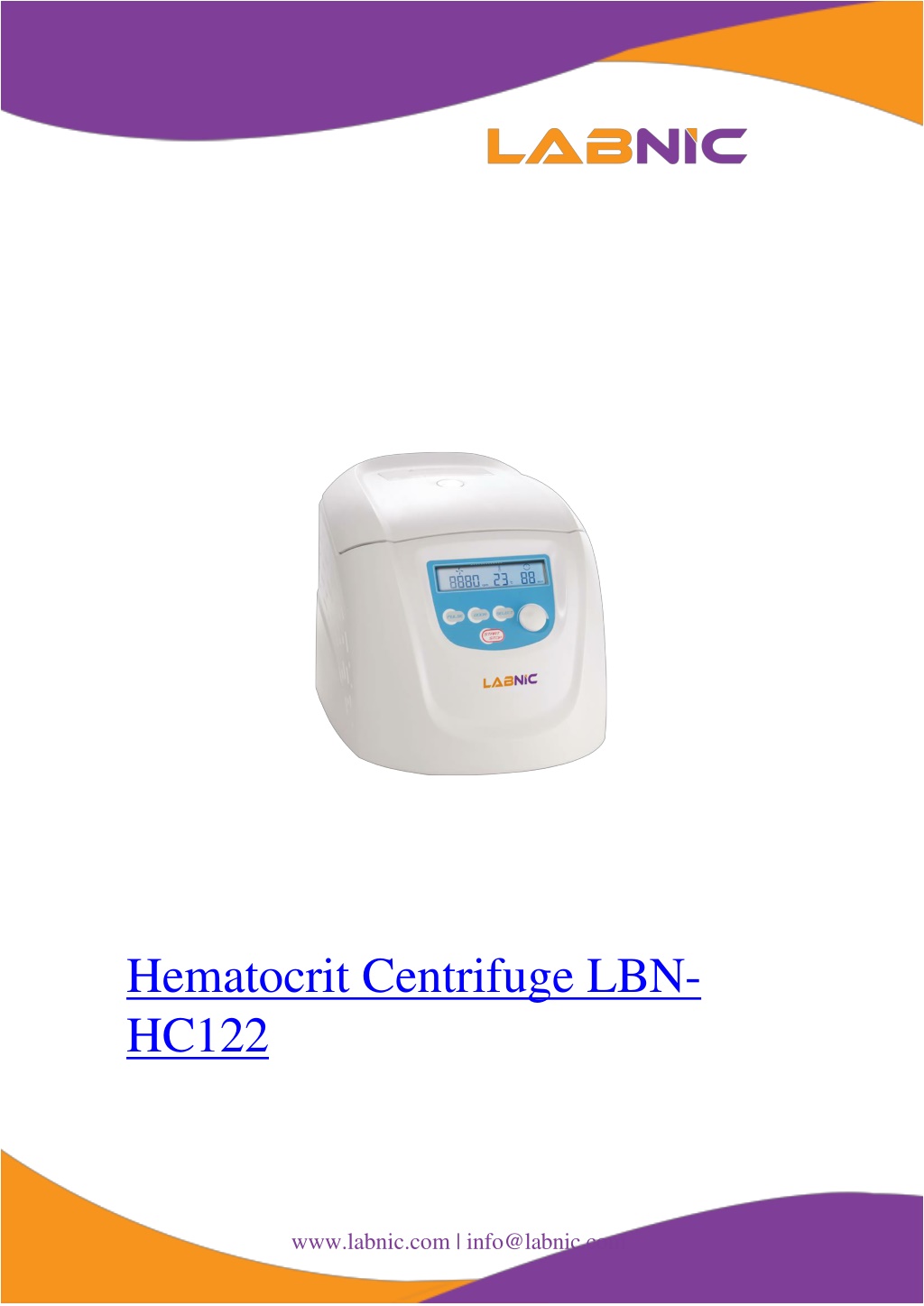

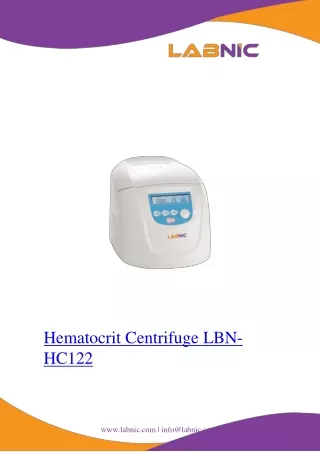

  1. Hematocrit Centrifuge LBN- HC122 www.labnic.com | info@labnic.com

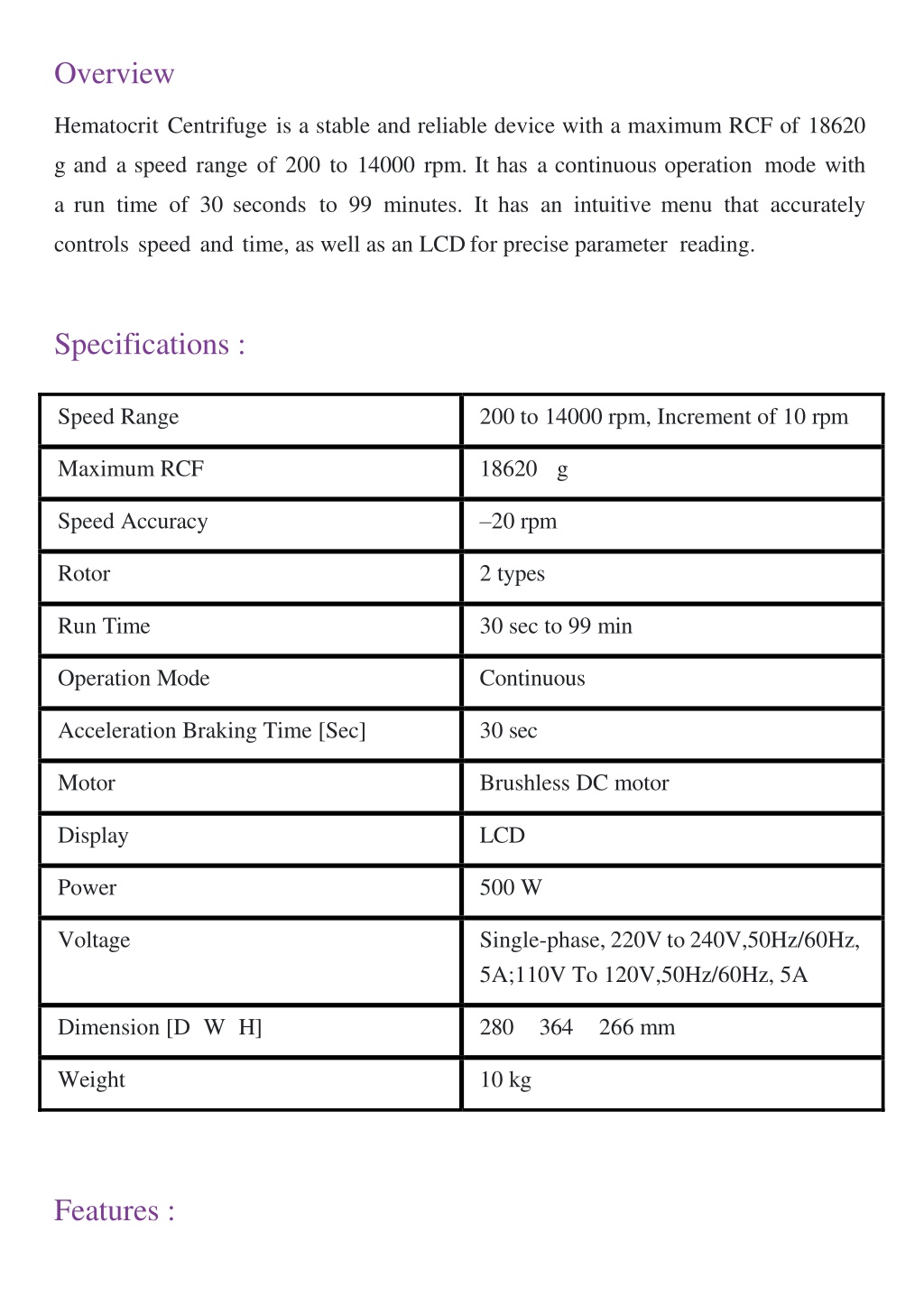

  2. Overview Hematocrit Centrifuge is a stable and reliable device with a maximum RCF of 18620 g and a speed range of 200 to 14000 rpm. It has a continuous operation mode with a run time of 30 seconds to 99 minutes. It has an intuitive menu that accurately controls speed and time, as well as an LCD for precise parameter reading. Specifications : Speed Range 200 to 14000 rpm, Increment of 10 rpm Maximum RCF 18620 g Speed Accuracy –20 rpm Rotor 2 types Run Time 30 sec to 99 min Operation Mode Continuous Acceleration Braking Time [Sec] 30 sec Motor Brushless DC motor Display LCD Power 500 W Voltage Single-phase, 220V to 240V,50Hz/60Hz, 5A;110V To 120V,50Hz/60Hz, 5A Dimension [DWH] 280 364 266 mm Weight 10 kg Features :

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
