1 / 4

CO2-Incubator-LBN-CO132

Labnic CO2 incubator offers a 160L capacity, forced convection, and a 5-55u00b0C temperature range. With precise CO2 control (0-20%) via an IR sensor, it ensures stability and accuracy. A heated glass door prevents condensation, and the inner glass door allows sample inspection without disturbing conditions.

Donna58
Download Presentation

CO2-Incubator-LBN-CO132

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

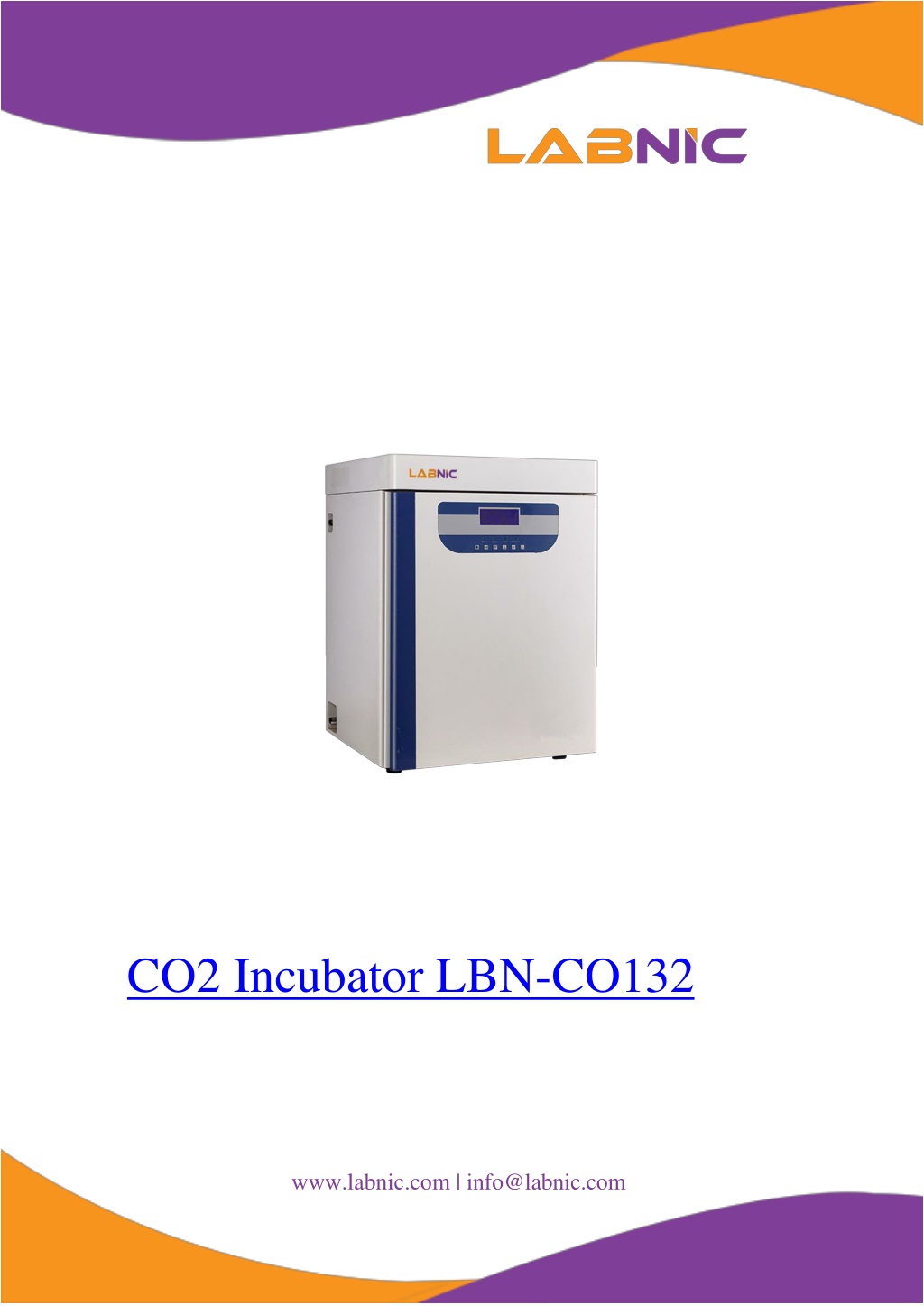

  1. CO2 Incubator LBN-CO132 www.labnic.com | info@labnic.com

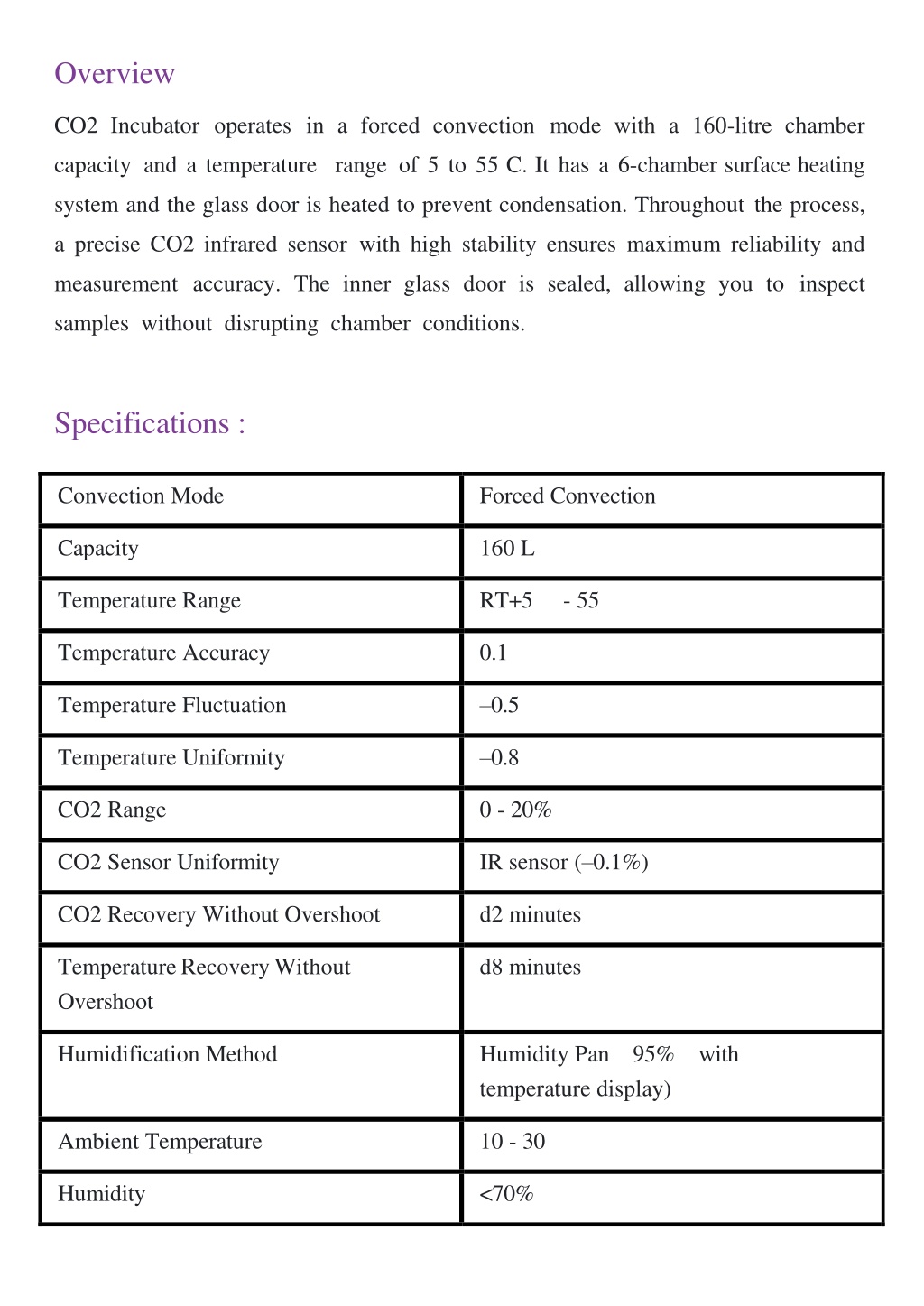

  2. Overview CO2 Incubator operates in a forced convection mode with a 160-litre chamber capacity and a temperature range of 5 to 55 C. It has a 6-chamber surface heating system and the glass door is heated to prevent condensation. Throughout the process, a precise CO2 infrared sensor with high stability ensures maximum reliability and measurement accuracy. The inner glass door is sealed, allowing you to inspect samples without disrupting chamber conditions. Specifications : Convection Mode Forced Convection Capacity 160 L Temperature Range RT+5 - 55 Temperature Accuracy 0.1 Temperature Fluctuation –0.5 Temperature Uniformity –0.8 CO2 Range 0 - 20% CO2 Sensor Uniformity IR sensor (–0.1%) CO2 Recovery Without Overshoot d2 minutes Temperature Recovery Without Overshoot d8 minutes Humidification Method Humidity Pan 95% with temperature display) Ambient Temperature 10 - 30 Humidity <70%

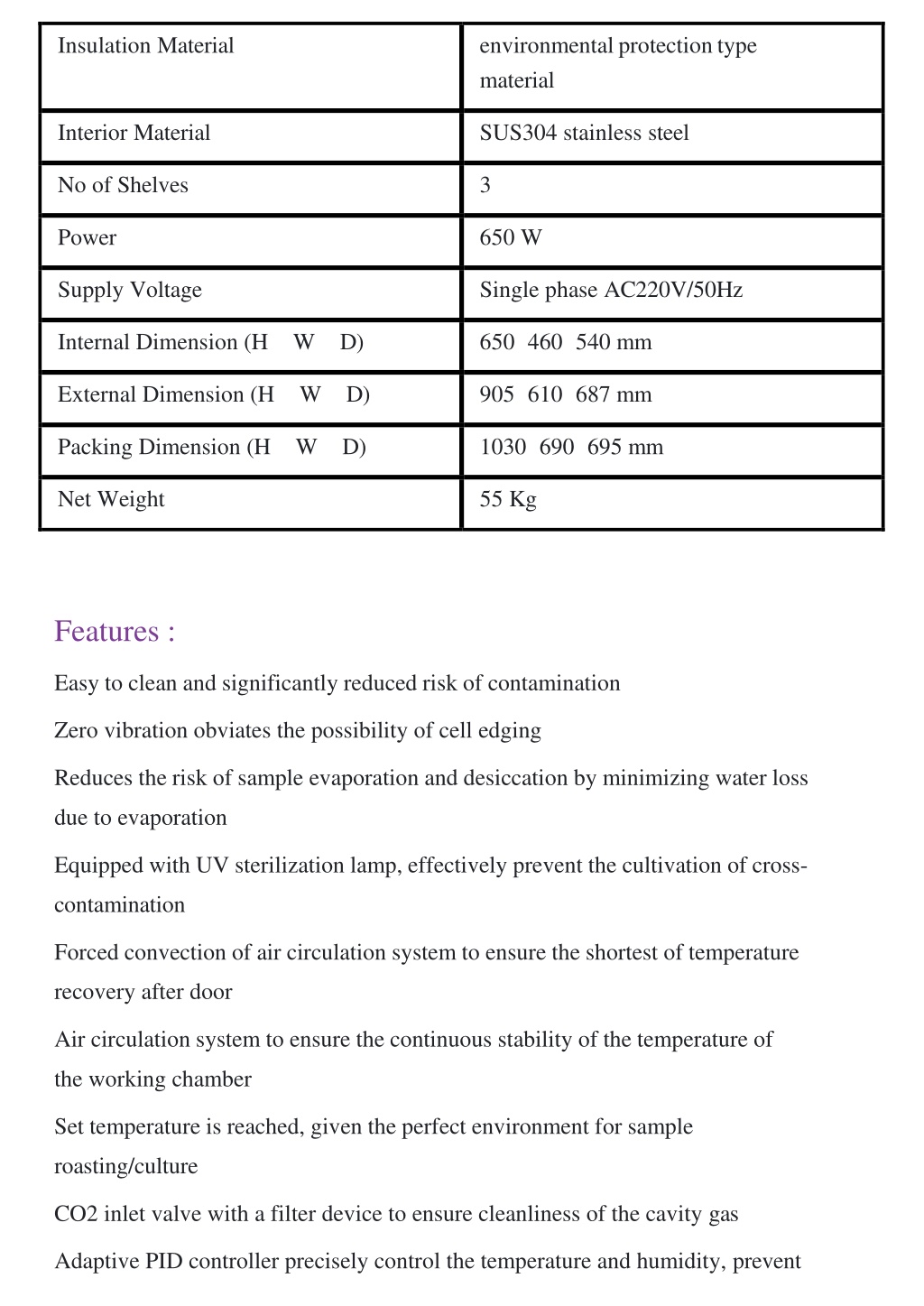

  3. Insulation Material environmental protection type material Interior Material SUS304 stainless steel No of Shelves 3 Power 650 W Supply Voltage Single phase AC220V/50Hz Internal Dimension (H W D) 650460540 mm External Dimension (H W D) 905610687 mm Packing Dimension (H W D) 1030690695 mm Net Weight 55 Kg Features : Easy to clean and significantly reduced risk of contamination Zero vibration obviates the possibility of cell edging Reduces the risk of sample evaporation and desiccation by minimizing water loss due to evaporation Equipped with UV sterilization lamp, effectively prevent the cultivation of cross- contamination Forced convection of air circulation system to ensure the shortest of temperature recovery after door Air circulation system to ensure the continuous stability of the temperature of the working chamber Set temperature is reached, given the perfect environment for sample roasting/culture CO2 inlet valve with a filter device to ensure cleanliness of the cavity gas Adaptive PID controller precisely control the temperature and humidity, prevent

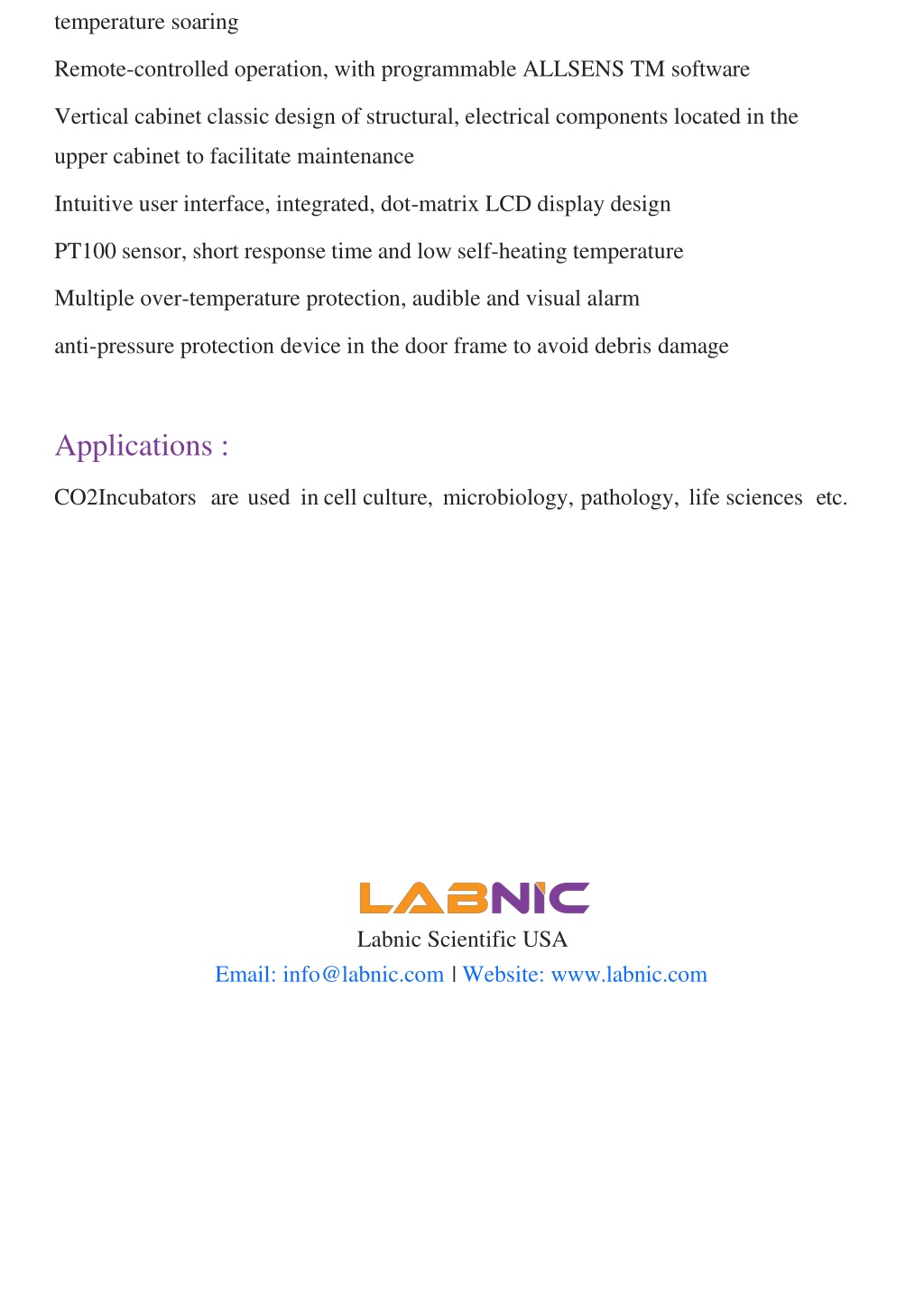

  4. temperature soaring Remote-controlled operation, with programmable ALLSENS TM software Vertical cabinet classic design of structural, electrical components located in the upper cabinet to facilitate maintenance Intuitive user interface, integrated, dot-matrix LCD display design PT100 sensor, short response time and low self-heating temperature Multiple over-temperature protection, audible and visual alarm anti-pressure protection device in the door frame to avoid debris damage Applications : CO2Incubatorsare used in cell culture, microbiology, pathology, life sciencesetc. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
