Air-Jacketed-CO2-Incubator

Air-Jacketed CO2 Incubator is designed with outstanding temperature stability. Provided with heat decontamination function and optional UV disinfection. Equipped <br>with colored touch screen controller for displaying temperature, humidity, CO2 concentration for convenience of the user. The forced convection mode unit's <br>heating feature prevents condensation on the exterior door.

Kimber4
Download Presentation

Air-Jacketed-CO2-Incubator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

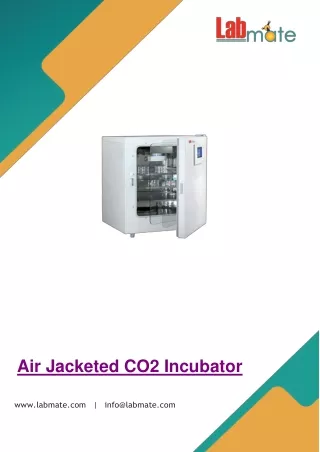

  1. Air Jacketed CO2 Incubator www.labmate.com | info@labmate.com

  2. Overview Air-Jacketed CO2 Incubator is designed with outstanding temperature stability. Provided with heat decontamination function and optional UV disinfection. Equipped with colored touch screen controller for displaying temperature, humidity, CO2 concentration for convenience of the user. The forced convection mode unit's heating feature prevents condensation on the exterior door. Specifications : Chamber Volume 40 L Shelves 2 Heating Method Air-jacketed Temperature Range RT + 5 ⁰C to 50 ⁰C Temperature Resolution 0.1 ⁰C Temperature Fluctuation 0.1 ⁰C Temperature Gradient ≤ ± 0.5 ⁰C Temperature Uniformity ± 0.3 ⁰C CO2 Range (0 to20) % V/V CO2 Sensor IR sensor CO2 Control Resolution ± 0.1 % CO2 Deviation ≤ ± 0.3 %V/V Humidity Method Natural vaporization > 95% Electrical Requirement AC 220 V, 50 Hz Power Consumption 400 W

  3. Interior Dimension (W× H ×D) 400 × 350 × 286 mm Exterior dimension (W× H×D) 590 × 576 × 440 mm Features : -Air jacketed CO2 Incubator -Data recorder with alarm features and a dry contact alarm, humidity sensor with a water top-up alarm -ISO Class 5 chamber with an air renewal system -Sterilizing capacity of 99.99% with 80°C heat on cells -90°C hot-and-humid sterilisation system with a high temperature -Enhanced with Forced convection mode -Heating function to prevent condensation on outer door -Independent temperature-limiting protection system -Provided with CO2 pressure-relief valve with 2-stage control and stable pressure -Coloured touch screen displays temperature, humidity, CO2 concentration curves for the convenience of the user -Optional HEPA filtration system according to user requirements Optional Accessories : CO2 pressure releasing valve RS485 connector Applications : Air jacketed CO2 incubators have a wide range of applications across

  4. industries like tissue engineering, in vitro fertilization, neuroscience, cancer research, stem cell research, regenerative medicine, mammalian cell research. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
