Automatic-Refractometer-LBN-AR133

Labnic Automatic Refractometer is a high-precision bench-top device with a 1.3000u20131.7000 (nD) range and u00b10.00002 accuracy. It features a 7-inch TFT touch screen, sapphire prism, and secure sample cover to prevent evaporation, measuring refractive index and sugar content from 5u00b0C to 65u00b0C with u00b10.01u00b0C stability.

Donna58
Download Presentation

Automatic-Refractometer-LBN-AR133

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

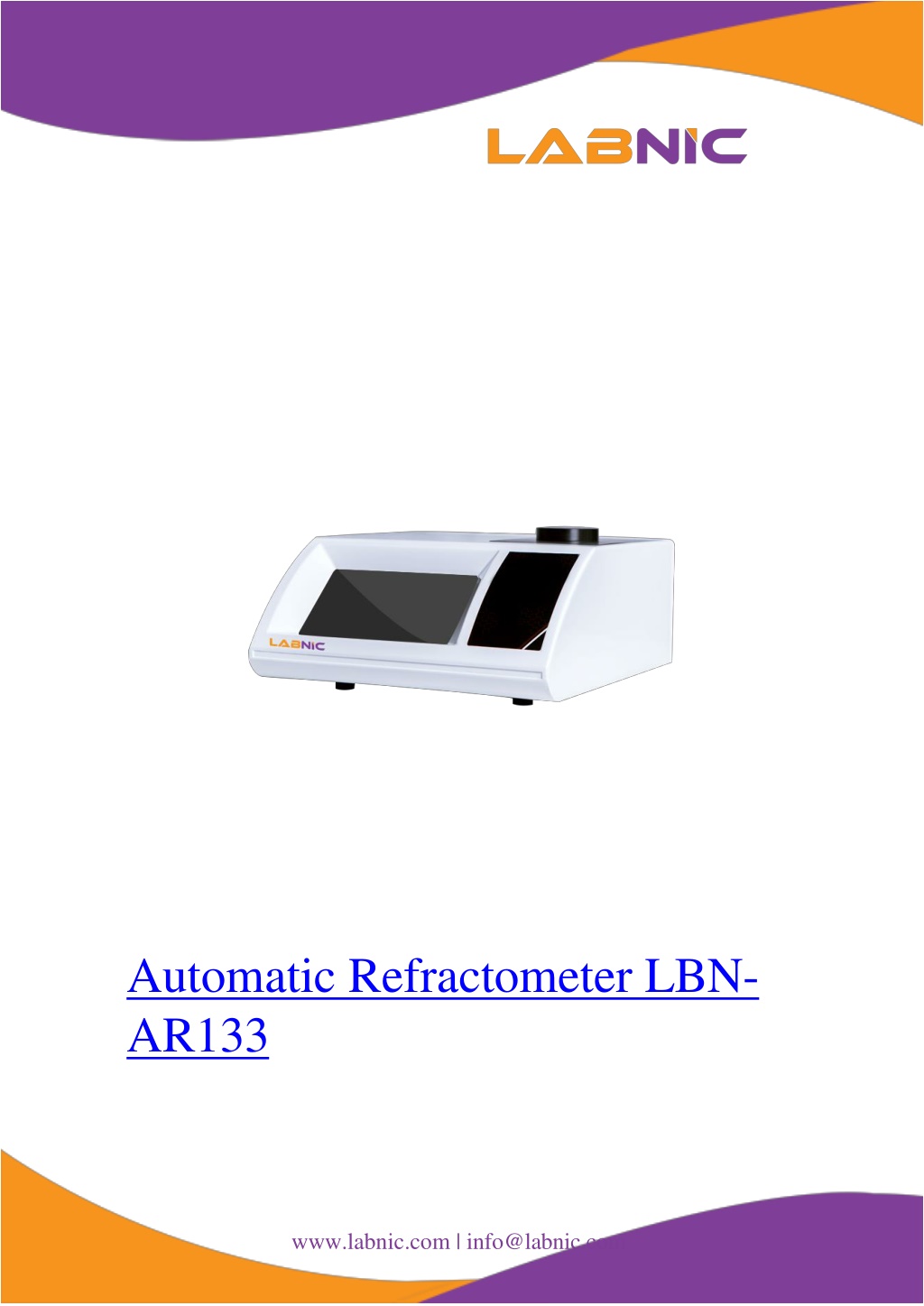

  1. Automatic Refractometer LBN- AR133 www.labnic.com | info@labnic.com

  2. Overview Automatic Refractometer is a high precision bench-top refractometer with a measuring range of 1.3000 1.7000 (nD)and a 7-inch TFT color touch screen user interface. It has a high-performance linear CCD sensor as well as high- precision signal acquisition and processing technology. The unit operates within a temperature range of 5 - 65 C, has a wavelength range of 589 nm, and employs a sapphire prism for refraction. The sample cover forms a seal to keep evaporation at bay, which is especially importantwhen working with volatile solutions. Specifications : Measuring Range 1.3000-1.7000 (nD) Resolution 0.00001 (nD) Precision –0.00002 Brix Range 0-100% (Brix) Brix Accuracy –0.01% (Brix) Test Mode Refractive index / sugar content Wavelength 589 nm Temperature Control Method Built-in Peltier Temperature Control Range 5 C - 90 C Temperature Control Stability –0.01 C Light Source LED Prism Sapphire Sample Cell Haste alloy Detection Method High-resolution linear CCD Display Method 7 inch FTF color touch screen

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
