Automatic-Refractometer-LBN-AR132

Labnic Automatic Refractometer is a high-precision benchtop device with a measuring range of 1.3000u20131.7000 nD and 0-100% Brix. The sapphire prism operates in a 5u00b0u201365u00b0C range with 589 nm wavelength. A sealed sample cover prevents evaporation. Key specification u00b10.00003 accuracy, u00b10.05% Brix, built-in Peltier temperature control u00b10.02u00b0C stability.

Donna58
Download Presentation

Automatic-Refractometer-LBN-AR132

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

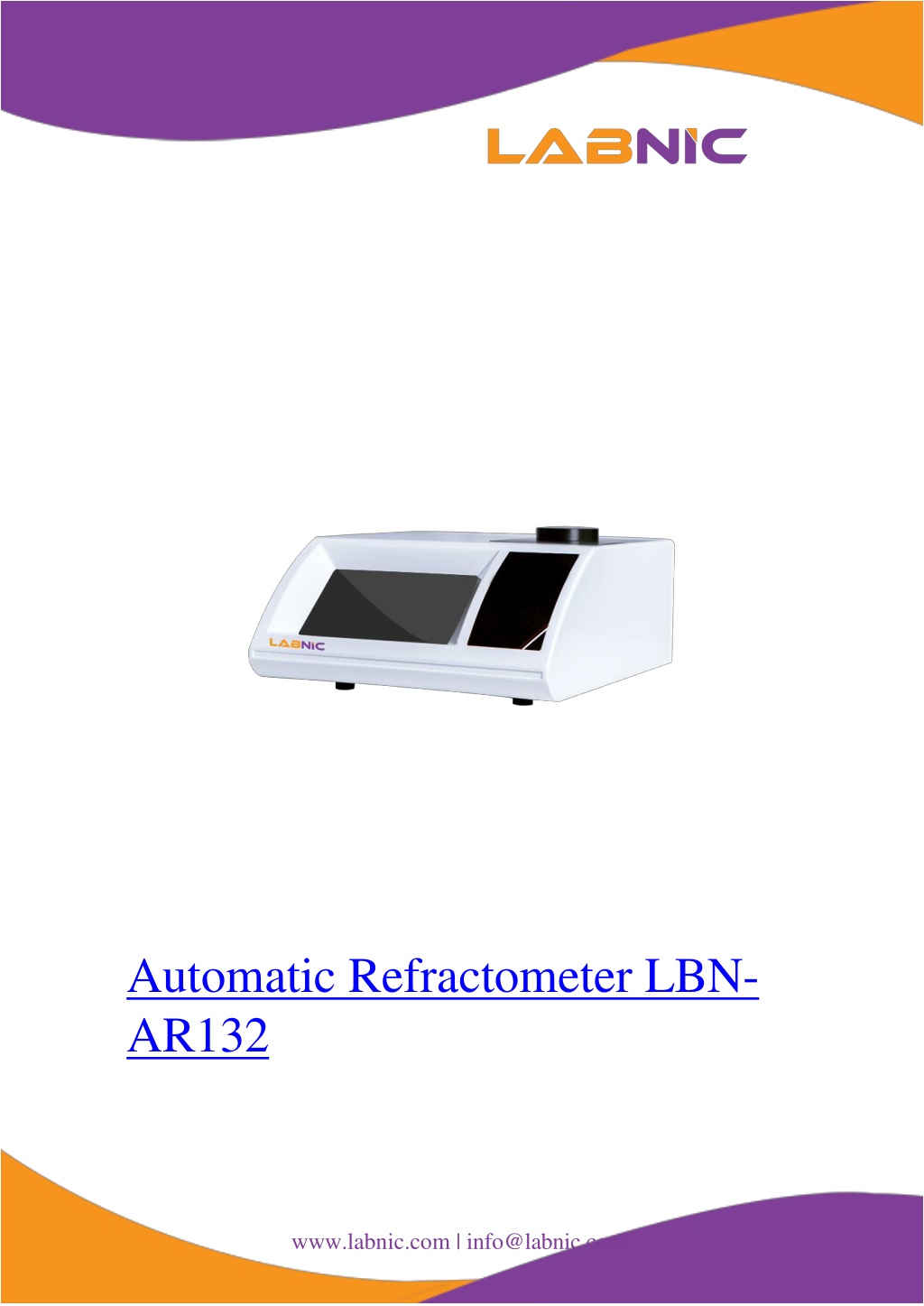

  1. Automatic Refractometer LBN- AR132 www.labnic.com | info@labnic.com

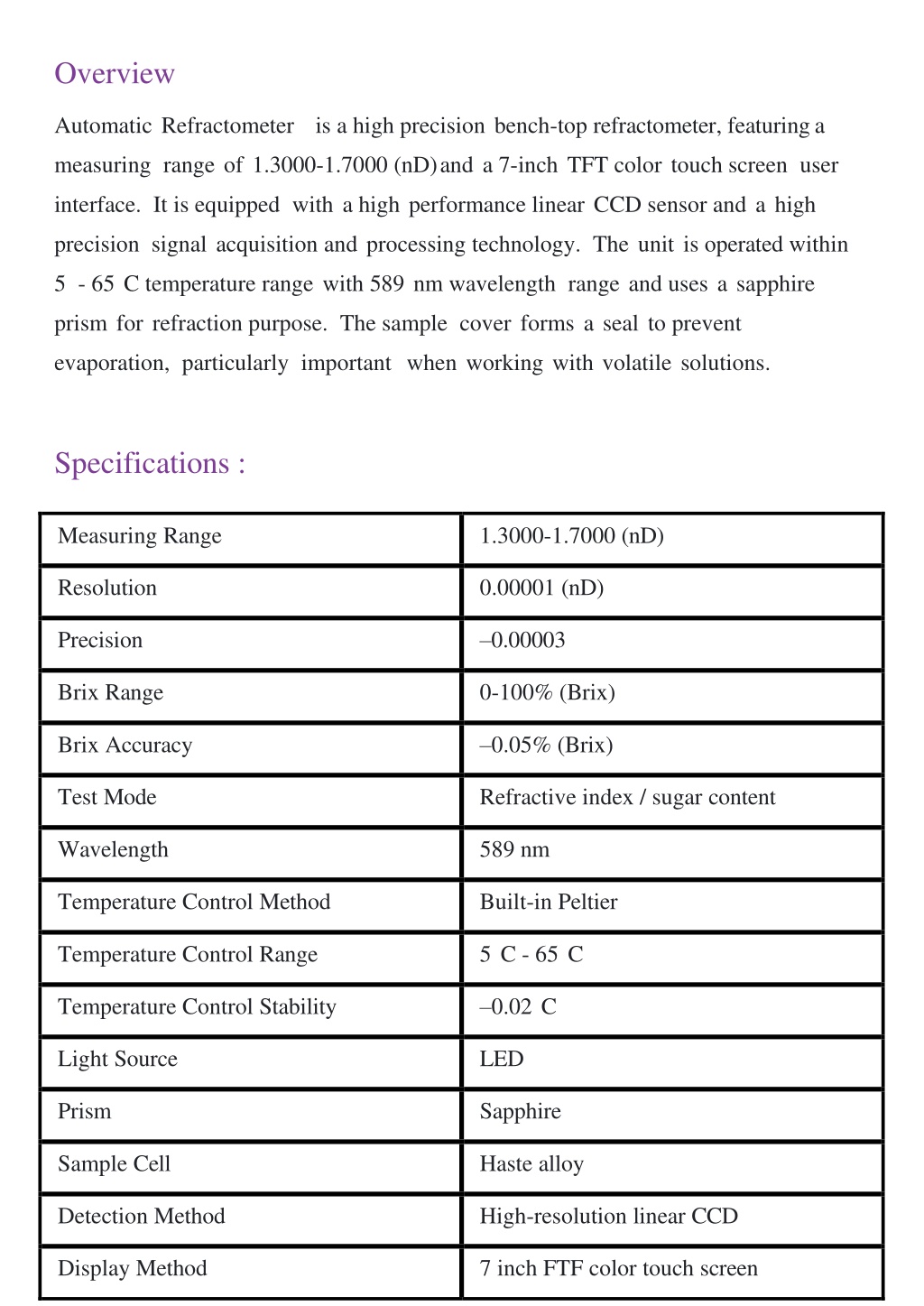

  2. Overview Automatic Refractometer is a high precision bench-top refractometer, featuring a measuring range of 1.3000- 1.7000 (nD) and a 7-inch TFT color touch screen user interface. It is equipped with a high performance linear CCD sensor and a high precision signal acquisition and processing technology. The unit is operated within 5 - 65 C temperature range with 589 nm wavelength range and uses a sapphire prism for refraction purpose. The sample cover forms a seal to prevent evaporation, particularly importantwhen working with volatile solutions. Specifications : Measuring Range 1.3000-1.7000 (nD) Resolution 0.00001 (nD) Precision –0.00003 Brix Range 0-100% (Brix) Brix Accuracy –0.05% (Brix) Test Mode Refractive index / sugar content Wavelength 589 nm Temperature Control Method Built-in Peltier Temperature Control Range 5 C - 65 C Temperature Control Stability –0.02 C Light Source LED Prism Sapphire Sample Cell Haste alloy Detection Method High-resolution linear CCD Display Method 7 inch FTF color touch screen

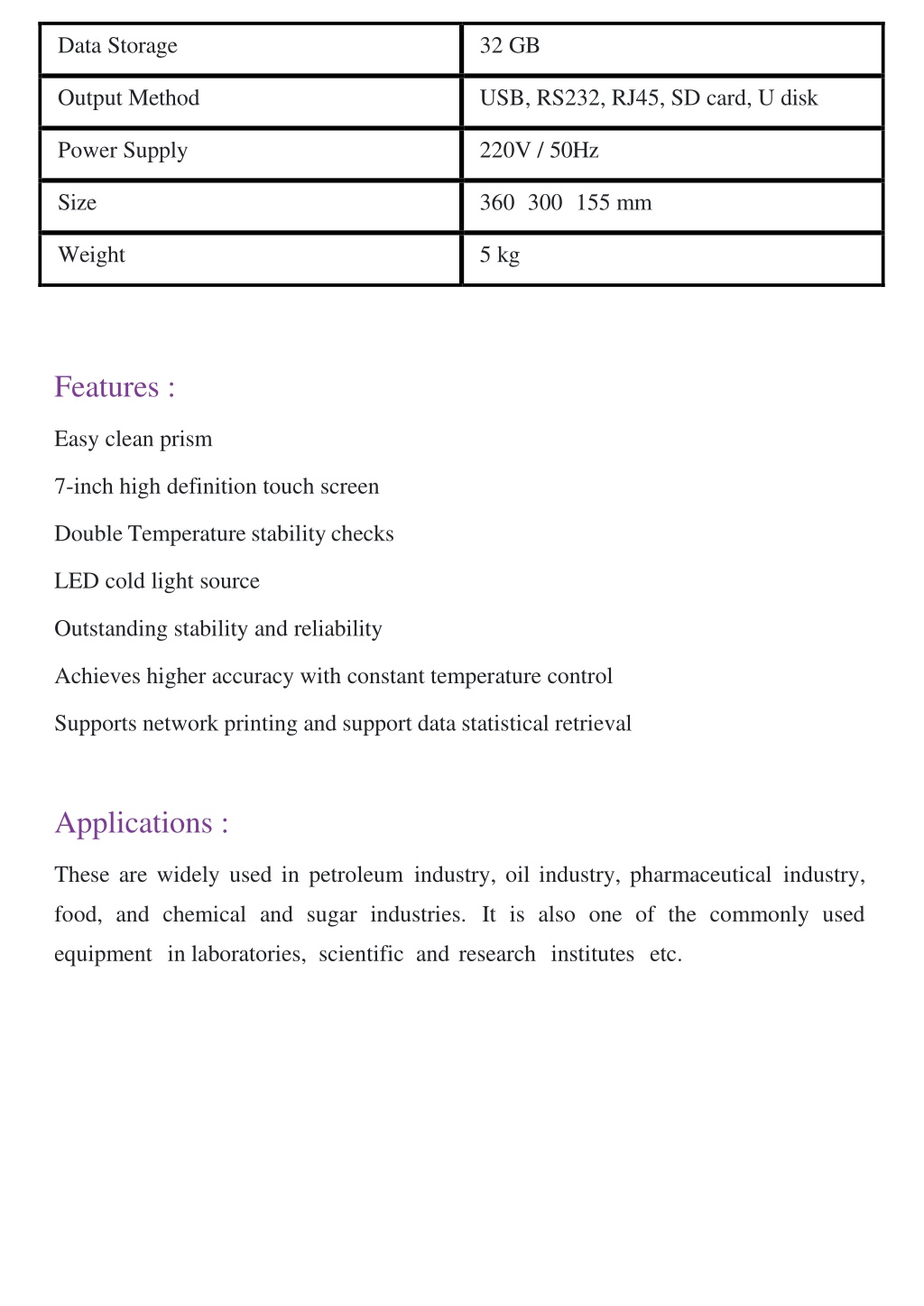

  3. Data Storage 32 GB Output Method USB, RS232, RJ45, SD card, U disk Power Supply 220V / 50Hz Size 360300155 mm Weight 5 kg Features : Easy clean prism 7-inch high definition touch screen Double Temperature stability checks LED cold light source Outstanding stability and reliability Achieves higher accuracy with constant temperature control Supports network printing and support data statistical retrieval Applications : These are widely used in petroleum industry, oil industry, pharmaceutical industry, food, and chemical and sugar industries. It is also one of the commonly used equipmentin laboratories, scientific and researchinstitutesetc.

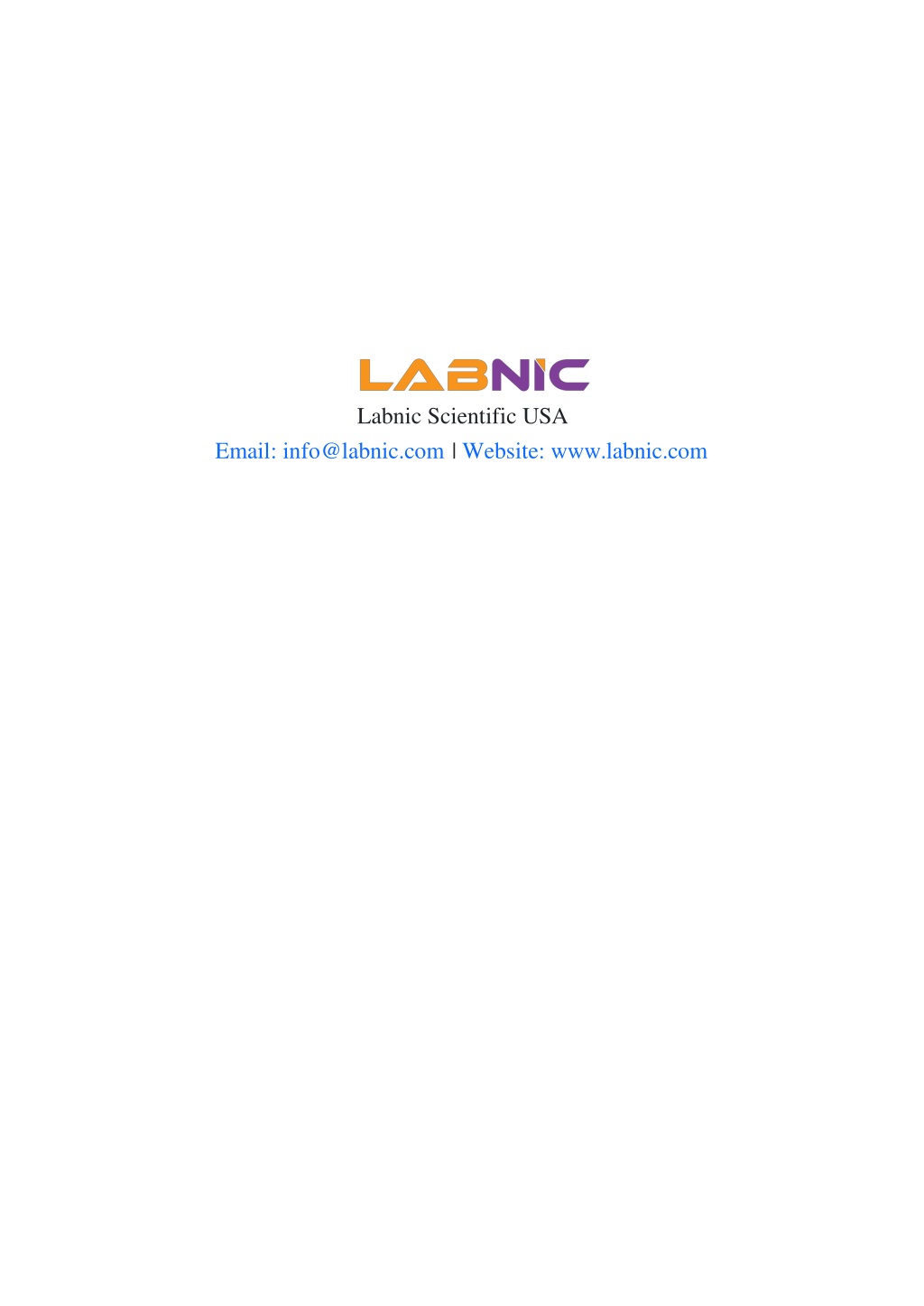

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
