Automatic-Refractometer-LBN-AR131

Labnic Automatic Refractometer is a high-precision device with a 1.3000u20131.7000 (nD) range, 7" TFT touch screen, and linear CCD sensor with a 589 nm wavelength. It features an operating temperature of 5u00b0u201365u00b0C, a sapphire prism, u00b10.0002 precision, and 32 GB storage for accurate signal processing.

Donna58
Download Presentation

Automatic-Refractometer-LBN-AR131

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

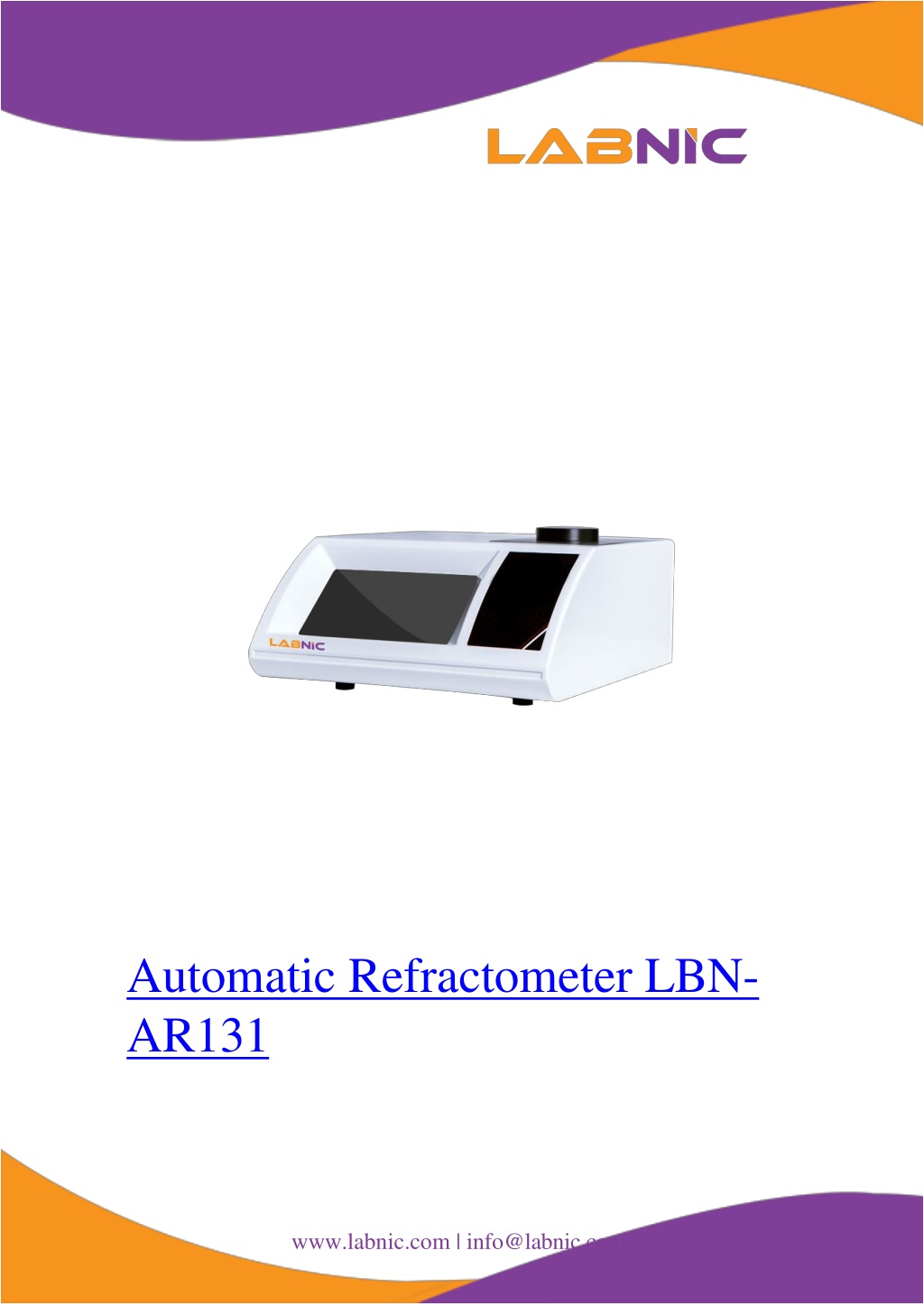

  1. Automatic Refractometer LBN- AR131 www.labnic.com | info@labnic.com

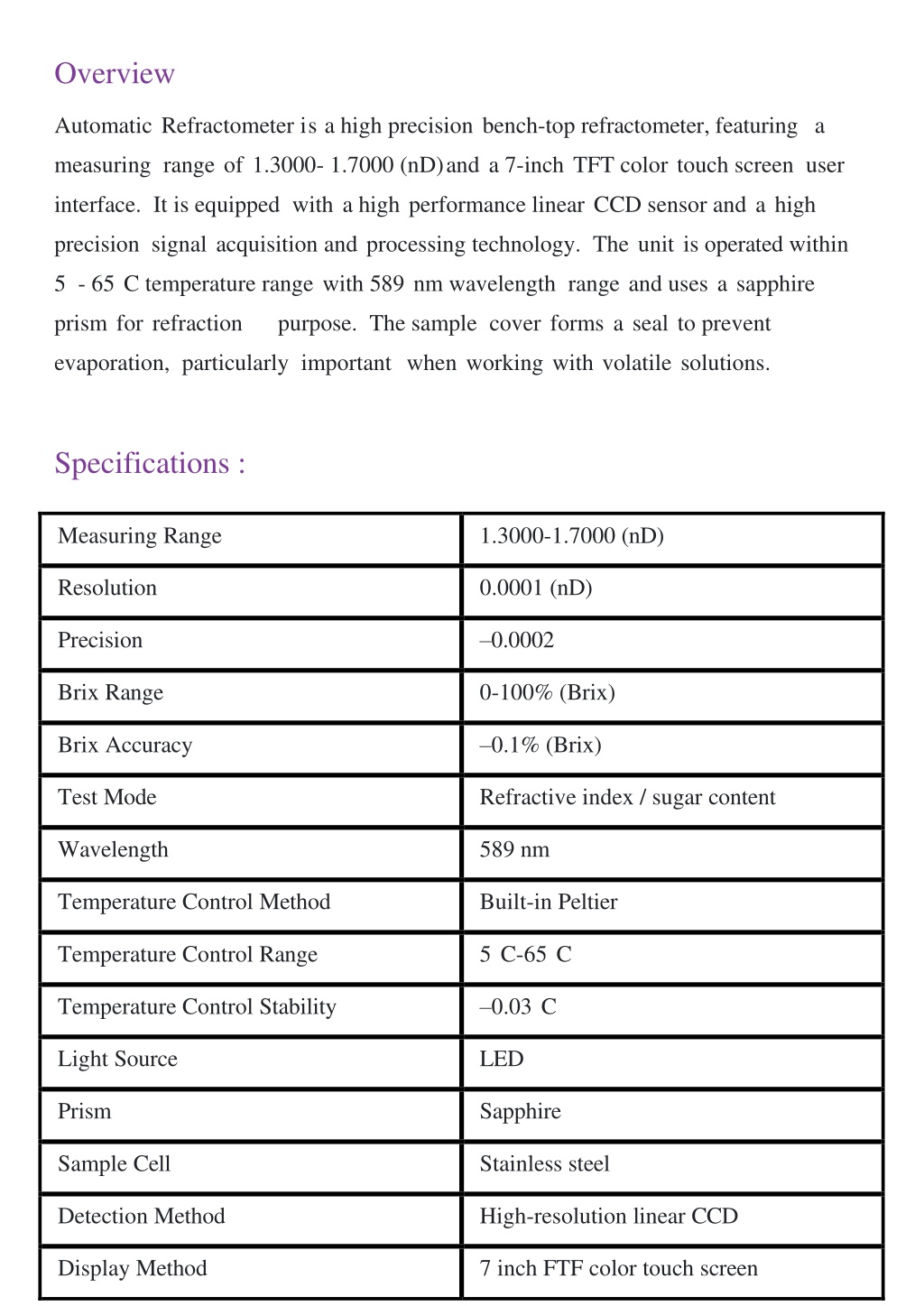

  2. Overview Automatic Refractometer is a high precision bench-top refractometer, featuring a measuring range of 1.3000 - 1.7000 (nD) and a 7-inch TFT color touch screen user interface. It is equipped with a high performance linear CCD sensor and a high precision signal acquisition and processing technology. The unit is operated within 5 - 65 C temperature range with 589 nm wavelength range and uses a sapphire prism for refraction purpose. The sample cover forms a seal to prevent evaporation, particularly importantwhen working with volatile solutions. Specifications : Measuring Range 1.3000-1.7000 (nD) Resolution 0.0001 (nD) Precision –0.0002 Brix Range 0-100% (Brix) Brix Accuracy –0.1% (Brix) Test Mode Refractive index / sugar content Wavelength 589 nm Temperature Control Method Built-in Peltier Temperature Control Range 5 C-65 C Temperature Control Stability –0.03 C Light Source LED Prism Sapphire Sample Cell Stainless steel Detection Method High-resolution linear CCD Display Method 7 inch FTF color touch screen

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
