Automatic-PMCC-Flash-Point-Tester-LBN-FP131

Labnic Automatic PM CC Flash Point Tester measures the flashpoint of flammable liquids using electric ignition and a gas flame (3.2u20134.8 mm). It operates from ambient to 300u00b0C with 0.1u00b0C accuracy and u22642u00b0C repeatability, featuring auto arm movement, error correction, and pressure calibration.

Donna58
Download Presentation

Automatic-PMCC-Flash-Point-Tester-LBN-FP131

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

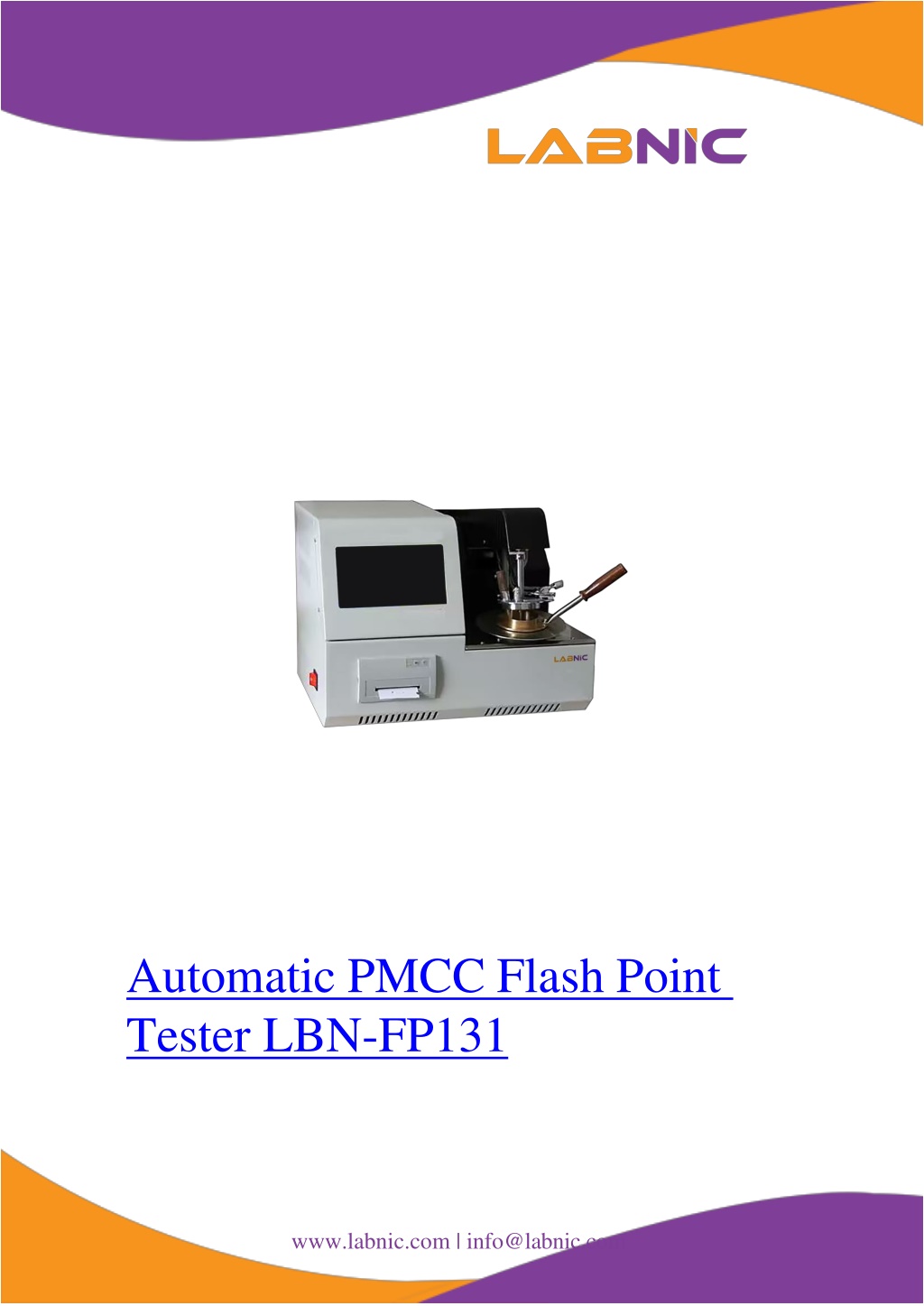

  1. Automatic PMCC Flash Point Tester LBN-FP131 www.labnic.com | info@labnic.com

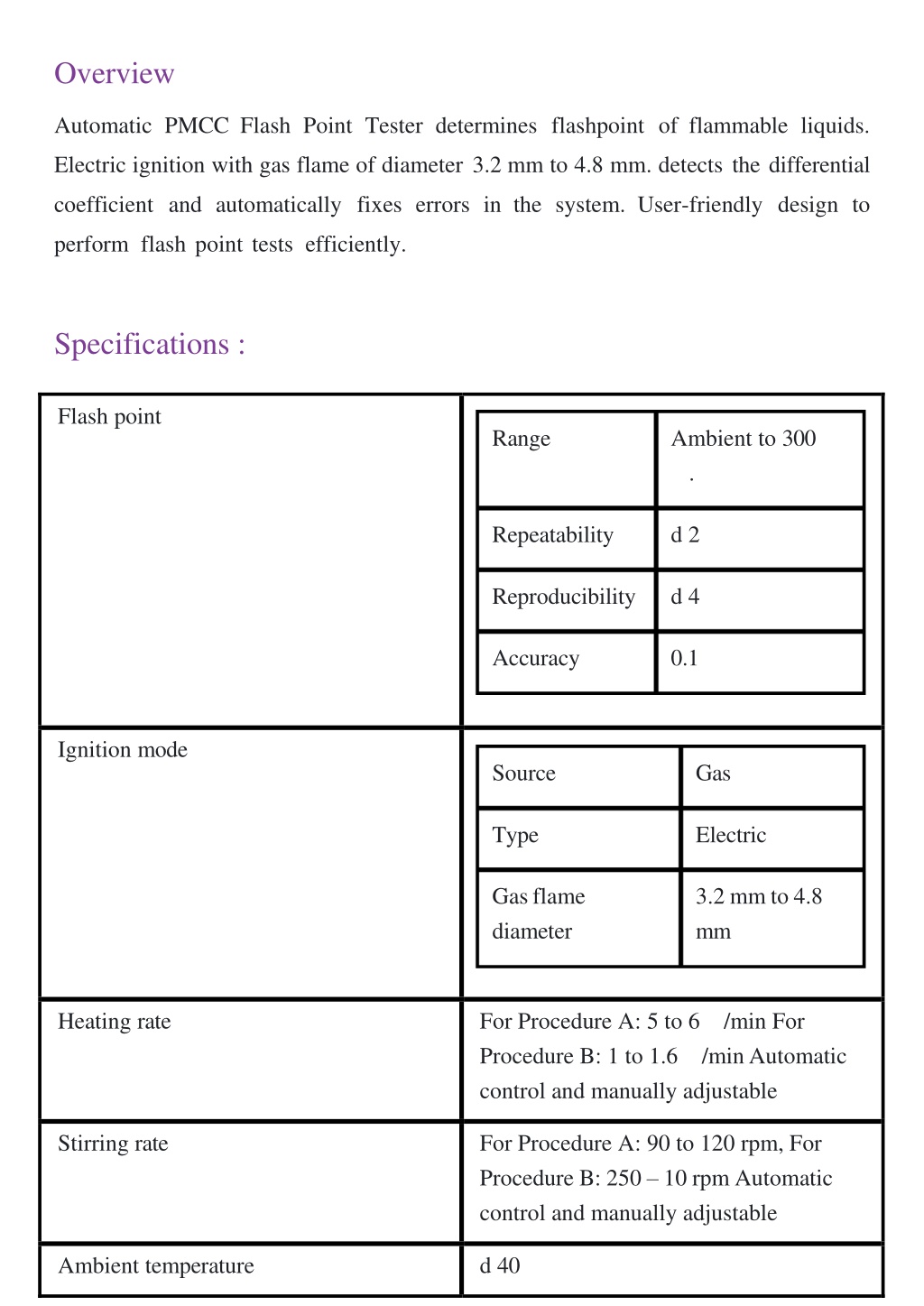

  2. Overview Automatic PMCC Flash Point Tester determines flashpoint of flammable liquids. Electric ignition with gas flame of diameter 3.2 mm to 4.8 mm. detects the differential coefficient and automatically fixes errors in the system. User-friendly design to perform flash point tests efficiently. Specifications : Flash point Range Ambient to 300 . Repeatability d 2 Reproducibility d 4 Accuracy 0.1 Ignition mode Source Gas Type Electric Gas flame diameter 3.2 mm to 4.8 mm Heating rate For Procedure A: 5 to 6 /min For Procedure B: 1 to 1.6 /min Automatic control and manually adjustable Stirring rate For Procedure A: 90 to 120 rpm, For Procedure B: 250 – 10 rpm Automatic control and manually adjustable Ambient temperature d 40

  3. Only two pages were converted. Please Sign Up to convert the full document. www.freepdfconvert.com/membership
