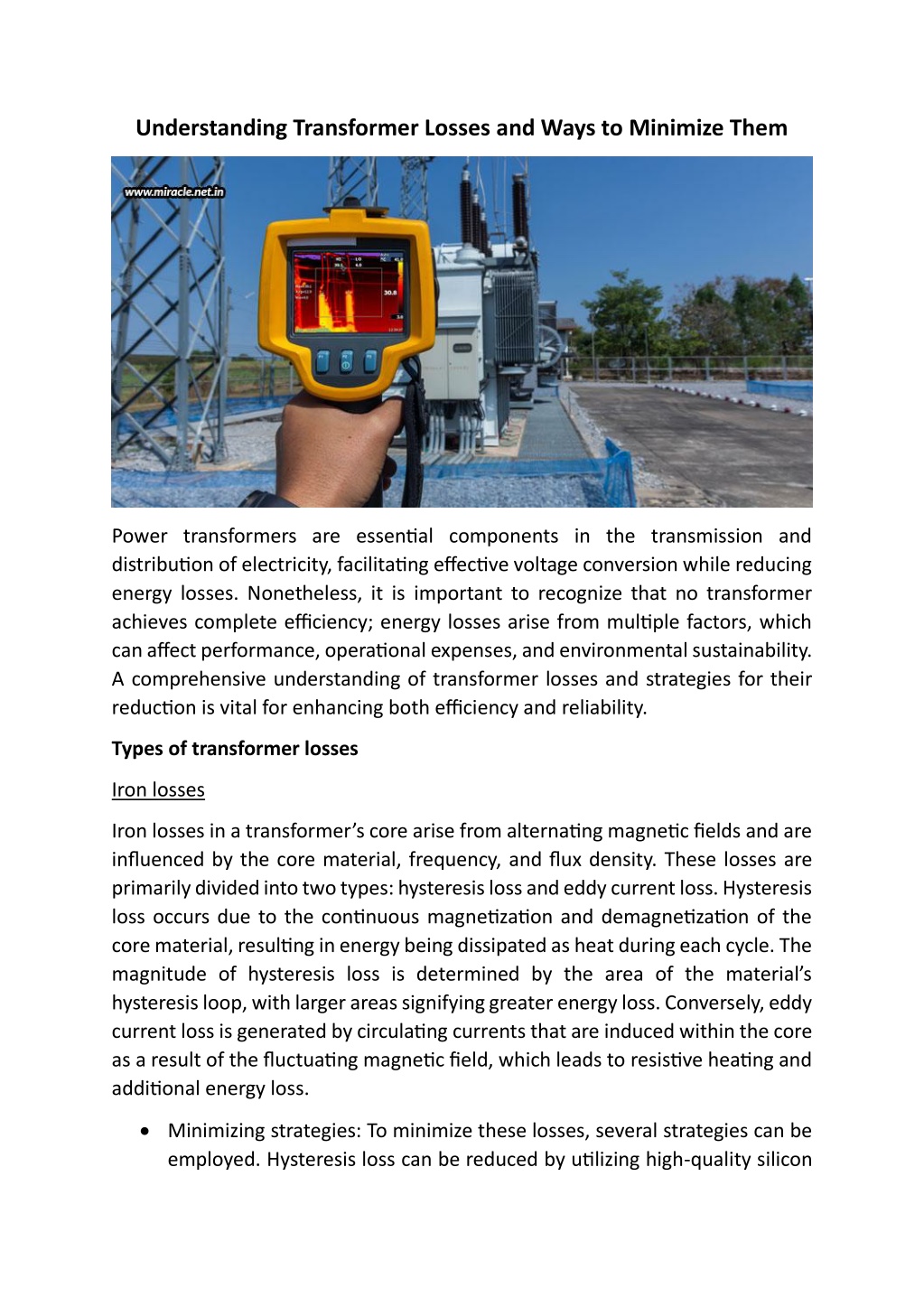

1. Understanding Transformer Losses and Ways to Minimize Them Power transformers are essential components in the transmission and distribution of electricity, facilitating effective voltage conversion while reducing energy losses. Nonetheless, it is important to recognize that no transformer achieves complete efficiency; energy losses arise from multiple factors, which can affect performance, operational expenses, and environmental sustainability. A comprehensive understanding of transformer losses and strategies for their reduction is vital for enhancing both efficiency and reliability. Types of transformer losses Iron losses Iron losses in a transformer’s core arise from alternating magnetic fields and are influenced by the core material, frequency, and flux density. These losses are primarily divided into two types: hysteresis loss and eddy current loss. Hysteresis loss occurs due to the continuous magnetization and demagnetization of the core material, resulting in energy being dissipated as heat during each cycle. The magnitude of hysteresis loss is determined by the area of the material’s hysteresis loop, with larger areas signifying greater energy loss. Conversely, eddy current loss is generated by circulating currents that are induced within the core as a result of the fluctuating magnetic field, which leads to resistive heating and additional energy loss. •Minimizing strategies: To minimize these losses, several strategies can be employed. Hysteresis loss can be reduced by utilizing high-quality silicon

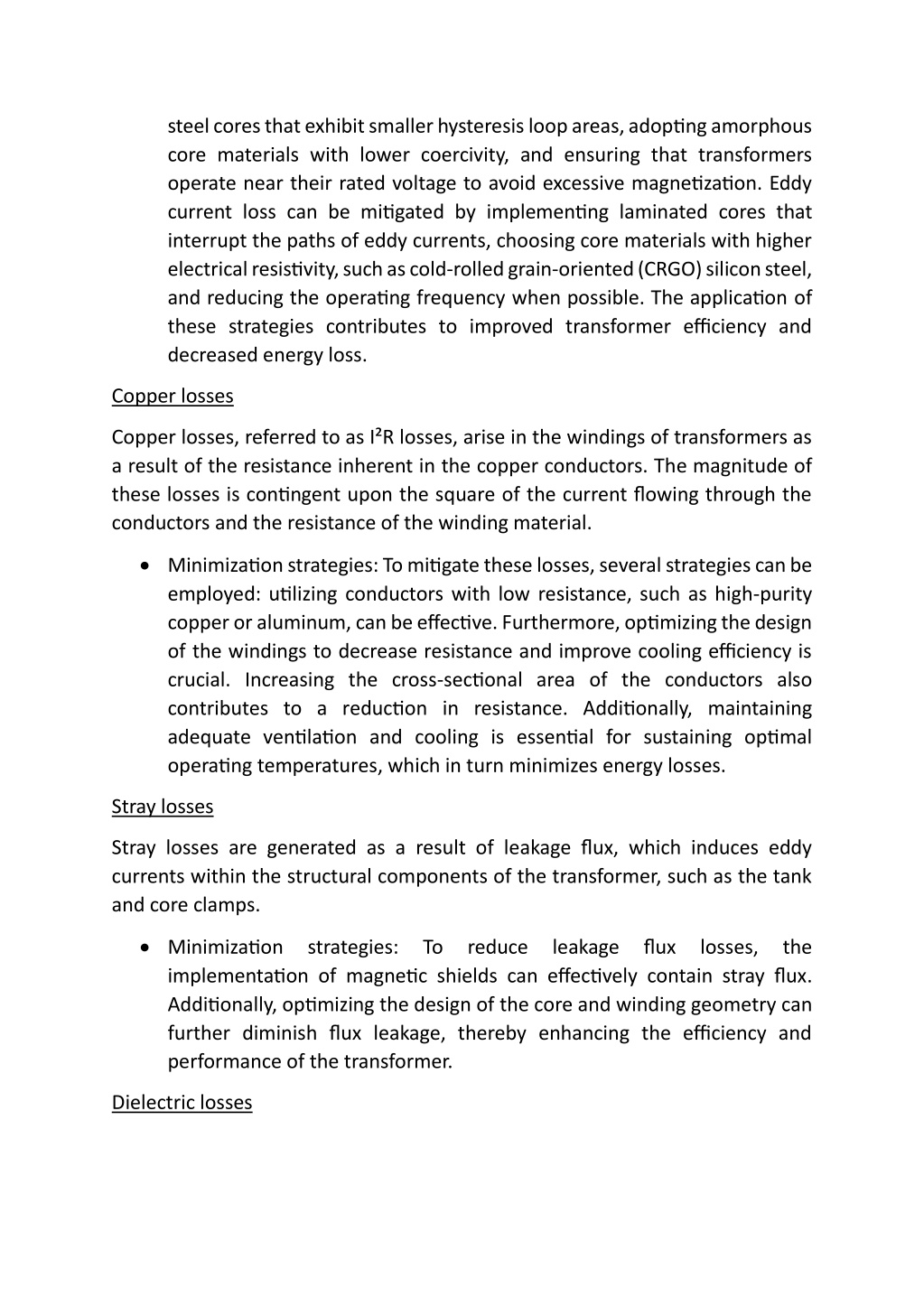

2. steel cores that exhibit smaller hysteresis loop areas, adopting amorphous core materials with lower coercivity, and ensuring that transformers operate near their rated voltage to avoid excessive magnetization. Eddy current loss can be mitigated by implementing laminated cores that interrupt the paths of eddy currents, choosing core materials with higher electrical resistivity, such as cold-rolled grain-oriented (CRGO) silicon steel, and reducing the operating frequency when possible. The application of these strategies contributes to improved transformer efficiency and decreased energy loss. Copper losses Copper losses, referred to as I²R losses, arise in the windings of transformers as a result of the resistance inherent in the copper conductors. The magnitude of these losses is contingent upon the square of the current flowing through the conductors and the resistance of the winding material. •Minimization strategies: To mitigate these losses, several strategies can be employed: utilizing conductors with low resistance, such as high-purity copper or aluminum, can be effective. Furthermore, optimizing the design of the windings to decrease resistance and improve cooling efficiency is crucial. Increasing the cross-sectional area of the conductors also contributes to a reduction in resistance. Additionally, maintaining adequate ventilation and cooling is essential for sustaining optimal operating temperatures, which in turn minimizes energy losses. Stray losses Stray losses are generated as a result of leakage flux, which induces eddy currents within the structural components of the transformer, such as the tank and core clamps. •Minimization strategies: To reduce leakage flux losses, the implementation of magnetic shields can effectively contain stray flux. Additionally, optimizing the design of the core and winding geometry can further diminish flux leakage, thereby enhancing the efficiency and performance of the transformer. Dielectric losses

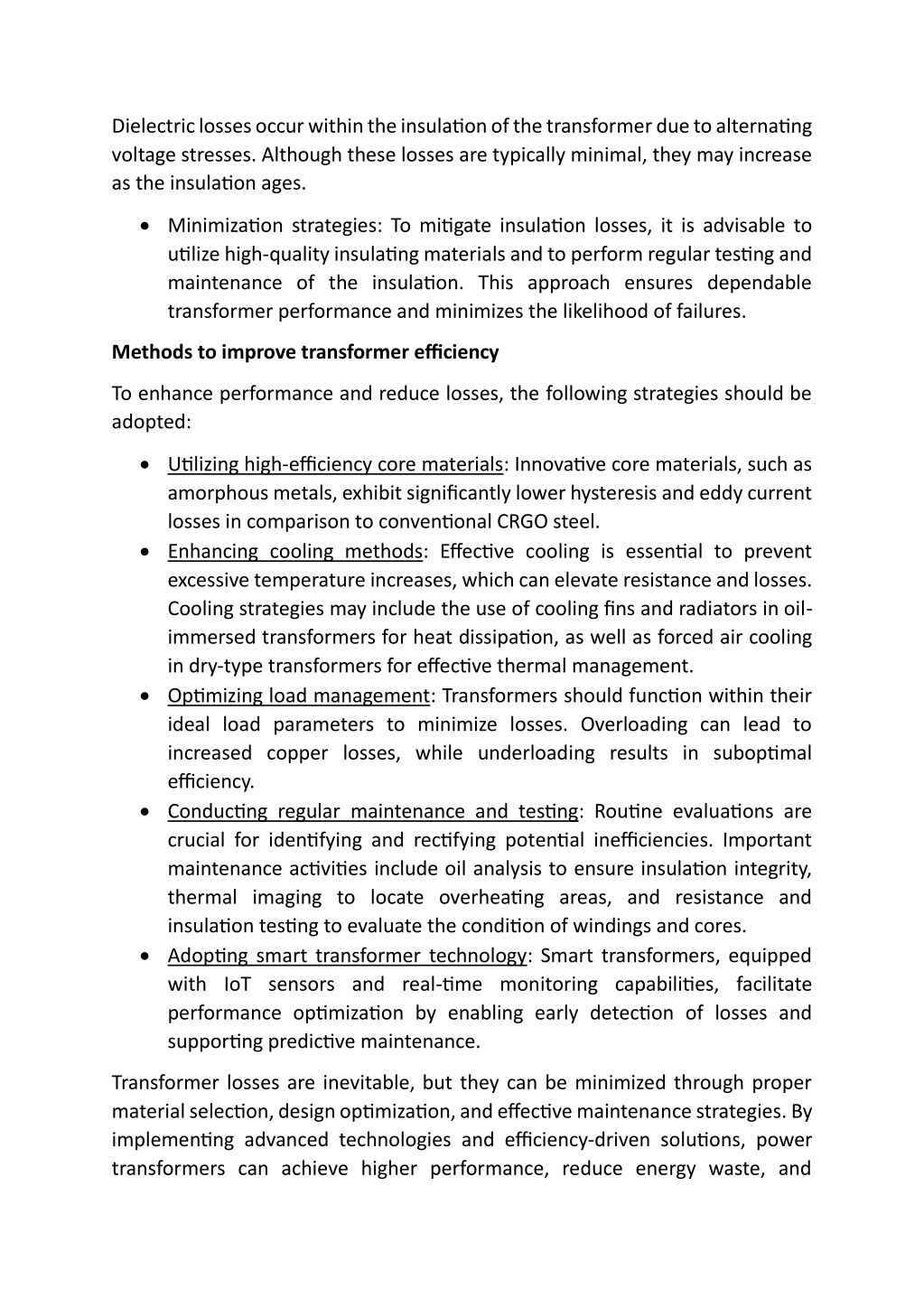

3. Dielectric losses occur within the insulation of the transformer due to alternating voltage stresses. Although these losses are typically minimal, they may increase as the insulation ages. •Minimization strategies: To mitigate insulation losses, it is advisable to utilize high-quality insulating materials and to perform regular testing and maintenance of the insulation. This approach ensures dependable transformer performance and minimizes the likelihood of failures. Methods to improve transformer efficiency To enhance performance and reduce losses, the following strategies should be adopted: •Utilizing high-efficiency core materials: Innovative core materials, such as amorphous metals, exhibit significantly lower hysteresis and eddy current losses in comparison to conventional CRGO steel. •Enhancing cooling methods: Effective cooling is essential to prevent excessive temperature increases, which can elevate resistance and losses. Cooling strategies may include the use of cooling fins and radiators in oil- immersed transformers for heat dissipation, as well as forced air cooling in dry-type transformers for effective thermal management. •Optimizing load management: Transformers should function within their ideal load parameters to minimize losses. Overloading can lead to increased copper losses, while underloading results in suboptimal efficiency. •Conducting regular maintenance and testing: Routine evaluations are crucial for identifying and rectifying potential inefficiencies. Important maintenance activities include oil analysis to ensure insulation integrity, thermal imaging to locate overheating areas, and resistance and insulation testing to evaluate the condition of windings and cores. •Adopting smart transformer technology: Smart transformers, equipped with IoT sensors and real-time monitoring capabilities, facilitate performance optimization by enabling early detection of losses and supporting predictive maintenance. Transformer losses are inevitable, but they can be minimized through proper material selection, design optimization, and effective maintenance strategies. By implementing advanced technologies and efficiency-driven solutions, power transformers can achieve higher performance, reduce energy waste, and

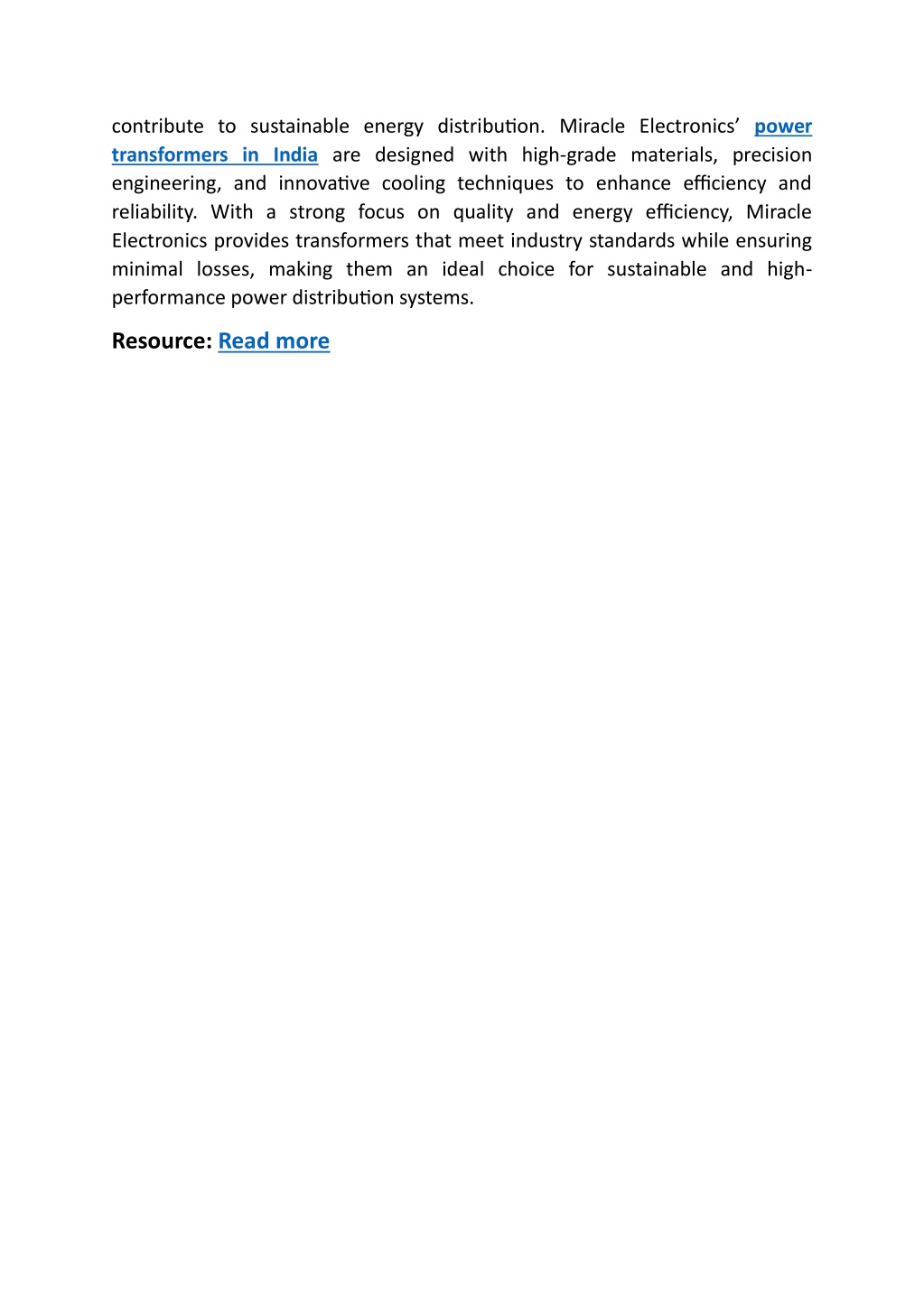

4. contribute to sustainable energy distribution. Miracle Electronics’ power transformers in India are designed with high-grade materials, precision engineering, and innovative cooling techniques to enhance efficiency and reliability. With a strong focus on quality and energy efficiency, Miracle Electronics provides transformers that meet industry standards while ensuring minimal losses, making them an ideal choice for sustainable and high- performance power distribution systems. Resource: Read more
