Installation And Maintenance Of Landscape Lighting Transformers

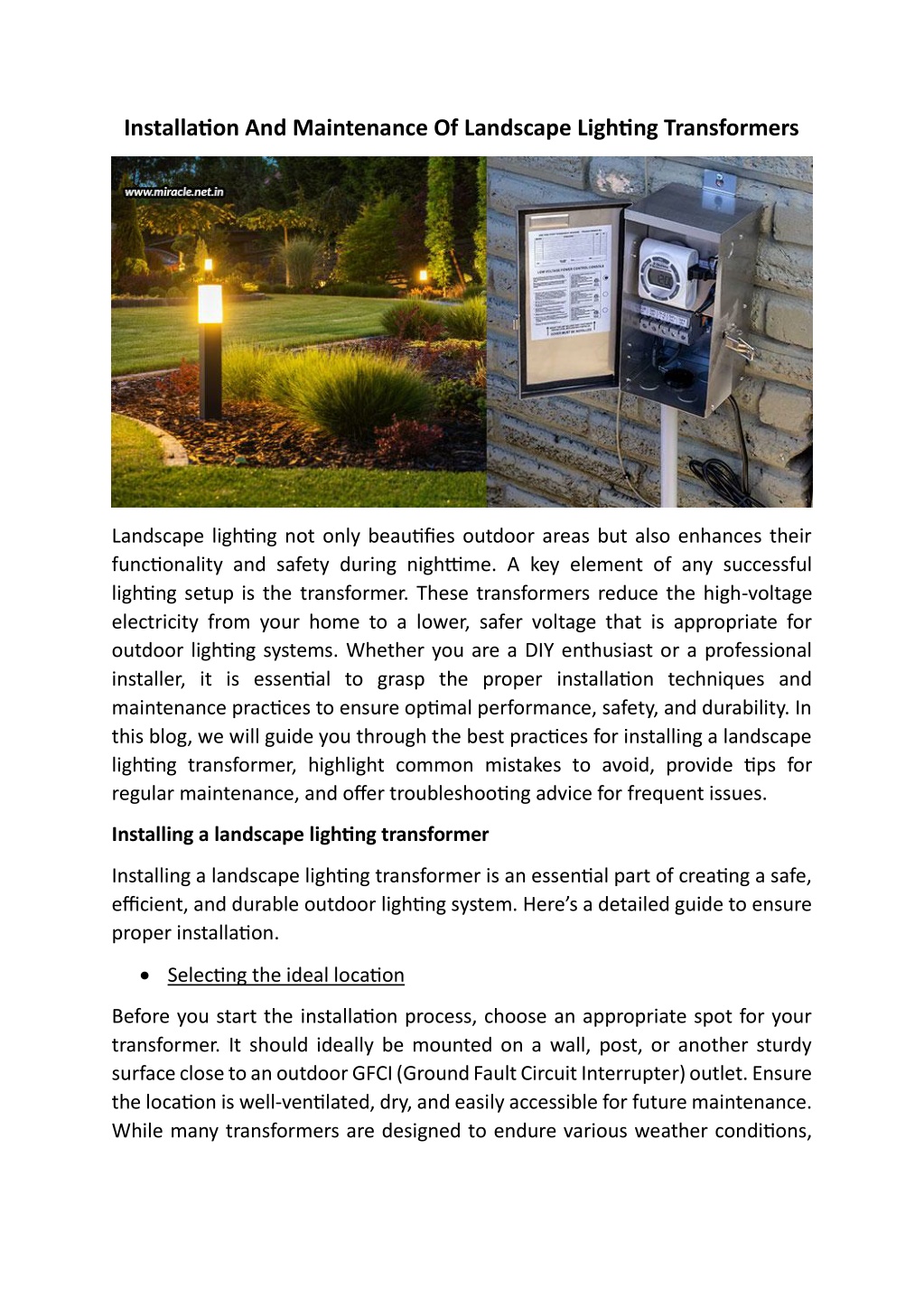

1. Installation And Maintenance Of Landscape Lighting Transformers Landscape lighting not only beautifies outdoor areas but also enhances their functionality and safety during nighttime. A key element of any successful lighting setup is the transformer. These transformers reduce the high-voltage electricity from your home to a lower, safer voltage that is appropriate for outdoor lighting systems. Whether you are a DIY enthusiast or a professional installer, it is essential to grasp the proper installation techniques and maintenance practices to ensure optimal performance, safety, and durability. In this blog, we will guide you through the best practices for installing a landscape lighting transformer, highlight common mistakes to avoid, provide tips for regular maintenance, and offer troubleshooting advice for frequent issues. Installing a landscape lighting transformer Installing a landscape lighting transformer is an essential part of creating a safe, efficient, and durable outdoor lighting system. Here’s a detailed guide to ensure proper installation. •Selecting the ideal location Before you start the installation process, choose an appropriate spot for your transformer. It should ideally be mounted on a wall, post, or another sturdy surface close to an outdoor GFCI (Ground Fault Circuit Interrupter) outlet. Ensure the location is well-ventilated, dry, and easily accessible for future maintenance. While many transformers are designed to endure various weather conditions,

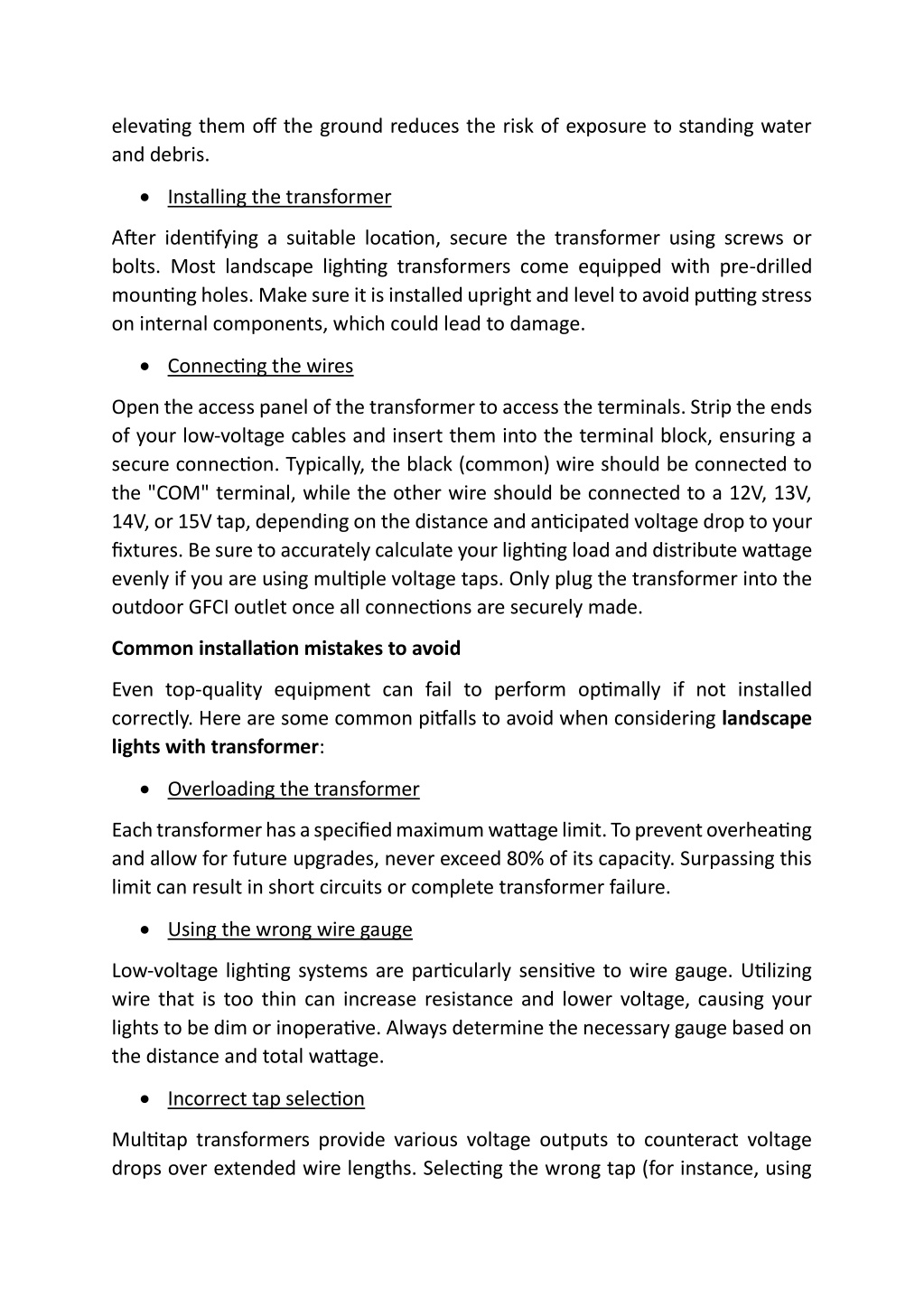

2. elevating them off the ground reduces the risk of exposure to standing water and debris. •Installing the transformer After identifying a suitable location, secure the transformer using screws or bolts. Most landscape lighting transformers come equipped with pre-drilled mounting holes. Make sure it is installed upright and level to avoid putting stress on internal components, which could lead to damage. •Connecting the wires Open the access panel of the transformer to access the terminals. Strip the ends of your low-voltage cables and insert them into the terminal block, ensuring a secure connection. Typically, the black (common) wire should be connected to the "COM" terminal, while the other wire should be connected to a 12V, 13V, 14V, or 15V tap, depending on the distance and anticipated voltage drop to your fixtures. Be sure to accurately calculate your lighting load and distribute wattage evenly if you are using multiple voltage taps. Only plug the transformer into the outdoor GFCI outlet once all connections are securely made. Common installation mistakes to avoid Even top-quality equipment can fail to perform optimally if not installed correctly. Here are some common pitfalls to avoid when considering landscape lights with transformer: •Overloading the transformer Each transformer has a specified maximum wattage limit. To prevent overheating and allow for future upgrades, never exceed 80% of its capacity. Surpassing this limit can result in short circuits or complete transformer failure. •Using the wrong wire gauge Low-voltage lighting systems are particularly sensitive to wire gauge. Utilizing wire that is too thin can increase resistance and lower voltage, causing your lights to be dim or inoperative. Always determine the necessary gauge based on the distance and total wattage. •Incorrect tap selection Multitap transformers provide various voltage outputs to counteract voltage drops over extended wire lengths. Selecting the wrong tap (for instance, using

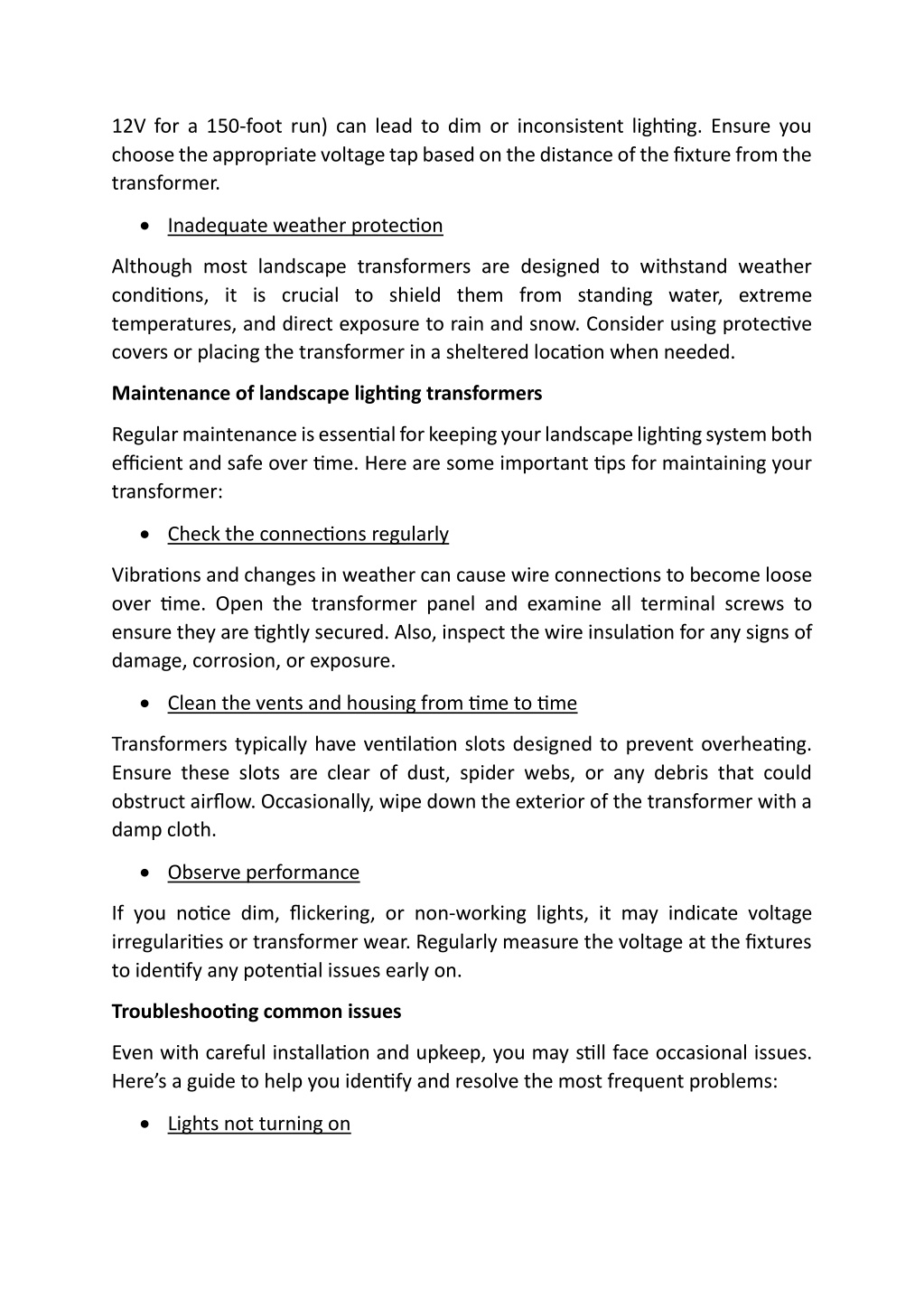

3. 12V for a 150-foot run) can lead to dim or inconsistent lighting. Ensure you choose the appropriate voltage tap based on the distance of the fixture from the transformer. •Inadequate weather protection Although most landscape transformers are designed to withstand weather conditions, it is crucial to shield them from standing water, extreme temperatures, and direct exposure to rain and snow. Consider using protective covers or placing the transformer in a sheltered location when needed. Maintenance of landscape lighting transformers Regular maintenance is essential for keeping your landscape lighting system both efficient and safe over time. Here are some important tips for maintaining your transformer: •Check the connections regularly Vibrations and changes in weather can cause wire connections to become loose over time. Open the transformer panel and examine all terminal screws to ensure they are tightly secured. Also, inspect the wire insulation for any signs of damage, corrosion, or exposure. •Clean the vents and housing from time to time Transformers typically have ventilation slots designed to prevent overheating. Ensure these slots are clear of dust, spider webs, or any debris that could obstruct airflow. Occasionally, wipe down the exterior of the transformer with a damp cloth. •Observe performance If you notice dim, flickering, or non-working lights, it may indicate voltage irregularities or transformer wear. Regularly measure the voltage at the fixtures to identify any potential issues early on. Troubleshooting common issues Even with careful installation and upkeep, you may still face occasional issues. Here’s a guide to help you identify and resolve the most frequent problems: •Lights not turning on

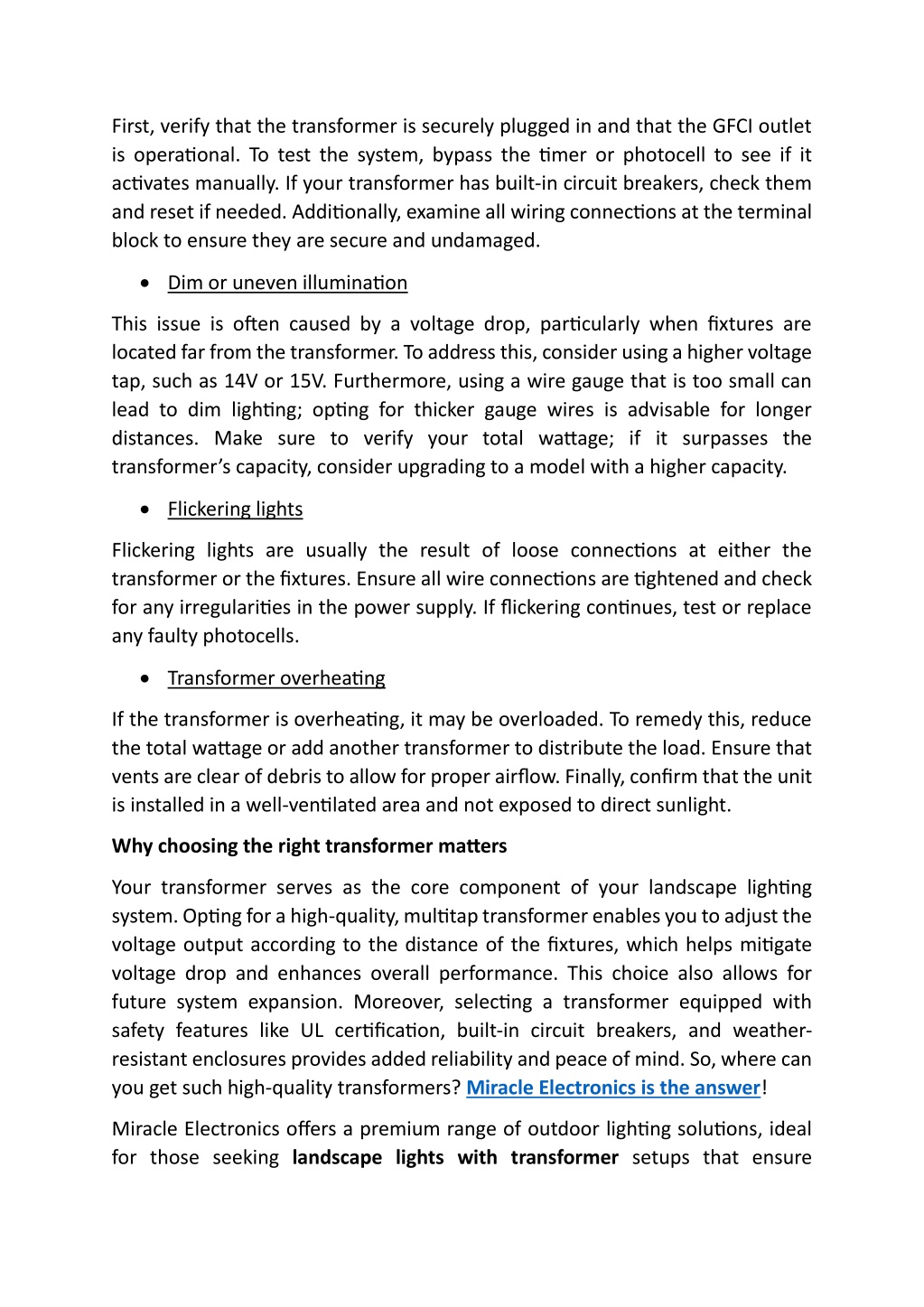

4. First, verify that the transformer is securely plugged in and that the GFCI outlet is operational. To test the system, bypass the timer or photocell to see if it activates manually. If your transformer has built-in circuit breakers, check them and reset if needed. Additionally, examine all wiring connections at the terminal block to ensure they are secure and undamaged. •Dim or uneven illumination This issue is often caused by a voltage drop, particularly when fixtures are located far from the transformer. To address this, consider using a higher voltage tap, such as 14V or 15V. Furthermore, using a wire gauge that is too small can lead to dim lighting; opting for thicker gauge wires is advisable for longer distances. Make sure to verify your total wattage; if it surpasses the transformer’s capacity, consider upgrading to a model with a higher capacity. •Flickering lights Flickering lights are usually the result of loose connections at either the transformer or the fixtures. Ensure all wire connections are tightened and check for any irregularities in the power supply. If flickering continues, test or replace any faulty photocells. •Transformer overheating If the transformer is overheating, it may be overloaded. To remedy this, reduce the total wattage or add another transformer to distribute the load. Ensure that vents are clear of debris to allow for proper airflow. Finally, confirm that the unit is installed in a well-ventilated area and not exposed to direct sunlight. Why choosing the right transformer matters Your transformer serves as the core component of your landscape lighting system. Opting for a high-quality, multitap transformer enables you to adjust the voltage output according to the distance of the fixtures, which helps mitigate voltage drop and enhances overall performance. This choice also allows for future system expansion. Moreover, selecting a transformer equipped with safety features like UL certification, built-in circuit breakers, and weather- resistant enclosures provides added reliability and peace of mind. So, where can you get such high-quality transformers? Miracle Electronics is the answer! Miracle Electronics offers a premium range of outdoor lighting solutions, ideal for those seeking landscape lights with transformer setups that ensure

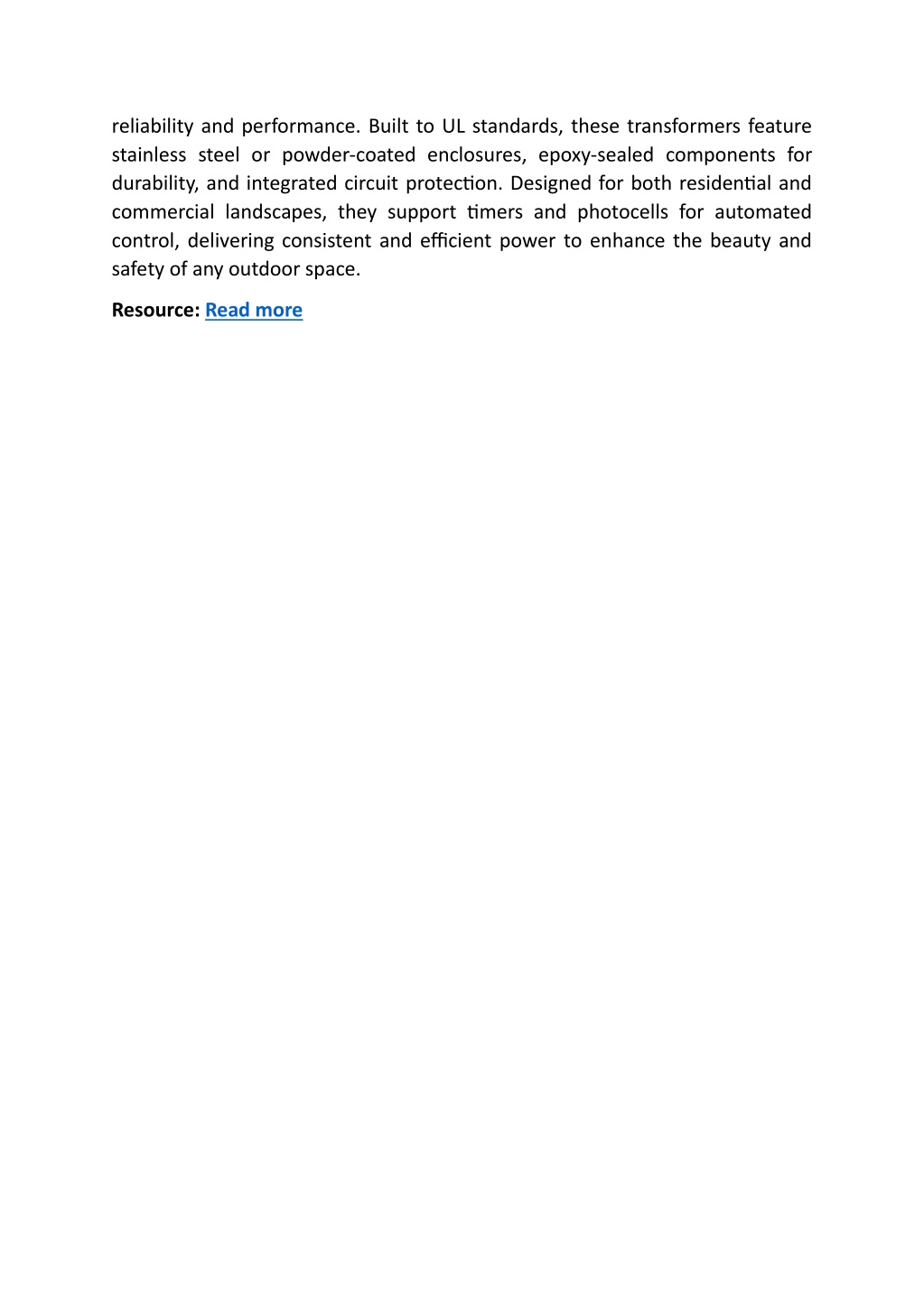

5. reliability and performance. Built to UL standards, these transformers feature stainless steel or powder-coated enclosures, epoxy-sealed components for durability, and integrated circuit protection. Designed for both residential and commercial landscapes, they support timers and photocells for automated control, delivering consistent and efficient power to enhance the beauty and safety of any outdoor space. Resource: Read more
