ANTERIOR RETRACTION MECHANICS ------ orthodontics space closure mechanics ppt...

1. Anterior retraction Mechanics in orthodontics PREPARED BY DR.DIDA BORU(Assistant professor of orthodontics) July 2024

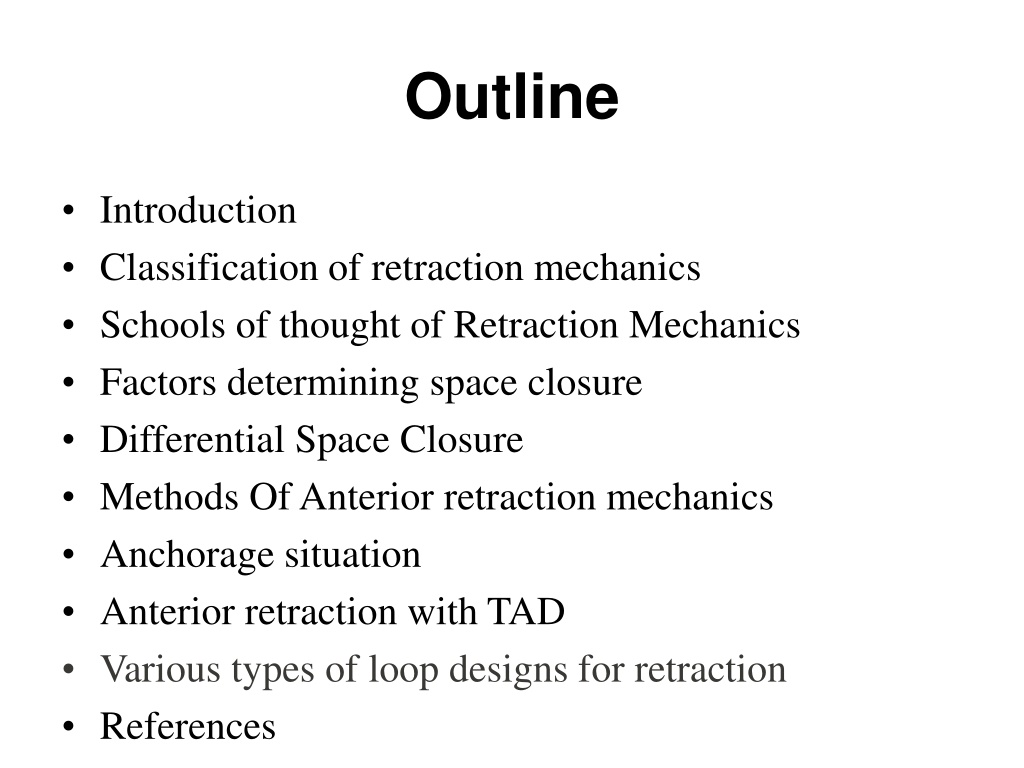

2. Outline

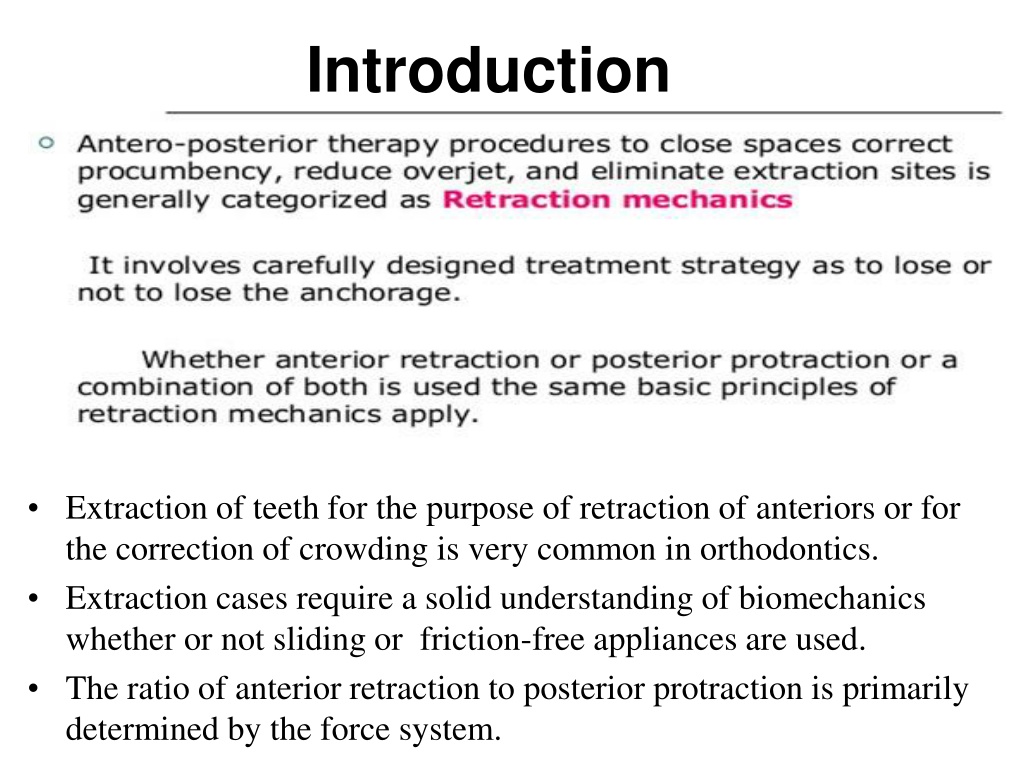

3. Introduction

4. CLASSIFICATION OF RETRACTION MECHANICS C] Based on type of tooth movement • Tipping followed by uprighting – Begg and Tip-Edge systems • Translation – Standard Edgewise and Pre-Adjusted Edgewise D] Based on mode of retraction • Cuspid retraction (Two step) • En masse retraction E] Based on Anchorage • Type A – Maximum Anchorage • Type B – Moderate Anchorage • Type C – Minimum Anchorage A] Based on wire configuration • Continuous arch mechanics • Segmented arch mechanics B] Based on friction • Friction mechanics {Sliding Mechanics} • Frictionless mechanics Use of loops or specialized springs T-loop, Omega loop

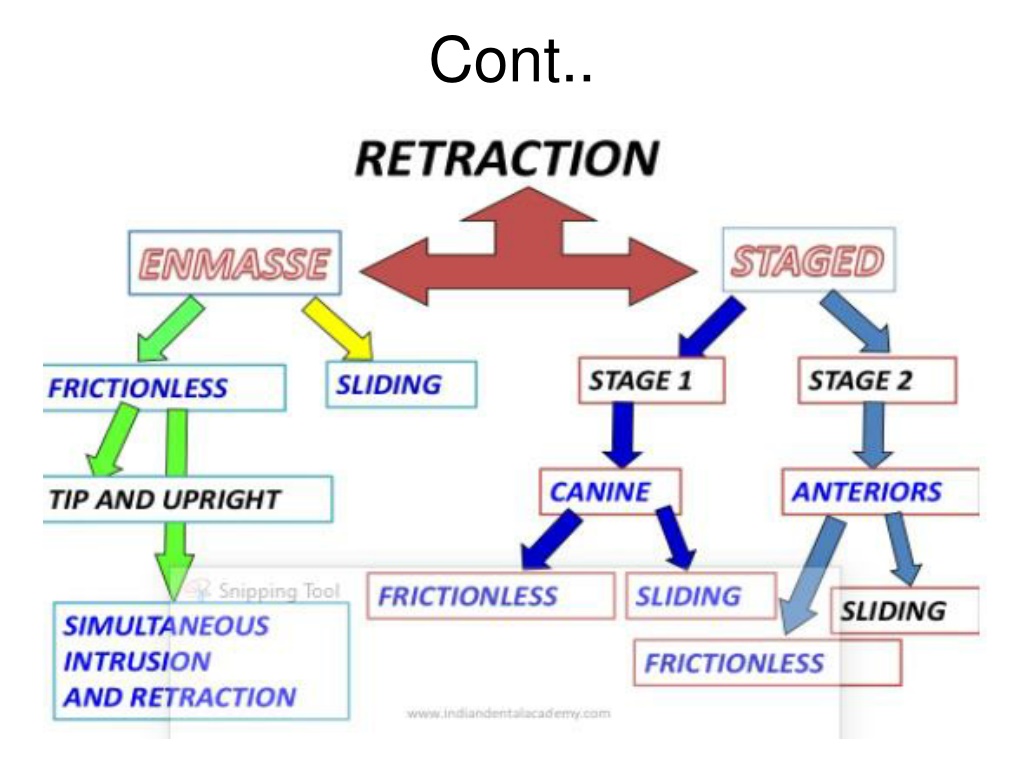

5. Cont..

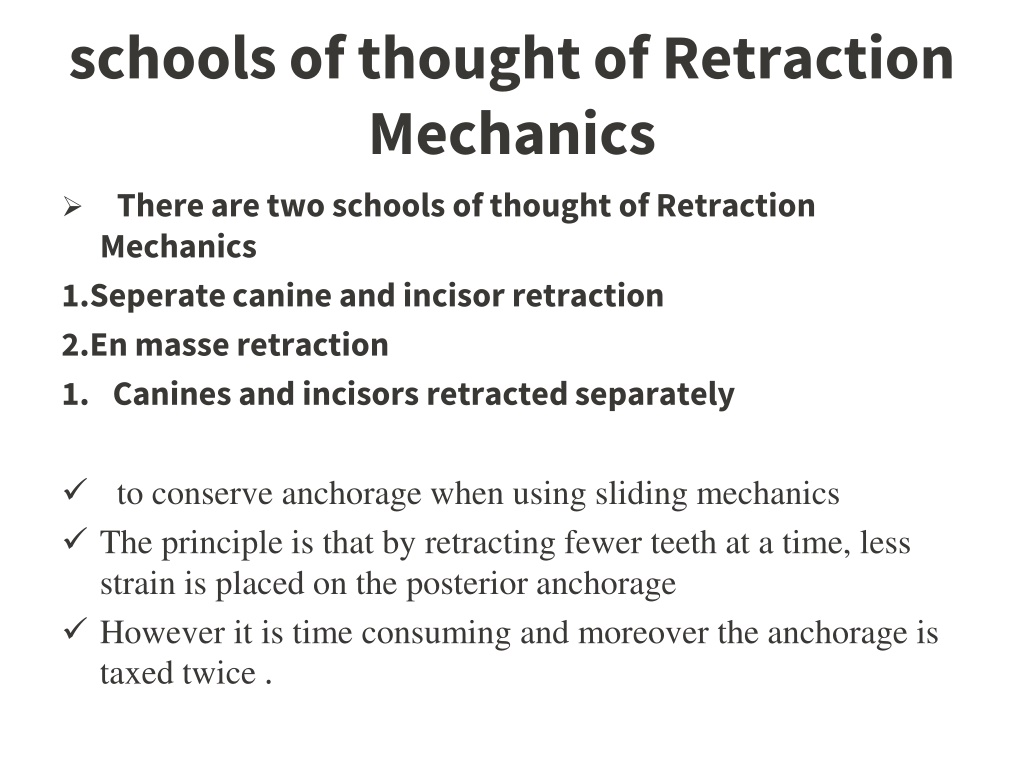

6. schools of thought of Retraction Mechanics

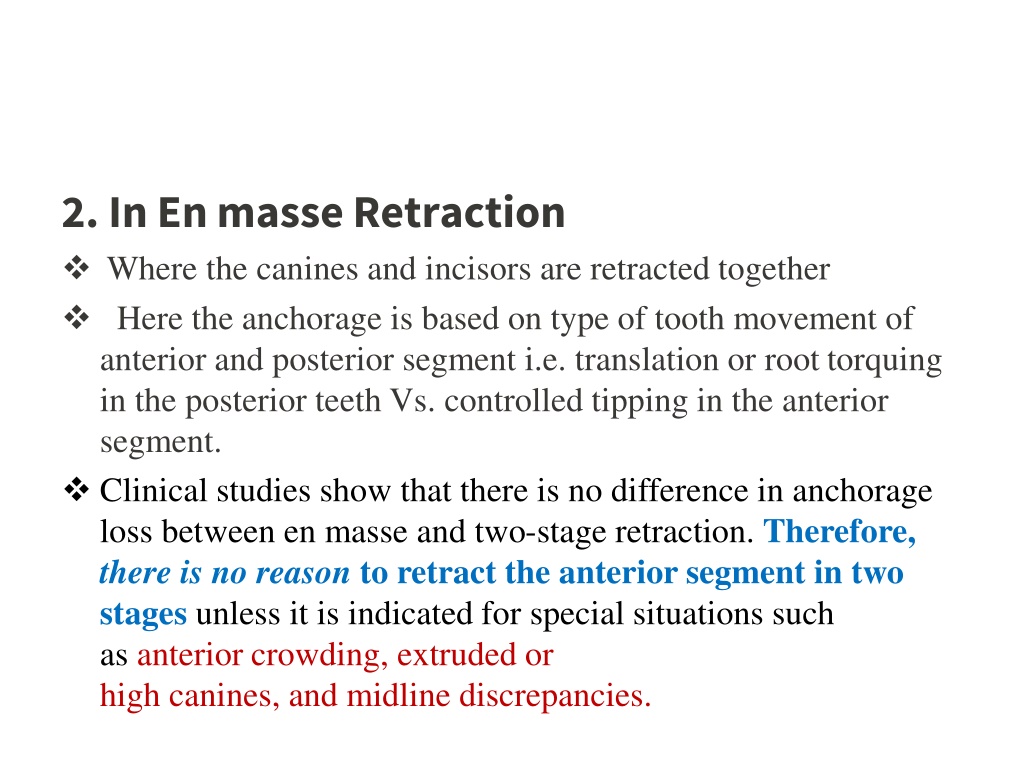

7. 2. In En masse Retraction

8. Factors determining space closure

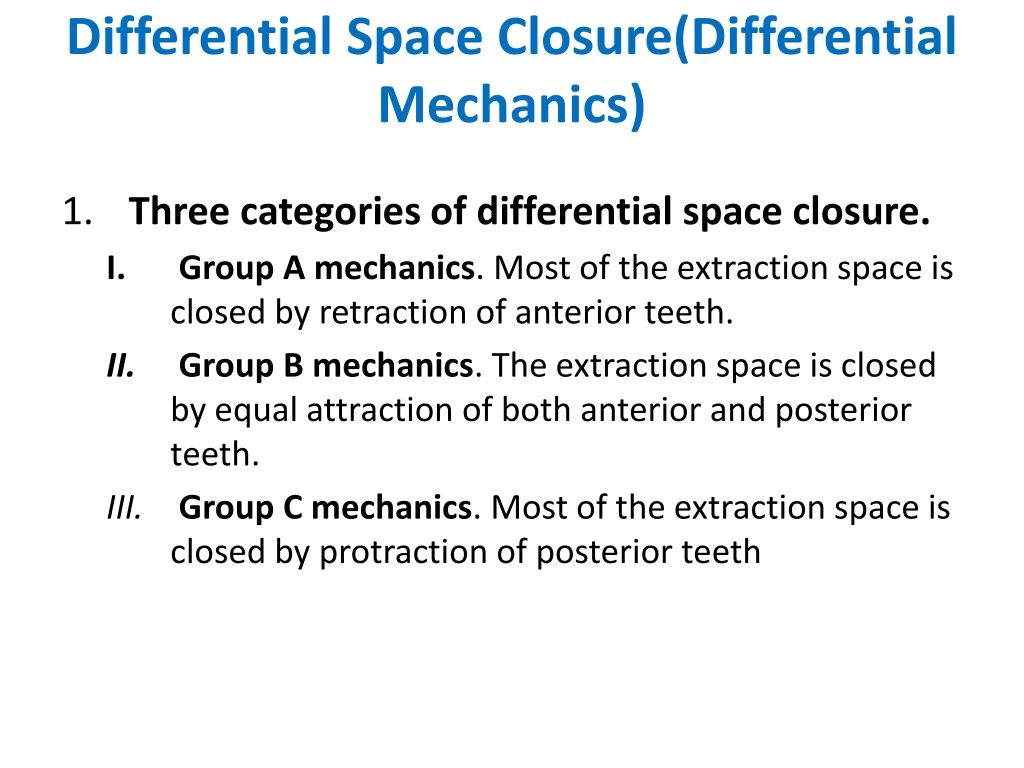

9. Differential Space Closure(Differential Mechanics)

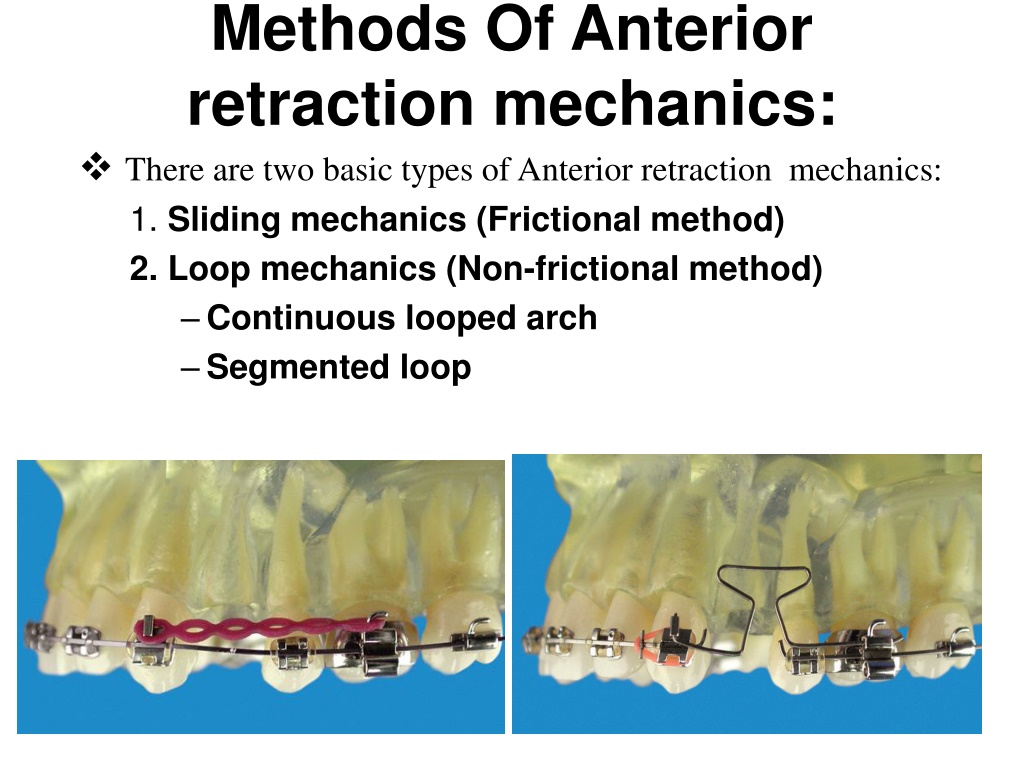

11. Methods Of Anterior retraction mechanics:

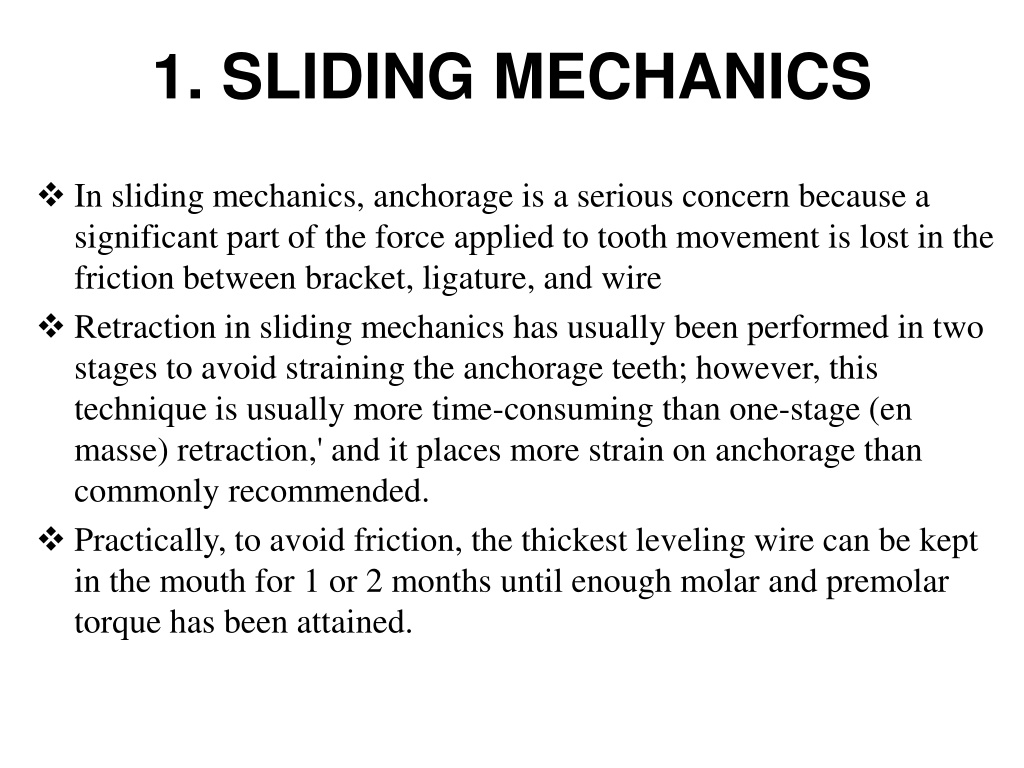

13. 1. SLIDING MECHANICS

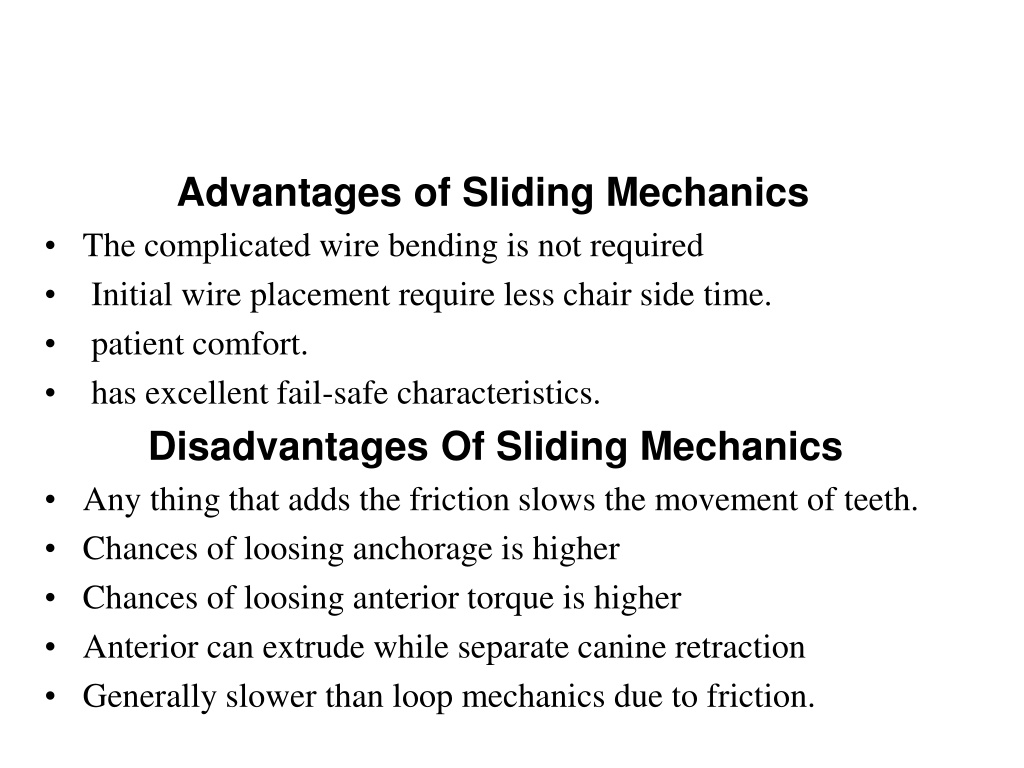

15. Advantages of Sliding Mechanics

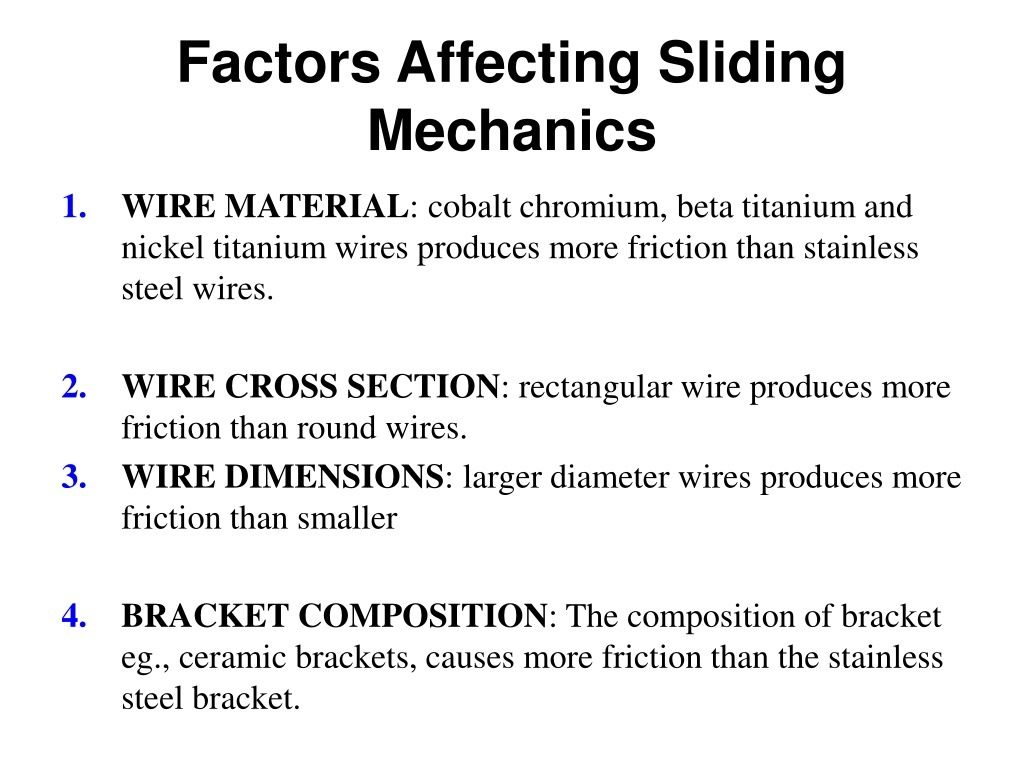

16. Factors Affecting Sliding Mechanics

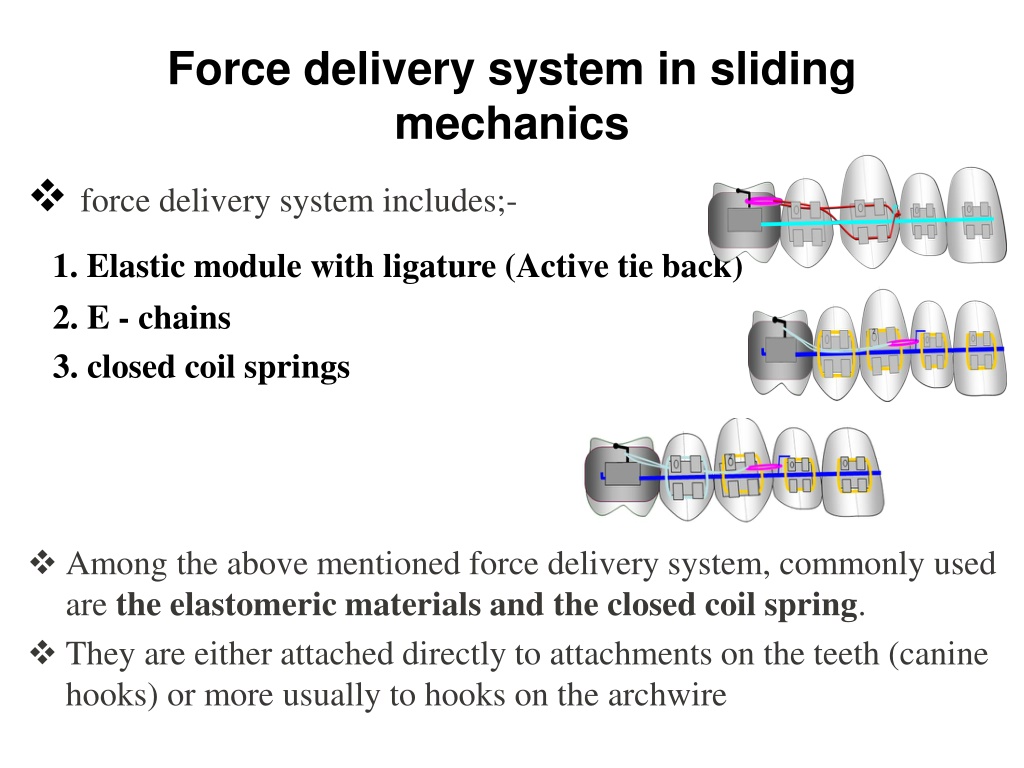

17. Force delivery system in sliding mechanics

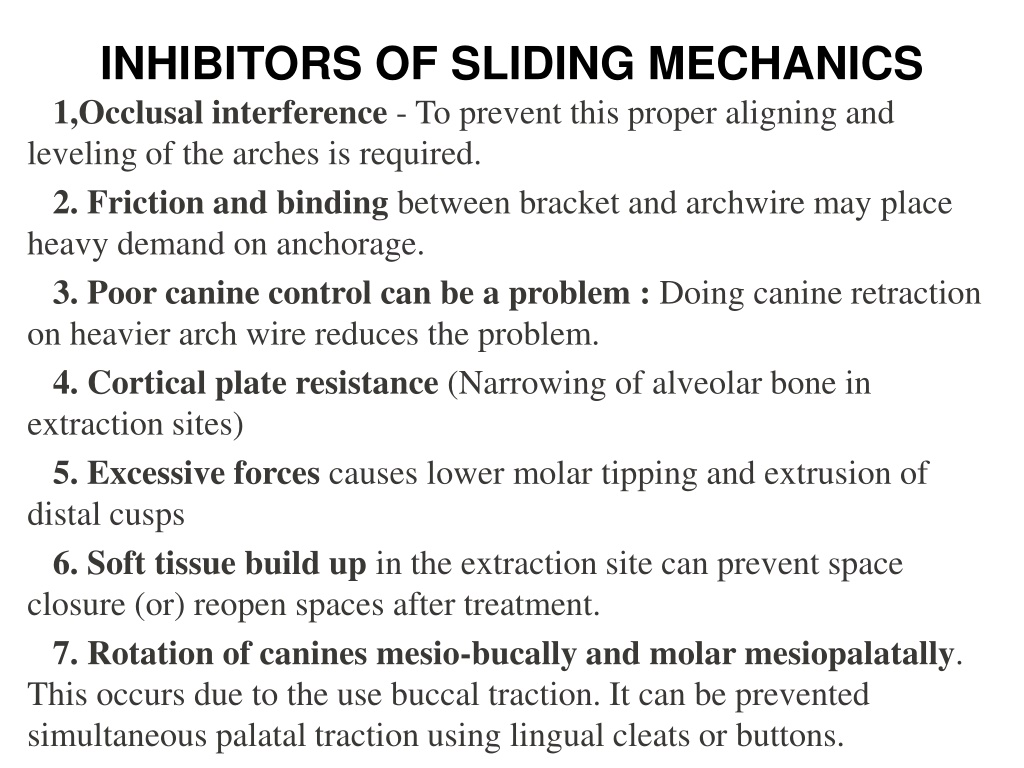

18. INHIBITORS OF SLIDING MECHANICS 1,Occlusal interference - To prevent this proper aligning and leveling of the arches is required. 2. Friction and binding between bracket and archwire may place heavy demand on anchorage. 3. Poor canine control can be a problem : Doing canine retraction on heavier arch wire reduces the problem. 4. Cortical plate resistance (Narrowing of alveolar bone in extraction sites) 5. Excessive forces causes lower molar tipping and extrusion of distal cusps 6. Soft tissue build up in the extraction site can prevent space closure (or) reopen spaces after treatment. 7. Rotation of canines mesio-bucally and molar mesiopalatally. This occurs due to the use buccal traction. It can be prevented simultaneous palatal traction using lingual cleats or buttons.

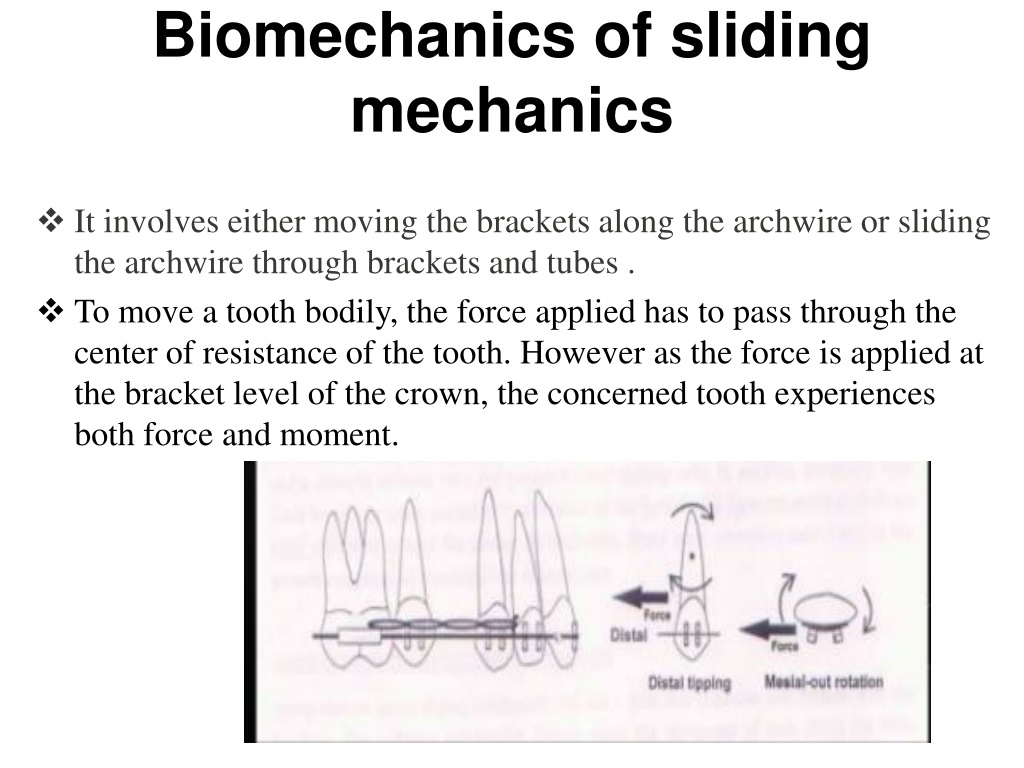

19. Biomechanics of sliding mechanics

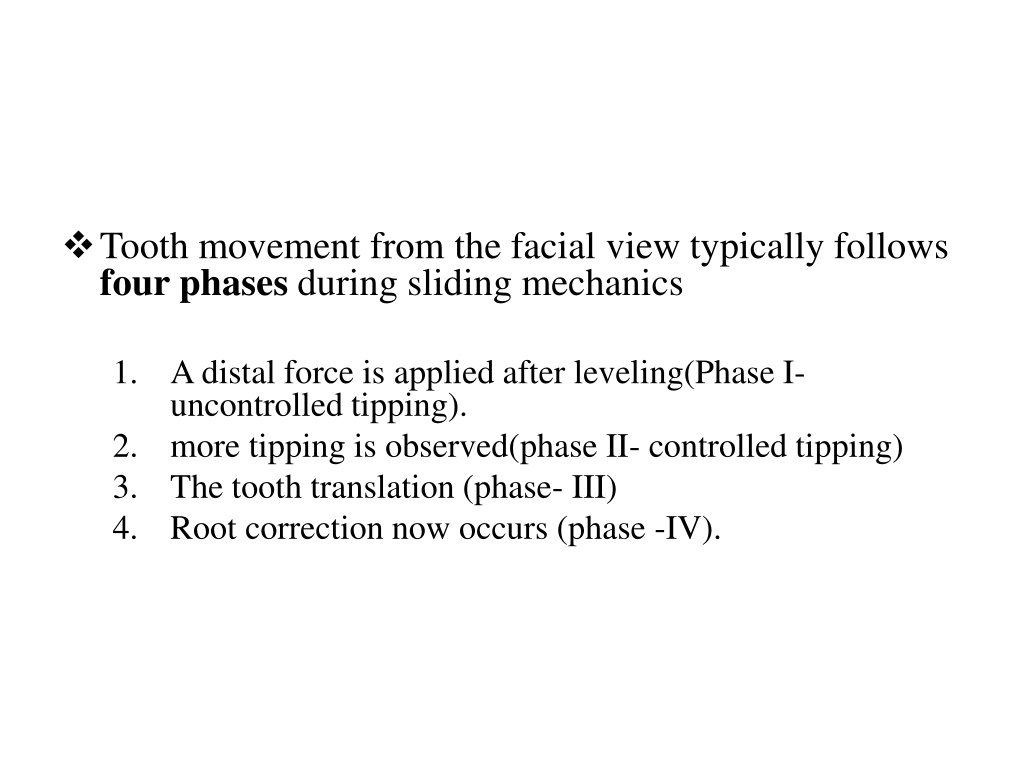

23. Tooth movement from the facial view typically follows four phases during sliding mechanics • Adistal force is applied after leveling(Phase I- uncontrolled tipping). • more tipping is observed(phase II- controlled tipping) • The tooth translation (phase- III) • Root correction now occurs (phase -IV).

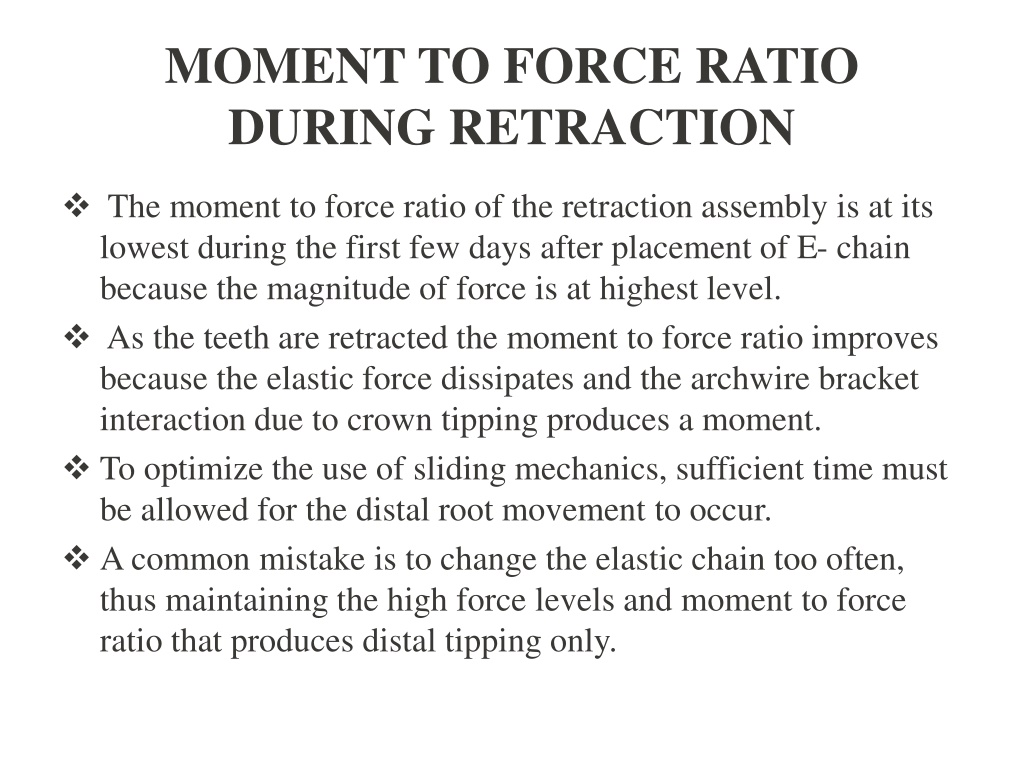

25. MOMENT TO FORCE RATIO DURING RETRACTION

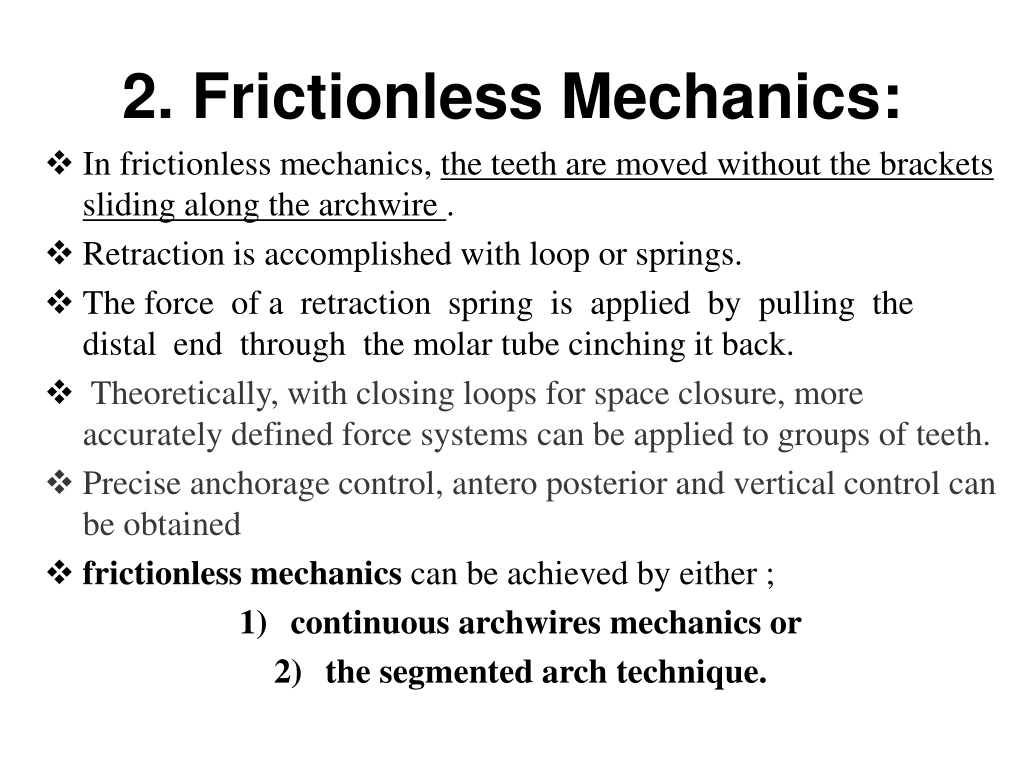

26. 2. Frictionless Mechanics:

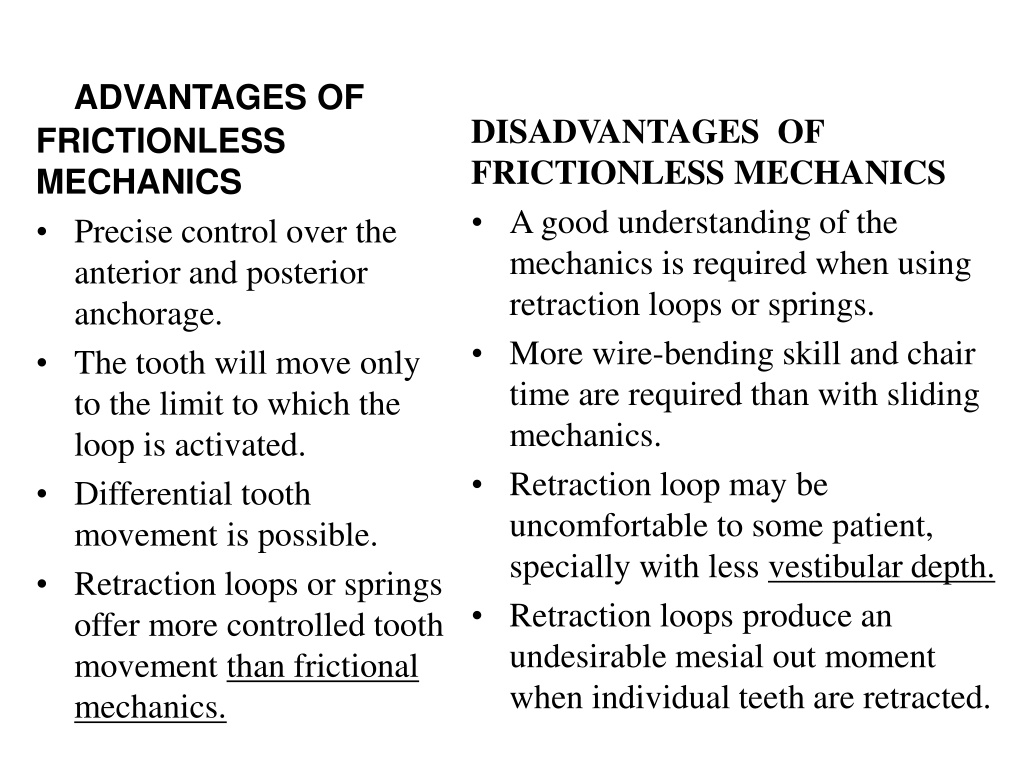

27. DISADVANTAGES OF FRICTIONLESS MECHANICS • A good understanding of the mechanics is required when using retraction loops or springs. • More wire-bending skill and chair time are required than with sliding mechanics. • Retraction loop may be uncomfortable to some patient, specially with less vestibular depth. • Retraction loops produce an undesirable mesial out moment when individual teeth are retracted. ADVANTAGES OF FRICTIONLESS MECHANICS

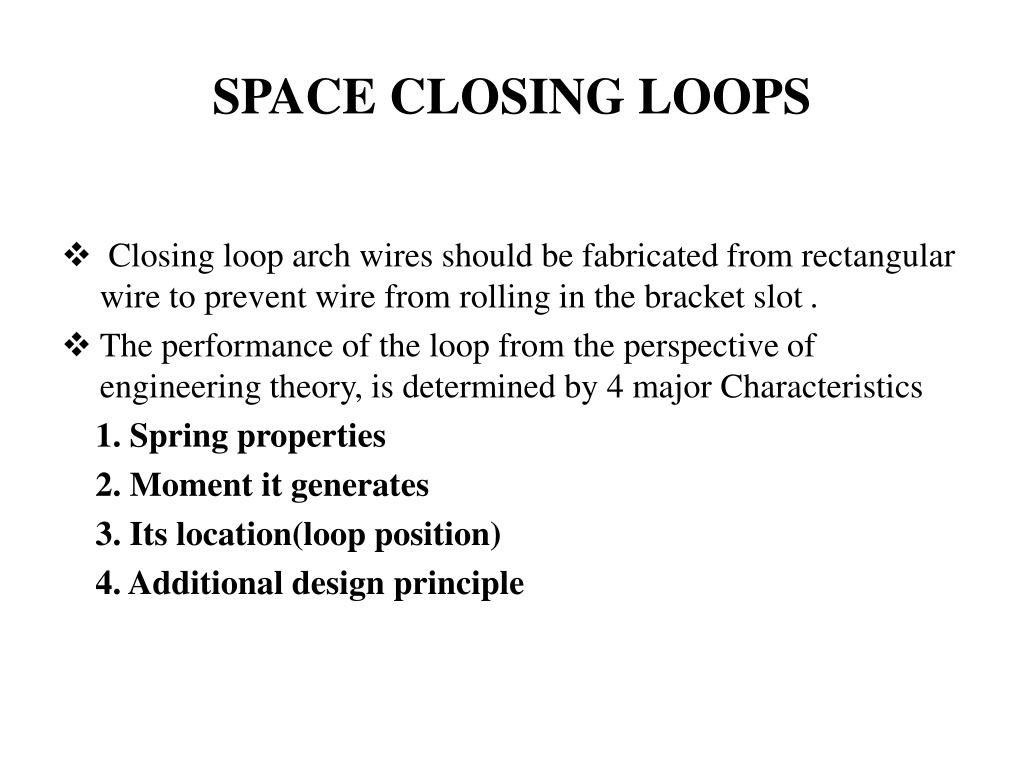

28. SPACE CLOSING LOOPS

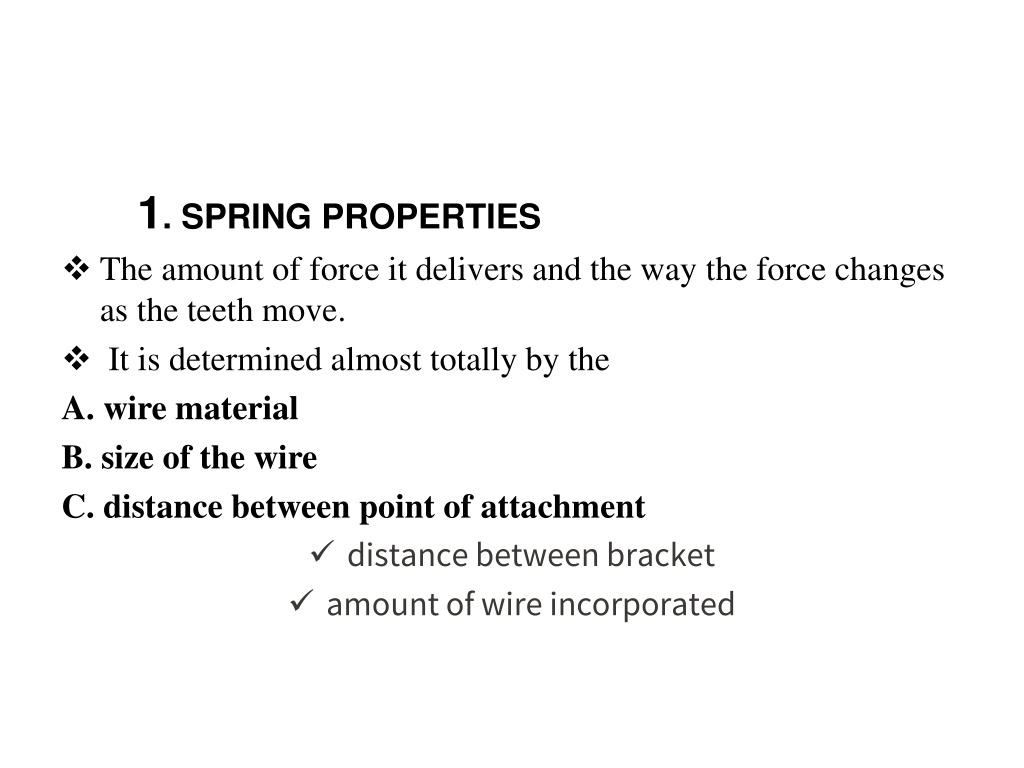

29. 1. SPRING PROPERTIES

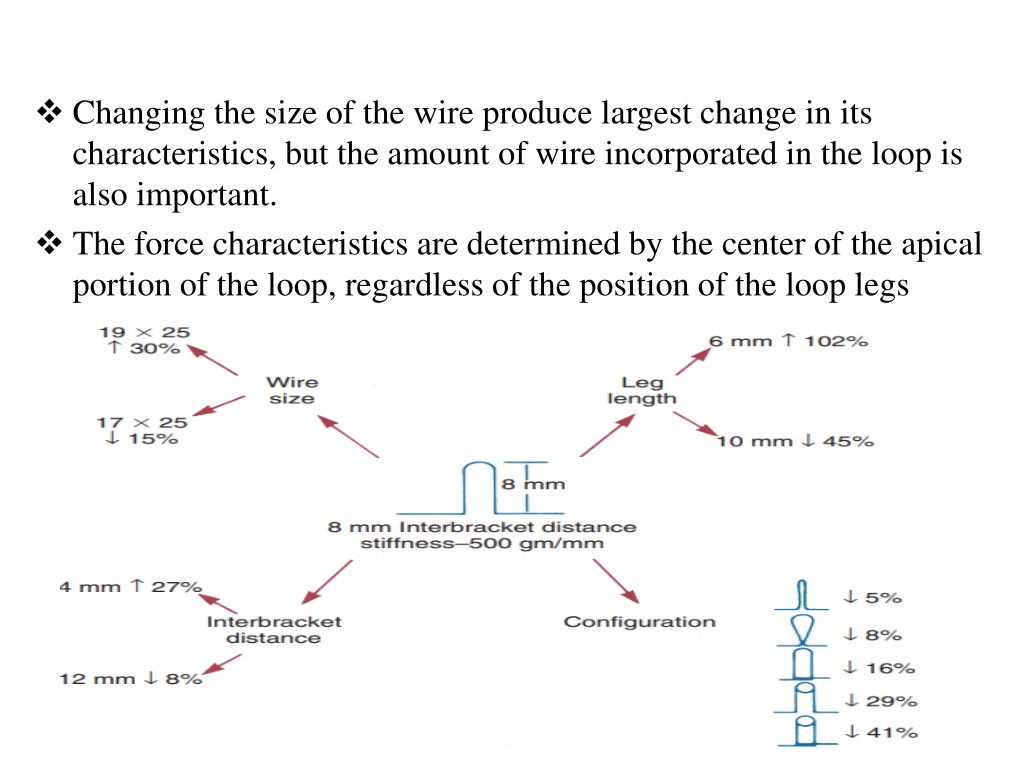

30. Changing the size of the wire produce largest change in its characteristics, but the amount of wire incorporated in the loop is also important. • The force characteristics are determined by the center of the apical portion of the loop, regardless of the position of the loop legs

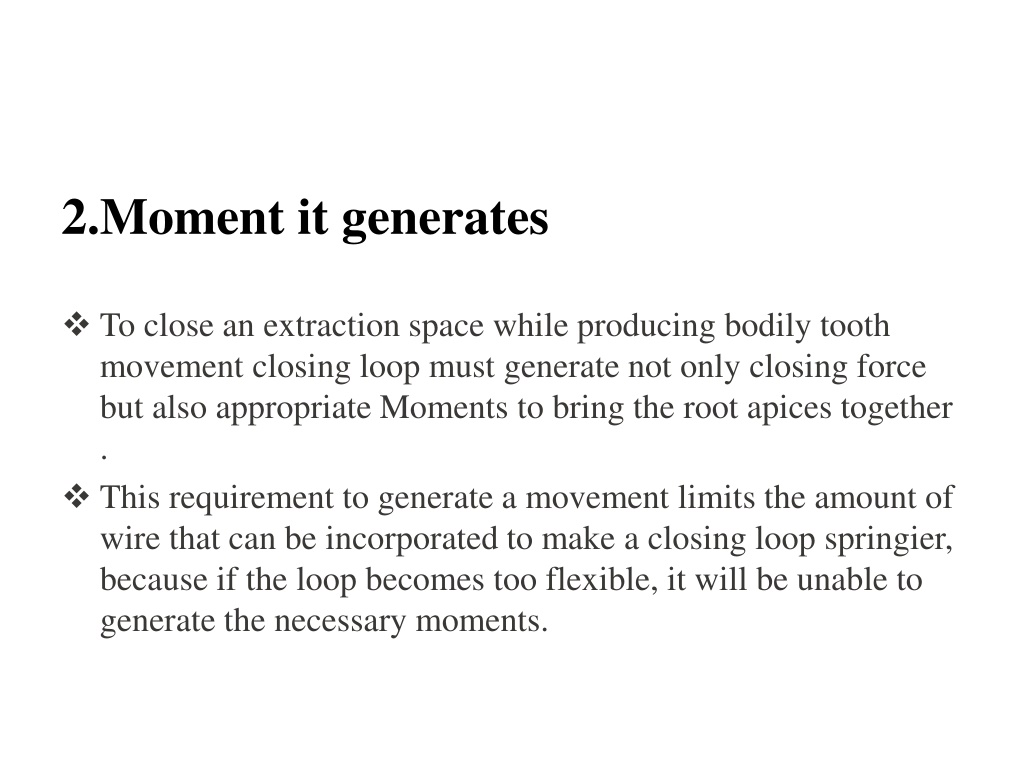

32. 2.Moment it generates

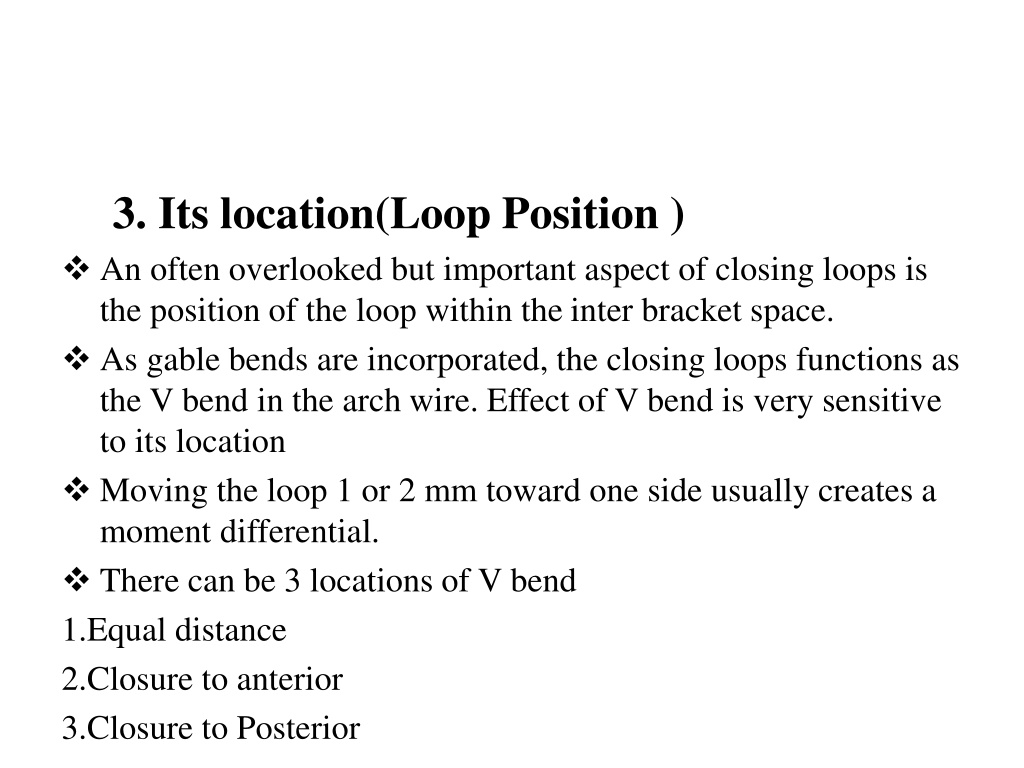

37. 3. Its location(Loop Position )

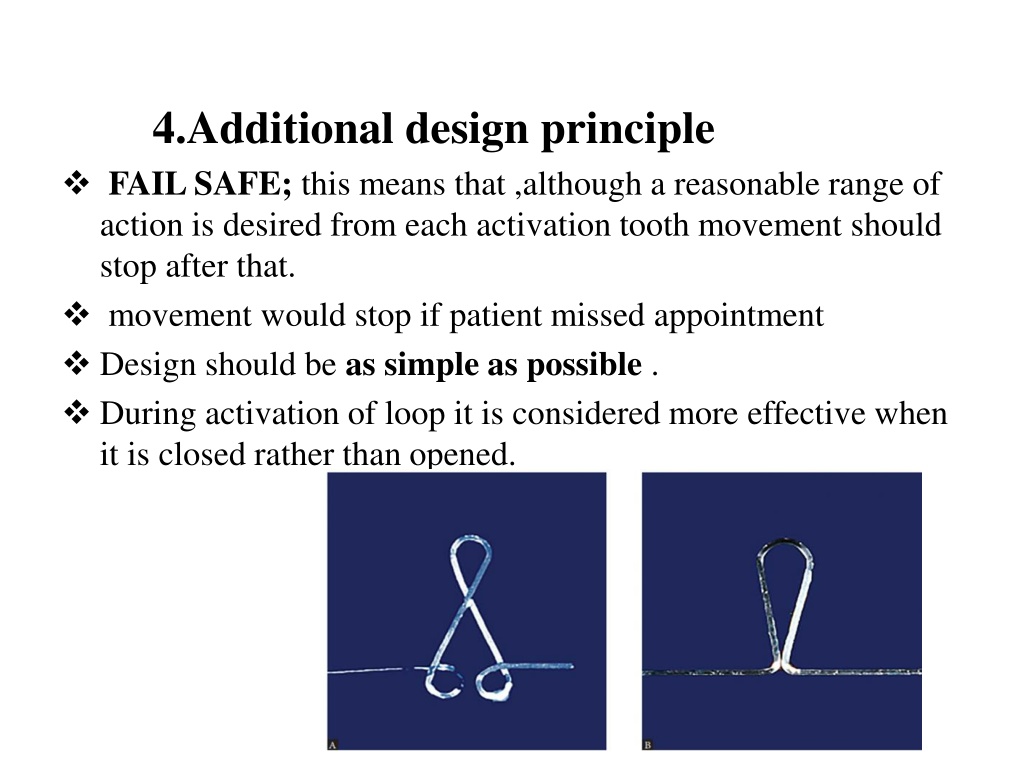

39. 4.Additional design principle

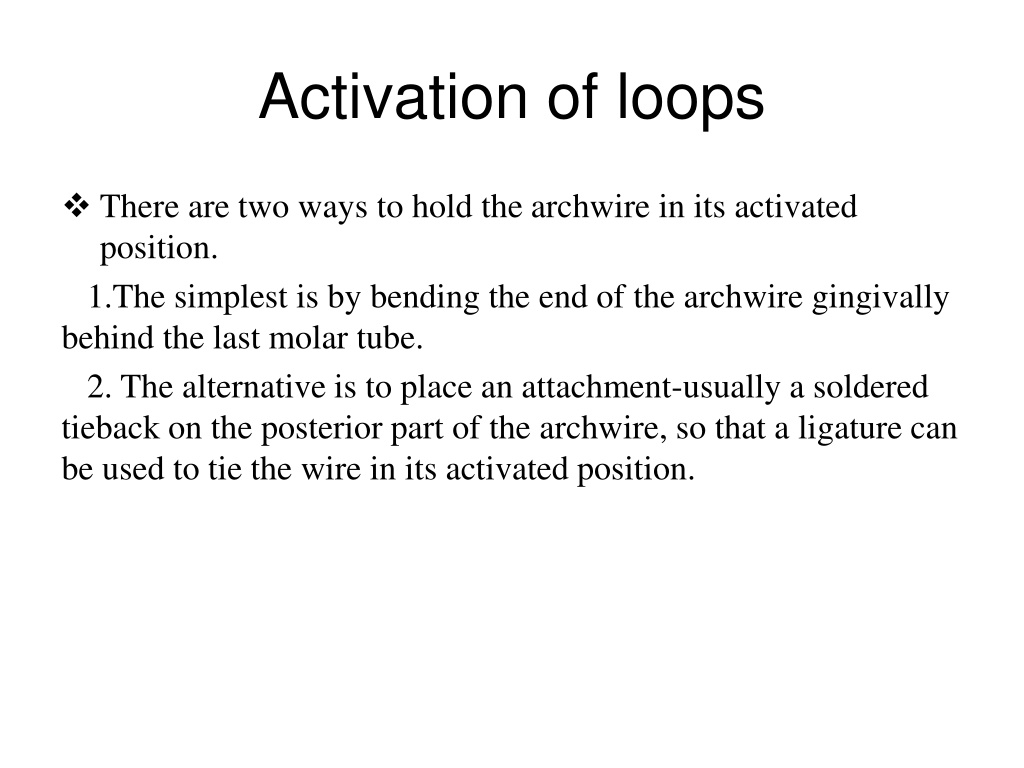

41. Activation of loops

42. Amount of Activation

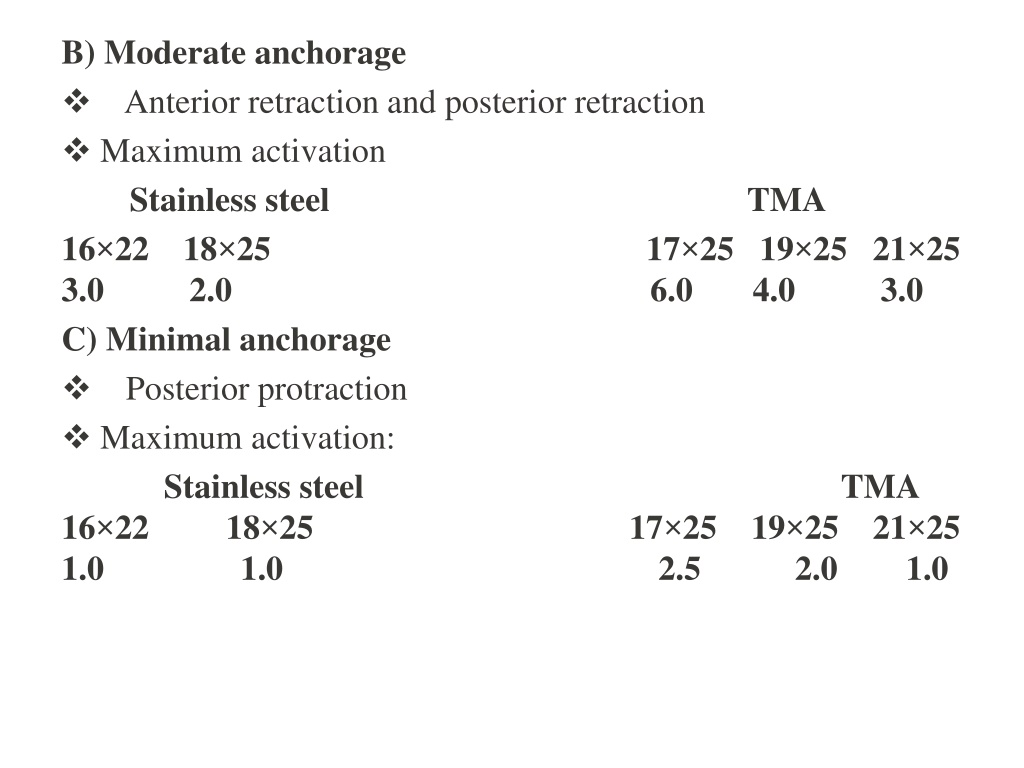

43. B) Moderate anchorage

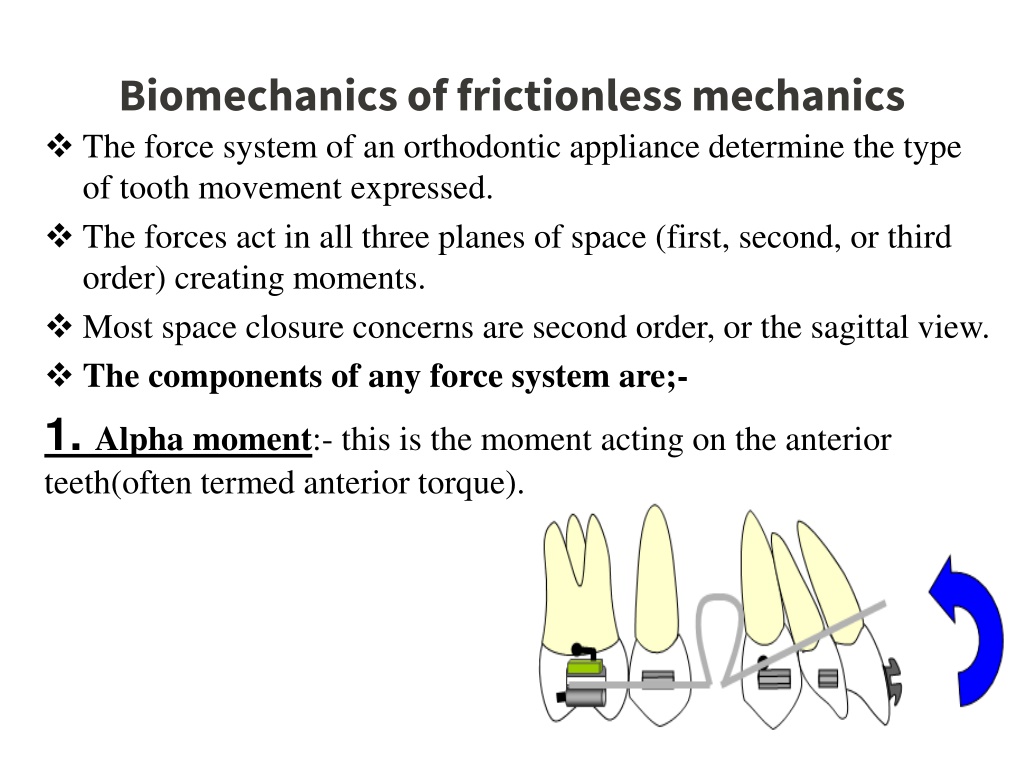

44. Biomechanics of frictionless mechanics

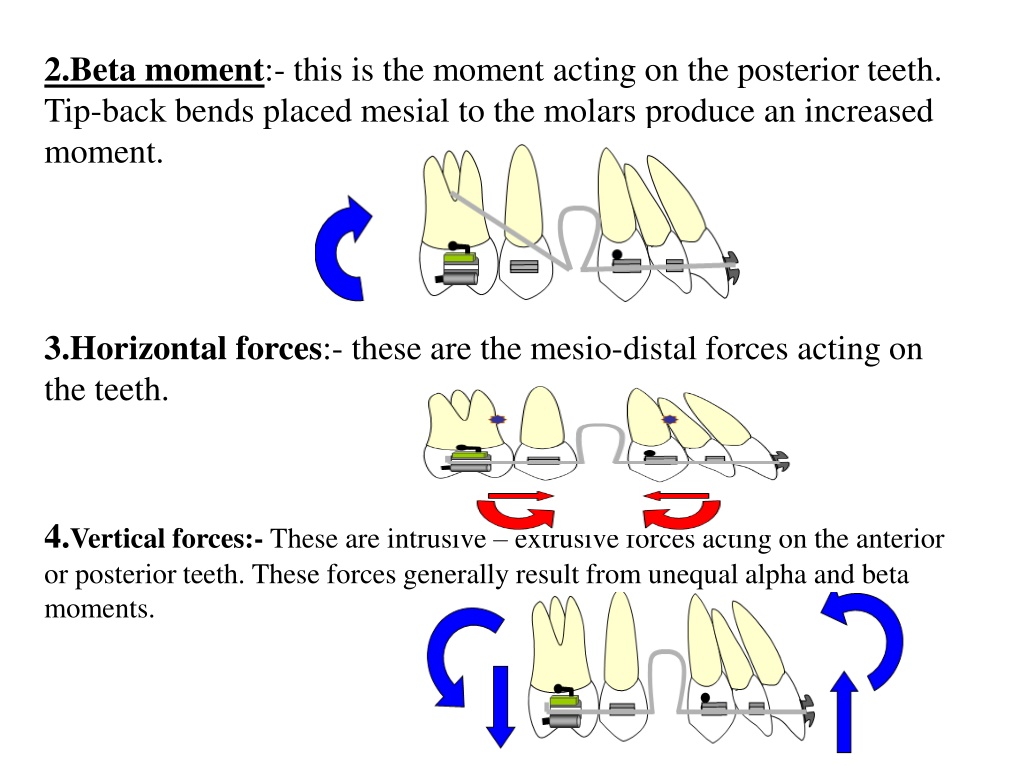

45. 2.Beta moment:- this is the moment acting on the posterior teeth. Tip-back bends placed mesial to the molars produce an increased moment. 3.Horizontal forces:- these are the mesio-distal forces acting on the teeth. 4.Vertical forces:- These are intrusive – extrusive forces acting on the anterior or posterior teeth. These forces generally result from unequal alpha and beta moments.

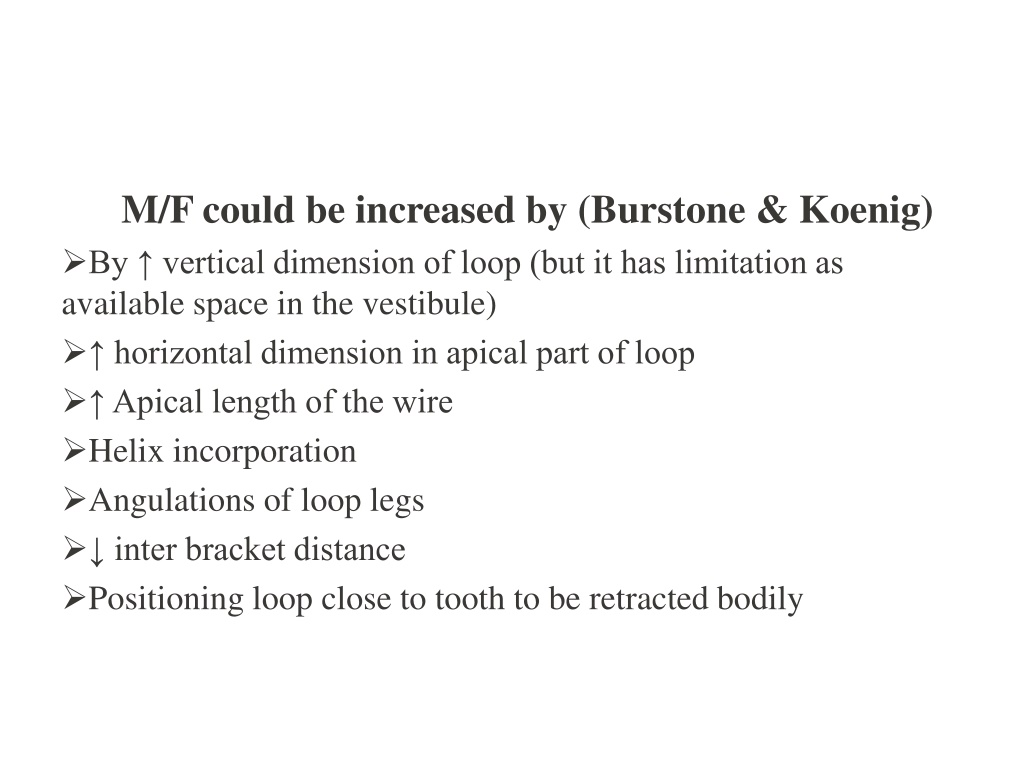

49. M/F could be increased by (Burstone & Koenig)
