Colour Matching Cabinet

Texcare Instruments is a globally recognized manufacturer of precision testing machines such as the Dart Impact Tester, Vacuum Leak Tester, and Swatch Cutter. Our equipment is designed to meet the highest industry standards, ensuring accurate and repeatable testing results. We leverage the latest technological advancements to develop user-friendly, efficient, and durable machines that cater to the needs of various industries. Our commitment to excellence and innovation has made Texcare Instruments a preferred choice for manufacturers and laboratories.

Deepak251
Download Presentation

Colour Matching Cabinet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

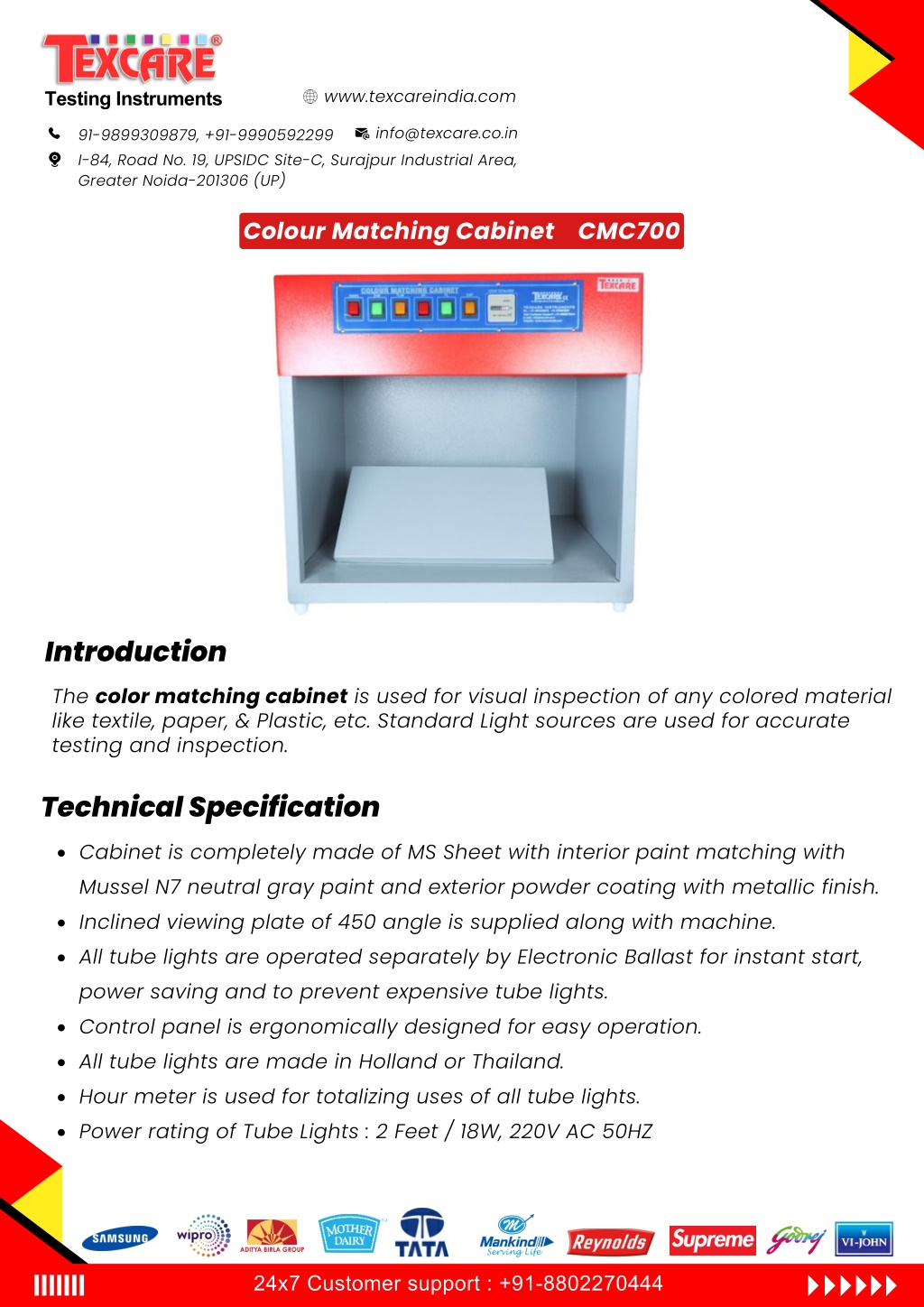

  1. www.texcareindia.com Testing Instruments info@texcare.co.in 91-9899309879, +91-9990592299 I-84, Road No. 19, UPSIDC Site-C, Surajpur Industrial Area, Greater Noida-201306 (UP) Colour Matching Cabinet CMC700 Introduction The color matching cabinet is used for visual inspection of any colored material like textile, paper, & Plastic, etc. Standard Light sources are used for accurate testing and inspection. Technical Specification Cabinet is completely made of MS Sheet with interior paint matching with Mussel N7 neutral gray paint and exterior powder coating with metallic finish. Inclined viewing plate of 450 angle is supplied along with machine. All tube lights are operated separately by Electronic Ballast for instant start, power saving and to prevent expensive tube lights. Control panel is ergonomically designed for easy operation. All tube lights are made in Holland or Thailand. Hour meter is used for totalizing uses of all tube lights. Power rating of Tube Lights : 2 Feet / 18W, 220V AC 50HZ 24x7 Customer support : +91-8802270444

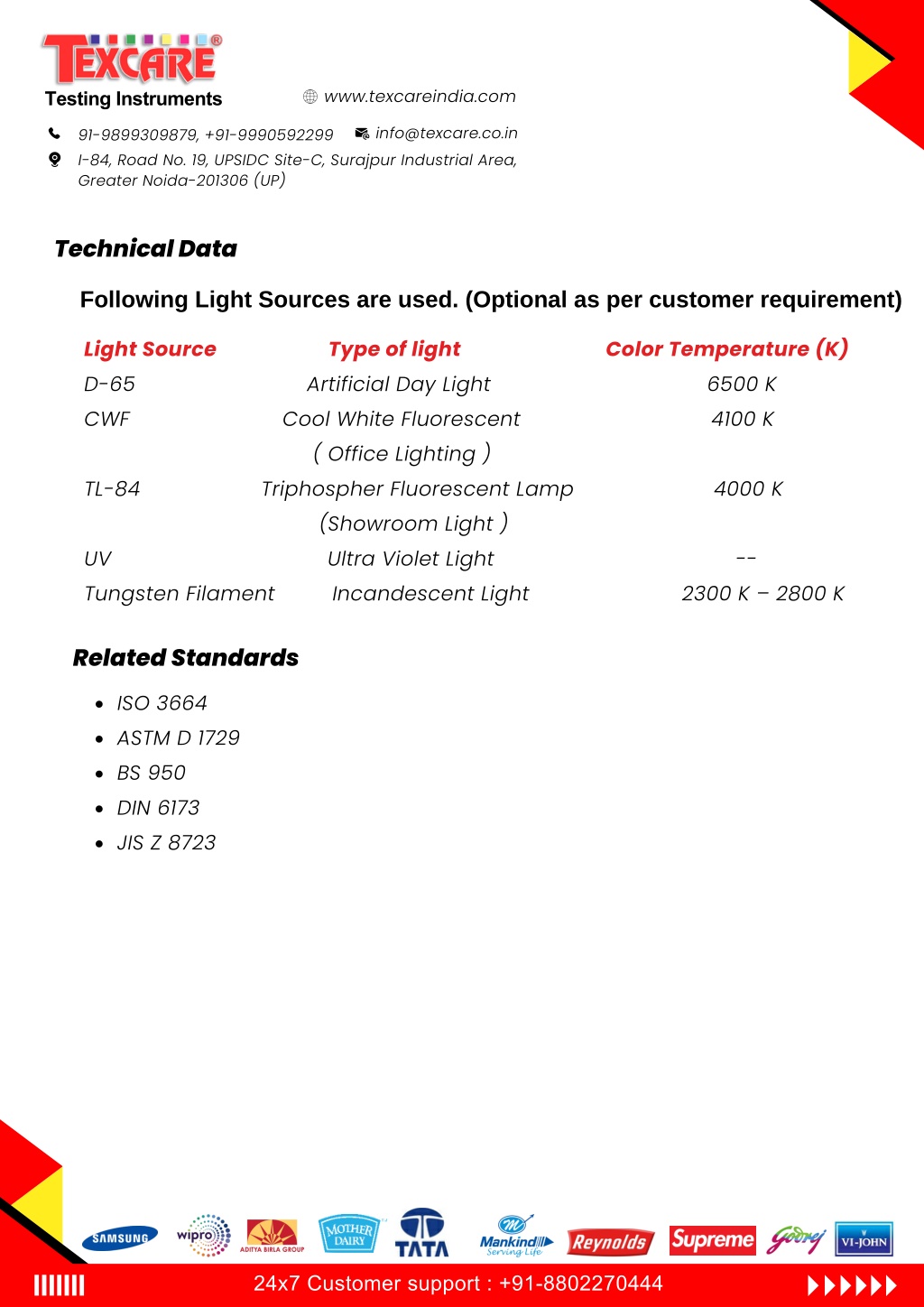

  2. www.texcareindia.com Testing Instruments info@texcare.co.in 91-9899309879, +91-9990592299 I-84, Road No. 19, UPSIDC Site-C, Surajpur Industrial Area, Greater Noida-201306 (UP) Technical Data Following Light Sources are used. (Optional as per customer requirement) Light Source Type of light Color Temperature (K) D-65 Artificial Day Light 6500 K CWF Cool White Fluorescent 4100 K ( Office Lighting ) TL-84 Triphospher Fluorescent Lamp 4000 K (Showroom Light ) UV Ultra Violet Light -- Tungsten Filament Incandescent Light 2300 K – 2800 K Related Standards ISO 3664 ASTM D 1729 BS 950 DIN 6173 JIS Z 8723 24x7 Customer support : +91-8802270444
