Ultrasonic vs X-Ray: Choosing the Right NDT Method for Composite Testing

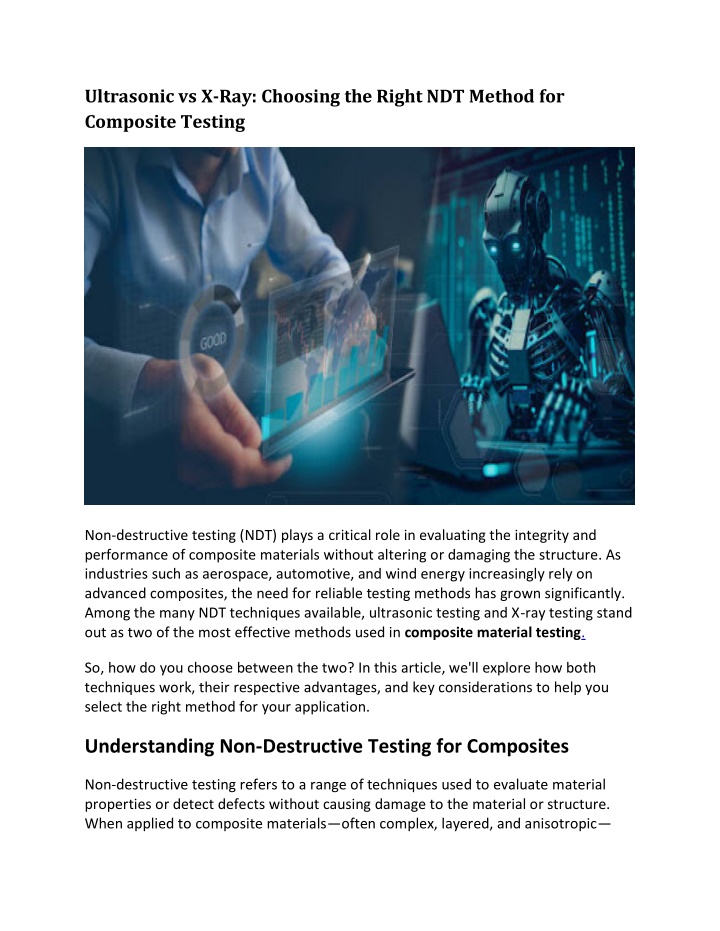

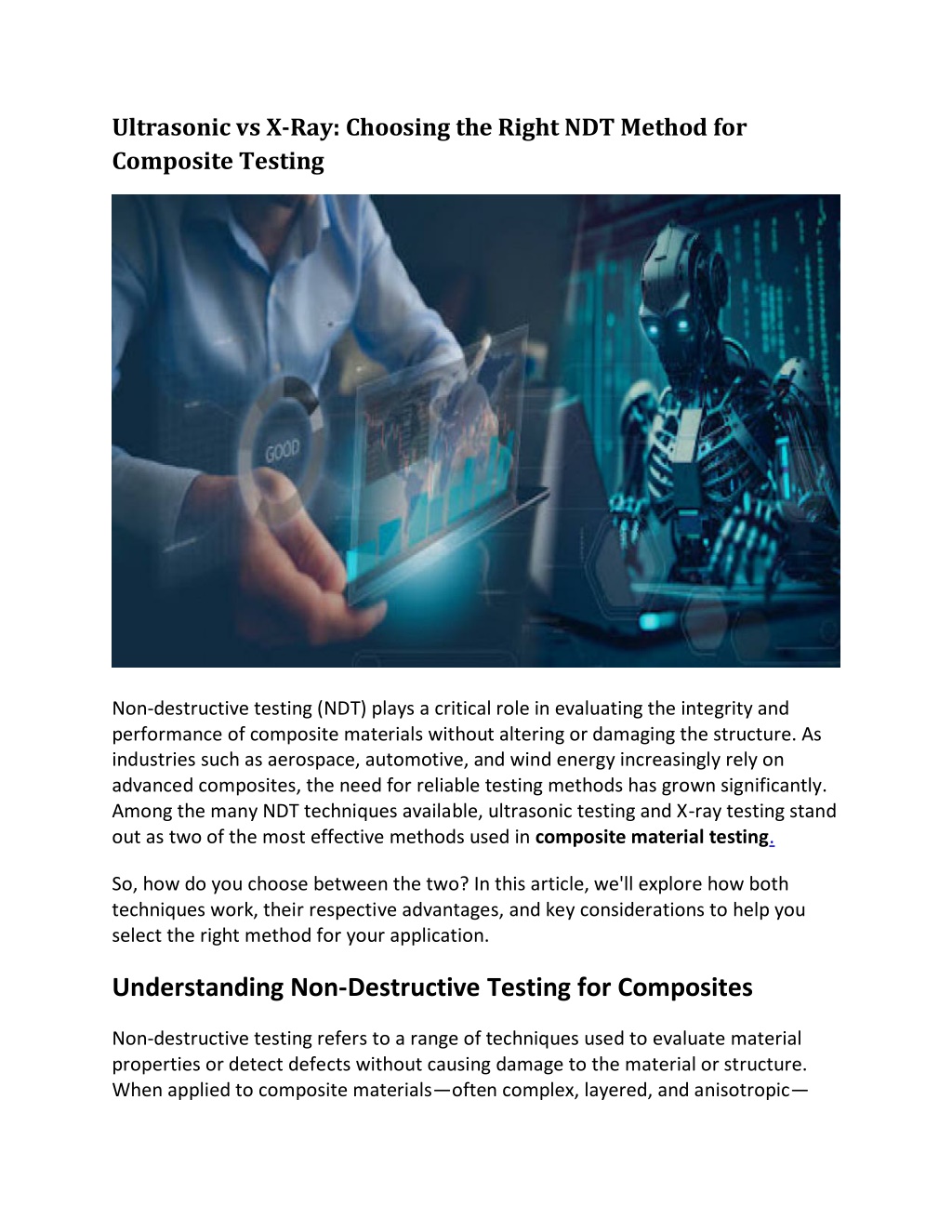

1. Ultrasonic vs X-Ray: Choosing the Right NDT Method for Composite Testing Non-destructive testing (NDT) plays a critical role in evaluating the integrity and performance of composite materials without altering or damaging the structure. As industries such as aerospace, automotive, and wind energy increasingly rely on advanced composites, the need for reliable testing methods has grown significantly. Among the many NDT techniques available, ultrasonic testing and X-ray testing stand out as two of the most effective methods used in composite material testing. So, how do you choose between the two? In this article, we'll explore how both techniques work, their respective advantages, and key considerations to help you select the right method for your application. Understanding Non-Destructive Testing for Composites Non-destructive testing refers to a range of techniques used to evaluate material properties or detect defects without causing damage to the material or structure. When applied to composite materials—often complex, layered, and anisotropic—

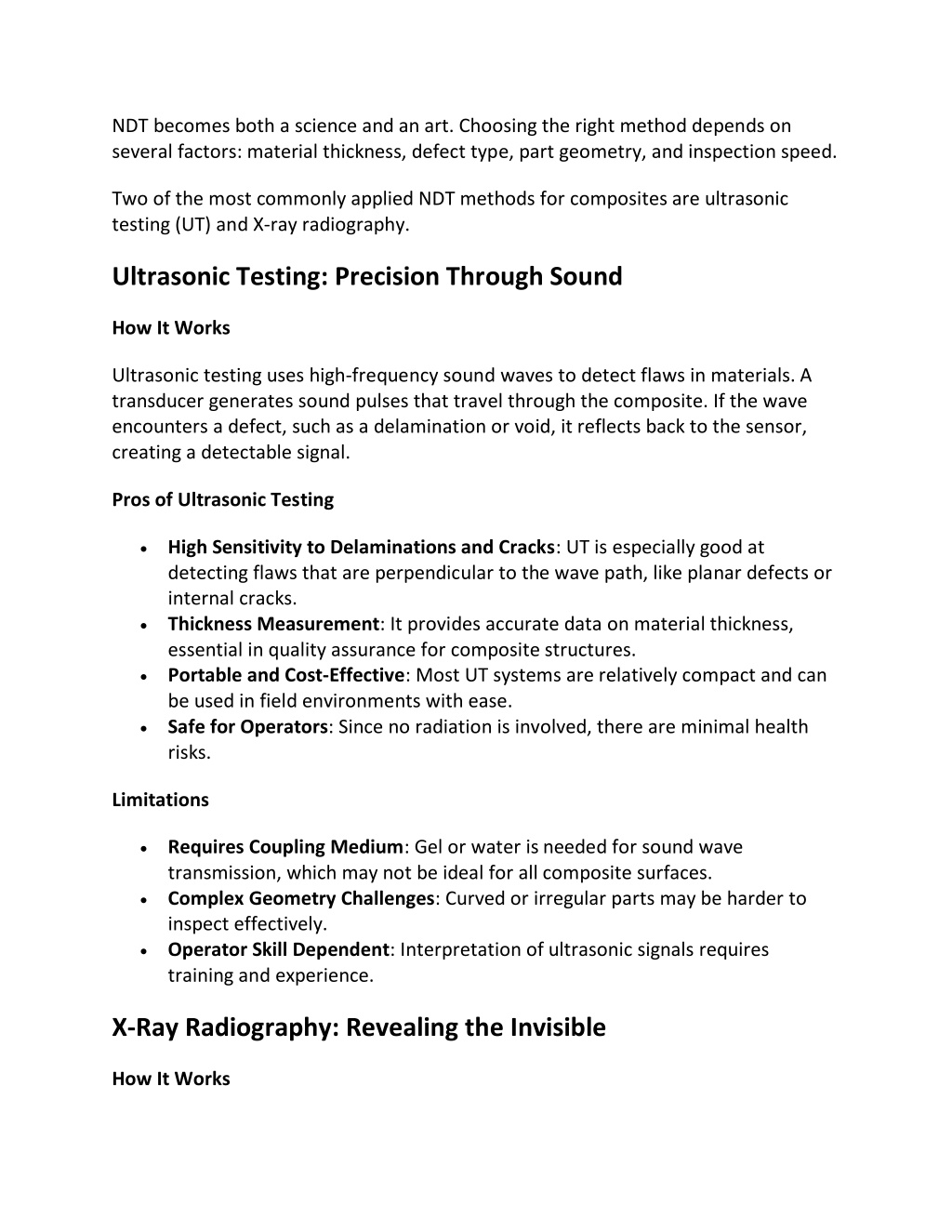

2. NDT becomes both a science and an art. Choosing the right method depends on several factors: material thickness, defect type, part geometry, and inspection speed. Two of the most commonly applied NDT methods for composites are ultrasonic testing (UT) and X-ray radiography. Ultrasonic Testing: Precision Through Sound How It Works Ultrasonic testing uses high-frequency sound waves to detect flaws in materials. A transducer generates sound pulses that travel through the composite. If the wave encounters a defect, such as a delamination or void, it reflects back to the sensor, creating a detectable signal. Pros of Ultrasonic Testing High Sensitivity to Delaminations and Cracks: UT is especially good at detecting flaws that are perpendicular to the wave path, like planar defects or internal cracks. Thickness Measurement: It provides accurate data on material thickness, essential in quality assurance for composite structures. Portable and Cost-Effective: Most UT systems are relatively compact and can be used in field environments with ease. Safe for Operators: Since no radiation is involved, there are minimal health risks. Limitations Requires Coupling Medium: Gel or water is needed for sound wave transmission, which may not be ideal for all composite surfaces. Complex Geometry Challenges: Curved or irregular parts may be harder to inspect effectively. Operator Skill Dependent: Interpretation of ultrasonic signals requires training and experience. X-Ray Radiography: Revealing the Invisible How It Works

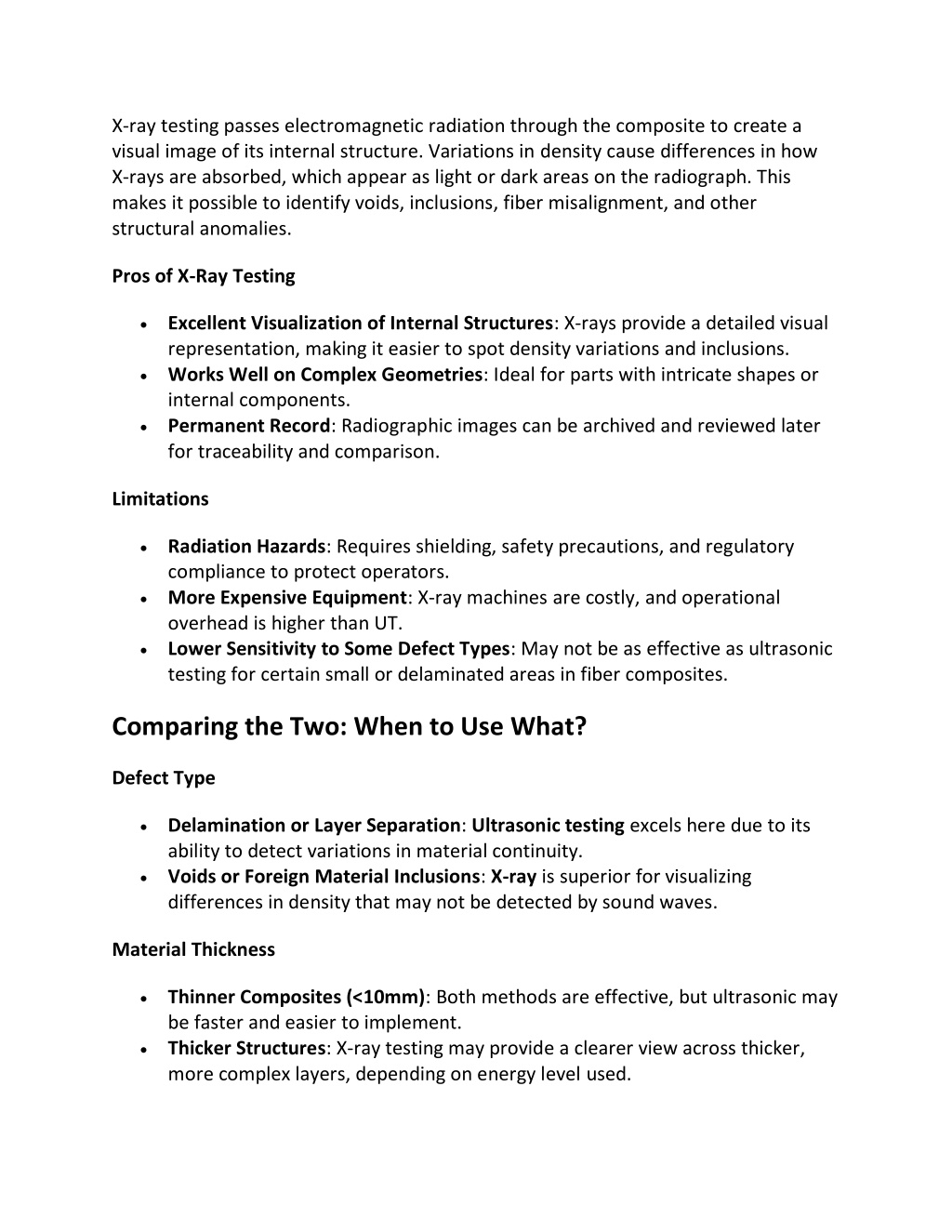

3. X-ray testing passes electromagnetic radiation through the composite to create a visual image of its internal structure. Variations in density cause differences in how X-rays are absorbed, which appear as light or dark areas on the radiograph. This makes it possible to identify voids, inclusions, fiber misalignment, and other structural anomalies. Pros of X-Ray Testing Excellent Visualization of Internal Structures: X-rays provide a detailed visual representation, making it easier to spot density variations and inclusions. Works Well on Complex Geometries: Ideal for parts with intricate shapes or internal components. Permanent Record: Radiographic images can be archived and reviewed later for traceability and comparison. Limitations Radiation Hazards: Requires shielding, safety precautions, and regulatory compliance to protect operators. More Expensive Equipment: X-ray machines are costly, and operational overhead is higher than UT. Lower Sensitivity to Some Defect Types: May not be as effective as ultrasonic testing for certain small or delaminated areas in fiber composites. Comparing the Two: When to Use What? Defect Type Delamination or Layer Separation: Ultrasonic testing excels here due to its ability to detect variations in material continuity. Voids or Foreign Material Inclusions: X-ray is superior for visualizing differences in density that may not be detected by sound waves. Material Thickness Thinner Composites (<10mm): Both methods are effective, but ultrasonic may be faster and easier to implement. Thicker Structures: X-ray testing may provide a clearer view across thicker, more complex layers, depending on energy level used.

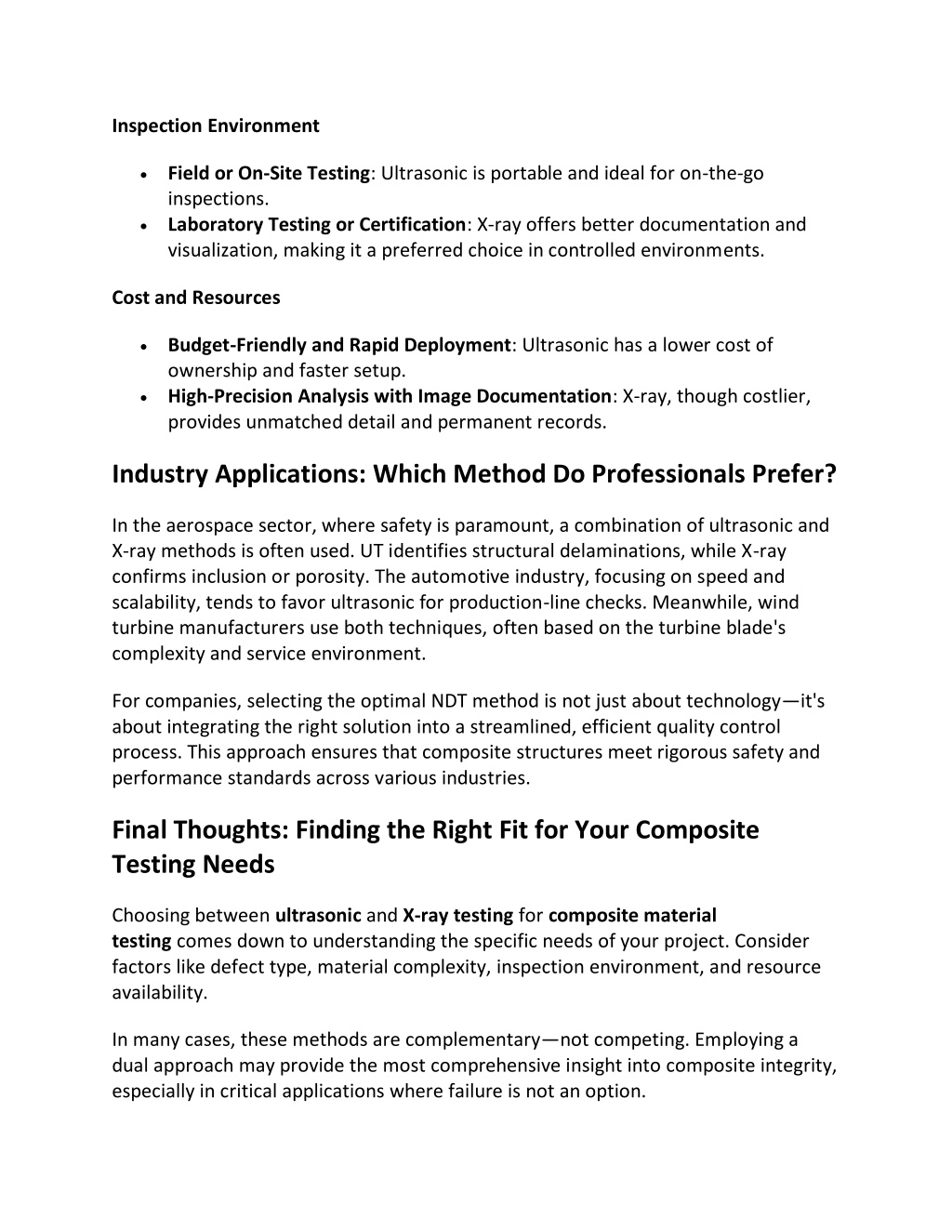

4. Inspection Environment Field or On-Site Testing: Ultrasonic is portable and ideal for on-the-go inspections. Laboratory Testing or Certification: X-ray offers better documentation and visualization, making it a preferred choice in controlled environments. Cost and Resources Budget-Friendly and Rapid Deployment: Ultrasonic has a lower cost of ownership and faster setup. High-Precision Analysis with Image Documentation: X-ray, though costlier, provides unmatched detail and permanent records. Industry Applications: Which Method Do Professionals Prefer? In the aerospace sector, where safety is paramount, a combination of ultrasonic and X-ray methods is often used. UT identifies structural delaminations, while X-ray confirms inclusion or porosity. The automotive industry, focusing on speed and scalability, tends to favor ultrasonic for production-line checks. Meanwhile, wind turbine manufacturers use both techniques, often based on the turbine blade's complexity and service environment. For companies, selecting the optimal NDT method is not just about technology—it's about integrating the right solution into a streamlined, efficient quality control process. This approach ensures that composite structures meet rigorous safety and performance standards across various industries. Final Thoughts: Finding the Right Fit for Your Composite Testing Needs Choosing between ultrasonic and X-ray testing for composite material testing comes down to understanding the specific needs of your project. Consider factors like defect type, material complexity, inspection environment, and resource availability. In many cases, these methods are complementary—not competing. Employing a dual approach may provide the most comprehensive insight into composite integrity, especially in critical applications where failure is not an option.

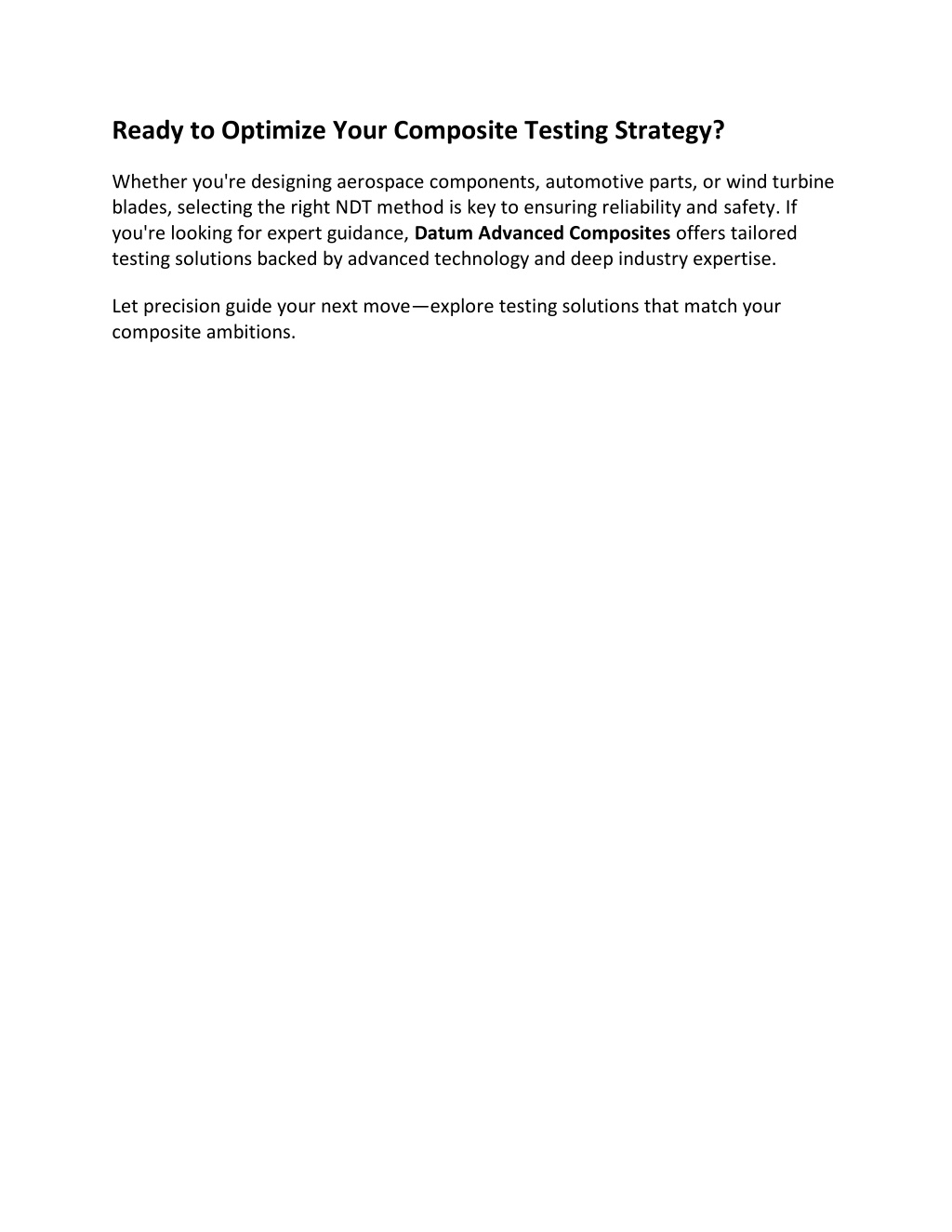

5. Ready to Optimize Your Composite Testing Strategy? Whether you're designing aerospace components, automotive parts, or wind turbine blades, selecting the right NDT method is key to ensuring reliability and safety. If you're looking for expert guidance, Datum Advanced Composites offers tailored testing solutions backed by advanced technology and deep industry expertise. Let precision guide your next move—explore testing solutions that match your composite ambitions.
