Auto ESR Analyzer LBN-ES121 analyses samples automatically using the Westergren method and the infrared measuring principle. It has a measurement range of up to 120 mm/hr and an analysis time of 30 or 60 minutes with 3-minute sampling intervals. The unit can hold up to 40 samples and uses advanced infrared light color interpretation technology to automatically scan the entire process. Touch screen large display, built-in printer, and RS-232 interface aid in simple data printing.

Crystallabnic
Download Presentation

Auto-ESR-Analyzer-LBN-ES121_compressed

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

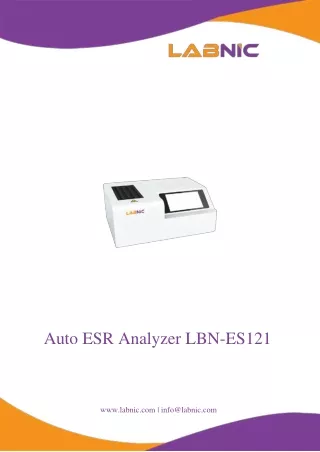

  1. Auto ESR Analyzer LBN-ES121 www.labnic.com | info@labnic.com

  2. Overview Auto ESR Analyzer LBN-ES121 analyses samples automatically using the Westergren method and the infrared measuring principle. It has a measurement range of up to 120mm/hr and an analysis time of 30 or 60 minutes with 3-minute sampling intervals. The unit can hold up to 40 samples and uses advanced infrared light color interpretation technology to automatically scan the entire process. Touch screen large display,built-in printer, and RS-232interface aid in simple data printing. Specifications : Measurement Mode Infrared detection Analysis Result Westergren ESR value (mm/hour) Throughput 80 tests/hour Analysis Channels 40 Analysis Time 30 or 60 minutes selectable Sampling Interval 3 min Measurement Range 0 ? 120 mm/hr Temperature Compensation Automatic result correction at 18? Result Resolution 1 mm/1hr and 1 mm/2hr Blood Level Range 50 ? 64 mm Result Accuracy –2mm/hr (ESRd30mm/hr) –3mm/hr (30mm/hr –5mm/hr (ESR > 80mm/hr) Result Precision CVd2%

  3. Channel Error d –4mm/hr Reading Accuracy 0.2 mm Timing Accuracy 90 Display 7-inch color LCD Communication Interface RS-232 Printer Built-in thermal printer Power Supply AC 100 ? 240V 50/60 Hz External Dimension (W ? D ? H) 360 ? 300 ? 180 mm Package Dimension (W ? D ? H) 395 ? 335 ? 375 mm Net Weight 7.3 Kg Gross Weight 10 Kg Features : Infrared sensor measuring principle Fully automated walk away operation 80 tests per hour, rapid sample detection Built-in thermal printer for easy data printing Results are automatically temperature compensated Advanced optical testing principle to overcome errors in manual methods Power-off save function, automatically save the test result Applications : Automatic ESRanalyzers are widely applicable to for hospital inspection, medical laboratories, research institutes, universities and disease control centres etc.

  4. Labnic Scientific USA | Email: info@labnic.com Website: www.labnic.com
