Engineering Precision Inside the CPK Heat Exchanger

The CPK heat exchanger delivers dependable thermal efficiency through its removable straight-tube bundle and floating tubesheet design. Built for versatility, it handles a wide temperature and pressure range, making it ideal for challenging industrial applications such as lube oil cooling and boiler blowdown. Its easy-to-service structure and compact configuration reduce downtime while maintaining high performance. Learn more at: https://courtneyandnye.com/manufacturers/standard-xchange/

Courtney15
Download Presentation

Engineering Precision Inside the CPK Heat Exchanger

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

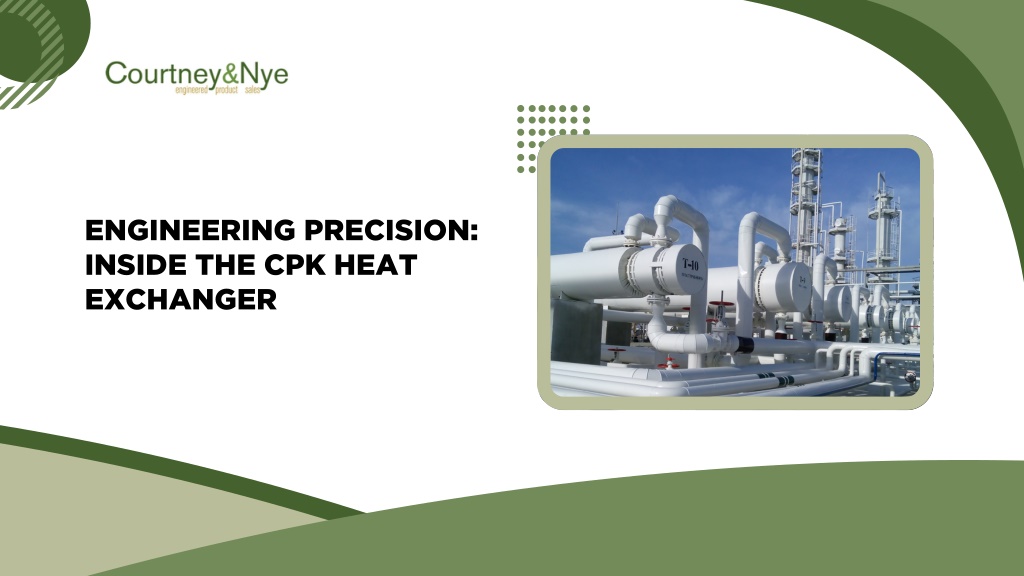

  1. ENGINEERING PRECISION: INSIDE THE CPK HEAT EXCHANGER

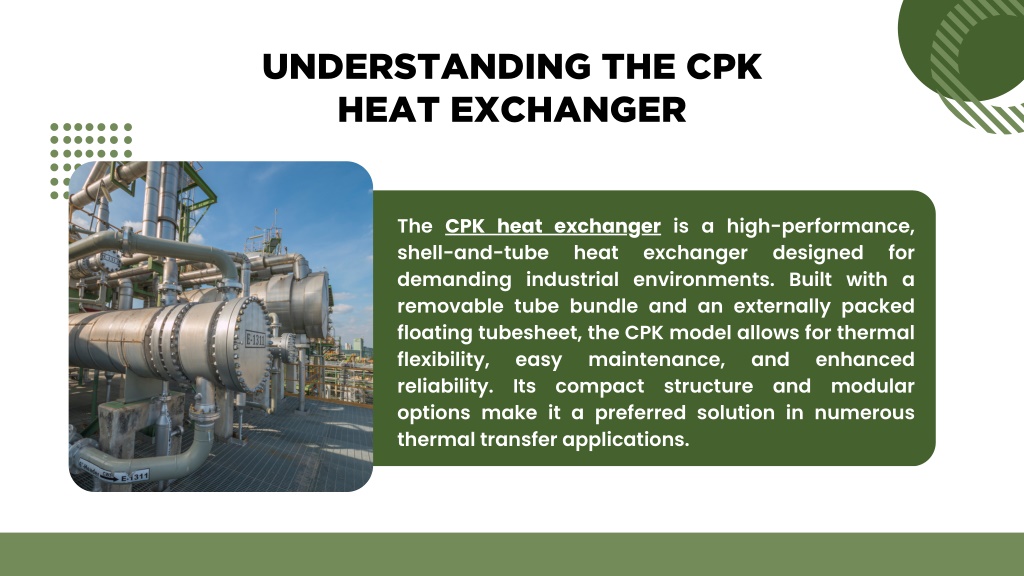

  2. UNDERSTANDING THE CPK HEAT EXCHANGER The CPK heat exchanger is a high-performance, shell-and-tube heat exchanger demanding industrial environments. Built with a removable tube bundle and an externally packed floating tubesheet, the CPK model allows for thermal flexibility, easy maintenance, reliability. Its compact structure and modular options make it a preferred solution in numerous thermal transfer applications. designed for and enhanced

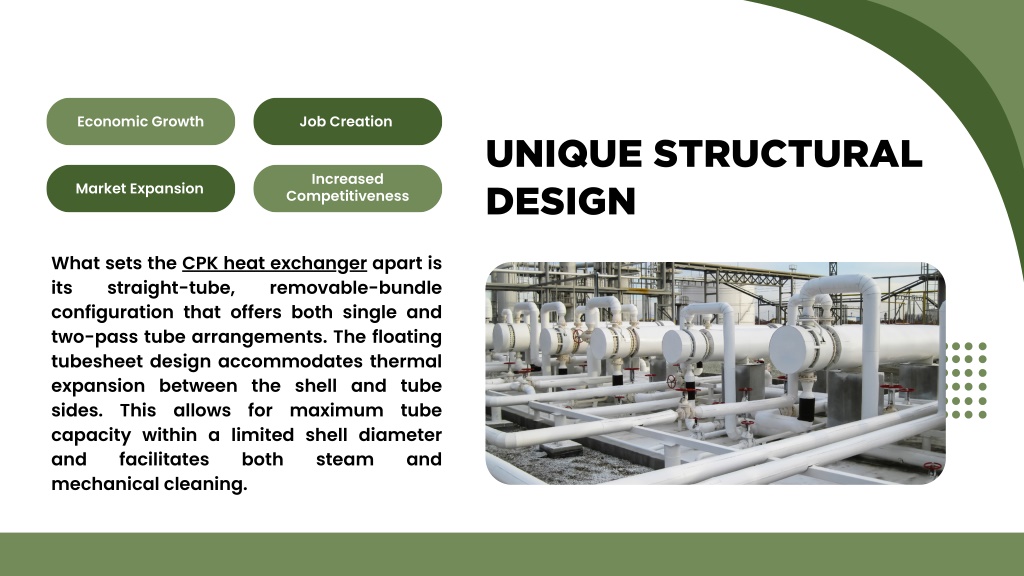

  3. Economic Growth Job Creation UNIQUE STRUCTURAL DESIGN Increased Competitiveness Market Expansion What sets the CPK heat exchanger apart is its straight-tube, configuration that offers both single and two-pass tube arrangements. The floating tubesheet design accommodates thermal expansion between the shell and tube sides. This allows for maximum tube capacity within a limited shell diameter and facilitates both mechanical cleaning. removable-bundle steam and

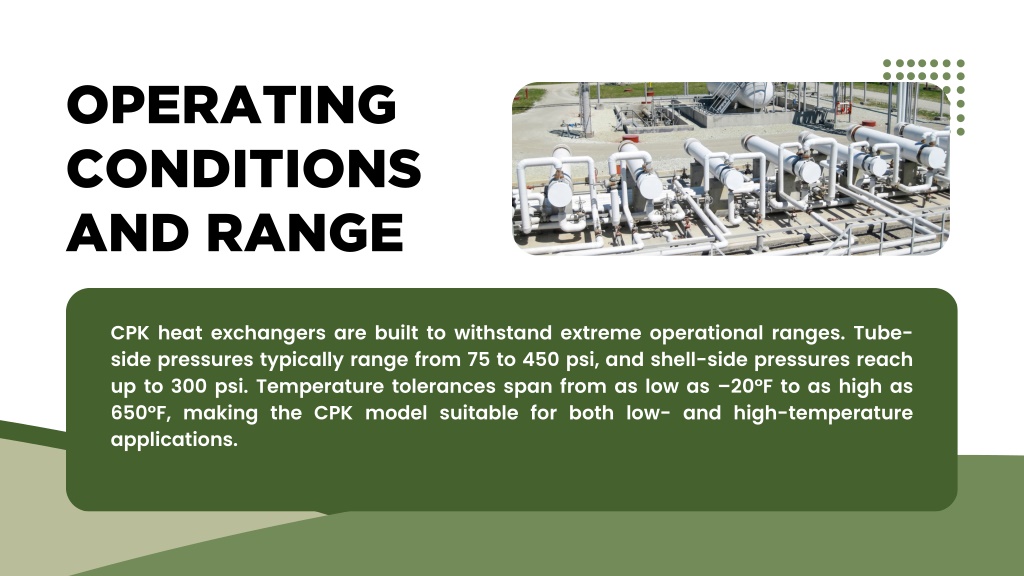

  4. OPERATING CONDITIONS AND RANGE CPK heat exchangers are built to withstand extreme operational ranges. Tube- side pressures typically range from 75 to 450 psi, and shell-side pressures reach up to 300 psi. Temperature tolerances span from as low as –20°F to as high as 650°F, making the CPK model suitable for both low- and high-temperature applications.

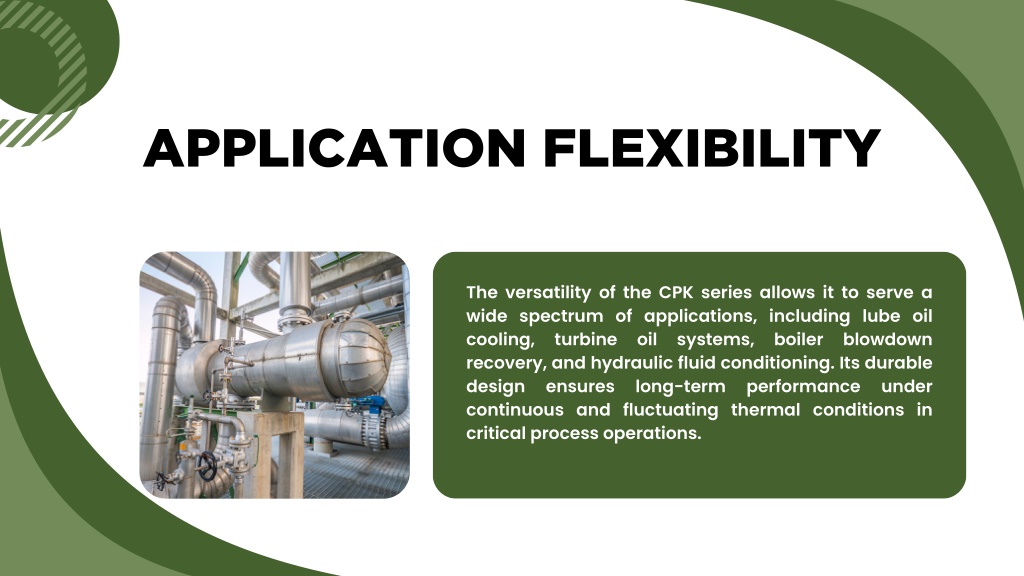

  5. APPLICATION FLEXIBILITY The versatility of the CPK series allows it to serve a wide spectrum of applications, including lube oil cooling, turbine oil systems, recovery, and hydraulic fluid conditioning. Its durable design ensures long-term continuous and fluctuating thermal conditions in critical process operations. boiler blowdown performance under

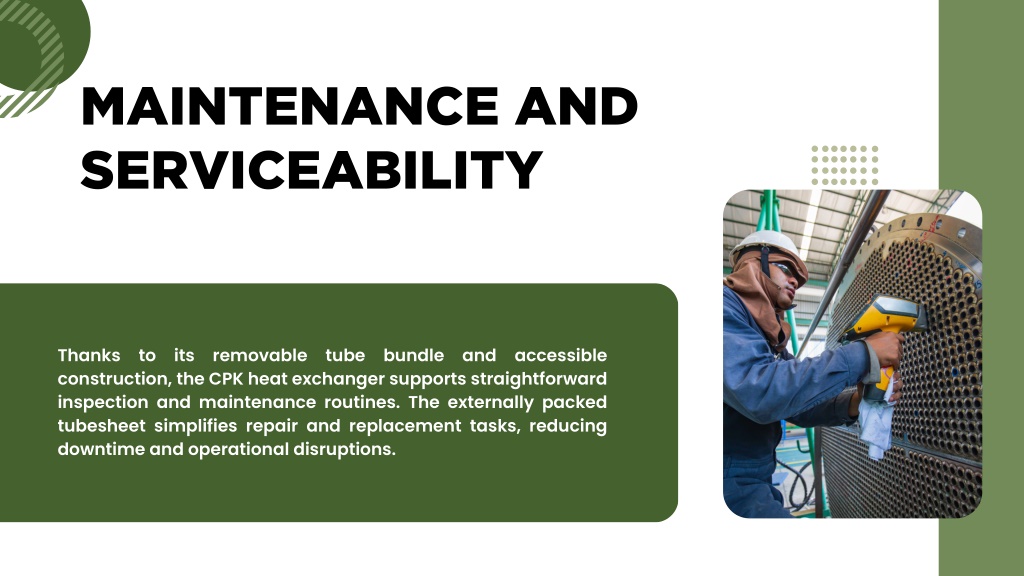

  6. MAINTENANCE AND SERVICEABILITY Thanks to its removable tube bundle and accessible construction, the CPK heat exchanger supports straightforward inspection and maintenance routines. The externally packed tubesheet simplifies repair and replacement tasks, reducing downtime and operational disruptions.

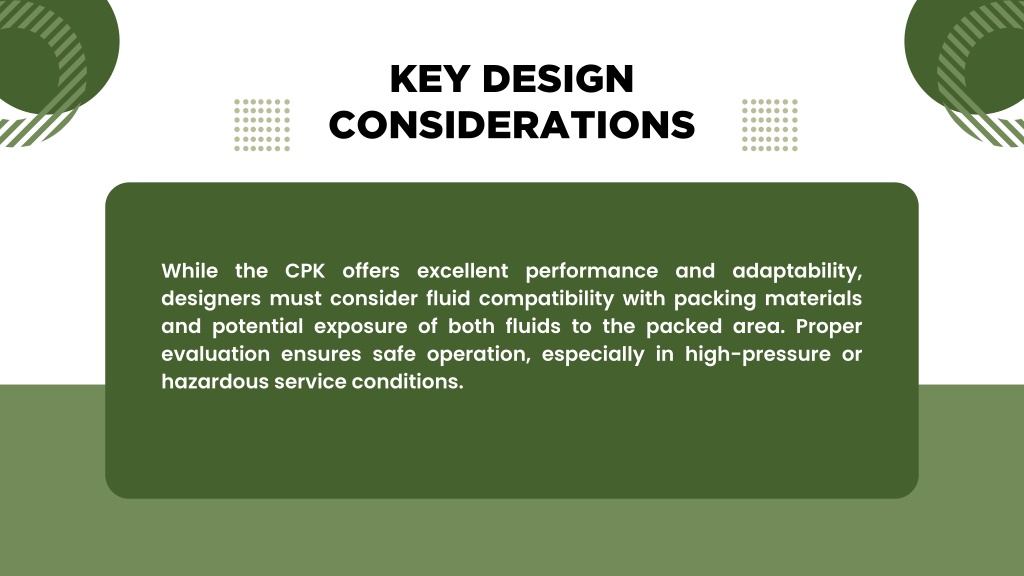

  7. KEY DESIGN CONSIDERATIONS While the CPK offers excellent performance and adaptability, designers must consider fluid compatibility with packing materials and potential exposure of both fluids to the packed area. Proper evaluation ensures safe operation, especially in high-pressure or hazardous service conditions.

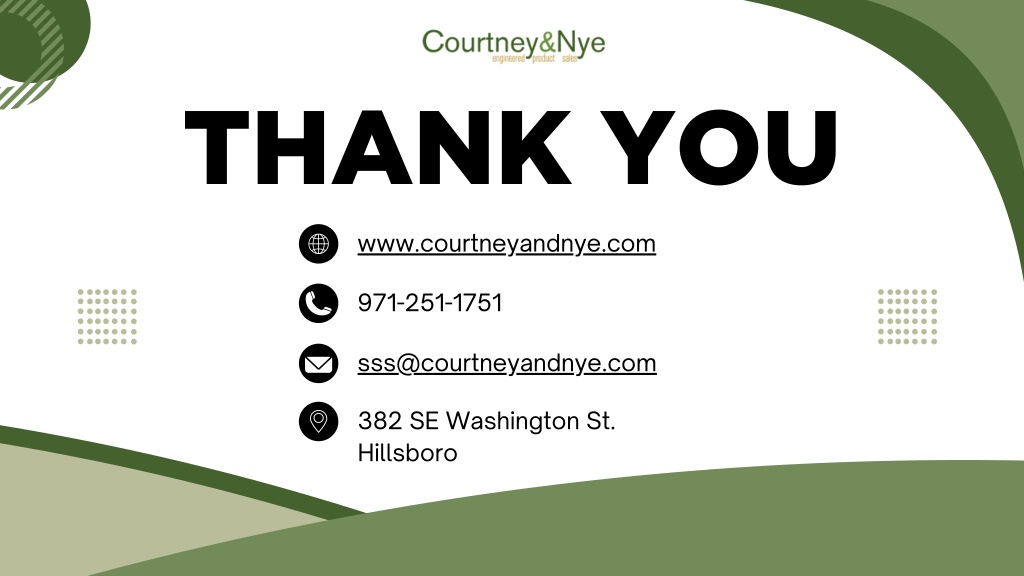

  8. THANK YOU www.courtneyandnye.com 971-251-1751 sss@courtneyandnye.com 382 SE Washington St. Hillsboro
