Compressed-Air-Nebulizer-AM-CNA13

Abimed Compressed Air Nebulizer efficiently delivers aerosol medication directly to the lungs. With a flow rate >6.71 L/min, it operates quietly (<65 dB), offers easy one-button use, and suits both adults and children. Compact and portable, it features a breath-enhanced design for faster treatments.

Clara36
Download Presentation

Compressed-Air-Nebulizer-AM-CNA13

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

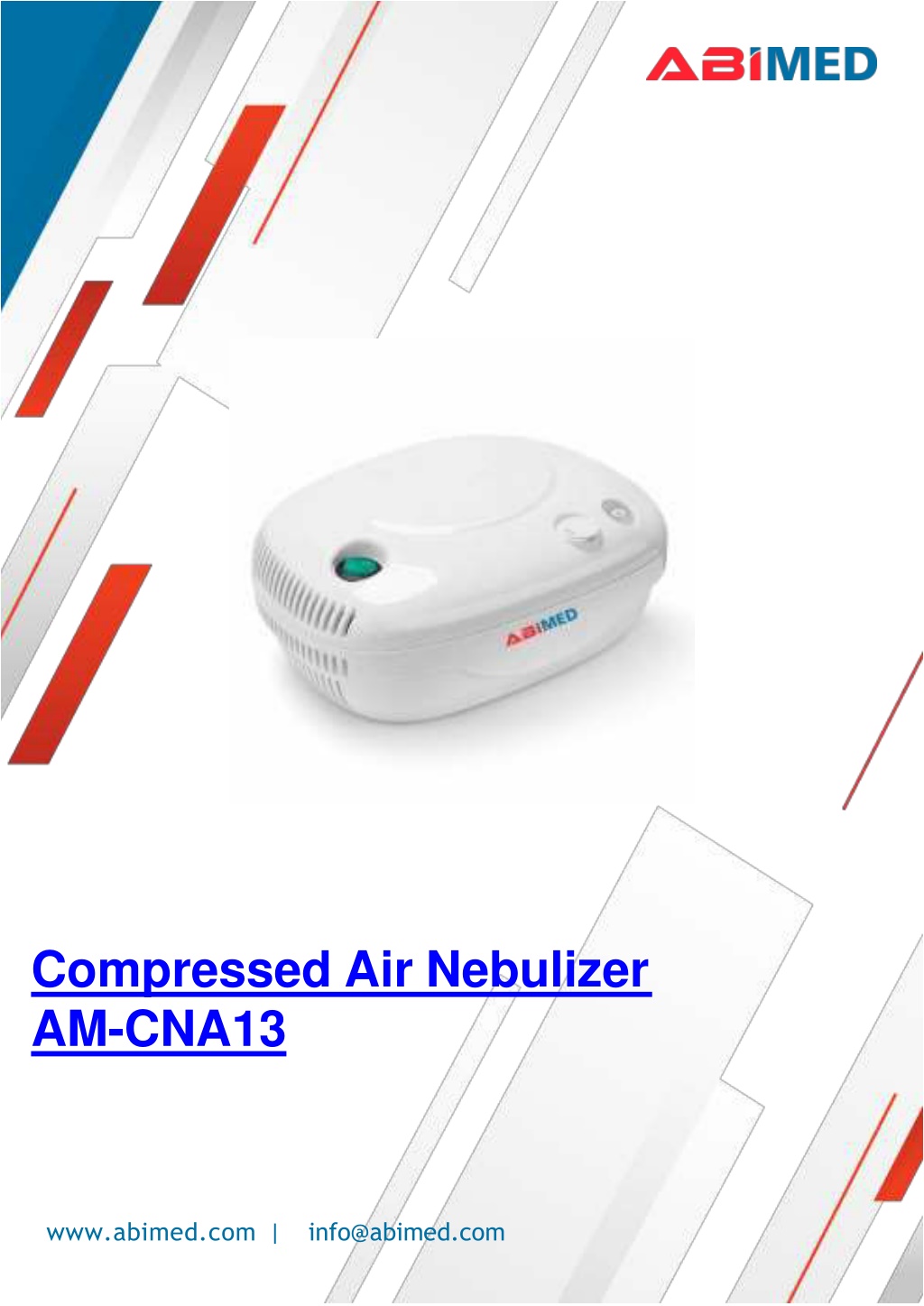

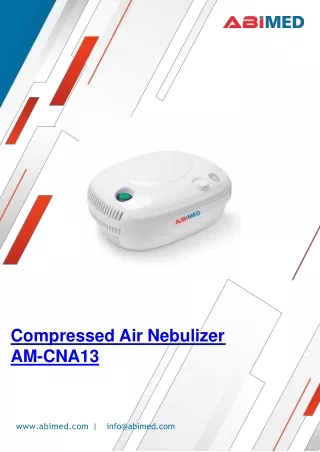

  1. Compressed Air Nebulizer AM-CNA13 www.abimed.com | info@abimed.com

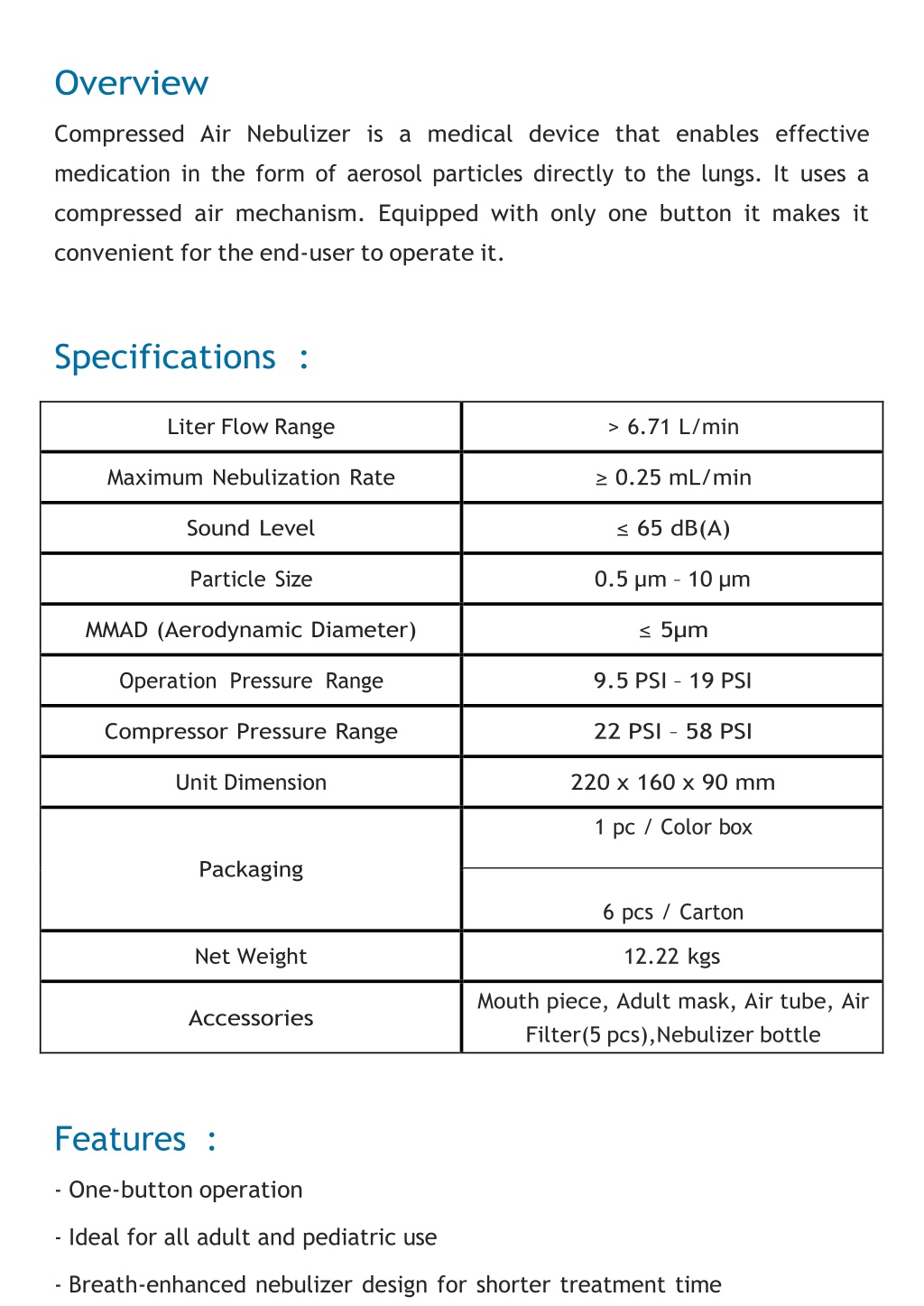

  2. Overview Compressed Air Nebulizer is a medical device that enables effective medication in the form of aerosol particles directly to the lungs. It uses a compressed air mechanism. Equipped with only one button it makes it convenient for the end-user to operate it. Specifications: Liter Flow Range > 6.71 L/min Maximum Nebulization Rate ≥0.25 mL/min Sound Level ≤65 dB(A) Particle Size 0.5 µm – 10 µm MMAD (Aerodynamic Diameter) ≤ 5µm Operation Pressure Range 9.5 PSI – 19 PSI Compressor Pressure Range 22 PSI – 58 PSI Unit Dimension 220 x 160 x 90 mm 1 pc / Color box Packaging 6 pcs / Carton Net Weight 12.22 kgs Mouth piece, Adult mask, Air tube, Air Filter(5 pcs),Nebulizer bottle Accessories Features: -One-button operation -Ideal for all adult and pediatric use -Breath-enhanced nebulizer design for shorter treatment time

  3. -Compact and light weight enables easy portability Applications: It is used in emergency and domiciliary treatment for the patients dealing with asthma and serious pulmonary diseases. Abimed Inc USA. Email: info@abimed.com | Website: www.abimed.com
