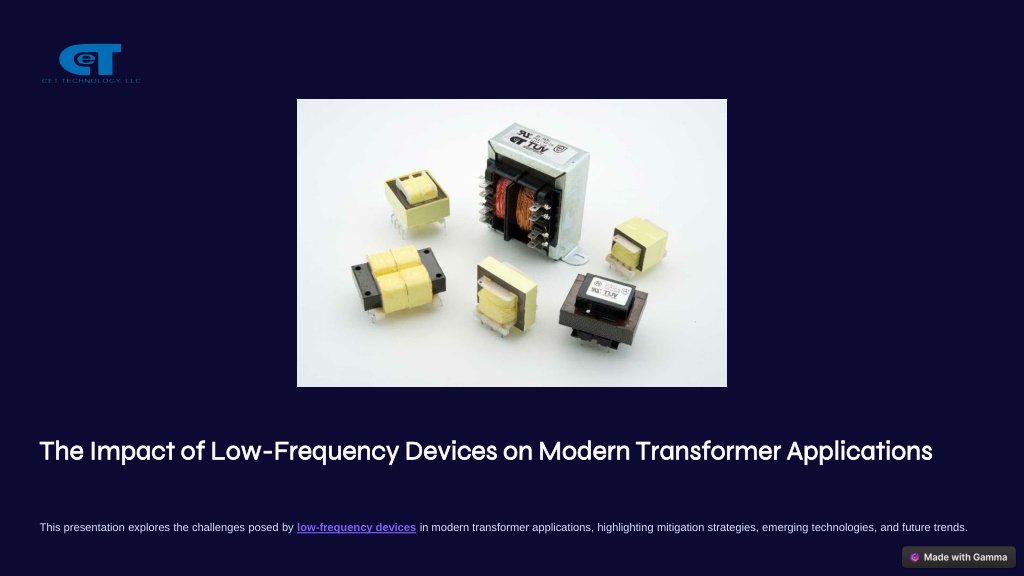

  1. The Impact of Low-Frequency Devices on Modern Transformer Applications This presentation explores the challenges posed by low-frequency devices in modern transformer applications, highlighting mitigation strategies, emerging technologies, and future trends.

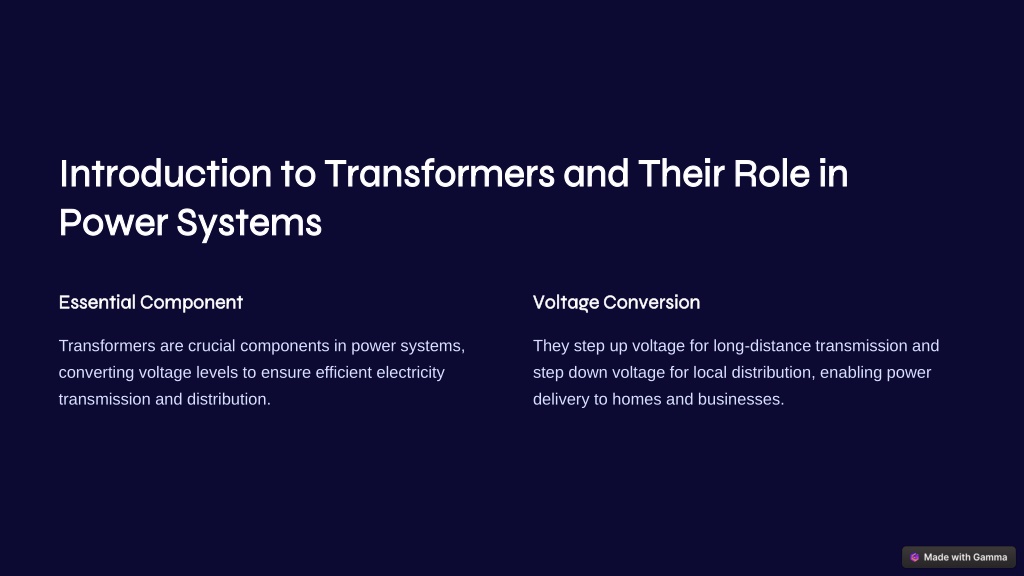

  2. Introduction to Transformers and Their Role in Power Systems Essential Component Voltage Conversion Transformers are crucial components in power systems, converting voltage levels to ensure efficient electricity transmission and distribution. They step up voltage for long-distance transmission and step down voltage for local distribution, enabling power delivery to homes and businesses.

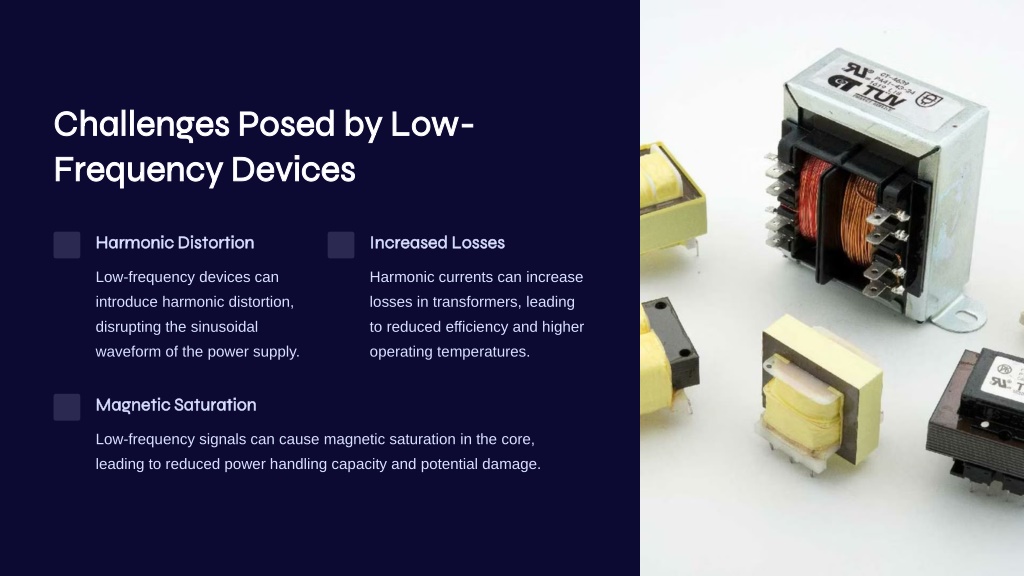

  3. Challenges Posed by Low-Frequency Devices Harmonic Distortion Increased Losses Low-frequency devices can introduce harmonic distortion, disrupting the sinusoidal waveform of the power supply. Harmonic currents can increase losses in transformers, leading to reduced efficiency and higher operating temperatures. Magnetic Saturation Low-frequency signals can cause magnetic saturation in the core, leading to reduced power handling capacity and potential damage.

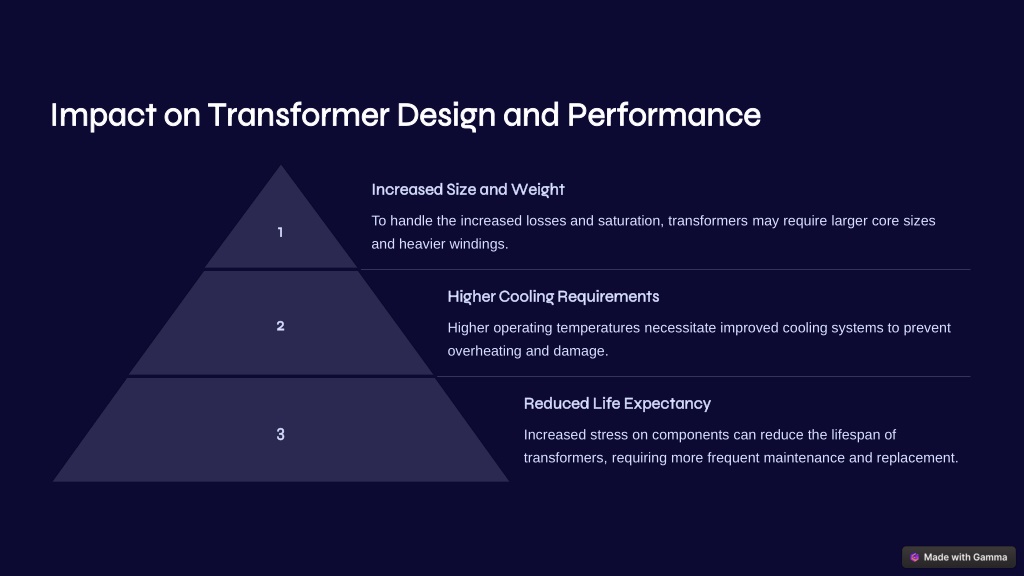

  4. Impact on Transformer Design and Performance Increased Size and Weight To handle the increased losses and saturation, transformers may require larger core sizes and heavier windings. 1 Higher Cooling Requirements 2 Higher operating temperatures necessitate improved cooling systems to prevent overheating and damage. Reduced Life Expectancy 3 Increased stress on components can reduce the lifespan of transformers, requiring more frequent maintenance and replacement.

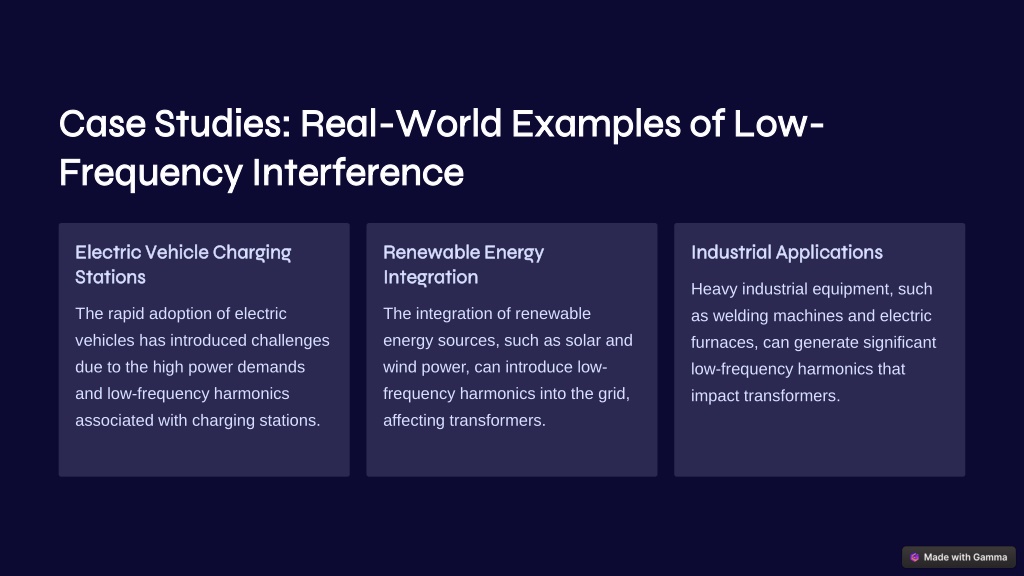

  5. Case Studies: Real-World Examples of Low-Frequency Interference Electric Vehicle Charging Stations Renewable Energy Integration Industrial Applications Heavy industrial equipment, such as welding machines and electric furnaces, can generate significant low-frequency harmonics that impact transformers. The rapid adoption of electric vehicles has introduced challenges due to the high power demands and low-frequency harmonics associated with charging stations. The integration of renewable energy sources, such as solar and wind power, can introduce low-frequency harmonics into the grid, affecting transformers.

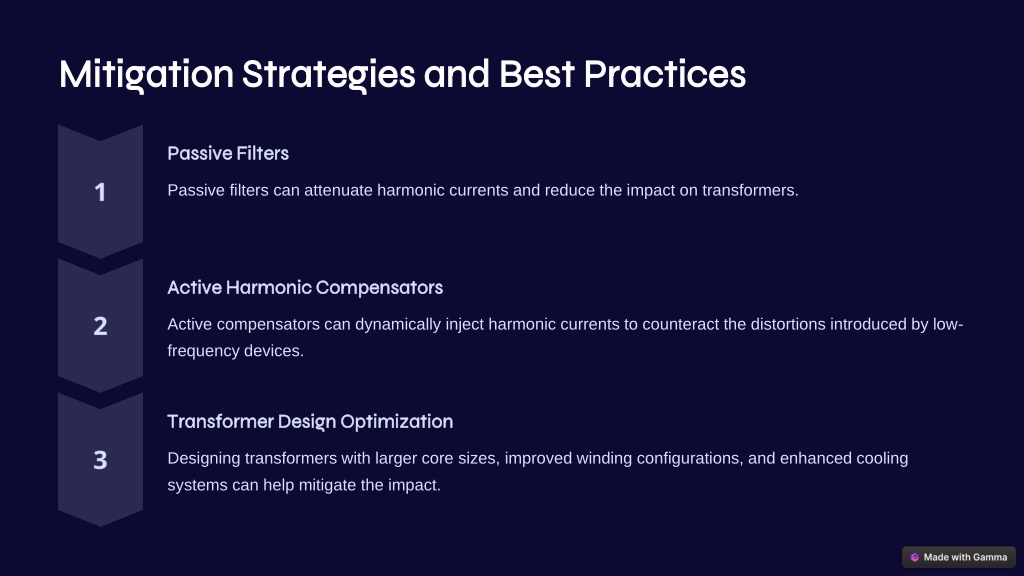

  6. Mitigation Strategies and Best Practices Passive Filters Passive filters can attenuate harmonic currents and reduce the impact on transformers. Active Harmonic Compensators Active compensators can dynamically inject harmonic currents to counteract the distortions introduced by low-frequency devices. Transformer Design Optimization Designing transformers with larger core sizes, improved winding configurations, and enhanced cooling systems can help mitigate the impact.

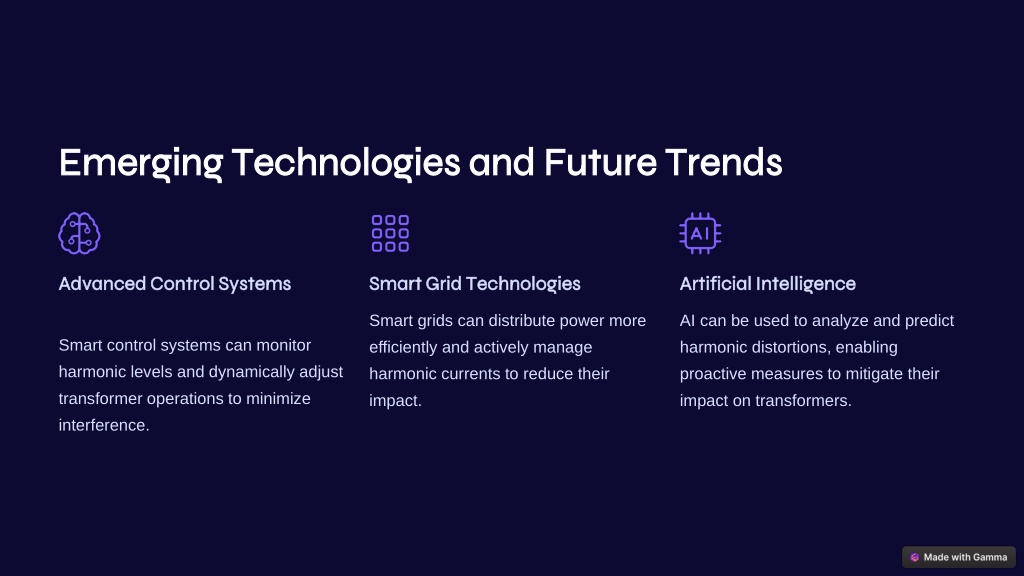

  7. Emerging Technologies and Future Trends Advanced Control Systems Smart Grid Technologies Artificial Intelligence Smart grids can distribute power more efficiently and actively manage harmonic currents to reduce their impact. AI can be used to analyze and predict harmonic distortions, enabling proactive measures to mitigate their impact on transformers. Smart control systems can monitor harmonic levels and dynamically adjust transformer operations to minimize interference.

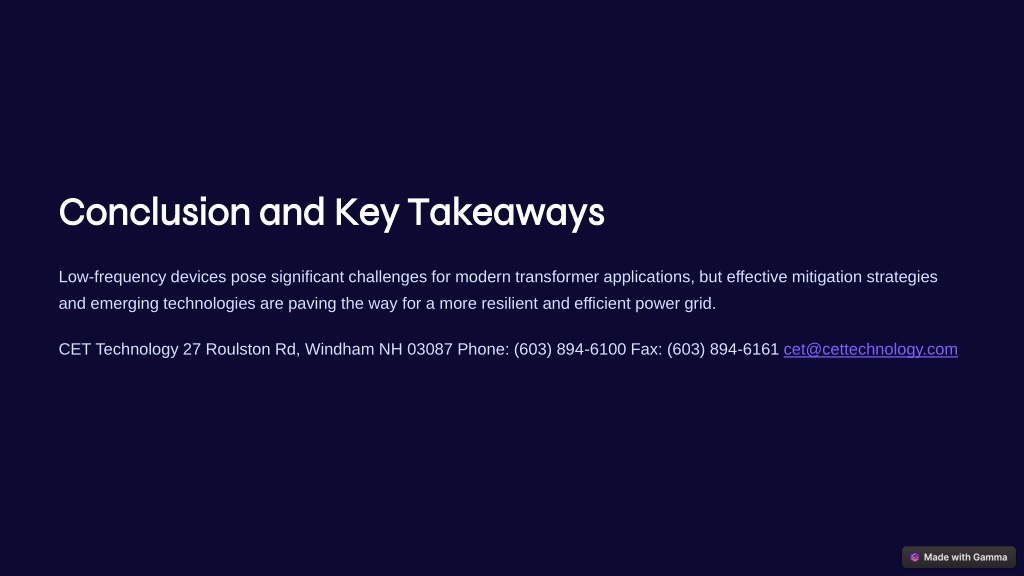

  8. Conclusion and Key Takeaways Low-frequency devices pose significant challenges for modern transformer applications, but effective mitigation strategies and emerging technologies are paving the way for a more resilient and efficient power grid. CET Technology 27 Roulston Rd, Windham NH 03087 Phone: (603) 894-6100 Fax: (603) 894-6161 cet@cettechnology.com
