Drying-Oven-LBN-DO164

Drying Oven LBN-DO164 is a bench top model that takes up little bench space and is designed to provide trouble-free operation for a variety of needs. The instrument is well-suited to a wide range of applications up to 300u00b0C, with temperature uniformity as good as 2.5u00b0C. It has a chamber volume of 284 liters, a cold-rolling steel shell, and a mirror stainless steel working chamber. The unit includes an observation glass window as well as 3/10 shelves with a load capacity of 15 kg per shelf.

Brittany8
Download Presentation

Drying-Oven-LBN-DO164

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

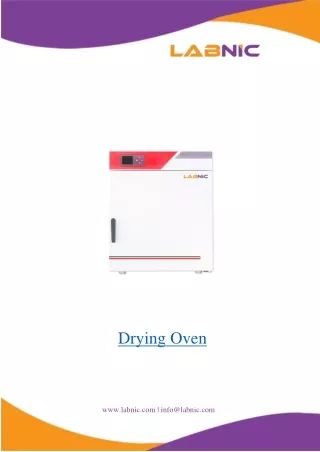

  1. Drying Oven www.labnic.com | info@labnic.com

  2. Overview Drying Oven is a bench top model that takes up little bench space and is designed to provide trouble-free operation for a variety of needs. The instrument is well-suited to a wide range of applications up to 300 C, with temperature uniformity as good as 2.5 C. It has a chamber volume of 284 liters, a cold-rolling steel shell, and a mirror stainless steel working chamber. The unit includes an observation glass window as well as 3/10 shelves with a load capacity of 15kg per shelf. Specifications : Volume 284 L Temperature Range RT+5 - 300 C Temperature Resolution 0.1 C Temperature Fluctuation –1 C Temperature Uniformity –2.5 C Heating Rate ˆ 5 Timer Range 0 9999 min No of Shelves 3/10 Load Per Shelf 15 Kg Power 2750 W Power Supply 220V, 50Hz Internal Dimension W D H 720 530 745 mm Housing Dimensions W D H 865 746 1017 mm Package Dimension W D H 985 906 1167 mm Net Weight 97 Kg

  3. Gross Weight Features : Unique door design reduces heat emission Time for effective usage and additional energy savings 118 Kg Space saving foot print Flexible shelving system allows for optimal space utilization Temperature uniformity of –2.5 C Easy setting with intuitive interface Easy to open door handle Dual LED screens and soft touch keys Rotary two stage locking structure has good sealing performance Rounded corners of the chambers are easy to clean and maintain Power supply recovery function helps in data retrieval during power failure Due to air convention breeze device air in the chamber can be renewed and circulated Access port for data logging Audible and visual alarm functions ensure both sample and operator safety Applications : It is widely used to dry glassware, sterilize general instruments etc. in chemical and pharmaceutical industries, food industries, and textiles and electronic components.

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
