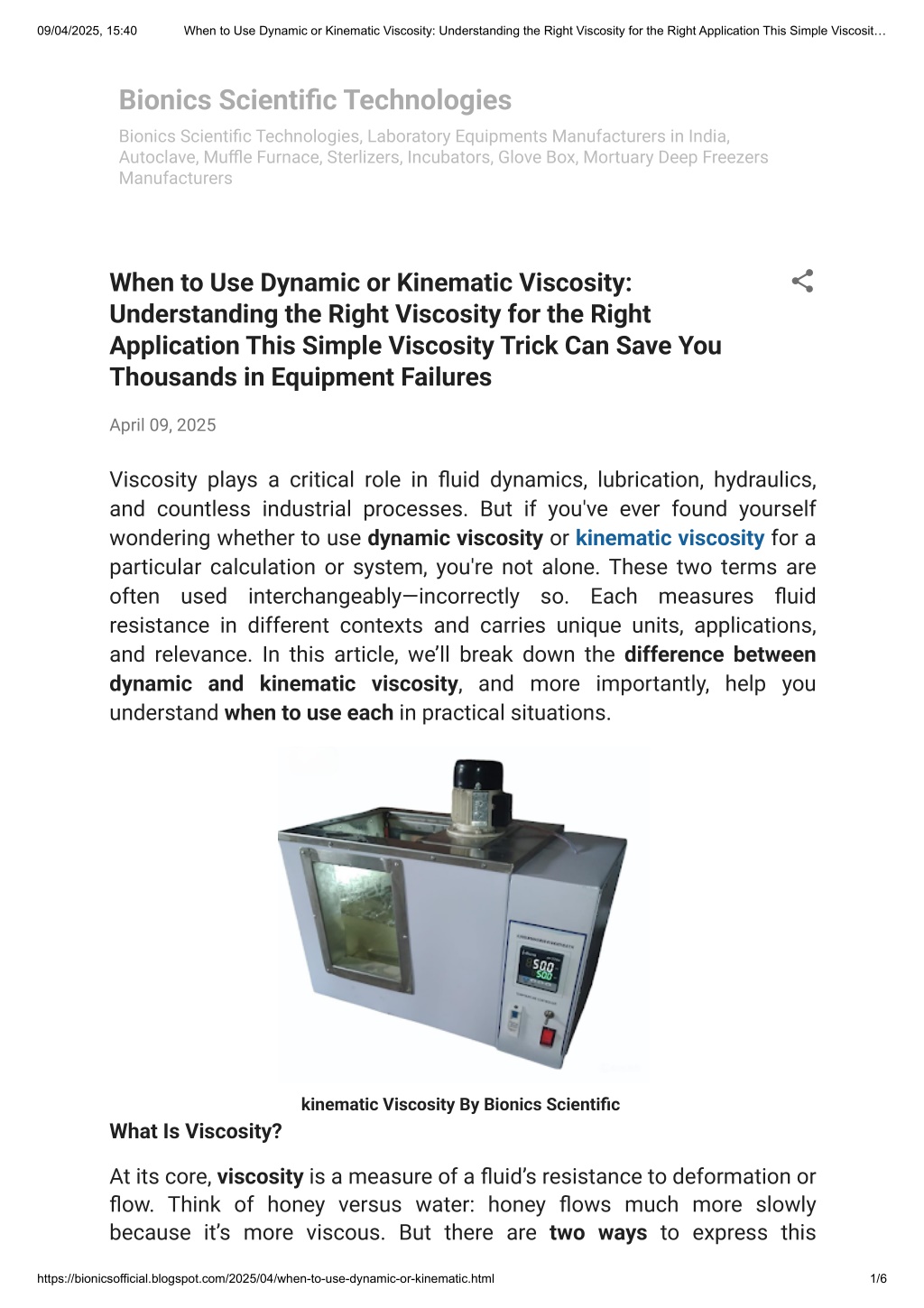

1. 09/04/2025, 15:40 When to Use Dynamic or Kinematic Viscosity: Understanding the Right Viscosity for the Right Application This Simple Viscosit… Bionics Scienti?c Technologies Bionics Scienti?c Technologies, Laboratory Equipments Manufacturers in India, Autoclave, Mu?e Furnace, Sterlizers, Incubators, Glove Box, Mortuary Deep Freezers Manufacturers When to Use Dynamic or Kinematic Viscosity: Understanding the Right Viscosity for the Right Application This Simple Viscosity Trick Can Save You Thousands in Equipment Failures April 09, 2025 Viscosity plays a critical role in fluid dynamics, lubrication, hydraulics, and countless industrial processes. But if you've ever found yourself wondering whether to use dynamic viscosity or kinematic viscosity for a particular calculation or system, you're not alone. These two terms are often used interchangeably—incorrectly so. Each measures fluid resistance in different contexts and carries unique units, applications, and relevance. In this article, we’ll break down the difference between dynamic and kinematic viscosity, and more importantly, help you understand when to use each in practical situations. kinematic Viscosity By Bionics Scienti?c  What Is Viscosity? At its core, viscosity is a measure of a fluid’s resistance to deformation or flow. Think of honey versus water: honey flows much more slowly because it’s more viscous. But there are two ways to express this https://bionicsofficial.blogspot.com/2025/04/when-to-use-dynamic-or-kinematic.html 1/6

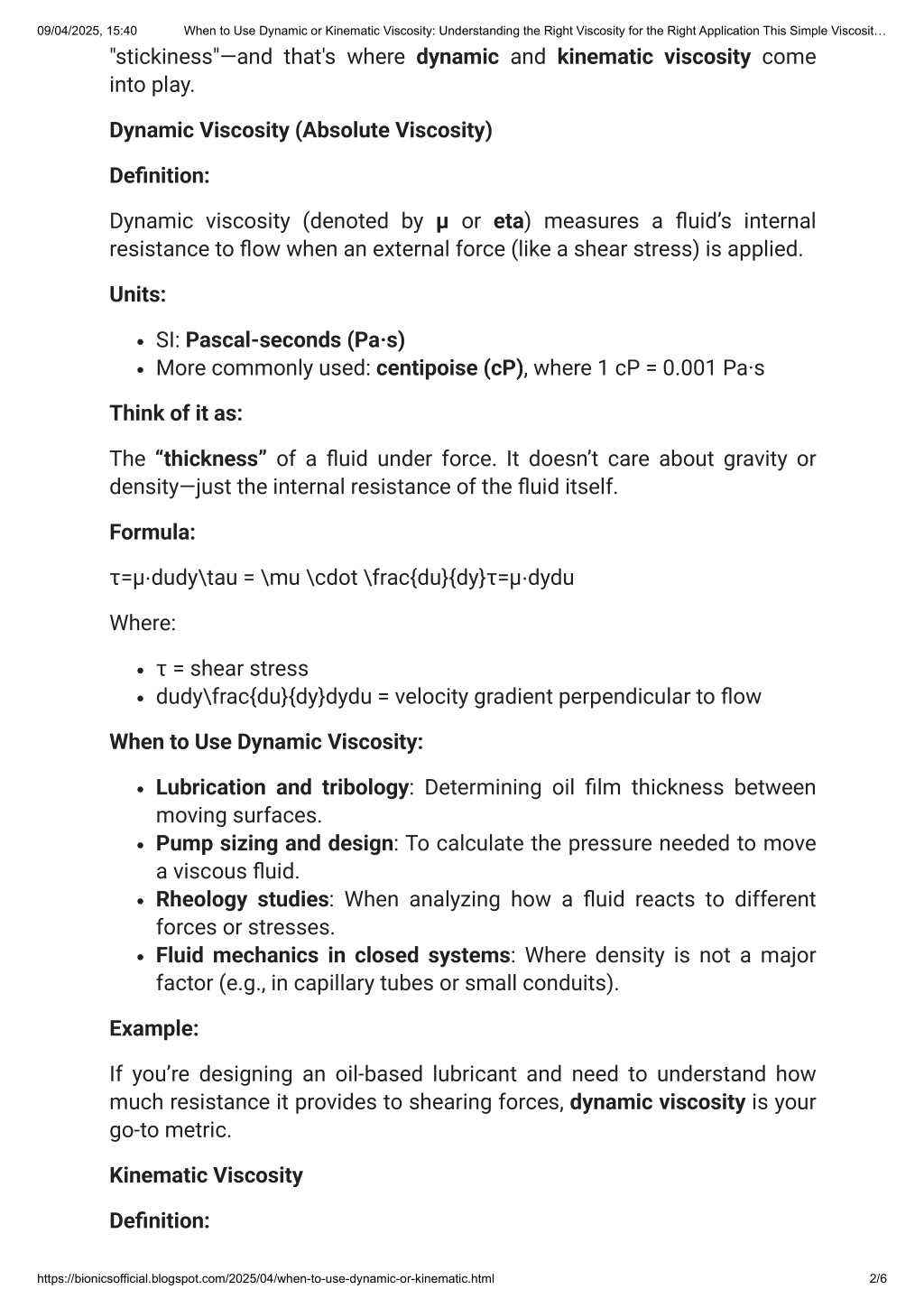

2. 09/04/2025, 15:40 When to Use Dynamic or Kinematic Viscosity: Understanding the Right Viscosity for the Right Application This Simple Viscosit… "stickiness"—and that's where dynamic and kinematic viscosity come into play. Dynamic Viscosity (Absolute Viscosity) Definition: Dynamic viscosity (denoted by μ or eta) measures a fluid’s internal resistance to flow when an external force (like a shear stress) is applied. Units: SI: Pascal-seconds (Pa·s) More commonly used: centipoise (cP), where 1 cP = 0.001 Pa·s Think of it as: The “thickness” of a fluid under force. It doesn’t care about gravity or density—just the internal resistance of the fluid itself. Formula: τ=μ⋅dudy\tau = \mu \cdot \frac{du}{dy}τ=μ⋅dydu Where: τ = shear stress dudy\frac{du}{dy}dydu = velocity gradient perpendicular to flow When to Use Dynamic Viscosity: Lubrication and tribology: Determining oil film thickness between moving surfaces. Pump sizing and design: To calculate the pressure needed to move a viscous fluid. Rheology studies: When analyzing how a fluid reacts to different forces or stresses. Fluid mechanics in closed systems: Where density is not a major factor (e.g., in capillary tubes or small conduits). Example: If you’re designing an oil-based lubricant and need to understand how much resistance it provides to shearing forces, dynamic viscosity is your go-to metric. Kinematic Viscosity Definition: https://bionicsofficial.blogspot.com/2025/04/when-to-use-dynamic-or-kinematic.html 2/6

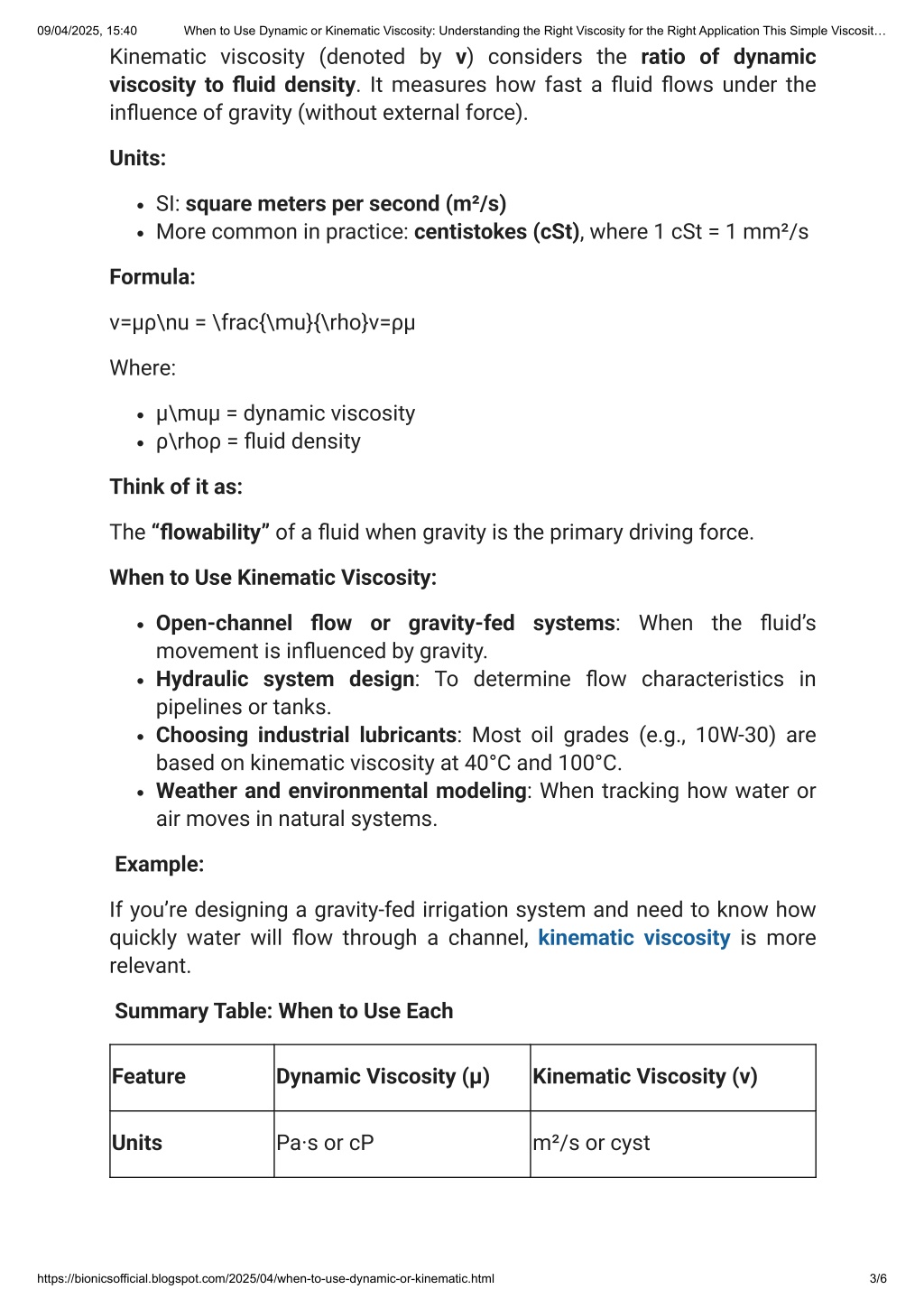

3. 09/04/2025, 15:40 When to Use Dynamic or Kinematic Viscosity: Understanding the Right Viscosity for the Right Application This Simple Viscosit… Kinematic viscosity (denoted by ν) considers the ratio of dynamic viscosity to ?uid density. It measures how fast a fluid flows under the influence of gravity (without external force). Units: SI: square meters per second (m²/s) More common in practice: centistokes (cSt), where 1 cSt = 1 mm²/s Formula: ν=μρ\nu = \frac{\mu}{\rho}ν=ρμ Where: μ\muμ = dynamic viscosity ρ\rhoρ = fluid density Think of it as: The “?owability” of a fluid when gravity is the primary driving force. When to Use Kinematic Viscosity: Open-channel ?ow or gravity-fed systems: When the fluid’s movement is influenced by gravity. Hydraulic system design: To determine flow characteristics in pipelines or tanks. Choosing industrial lubricants: Most oil grades (e.g., 10W-30) are based on kinematic viscosity at 40°C and 100°C. Weather and environmental modeling: When tracking how water or air moves in natural systems. Example: If you’re designing a gravity-fed irrigation system and need to know how quickly water will flow through a channel, kinematic viscosity is more relevant. Summary Table: When to Use Each Feature Dynamic Viscosity (μ) Kinematic Viscosity (ν) Pa·s or cP m²/s or cyst Units https://bionicsofficial.blogspot.com/2025/04/when-to-use-dynamic-or-kinematic.html 3/6

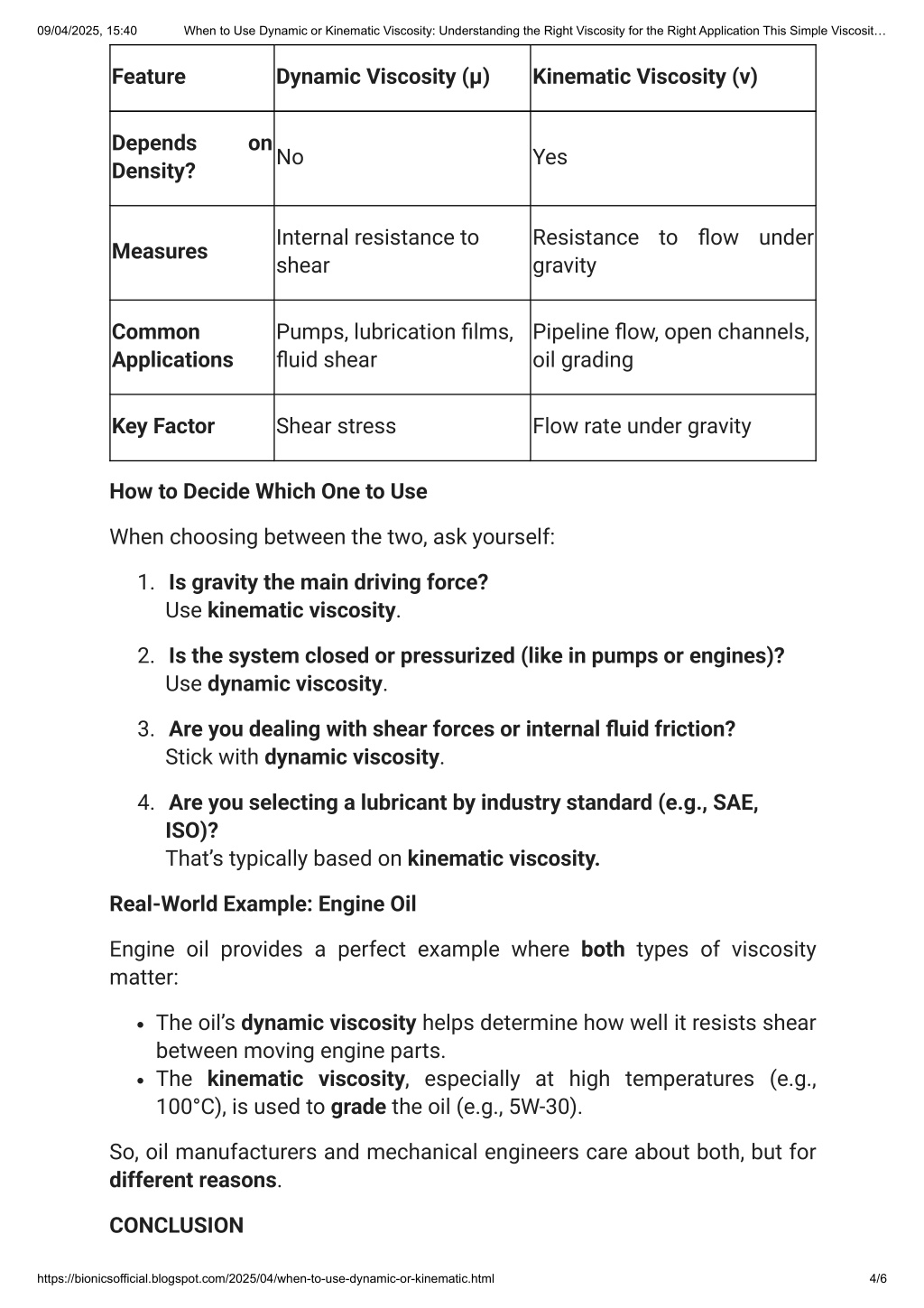

4. 09/04/2025, 15:40 When to Use Dynamic or Kinematic Viscosity: Understanding the Right Viscosity for the Right Application This Simple Viscosit… Feature Dynamic Viscosity (μ) Kinematic Viscosity (ν) Depends Density? on No Yes Internal resistance to shear Resistance to flow under gravity Measures Pumps, lubrication films, fluid shear Pipeline flow, open channels, oil grading Common Applications Shear stress Flow rate under gravity Key Factor How to Decide Which One to Use When choosing between the two, ask yourself: 1. Is gravity the main driving force? Use kinematic viscosity. 2. Is the system closed or pressurized (like in pumps or engines)? Use dynamic viscosity. 3. Are you dealing with shear forces or internal ?uid friction? Stick with dynamic viscosity. 4. Are you selecting a lubricant by industry standard (e.g., SAE, ISO)? That’s typically based on kinematic viscosity. Real-World Example: Engine Oil Engine oil provides a perfect example where both types of viscosity matter: The oil’s dynamic viscosity helps determine how well it resists shear between moving engine parts. The kinematic viscosity, especially at high temperatures (e.g., 100°C), is used to grade the oil (e.g., 5W-30). So, oil manufacturers and mechanical engineers care about both, but for different reasons. CONCLUSION https://bionicsofficial.blogspot.com/2025/04/when-to-use-dynamic-or-kinematic.html 4/6

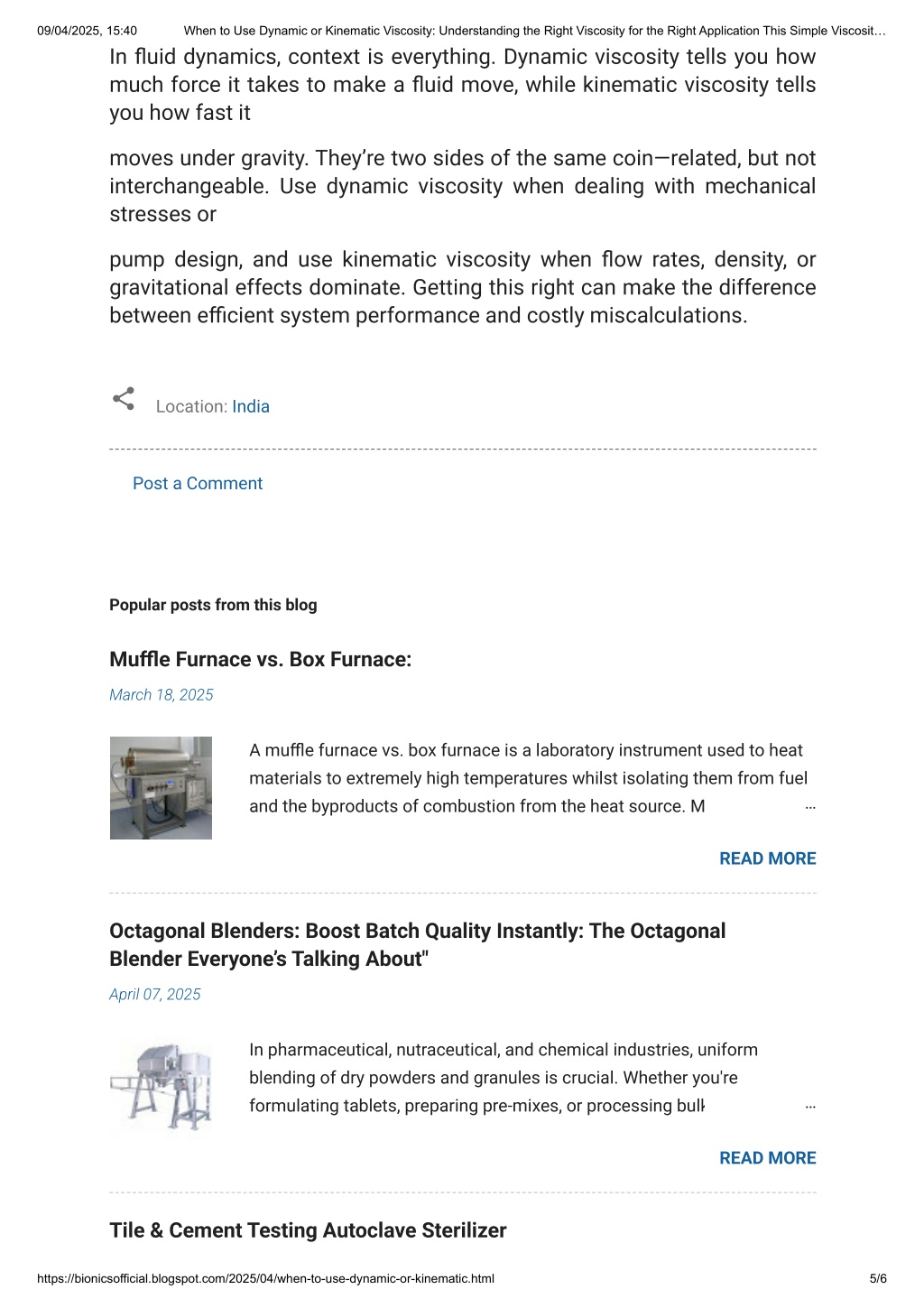

5. 09/04/2025, 15:40 When to Use Dynamic or Kinematic Viscosity: Understanding the Right Viscosity for the Right Application This Simple Viscosit… In fluid dynamics, context is everything. Dynamic viscosity tells you how much force it takes to make a fluid move, while kinematic viscosity tells you how fast it moves under gravity. They’re two sides of the same coin—related, but not interchangeable. Use dynamic viscosity when dealing with mechanical stresses or pump design, and use kinematic viscosity when flow rates, density, or gravitational effects dominate. Getting this right can make the difference between efficient system performance and costly miscalculations. Location: India Post a Comment Popular posts from this blog Mu?e Furnace vs. Box Furnace: March 18, 2025 A mu?e furnace vs. box furnace is a laboratory instrument used to heat materials to extremely high temperatures whilst isolating them from fuel … and the byproducts of combustion from the heat source. Mu?e READ MORE Octagonal Blenders: Boost Batch Quality Instantly: The Octagonal Blender Everyone’s Talking About" April 07, 2025 In pharmaceutical, nutraceutical, and chemical industries, uniform blending of dry powders and granules is crucial. Whether you're formulating tablets, preparing pre-mixes, or processing bulk chemicals,… READ MORE Tile & Cement Testing Autoclave Sterilizer https://bionicsofficial.blogspot.com/2025/04/when-to-use-dynamic-or-kinematic.html 5/6
