Visualize digital twins in the field

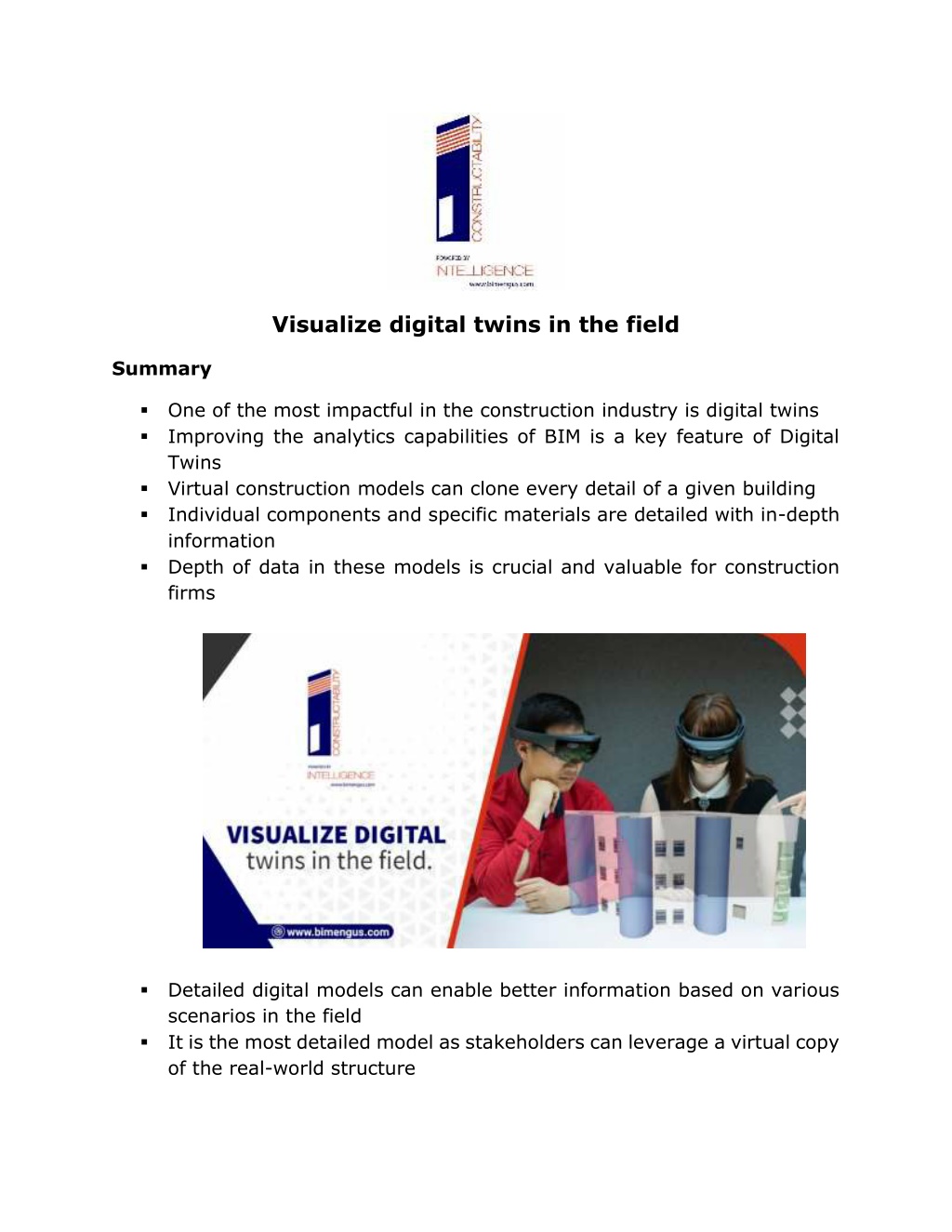

1. Visualize digital twins in the field Summary ▪One of the most impactful in the construction industry is digital twins ▪Improving the analytics capabilities of BIM is a key feature of Digital Twins ▪Virtual construction models can clone every detail of a given building ▪Individual components and specific materials are detailed with in-depth information ▪Depth of data in these models is crucial and valuable for construction firms ▪Detailed digital models can enable better information based on various scenarios in the field ▪It is the most detailed model as stakeholders can leverage a virtual copy of the real-world structure

2. ▪Construction companies use digital twins to build detailed models of the existing object or structure ▪Various simulations can be tested viz. natural lighting, fluid dynamics, HVAC systems, etc. ▪Digital Twins convey a greater process-oriented characterization through a combination of IoT, Artificial Intelligence, Software Analytics, and Machine Learning ▪Digital Twins are also deployed to leverage better modifications, maintenance, and operations Transformational advantages of a Digital Twin ▪BIM and Digital Twin strategies are built on common principles ▪Improve process visibility and support project planning ▪Unifies information from initial design for manufacturers, component selection, onsite delivery, etc. to maintenance and operations ▪Used in site construction to constantly update information ▪Reduction in site visits by stakeholders based on information stored & shared in the digital model ▪Manage and minimize change orders based on smart design & project planning to reduce the impact of schedule and budget on the project ▪Cost savings by avoiding project rework through data collected by sensors from the job site and updating the As-Built model ▪Improved collaboration based on a two-way information flow from the job site to the twin, and the twin to the job site ▪Every team stays on the same page with access to real-time data to make informed decisions ▪Improved worker safety through real-time tracking worker tracking in unsafe zones based on sensors installed in critical areas to monitor stress and load ▪Validate project deliverables and constructability through digital twins for reliable maintenance and operations ▪Monitor building safety with sensors installed in the structure to transmit data to the digital model ▪Test virtual sequencing and logistics to reduce construction and onsite costs ▪Optimize operational performance and sustainability Resource Administration

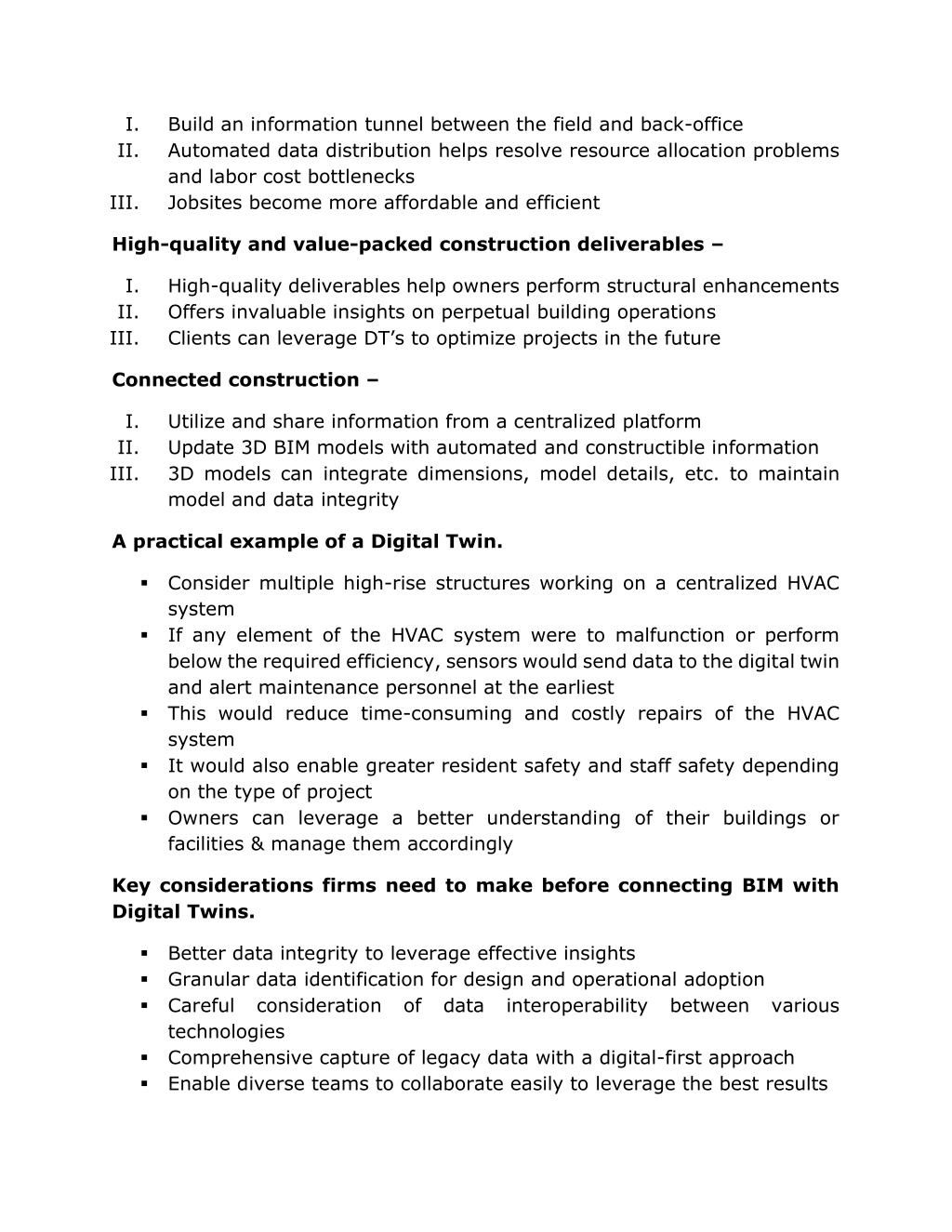

3. I. II. Build an information tunnel between the field and back-office Automated data distribution helps resolve resource allocation problems and labor cost bottlenecks Jobsites become more affordable and efficient III. High-quality and value-packed construction deliverables – I. II. III. High-quality deliverables help owners perform structural enhancements Offers invaluable insights on perpetual building operations Clients can leverage DT’s to optimize projects in the future Connected construction – I. II. III. Utilize and share information from a centralized platform Update 3D BIM models with automated and constructible information 3D models can integrate dimensions, model details, etc. to maintain model and data integrity A practical example of a Digital Twin. ▪Consider multiple high-rise structures working on a centralized HVAC system ▪If any element of the HVAC system were to malfunction or perform below the required efficiency, sensors would send data to the digital twin and alert maintenance personnel at the earliest ▪This would reduce time-consuming and costly repairs of the HVAC system ▪It would also enable greater resident safety and staff safety depending on the type of project ▪Owners can leverage a better understanding of their buildings or facilities & manage them accordingly Key considerations firms need to make before connecting BIM with Digital Twins. ▪Better data integrity to leverage effective insights ▪Granular data identification for design and operational adoption ▪Careful consideration of data interoperability between various technologies ▪Comprehensive capture of legacy data with a digital-first approach ▪Enable diverse teams to collaborate easily to leverage the best results

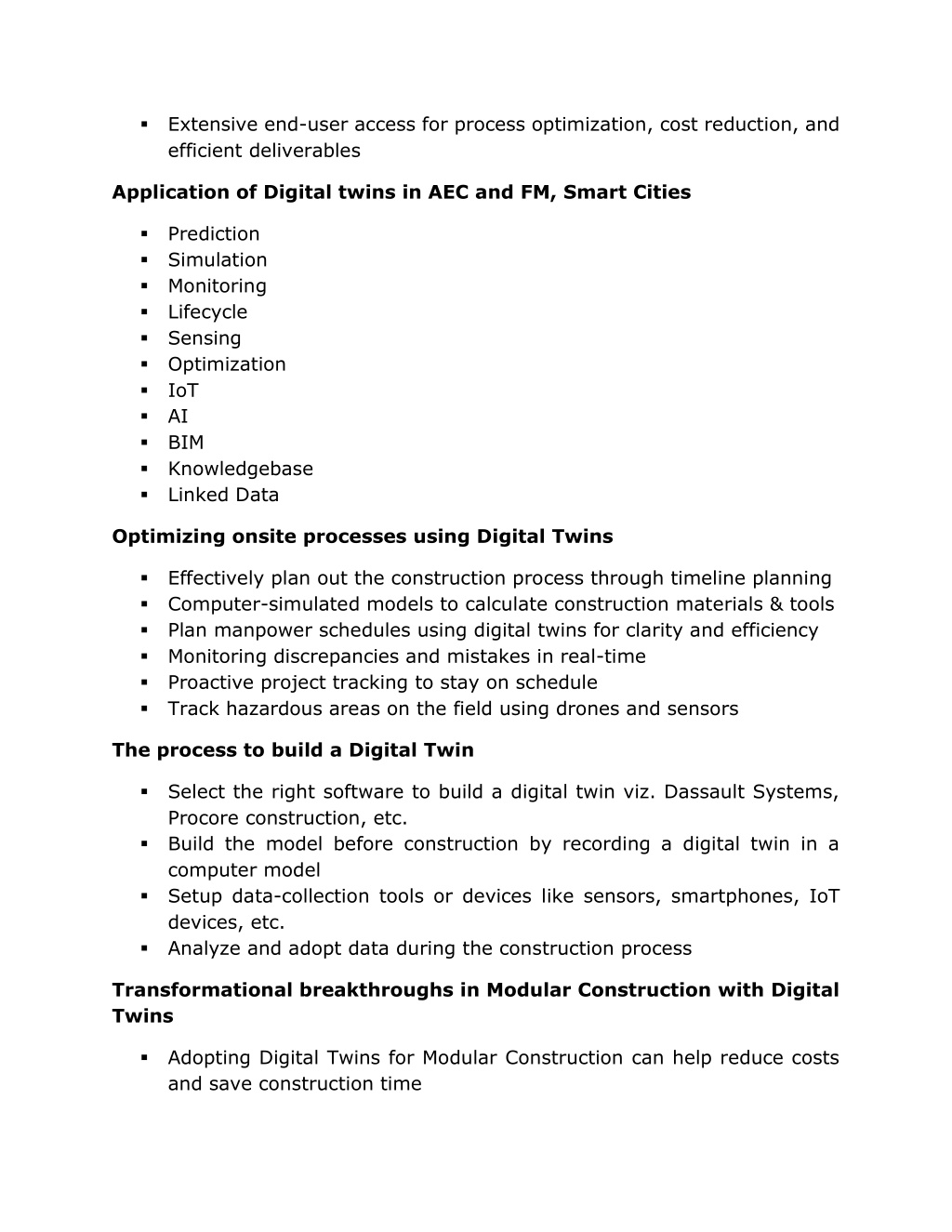

4. ▪Extensive end-user access for process optimization, cost reduction, and efficient deliverables Application of Digital twins in AEC and FM, Smart Cities ▪Prediction ▪Simulation ▪Monitoring ▪Lifecycle ▪Sensing ▪Optimization ▪IoT ▪AI ▪BIM ▪Knowledgebase ▪Linked Data Optimizing onsite processes using Digital Twins ▪Effectively plan out the construction process through timeline planning ▪Computer-simulated models to calculate construction materials & tools ▪Plan manpower schedules using digital twins for clarity and efficiency ▪Monitoring discrepancies and mistakes in real-time ▪Proactive project tracking to stay on schedule ▪Track hazardous areas on the field using drones and sensors The process to build a Digital Twin ▪Select the right software to build a digital twin viz. Dassault Systems, Procore construction, etc. ▪Build the model before construction by recording a digital twin in a computer model ▪Setup data-collection tools or devices like sensors, smartphones, IoT devices, etc. ▪Analyze and adopt data during the construction process Transformational breakthroughs in Modular Construction with Digital Twins ▪Adopting Digital Twins for Modular Construction can help reduce costs and save construction time

5. ▪Simulating onsite assemblies of manufactured components can be simulated to prevent rework and save construction time ▪As DT’s have begun playing a major role in modular construction, they can be scaled with these steps: i. Build generative design instead of traditional 2D drawings – helps speed up projects and saves time ii. Analyze component performance before building – digital twins help manufacturers analyze component tolerances through expansion, deformation, etc. iii. Make data or information accessible to every team and project stakeholder – leverage the power of design algorithms with technical factors to avoid silos iv. Capture and analyze data from the modular product – integrating sensors into fabricated components helps designers understand the component performance Conclusion ▪The construction sector can significantly benefit from adopting Digital Twins in the construction sector ▪As BIM tools evolve, they need technology that can help unlock new levels of data visibility and coordination ▪Improving construction requires a true CDE that not only helps people in the field but augments design and operations as well ▪Perpetually improving everything that can be interacted with by combining multiple data sources will be the next step in sustainable construction Contact Us: - 703-994-4242 Visit us: - www.bimengus.com/
