Presentation Transcript
queuing

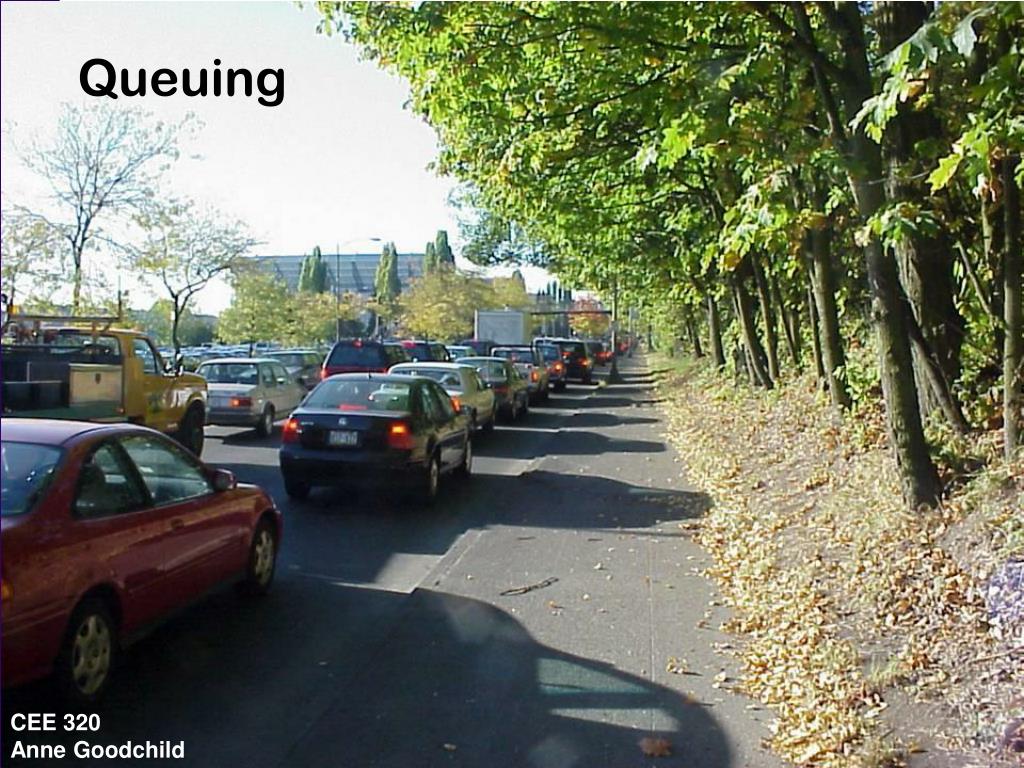

Queuing

CEE 320Anne Goodchild

outline
Outline
  • Fundamentals
  • Poisson Distribution
  • Notation
  • Applications
  • Analysis
    • Graphical
    • Numerical
  • Example
fundamentals of queuing theory
Fundamentals of Queuing Theory
  • Microscopic traffic flow
    • Different analysis than theory of traffic flow
    • Intervals between vehicles is important
    • Rate of arrivals is important
  • Arrivals
  • Departures
  • Service rate
activated
Activated

Downstream

Upstream of bottleneck/server

Arrivals

Departures

Server/bottleneck

Direction of flow

not activated
Not Activated

Arrivals

Departures

server

flow analysis
Flow Analysis
  • Bottleneck active
    • Service rate is capacity
    • Downstream flow is determined by bottleneck service rate
    • Arrival rate > departure rate
    • Queue present
flow analysis7
Flow Analysis
  • Bottle neck not active
    • Arrival rate < departure rate
    • No queue present
    • Service rate = arrival rate
    • Downstream flow equals upstream flow
fundamentals of queuing theory9

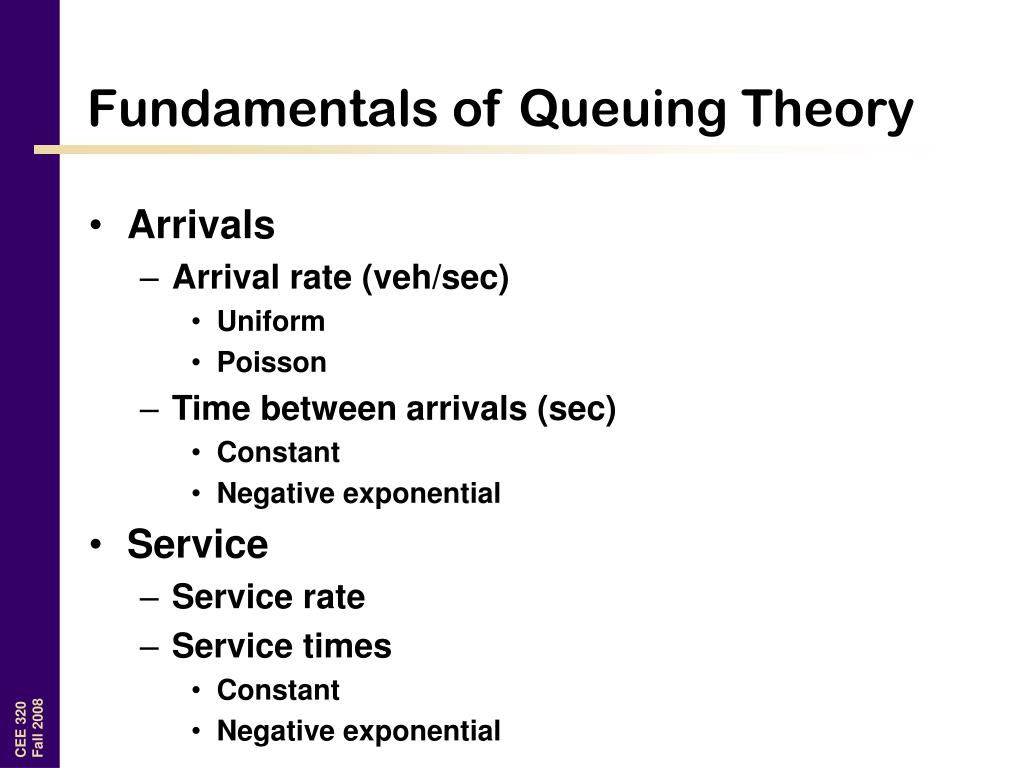

Fundamentals of Queuing Theory
  • Arrivals
    • Arrival rate (veh/sec)
      • Uniform
      • Poisson
    • Time between arrivals (sec)
      • Constant
      • Negative exponential
  • Service
    • Service rate
    • Service times
      • Constant
      • Negative exponential
queue discipline
Queue Discipline
  • First In First Out (FIFO)
    • prevalent in traffic engineering
  • Last In First Out (LIFO)
queue analysis graphical

Total vehicle delay

Queue Analysis – Graphical

D/D/1 Queue

Departure

Rate

Delay of nth arriving vehicle

Arrival

Rate

Maximum queue

Vehicles

Maximum delay

Queue at time, t1

t1

Time

Where is capacity?

poisson distribution
Poisson Distribution
  • Good for modeling random events
  • Count distribution
    • Uses discrete values
    • Different than a continuous distribution
poisson ideas
Poisson Ideas
  • Probability of exactly 4 vehicles arriving
    • P(n=4)
  • Probability of less than 4 vehicles arriving
    • P(n<4) = P(0) + P(1) + P(2) + P(3)
  • Probability of 4 or more vehicles arriving
    • P(n≥4) = 1 – P(n<4) = 1 - P(0) + P(1) + P(2) + P(3)
  • Amount of time between arrival of successive vehicles
queue notation
Queue Notation

Number of

service channels

  • Popular notations:
    • D/D/1, M/D/1, M/M/1, M/M/N
    • D = deterministic
    • M = some distribution

Arrival rate nature

Departure rate nature

queuing theory applications
Queuing Theory Applications
  • D/D/1
    • Deterministic arrival rate and service times
    • Not typically observed in real applications but reasonable for approximations
  • M/D/1
    • General arrival rate, but service times deterministic
    • Relevant for many applications
  • M/M/1 or M/M/N
    • General case for 1 or many servers
queue analysis numerical

Steady state assumption

Queue Analysis – Numerical
  • M/D/1
    • Average length of queue
    • Average time waiting in queue
    • Average time spent in system

λ = arrival rate μ = departure rate =traffic intensity

queue analysis numerical21
Queue Analysis – Numerical
  • M/M/1
    • Average length of queue
    • Average time waiting in queue
    • Average time spent in system

λ = arrival rate μ = departure rate =traffic intensity

queue analysis numerical22
Queue Analysis – Numerical
  • M/M/N
    • Average length of queue
    • Average time waiting in queue
    • Average time spent in system

λ = arrival rate μ = departure rate =traffic intensity

m m n more stuff
M/M/N – More Stuff
  • Probability of having no vehicles
  • Probability of having n vehicles
  • Probability of being in a queue

λ = arrival rate μ = departure rate =traffic intensity

poisson distribution example
Poisson Distribution Example

Vehicle arrivals at the Olympic National Park main gate are assumed Poisson distributed with an average arrival rate of 1 vehicle every 5 minutes. What is the probability of the following:

  • Exactly 2 vehicles arrive in a 15 minute interval?
  • Less than 2 vehicles arrive in a 15 minute interval?
  • More than 2 vehicles arrive in a 15 minute interval?

From HCM 2000

example calculations
Example Calculations

Exactly 2:

Less than 2:

P(0)=e-.2*15=0.0498, P(1)=0.1494

More than 2:

example 1
Example 1

You are entering Bank of America Arena at Hec Edmunson Pavilion to watch a basketball game. There is only one ticket line to purchase tickets. Each ticket purchase takes an average of 18 seconds. The average arrival rate is 3 persons/minute.

Find the average length of queue and average waiting time in queue assuming M/M/1 queuing.

example 127

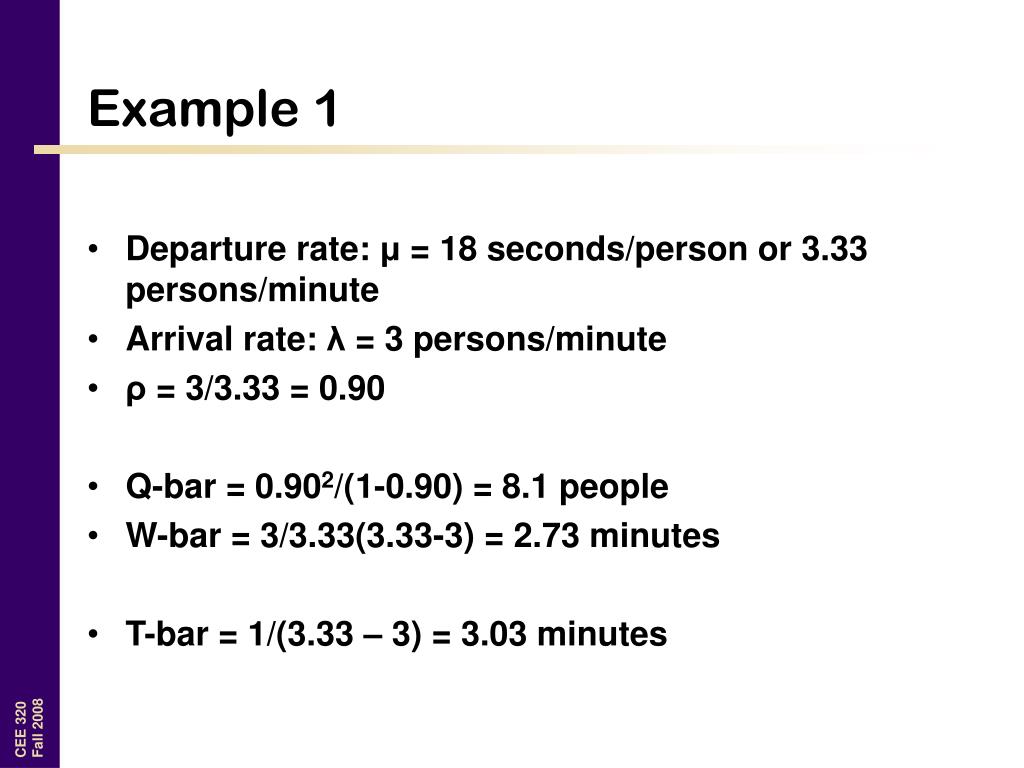

Example 1
  • Departure rate: μ = 18 seconds/person or 3.33 persons/minute
  • Arrival rate: λ = 3 persons/minute
  • ρ = 3/3.33 = 0.90
  • Q-bar = 0.902/(1-0.90) = 8.1 people
  • W-bar = 3/3.33(3.33-3) = 2.73 minutes
  • T-bar = 1/(3.33 – 3) = 3.03 minutes
example 2

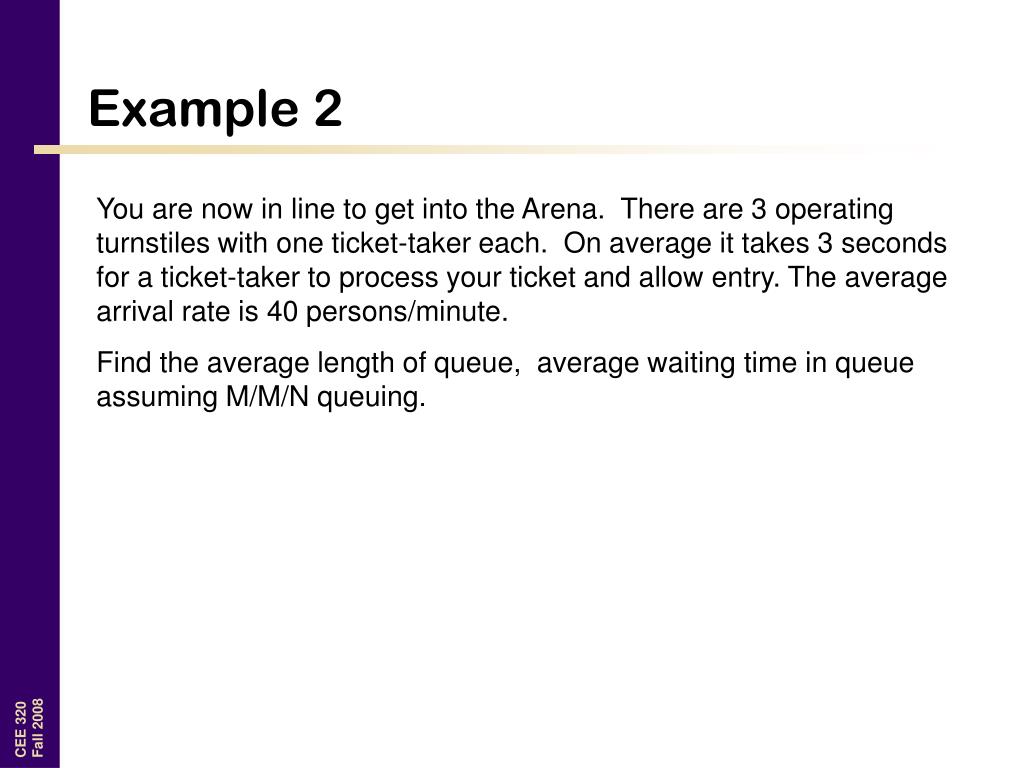

Example 2

You are now in line to get into the Arena. There are 3 operating turnstiles with one ticket-taker each. On average it takes 3 seconds for a ticket-taker to process your ticket and allow entry. The average arrival rate is 40 persons/minute.

Find the average length of queue, average waiting time in queue assuming M/M/N queuing.

example 229
Example 2
  • N = 3
  • Departure rate: μ = 3 seconds/person or 20 persons/minute
  • Arrival rate: λ = 40 persons/minute
  • ρ = 40/20 = 2.0
  • ρ/N = 2.0/3 = 0.667 < 1 so we can use the other equations
  • P0 = 1/(20/0! + 21/1! + 22/2! + 23/3!(1-2/3)) = 0.1111
  • Q-bar = (0.1111)(24)/(3!*3)*(1/(1 – 2/3)2) = 0.88 people
  • T-bar = (2 + 0.88)/40 = 0.072 minutes = 4.32 seconds
  • W-bar = 0.072 – 1/20 = 0.022 minutes = 1.32 seconds
example 3
Example 3

You are now inside the Arena. They are passing out Harry the Husky doggy bags as a free giveaway. There is only one person passing these out and a line has formed behind her. It takes her exactly 6 seconds to hand out a doggy bag and the arrival rate averages 9 people/minute.

Find the average length of queue, average waiting time in queue, and average time spent in the system assuming M/D/1 queuing.

example 331
Example 3
  • N = 1
  • Departure rate: μ = 6 seconds/person or 10 persons/minute
  • Arrival rate: λ = 9 persons/minute
  • ρ = 9/10 = 0.9
  • Q-bar = (0.9)2/(2(1 – 0.9)) = 4.05 people
  • W-bar = 0.9/(2(10)(1 – 0.9)) = 0.45 minutes = 27 seconds
  • T-bar = (2 – 0.9)/((2(10)(1 – 0.9) = 0.55 minutes = 33 seconds
primary references
Primary References
  • Mannering, F.L.; Kilareski, W.P. and Washburn, S.S. (2003). Principles of Highway Engineering and Traffic Analysis, Third Edition (Draft). Chapter 5
  • Transportation Research Board. (2000). Highway Capacity Manual 2000. National Research Council, Washington, D.C.
