Presentation Transcript

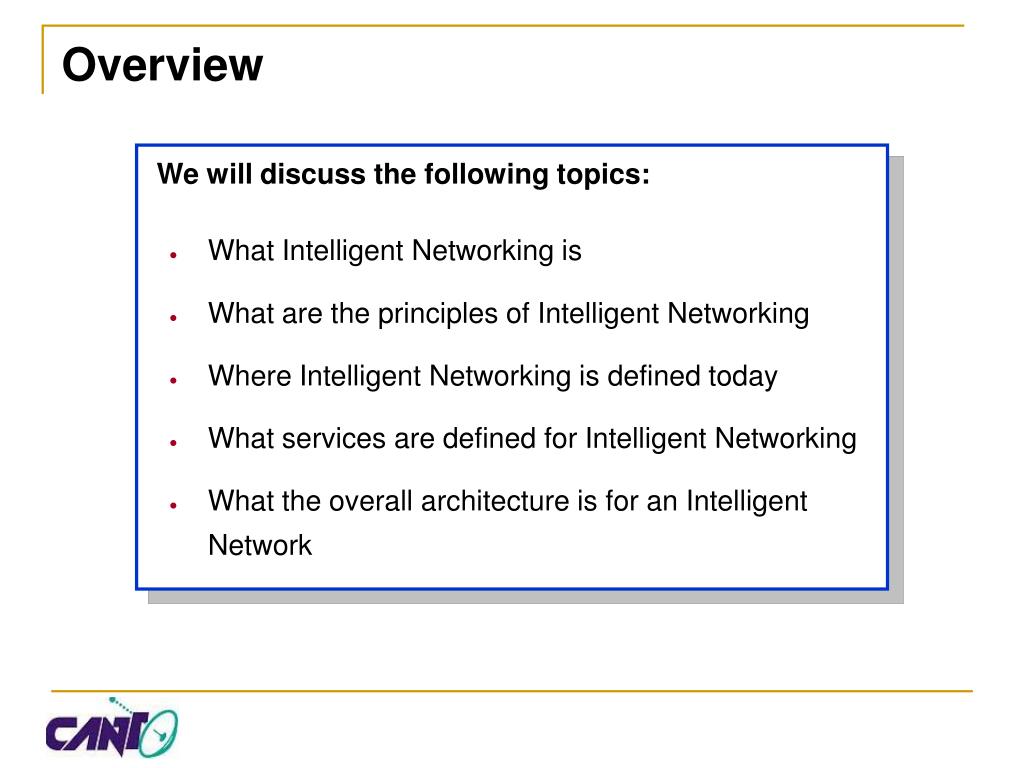

overview
Overview

We will discuss the following topics:

  • What Intelligent Networking is
  • What are the principles of Intelligent Networking
  • Where Intelligent Networking is defined today
  • What services are defined for Intelligent Networking
  • What the overall architecture is for an Intelligent Network
what is wireless intelligent networking

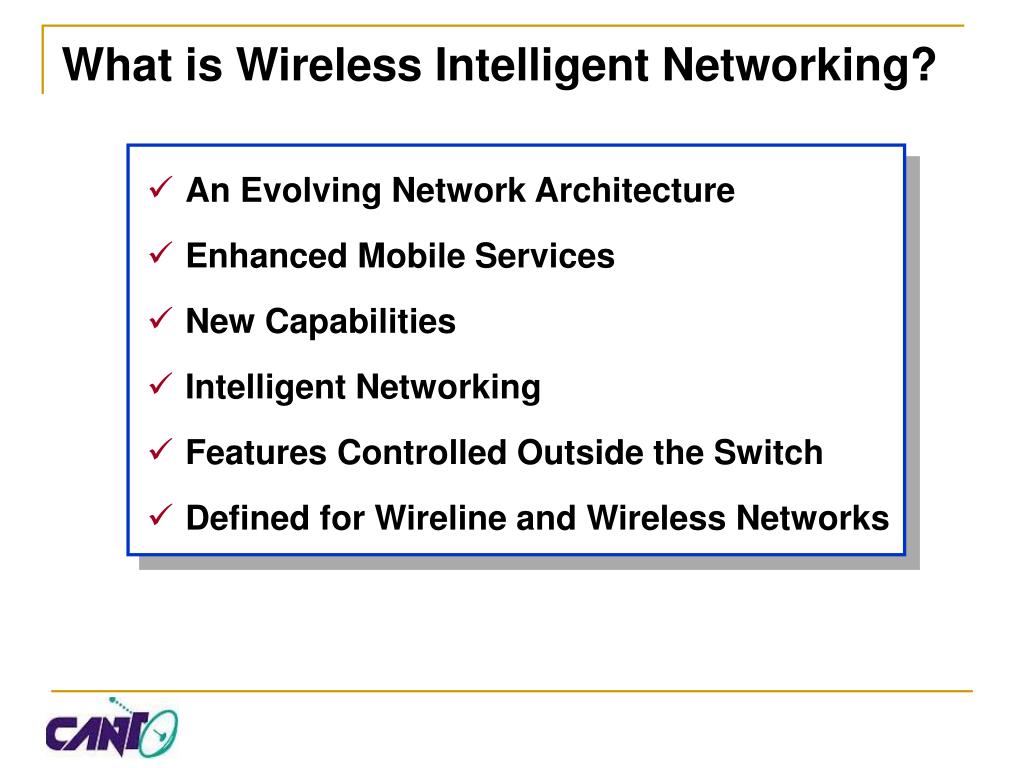

What is Wireless Intelligent Networking?
  • An Evolving Network Architecture
  • Enhanced Mobile Services
  • New Capabilities
  • Intelligent Networking
  • Features Controlled Outside the Switch
  • Defined for Wireline and Wireless Networks

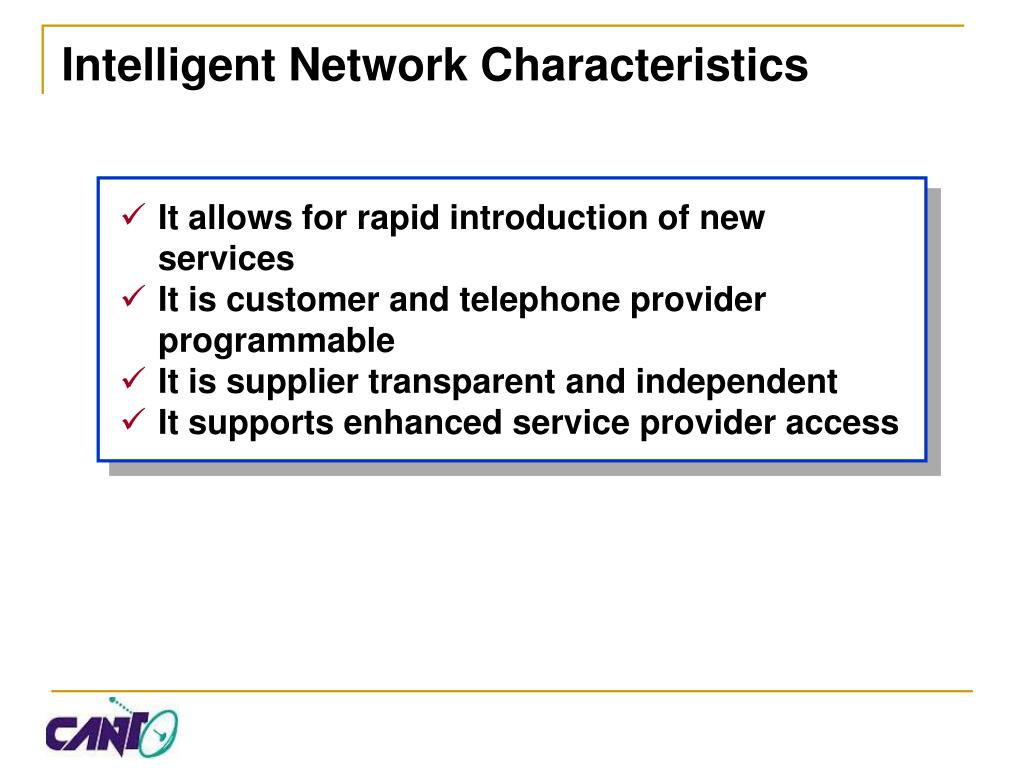

intelligent network characteristics
Intelligent Network Characteristics
  • It allows for rapid introduction of new services
  • It is customer and telephone provider programmable
  • It is supplier transparent and independent
  • It supports enhanced service provider access

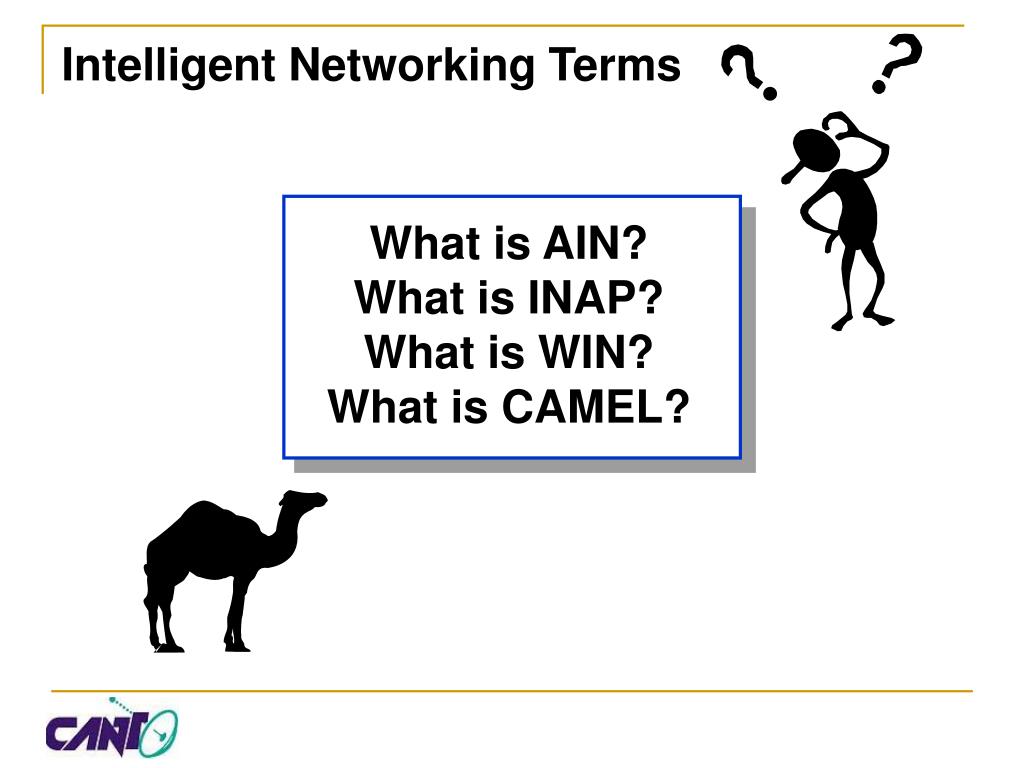

intelligent networking terms
Intelligent Networking Terms

What is AIN?

What is INAP?

What is WIN?

What is CAMEL?

principles of intelligent networking
Principles of Intelligent Networking

Service #1

Service Plane

POI

SIB

BCP

POR

SIB

Global Functional Plane

SIB

SIB

SIB

SIB

SIB

SIB

Distributed Functional Plane

Hardware

Hardware

Hardware

Physical Plane

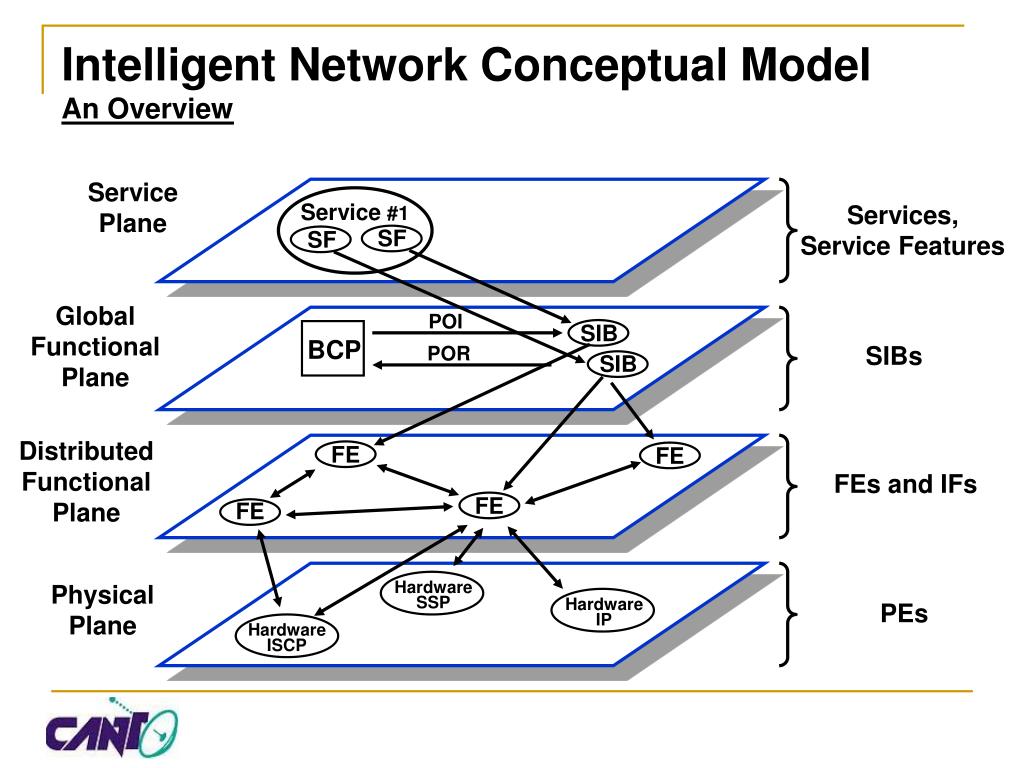

intelligent network conceptual model an overview
Intelligent Network Conceptual ModelAn Overview

Service

Plane

Service #1

Services,

Service Features

SF

SF

Global

Functional

Plane

POI

SIB

BCP

SIBs

POR

SIB

Distributed

Functional

Plane

FE

FE

FEs and IFs

FE

FE

Physical

Plane

Hardware

SSP

PEs

Hardware

IP

Hardware

ISCP

intelligent networking standards customized applications for mobile network enhanced logic camel
Intelligent Networking StandardsCustomized Applications for Mobile network Enhanced Logic (CAMEL)

GSM

Release

CAMEL Phase

CAMEL

Stage 1

CAMEL

Stage 2

CAMEL

Stage 3

Resp

Year

ETSI 1991 Phase 1

ETSI 1994 Phase 2

ETSI 1996 Phase 2+ R96 Phase 1 GSM TS 02.78 GSM 03.78 GSM TS 09.78

ETSI 1997 Phase 2+ R97 Phase 2 GSM TS 02.78GSM 03.78 GSM TS 09.78

ETSI 1998 Phase 2+ R98 Phase 2 GSM TS 02.78GSM 03.78 GSM TS 09.78

3GPP 1999 3G R99 Phase 3 3GPP TS 22.078 3GPP TS 23.078 3GPP TS 29.078

3GPP 2000 3G Rel-4 Phase 3 3GPP TS 22.078 3GPP TS 23.078 3GPP TS 29.078

3GPP 2002 3G Rel-5 Phase 4 3GPP TS 22.078 3GPP TS 23.278 3GPP TS 29.078

3GPP 2004 3G Rel-6 Phase 4 3GPP TS 22.078 3GPP TS 23.278 3GPP TS 29.078

3GPP 2006 3G Rel-7 Phase 4 3GPP TS 22.078 3GPP TS 23.278 3GPP TS 29.078

intelligent networking standards wireless intelligent networking win
Intelligent Networking StandardsWireless Intelligent Networking (WIN)

7-97 4-98 12-98 7-00 10-00 01-04 06-04

CNAM

(IS-764)

Intersystem

Standards

WIN Phase 1

(IS-771)

WIN PPC

(IS-826)

WIN Phase 2

(IS-848)

3GPP2

X.S0010-A

3GPP2

X.S0009-0

TIA/EIA-41

TIA/EIA-41

TIA/EIA-664

TIA/EIA-41

TIA/EIA-664

TIA/EIAIS-764

TIA/EIA-41

TIA/EIA-664

TIA/EIA/IS-730

TIA/EIA/IS-751

TIA/EIA/IS-764

TIA/EIA/IS-771

TIA/EIA/IS-826

TIA/EIA-41

TIA/EIA-664

TIA/EIA/IS-737

TIA/EIA/IS-807

TIA/EIA/IS-826

TIA/EIA/IS-841

TIA/EIA/IS-848

DMH

TIA/EIA-41

TIA/EIA-664

TIA/EIA/IS-764

TIA/EIA/IS-771

TIA/EIA/IS-848

J-STD-036-A

DMH

TIA/EIA/IS-826

TIA-881

TIA/EIA-41

TIA/EIA-664

TIA/EIA/IS-764

TIA/EIA/IS-751

TIA/EIA/IS-771

intelligent networking phases camel
Intelligent Networking PhasesCAMEL

CAMEL

Phase 1

  • Control of MO, MT and MF calls
  • Any time interrogation
  • Additional EDPs
  • interaction between a user and a service using announcements, voice prompting and information collection via in-band or USSD interaction;
  • Control of call duration and transfer of AoC Information to the ms;
  • The CSE can be informed about the invocation of the supplementary services ECT, CD and MPTY;
  • For easier post-processing, charging information from a serving node can be integrated in normal call records.

CAMEL

Phase 2

  • Support of facilities to avoid overload;
  • Capabilities to support Dialed Services;
  • Capabilities to handle mobility events, such as not-reachable and roaming;
  • Control of GPRS sessions and PDP contexts;
  • Control of mobile originating SMS through both CS and PS serving network entities;
  • Interworking with SoLSA (Support of Localized Service Area) (optional)
  • The CSE can be informed about the invocation of the SS CCBS.

CAMEL

Phase 3

  • Support of Optimal Routing for CS mobile to mobile calls;
  • Capability of the CSE to create additional parties in an existing call;
  • Capability for the CSE to create a new call unrelated to any other existing call;
  • Capabilities for the enhanced handling of call party connections;
  • Capability for the CSE to control sessions in the IP Multimedia Subsystem (IMS);
  • Enhanced CSE capability for dialed services;
  • The capability to report basic service changes during ongoing call;
  • The CSE capability to select between preferred and less preferred bearer services;
  • The capability for the CSE to control trunk originated calls;
  • The capability for the CSE to request additional dialed digits;

Release 5

CAMEL

Phase 4

Release 6

Release 7

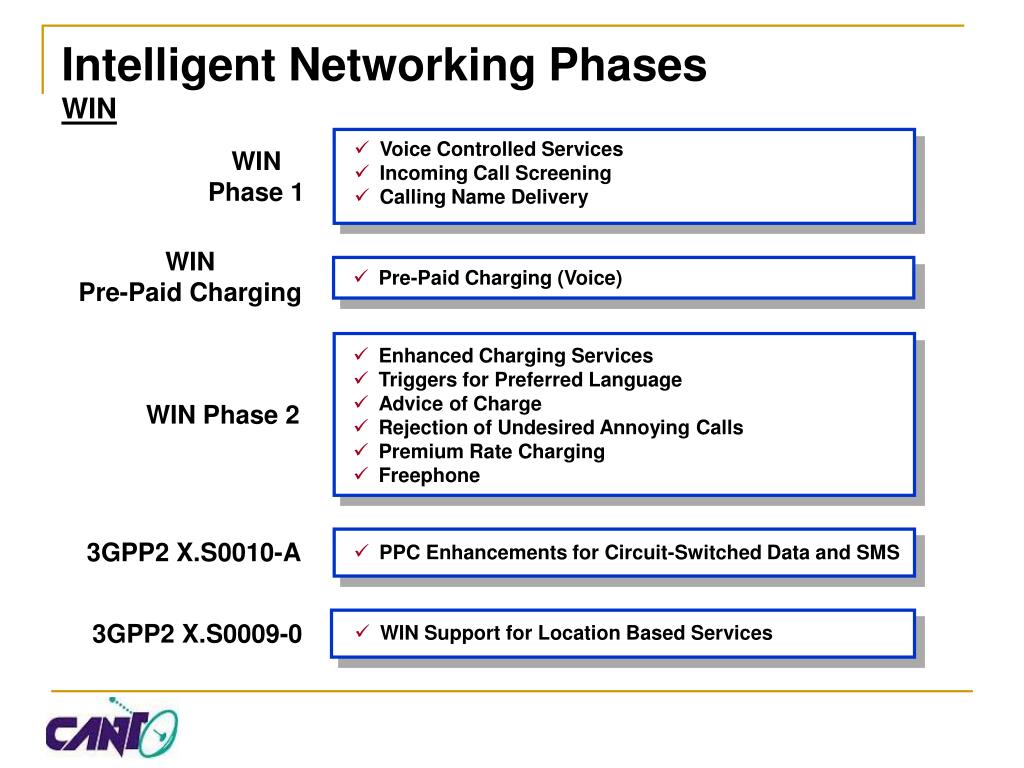

intelligent networking phases win
Intelligent Networking PhasesWIN
  • Voice Controlled Services
  • Incoming Call Screening
  • Calling Name Delivery

WIN

Phase 1

WIN

Pre-Paid Charging

  • Pre-Paid Charging (Voice)
  • Enhanced Charging Services
  • Triggers for Preferred Language
  • Advice of Charge
  • Rejection of Undesired Annoying Calls
  • Premium Rate Charging
  • Freephone

WIN Phase 2

3GPP2 X.S0010-A

  • PPC Enhancements for Circuit-Switched Data and SMS

3GPP2 X.S0009-0

  • WIN Support for Location Based Services

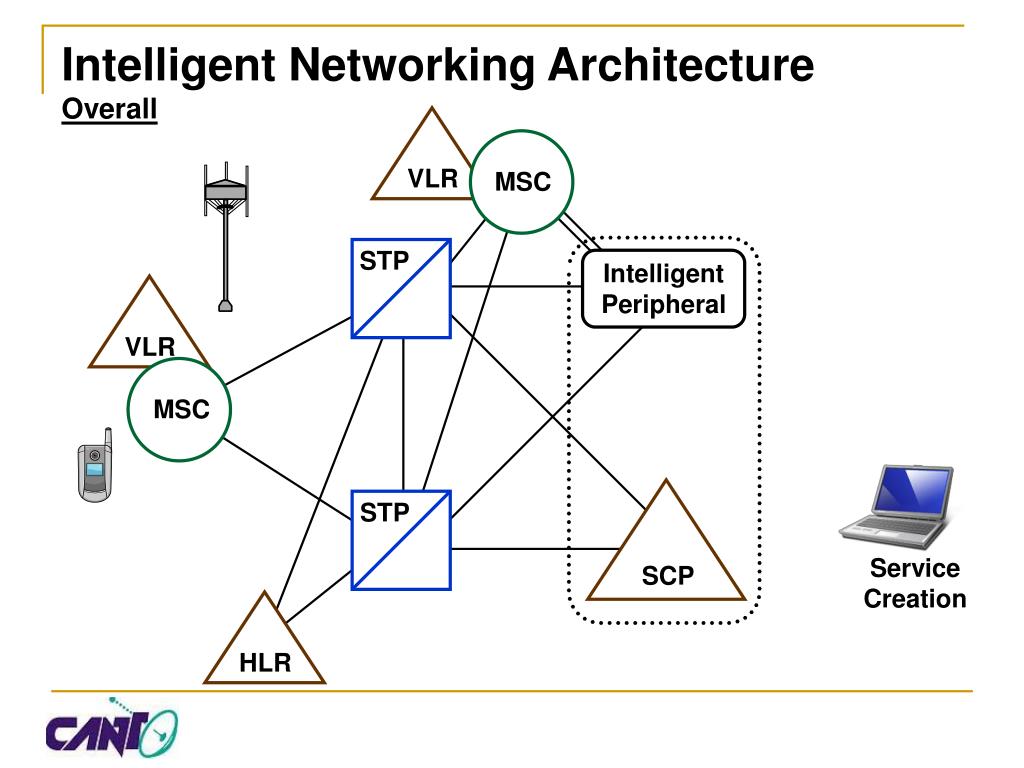

intelligent networking architecture overall
Intelligent Networking ArchitectureOverall

VLR

MSC

STP

Intelligent

Peripheral

VLR

MSC

STP

Service

Creation

SCP

HLR

intelligent network architecture the msc vlr and hlr
Intelligent Network ArchitectureThe MSC/VLR and HLR
  • Basic Call State Model (BCSM)
  • O-BCSM
  • T-BCSM
  • Detection Points
  • Triggers
  • Events
  • Provisioning
  • CCF/SSF

VLR

MSC

VLR

STP

Intelligent

Peripheral

MSC

Service

Creation

STP

SCP

HLR

intelligent network architecture the signaling network
Intelligent Network ArchitectureThe Signaling Network
  • STP Translations
  • Routes
  • GTT
  • Links

LSL, HSL, IP

  • Monitor Signaling Traffic
  • Interconnection Issues
  • Gateway Screening

VLR

MSC

STP

Intelligent

Peripheral

VLR

MSC

STP

Service

Creation

SCP

HLR

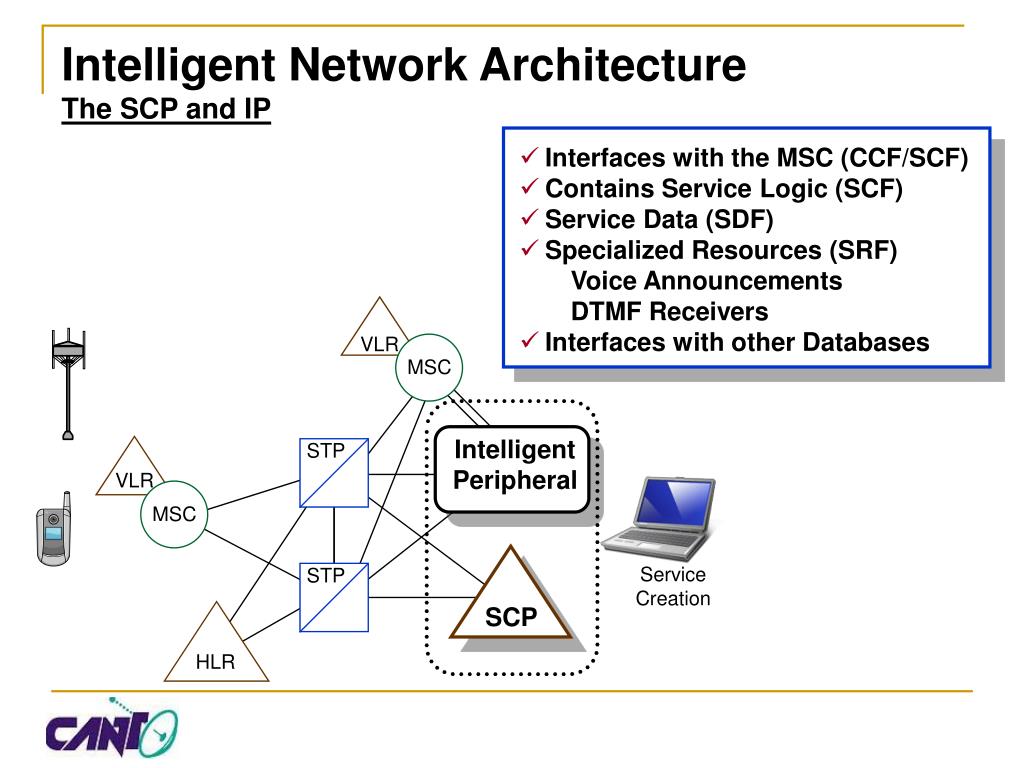

intelligent network architecture the scp and ip
Intelligent Network ArchitectureThe SCP and IP
  • Interfaces with the MSC (CCF/SCF)
  • Contains Service Logic (SCF)
  • Service Data (SDF)
  • Specialized Resources (SRF)

Voice Announcements

DTMF Receivers

  • Interfaces with other Databases

VLR

MSC

Intelligent

Peripheral

STP

VLR

MSC

Service

Creation

STP

SCP

HLR

intelligent network architecture service creation

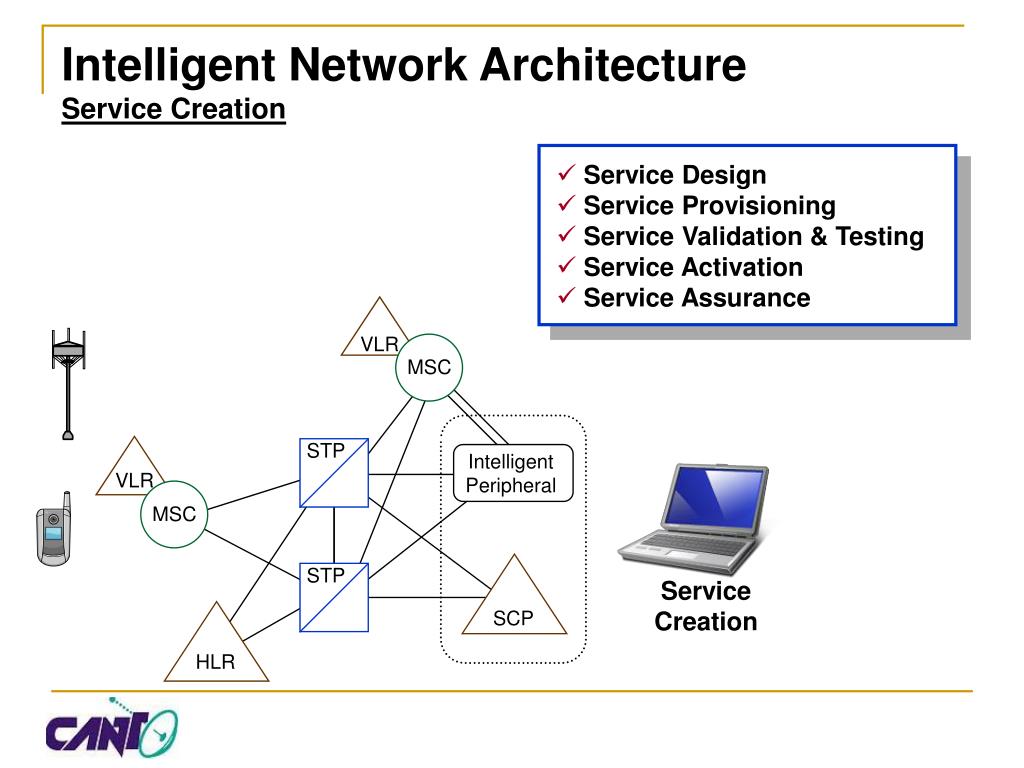

Intelligent Network ArchitectureService Creation
  • Service Design
  • Service Provisioning
  • Service Validation & Testing
  • Service Activation
  • Service Assurance

VLR

MSC

STP

Intelligent

Peripheral

VLR

MSC

STP

Service

Creation

SCP

HLR

intelligent networking protocol
Intelligent Networking Protocol

Applications

7

I

SDNUP

TCAP

T

U

P

D

U

P

4, 5, 6

SCCP

3

Network

MTP

Link

2

Data Link

1

…the fundamental idea of the SS7 protocol is to divide functions into MTP and various user parts...

sample call flow scenario camel pre paid
Sample Call Flow ScenarioCAMEL Pre-Paid

gsmSSF

gsmSCF

VLR

MSC

SCP

InitialDP

1

Request Report BCSM; Establish Temporary Connection

2

Disconnect Forward Connection; Request Report BCSM; Continue

3

Event Report BCSM

4

Apply Charging; Request Report BCSM; Continue

5

Apply Charging Report

6

Event Report BCSM

7

Release Call

8

sample call flow scenario win pre paid
Sample Call Flow ScenarioWIN Pre-Paid

Serving System

VLR

IP

MSC

SCP

Origination_Attempt_Authorized

call

origination

ORREQ (MSCID, MSID, MDN, BILLID, DGTSDIAL, TRIGTYPE)

Balance above threshold

orreq(DMH_SVCID = PPC)

Calling_Routing_Address_Available

ANYLZD (MSCID, TRANSCAP, WINCAP, MSID, MDN, BILLID, DGTSDIAL, RoutinInfo, TRIGTYPE, TOD, TDO)

SEIZERES (SRFCapability, PLIND)

seizeres (TLDN)

CONNRES(DSTDGTS, CARDGTS, ROUTDGTS)

call setup to IP

INSTREQ

SRFDIR (ANNLIST)

announcement

srfdir

anylzd

call release

instreq

call setup

answer

O_Answer

OANSWER (MSCID, MSID, MDN, BILLID, TRIGTYPE, TOD, TDO)

answer

O_Disconnect

disconnect

ODISCONNECT (MSCID, MSID, MDN, BILLID, TRIGTYPE, RELCAUSE, TOD, TDO)

odisconnect

call release

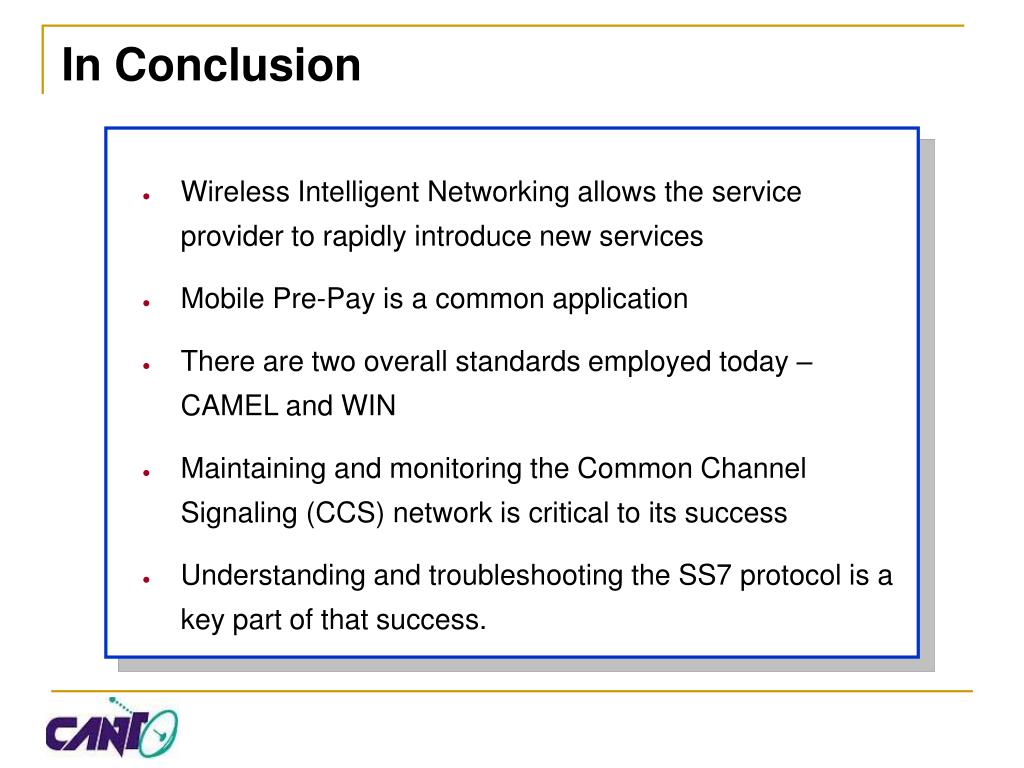

in conclusion
In Conclusion
  • Wireless Intelligent Networking allows the service provider to rapidly introduce new services
  • Mobile Pre-Pay is a common application
  • There are two overall standards employed today – CAMEL and WIN
  • Maintaining and monitoring the Common Channel Signaling (CCS) network is critical to its success
  • Understanding and troubleshooting the SS7 protocol is a key part of that success.
