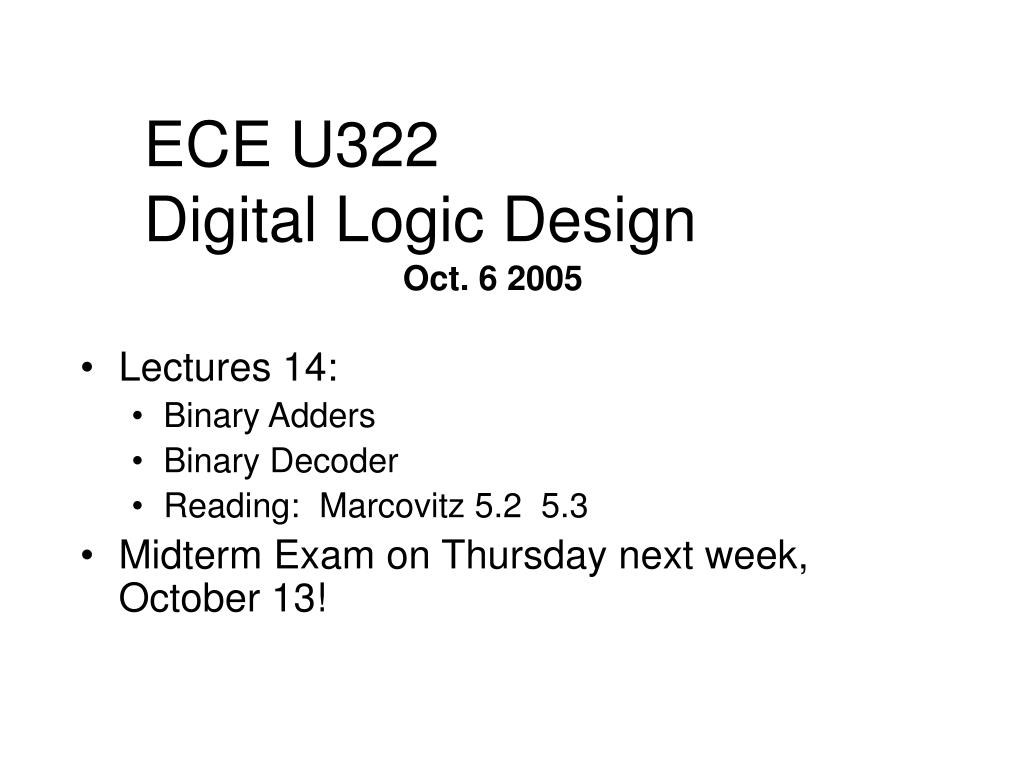

ece u322 digital logic design
ECE U322Digital Logic Design
  • Lectures 14:
    • Binary Adders
    • Binary Decoder
    • Reading: Marcovitz 5.2 5.3
  • Midterm Exam on Thursday next week, October 13!

Oct. 6 2005

slide2

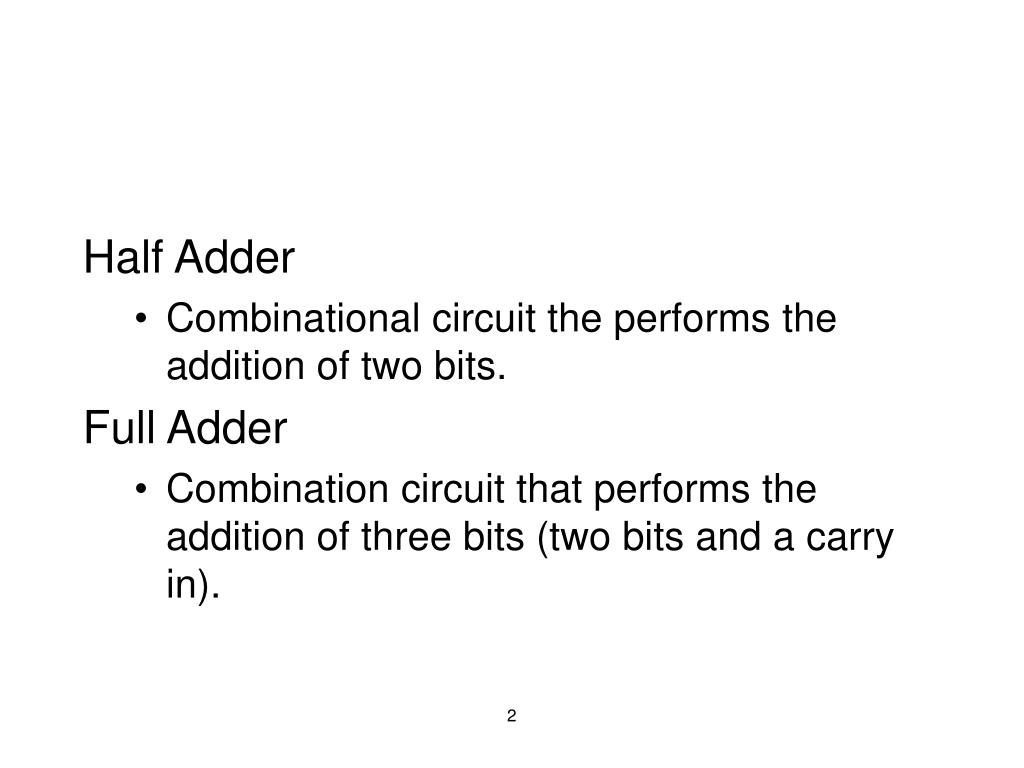

Half Adder
  • Combinational circuit the performs the addition of two bits.

Full Adder

  • Combination circuit that performs the addition of three bits (two bits and a carry in).

2

binary ripple carry adder
Binary Ripple Carry Adder
  • The full adders are connected in cascade, with the carry output from one full adder connected to the carry input of the next-higher-order full adder.

3

how to build a binary subtractor
How to build a binary subtractor
  • (A - B) = A + (2’s complement of B)
  • Invert B inputs
  • Add 1 to A - B
    • Can set carry in to 1 to accomplish this

4

binary subtractor
Binary subtractor
  • Binary subtractor using full adders:
    • S = A – B =A +(2’complement of B)

5

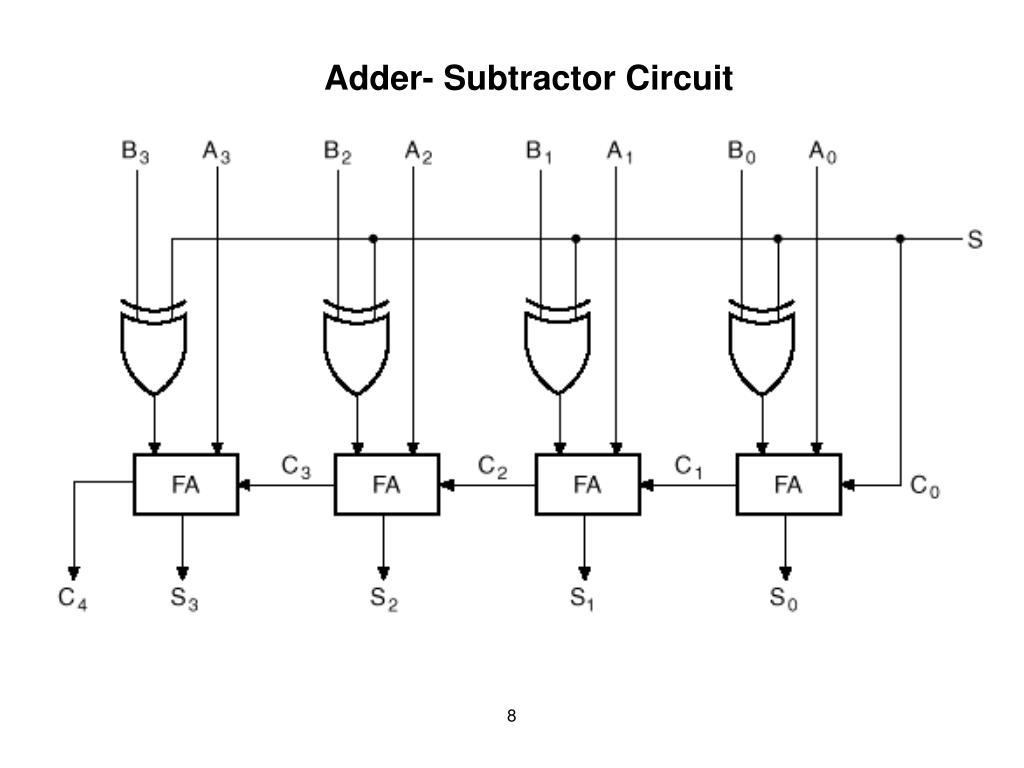

binary adder subtractor
Binary Adder/Subtractor
  • Binary Adder and Binary Subtractor are very similar
  • Don’t build two separate units -- build one adder/subtractor
  • S input tells me if I want to subtract
    • S = 0 Add A + B
    • S = 1 Subtract:

6

signed numbers

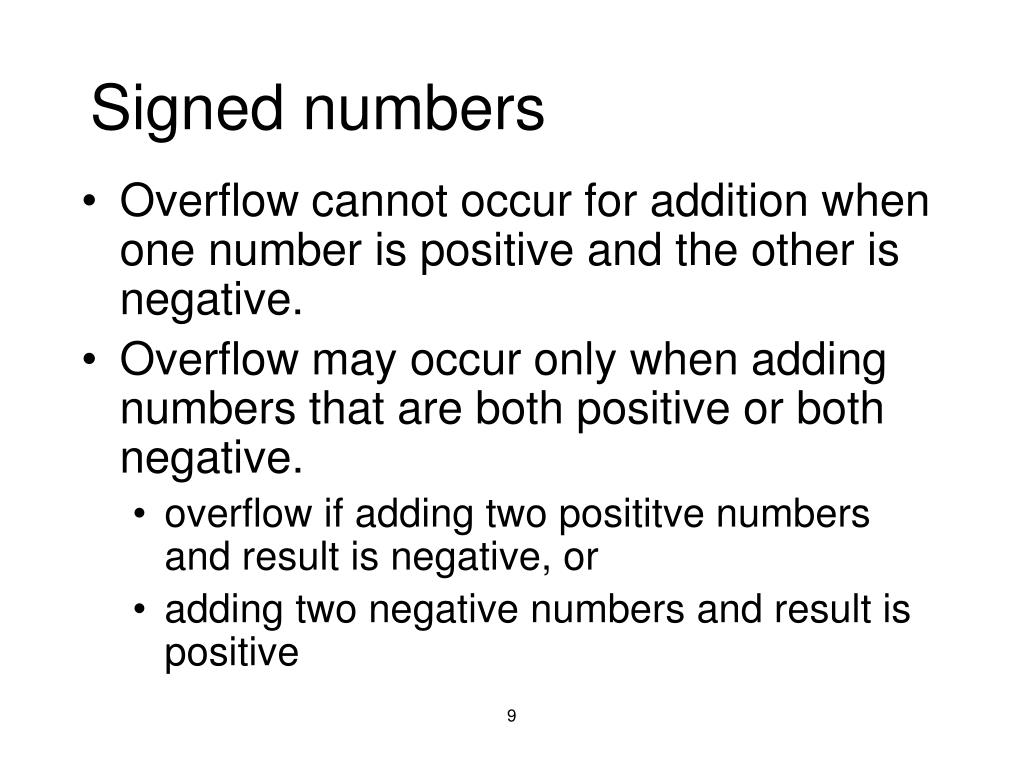

Signed numbers
  • Overflow cannot occur for addition when one number is positive and the other is negative.
  • Overflow may occur only when adding numbers that are both positive or both negative.
    • overflow if adding two posititve numbers and result is negative, or
    • adding two negative numbers and result is positive

9

carry out and overflow
Carry out and Overflow
  • 5, 7, -5, -7 represented as 4 bit, signed values:
  • 0101 0111, 1011, 1001

5 + 7

0101

0111

__overflow, __ carry out

10

overflow and carryout
Overflow and Carryout

5 -7

1

0101

1001

1110 __overflow, __ carryout

11

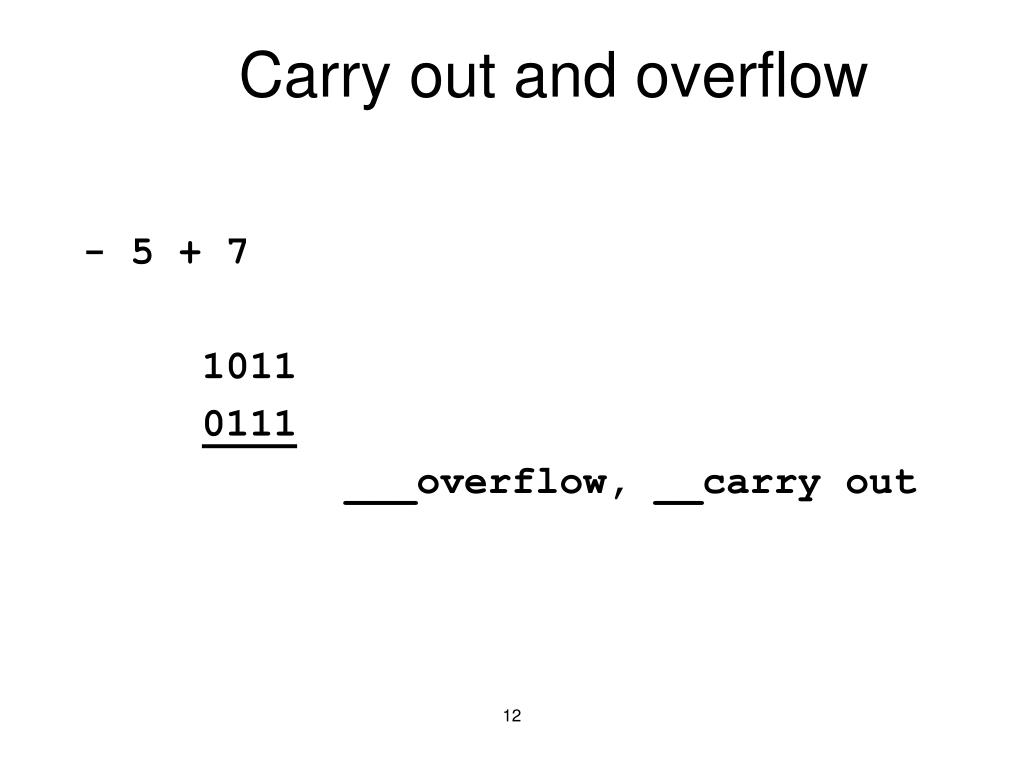

carry out and overflow1
Carry out and overflow

- 5 + 7

111

1011

0111

10010 ___overflow, __carry out

12

overflow and carry out

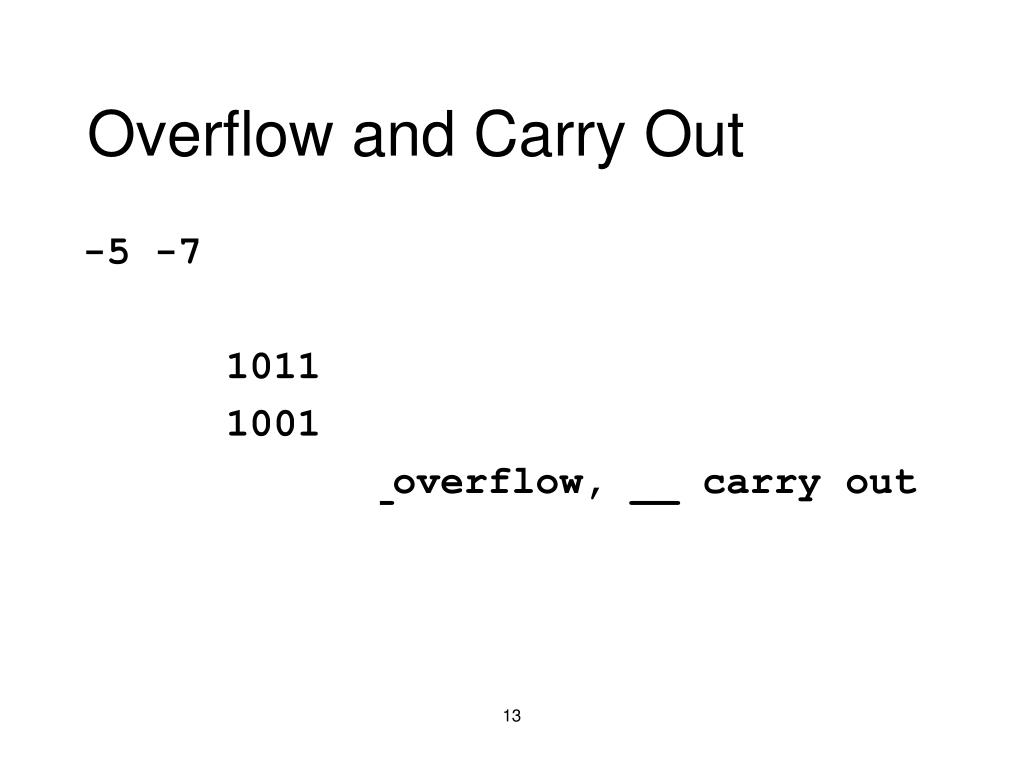

Overflow and Carry Out

-5 -7

11

1011

1001

10100 __overflow, __ carry out

13

an n bit adder
A(N-1)

B(N-1)

A(1)

B(1)

A(0)

B(0)

C(n)

C(1)

C(0)

Signal from one bit block to the next is carryout for that block.

An n-bit adder

Generalize the four bit adder to n bits:

14

carry lookahead adder
Carry Lookahead Adder
  • Slowest part of ripple carry adder is computation of last carry
    • want to speed this up
  • Reduced delay at the price of more complex hardware: area, speed tradeoff
  • Redesign the carry logic so that it is two-levels of logic:
    • more complex than ripple carry chain
    • faster

16

carry lookahead adder1

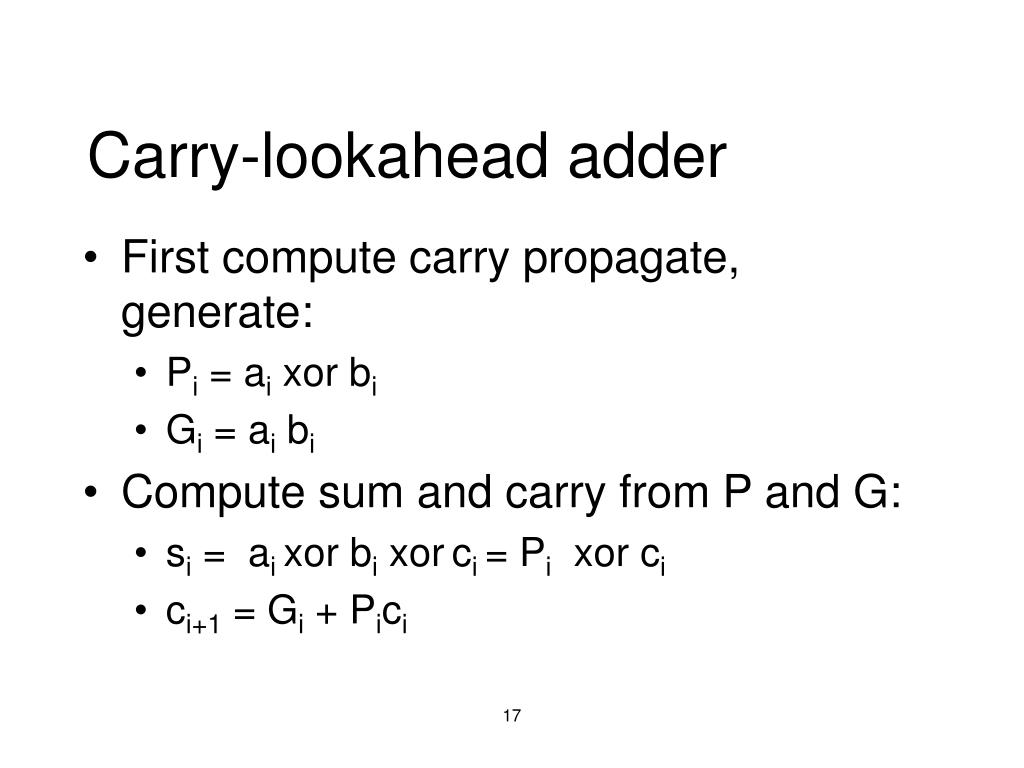

Carry-lookahead adder
  • First compute carry propagate, generate:
    • Pi = ai xor bi
    • Gi = ai bi
  • Compute sum and carry from P and G:
    • si = ai xor bi xorci = Pi xor ci
    • ci+1 = Gi + Pici

17

carry lookahead adder2

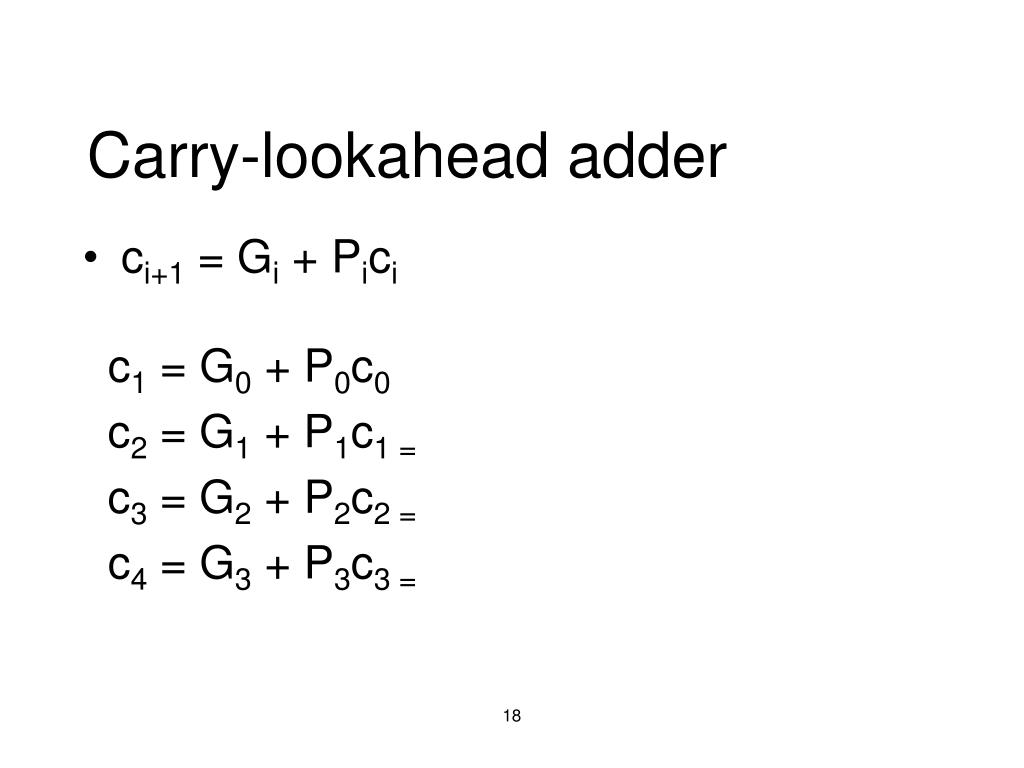

Carry-lookahead adder
  • ci+1 = Gi + Pici

c1 = G0 + P0c0

c2 = G1 + P1c1 =

c3 = G2 + P2c2 =

c4 = G3 + P3c3 =

18

carry lookahead expansion

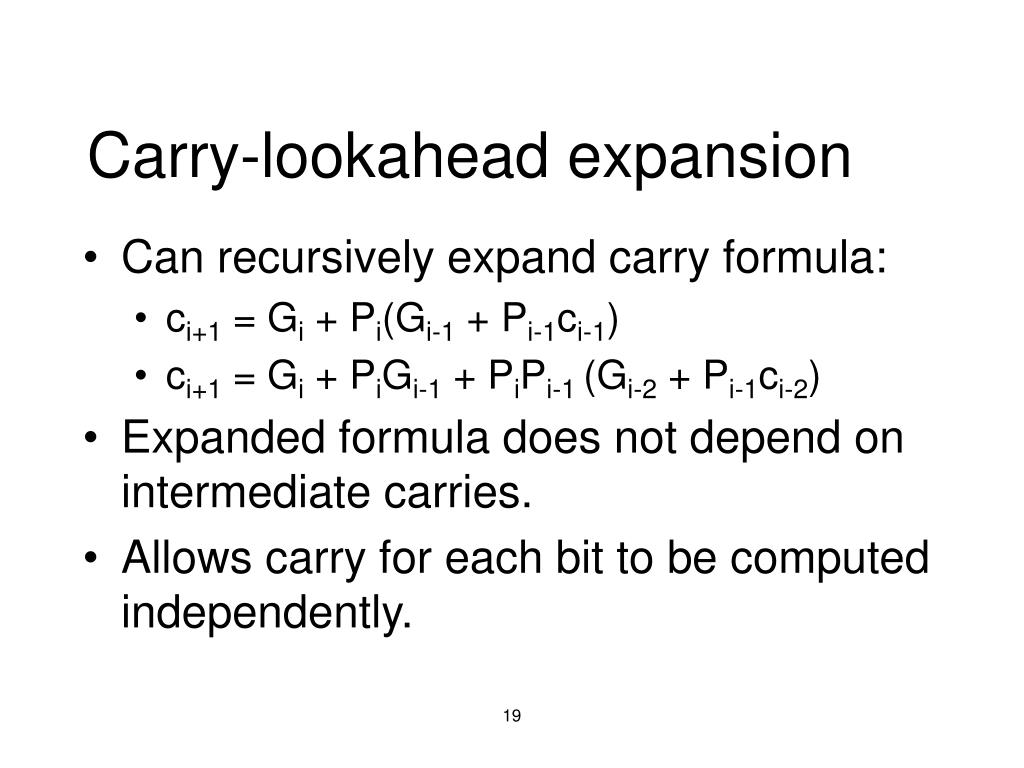

Carry-lookahead expansion
  • Can recursively expand carry formula:
    • ci+1 = Gi + Pi(Gi-1 + Pi-1ci-1)
    • ci+1 = Gi + PiGi-1 + PiPi-1 (Gi-2 + Pi-1ci-2)
  • Expanded formula does not depend on intermediate carries.
  • Allows carry for each bit to be computed independently.

19

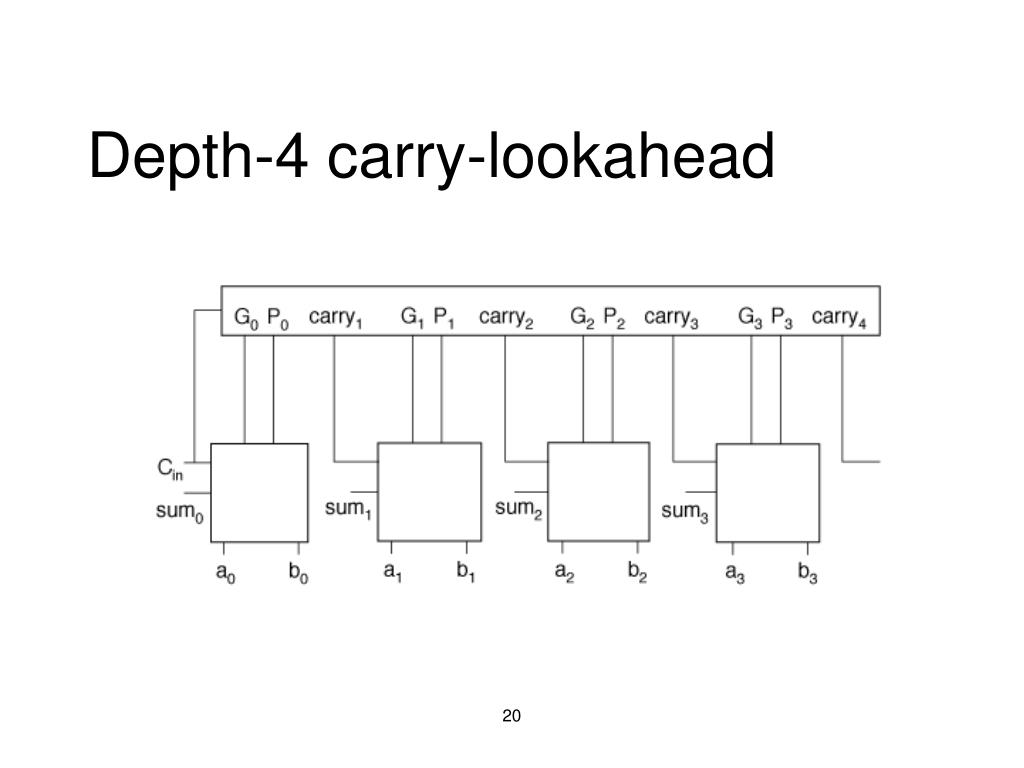

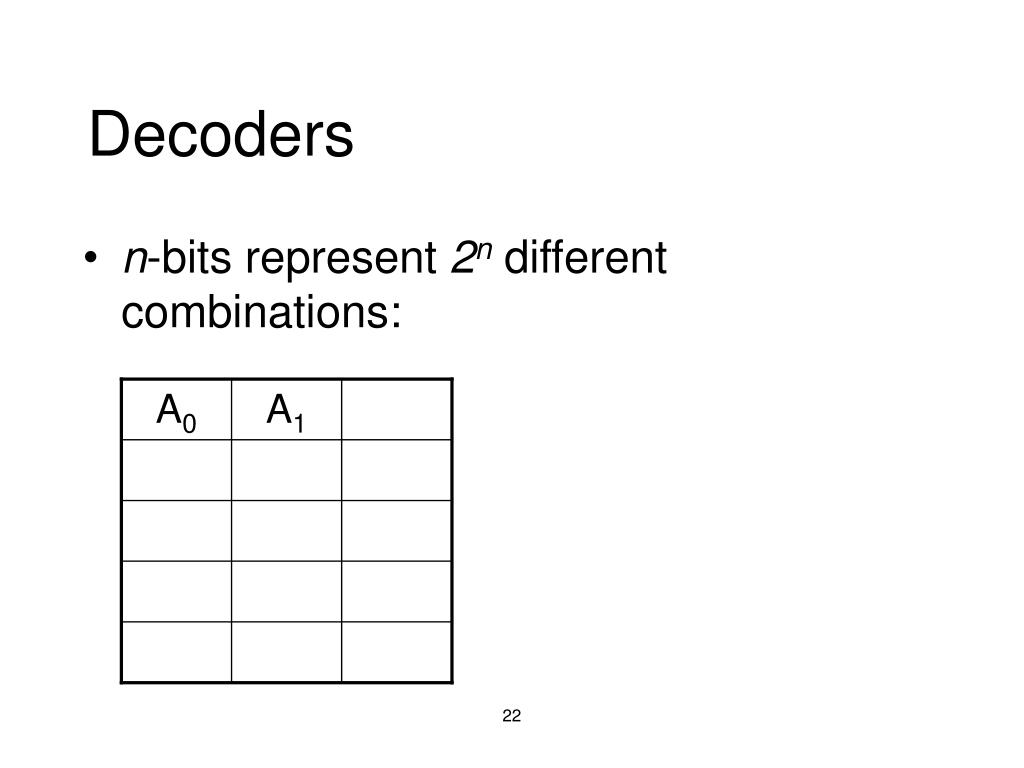

decoders
A0

A1

Decoders
  • n-bits represent 2n different combinations:

22

binary decoder
Binary

Decoder

n

inputs

2n outputs

Binary Decoder
  • Logic with n input lines and 2n output lines.
  • Only one output is a 1 for any given input.

23

slide24
X

Y

F

F

F

F

0

1

2

3

0

0

1

0

0

0

0

1

0

1

0

0

1

0

0

0

1

0

1

1

0

0

0

1

F0 = X'Y'

F1 = X'Y

F2 = XY'

F3 = XY

X

Y

  • truth table for 2 to 4 decoder:
  • Note: Each output is a 2-variable minterm (X'Y', X'Y, XY' or XY)

24

decoders1
n-bit

code

n to 2n

decoder

up to 2n

output lines

:

:

Decoders
  • In general, for an n-bit code, a decoder could select up to 2n lines:

28

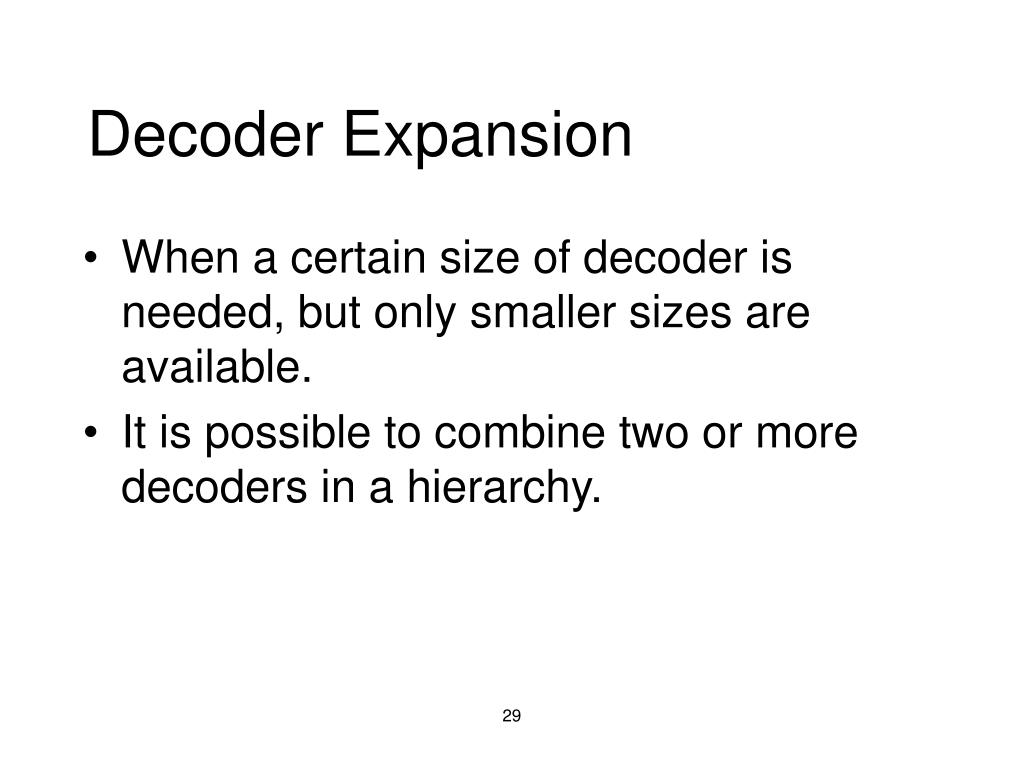

decoder expansion
Decoder Expansion
  • When a certain size of decoder is needed, but only smaller sizes are available.
  • It is possible to combine two or more decoders in a hierarchy.

29

combinational circuit implementation
Combinational Circuit Implementation
  • Decoders can implement any combinational circuit with n inputs and m outputs using a _____________ decoder and ________ gates.

30

slide31
Example: Implement a Binary Adder using a decoder.
  • Express as sum of minterms.

S(X,Y,Z) = S m( )

C(X,Y,Z) = S m( )

31

slide32

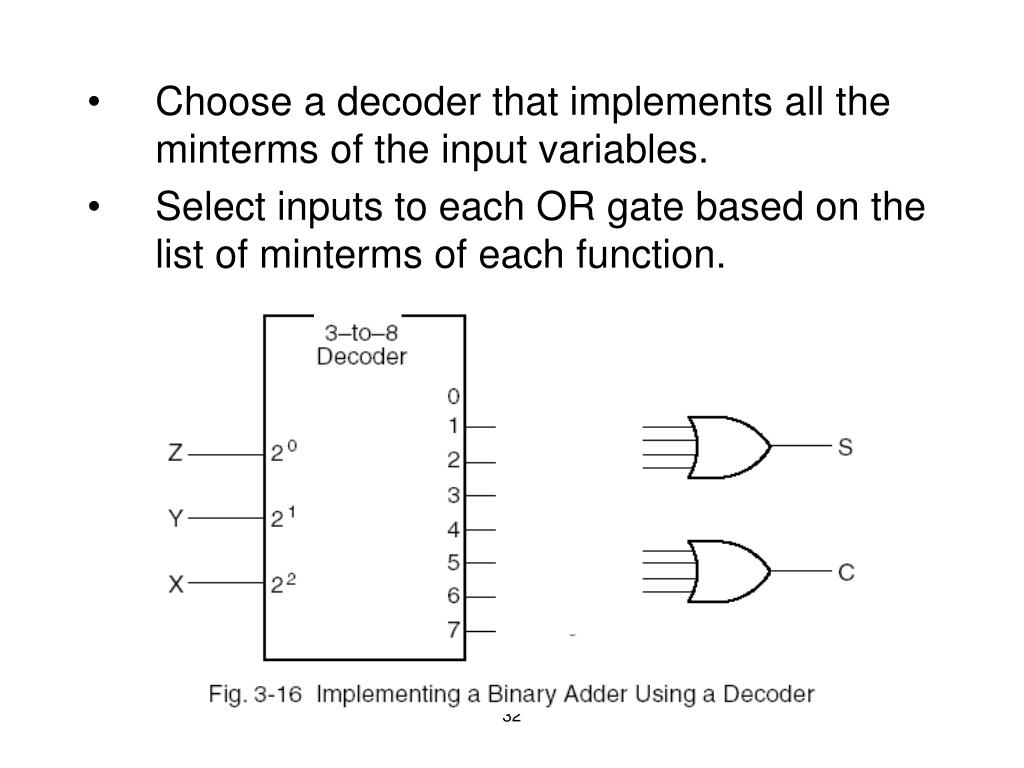

Choose a decoder that implements all the minterms of the input variables.
  • Select inputs to each OR gate based on the list of minterms of each function.

32

encoder
Encoder
  • 2n (or fewer) input lines and n output lines.
  • The output lines generate the binary code corresponding to the input value, assuming only one input is high.
  • An encoder is the reverse function of a decoder

34

8 to 3 line encoder
8-to-3-line Encoder

8-to-3

Encoder

35

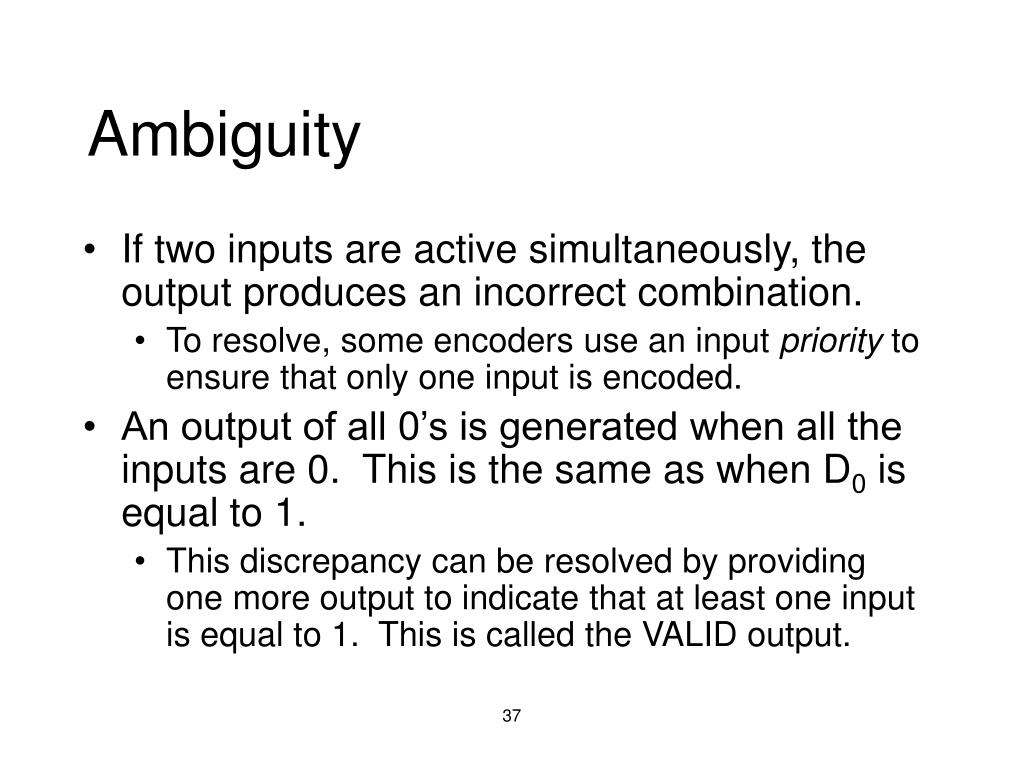

ambiguity
Ambiguity
  • If two inputs are active simultaneously, the output produces an incorrect combination.
    • To resolve, some encoders use an input priority to ensure that only one input is encoded.
  • An output of all 0’s is generated when all the inputs are 0. This is the same as when D0 is equal to 1.
    • This discrepancy can be resolved by providing one more output to indicate that at least one input is equal to 1. This is called the VALID output.

37

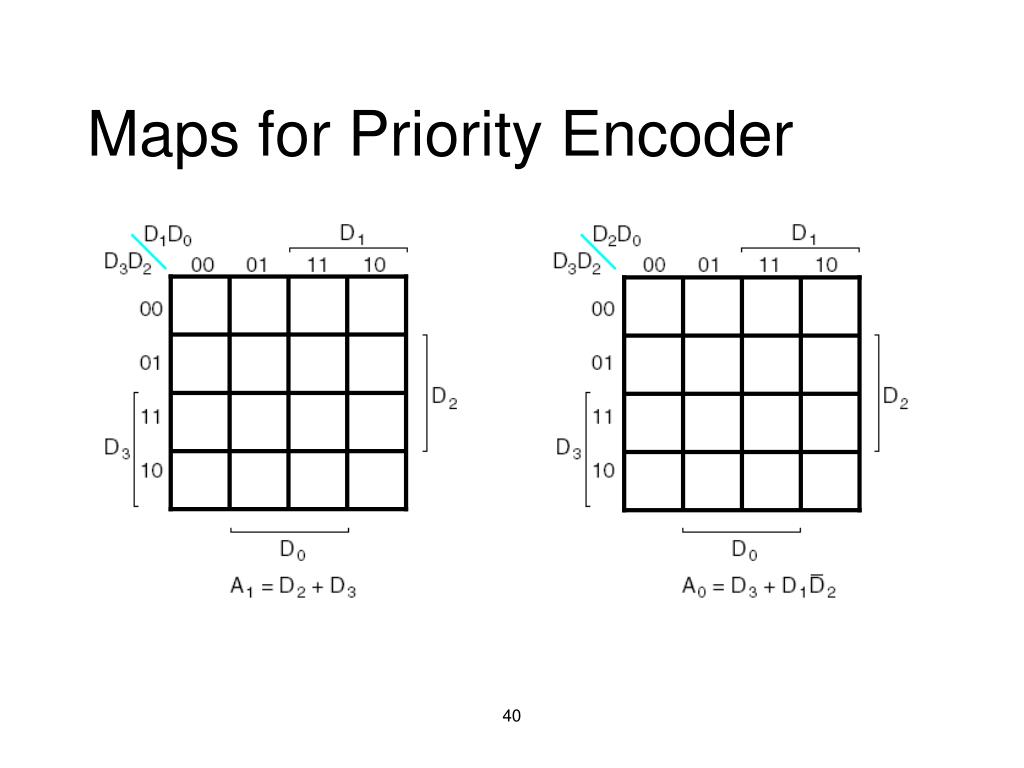

priority encoder
Priority Encoder
  • If two or more inputs are equal to 1 at the same time, the input with highest priority takes precedence.

38

example1
Example:

Truth Table of 4-Input Priority Encoder

39

multiplexers mux
Multiplexers (MUX)
  • Data selector.
  • Selects binary information from one of many input lines to a single output line.
  • Selection inputs control which particular input line to select.
  • Normally, there are 2n input lines, n selection inputs, and one output.

43

multiplexer
I0

I0

I1

I1

Y

Y

I2

I2

I3

I3

0 1 2 3

2-to-4 Decoder

S1

S0

S1

S0

Multiplexer

Four-to-one multiplexer contains a decoder.

45

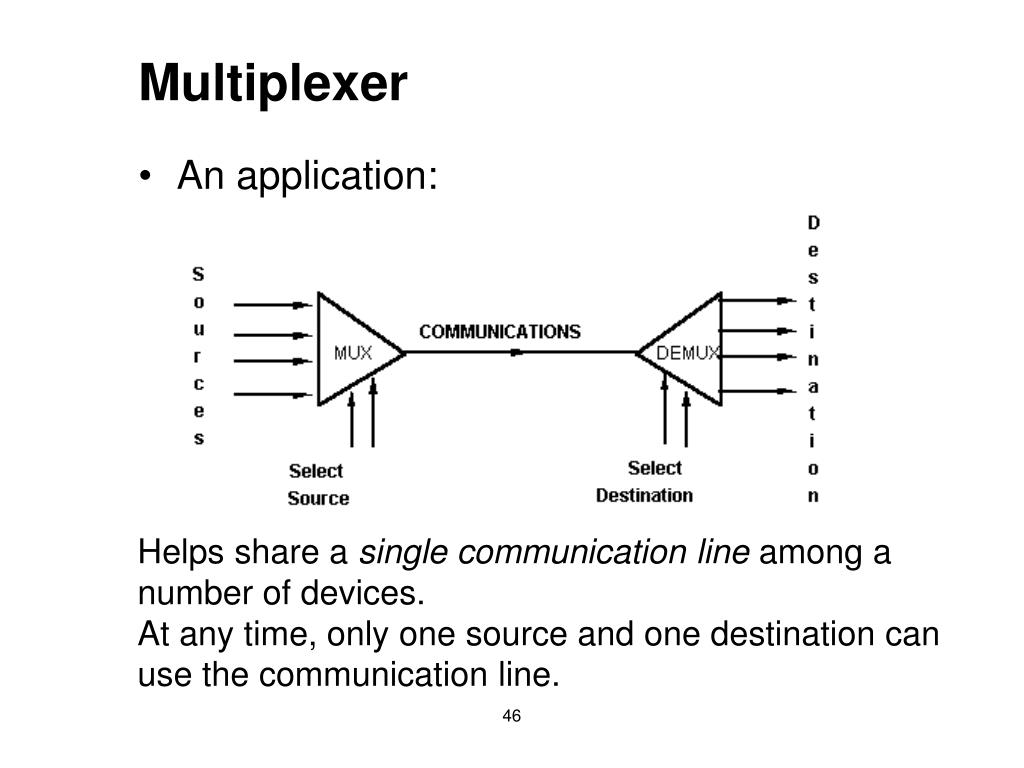

multiplexer1
Multiplexer
  • An application:

Helps share a single communication line among a number of devices.

At any time, only one source and one destination can use the communication line.

46

demultiplexer
Outputs

Y0 = D.S1'.S0'

Y1 = D.S1'.S0

Data D

demux

Y2 = D.S1.S0'

Y3 = D.S1.S0

S1 S0

select

Demultiplexer
  • Given an input line & a set of selection lines, the demultiplexer will direct data from input to a selected output line.
  • An example of a 1-to-4 demultiplexer:

47

demultiplexer1
Y0 = D.S1'.S0'

2x4 Decoder

S1

S0

Y1 = D.S1'.S0

Y2 = D.S1.S0'

E

Y3 = D.S1.S0

D

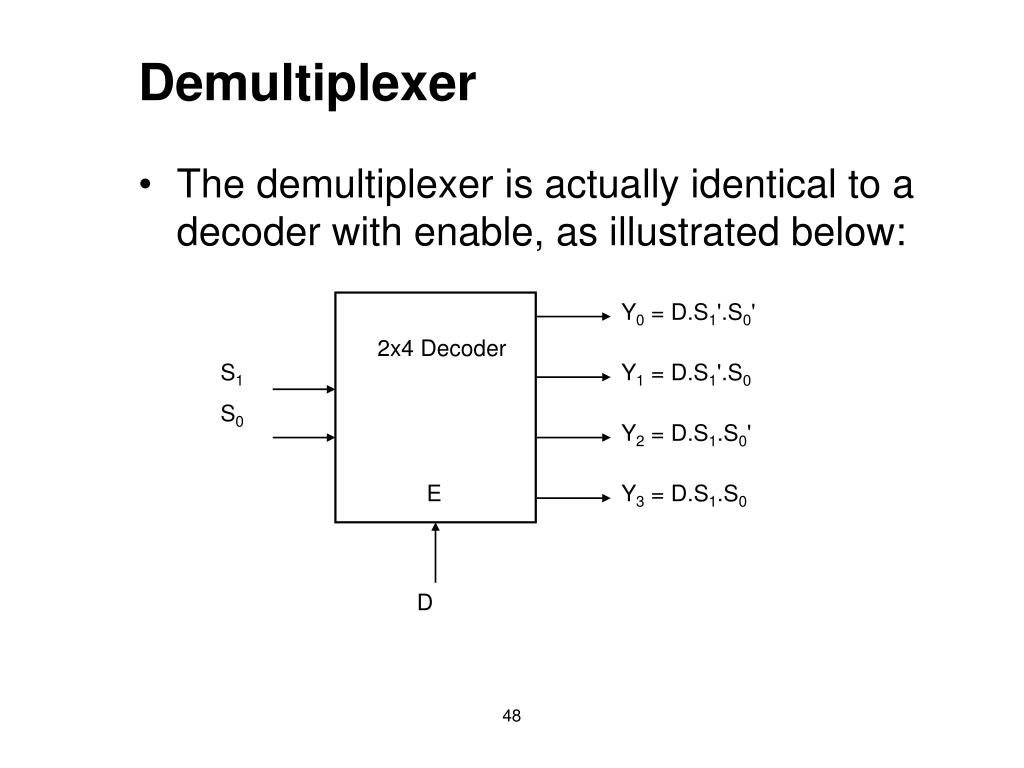

Demultiplexer
  • The demultiplexer is actually identical to a decoder with enable, as illustrated below:

48
