css 372 oct 4th lecture 3

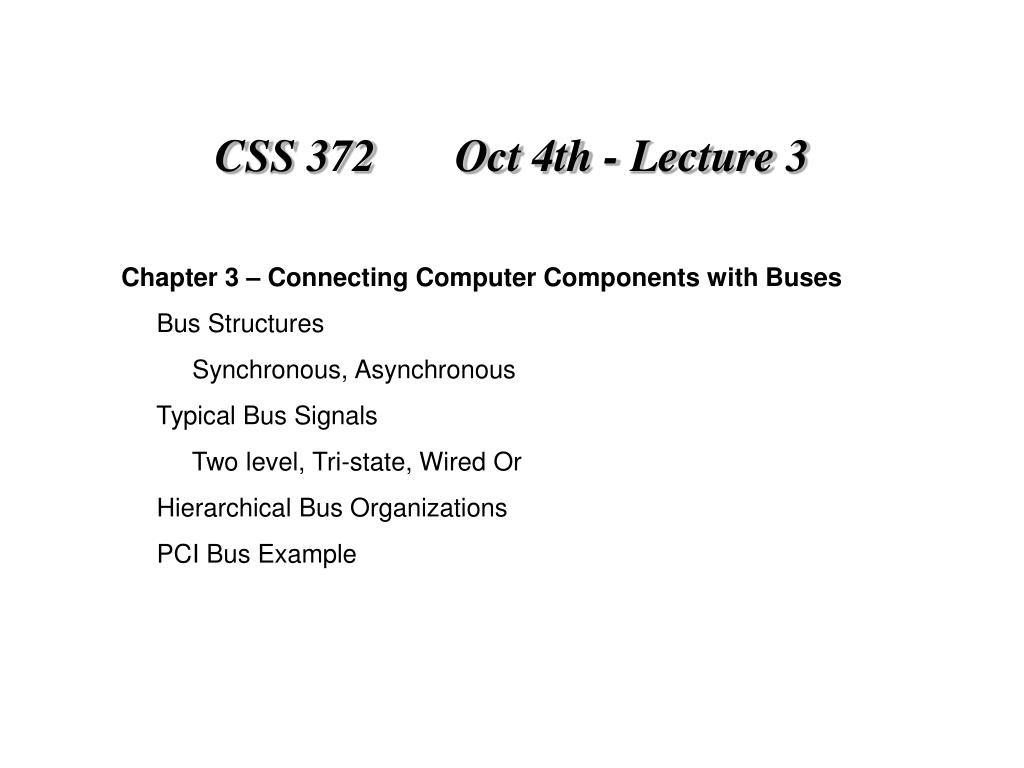

CSS 372 Oct 4th - Lecture 3

Chapter 3 – Connecting Computer Components with Buses

Bus Structures

Synchronous, Asynchronous

Typical Bus Signals

Two level, Tri-state, Wired Or

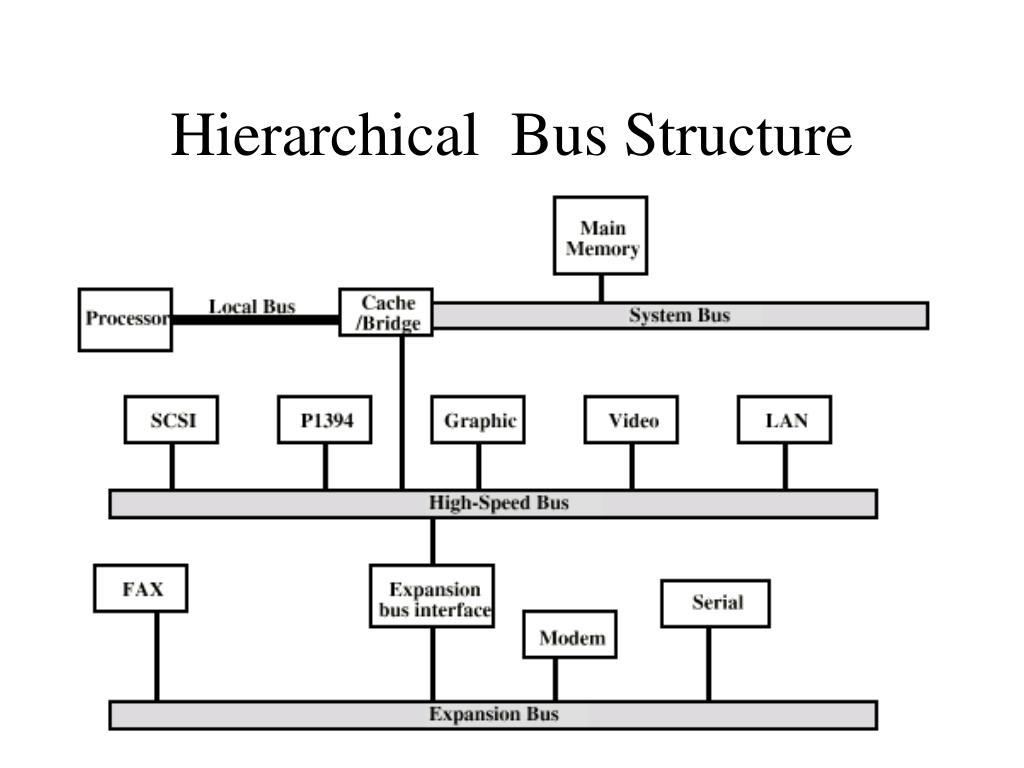

Hierarchical Bus Organizations

PCI Bus Example

types of buses
Types of Buses
  • Synchronous
  • Asynchronous (Hand Shaking)
  • Serial (Twisted pair, Coaxial Cable, ..)
  • Parallel (Ribbon Cable,
types of buses3
Types of Buses
  • Dedicated
    • Separate data & address lines
  • Multiplexed
    • Shared lines
    • Address valid or data valid control line
    • Advantage - fewer lines
    • Disadvantages
      • More complex control
      • Ultimate performance
physical considerations for buses
Physical Considerations for Buses
  • Media (voltage, optic)
  • Signal levels – the higher, the more immune to noise
  • Noise Absorption – wires can pick up noise from neighboring wires
  • Noise Generation – wires can be antennas
  • Length

Creates Delay ( reduces Bandwidth)

Consumes Power

Creates reflections – (Terminations become more critical)

signal scheme alternatives

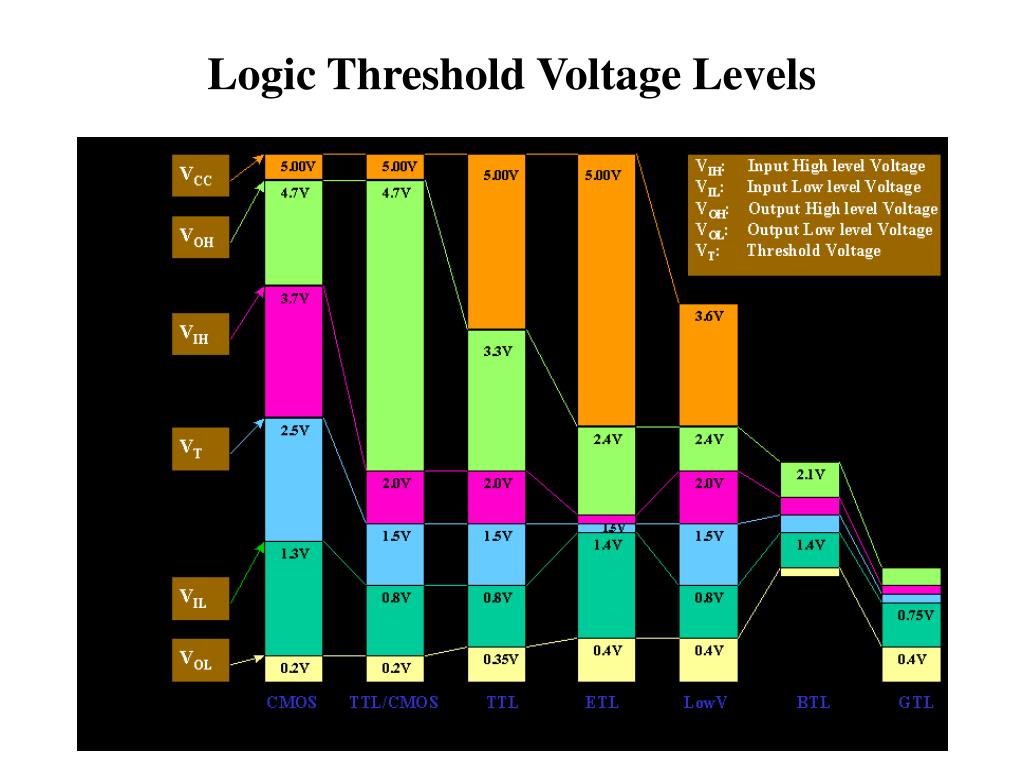

Signal Scheme Alternatives
  • Totempole - High or Low output level

Line always at a 1 level or 0 level

  • Open collector, open drain, wired-or

Line is nominally at a 1 level or 0 level – line is “pulled” to non-nominal level

  • Tristate

Has third state – open

  • Differential

Uses a pair of lines – the level is the difference of signals on the two lines.

bus challenges

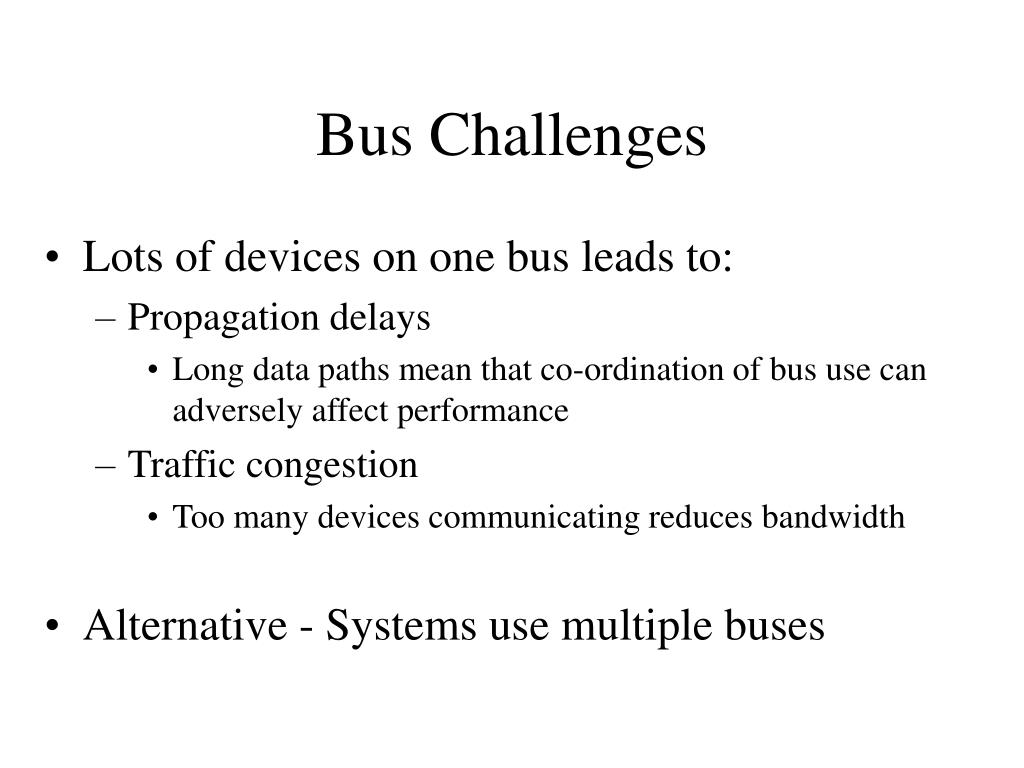

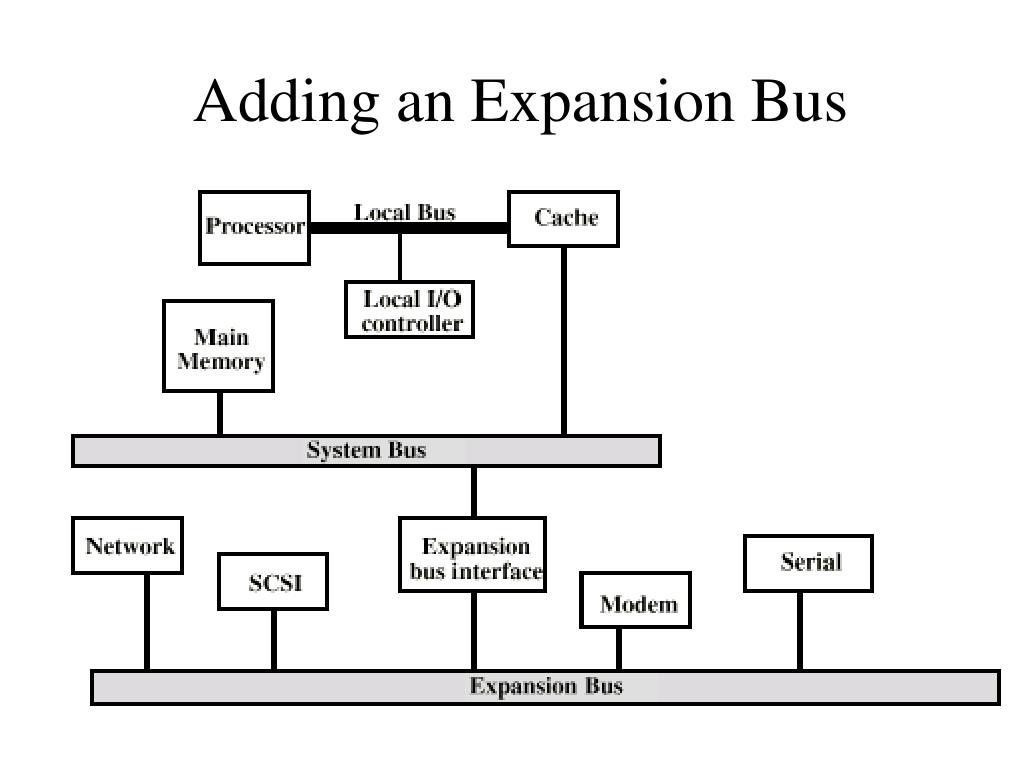

Bus Challenges
  • Lots of devices on one bus leads to:
    • Propagation delays
      • Long data paths mean that co-ordination of bus use can adversely affect performance
    • Traffic congestion
      • Too many devices communicating reduces bandwidth
  • Alternative - Systems use multiple buses
simple computer bus

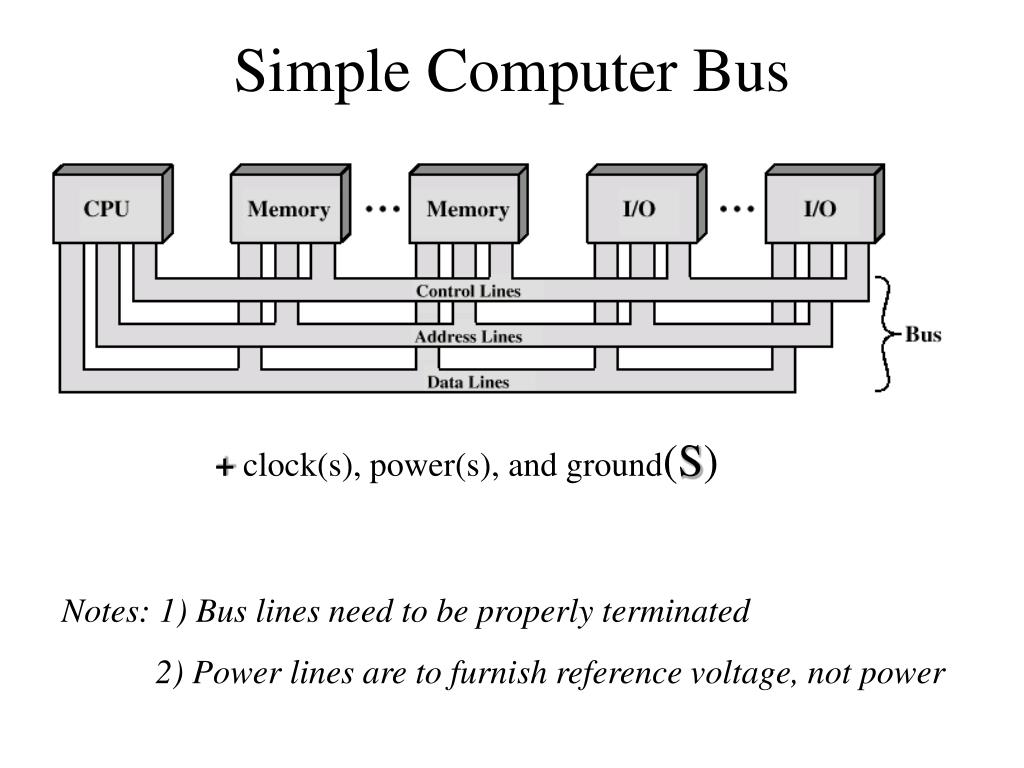

Simple Computer Bus

+ clock(s), power(s), and ground(S)

Notes: 1) Bus lines need to be properly terminated

2) Power lines are to furnish reference voltage, not power

bus arbitration

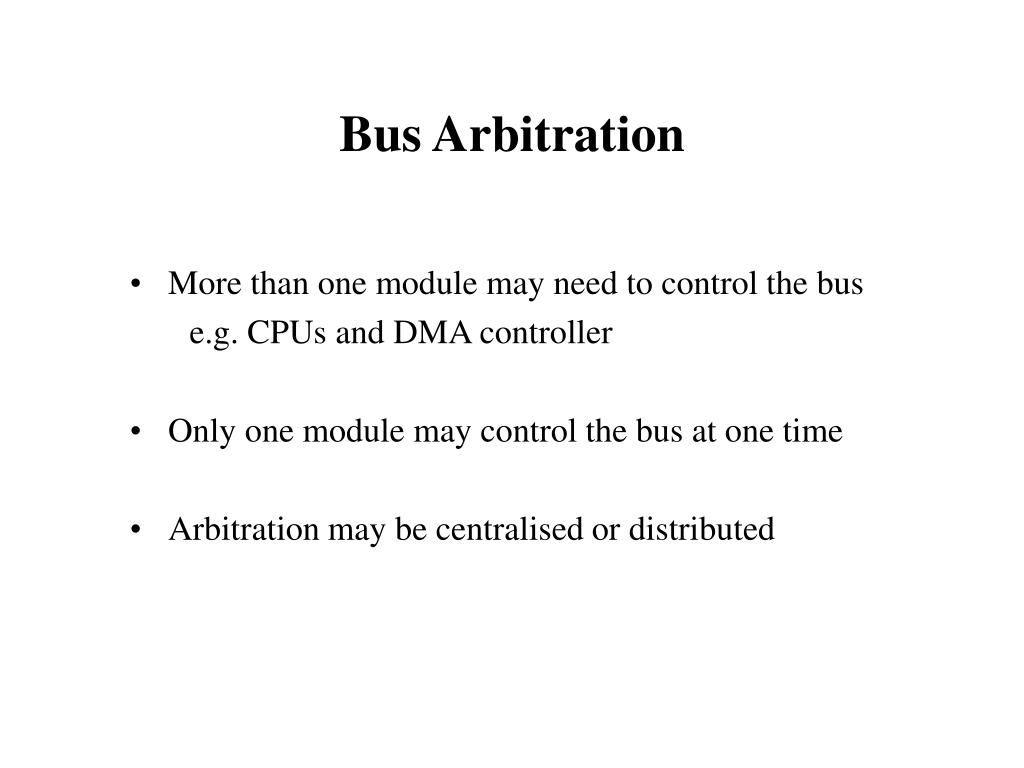

Bus Arbitration
  • More than one module may need to control the bus

e.g. CPUs and DMA controller

  • Only one module may control the bus at one time
  • Arbitration may be centralised or distributed
centralised or distributed arbitration

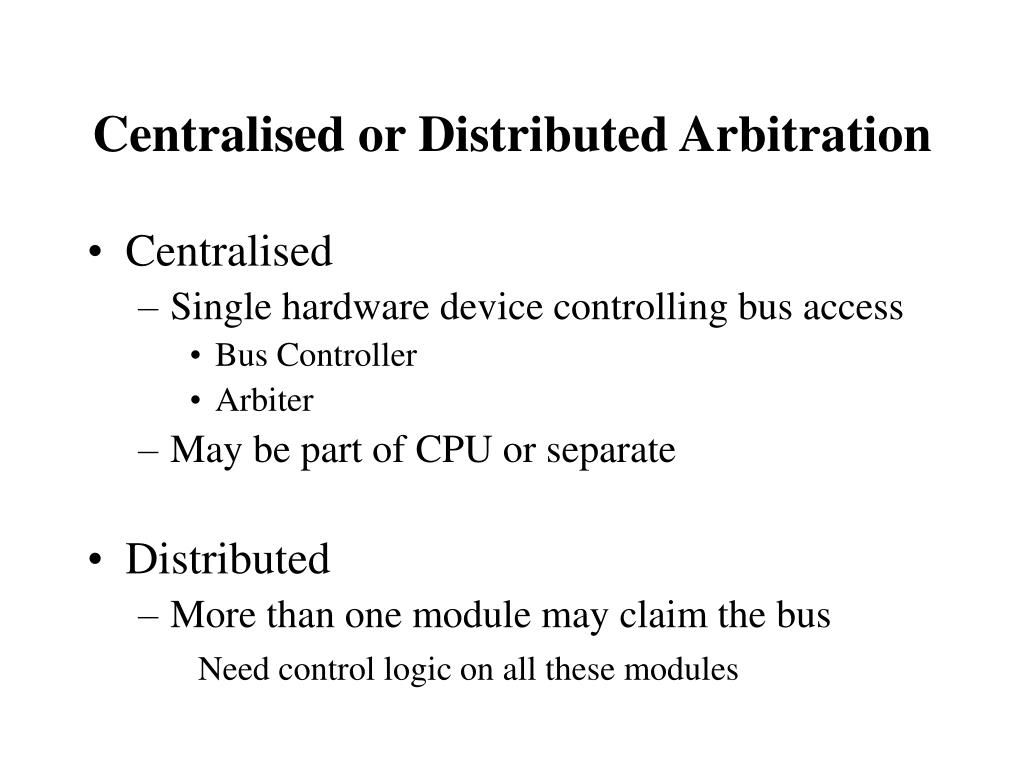

Centralised or Distributed Arbitration
  • Centralised
    • Single hardware device controlling bus access
      • Bus Controller
      • Arbiter
    • May be part of CPU or separate
  • Distributed
    • More than one module may claim the bus

Need control logic on all these modules

timing

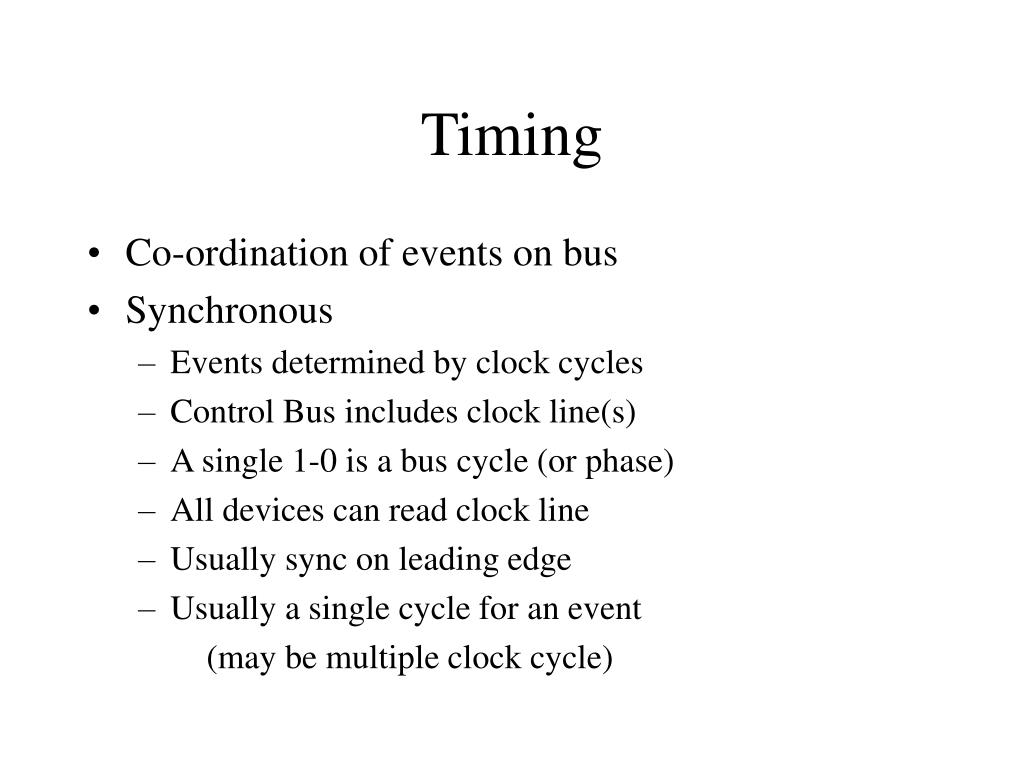

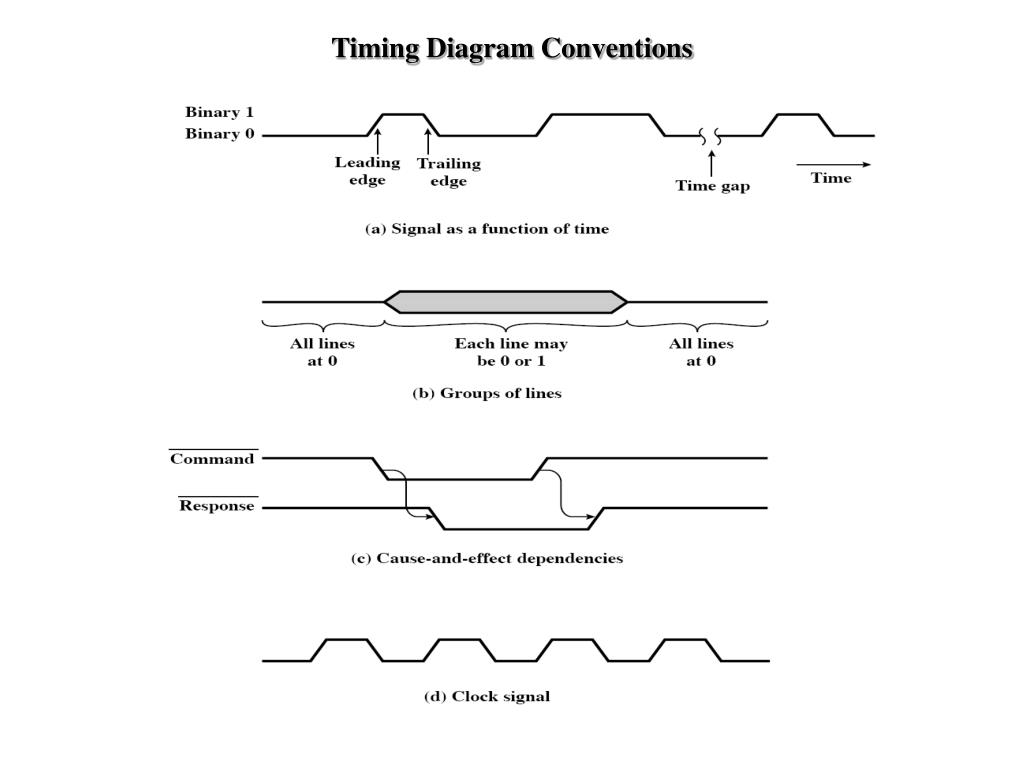

Timing
  • Co-ordination of events on bus
  • Synchronous
    • Events determined by clock cycles
    • Control Bus includes clock line(s)
    • A single 1-0 is a bus cycle (or phase)
    • All devices can read clock line
    • Usually sync on leading edge
    • Usually a single cycle for an event

(may be multiple clock cycle)

example pci bus

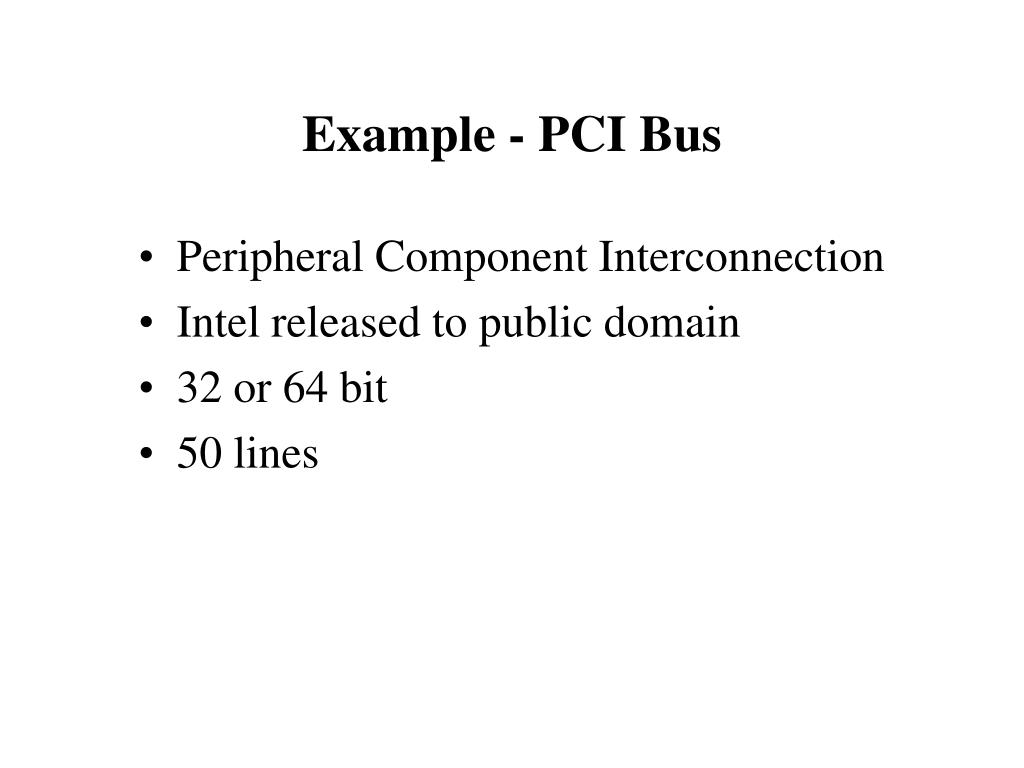

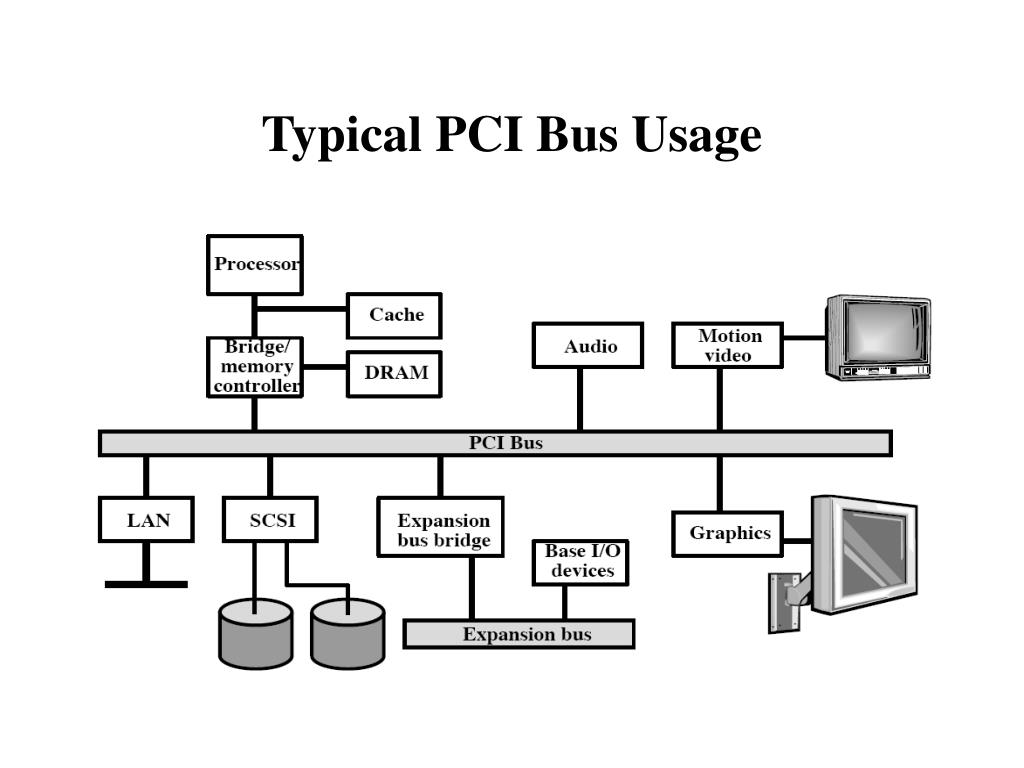

Example - PCI Bus
  • Peripheral Component Interconnection
  • Intel released to public domain
  • 32 or 64 bit
  • 50 lines
pci commands

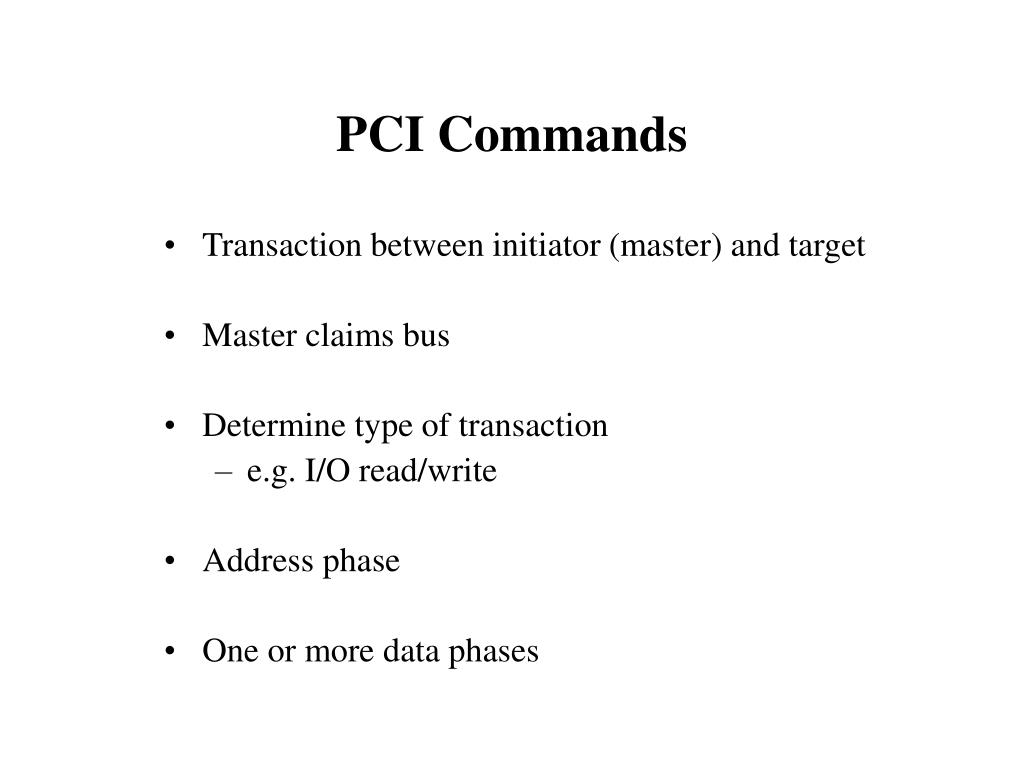

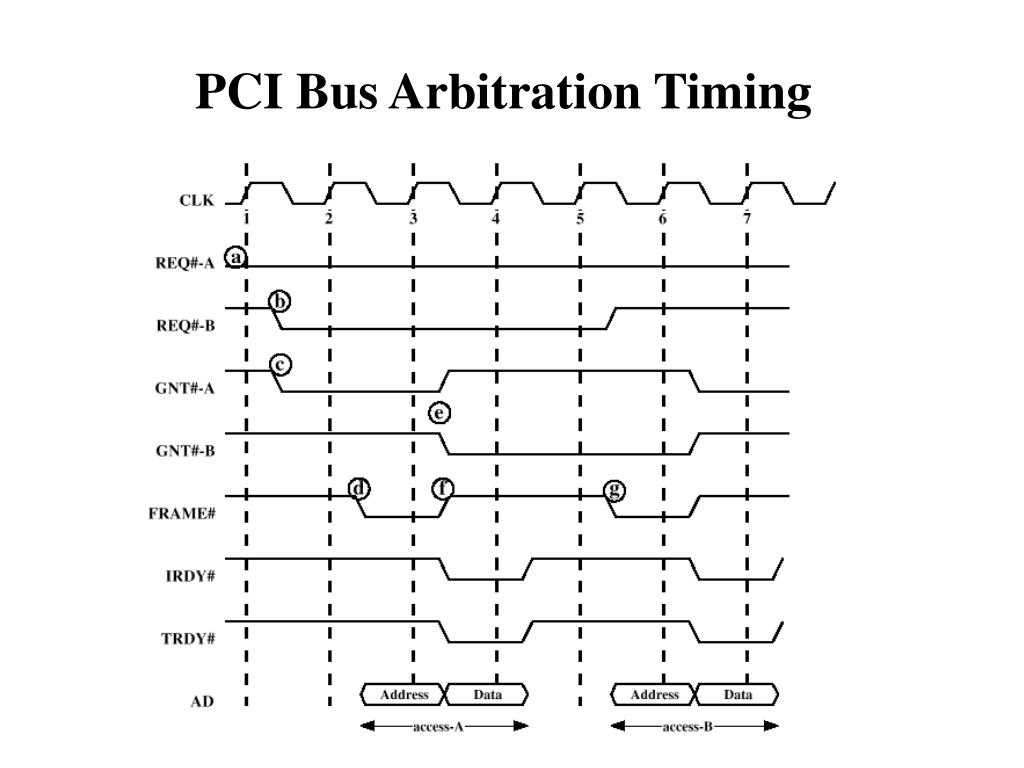

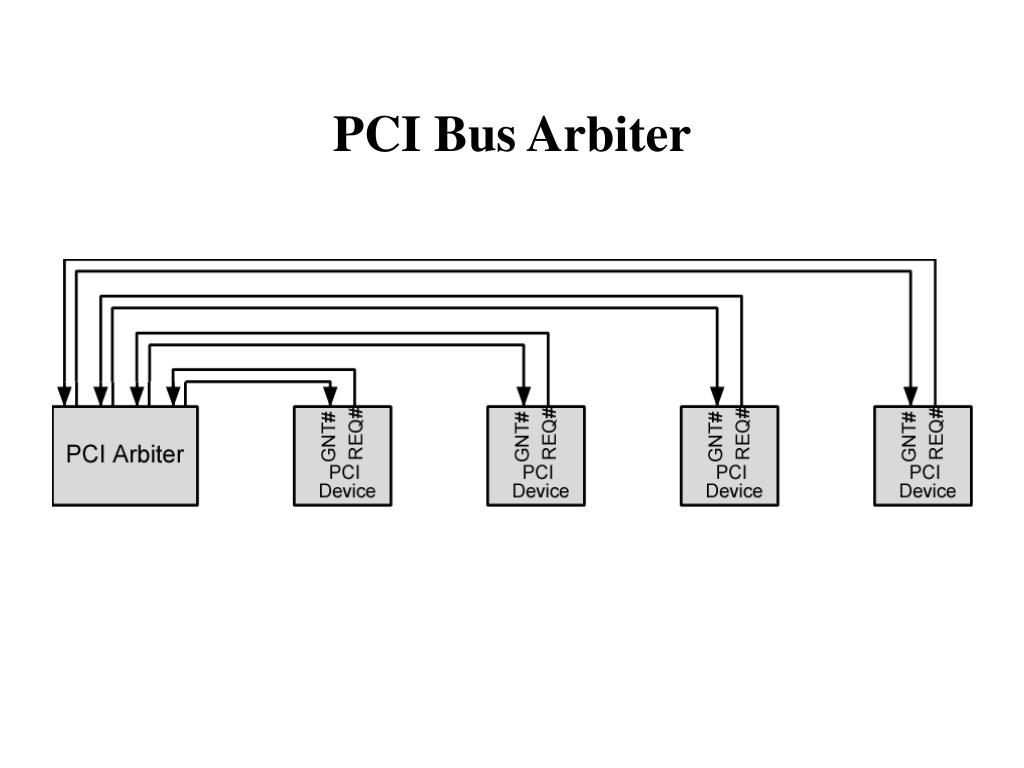

PCI Commands
  • Transaction between initiator (master) and target
  • Master claims bus
  • Determine type of transaction
    • e.g. I/O read/write
  • Address phase
  • One or more data phases
