Aerosol Photometer FM-APM-A100

Fison Aerosol Photometer delivers high sensitivity, detecting particles as small as 0.01 u00b5m. Ideal for HEPA filter leak testing and containment validation, it ensures accurate results with a user-friendly interface and a durable design for reliable assessments of aerosol and filter integrity.<br>

Aurora55
Download Presentation

Aerosol Photometer FM-APM-A100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Aerosol Photometer FM-APM-A100 www.fison.com | info@fison.com Overview Aerosol Photometer FM-APM-A100 with high sensitivity is capable of detecting particles as small as 0.01 ?m for exceptional accuracy. It measures airborne particle concentrations,

  2. used in HEPA filter leak testing and containment validation. The user-friendly interface streamlines operations, minimizing errors. Our photometer is built with durable materials for aerosol testing and filter integrity assessments. Specifications: Dynamic Range Up to 600 ?g/L Automatic Range 0.0001 % to 100.0 % Sensitivity 1% of Readings for Ranges e0.01% to 100% Repetitiveness 0.5% of Readings for Ranges e0.01% to 100% Illuminant Solid-State Scattering Chamber Light Source Instrument Shell Aluminum Cast Aerosol Collagen Solutions PAO, DEHS, Ondina Output RS232 Port Connection / External Printer Alarm System Audio Alarm / Video Alarm Lifespan 50,000 to 100,000 hours Reporting Modes Continuous Mode / Storage Mode / Printing Mode Scanning Probe 2.5 m Connection Assembly Display 2.8-inch LCD Power Supply 220 V, 50/60 Hz Size (W ? D ? H) 260 ? 370 ? 160 mm Weight 10.5 kg Features: Adjustable flow rates Wide detection range Data logging capability High sensitivity sensors

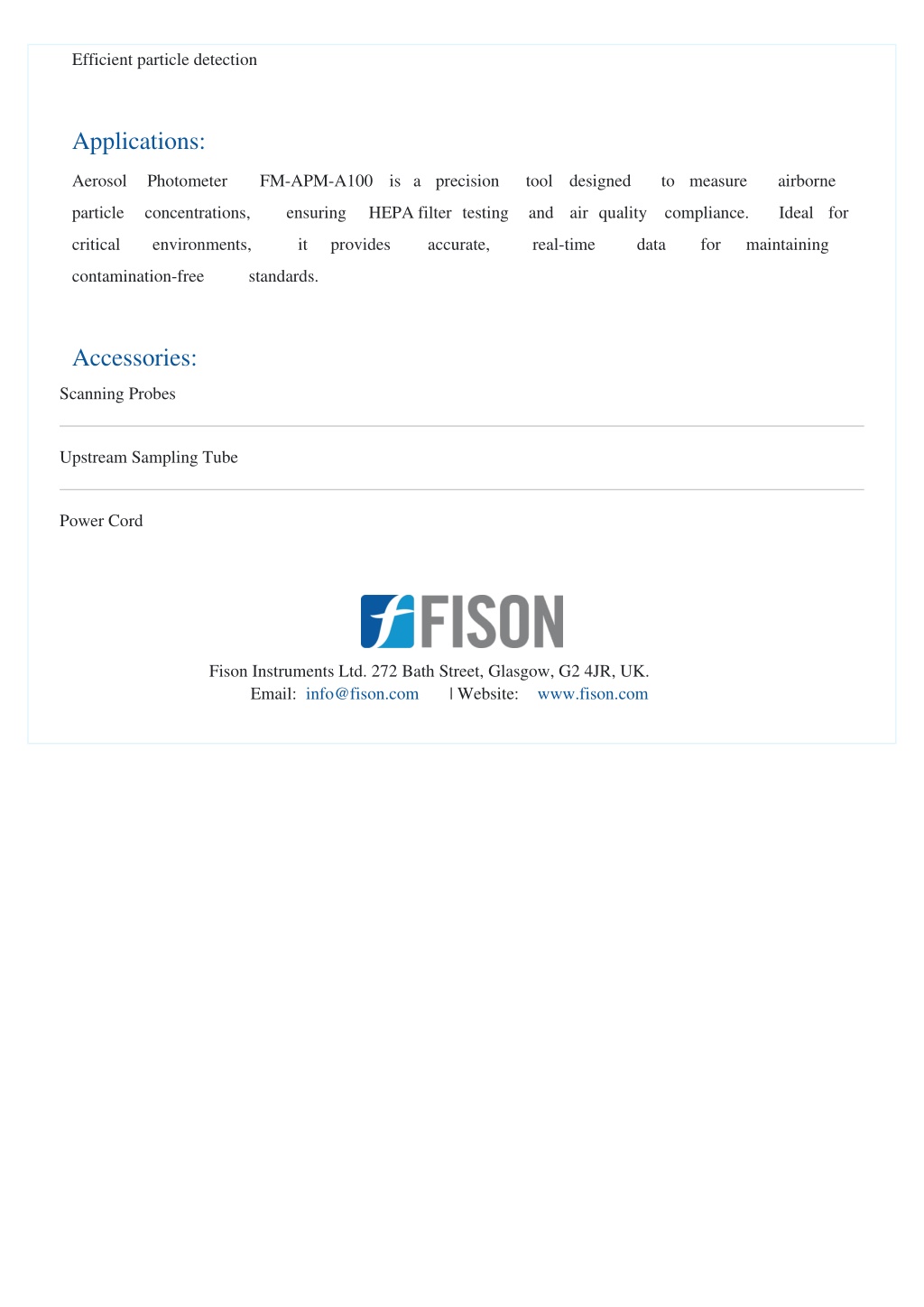

  3. Efficient particle detection Applications: Aerosol Photometer FM-APM-A100 is a precision tool designed to measure airborne particle concentrations, ensuring HEPA filter testing and air quality compliance. Ideal for critical environments, it provides accurate, real-time data for maintaining contamination-free standards. Accessories: Scanning Probes Upstream Sampling Tube Power Cord Fison Instruments Ltd. 272 Bath Street, Glasgow, G2 4JR, UK. Email: info@fison.com | Website: www.fison.com
