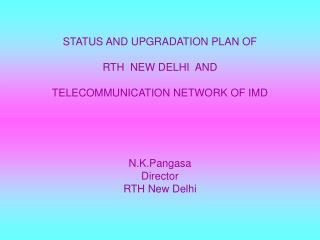

STATUS AND UPGRADATION PLAN OF

RTH NEW DELHI AND

TELECOMMUNICATION NETWORK OF IMD

N.K.Pangasa

Director

RTH New Delhi

gts links with rth new delhi
GTS Links with RTH New Delhi

Oman Soc(Int)

Melbourne Soc(Int)

Male Soc(Int)

Colombo Soc(Int)

MoscowIP-VPN

Bangkok 200 bauds Ordered for 64Kbs

Tokyo IP-VPN

RTH NEW DELHI

Yangon 50 bauds

Beijing IP-VPN

Kathmandu 50 bauds

Tehran 75 bauds Ordered for 64Kbps

Jeddah 64Kbps Soc(IP)

Cairo 100bauds Under testing for 64Kbps

Karachi 64Kbps Soc(IP)

Dhaka 64Kbps Soc(IP)

recent developments at rth new delhi

Recent Developments at RTH New Delhi

Table Driven Code Form: RTH New Delhi is transmitting daily Synop (on test basis) and SATOB messages of Indian Region in BUFR Format (Developed by IMD) to Tokyo through GTS

Digital Satellite Broadcast of IMD through Asia Star satellite has been changed to multicasting

File naming server installed is providing data to users through TCP/IP Socket, E-mail, SMS and FTP in WMO File naming conventions. It has also feature of OCR (Optical Character Recognition) to extract information from imageries.

GMDSS bulletin is also placed on IMD website in real time.

proposed rth
Proposed RTH

Back

Features

  • High Availability (more than 99.9%)
  • Cluster Mode
  • Duplex Web, E-mail and FTP
  • Conversion from CREX, BUFR, GRIB to ASCII and vice versa
  • Audio visual Alarm for warning messages
  • Message reception through PSTN/Dial-up and SMS
  • Transmission of warnings through SMS to predefined numbers.
  • File switching
  • OCR base FAX transmission and reception
  • Authentication server for Internet users
  • Bilingual features (English and Hindi).
  • Daily throughput of data -- 100 GB.
  • GUI base interface and web interface.
slide5

Ongoing Modernization Projects of Telecom Division

Data Terminal At 75 Observatories

64 kbps Terminal

AMSS At 6 locations (4 old +2 new)

Common

People

IVRS

At 26 MCs

Internet

64 kbps – 2 mbps Link

PSTN/Dial-Up Link

Mobile/SMS Link

VSAT Link

Internet Link for E-mail & FTP

VPN Link

RTH, At New Delhi

VSAT Network

( At 26 Locations )

( At 26 Locations )

International Network

Main Flow of Data

data terminal
Data Terminal

Back

( At 75 Observatories/Field Stations )

Data Terminal At Observatories

Features:

  • The system will be PC (P-IV) based.
  • The system can connect to Data Collecting Centres (64 kbps terminal) using PSTN/Dial-up link for submission and retrieval of data.
  • It also supports transmission and reception of messages via GSM based GPRS or SMS.
  • The system can transmit and receive messages via E-mail, FTP and FAX.
  • The system has browser based GUI for data handling/manipulation, submit and retrieve meteorological messages.

Data Terminal Locations

proposed amss
Proposed AMSS

Back

( Existing 4 at Kolkata, Mumbal, Delhi and Chennai and 2 new at Guwahati and Nagpur )

Features

  • High Availability (more than 99.9%)
  • Cluster Mode
  • Duplex Web, E-mail and FTP
  • Conversion from CREX, BUFR, GRIB to ASCII and vice versa
  • WMO as well as AFTN switch
  • Audio visual Alarm for warning messages
  • Message reception through PSTN/Dial-up and SMS
  • Transmission of warnings through SMS to predefined numbers.
  • File switching
  • OCR base FAX transmission and reception
  • Authentication server for Internet users
  • Bilingual features (English and Hindi) Daily throughput of data -- 50 GB.
  • GUI base interface and web interface.
64 kbps terminal
64 Kbps Terminal

Back

64 kbps Terminal

( At 27 Locations )

Features:

  • The system will be PC (P-IV) based.
  • Standard TCP/IP based socket communication for transmission and reception of messages.
  • Retrieval and submission of messages through PSTN/Dial-up network.
  • Submission of messages through SMS.
  • Transmission and reception of messages through E-mail in English and Hindi.
  • Web Interface.
  • GUI based module for submission and retrieval of data.

64 kbps terminal Locations

slide10
IVRS

Back

( At 26 Locations )

IVRS

Features:

  • The system will receive WMO formatted messages and decode these messages to weather parameters for answering weather queries by public.
  • The system shall interact with caller in English, Hindi and at least one Regional language of that place where it shall be installed.
  • The system will work with all type of exchange used in DOT/MTNL/BSNL etc. including Mobiles.
  • The system will operate round the clock with 99% uptime.
  • The system shall have provision to transfer the call to the duty officer in case the caller query is not available in the database.
  • No single point of failure.
  • GUI based administration modules.
  • Voice messages will be recorded by professionals.

IVRS Locations

present setup of imd communication
Present Setup of IMD Communication

* SINGLE PATH VIA GROUP OF NODES.

* DELAY DUE TO MULTIPLE HOPS COVERAGE.

* MODE OF COMMUNICATION: TP/TELEX/TELGRAMS/HFRTCOSTLY.

* OLD AND OBSOLETE TECHNOLOGY.

85

385

need for modernization

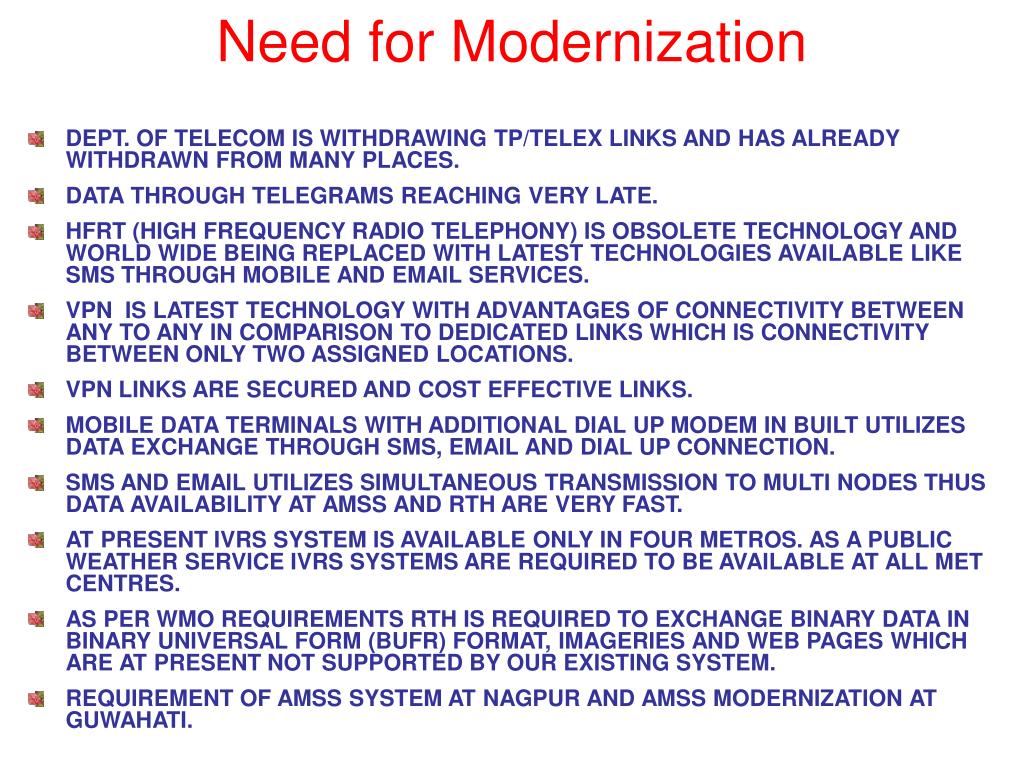

Need for Modernization
  • DEPT. OF TELECOM IS WITHDRAWING TP/TELEX LINKS AND HAS ALREADY WITHDRAWN FROM MANY PLACES.
  • DATA THROUGH TELEGRAMS REACHING VERY LATE.
  • HFRT (HIGH FREQUENCY RADIO TELEPHONY) IS OBSOLETE TECHNOLOGY AND WORLD WIDE BEING REPLACED WITH LATEST TECHNOLOGIES AVAILABLE LIKE SMS THROUGH MOBILE AND EMAIL SERVICES.
  • VPN IS LATEST TECHNOLOGY WITH ADVANTAGES OF CONNECTIVITY BETWEEN ANY TO ANY IN COMPARISON TO DEDICATED LINKS WHICH IS CONNECTIVITY BETWEEN ONLY TWO ASSIGNED LOCATIONS.
  • VPN LINKS ARE SECURED AND COST EFFECTIVE LINKS.
  • MOBILE DATA TERMINALS WITH ADDITIONAL DIAL UP MODEM IN BUILT UTILIZES DATA EXCHANGE THROUGH SMS, EMAIL AND DIAL UP CONNECTION.
  • SMS AND EMAIL UTILIZES SIMULTANEOUS TRANSMISSION TO MULTI NODES THUS DATA AVAILABILITY AT AMSS AND RTH ARE VERY FAST.
  • AT PRESENT IVRS SYSTEM IS AVAILABLE ONLY IN FOUR METROS. AS A PUBLIC WEATHER SERVICE IVRS SYSTEMS ARE REQUIRED TO BE AVAILABLE AT ALL MET CENTRES.
  • AS PER WMO REQUIREMENTS RTH IS REQUIRED TO EXCHANGE BINARY DATA IN BINARY UNIVERSAL FORM (BUFR) FORMAT, IMAGERIES AND WEB PAGES WHICH ARE AT PRESENT NOT SUPPORTED BY OUR EXISTING SYSTEM.
  • REQUIREMENT OF AMSS SYSTEM AT NAGPUR AND AMSS MODERNIZATION AT GUWAHATI.
slide13

Proposed Setup

CATEGORY-I 85

OBSERVATORIES WITH MULTIPLE OBSERVATIONAL FACILITIES.

CATEGORY-II 385

OBSERVATORIES WITH LIMITED OBSERVATIONAL FACILITIES.

CATEGORY-III 26

REMOTE OBSERVATORIES IN MOUNTAIN, DESERT AND OTHER INACCESSIBLE AREAS.

1.SIMULTANEOUS EXCHANGE OF DATA WITH MULTIPLE NODES

2. REAL TIME DATA EXCHANGE.

technology for modernization
Technology for modernization
  • VPN (VIRTUAL PRIVATE NETWORK) LINKS.
  • HIGH SPEED LINKS.
  • SMS THROUGH MOBILE SERVICE.
  • EMAIL SERVICES.
  • DIALUP CONNECTIVITY FOR DATA RETRIEVAL AND SUBMISSION
  • VSAT LINKS AT COASTAL/DESERT AND MOUNTAIN AREAS.
  • SATELLITE BASED DIGITAL DATA BROADCAST AND ITS RECEPTION.
  • INTERACTIVE VOICE RESPONSE SYSTEM (IVRS) – A PUBLIC WEATHER SERVICE.
  • DATA RECEPTION THROUGH WEB INGEST
