Presentation Transcript
slide1

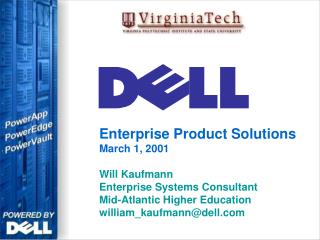

Enterprise Product SolutionsMarch 1, 2001

Will Kaufmann

Enterprise Systems Consultant

Mid-Atlantic Higher Education william_kaufmann@dell.com

poweredge servers
PowerEdge Servers
  • Dell offers workgroup, departmental and enterprise level servers, in both tower and rack configurations.
slide3

PowerEdge Server Roadmap Summary

Data Center

PowerEdge 7550 4-way Itanium

7U (IA-64/Merced)

PowerEdge 8450 8-way Xeon 7U

Enterprise

PowerEdge 6450 4-way Xeon 4U 4 HDDs

PowerEdge 6550 4-way Foster 4U 4 HDDs

PowerEdge 6400 4-way Xeon 7U 1x2 / 2x4 HDDs

PowerEdge 6500 4-way Foster 7U 1x2 / 2x4 HDDs

Departmental

PowerEdge 4500 2-way Xeon 6U 4GB Dual ROMB

PowerEdge 4400 2-way Xeon 7U 133FSB ROMB

PowerEdge 2550 2-way PIII 2U 4GB Dual ROMB

Work Group

PowerEdge 2450 2-way PIII 2U 133FSB ROMB

PowerEdge1550 2-way PIII 1U 2GB 3 HPHD

PowerEdge 2400 2-way PIII 6U 133FSB ROMB

PowerEdge 2500-2 way PIII Flip chip U160 , 5U

PowerEdge 1300 2-way PIII Tower 100FSB

PowerEdge 1400 2-way PIII Tower 133FSB 64-bit PCI

PowerEdge 300 2-way PIII Tower 100FSB 32-bit PCI

Q3FY’02

Q4FY’02

Q1FY’02

Q2FY’02

Q4FY00

Q1FY’01

Q2FY’01

Q3FY’01

Q4FY’01

poweredge 2550
PowerEdge 2550
  • 1-2 Intel Pentium III processors
  • 133MHz Front Side Bus
  • Up to 4GB PC133 SDRAM
  • 3 available 64-bit/33MHz PCI slots
  • Integrated Dual-Channel Ultra3 (Ultra160) SCSI controller
  • Optional Embedded Dual Ch. RAID Ultra3 (Ultra160)-PERC3/Si
  • Dual Embedded 10/100 NICs
  • 4 hot-plug 1” drives support 1x4,1x5,and 2x2, or 3x2 split back-plane options
  • Optional 5th hot-plug 1.0” drive in media bay
  • Redundant Hot-Swap Power (1+1 and dual power cords)
  • 2U –19” rack ready chassis (2 post under investigation)
  • Homogeneous Cluster Certification (heterogeneous under investigation)
  • PowerVault SCSI and FC Support
  • New Bezel/ID
slide5

Intel Server Roadmap

. . .

Madison

IA-64 Perf

. . .

Extends IA Headroom,

Scalability and Availability

for the Most

Demanding Environments

Deerfield

IA-64 Price/Perf

McKinley

. . .

Future

IA-32

Itanium™

Processor

Performance

Foster

Cascades

Outstanding

Performance for

32 Bit Volume Apps

Pentium®III Xeon™

Processor

’99

’00

’01

’02

.25µ

.18µ

.13µ

All dates specified are target dates provided for planning purposes only and are subject to change.

®

poweredge 7xxx
PowerEdge 7xxx
  • 4 way Itanium CPUs
  • 266MHz “Double Pump” Front Side Bus
  • 64GB system memory
  • 10 I/O slots (8 hot-plug)
    • 8 64-bit 66MHz
    • 2 64-bit 33MHz
  • 4 hot-swap disk drives, split back plane
  • Integrated and external RAID through add-in cards (SCSI and Fibre Channel)
  • Integrated 10/100 Ethernet controller with I2C support
  • Redundant Hot Swap Power and Fans
  • 7U rack only chassis
slide7

Roadmap Changes

Platform

  • Added 32P (Titan) – RTS targeted for Q1FY02
  • IA64 4P (Bordeaux) RTS moved to Q2FY02 due to Intel slips
  • Technical solution available for IA32 Foster 8P
  • IA64 McKinley platform (Olympus Modular) delayed to

accelerate time-to-market for IA32 Foster 8P platform

  • Intel OEM 4P & 8P IA64 McKinley added
dell powerapp appliance solution
Dell PowerApp Appliance Solution

An integral part of Dell’s server solution strategy

Server Appliance definition

  • Internet devices with embedded O/S and application, that are tuned to deliver specific functionality with minimal administration.

The large accounts and ISP/ASPs are strained to better manage the sheer volume of general-purpose servers. These users constantly attempt to streamline complexities and certain applications installed in their current servers and we therefore believe they will look to appliance servers as a very legitimate solution.

  • IDC - Appliance Server Forecast - August, 1999
powerapp roadmap
PowerApp Roadmap

Performance Caching

PowerApp Cache (v1.2/v.1.3)

PAC 200 (2U/2P//2NIC)

PAC 100 (1U/1P/2NIC)

PowerApp Cache (v2.0)

PAC 200 (2U/2P/2NIC)

PAC 100 (1U/1P/2NIC)

Web Hosting

PowerApp Web 110 –Linux (v2)

(1U/1P/2NIC – Celeron/IDE)

PowerApp Web 100 – Linux, Windows Web Server (1U/1P/2 NIC - PIII, SCSI)

PowerApp Web 120 - Linux, Windows

(1U/2P/2 NIC - PIII, SCSI)

High Availability

PowerApp Big IP – Traffic Load Balancing

(2U/1P/1NIC - PIII, SCSI)

Security

PowerApp Secure – Firewall

(1U/2P/2NIC - PIII, SCSI & 2U/2P/1NIC

– PIII,SCSI)

Q3CY’01

Q4CY’01

Q1CY’01

Q2CY’01

Q1CY’00

Q2CY’00

Q3CY’00

Q4CY’00

dell openmanage products
Dell OpenManage™ Products
  • Management solutions based on industry standard technologies and alliances with key management vendors
  • Typical Server installation includes:
    • IT Assistant
    • Resolution Assistant
    • Version Assistant
    • Remote Assistant

Dell OpenManage offers a choice of tools for meeting a diversity of system management needs.

  • BMC
  • NetIQ
  • On Technology
  • Veritas
  • Seagate
dell openmanage products11
Dell OpenManage™ Products
  • OpenManage [OM] Assistant Series
    • Install/Config Dell OpenManage Server Assistant
    • Status/Config Dell OM IT Assistant
    • Remote Access Dell OM Remote Assistant
    • Version Dell OM Version Assistant
    • Storage Dell OM Array Manager (Assistant)
    • Problem Dell OM Resolution Assistant
    • Administration Dell OM ClusterX Assistant
  • Dell OpenManage Connections
    • Dell OM Connection for Microsoft SMS
    • Dell OM Connection for CA Unicenter TNG
    • Dell OM Connection for Tivoli Enterprise
    • Dell OM Connection for HP OpenView NNM on HP-UX
    • Dell OM Connection for HP OpenView NNM for Solaris
    • Dell OM Connection for HP OpenView NNM for NT

* 1Q2000

dell powervault storage family
Dell PowerVault Storage Family

SCSI and Fibre Channel Disk Arrays

SAN (Storage Area Networks)

NAS (Network Attached Storage)

and

Tape Backup

Rack-Mount or Deskside

slide13

PowerVault Roadmap Summary

External

Storage Products

NAS mid-range Filer

Entry level NAS

NAS mid-range Refresh

SAN on NT

SAN Netware support

  • Storage Domain Manager
  • ConvergeNet Storage
  • Virtualization NT/Unix

SAN 16 Port Switch

SAN Mirroring Appliance

High End FC Solution

Lower Cost FC Array

SCSI 8 Bay

SCSI 12 Bay

SCSI 14 Bay

Tape Backup Products

LTO Library

DLT4000/7000

Single, Autoloader,

Library

LTO Autoloader

LTO Internal/External 100/200 GB, 10MB/s

DDS4 Autoloader

( 8 cartridges)

DLT1 Autoloader 320 GB max.

DDS4

(20/40 GB. 2.0 MB/s)

DLT1 (40/80 GB, 3 MB/s)

Q2CY’00

Q3CY’00

Q4CY’00

Q1CY’01

Q2CY’01

Q3CY’01

Q4CY’01

Q4CY99

Q1CY’00

slide14

Take-aways for the PowerVault 660F/224F

  • Complete subsystem in a single 3U enclosure
  • Best-in-class rack density
  • Enterprise-class high availability storage solution
  • Advanced storage virtualization within the subsystem
  • Modular design provides serviceability, flexibility, and investment protection
  • Industry leading value in Fibre Channel storage solutions
slide15

Key Features of SAN 4.0

New

New PowerVault 660F & 224F array provide better value, investment protection and rack density!

New

New

Lower price point than SAN 3.0*

Multiple MSCS clusters (NT/W2K) and standalone servers sharing the same array!

New

Array Manager offers unified console for virtual disk management

New

Refreshed

Clustering support with PowerVault 530F SAN appliance

PowerVault 530F SAN appliance provides snapshot copy, array mirroring and storage virtualization

Refreshed

Refreshed

Easy-to-use SAN configuration tool graphically displays SAN as if it were sketched on paper

PowerSuites ensures data protection

Dell SAN supports 20/24 servers, and up to 8 storage arrays!

PowerVault 130T tape library supports 4 drives and 30 available cartridge slots

*With PowerVault 660F/224F

slide16

735N Deployment Scenarios

  • Storage Consolidation
    • File servers provide local storage under 50 GB
    • Multiple file servers are administered at the departmental level and distributed throughout the enterprise
  • Heterogeneous Environment
    • Mix of Unix and NT
    • Multiple storage strategies
    • Consolidates administration for both Unix and NT
  • Application and Data Separation
    • Enables more efficient application serving
    • Centralizes data

NT File/App. Server

Unix File/App. Server

Novell file/App. Server

NAS Appliance

Client

Client

Client

Client

san dedicated fibre channel backup
SAN Dedicated Fibre Channel Backup
  • Up to 24 servers sharing tape libraries/autoloaders
  • Reduced tape backup time
  • SAN-based tape backup
  • Decreased management costs
  • Consolidated Windows 2000, Windows NT and NetWare backup

PowerEdge or select non-Dell servers

PowerVault 51F or 56F

FC Switches (4 max)

PowerVault 35F

FC Bridge (4 max)

PowerVault 130T/120T

DLT Libraries (8 max)

dell storage area network san
Dell Storage Area Network (SAN)
  • Storage consolidation and centralized tape backup
  • Up to 20 Windows 2000, Windows NT and NetWare servers attached to 1 to 8 PowerVault 650F’s storage units using fibre channel technology for a total 34 TB within a SAN.

MSCS Cluster

PowerEdge or select non-Dell servers

PowerVault 51F or 56F

FC Switch (4 max)

PowerVault 35F

FC Bridge (4 max)

PowerVault 130T/120T

DLT Libraries (8 max)

PowerVault

650F & 630F

Storage

highest availability configuration

FC PV530F

link

Local

PV530F

with failover

software

Remote

PV530F

with failover

software

FC PV530F

link

IP mirror

networks

Disk Arrays

PV650F

PV630F

Disk Arrays

PV650F

PV630F

Highest Availability Configuration
network attached storage nas
Network Attached Storage (NAS)
  • Storage and Server Consolidation
  • UNIX and NT file sharing
  • High-speed data access
  • Both 18GB and 36GB drives supported
  • Native Snapshot Capabilities
  • Failover Clustering
  • NDMP Backup
  • SnapMirror

NAS

PowerVault 705N NAS Applicance

PV 700N

NT

UNIX

LAN

HTTP

Web

SAN

PV 51F or PV 56F

PV 51F

PV 35F

PV 650F

PV 630F

DLT Library

w/ CA ArcServe 6.6

Enterprise Edition

powervault backup solutions
PowerVault Backup Solutions

Providing a range of backup solutions for workgroup to data center server environments

Workgroup

Departmental

Enterprise

Data Center

PowerVault 100T

PowerVault 110T

PowerVault 120T

PowerVault 130T

  • LTO Drive*
  • 100/200 GB
  • 15 MB/s
  • 54 GB/hr
  • DLT 1 Drive
  • 40/80 GB
  • 3 MB/s
  • 10.8 GB/hr
  • DLT4000 Drive
  • 20/40 GB
  • 1.5 MB/s
  • 5.4 GB/hr
  • DLT7000 Drive
  • 35/70 GB
  • 5 MB/s
  • 18 GB/hr
  • DDS4
  • 20/40 GB
  • 2.4 MB/s
  • 8.64 GB/hr
  • DLT 1 Autoloader
  • 40/80 GB
  • 3 MB/s
  • 10.8 GB/hr
  • DDS4 Autoloader
  • 160/320 GB
  • 2.4 MB/s
  • 8.64 GB/hr
  • DLT4000 Autoloader
  • 140/280 GB
  • 1.5 MB/s
  • 5.4 GB/hr
  • DLT7000 Autoloader
  • 245/490 GB
  • 5 MB/s
  • 18 GB/hr
  • DLT4000 Library
  • Up to 1.2 TB
  • 6 MB/s
  • 21.6 GB/hr
  • DLT7000 Library
  • Up to 2.1 TB
  • 20 MB/s
  • 72 GB/hr

*Available December 2000

thank you for your time questions
Thank you for your time!Questions?

william_kaufmann@dell.com

804.763.3650 VO

804.339.4460 Mobile

PowerEdge Servers

PowerApp Appliance Servers

PowerVault Storage

slide24

Hardware

$1,672,141

Hardware

$594,615

Software

$134,102

Software

$320,951

Maintenance

$125,389

Maintenance

$514,361

Total 5 year Cost

$854,106

Total 5 year Cost

$2,507,453

$/tpmC

TPC-C

$14.99

57,015

$/tpmC

TPC-C

$49.88

50,268

HW, System SW, Maintenance Price ComparisonIntel® Architecture solution often less than half the initial cost of competitors for the same performance

Sun Enterprise* 4500

Solaris* 7, Sybase* ASE

14 x UltraSPARC* 400 MHz

Dell PowerEdge 8450

Windows 2000* Datacenter*, SQL 2000* 8 x Intel® Pentium® III XeonTM 700 MHz Processor

Savings with IA

64%

58%

76%

66%

IA Delivers at 33% of Sun’s Cost

Source: TPC
