optical characterizations of semiconductors

Optical Characterizations of Semiconductors

Jennifer Weinberg-Wolf

September 7th, 2005

slide2

Raman Spectroscopy

  • Inelastic scattering process that measures vibrational energies
  • Probe phonon modes, electronic structure and the coupling of the e--phonon states
raman spectroscopy

E.C.T. Harley and L.E. McNeil, J. Phys. Chem. Solids 65, 1711 (2004).

L.E. McNeil et.al., J. Ap. Phys. 96 9, 5158 (2004).

Loi, et. Al., Syn. Met. 116 321 (2001).

Raman Spectroscopy

Pressure Dep of a6T

SiGe MOSFETs

Cs Intercalation of SWNT

Temperature Dep of SWNT

  • Learn about materials in a wide variety of environments
    • Temperature
    • Strain
    • Pressure
    • In-Situ Reactions
  • Non-invasive, non-destructive probe
  • Measure samples in many different forms
    • Single crystal, polycrystalline, amorphous, powder, solution
    • Multiphase samples

Diamond Anvil Cell

Lin, Öztürk, Misra, Weinberg-Wolf and McNeil, MRS Spring 2005.

slide4

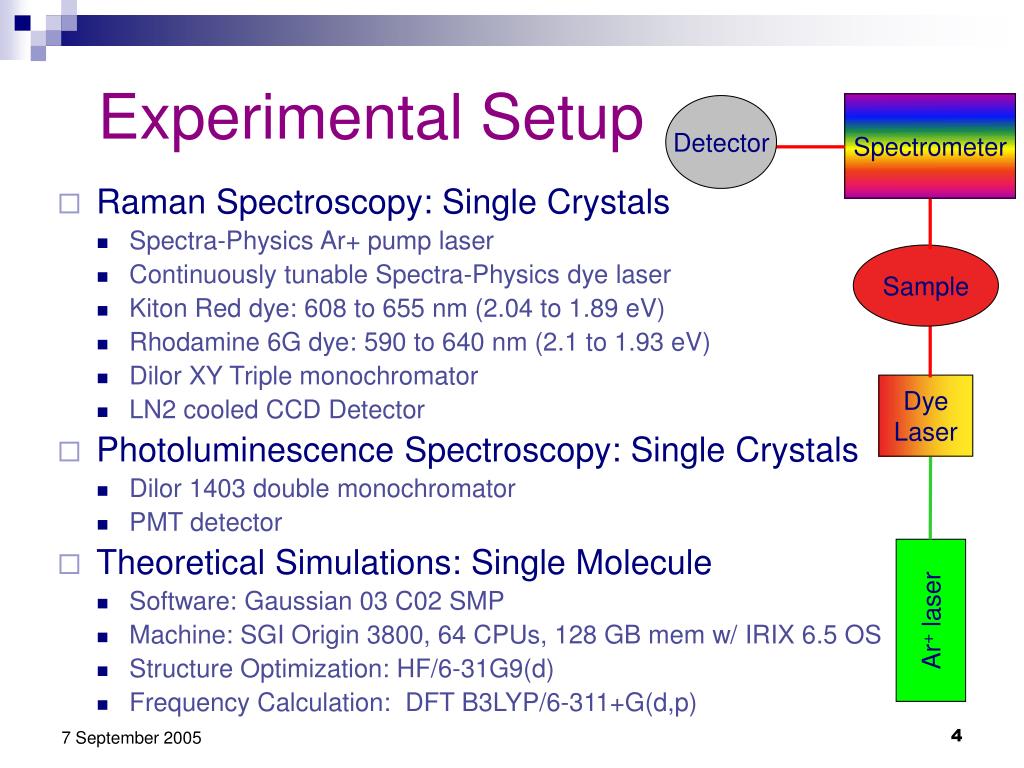

Spectrometer

Detector

Sample

Dye

Laser

Ar+ laser

Experimental Setup

  • Raman Spectroscopy: Single Crystals
    • Spectra-Physics Ar+ pump laser
    • Continuously tunable Spectra-Physics dye laser
    • Kiton Red dye: 608 to 655 nm (2.04 to 1.89 eV)
    • Rhodamine 6G dye: 590 to 640 nm (2.1 to 1.93 eV)
    • Dilor XY Triple monochromator
    • LN2 cooled CCD Detector
  • Photoluminescence Spectroscopy: Single Crystals
    • Dilor 1403 double monochromator
    • PMT detector
  • Theoretical Simulations: Single Molecule
    • Software: Gaussian 03 C02 SMP
    • Machine: SGI Origin 3800, 64 CPUs, 128 GB mem w/ IRIX 6.5 OS
    • Structure Optimization: HF/6-31G9(d)
    • Frequency Calculation: DFT B3LYP/6-311+G(d,p)
outline of talk

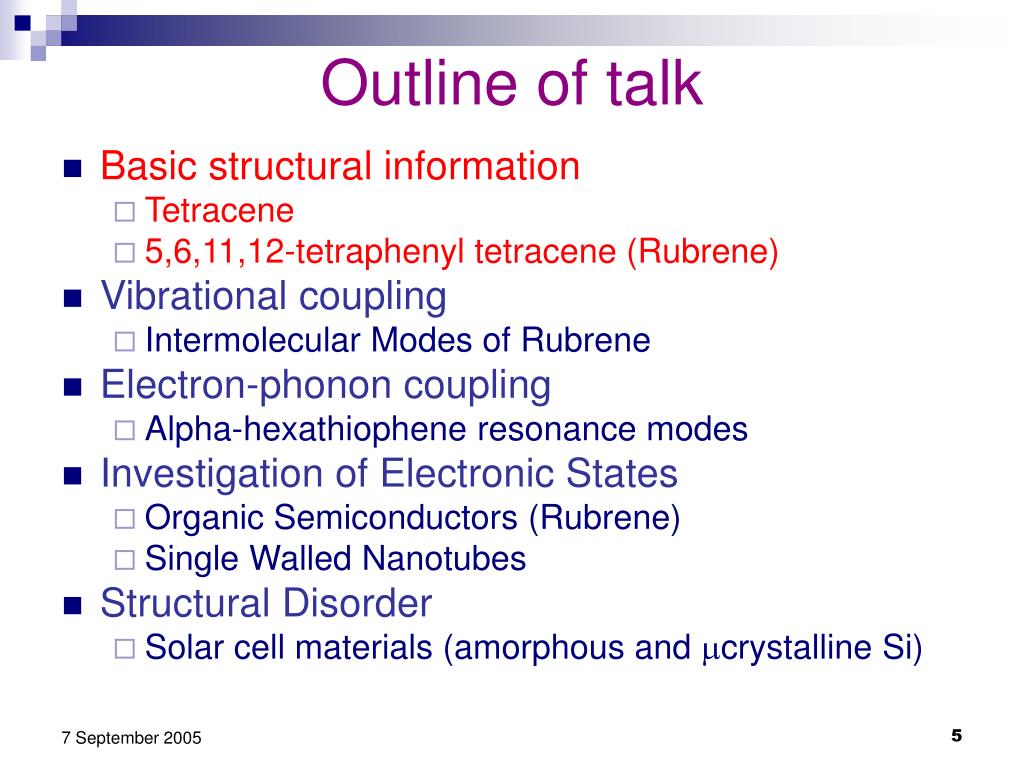

Outline of talk
  • Basic structural information
    • Tetracene
    • 5,6,11,12-tetraphenyl tetracene (Rubrene)
  • Vibrational coupling
    • Intermolecular Modes of Rubrene
  • Electron-phonon coupling
    • Alpha-hexathiophene resonance modes
  • Investigation of Electronic States
    • Organic Semiconductors (Rubrene)
    • Single Walled Nanotubes
  • Structural Disorder
    • Solar cell materials (amorphous and mcrystalline Si)
slide6

Presenta: Sony Corp.

Presentc: Norelco

Futurea: Universal Display Corp.

Presentb: IBM

Presentc: CDT

Why Organics?

  • Cheap(er)
  • Easily Processed
  • Environmentally Friendly
  • Flexible
  • Low power consumption
  • Chemically tailor molecules
  • Tunable white light
  • Some materials used:
    • Oligoacenes, Oligothiophenes, Polyphenylene Vinylene (PPV), etc.
  • Devices made so far:
    • OFETS, OLEDS, Photovoltaic devices, etc.

a: Forrest, Nature 428, 2004, 911-918.

b: Dimitrakopoulos, IBM J. Res. & Dev. 45(1), 2001, 11-27.

c: Borchardt, Materials Today, 7(9), 2004, 42-46.

slide7

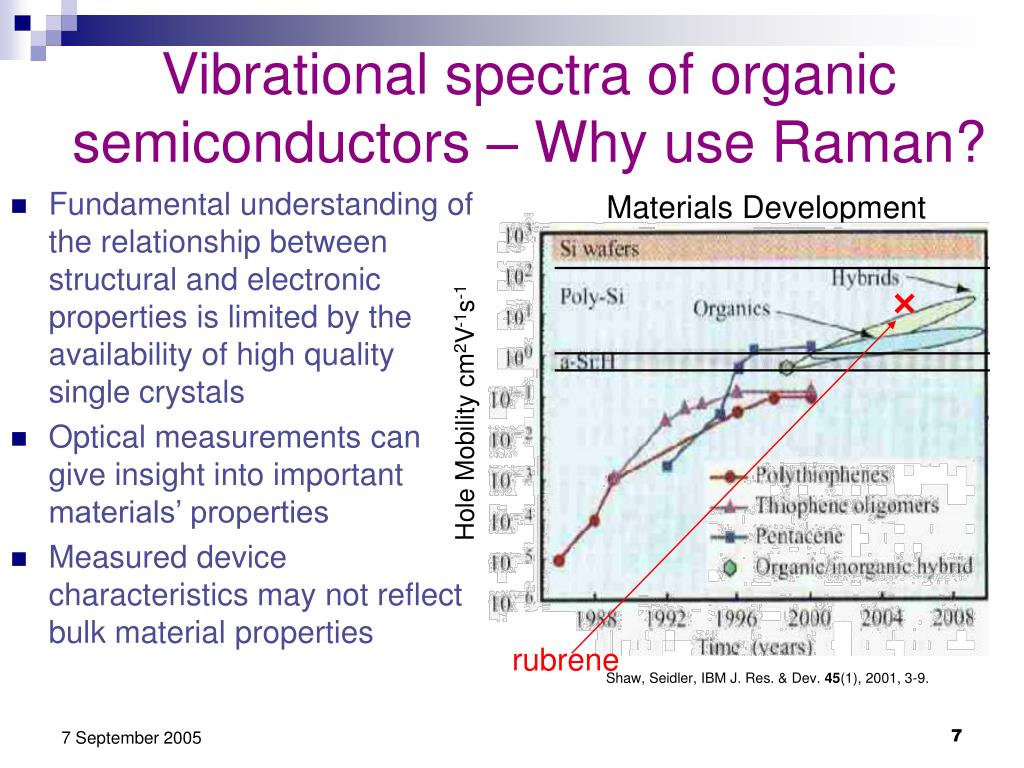

Materials Development

Hole Mobility cm2V-1s-1

rubrene

Shaw, Seidler, IBM J. Res. & Dev. 45(1), 2001, 3-9.

Vibrational spectra of organic semiconductors – Why use Raman?

  • Fundamental understanding of the relationship between structural and electronic properties is limited by the availability of high quality single crystals
  • Optical measurements can give insight into important materials’ properties
  • Measured device characteristics may not reflect bulk material properties
slide8

Single Crystal Facts:

  • Physical Vapor Growth
  • Orthorhombic crystal
  • D2h symmetry
  • 4 molecules per unit cell (280 atoms)
  • Close packed/herringbone arrangement
  • 2.21 eV room temp band gap
  • Mobility as high as (anisotropic)

~4 Å

a = 26.901 Å

b = 7.1872 Å

c = 14.43 Å

Rubrene

Molecular Characteristics:

  • Tetracene backbone
  • C2h point group
  • 102 active Raman modes
  • HOMO/LUMO gap = 2.2 eV
  • Devices:
  • ~100% Photoluminescence Yield
  • Common dopant in emitting and transport layers of current OLEDs

20 cm2V-1s-1

structural information tetracene and rubrene
Structural Information: Tetracene and Rubrene

Tetracene

Rubrene

Single Crystal

Isolated Molecule

raman of rubrene single crystal vs isolated molecule
Raman of Rubrene – Single Crystal vs. Isolated Molecule
  • 20 of the 25 highest-intensity modes from the single-molecule calculation appear in the measured crystal spectrum
  • Only Ag and B2g modes are allowed in backscattering geometry—unobserved modes presumably belong to different symmetry
  • Higher-energy observed modes are all within 2% of calculated frequencies
  • Can use the calculated spectrum to describe the vibrations of the single crystal

http://www.physics.unc.edu/project/mcneil/jweinber/anim.php

outline of talk11
Outline of talk
  • Basic structural information
    • Tetracene
    • 5,6,11,12-tetraphenyl tetracene (Rubrene)
  • Vibrational coupling
    • Intermolecular Modes of Rubrene
  • Electron-phonon coupling
    • Alpha-hexathiophene resonance modes
  • Investigation of Electronic States
    • Organic Semiconductors (Rubrene)
    • Single Walled Nanotubes
  • Structural Disorder
    • Solar cell materials (amorphous and mcrystalline Si)
raman of rubrene device characteristics

1.32

1.0

Anthracene

Tetracene

Naphthalene

1.84

2.1

4.24

1.3

Pentacene

5.37

2.2

Raman of Rubrene – Device Characteristics
  • Most FET measurements complicated by possible surface layer (peroxide)
  • Raman measures the bulk properties of the material

~20 cm2/V-s

Calculated hole mobilities (cm2/V-s)

Highest measured hole mobilities (cm2/V-s)

Deng, et.al., J of Phys Chem B 108, 8614-8621, 2004.

intermolecular coupling
Intermolecular Coupling
  • No observed intermolecular modes!!
  • Raman at low temperature confirms this.
  • Low intermolecular coupling makes origin of high mobility unclear
    • Fewer intermolecular phonons to scatter carriers
    • But low p-electron overlap (resulting from low packing density) usually leads to low mobility

Tetracene

Rubrene

Weinberg-Wolf, McNeil, Liu and Kloc, submited to Phys. Rev B (April 2005).

outline of talk14
Outline of talk
  • Basic structural information
    • Tetracene
    • 5,6,11,12-tetraphenyl tetracene (Rubrene)
  • Vibrational coupling
    • Intermolecular Modes of Rubrene
  • Electron-phonon coupling
    • Alpha-hexathiophene resonance modes
  • Investigation of Electronic States
    • Organic Semiconductors (Rubrene)
    • Single Walled Nanotubes
  • Structural Disorder
    • Solar cell materials (amorphous and mcrystalline Si)
slide15

Crystal:

Molecule:

Thiol unit:

Typical Scale  mm

Alpha-Hexathiophene (a6T)

  • Monoclinic crystal
  • C2h point group
  • 4 molecules per unit cell
  • Close packed/herringbone arrangement
  • Rigid Rod with <1° deviation from a plane
  • ~2.2 eV band gap
  • Macroscopic single crystals from Lucent Technologies

PRB 59 10651, 1999.

slide16

x

Normal modes

:

Electronic transition freq.

Photon frequency

Oscillator strength tensor

Width

Electron-phonon Coupling: Resonant Raman Spectroscopy

and

  • Coupling of the electronic and phonon states
  • Electronic state has the same symmetry as the vibrational state
  • Large enhancement of the vibrational term
  • Also changes the lineshape of the Raman signal (no longer symmetric Lorentzian distribution)
slide17

*

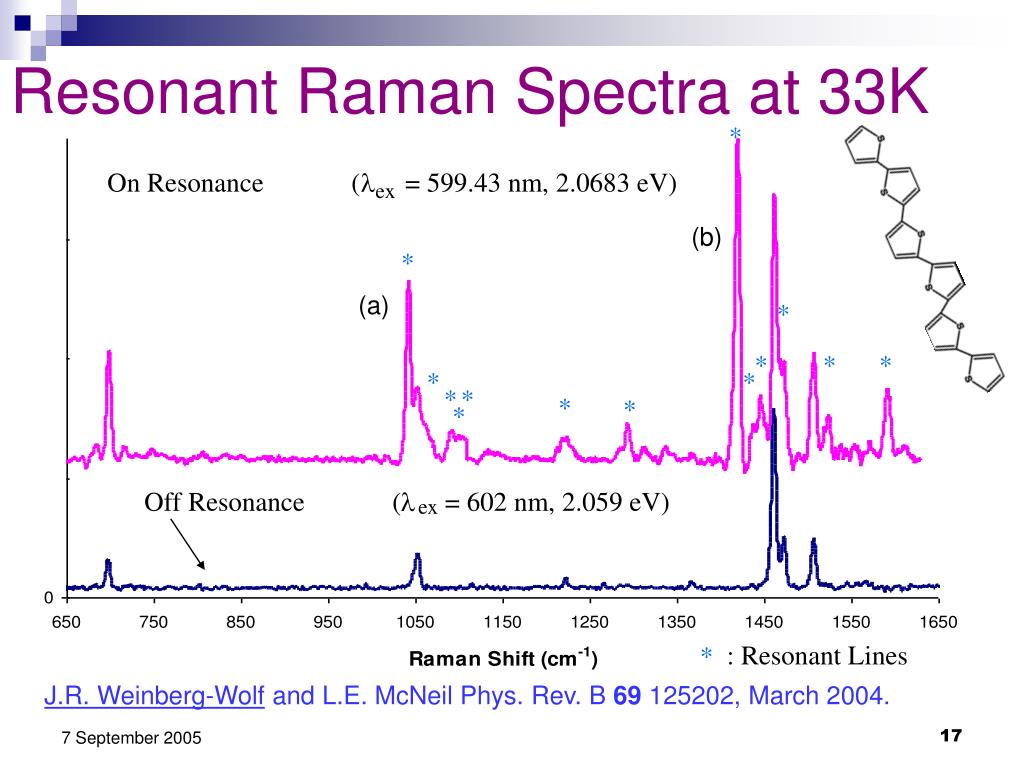

On Resonance (

l

= 599.43 nm, 2.0683 eV)

ex

(b)

*

(a)

*

*

*

*

*

*

*

*

*

*

*

Off Resonance (

l

= 602 nm, 2.059 eV)

ex

: Resonant Lines

*

Resonant Raman Spectra at 33K

J.R. Weinberg-Wolf and L.E. McNeil Phys. Rev. B 69 125202, March 2004.

slide18

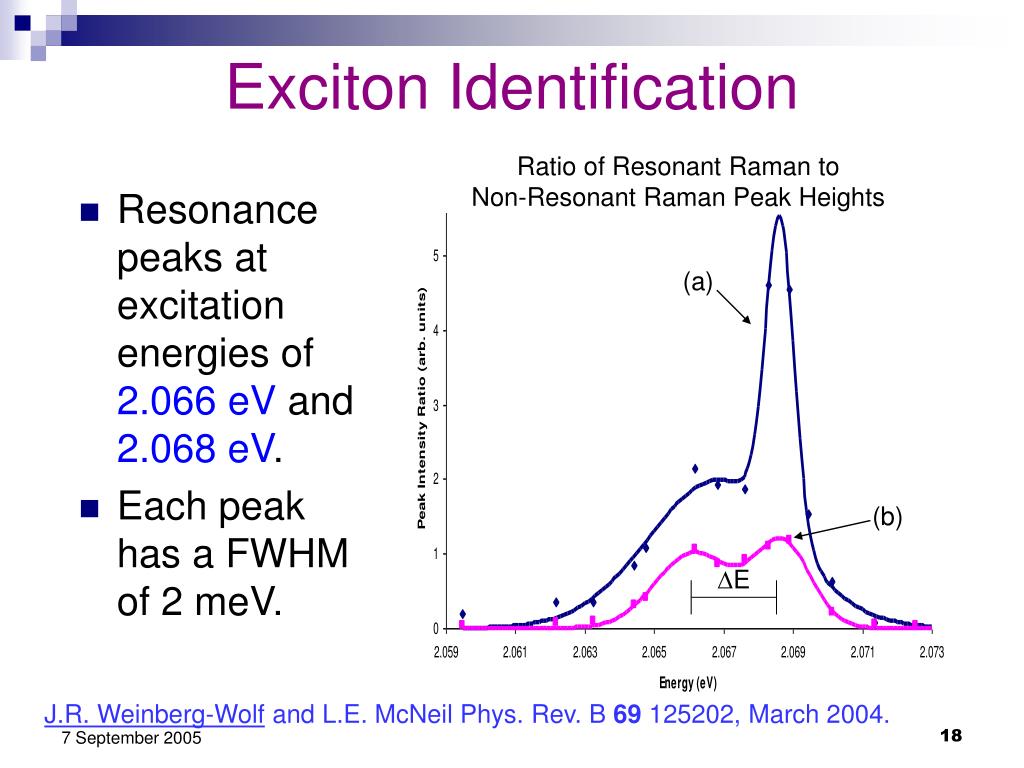

Ratio of Resonant Raman to

Non-Resonant Raman Peak Heights

(a)

(b)

DE

Exciton Identification

  • Resonance peaks at excitation energies of 2.066 eV and 2.068 eV.
  • Each peak has a FWHM of 2 meV.

J.R. Weinberg-Wolf and L.E. McNeil Phys. Rev. B 69 125202, March 2004.

slide19

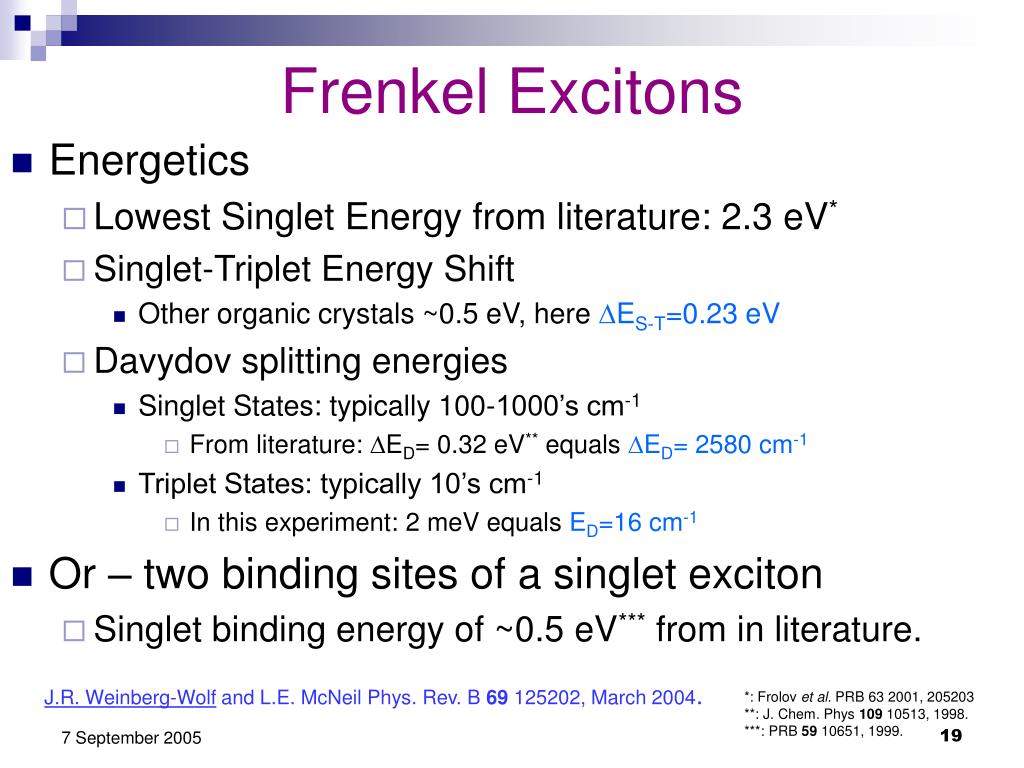

Frenkel Excitons

  • Energetics
    • Lowest Singlet Energy from literature: 2.3 eV*
    • Singlet-Triplet Energy Shift
      • Other organic crystals ~0.5 eV, here DES-T=0.23 eV
    • Davydov splitting energies
      • Singlet States: typically 100-1000’s cm-1
        • From literature: DED= 0.32 eV** equals DED= 2580 cm-1
      • Triplet States: typically 10’s cm-1
        • In this experiment: 2 meV equals ED=16 cm-1
  • Or – two binding sites of a singlet exciton
    • Singlet binding energy of ~0.5 eV*** from in literature.

J.R. Weinberg-Wolf and L.E. McNeil Phys. Rev. B 69 125202, March 2004.

*: Frolov et al. PRB 63 2001, 205203

**: J. Chem. Phys 109 10513, 1998.

***: PRB 59 10651, 1999.

slide20

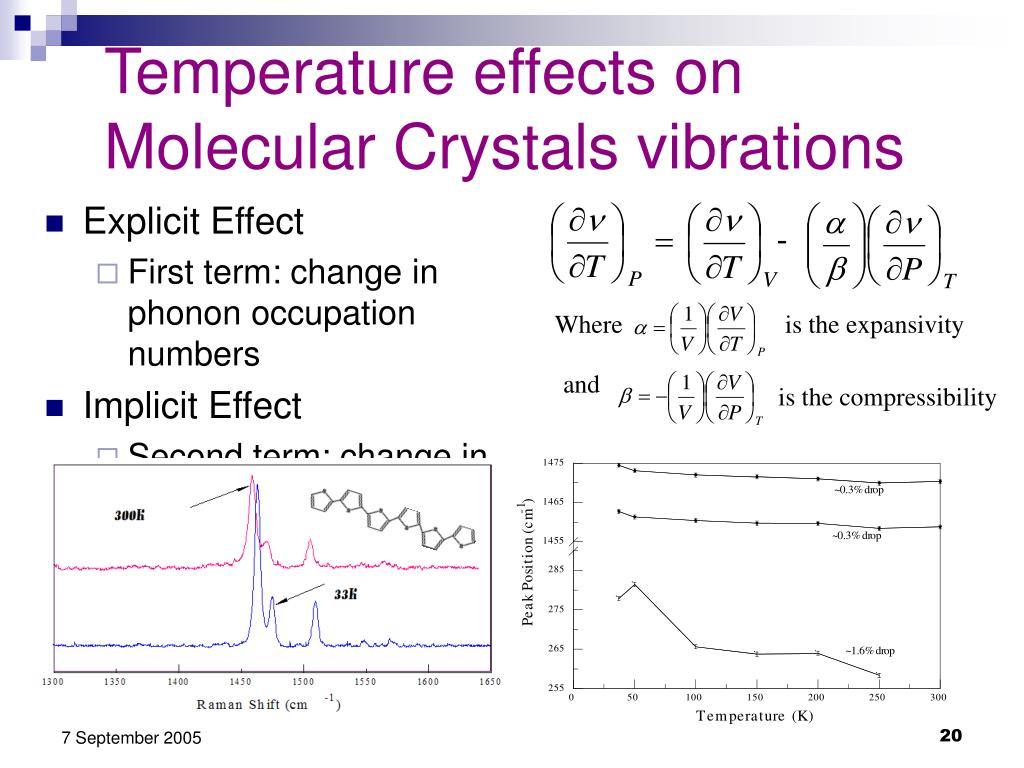

Temperature effects on Molecular Crystals vibrations

  • Explicit Effect
    • First term: change in phonon occupation numbers
  • Implicit Effect
    • Second term: change in interatomic spacing with thermal expansion or contraction

-

Where

is the expansivity

and

is the compressibility

slide21

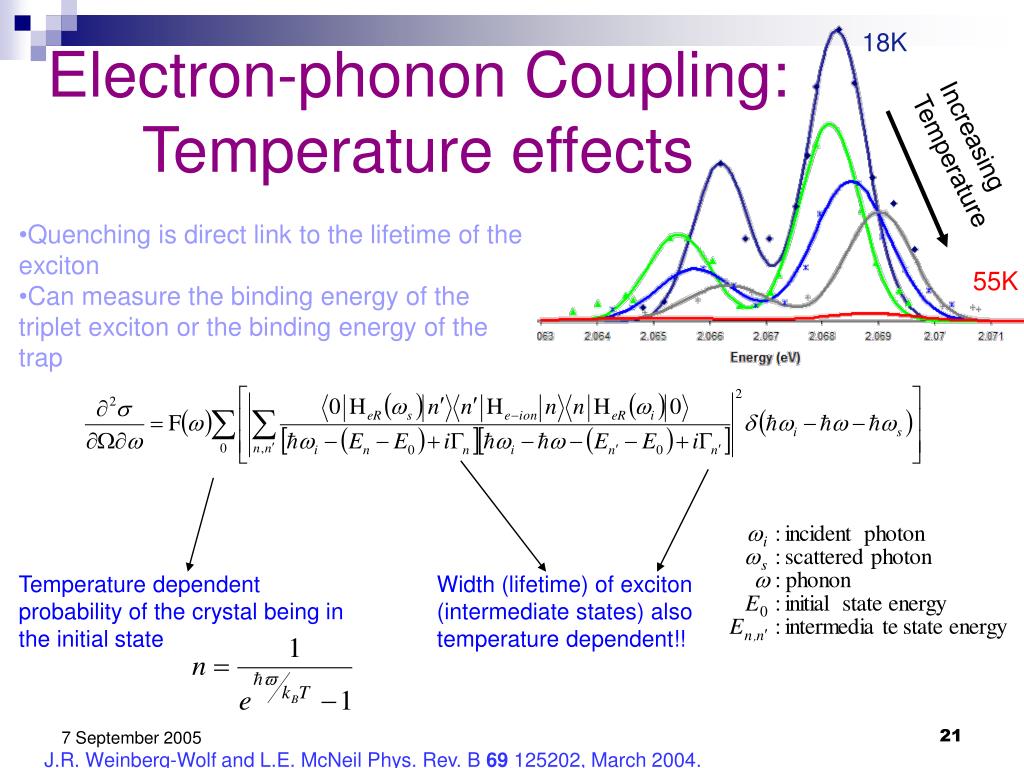

18K

Electron-phonon Coupling: Temperature effects

Increasing

Temperature

  • Quenching is direct link to the lifetime of the exciton
  • Can measure the binding energy of the triplet exciton or the binding energy of the trap

55K

Temperature dependent probability of the crystal being in the initial state

Width (lifetime) of exciton (intermediate states) also temperature dependent!!

J.R. Weinberg-Wolf and L.E. McNeil Phys. Rev. B 69 125202, March 2004.

outline of talk22

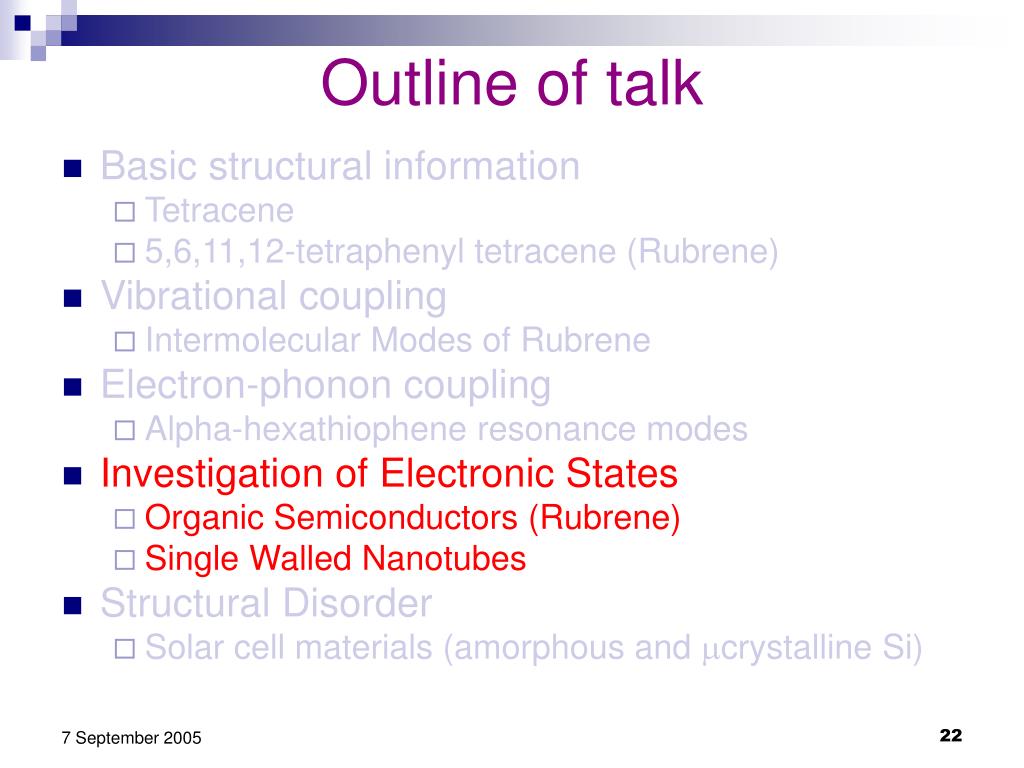

Outline of talk
  • Basic structural information
    • Tetracene
    • 5,6,11,12-tetraphenyl tetracene (Rubrene)
  • Vibrational coupling
    • Intermolecular Modes of Rubrene
  • Electron-phonon coupling
    • Alpha-hexathiophene resonance modes
  • Investigation of Electronic States
    • Organic Semiconductors (Rubrene)
    • Single Walled Nanotubes
  • Structural Disorder
    • Solar cell materials (amorphous and mcrystalline Si)
slide23

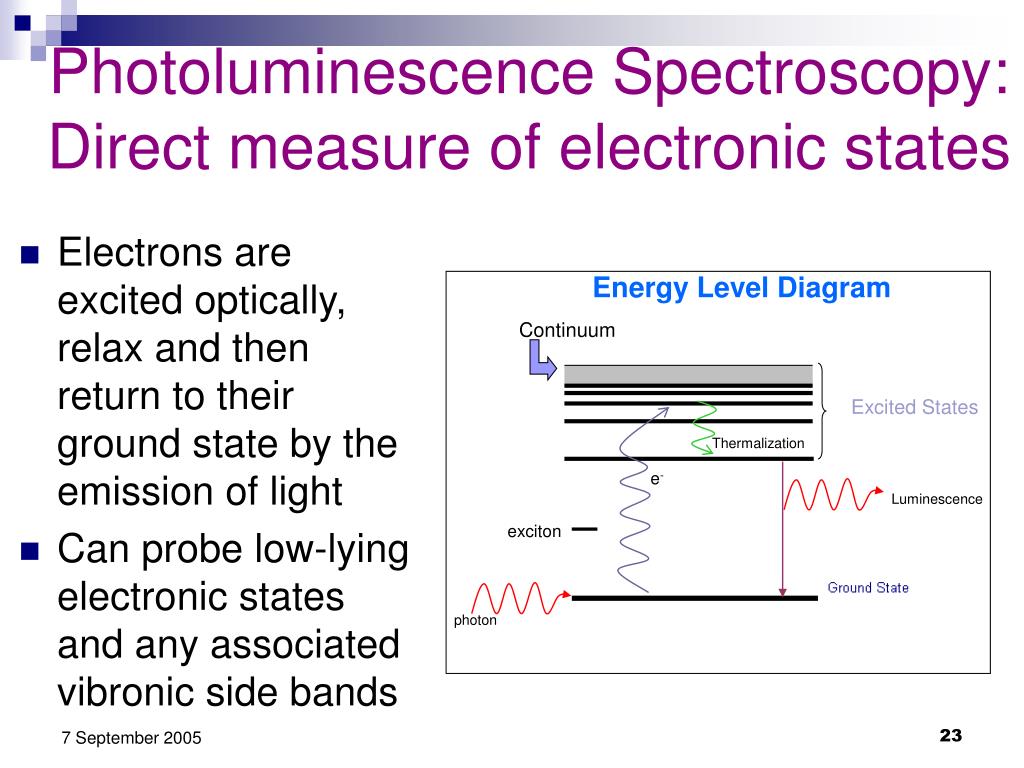

Energy Level Diagram

Excited States

Continuum

e-

Luminescence

Thermalization

photon

Photoluminescence Spectroscopy: Direct measure of electronic states

  • Electrons are excited optically, relax and then return to their ground state by the emission of light
  • Can probe low-lying electronic states and any associated vibronic side bands

exciton

slide25

Electronic States: Single Walled Carbon NanoTubes (SWNTs)

(0,0)

Ch = (10,5)

If n-m=3N, then the

tube is metallic,

otherwise it is

semiconducting

Rao et al., Science 275, 187 (1997).

http://www.photon.t.u-tokyo.ac.jp/~maruyama

swnts

S

M

S

S

SWNTs

Kataura, et.al., Syn. Met. 103 2555, 1999.

Ar+ 2.41 eV

Dye: 2.16

to1.95 eV

DE (eV)

g0=2.90 eV

metallic

semiconducting

outline of talk27
Outline of talk
  • Basic structural information
    • Tetracene
    • 5,6,11,12-tetraphenyl tetracene (Rubrene)
  • Vibrational coupling
    • Intermolecular Modes of Rubrene
  • Electron-phonon coupling
    • Alpha-hexathiophene resonance modes
  • Investigation of Electronic States
    • Organic Semiconductors (Rubrene)
    • Single Walled Nanotubes
  • Structural Disorder
    • Solar cell materials (amorphous and mcrystalline Si)
structure dependence on hydrogen dilution ratio
Structure dependence on Hydrogen dilution ratio

Crystalline volume fraction

40%

Crystalline volume fraction

65%

Han, Lorentzen, Weinberg-Wolf and McNeil J. of Applied Phys, 94 2930,2003

conclusions
Conclusions
  • Can use optical techniques to answer a variety of questions
  • Raman tells more than just the vibrational structure of a material
  • Experiments in a variety of environments
  • Samples in a variety of phases
