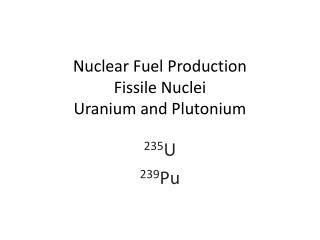

Nuclear Fuel Production Fissile Nuclei Uranium and Plutonium PowerPoint Presentation
Download Presentation
Nuclear Fuel Production Fissile Nuclei Uranium and Plutonium

Loading in 2 Seconds...

play fullscreen
1 / 13

Nuclear Fuel Production Fissile Nuclei Uranium and Plutonium - PowerPoint PPT Presentation


  • 551 Views
  • Uploaded on

Nuclear Fuel Production Fissile Nuclei Uranium and Plutonium 235 U 239 Pu Uranium Two isotopes 99.3% 238 U not useful for energy production 0.7% 235 U useful for energy production For a nuclear reactor: Need 4% 235 U For a fission bomb: Need 90% 235 U

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Nuclear Fuel Production Fissile Nuclei Uranium and Plutonium' - Audrey


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
uranium
Uranium

Two isotopes

99.3% 238U not useful for energy production

0.7% 235U useful for energy production

For a nuclear reactor: Need 4% 235U

For a fission bomb: Need 90% 235U

producing uranium fuel
Producing Uranium Fuel

U ore contains small amounts of UO2 and UO3.

Step 1. Oxidize UO2 to UO3

Step 2. Solubilize U by reacting with H2SO4

UO3(s) + 2 H+(aq)  UO22+(solid salt) + H2O(l)

UO22+(solid salt) + 3 SO42-(aq)  UO2(SO4)34-(aq)

Key: Uranium is solubilized and is leached out of the rock.

slide8

Step 3. More Reactions, eventually to yield UO3.

2R3N + H2SO4(R3NH)2SO4

2 (R3NH)2SO4 + UO2(SO4)34-(R3NH)4UO2(SO4)3 (aq) + 2SO42- (aq)

(R3NH)4UO2(SO4)3 + 2(NH4)2SO44R3N + (NH4)4UO2(SO4)3 + 2H2SO4

2NH3+ 2UO2(SO4)34- (aq) (NH4)2U2O7 (s) + 4SO42- (aq)

(NH4)2U2O7 (s)  U3O8(s) + H2O(l) + NH3(g)

U3O8is then reacted to make pure UO3.

Key: UO3 formed is pure.

step 4 formation of uf 6
Step 4. Formation of UF6

UO3(s) + H2(g) ====> UO2(s) + H2O

UO2(s) + 4HF(g) ====> UF4(s) + 2H2O(l)

UF4(s) + F2(g) ====> UF6(l or g)

Key: UF6 has a boiling point near 50 oC.

slide11

Efficiencies:

diffusion = 1.002/stage

Final Fraction = 0.7 x (1.002)#cycles

gas centrifuge: 1.2/stage

Final Fraction = 0.7 x (1.2)#cycles

slide12

Plutonium Fuel:

Made inside Uranium Nuclear Reactors

Fast neutron reactors

(Also called fast breeder reactors)
