    Presentation Transcript

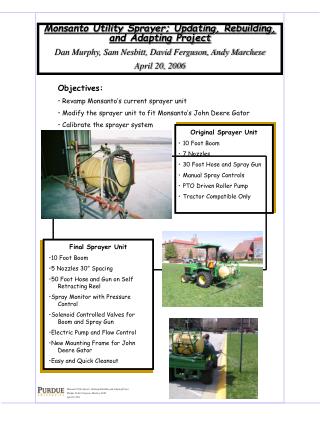

    1. Final Sprayer Unit • 10 Foot Boom • 5 Nozzles 30” Spacing • 50 Foot Hose and Gun on Self Retracting Reel • Spray Monitor with Pressure Control • Solenoid Controlled Valves for Boom and Spray Gun • Electric Pump and Flow Control • New Mounting Frame for John Deere Gator • Easy and Quick Cleanout Monsanto Utility Sprayer; Updating Rebuilding and Adapting Project. Murphy, Nesbitt, Ferguson, Marchese ASM April 20, 2006 Monsanto Utility Sprayer; Updating, Rebuilding, and Adapting Project Dan Murphy, Sam Nesbitt, David Ferguson, Andy Marchese April 20, 2006 • Objectives: • Revamp Monsanto’s current sprayer unit • Modify the sprayer unit to fit Monsanto’s John Deere Gator • Calibrate the sprayer system • Original Sprayer Unit • 10 Foot Boom • 7 Nozzles • 30 Foot Hose and Spray Gun • Manual Spray Controls • PTO Driven Roller Pump • Tractor Compatible Only

    2. Monsanto Utility Sprayer; Updating Rebuilding and Adapting Project. Murphy, Nesbitt, Ferguson, Marchese ASM April 20, 2006 • Tear Down and Reconditioning • Removal of all old components • Pump, valves, nozzles, etc. • Salvaging usable equipment • Shut off valves, pipe fittings • Reconditioning of Frame • Sand blasting, repairing, and painting • Reconditioning of Tank • Reconditioning of Components • Fabrication • Addition of Fork Pockets • Addition of Supports • Addition of Multiple Mounting Brackets for Valves and Reel • Design of Gator Mounting Systems • Construction and Instillation of Gator Mounting Systems • Construction of Mounts for Monitor • Plumbing • 5 GPM 45 PSI 12V Pump • Electric Flow Control Valve • Dual Solenoid Valves • 11005 Flat Fan Nozzles • 50 Ft Retractable Hose Reel and Gun • New Hose, Nozzle Bodies, and Fittings • Clean Out Valve

    3. Monsanto Utility Sprayer; Updating Rebuilding and Adapting Project. Murphy, Nesbitt, Ferguson, Marchese ASM April 20, 2006 • Wiring • Electronic Monitor with Pressure Control • Can be moved from Gator to Tractor • Controls to operate pump, boom and spray gun • Tractor is Hard Wired to Alternator • Gator is Wired Through Cigarette Adaptor • All Connections are Quick Couplers • Calibrating And Testing • Checked for Leaks • Adjusted Solenoid Valves • Tested Sprayer on Tractor and Gator • Collected Data on Sprayer • Flow Rate, Application Rates • 5, 8 and 10 mph • Tested Tractor at Variable Speeds to Determine Flow Rates Results Reference Table for Boom Application Rate using Tractor
