introduction to unix shell scripting with csh tcsh

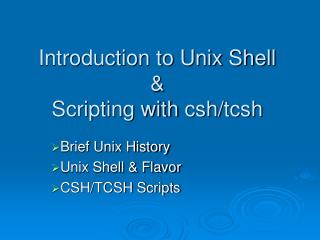

Introduction to Unix Shell & Scripting with csh/tcsh

Brief Unix History

Unix Shell & Flavor

CSH/TCSH Scripts

unix history and motivation
Unix History and Motivation
  • The first version of Unix came from AT&T in the early 1970s (Unix is old!).
  • Unix was developed by programmers and for programmers.
  • Unix is designed so that users can extend the functionality
    • To build new tools easily and efficiently
    • To customize the shell and user interface.
    • To string together a series of Unix commands to create new functionality.
    • To create custom commands that do exactly what we want.
what is shell
What is Shell?
  • Shell is
    • Command Interpreter that turns text that you type (at the command line) in to actions:
    • User Interface: take the command from user
  • Programming Shell can do
    • Customization of a Unix session
    • Scripting
customization of a session
Customization of a Session
  • Each shell supports some customization.
    • User prompt
    • Where to find mail
    • Shortcuts (alias)
  • The customization takes place in startup files
    • Startup files are read by the shell when it starts up
    • The Startup files can differ for different shell
types of shells
Types of Shells
  • Interactive vs. Non-interactive; login or not
  • Interactive login shell started after login
  • Non-interactive shell
    • Present when shell script is running
    • Just inherits parent’s environment
  • Interactive non-login shell started
    • Started from a command line
    • Copies parent environment then invokes ~/.bash_rc (or ~/.cshrc or ~/.tcshrc)
popular shells
Popular Shells
  • sh Bourne Shell
  • ksh Korn Shell
  • csh,tcsh C Shell (for this course)
  • bash Bourne-Again Shell
flavors of unix shells
Flavors of Unix Shells
  • Two main flavors of Unix Shells
    • Bourne (or Standard Shell): sh, ksh, bash, zsh
      • Fast
      • $ for command prompt
    • C shell : csh, tcsh
      • better for user customization and scripting
      • %, > for command prompt
  • To check shell:
    • % echo $SHELL (shell is a pre-defined variable)
  • To switch shell:
    • % exec shellname (e.g., % exec bash)
startup files
Startup files
  • sh,ksh:

/etc/profile (out-of-the-box login shell settings)/etc/profile.local (addtnl. local system settings)~/.profile (addtnl. user customized settings)~/.kcshrc (non-login shell user customization)

  • bash:/etc/profile (out-of-the-box login shell settings) /etc/bash.bashrc (out-of-box non-login settings)/etc/bash.bashrc.local (global non-login settings)

~/.bash_profile (login shell user customization)

~/.bashrc (non-login shell user customization)

~/.bash_logout (user exits from interactive login shell)

  • csh/tcsh:/etc/login (out-of-the-box login shell settings)/etc/csh.login (non-login shell customizations)/etc/csh.login.local (global non-login settings)

~/.login: (login shell user customizations)

~/.cshrc: (non-login shell user customizations)

~/.cshrc.logout: (non-login shells at logout)

~/.logout: (read by login shells at logout)

some special keys under tcsh
Some Special Keys Under tcsh
  • Ctrl-U = Delete everything on the command-line
  • Ctrl-A = Move cursor to the front
  • Ctrl-E = Move cursor to the end
  • Ctrl-P = Set the current command-line to the previous command
  • Ctrl-N = Set the current command-line to the next command
  • TAB = Filename completion
don t forget your best friend
Don’t forget your Best Friend
  • % man command (e.g., % man ls)
    • shows information about the command
    • usually space or Enter for more information
    • q to quit
    • % man man
create a shell script
Create a shell script
  • Creating a simple shell script
    • A shell script is a file that contains commands that the shell can execute.
      • Any commands you enter in response to a shell prompt.
        • A utility
        • A compiled program
        • Another shell script
      • Control flow commands
  • Run a shell script
    • Enter the script filename on the command line
    • The shell interprets and execute the commands one after another
  • Why shell script?
    • Simply and quickly initiate a complex series of tasks or a repetitive procedure.
shell programming
Shell programming
  • Make the file executable
    • When you create a shell script using a editor, does it have execute permission typically?
      • Example: (Make sure you are using tcsh/csh script!...)

willow> echo $SHELL

/bin/tcsh

willow> ./test

./test: Permission denied.

willow> ls -l test

-rw-r--r-- 1 student ums 33 Sep 18 16:33 test

willow> chmod +x test

willow> ./test

This is Test!

invoking a shell script
Invoking a Shell script
  • Give the shell a command on the command line
    • The shell forks a process
      • Which creates a non-interactive duplicate of the shell process
    • The newly forked process attempts to exec the command
      • If the command is an executable program
        • Exec succeeds
        • System overlays the newly created subshell with the executable program
      • The command is a shell script
        • Exec failed
        • The command is assumed to be a shell script
        • The subshell runs the commands in the shell.
invoking a shell script1
Invoking a Shell script
  • The shell itself is program
    • It can be run as a command in a shell and also accepts arguments. Note: Let’s find your default shell executing “echo $SHELL”

willow> echo $SHELL

/bin/tcsh

  • To run a shell script
    • Which does not have executable permission

Ex: willow>tcsh test

    • Run the script with different shell other than your interactive shell

Ex: willow>sh test

invoking a shell script2
Invoking a Shell script
  • Put special characters on the first line of a shell script
    • To tell OS checks what kind of file it is before attempting to exec it
    • To tell which utility to use (sh, csh, tcsh, …)
  • Special sequence
    • The firsts two character of a script are #!
    • Then followed by the absolute pathname of the program that should execute the script

Ex:

willow> more test

#!/bin/tcsh

# This line will not run since it is commented out...

echo 'This is Test!‘

make a comment
Make a comment #
  • Comments make shell scripts easier to read and maintain
  • Pound sign (#) start a comment line until the end of that line as second line in previous example, except
    • #! In the first line.
    • Or inside quotes
parameters and variables
Parameters and Variables
  • A shell parameter is associated with a value that is accessible to the user.
    • Shell variables
      • Names consist of letters, digits and underscores
        • By convention, environment variables use UPPERCASE
      • User created variables (create and assign value)
      • Keyword shell variables
        • Have special meaning to the shell
        • Being created and initialized by the startup file
    • Positional parameters
      • Allow you to access command line arguments
    • Special parameters
      • Such as
        • The name of last command
        • The status of most recently executed command
        • The number of command-line arguments
positional parameters
Positional Parameters
  • The command name and arguments are the positional parameters.
    • Because you can reference them by their position on the command line
    • $0 : Name of the calling program
    • $1 - $9 : Command-line Arguments
      • The first argument is represented by $1
      • The second argument is represented by $2
      • And so on up to $9
      • The rest of arguments have to be shifted to be able to use $1- $9 parameters.
positional parameters1
Positional Parameters
  • Change directory to your assigned numbered subdirectory
  • willow> cd 1
  • List the directory contents, confirming display_5args
  • willow> ls -l display_5args
  • Change mode of display_5args to executable
  • willow> chmod +x display_5args
  • Execute the script
  • willow> ./display_5args 1 2 3 4 5
  • you are running script ./display_5args with parameter 1 2 3 4 5
  • Example:
positional parameters2
Positional Parameters
  • $1-$9 allows you to access 10 arguments
    • How to access others?
  • Promote command-line arguments: shift
    • Built-in command shift promotes each of the command-line arguments.
      • The first argument ( which was $1) is discarded
      • The second argument ( which was $2) becomes $1
      • The third becomes the second
      • And so on
    • Makes additional arguments available
    • Repeatedly using shift is a convenient way to loop over all the command-line arguments
positional parameters3
Positional Parameters
  • Example:

willow> more demo_shift

#!/bin/tcsh

echo $1 $2 $3

shift

echo $1 $2

shift

echo $1

willow> ./demo_shift 1 2 3

1 2 3

2 3

3

slide25
willow> more demo_shift

#!/bin/tcsh

echo $1 $2 $3

shift

echo $1 $2

shift

echo $1

shift

echo $?

shift

echo $?

shift

echo $?

willow> ./demo_shift 1 2 3 4

1 2 3

2 3

3

0

0

shift: No more words.

special parameters
Special Parameters
  • Useful values
    • Command-line arguments
    • Execution of shell commands
    • Can not change the value directly, like positional parameters
  • Value of Command-line arguments: $* and $@
    • $* and $@represent all the command_line arguments ( not just the first nine)
    • “$*” : treats the entire list of arguments as a single argument
    • “$@” : produce a list of separate arguments (Only bash/ksh/sh)
slide27

BASH SCRIPT WITH $*and $@

willow> more for_test.bash

#!/bin/bash

echo "using \$* "

for arg in "$*"

do

echo "$arg"

done

echo "using \$@ "

for arg in "$@"

do

echo "$arg"

done

willow> ./for_test.bash 1 2 3

using $*

1 2 3

using $@

1

2

3

TCSH SCRIPT WITH $*and $@

willow> more for_test

#!/bin/tcsh

echo 'using $*'

foreach arg ($*)

echo "$arg"

end

echo 'using $@'

foreach arg ($@)

echo "$arg"

end

willow> ./for_test 1 2 3

using $*

1

2

3

using $@

Illegal variable name.

special parameters1
Special Parameters
  • The number of arguments: $#
    • Return a decimal number
    • Use the test to perform logical test on this number

willow> more num_args

echo this script is called with $# arguments.

willow> chmod +x num_args

willow> ./num_args

this script is called with 0 arguments.

willow> ./num_args 1

this script is called with 1 arguments.

willow> ./num_args 2

this script is called with 1 arguments.

willow> ./num_args 0

this script is called with 1 arguments.

special parameters2
Special Parameters
  • Exit status: $?
    • When a process stops executing for any reason, it returns an exit status to its parent process.
    • By convention,
      • Nonzero represents a false value that the command failed.
      • A zero value is true and means that the command was successful
    • You can specify the exit status that a shell script returns by using the exit built-in followed by a number
      • Otherwise, the exit status of the script is the exit status of the last command the script ran.
slide30
willow> ls a

a: No such file or directory

willow> echo $?

2

willow> echo olemiss

olemiss

willow> echo $?

0

willow> more exit_status

echo this program will have the exit code of 8.

exit 8

willow> ./exit_status

this program will have the exit code of 8.

willow> echo $?

8

willow> echo $?

0

summary
Summary
  • A shell is both a command interpreter and a programming language.
  • Job control
    • Control-z/fg/bg/&
  • Variables
    • Local and environment variables
    • Declare and initialize a variable ( no type)
    • Export unset
  • Command line expansion
    • Parameter expansion/variable expansion/command/substitution/pathname expansion
    • Quote ( ‘ ‘ “ “ \ )
      • “ “ all but parameter, variable expansion and \
      • ‘ ‘ suppress all types of expansion
      • \ escaping the following special character
basic script example
Basic Script Example

willow> more basic_script

#!/bin/tcsh

echo 'Listing the files in long format appending due date/time'

echo

ls -lrtah

echo

echo 'Listing the files in long format appending due date/time'

echo

df -k

# Using diff to find two files differences and writing them to another file

diff -c for_test.bashfor_test >> file_differences &

echo

echo 'sleeping mode for 4 seconds. Please wait!'

echo

sleep 4

echo

echo 'GO REBELS'

echo 'To find out the differences of files for_test and for_test.bash, '

echo 'Please open file_differences via using cat command as shown below:'

echo 'cat file_differences’

killing bad processes
Killing BAD Processes
  • The “kill” command:

kill [-<signal>] <pid>

Send <signal> to process <pid>

  • The “killall” command:

killall [-<signal>] <command>

Send <signal> to all processes that start with <command>

  • Useful signals (kill –l for the complete list):

TERM the default, “terminate”, kills things nicely

KILL will kill anything, but not nicely

HUP “hangup”, used to reload configurations

STOP stops (suspends) a running process

summary1
Summary
  • Shell parameters
    • HOME
    • PATH
    • PS1
    • SHELL
    • $0
    • $n
    • $*
    • $@
    • $#
    • $$
    • $!
    • $?
summary2
Summary
  • Special Characters
    • NEWLINE
    • ;
    • ()
    • &
    • |
    • >
    • >>
    • <
    • <<
  • *
  • ?
  • \
  • ` `
  • []
  • $
  • .
  • #
  • &&
  • ||
  • !
