Presentation Transcript

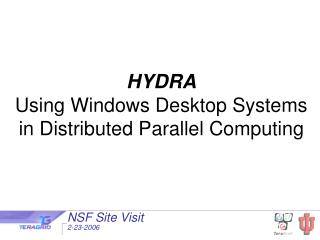

Hydra using windows desktop systems in distributed parallel computing l.jpg

NSF Site Visit

2-23-2006

HYDRAUsing Windows Desktop Systems in Distributed Parallel Computing


Introduction l.jpg

NSF Site Visit

2-23-2006

Introduction…

  • Windows desktop systems at IUB student labs

    • 2300 systems, 3 year replacement cycle

    • Pentium IV (>=1.6 GHz), 256/512/1024 MB memory, 10/100 Mbps/GigE, Windows XP

    • More than 1.5 TF


Possibly utilize idle cycles l.jpg

NSF Site Visit

2-23-2006

Possibly Utilize Idle Cycles?

Red: total ownerBlue: total idleGreen: total Condor


Problem description l.jpg

NSF Site Visit

2-23-2006

Problem Description

  • Once again... Windows desktop systems at IUB student labs:

    • As a scientific resource

    • Harvest idle cycles


Constraints l.jpg

NSF Site Visit

2-23-2006

Constraints

  • Systems dedicated to students using desktop office applications — not parallel scientific computing – making their availability unpredictable and sporadic

  • Microsoft Windows environment

  • Daily software rebuild (updates)


What could these systems be used for l.jpg

NSF Site Visit

2-23-2006

What could these systems be used for?

  • Many small computations and a few small messages

    • Foreman-worker

    • Parameter studies

    • Monte Carlo

  • Goal: High Throughput Computing (not HPC)

    • Parallel runs of the aforementioned small computations to make better use of resource

    • Parallel libraries – MPI, PVM, etc. – have constraints if availability of resources is ephemeral i.e. not predictable


Solution l.jpg

NSF Site Visit

2-23-2006

Solution

  • Simple Message Brokering Library (SMBL)

    • Limited replacement for MPI

      • Both server and client library based on TCP socket abstraction

    • Porting from MPI is fairly straight forward

  • Process and Port Manager (PPM)

  • Plus …

    • Condor for job management, file transfer, no checkpointing or parallelism

    • Web portal for job submission


The big picture we ll discuss each part in more detail next l.jpg

NSF Site Visit

2-23-2006

The Big PictureWe’ll discuss each part in more detail next…

The shaded box indicates components hosted on multiple desktop computers


Smbl server l.jpg

NSF Site Visit

2-23-2006

SMBL (Server)

SMBL Server Process Table for 4 CPU parallel session

  • SMBL server maintains a dynamic pool of client process connections

  • Worker job manager hides details of ephemeral workers at the application level


Smbl server10 l.jpg

NSF Site Visit

2-23-2006

SMBL (Server)

SMBL Server Process Table for 4 CPU parallel session

  • SMBL server maintains a dynamic pool of client process connections

  • Worker job manager hides details of ephemeral workers at the application level


Smbl client l.jpg

NSF Site Visit

2-23-2006

SMBL (Client)

  • Client library implements selected MPI-like calls

    • MPI_Send ()  SMBL_Send ()

    • MPI_Recv ()  SMBL_Recv ()

  • In charge of message delivery for each parallel process


Process and port manager ppm l.jpg

NSF Site Visit

2-23-2006

Process and Port Manager (PPM)

  • Starts the SMBL server and application processes on demand

  • Assigns port/host to each parallel session

  • Directs workers to their servers


Slide13 l.jpg

NSF Site Visit

2-23-2006

PPM (cont’d ...)

PPM with two SMBL servers (two parallel sessions)

Parallel Session 1

Parallel Session 2


Once again the big picture l.jpg

NSF Site Visit

2-23-2006

Once again … the big picture

The shaded box indicates components hosted on multiple desktop computers


Recent development l.jpg

NSF Site Visit

2-23-2006

Recent Development

  • Hydra cluster Teragrid enabled! (Nov 2005)

    • Allow TG users to use resource

    • Virtual Host based solution – two different URLs for IU and Teragrid users

    • Teragrid users authenticate against PSC’s Kerberos server


System layout l.jpg

NSF Site Visit

2-23-2006

System Layout

  • PPM, SMBL server, Condor and web portal running on Linux server

    • Dual Intel Xeon 3.0 GHz, 4 GB memory, GigE

  • Second Linux server running Samba to serve BLAST database


Portal l.jpg

NSF Site Visit

2-23-2006

Portal

  • Creates and submits Condor files, handles data files

  • Apache/PHP based

  • Kerberos authentication

  • URLs:

    • http://hydra.indiana.edu (IU users)

    • http://hydra.iu.teragrid.org (Teragrid users)


Utilization of idle cycles l.jpg

NSF Site Visit

2-23-2006

Utilization of Idle Cycles

Red: total ownerBlue: total idleGreen: total Condor


Summary l.jpg

NSF Site Visit

2-23-2006

Summary

  • Large parallel computing facility created at a low cost

    • SMBL parallel message passing library that can deal with ephemeral resources

    • PPM port broker that can handle multiple parallel sessions

  • SMBL Homepage

    • http://smbl.sourceforge.net (Open Source)


Links and references l.jpg

NSF Site Visit

2-23-2006

Links and References

  • Hydra Portal

    • http://hydra.indiana.edu (IU users)

    • http://hydra.iu.teragrid.org (Teragrid users)

  • SMBL home page: http://smbl.sourceforge.net

  • Condor home page: http://www.cs.wisc.edu/condor/

  • IU Teragrid home page – http://iu.teragrid.org


Links and references cont d l.jpg

NSF Site Visit

2-23-2006

Links and References (cont’d..)

  • Parallel FastDNAml: http://www.indiana.edu/~rac/hpc/fastDNAml

  • Blast: http://www.ncbi.nlm.nih.gov/BLAST

  • Meme: http://meme.sdsc.edu/meme/intro.html
