Planetary Ball Mill

Fison Planetary Ball Mill is a high-performance tool ideal for fine grinding, mixing, and preparing small samples of advanced materials. With a 100ml capacity and rotation speeds from 90-870 r/min, it operates with a special driver gear that lowers noise levels by 15-20 dB, ensuring quieter performance.<br>

Anthony128
Download Presentation

Planetary Ball Mill

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

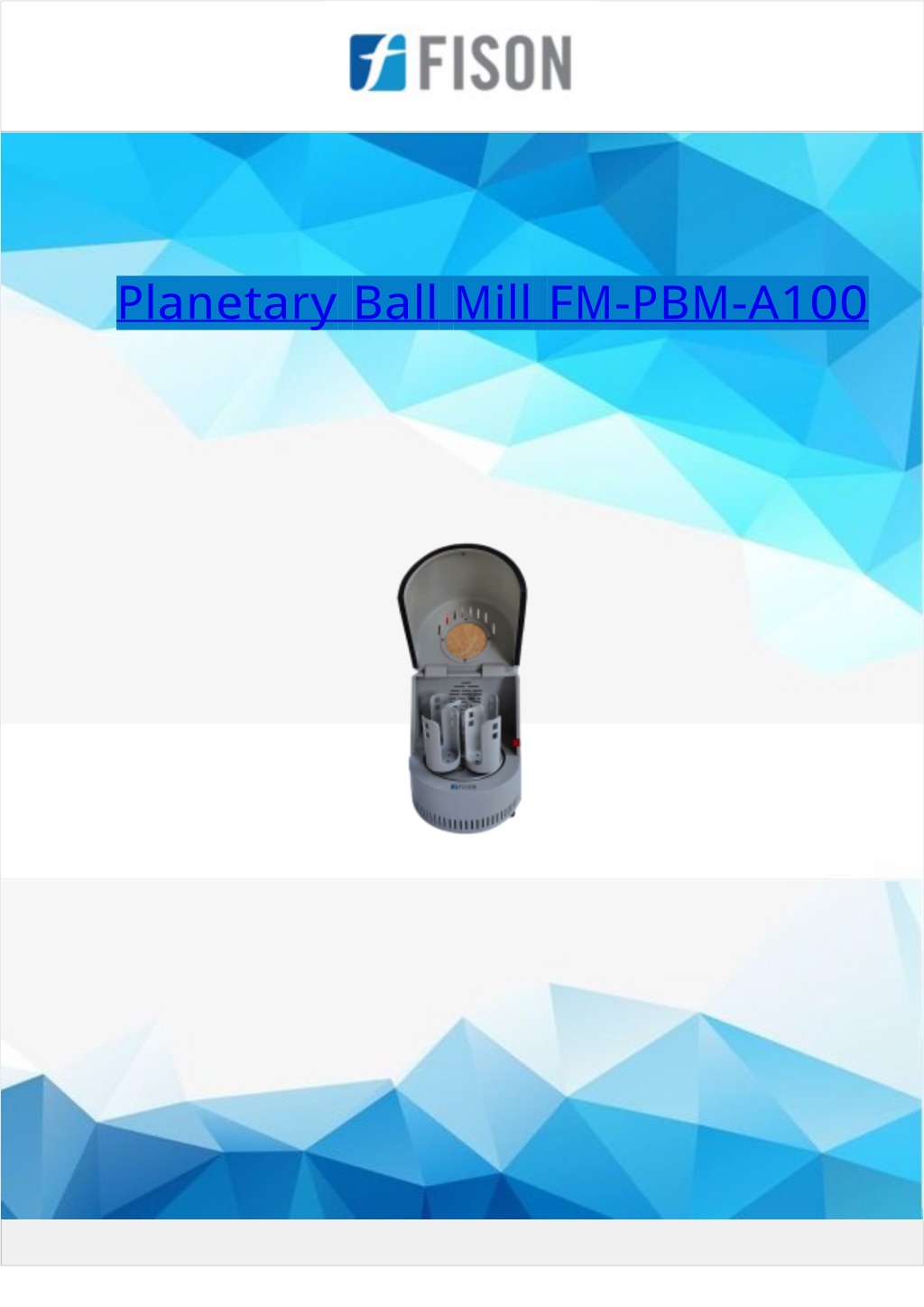

  1. Planetary Ball Mill FM-PBM-A100

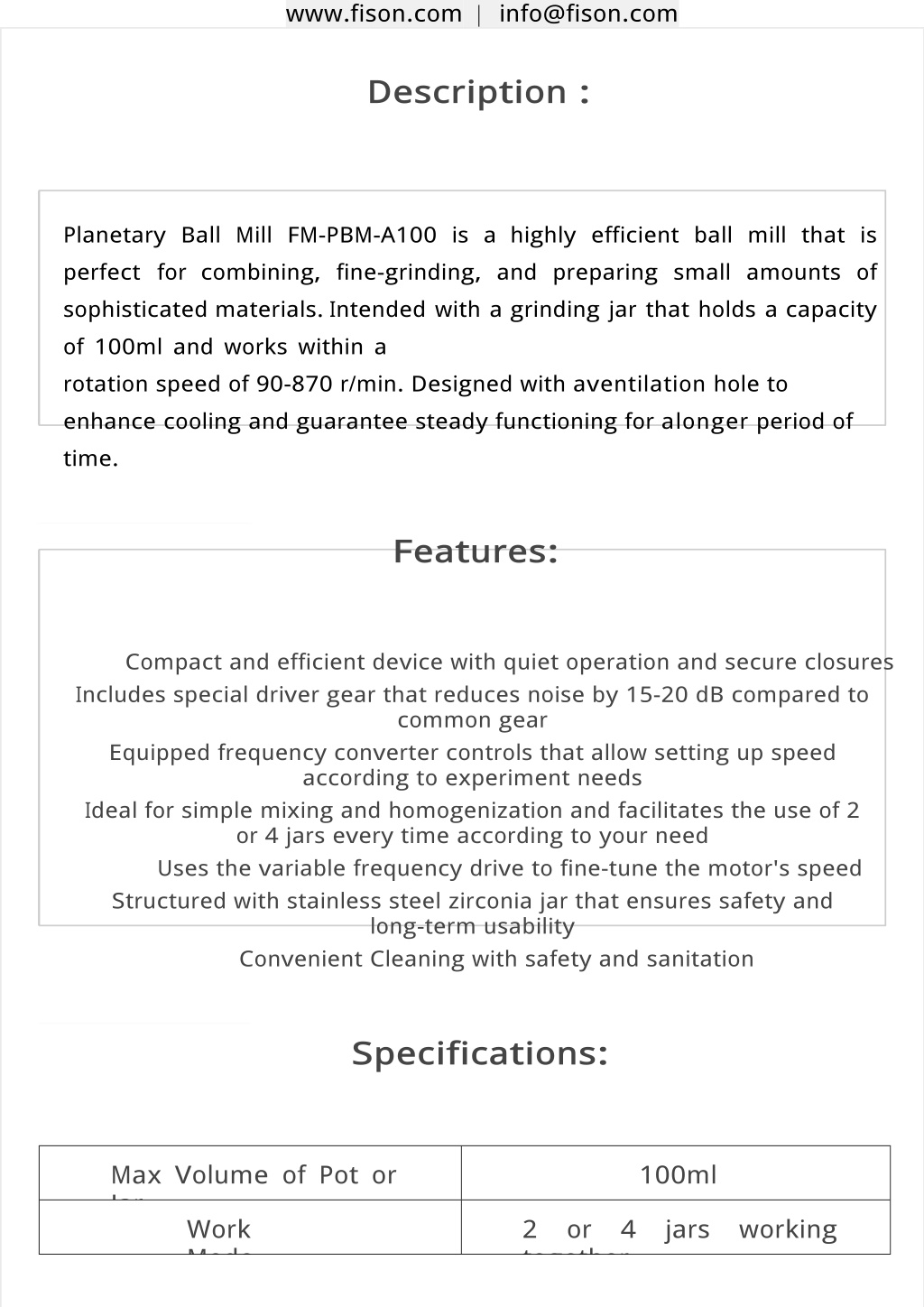

  2. www.fison.com | info@fison.com Description : Planetary Ball Mill FM-PBM-A100 is a highly efficient ball mill that is perfect for combining, fine-grinding, and preparing small amounts of sophisticated materials. Intended with a grinding jar that holds a capacity of 100ml and works within a rotation speed of 90-870 r/min. Designed with aventilation hole to enhance cooling and guarantee steady functioning for alonger period of time. Features: Compact and efficient device with quiet operation and secure closures Includes special driver gear that reduces noise by 15-20 dB compared to common gear Equipped frequency converter controls that allow setting up speed according to experiment needs Ideal for simple mixing and homogenization and facilitates the use of 2 or 4 jars every time according to your need Uses the variable frequency drive to fine-tune the motor's speed Structured with stainless steel zirconia jar that ensures safety and long-term usability Convenient Cleaning with safety and sanitation S pecifications: 100ml Max Volume of Pot or Jar Work Mode 2 or 4 jars working together

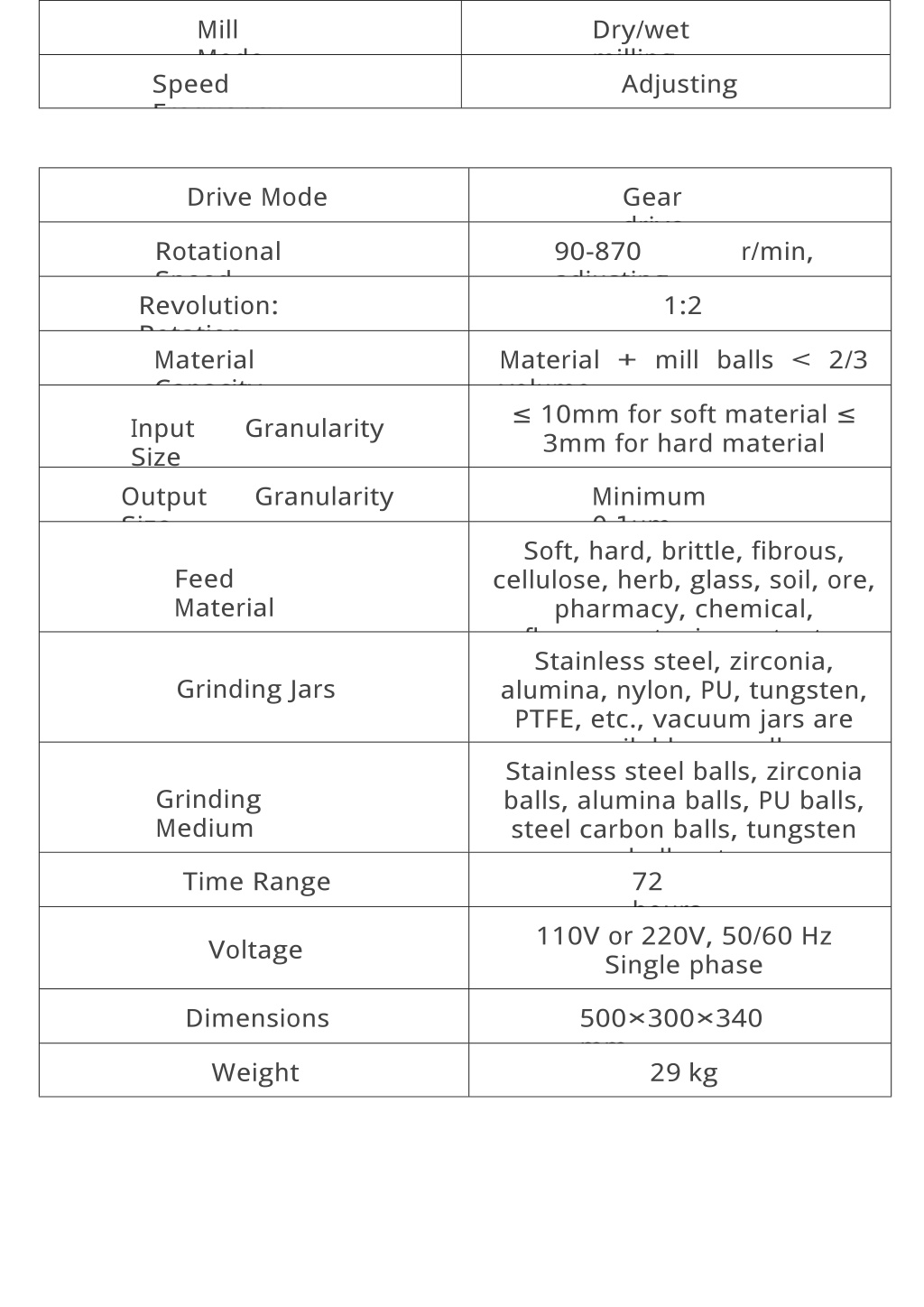

  3. Mill Mode Dry/wet milling Adjusting Speed Frequency Drive Mode Gear drive Rotational Speed Revolution: Rotation Material Capacity Input Size Output Size 90-870 adjusting r/min, 1:2 Material + mill balls < 2/3 volume ≤ 10mm for soft material ≤ 3mm for hard material Granularity Granularity Minimum 0.1μm Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, pigment, etc. Stainless steel, zirconia, alumina, nylon, PU, tungsten, PTFE, etc., vacuum jars are available as well. Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc 72 hours 110V or 220V, 50/60 Hz Single phase Feed Material Grinding Jars Grinding Medium Time Range Voltage Dimensions 500× 300× 340 mm 29 kg Weight

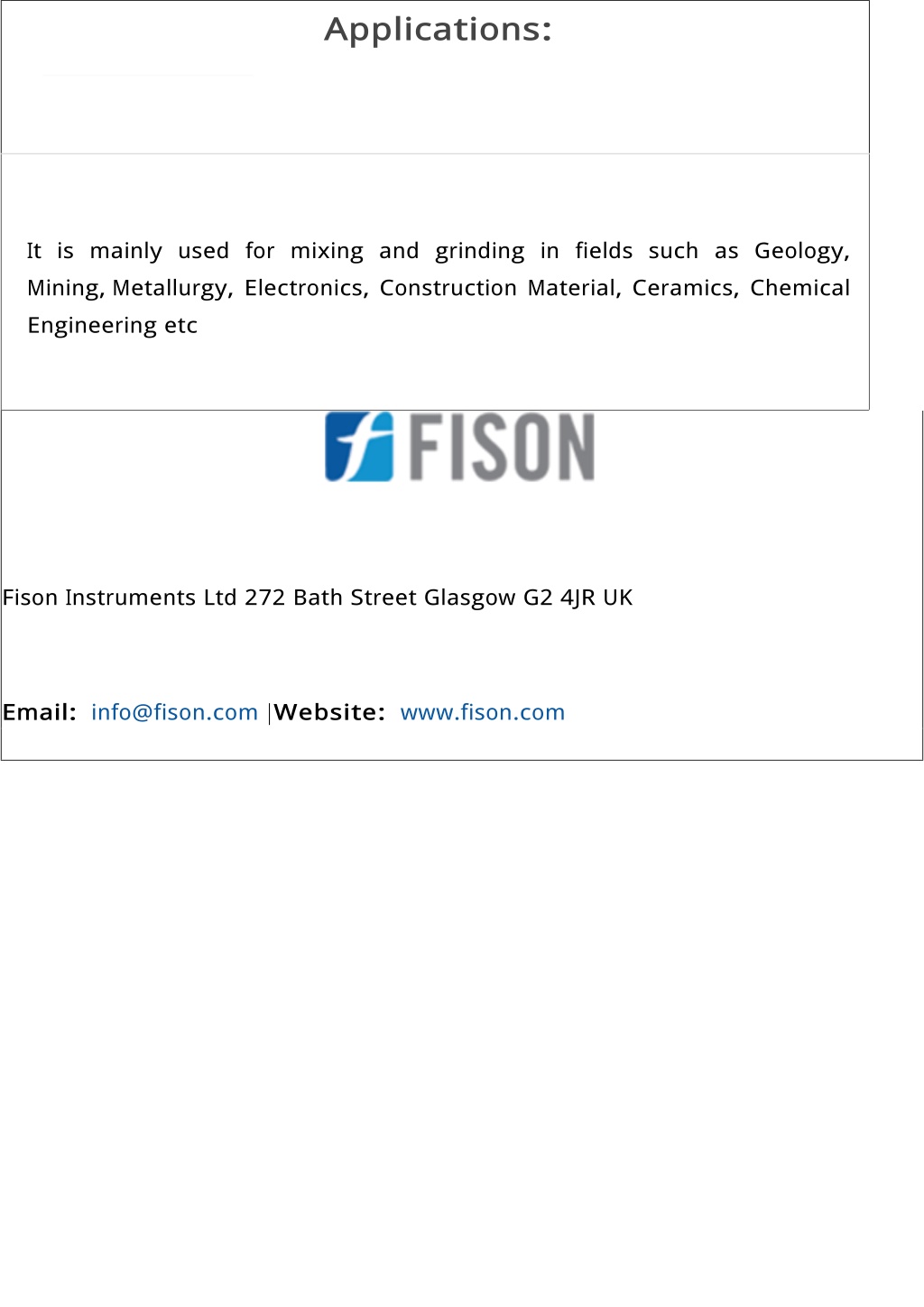

  4. Applications: It is mainly used for mixing and grinding in fields such as Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering etc Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com |W ebsite: www.fison.com
