Class I Biosafety Cabinet 185 Kg

Fison Class I Biosafety Cabinet is designed for Biosafety Levels 1, 2, and 3. It features a 99.999% efficient HEPA filter, dual 21 W lamps, and a negative pressure system for personnel safety. It is floor-standing with a steel base and caster wheels for easy mobility.

Anthony128
Download Presentation

Class I Biosafety Cabinet 185 Kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

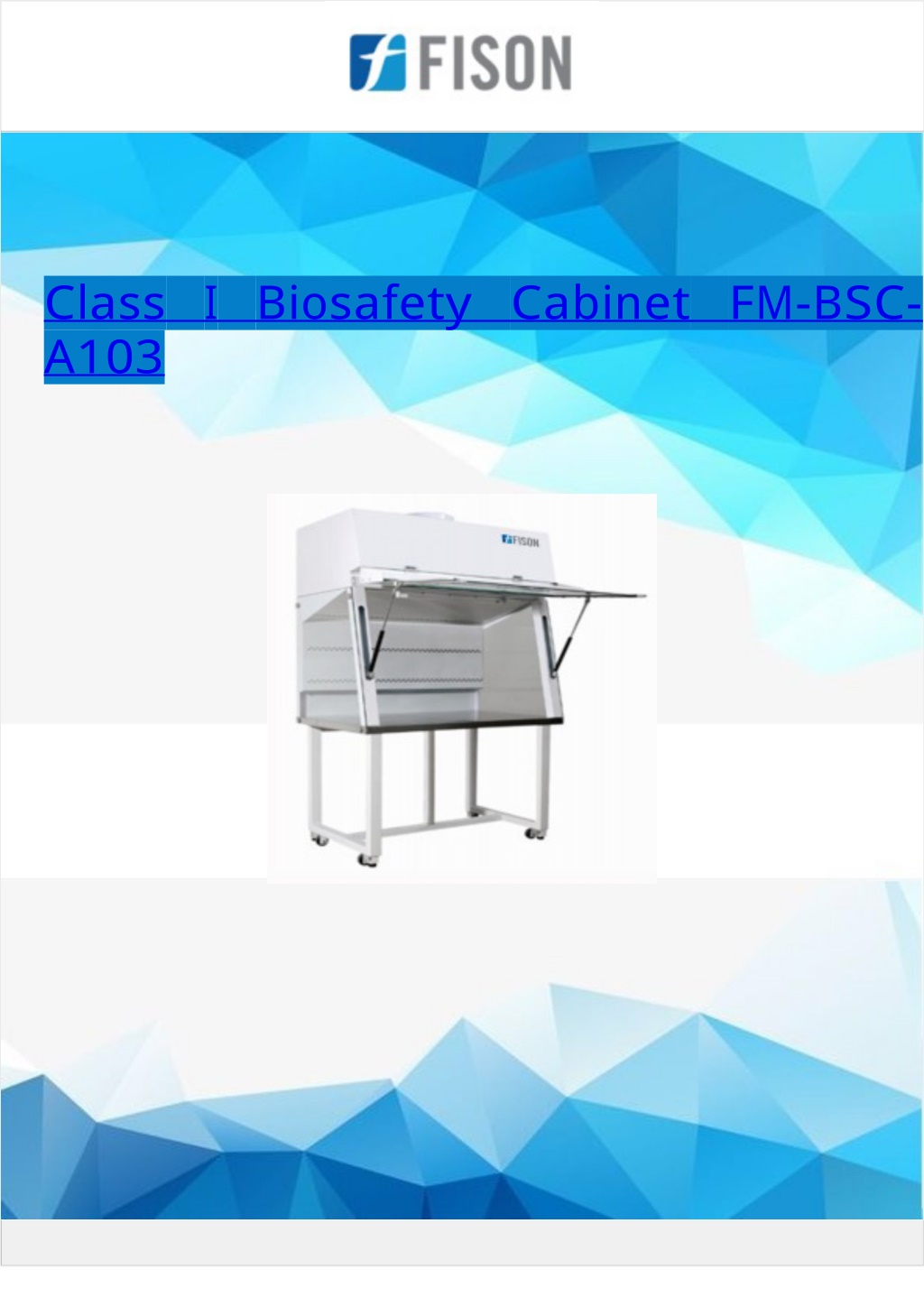

  1. Class I Biosafety Cabinet FM-BSC- A103

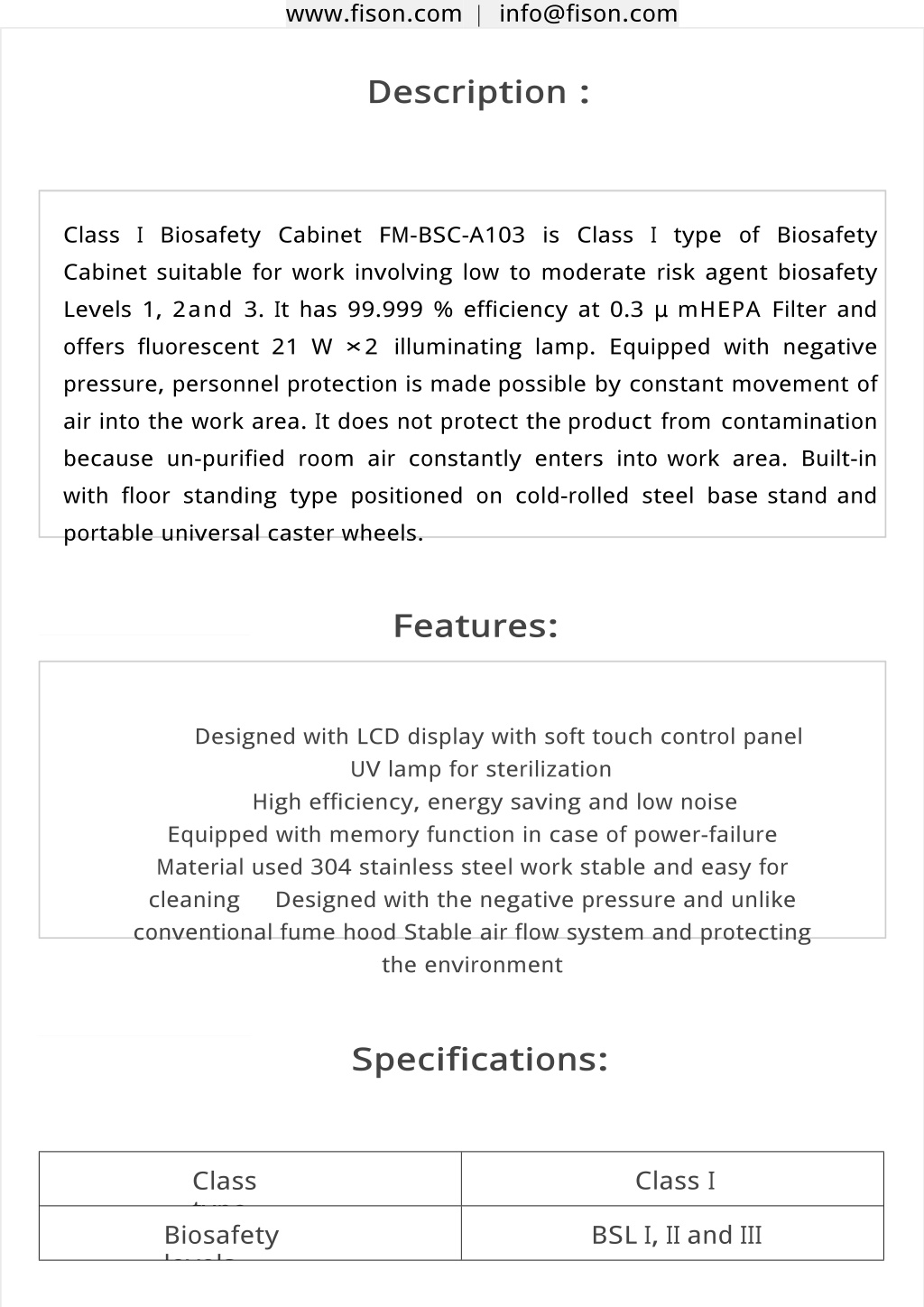

  2. www.fison.com | info@fison.com Description : Class I Biosafety Cabinet FM-BSC-A103 is Class I type of Biosafety Cabinet suitable for work involving low to moderate risk agent biosafety Levels 1, 2and 3. It has 99.999 % efficiency at 0.3 μ mHEPA Filter and offers fluorescent 21 W × 2 illuminating lamp. Equipped with negative pressure, personnel protection is made possible by constant movement of air into the work area. It does not protect the product from contamination because un-purified room air constantly enters into work area. Built-in with floor standing type positioned on cold-rolled steel base stand and portable universal caster wheels. Features: Designed with LCD display with soft touch control panel UV lamp for sterilization High efficiency, energy saving and low noise Equipped with memory function in case of power-failure Material used 304 stainless steel work stable and easy for cleaning Designed with the negative pressure and unlike conventional fume hood Stable air flow system and protecting the environment S pecifications: Class I Class type Biosafety levels BSL I, II and III

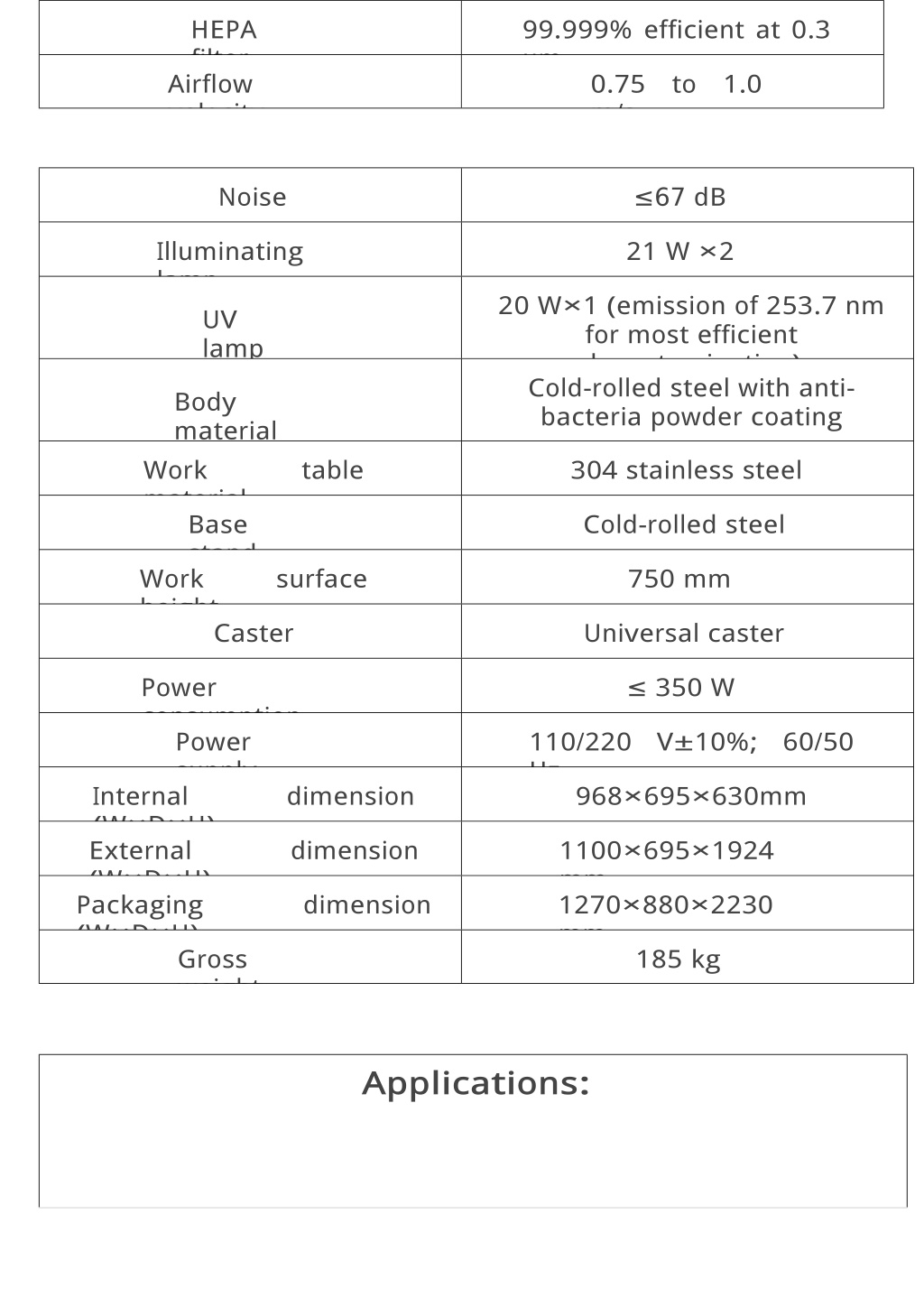

  3. HEPA filter Airflow velocity 99.999% efficient at 0.3 µm 0.75 to 1.0 m/s Noise ≤67 dB Illuminating lamp UV lamp 21 W × 2 20 W× 1 (emission of 253.7 nm for most efficient decontamination) Cold-rolled steel with anti- bacteria powder coating Body material Work material Base stand Work height table 304 stainless steel Cold-rolled steel surface 750 mm Caster Universal caster Power consumption Power supply Internal (W× D× H) External (W× D× H) Packaging (W× D× H) Gross weight ≤ 350 W 110/220 V± 10%; 60/50 Hz 968× 695× 630mm dimension dimension 1100× 695× 1924 mm 1270× 880× 2230 mm 185 kg dimension Applications:

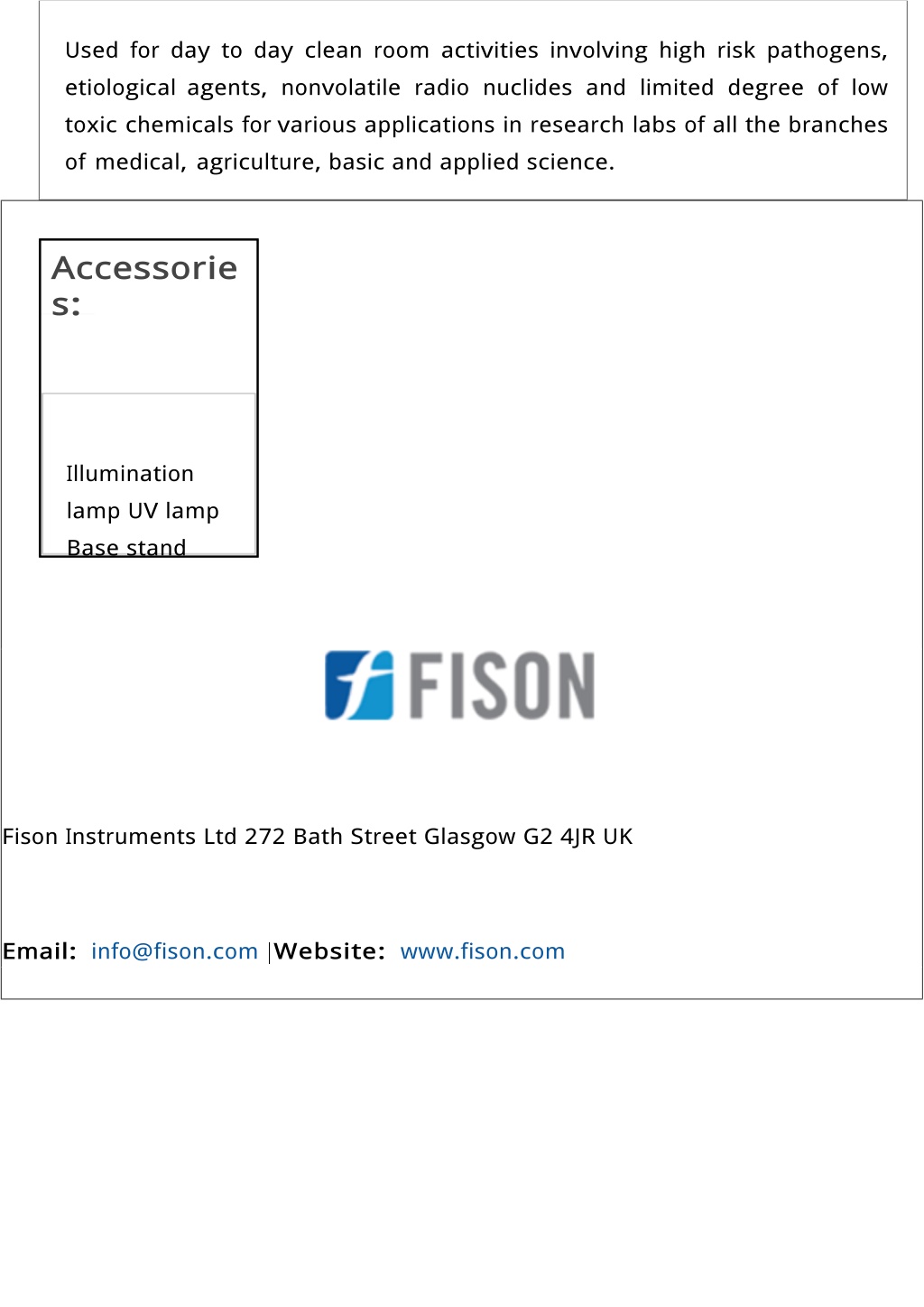

  4. Used for day to day clean room activities involving high risk pathogens, etiological agents, nonvolatile radio nuclides and limited degree of low toxic chemicals for various applications in research labs of all the branches of medical, agriculture, basic and applied science. Accessorie s: Illumination lamp UV lamp Base stand Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email: info@fison.com |W ebsite: www.fison.com
