Automatic Rotary Agitator 74 Kg

Fison Automatic Rotary Agitator is a microprocessor-controlled device with 15-45 rpm adjustable speed. It holds 8 vessels (PE or glass bottles) of 2L each. Equipped with an insulated flip cover, electricity leakage, and overload protection, it's ideal for extraction, TCLP, and SPL procedures.

Anthony128
Download Presentation

Automatic Rotary Agitator 74 Kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

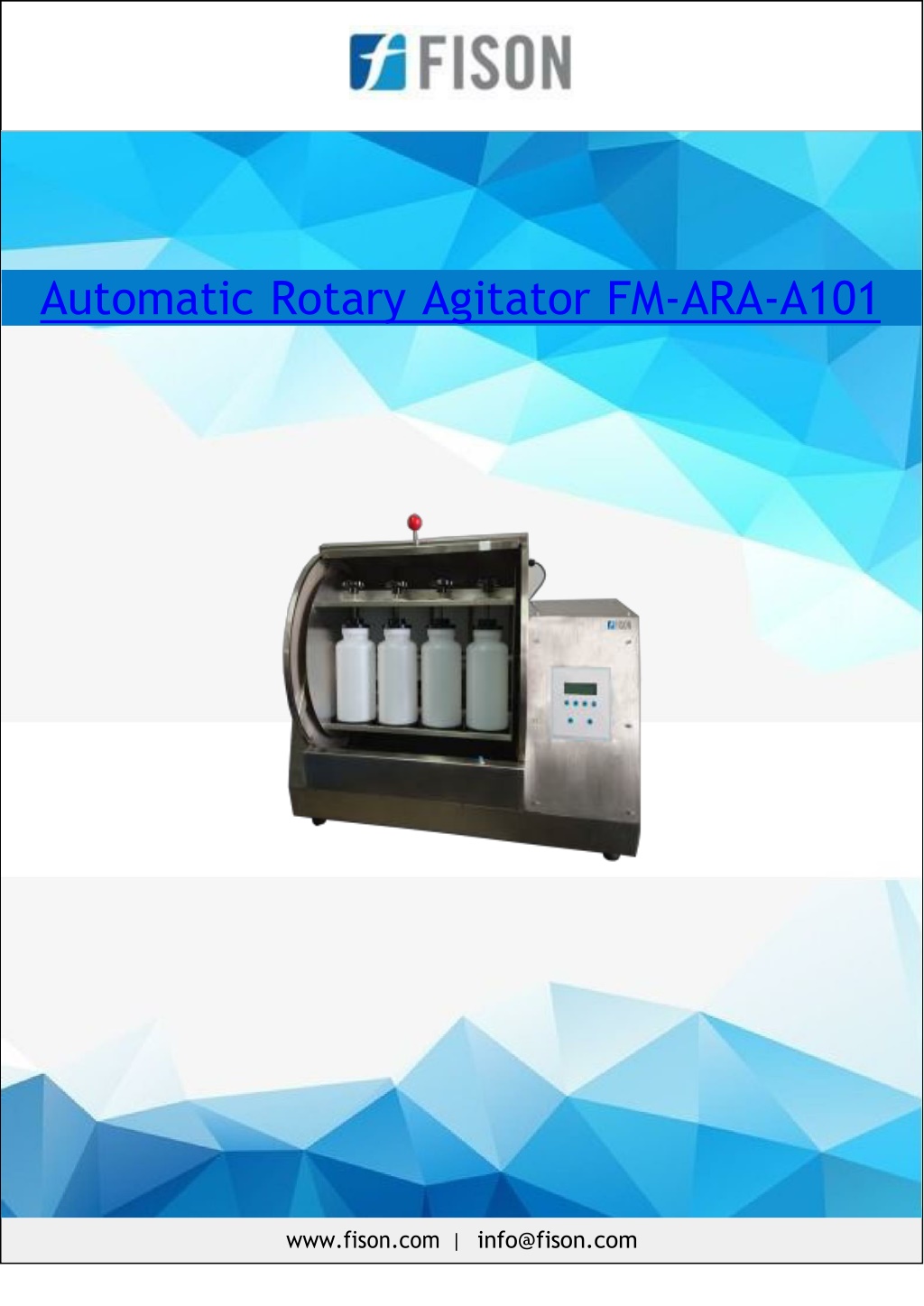

  1. Automatic Rotary Agitator FM-ARA-A101 www.fison.com | info@fison.com

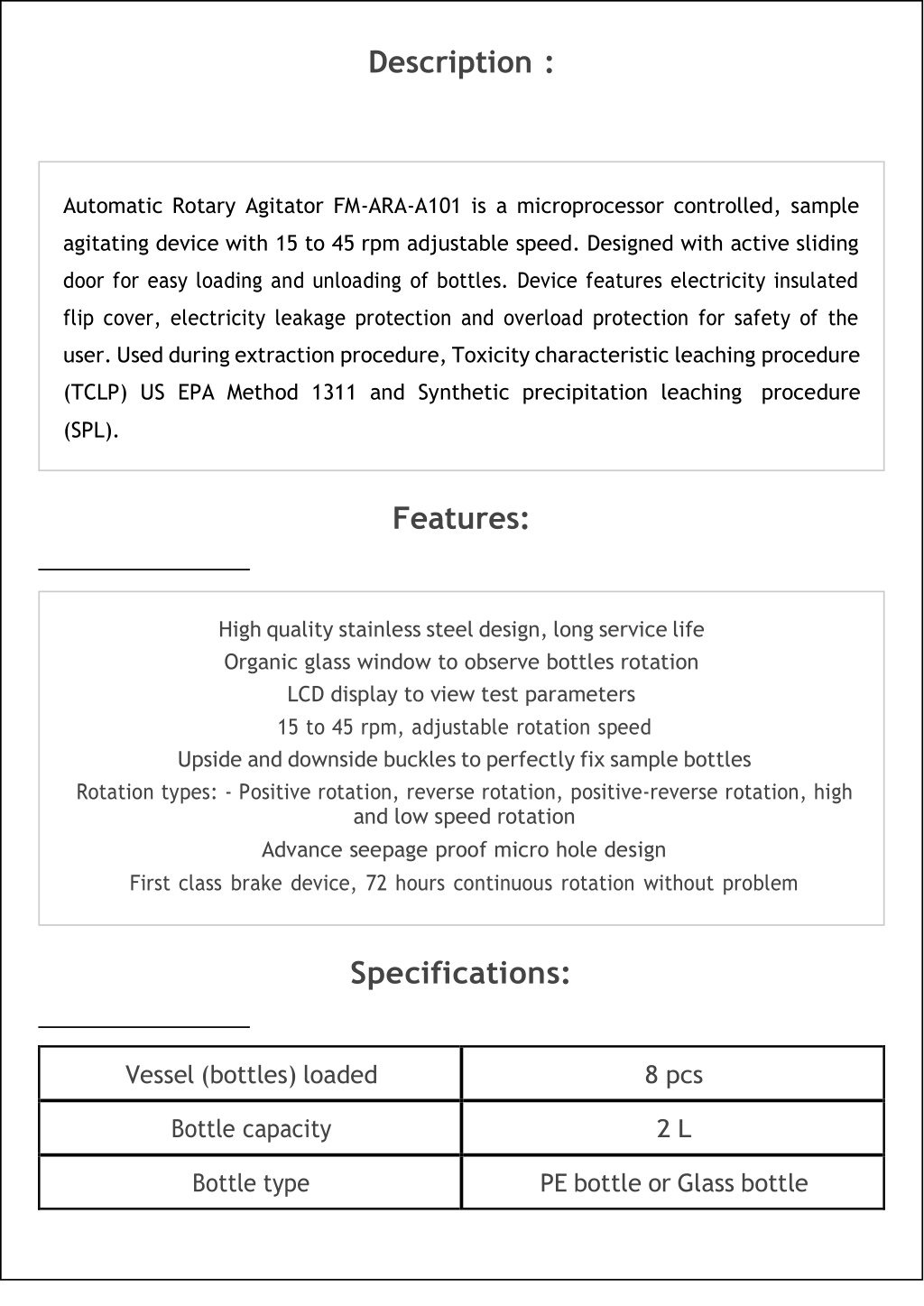

  2. Description : Automatic Rotary Agitator FM-ARA-A101 is a microprocessor controlled, sample agitating device with 15 to 45 rpm adjustable speed. Designed with active sliding door for easy loading and unloading of bottles. Device features electricity insulated flip cover, electricity leakage protection and overload protection for safety of the user. Used during extraction procedure, Toxicity characteristic leaching procedure (TCLP) US EPA Method 1311 and Synthetic precipitation leaching procedure (SPL). Features: High quality stainless steel design, long service life Organic glass window to observe bottles rotation LCD display to view test parameters 15 to 45 rpm, adjustable rotation speed Upside and downside buckles to perfectly fix sample bottles Rotation types: - Positive rotation, reverse rotation, positive-reverse rotation, high and low speed rotation Advance seepage proof micro hole design First class brake device, 72 hours continuous rotation without problem Specifications: Vessel (bottles) loaded 8 pcs Bottle capacity 2 L Bottle type PE bottle or Glass bottle

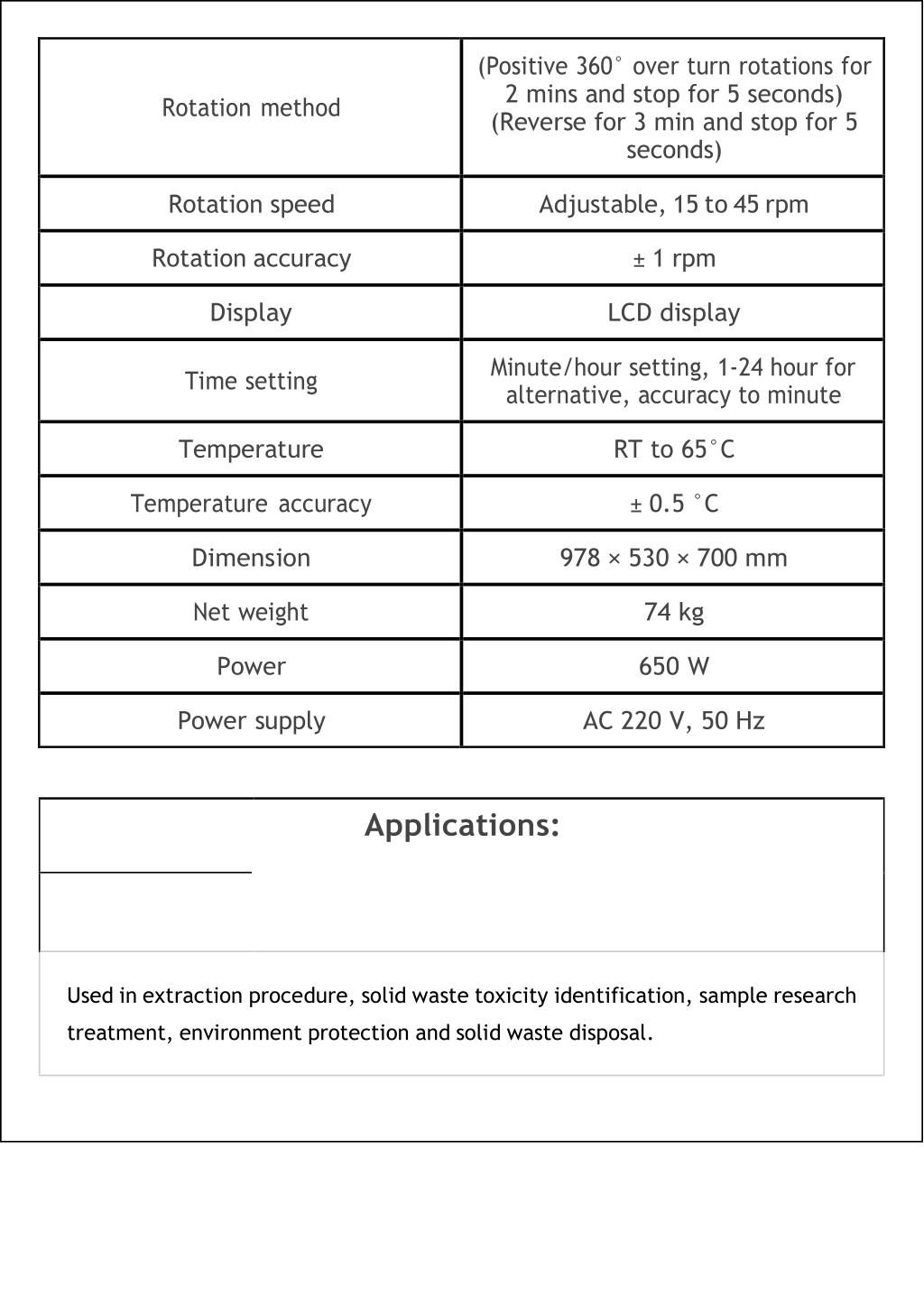

  3. (Positive 360° over turn rotations for 2 mins and stop for 5 seconds) (Reverse for 3 min and stop for 5 seconds) Rotation method Rotation speed Adjustable, 15 to 45 rpm Rotation accuracy ± 1 rpm Display LCD display Minute/hour setting, 1-24 hour for alternative, accuracy to minute Time setting Temperature RT to 65°C Temperature accuracy ± 0.5 °C Dimension 978 × 530 × 700 mm Net weight 74 kg Power 650 W Power supply AC 220 V, 50 Hz Applications: Used in extraction procedure, solid waste toxicity identification, sample research treatment, environment protection and solid waste disposal.

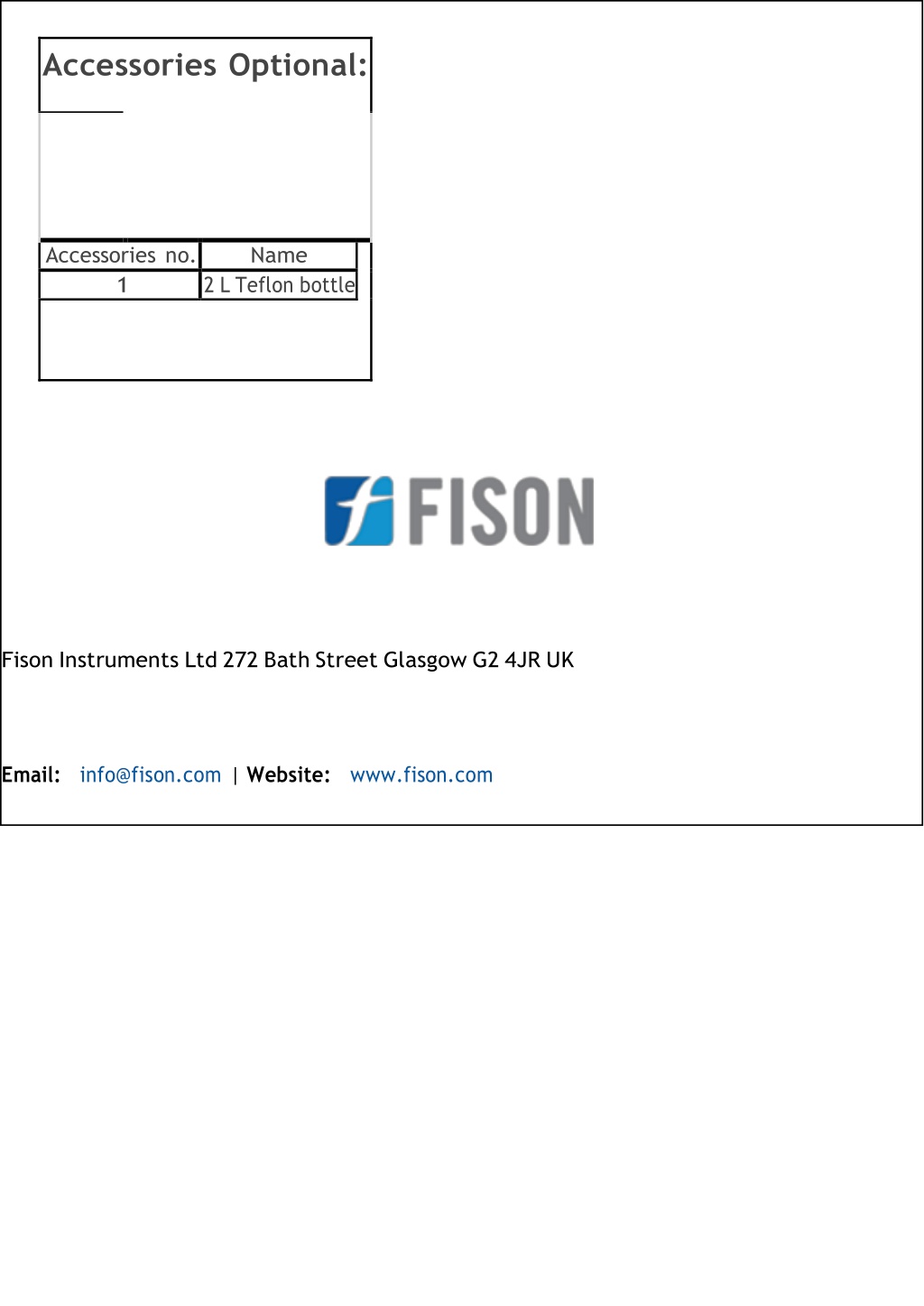

  4. Accessories Optional: Accessories no. 1 Name 2 L Teflon bottle Fison Instruments Ltd 272 Bath Street Glasgow G2 4JR UK Email:info@fison.com | Website:www.fison.com
