Presentation Transcript
Therma tru college l.jpg

Therma-Tru College

Impact & Fire-Rated Doors

always make a great entrance



Impact rated doors3 l.jpg
Impact-Rated Doors

  • Opaque impact-rated doors

  • Impact-rated glass

  • Flush-glazed doors with impact rated glass


Opaque impact rated doors l.jpg
Opaque Impact Rated Doors

  • Patent Pending Design that withstands windborne debris

  • High Velocity Hurricane Zone approved

  • Passed TAS201, TAS202 and TAS203

  • Fiber-Classic® and Smooth-Star® are minimum DP-60 rated

    • Third party tested and certified

    • Structural test pressure of 90 lbs. per sq. ft. equal to 183 mph winds

      • Equivalent to Category 5 hurricane wind speeds

  • Classic-Craft® are minimum DP-100 rated

    • Third party tested and certified

    • Structural test pressure of 150 lbs. per sq. ft. equal to 236 mph winds

      • Equivalent to Category 5 hurricane wind speeds

Steel plate underneath fiberglass skin provides added strength and rigidity


Opaque impact rated doors cont l.jpg
Opaque Impact Rated Doors (cont)

  • Classic-Craft® Oak and Mahogany Collection™

6'8"

CCM60H

CCM701H

CC60H

CC91H

8'0"

CC831H

CC860H

CC810H

CCM890H


Opaque impact rated doors cont6 l.jpg
Opaque Impact Rated Doors (cont)

  • Classic-Craft® Rustic Collection™

6'8"

CCR040H

CCR200H

CCR205H

8'0"

CCR8220H

CCR8225H

CCR8005H

CCR8040H

CCR8200H

CCR8205H


Opaque impact rated doors cont7 l.jpg
Opaque Impact Rated Doors (cont)

  • Fiber-Classic®

6'8"

FC40H

1000H

FC31H

FC60H

FC755H

8'0"

8100H

FC860H


Opaque impact rated doors cont8 l.jpg
Opaque Impact Rated Doors (cont)

  • Smooth-Star®

6'8"

S960H

S31H

S93H

S100H

S200H

S210H

S270H

8'0"

S810H

S831H

S897H

S8100H


Impact rated glass l.jpg
Impact Rated Glass

  • Available for Fiber-Classic®, Smooth-Star® and Steel product lines

    • Attractive scrolled frame

    • Patent pending screw cover

    • Available in clear, Low-E, GBG (grilles between the glass) and select decorative glass designs

    • 6'8" and 8'0“ heights

lip-lite frame features an attractive scrolled profile with a screw cover channel

Others: The width of most lip-lite impact glass frames limit your choice of locksets and have industrial type profile


Impact rated glass lip lite frame l.jpg
Impact Rated Glass - Lip Lite Frame

  • Therma-Tru impact frame size matches current BTS frame size and cut-out dimensions

  • Competition uses a much wider aluminum frame which gives an “industrial or commercial” appearance


Impact rated glass lip lite frame cont l.jpg
Impact Rated Glass - Lip Lite Frame (cont)

Others: The width of most lip-lite impact glass frames limit your choice of locksets and have industrial type profiles

Lip-lite frame features an attractive scrolled profile with a screw cover channel


Impact rated glass lip lite frame cont12 l.jpg
Impact Rated Glass - Lip Lite Frame (cont)

  • Impact rated glass frame is aesthetically pleasing and beautifully designed

  • Attractive scrolled frame design made of durable light-weight aluminum

  • Lip-lite frame width is unobtrusive and unlike other industrial type designs

    • Allows for more room between the lite frame and the lockset

    • Glass is centered in narrow style doors

  • Patented screw channel cover hides unsightly screws

  • Primed white

  • Manufactured using two pieces of annealed glass bonded between a special interlayer of clear PVB (polyvinyl butyral)

    • Additional UV protection, noise reduction and increased security with PVB interlayer

  • Impact rated glass door lites are HVHZ (high velocity, hurricane zone) certified when used in Therma-Tru Steel Doors

  • Available with clear lites with or without grilles between the glass (GBG) and select Decorative glass styles

  • Select styles available in Low-E

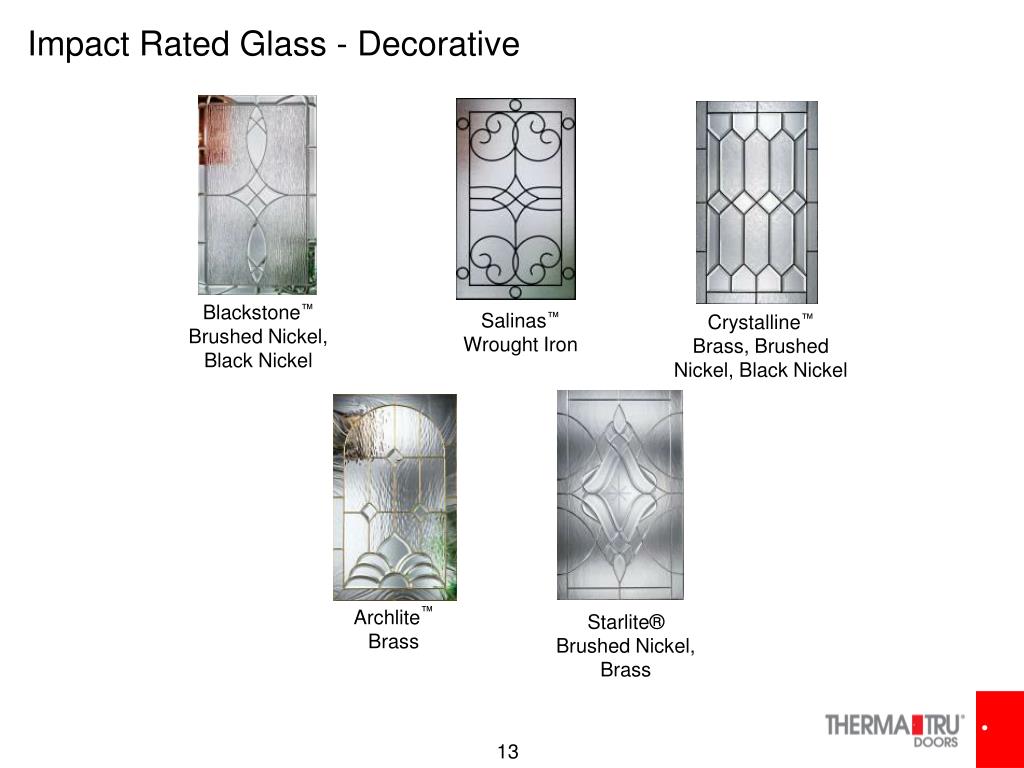

Impact rated glass decorative l.jpg
Impact Rated Glass - Decorative

Blackstone™

Brushed Nickel, Black Nickel

Salinas™

Wrought Iron

Crystalline™

Brass, Brushed Nickel, Black Nickel

Archlite™ Brass

Starlite® Brushed Nickel, Brass


Impact rated glass decorative14 l.jpg
Impact Rated Glass - Decorative

6'8"

FC, SS, SA, HD, TS

FC, SS, HD, TS

FC, SS, HD, TS

FC, SS, SA, HD

FC, SS, HD

FC, SS, HD

SS

FC, SS, SA, HD, TS

8'0"

Door and Glass Options

FC - Available in Fiber-Classic®

SS - Available in Smooth-Star®

SA - Available in ProEdge™

HD - Available in Profiles™

TS - Available in Traditions

FC, SS, SA, HD, TS

FC, SS, HD

FC, SS, HD

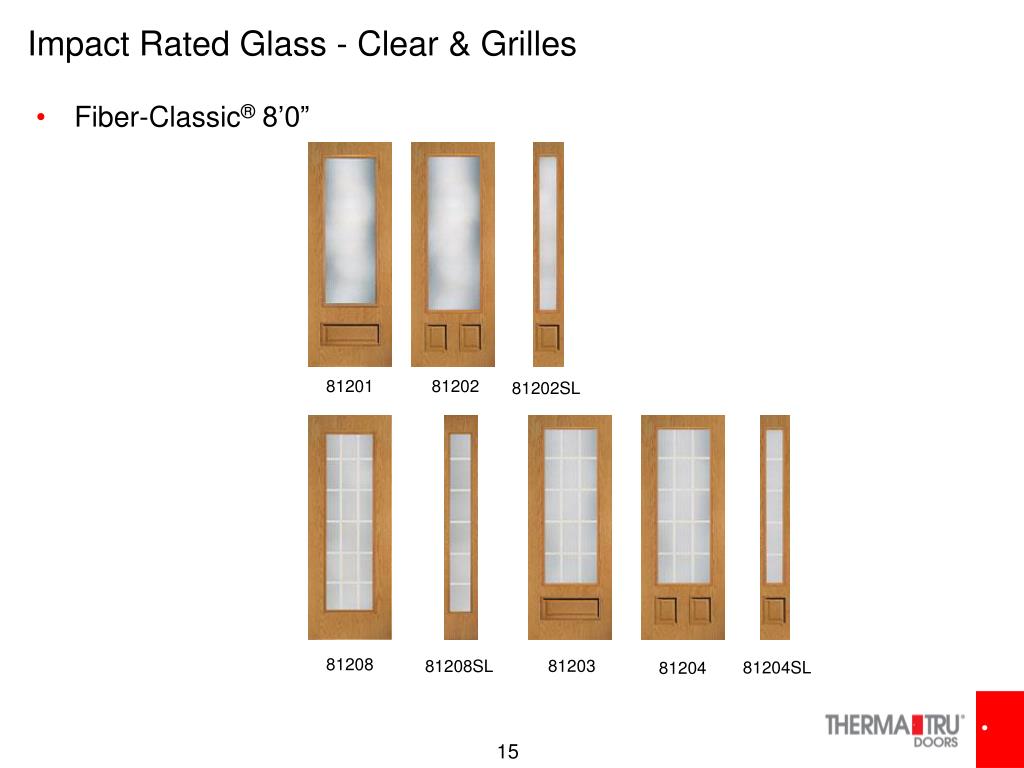

Impact rated glass clear grilles l.jpg
Impact Rated Glass - Clear & Grilles

  • Fiber-Classic® 8’0”

81201

81202

81202SL

81208

81203

81208SL

81204SL

81204


Impact rated glass clear grilles cont l.jpg
Impact Rated Glass - Clear & Grilles (cont)

  • Smooth-Star®

6'8"

S100SL

S108

S308SL

S118

8'0"

S81187

S81187SL

S808

S818

S882


Impact rated glass clear grilles cont17 l.jpg
Impact Rated Glass - Clear & Grilles (cont)

  • Profiles™ Steel Door Systems

6'8"

100SL

108

308SL

118

Impact rated glass door lites are HVHZ (high velocity, hurricane zone) certified when used in Therma-Tru Steel Doors


Impact rated glass clear grilles cont18 l.jpg
Impact Rated Glass - Clear & Grilles (cont)

  • Traditions ™ Steel Door Systems

6'8"

8'0"

TS100SL

TS108

TS118

808

828SL

818

818SL

Impact rated glass door lites are HVHZ (high velocity, hurricane zone) certified when used in ThermaTru Steel Doors


Flush glazed doors with impact rated glass l.jpg
Flush-Glazed Doors With Impact Rated Glass

  • 8'0" tall doors are impressive and add a dramatic appearance to any home

  • Third party tested to withstand windborne debris

    • Meets ASTM E330, ASTM E1886, ASTM E1996

  • Meets Florida and International Residential Building Codes

  • True flush-glazed

  • Adds curb appeal to any home, with door and glass being one solid piece

    • Integral frame – no frame parts or mitered joints

  • Exceptional performance against windborne debris

8000

Fiber-Classic

S8000

Smooth-Star



Classic craft entry door systems l.jpg
Classic-Craft® Entry Door Systems

  • 2'8" and 3'0" widths / 6'8“ and 8'0" heights

  • 6-panel, 2-Panel soft arch, 2-Panel Soft Arch Plank

  • 20-minute fire-rated

  • Available in Mahogany, Rustic, and Oak Collections

CCRF200

CCRF205

CCMF060

CCF060


Fiber classic entry door systems l.jpg
Fiber-Classic® Entry Door Systems

  • 2'8" and 3'0" widths / 6'8“ and 8'0" heights

  • 6-panel, 4-panel, 2-Panel soft arch and flush doors

  • 20-minute fire rated

  • Can be installed with 20-minute wood jambs or 90-minute steel frame

FCF100

FCF140

FCF160


Smooth star entry door systems l.jpg
Smooth-Star® Entry Door Systems

  • 2'8“, 2’10”, and 3'0" widths / 6'8" and 8'0" heights

  • 6-panel, 4-panel, 2-panel soft arch and flush doors, Craftsman

  • 20-minute Positive Pressure Warnock-Hersey fire rating

  • Can be installed with 20-minute wood jambs or 90-minute steel frame


Steel door systems l.jpg
Steel Door Systems

  • 90-minute Positive Pressure Fire-Rated Doors:

    • 15-Year Limited Warranty

    • Doors available in Therma-Tru Specs and the TR 12-24 Series

      • TR 12-24 Series: steel edge 90-minute fire-rated door engineered to hang in a Timely® or Rediframe® steel frame systems for use with 4" template hinges

    • 24-Gauge Steel

    • Steel Edge Construction

    • Advanced Composite Lock Block Design


Steel door systems cont l.jpg
Steel Door Systems (cont)

6'8" and 7'0" Fire-Rated Doors

500

514

510

SE978HD

SE10005HD

  • Doors available in Therma-Tru Specs and the TR 12-24 Series:

  • TR 12 24 Series: Steel edge 90-minute fire-rated doors are engineered to hang in a Timely® or Rediframe® steel frame systems for use with 4" template hinges.


Steel door systems split jamb frame l.jpg
Steel Door Systems - Split Jamb Frame

  • Features

    • Split-Jamb Wall Adjustable Design

    • 16-gauge, A-40 Galvannealed material-standard

    • 4" x 4"radius hinge preps

    • 4 7/8" (ANSI/ASA) strike with multiple deadbolt prep standard

    • Conversion plates for full lip or T-strike applications

    • Kerfed for compression weatherstrip

    • 90-minute positive pressure fire rating available

    • Hardware shop package and field packages

Split-Jamb 90-Minute Positive Pressure Fire-Rated Frame


Steel door systems split jamb frame cont l.jpg
Steel Door Systems - Split Jamb Frame (cont)

  • Benefits

    • For use in new or remodel applications

    • Use in wood or metal stud and masonry walls

    • Frame depth adjustable for different wall thickness

    • Pre-hung system easy installation in 20 Minutes

    • Complete Therma-Tru frame package includes: compression weatherstrip, aluminum sill, adjustable door sweep

    • Weatherstrip is pressure

Split- Jamb Pre-Hangable Door Frame System
