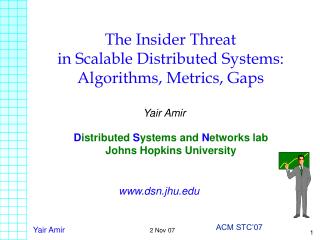

The Insider Threat in Scalable Distributed Systems: Algorithms, Metrics, Gaps. Yair Amir. D istributed S ystems and N etworks lab Johns Hopkins University. www.dsn.jhu.edu. ACM STC’07. Acknowledgement. Johns Hopkins University Claudiu Danilov, Jonathan Krisch, John Lane

Anita
Download Presentation

The Insider Threat in Scalable Distributed Systems: Algorithms, Metrics, Gaps

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Insider Threat in Scalable Distributed Systems: Algorithms, Metrics, Gaps Yair Amir Distributed Systems and Networks lab Johns Hopkins University www.dsn.jhu.edu ACM STC’07

  2. Acknowledgement • Johns Hopkins University • Claudiu Danilov, Jonathan Krisch, John Lane • Purdue University • Cristina Nita-Rotaru, Josh Olsen, Dave Zage • Hebrew University • Danny Dolev • Telcordia Technologies • Brian Coan

  3. This Talk in Context Scalable Information Access & Communication • High availability (80s – 90s) • Benign faults, accidental errors, crashes, recoveries, network partitions, merges. • Fault tolerant replication as an important tool. • Challenges – consistency, scalability and performance. • Security (90s – 00s) • Attackers are external. • Securing the distributed system and the network. • Crypto+ as an important tool. • Survivability ( 00s – …) • Millions of compromised computers: there is always a chance the system will be compromised. • Lets start the game when parts of it are already compromised. • Can the system still achieve its goal, and under what assumptions ? • Challenges – assumptions, scalability, performance.

  4. Trends: Information Access & Communication • Networks become one • From one’s network to one Internet. • Therefore: (inherently,) the environment becomes increasingly hostile. • Stronger adversaries => weaker models. • Benign faults - mean time to failure, fault independence • Fail-stop, crash-recovery, network partitions-merges. • Goals: high availability, consistency (safety, liveness). • External attacks – us versus them • Eavesdropping, replay attacks, resource consumption kind of DoS. • Goals: keep them out. Authentication, Integrity, Confidentiality. • Insider attacks – the enemy is us • Byzantine behavior • Goals: safety, liveness, (performance?)

  5. The Insider Threat • Networks are already hostile! • 250,000 new zombie nodes per day. • Very likely that some of them are part of critical systems. • Insider attacks are a real threat, even for well-protected systems. • Challenges: • Service level: Can we provide “correct” service? • Network level: Can we “move” the bits? • Client level: Can we handle “bad” input?

  6. The Insider Threat in Scalable Systems • Service level: Byzantine Replication • Hybrid approach: few trusted components, everything else can be compromised. • Symmetric approach: No trusted component, compromise up to some threshold. • Network level: Byzantine Routing • Flooding “solves” the problem. • “Stable” networks - some limited solutions, good starting point [Awerbuch et al. 02] • “Dynamic” networks – open problem. • Client level:? • Input replication – not feasible in most cases. • Recovery after the fact – Intrusion detection, tracking and backtracking [Chen et al. 03]. • Open question – is there a better approach?

  7. Outline • Context and trends • Various levels of the insider threat problem • Service level problem formulation • Relevant background • Steward: First scalable Byzantine replication • A bit on how it works • Correctness • Performance • Tradeoffs • Composable architecture • A bit on how it works • BLink – Byzantine link protocol • Performance and optimization • Theory hits reality • Limitation of existing correctness criteria • Proposed model and metrics • Summary

  8. A site Clients Server Replicas o o o N 1 2 3 Service Level: Problem Formulation • Servers are distributed in sites, over a Wide Area Network. • Clients issue requests to servers, then get back answers. • Some servers can act maliciously. • Wide area connectivity is limited and unstable. • How to get good performance and guarantee correctness ? • What is correctness?

  9. Relevant Prior Work • Byzantine Agreement • Byzantine generals [Lamport et al. 82], [Dolev 83] • Replication with benign faults • 2-phase commit [Eswaran, Gray et al. 76] • 3-phase commit [Skeen, Stonebreaker 82] • Paxos [Lamport 98] • Hybrid architectures • Hybrid Byzantine tolerant systems [Correia, Verissimo et al. 04] • Symmetric approaches for Byzantine-tolerant replication • BFT [Castro, Liskov 99] • Separating agreement from execution [Yin, Alvisi et al. 03] • Fast Byzantine consensus [Martin, Alvisi 05] • Byzantine-tolerant storage using erasure codes [Goodson, Reiter et al. 04]

  10. request proposal accept reply C C 0 0 1 1 2 2 3 Background: Paxos and BFT request pre-prepare prepare commit reply • Paxos [Lamport 98] • Ordering coordinated by an elected leader. • Two rounds among servers during normal case (Proposal and Accept). • Requires 2f+1 servers to tolerate fbenign faults. • BFT [Castro, Liskov 99] • Extends Paxos into the Byzantine environment. • One additional round of communication, crypto. • Requires 3f+1 servers to tolerate fByzantine servers. October 10, 2007 SRDS 2007

  11. Background: Threshold Crypto • Practical Threshold Signatures [Schoup 2000] • Each participant receives a secret share. • Each participant signs a certain message with its share, and sends the signed message to a combiner. • Out of k valid signed shares, the combiner creates a (k, n) threshold signature. • A (k, n) threshold signature • Guarantees that at least k participants signed the same message with their share. • Can be verified with simple RSA operations. • Combining the shares is fairly expensive. • Signature verification is fast.

  12. A site Clients Server Replicas o o o N 1 2 3 Steward: First Byzantine Replication Scalable to Wide Area Networks [DSN 2006] • Each site acts as a trusted unit that can crash or partition. • Within each site: Byzantine-tolerant agreement (similar to BFT). • Masks fmalicious faults in each site. • Threshold signatures prove agreement to other sites. • ---------- that is optimally intertwined with -------------- • Between sites: light-weight, fault-tolerant protocol (similar to Paxos). • There is no free lunch: we pay with more hardware. • 3f+1 servers in each site.

  13. Outline • Context and trends • Various levels of the insider threat problem • Service level problem formulation • Relevant background • Steward: First scalable Byzantine replication • A bit on how it works • Correctness • Performance • Tradeoffs • Composable architecture • A bit on how it works • BLink – Byzantine link protocol • Performance and optimization • Theory hits reality • Limitation of existing correctness criteria • Proposed model and metrics • Summary

  14. Byzantine ordering Threshold signed proposal (2f+1) Threshold signed accept (2f+1) Main Idea 1: Common Case Operation • A client sends an update to a server at its local site. • The update is forwarded to the leader site. • The representative of the leader site assigns order in agreement and issues a threshold signed proposal. • Eachsite issues a threshold signed accept. • Upon receiving a majority of accepts, servers in each site “order” the update. • The original server sends a response to the client.

  15. Steward Hierarchy Benefits • Reduces the number of messages sent on the wide area network. • O(N2)  O(S2) – helps both in throughput and latency. • Reduces the number of wide area crossings. • BFT-based protocols require 3 wide area crossings. • Paxos-based protocols require 2 wide area crossings. • Optimizes the number of local Byzantine agreements. • A single agreement per update at leader site. • Potential for excellent performance. • Increases system availability • (2/3 of total servers + 1)  (A majority of sites). • Read-only queries can be answered locally.

  16. Steward Hierarchy Challenges • Each site has a representative that: • Coordinates the Byzantine protocol inside the site. • Forwards packets in and out of the site. • One of the sites act as the leader in the wide area protocol • The representative of the leading site is the one assigning sequence numbers to updates. • Messages coming out of a site during leader election are based on communication between 2f+1(out of 3f+1) servers inside the site. • There can be multiple sets of 2f+1 servers. • In some instances, multiple correct but different site messages can be issued by a malicious representative. • It is sometimes impossible to completely isolate a malicious server behavior inside its own site. • How do we select and change representatives in agreement ? • How do we select and change the leader site in agreement ? • How do we transition safely when we need to change them ?

  17. Main Idea 2: View Changes • Sites change their local representatives based on timeouts. • Leader site representative has a larger timeout. • allows to contact at least one correctrep. at other sites. • After changing enough leader site representatives, servers at all sites stop participating in the protocol, and elect a different leading site.

  18. Correctness Criteria • Safety: • If two correct servers order an update with the same sequence i, then these updates are identical. • Liveness: • If there exists a set of a majority of sites, each consisting of at least 2f+1 correct, connected servers, and a time after which all sites in the set are connected, then if a client connected to a site in the set proposes an update, some correct server at a site in the set eventually orders the update.

  19. Intuition Behind a Proof • Safety: • Any agreement (ordering or view change) involves a majority of sites, and 2f+1 servers in each. • Any two majorities intersect in at least one site. • Any two sets of 2f+1 servers in that site intersect in at least f+1 servers (which means at least one correct server). • That correct server will not agree to order two different updates with the same sequence. • Liveness: • A correct representative or leader site cannot be changed by f local servers. • The selection of different timeouts ensures that a correct representative of the leader site has enough time to contact correct representatives at other sites.

  20. Testing Environment • Platform: Dual Intel Xeon CPU 3.2 GHz 64 bits 1 GByte RAM, Linux Fedora Core 4. • Library relies on Openssl : • Used OpenSSL 0.9.7a, Feb 2003. • Baseline operations: • RSA 1024-bits sign: 1.3 ms, verify: 0.07 ms. • Perform modular exponentiation 1024 bits, ~1 ms. • Generate a 1024 bits RSA key ~ 55ms.

  21. Symmetric Wide Area Network • Synthetic network used for analysis and understanding. • 5 sites, each of which connected to all other sites with equal bandwidth/latency links. • One fully deployed site of 16 replicas; the other sites are emulated by one computer each. • Total – 80 replicas in the system, emulated by 20 computers. • 50 ms wide area links between sites. • Varied wide area bandwidth and the number of clients.

  22. Write Update Performance • Symmetric network. • 5 sites. • BFT: • 16 replicas total. • 4 replicas in one site, 3 replicas in each other site. • Up to 5 faults total. • Steward: • 16 replicas per site. • Total of 80 replicas (four sites are emulated). Actual computers: 20. • Up to 5 faults in each site. • Update only performance (no disk writes).

  23. Read-only Query Performance • 10 Mbps on wide area links. • 10 clients inject mixes of read-only queries and write updates. • None of the systems was limited by bandwidth. • Performance improves between a factor of two and more than an order of magnitude. • Availability: Queries can be answered locally, within each site.

  24. Wide-Area Scalability • Selected 5 Planetlab sites, in 5 different continents: US, Brazil, Sweden, Korea and Australia. • Measured bandwidth and latency between every pair of sites. • Emulated the network on our cluster, both for Steward and BFT. • 3-fold latency improvement even when bandwidth is not limited. (how come ?)

  25. Non-Byzantine Comparison Boston MITPC • Based on a real experimental network (CAIRN). • Several years ago we benchmarked benign replication on this network. • Modeled on our cluster, emulating bandwidth and latency constraints, both for Steward and BFT. Delaware 4.9 ms San Jose 9.81Mbits/sec UDELPC TISWPC 3.6 ms 1.42Mbits/sec ISEPC 1.4 ms 1.47Mbits/sec ISEPC3 100 Mb/s <1ms 38.8 ms 1.86Mbits/sec ISIPC4 Virginia ISIPC 100 Mb/s < 1ms Los Angeles

  26. CAIRN Emulation Performance • Steward is limited by bandwidth at 51 updates per second. • 1.8Mbps can barely accommodate 2 updates per second for BFT. • Earlier experimentation with benign fault 2-phase commit protocols achieved up to 76 updates per sec. [Amir et. all 02].

  27. Steward: Approach Tradeoffs • Excellent performance • Optimized based on intertwined knowledge among global and local protocols. • Highly complex • Complex correctness proof. • Complex implementation. • Limited model does not translate well to wide area environment needs • Global benign protocol over local Byzantine. • “What if the whole site is compromised?” • Partially addressed by implementing 4 different protocols: Byzantine/Benign, Byzantine/Byzantine, Benign/Benign, Benign/Byzantine (Steward). • “Different sites have different security profiles…”

  28. A Composable Approach [SRDS 2007] • Use clean two-levelhierarchy to maintain scalability. • Clean separation of the local and global protocols. • Message complexity remains O(Sites2). • Use state machine based logical machines to achieve a customizable architecture. • Free substitutionof the fault tolerance method used in each site and among the sites. • Use efficient wide-area communication to achieve high performance. • Byzantine Link (BLink) protocol for inter logical machine communication.

  29. Outline • Context and trends • Various levels of the insider threat problem • Service level problem formulation • Relevant background • Steward: First scalable Byzantine replication • A bit on how it works • Correctness • Performance • Tradeoffs • Composable architecture • A bit on how it works • BLink – Byzantine link protocol • Performance and optimization • Theory hits reality • Limitation of existing correctness criteria • Proposed model and metrics. • Summary

  30. Building a Logical Machine BLink BLink Wide-Area Protocol Wide-Area Protocol • A single instance of the wide-area replication protocol runs among a group of logical machines (LMs),one in each site. • Logical machines behave like single physical machines with respect to the wide-area protocol. • Logical machines send threshold-signed wide-area messages viaBLink. • Each logical machine is implemented by a separate instance of a local state machine replication protocol. • Physical machines in each site locally order all wide-area protocol events: • Wide-area message reception events. • Wide-area protocol timeout events. • Each logical machine executes a single stream of wide-area protocol events. Local-Area Protocol Local-Area Protocol Site B  Logical Machine B Site A  Logical Machine A

  31. A Composable Architecture • Clean separation and free substitution • We can choose the local-area protocol deployed in each site, and the wide-area protocol deployed among sites. • Trade performance for fault tolerance • Protocol compositions: wide area / local area • Paxos on the wide area: Paxos/Paxos, Paxos/BFT • BFT on the wide area: BFT/Paxos, BFT/BFT

  32. A Composable Architecture • Clean separation and free substitution • We can choose the local-area protocol deployed in each site, and the wide-area protocol deployed among sites. • Trade performance for fault tolerance • Protocol compositions: wide area / local area • Paxos on the wide area: Paxos/Paxos, Paxos/BFT • BFT on the wide area: BFT/Paxos, BFT/BFT

  33. An Example: Paxos/BFT Leader site Logical Machine LM1 BLink Logical Links Physical Machines Logical Machine LM2 LM5 Wide-Area Network LM3 LM4 Client

  34. Paxos/BFT in Action LM1 LM2 LM5 Update initiation from Client LM3 LM4

  35. Paxos/BFT in Action LM1 LM2 LM5 Local Ordering of Update, Threshold Signing of Update LM3 LM4

  36. Paxos/BFT in Action LM1 Forwarding of Update to Leader LM via BLink LM2 LM5 LM3 LM4

  37. Paxos/BFT in Action Local Ordering of Update, Threshold Signing of Proposal LM1 LM2 LM5 LM3 LM4

  38. Paxos/BFT in Action LM1 Dissemination of Proposal via BLink LM2 LM5 LM3 LM4

  39. Paxos/BFT in Action LM1 Local Ordering of Proposal, Threshold Signing of Accept LM2 LM5 LM3 LM4

  40. Paxos/BFT in Action LM1 Dissemination of Accepts via BLink LM2 LM5 LM3 LM4

  41. Paxos/BFT in Action LM1 Local Ordering of Accepts, Global Ordering of Proposal LM2 LM5 LM3 LM4

  42. Paxos/BFT in Action LM1 LM2 LM5 Reply to client LM3 LM4

  43. The BLink Protocol • Faulty servers can block communication into and out of logical machines. • Redundant message sending is not feasible in wide-area environments. • Our approach: BLink protocol • Outgoing wide-area messages are normally sent only once. • Four sub-protocols, depending on fault tolerance method in sending and receiving logical machines: • (Byzantine, Byzantine),(Byzantine,benign) • (benign,Byzantine),(benign, benign) • This talk: (Byzantine, Byzantine)

  44. Constructing Logical Links BLink Logical Link • Logical links are constructed from sets of virtual links. • Each virtual link contains: • Forwarder from the sending logical machine • Peer from the receiving logical machine. • Virtual links are constructed via a mapping function. • At a given time, the LM delegates wide-area communication responsibility to one virtual link on each logical link. • Virtual links suspected of being faulty are replaced according to aselection order. Sending Logical Machine Receiving Logical Machine Virtual Links

  45. Intuition: A Simple Mapping 0 X 0 • F = 2, N = 3F+1 = 7 • Servers 0 and 1 from Sending LM and Servers 2 and 3 from Receiving LM faulty. • Mapping function: • Virtual link i consists of the servers with id  i mod N • Selection order: • Cycle through virtual links in sequence (1, 2, 3, ….) 1 X 1 2 2 X 3 3 X • Two important metrics: • Ratio of correct to faulty virtual links • Worst-case number of consecutive faulty virtual links • With the simple mapping: • At least 1/3 of the virtual links are correct. • The adversary can block at most 2F consecutive virtual links. • With a more sophisticated mapping: • At least 4/9 of the virtual links are correct. • The adversary can block at most 2F consecutive virtual links. 4 4 5 5 6 6 Sending LM Receiving LM

  46. Architectural Comparison • Protocols were CPU-limited. • Relative maximum throughput corresponds to the number of expensive cryptographic operations.

  47. Architectural Comparison • Paxos/BFT vs. Steward • Same level of fault tolerance • Paxos/BFT locally orders all wide-area protocol events, Steward orders events only when necessary. • Paxos/BFT achieves about 2.5 times lower throughput than Steward. • Difference is the cost of providing customizability! • Protocols were CPU-limited. • Relative maximum throughput corresponds to the number of expensive cryptographic operations.

  48. Performance Optimizations • Computational Bottlenecks: • 1. Ordering all message reception events. • 2. Threshold signing outgoing messages. • Solutions: • Aggregate local ordering: batching • Aggregate threshold signing: Merkle trees • Use a single threshold signature for many outgoing messages. • Outgoing messages contain additional information needed to verify the threshold signature.

  49. Merkle Hash Trees • Use a single threshold signature for many outgoing wide-area messages. • Each leaf contains the digest of a message to be sent. • Each interior node contains the digest of the concatenation of its two children. • Threshold signature is computed on the root hash. N1-8 Threshold Sign Root hash: D(N1-4 || N5-8) N1-4 D(N1-2 || N3-4) N5-8 D(N5-6 || N7-8) D(N1 || N2) N1-2 N3-4 D(N3 || N4) D(N5 || N6) N5-6 N7-8 D(N7 || N8) D(m1) D(m2) D(m3) D(m4) D(m5) D(m6) D(m7) D(m8) N1 N2 N3 N4 N5 N6 N7 N8

  50. Example: Sending Message m4 • Outgoing message contains additional information needed to verify the signature. • The message itself • The siblings of the nodes on the path from m4 to the root hash • The signature on the root hash • To verify, use the digests to reconstruct the root hash, then verify the threshold signature. m4 || N3 || N1-2 || N5-8 Root hash Send: N1-8 Root hash: D(N1-4 || N5-8) N1-4 D(N1-2 || N3-4) N5-8 D(N5-6 || N7-8) D(N1 || N2) N1-2 N3-4 D(N3 || N4) D(N5 || N6) N5-6 N7-8 D(N7 || N8) D(m1) D(m2) D(m3) D(m4) D(m5) D(m6) D(m7) D(m8) N1 N2 N3 N4 N5 N6 N7 N8
