quality of service in distributed systems part 1 of distributed qos tutorial

Quality of Service in Distributed Systems(Part 1 of Distributed QoS Tutorial)

Klara Nahrstedt

klara@cs.uiuc.edu

http://www.cs.uiuc.edu/~klara

http://cairo.cs.uiuc.edu

Department of Computer Science

University of Illinois at Urbana Champaign

outline of the tutorial
Outline of the Tutorial
  • Quality of Service Definition, Services, Protocols, Frameworks (Part 1)
  • QoS Specification and Translation (Part 2)
  • QoS Issues in Operating Systems (Part 3)
  • QoS Issues in Distributed Systems (Part 4)
  • Conclusion
quality of service issues outline
Quality of Service Issues(Outline)
  • Quality of Service Definition
  • Service Classes
  • QoS Operations
  • Resource Operations
  • Current State of Art
  • Design Principles
  • QoS Architectures and Frameworks
quality of service
Quality of Service
  • Justification:
    • Multimedia systems consist of a set of services.
    • For multimedia services to be accepted, they need to provide high quality of their service.
    • In order to provide more generic multimedia services, the services get parameterized with so called Quality of Service (QoS) parameters
  • Examples of QoS parameters:
    • Audio and video services:
      • Sample rate 8000 samples per second
      • Video resolution 8 bits per pixel
    • Network service:
      • Connection setup time 50 ms
      • Loss rate 3 packets per second
quality of service5

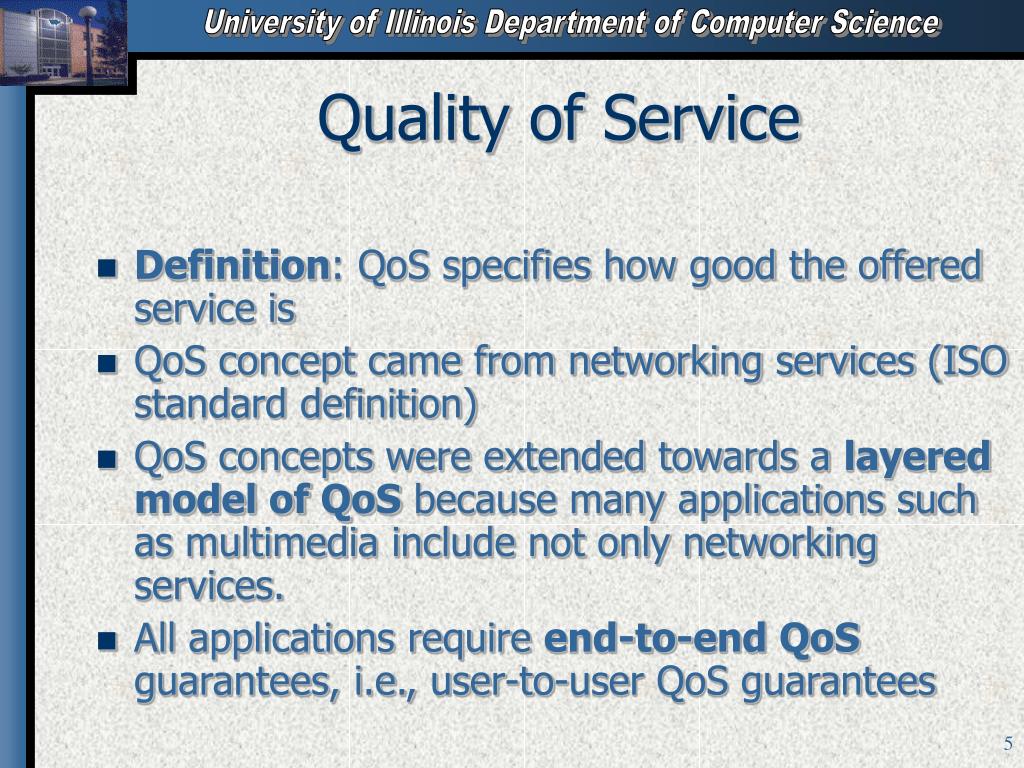

Quality of Service
  • Definition: QoS specifies how good the offered service is
  • QoS concept came from networking services (ISO standard definition)
  • QoS concepts were extended towards a layered model of QoS because many applications such as multimedia include not only networking services.
  • All applications require end-to-end QoS guarantees, i.e., user-to-user QoS guarantees
layered model of qos
Layered Model of QoS

(Perceptual QoS)

User / Human Perception

(Application QoS)

Applications / Tasks

(System QoS)

System: Operating and Distributed Systems

(Device QoS)

(Network QoS)

Multimedia Devices

Network Devices

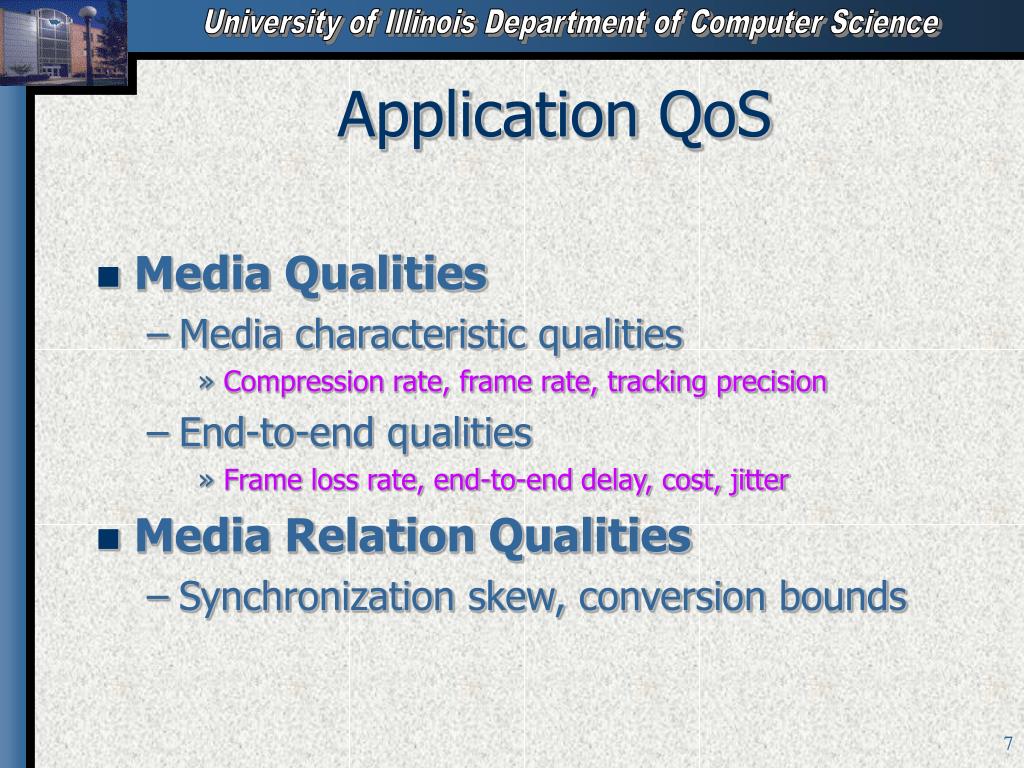

application qos
Application QoS
  • Media Qualities
    • Media characteristic qualities
      • Compression rate, frame rate, tracking precision
    • End-to-end qualities
      • Frame loss rate, end-to-end delay, cost, jitter
  • Media Relation Qualities
    • Synchronization skew, conversion bounds
system qos

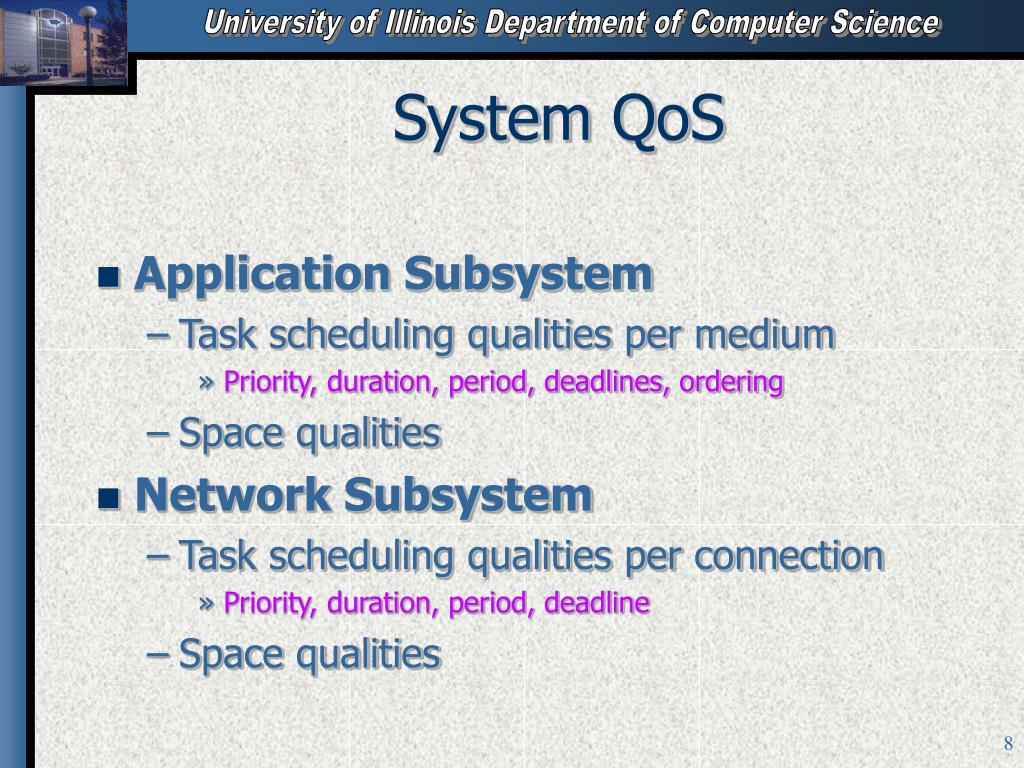

System QoS
  • Application Subsystem
    • Task scheduling qualities per medium
      • Priority, duration, period, deadlines, ordering
    • Space qualities
  • Network Subsystem
    • Task scheduling qualities per connection
      • Priority, duration, period, deadline
    • Space qualities
network qos
Network QoS
  • Throughput qualities
    • Throughput, burst size, duration of burst
  • Traffic qualities
    • Packet loss rate, intermediate delay, packet end-to-end delay
  • Performance qualities
    • Ordering, error control, cost, priority, multicast vs. unicast
end to end qos

Application

System

QoS and Resource Management

(Middleware)

(OS)

Network

End-to-End QoS

Application

System

QoS and Resource Management

(Middleware)

(OS)

QoS and Resource

Management

Network

Network

(Switch/Router)

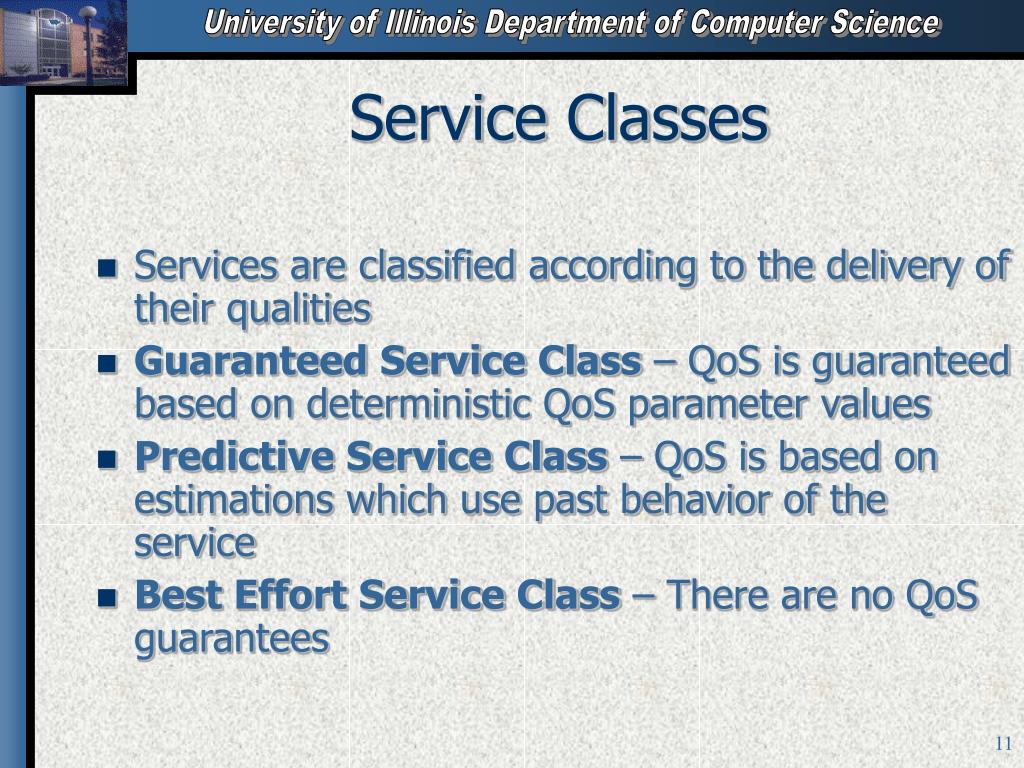

service classes
Service Classes
  • Services are classified according to the delivery of their qualities
  • Guaranteed Service Class – QoS is guaranteed based on deterministic QoS parameter values
  • Predictive Service Class – QoS is based on estimations which use past behavior of the service
  • Best Effort Service Class – There are no QoS guarantees
service classes12
Service Classes
  • QoS class determines (1) reliability of the offered QoS, (2) utilization of resources
  • Trade-offs

Guaranteed class

Application 1

Reserved

For App1

Reserved

For App2

Application 2

Best Effort class

Application 1

Conflict

Application 2

guaranteed service deterministic qos parameters
Guaranteed Service Deterministic QoS Parameters
  • Single Value of QoS
    • Average value, contractual value, threshold value, target value
  • Pair Values of QoS <QoS1, QoS2>, where QoS1 is required value, QoS2 is desired value
    • <QoSave, QoSpeak>, <QoSmin, QoSmax>
  • Triple Values of QoS <QoS1, QoS2, QoS3>, where QoS1 is best value, QoS2 is average value, QoS3 is worst value
    • <QoSpeak, QoSave, QoSmin>

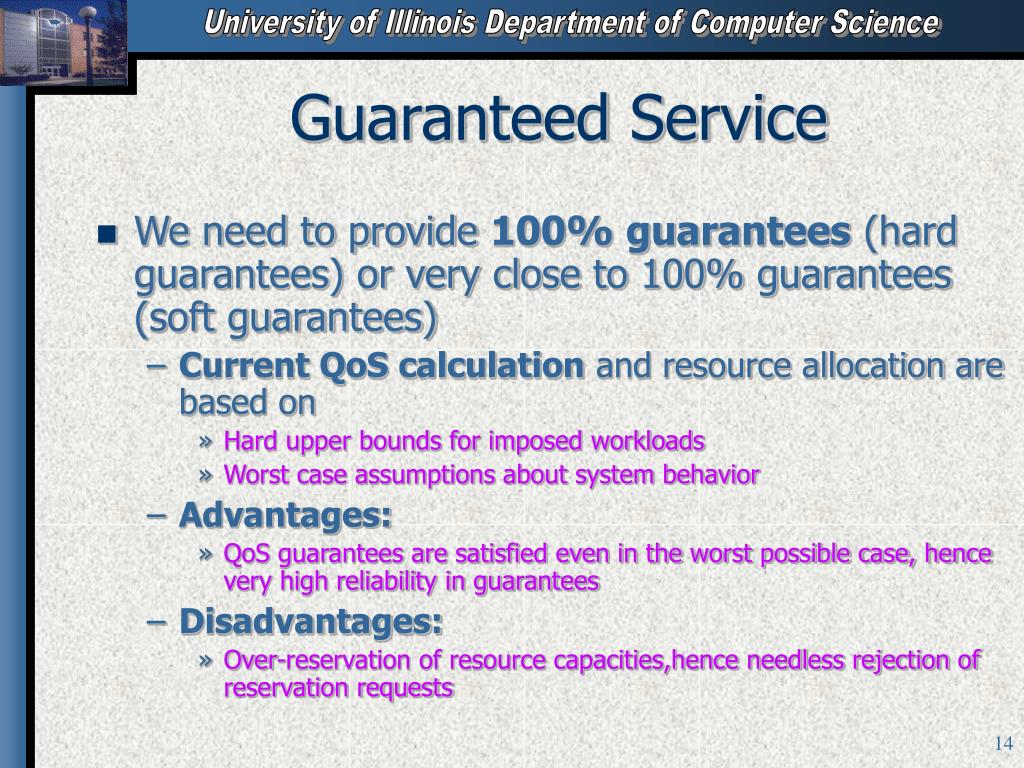

guaranteed service
Guaranteed Service
  • We need to provide 100% guarantees (hard guarantees) or very close to 100% guarantees (soft guarantees)
    • Current QoS calculation and resource allocation are based on
      • Hard upper bounds for imposed workloads
      • Worst case assumptions about system behavior
    • Advantages:
      • QoS guarantees are satisfied even in the worst possible case, hence very high reliability in guarantees
    • Disadvantages:
      • Over-reservation of resource capacities,hence needless rejection of reservation requests
predictive service statistical qos parameters
Predictive ServiceStatistical QoS Parameters
  • We utilize past values (QoS1, …, QoSi) to estimate future QoS values at step K>i:
  • Average value: QoSK=1/i x jQoSj
  • Maximum value: QoSK = maxj=1,…,i(QoSj)
  • Minimum value: QoSK = minj=1,…,i(QoSj)
  • Example of Request: Satisfy 95% times the QoSK bound during the lifetime of the service
best effort class
Best Effort Class
  • No QoS guarantees or only soft bounds
    • Possible calculation of soft QoS bounds can be based on
      • Average case with stochastic description of imposed workload
      • Average case with stochastic assumptions about the system behavior
  • Advantages:
    • Resource capacities can be statistically multiplexed, hence more processing requests can be granted
  • Disadvantages:
    • QoS may be temporarily violated, hence the service guarantees are not reliable

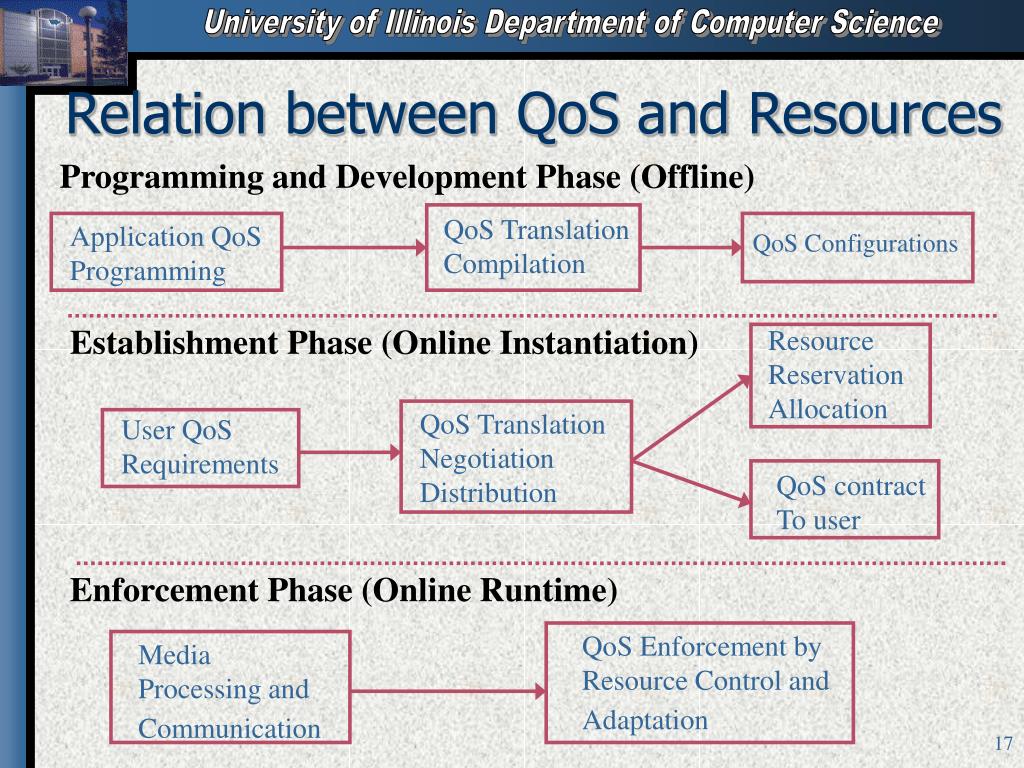

relation between qos and resources
Relation between QoS and Resources

Programming and Development Phase (Offline)

QoS Translation

Compilation

Application QoS

Programming

QoS Configurations

Establishment Phase (Online Instantiation)

Resource

Reservation

Allocation

QoS Translation

Negotiation

Distribution

User QoS

Requirements

QoS contract

To user

Enforcement Phase (Online Runtime)

QoS Enforcement by

Resource Control and

Adaptation

Media

Processing and

Communication

qos operation qos translation
QoS Operation (QoS Translation)
  • QoS Management performs operations such as translation, negotiation, re-negotiation,adaptation
  • Bidirectional QoS Translation
      • Human interface (user QoS) – application QoS
      • Application QoS – system QoS
      • System QoS – network QoS
  • Translation methods
      • Media Scaling
        • Transparent scaling vs non-transparent scaling
        • Temporal video scaling, frequency scaling, spatial scaling
      • Analytic translation
      • Translation via Probing and Profiling
      • Substitution and Transformation
qos operations qos negotiation

Service User

(Initiatee)

Service User

(Initiator)

Requested

QoS Value

Changed

QoS Value

Connect

confirm

Connect

request

Connect

indication

Connect

response

Service Provider

QoS Operations (QoS Negotiation)

Bidirectional QoS Negotiation

qos operations qos negotiation20

Service User

(Initiatee)

Service User

(Initiator)

Target QoS

Available QoS

Selected QoS

Selected

QoS

Lowest QoS

acceptable

Connect

confirm

Connect

request

Connect

indication

Connect

response

Service Provider

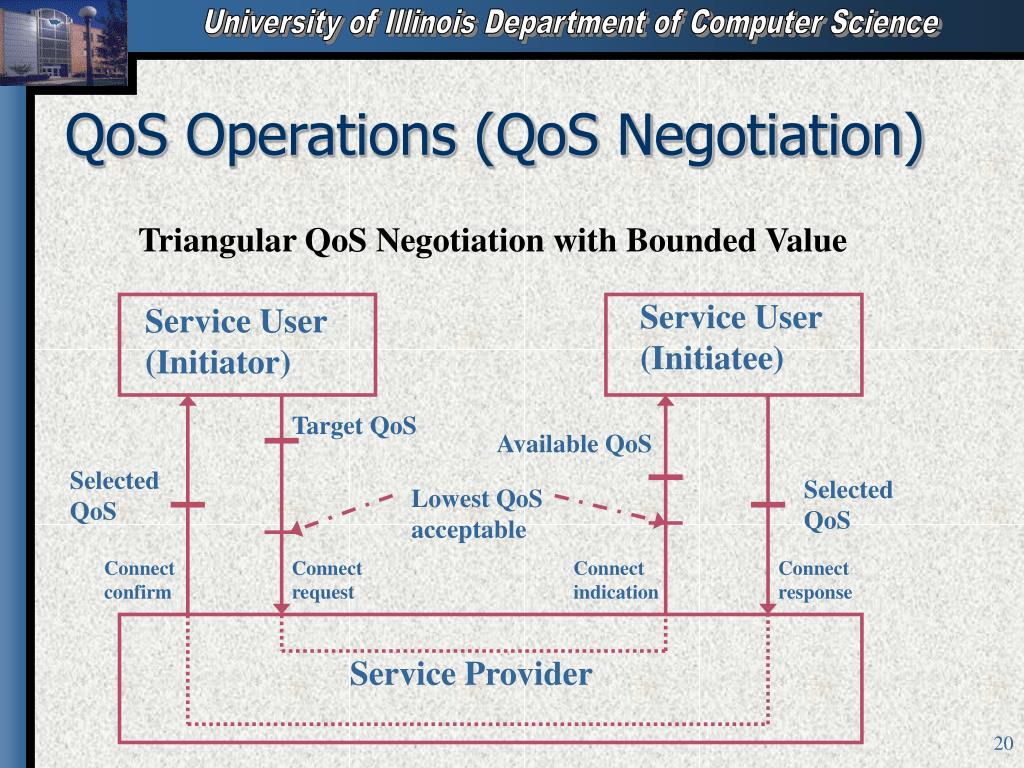

QoS Operations (QoS Negotiation)

Triangular QoS Negotiation with Bounded Value

qos negotiation within the layered model
QoS Negotiation within the Layered Model

Tune User/Application QoS

(Peer-to-Peer

Communication)

Negotiate/Renegotiate

Application QoS

(Layer-to-Layer

Communication)

QoS Translator (bi-directional)

Negotiate/Renegotiate

System QoS

accept/modify

reject

resource management operations
Resource Management Operations
  • Resource management performs operations during the establishment and execution phases to provide and enforce QoS
    • Establishment phase: schedulable units using shared resources must be admitted, and resources must be reserved and allocated
    • Enforcement phase: schedulable units must be scheduled, shaped, and possible adapted according to QoS contract during the lifetime of the application
resource establishment operations

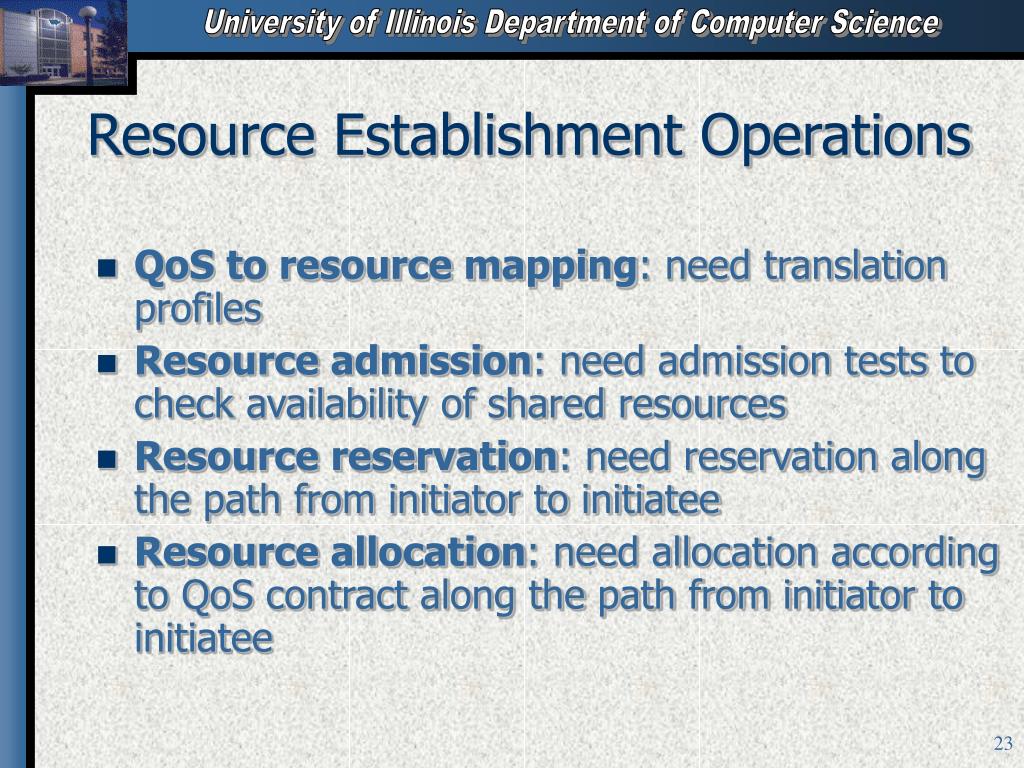

Resource Establishment Operations
  • QoS to resource mapping: need translation profiles
  • Resource admission: need admission tests to check availability of shared resources
  • Resource reservation: need reservation along the path from initiator to initiatee
  • Resource allocation: need allocation according to QoS contract along the path from initiator to initiatee
admission tests
Admission Tests
  • Task schedulabilitytests for CPU for deadline guarantees
    • Earliest deadline first scheduling test
    • Σiei/Pi 1, where ei is task processing time and Pi is task period
  • Packet schedulabilitytest for delay and jitter guarantees
  • Link bandwidth test for throughput guarantees
    • j Bj + Breq  Bmax, where Bjis admitted bandwidth of connection j, Breq is requested bandwidth by new connection, and Bmax is the maximal bandwidth capacity which the network host interface can provide
resource reservation operation

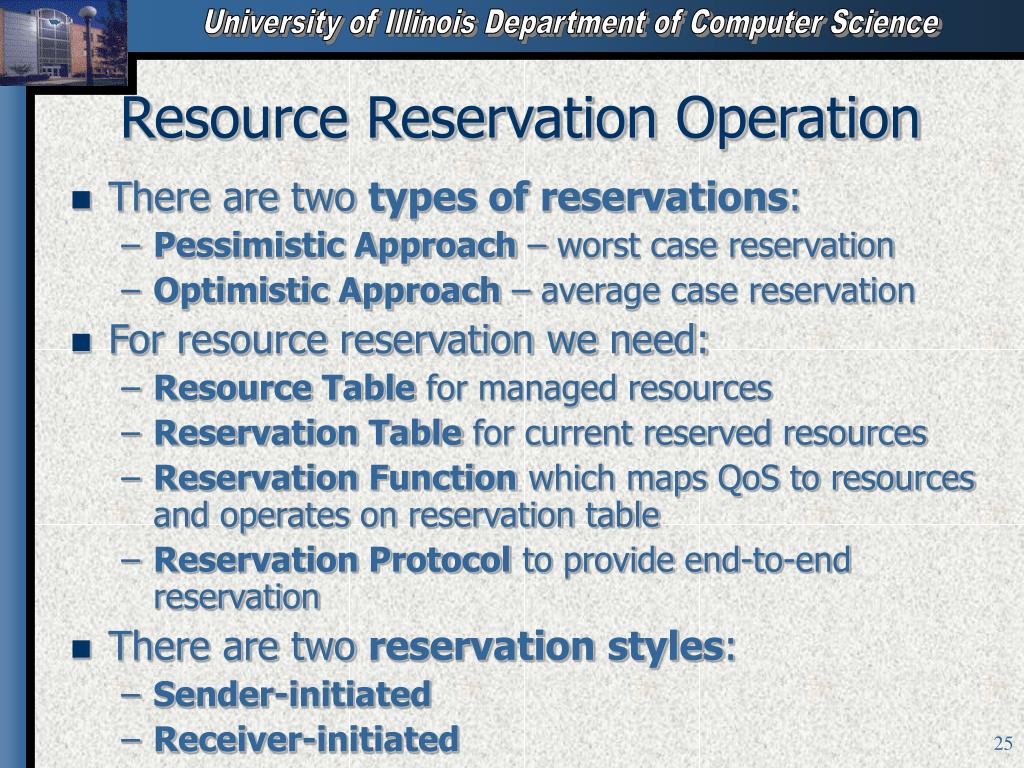

Resource Reservation Operation
  • There are two types of reservations:
    • Pessimistic Approach – worst case reservation
    • Optimistic Approach – average case reservation
  • For resource reservation we need:
    • Resource Table for managed resources
    • Reservation Table for current reserved resources
    • Reservation Function which maps QoS to resources and operates on reservation table
    • Reservation Protocol to provide end-to-end reservation
  • There are two reservation styles:
    • Sender-initiated
    • Receiver-initiated
resource enforcement operations
Resource Enforcement Operations
  • Resource Scheduling
    • Earliest Deadline First, Rate-Monotonic, Weighed Fair Queuing
  • Rate Control and Traffic Shaping
    • Leaky Bucket, Token Bucket, Stop-and-Go
  • End-to-End Error Control
    • Forward Error Correction, Selective Retransmission
  • Flow Control
    • Open Loop Flow Control (no feedback)
    • Closed Loop Flow Control (with feedback)
  • Flow Synchronization
    • Jitter Control, Traffic Shaping
management operations

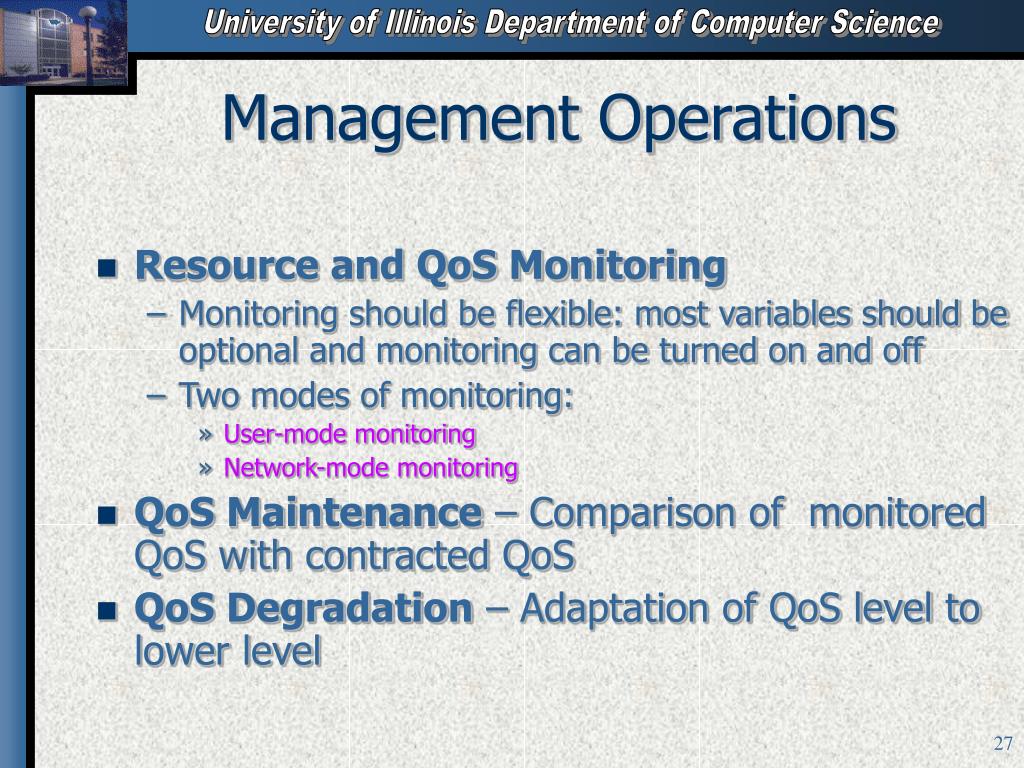

Management Operations
  • Resource and QoS Monitoring
    • Monitoring should be flexible: most variables should be optional and monitoring can be turned on and off
    • Two modes of monitoring:
      • User-mode monitoring
      • Network-mode monitoring
  • QoS Maintenance – Comparison of monitored QoS with contracted QoS
  • QoS Degradation – Adaptation of QoS level to lower level
management operations28
Management Operations
  • QoS Signaling – Specification of an interval over which QoS should be monitored and user informed about delivered performance
  • QoS Scaling – Changes of QoS levels by utilizing QoS filtering and QoS adaptation to achieve scalability when resource availability changes
qos renegotiation operation
QoS Renegotiation Operation

Application Management (User Interface)

Signal “Change ApplicationQoS”

Application QoS

Renegotiation

Entity

System QoS

Signal “Change System QoS”

System Management (Middleware, OS,

Communication Protocol Stack)

qos and resource adaptation
QoS and Resource Adaptation
  • As a result of a renegotiation request (request for change in quality), adaptation in QoS and adaptation in resource allocation must happen
  • Renegotiation request can come from:
    • User, Host System, Network
  • Resource Adaptation
    • Network Adaptation
      • Dynamic re-routing mechanism
      • Enhanced Random Early Detection (ERED) mechanism
      • TCP modification of window algorithm
    • Source Adaptation
      • Temporal scaling with feedback
      • Multiple Descriptions, Layered Encoding
current state of qos provision
Current State of QoS Provision
  • Incompleteness: Current interfaces are generally not QoS configurable
  • Lack of QoS enforcement mechanisms: Research is needed in distributed control, monitoring, adaptation and maintenance of QoS mechanisms
  • Lack of overall frameworks: Research is needed in QoS frameworks for heterogeneous environments (ubiquitous computing)

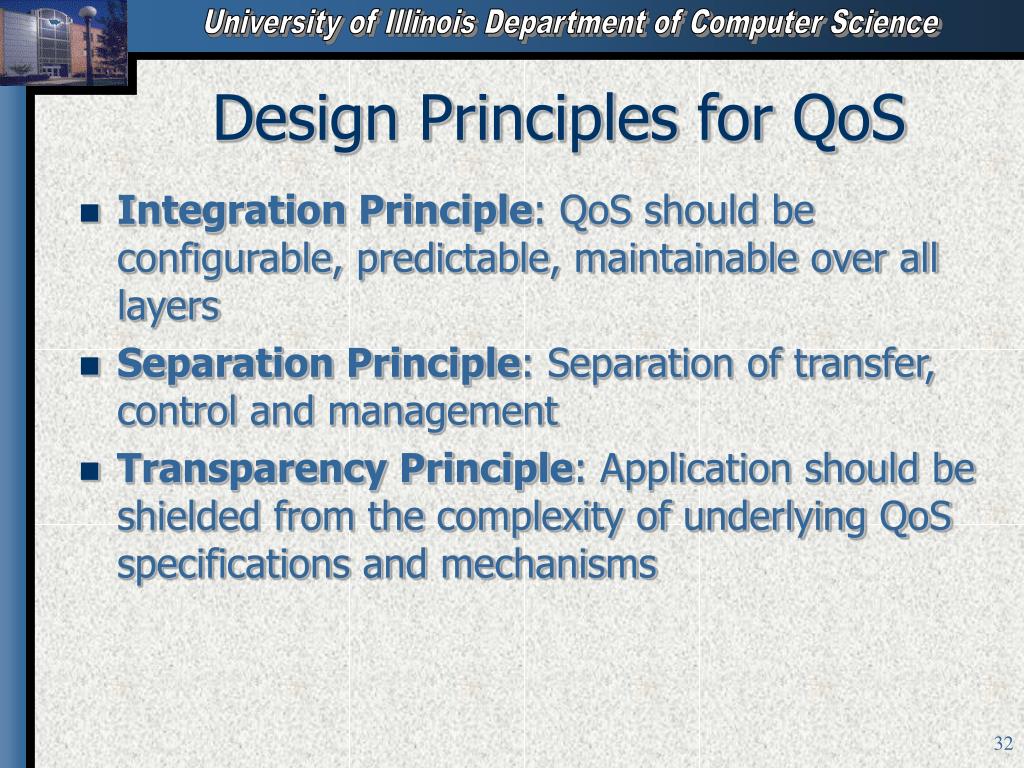

design principles for qos
Design Principles for QoS
  • Integration Principle: QoS should be configurable, predictable, maintainable over all layers
  • Separation Principle: Separation of transfer, control and management
  • Transparency Principle: Application should be shielded from the complexity of underlying QoS specifications and mechanisms
design principles for qos33
Design Principles for QoS
  • Asynchronous Resource Management Principle: Component-based design and functionality division between architectural modules should be supported
  • Performance Principle: Avoidance of multiplexing, Application Layer Framing, Integrated Layer Processing, usage of hardware
qos architectures in distributed multi media applications
QoS Architectures in Distributed Multi-media applications
  • Requirements:
    • Multi-media applications are sensitive to

QoSprovided by the underlying system

components;

    • Improvement of QoS in individual system

components such as network, OS, disk is not

enough;

    • Meeting QoS guarantees in distributed

multi-media systems is fundamentally an

end-to-end issue;

qos a lancaster
QoS-A, Lancaster
  • Idea: A layered architecture of services and mechanisms for quality of service management and control of continuous media flows in multi-service networks
  • Concepts:
      • Flow characterizing the production, transmission, and eventual

consumption of single media streams (both unicast and

multicast) with associated QoS;

      • Service contracts binding agreements of QoS levels between

users and providers;

      • Flow management providing for the monitoring and

maintenance of the contracted QoS levels.

qos a
QoS-A
  • Architecture:

- Protocol plane consisting of

distinct user and control

sub-planes;

- QoS management plane containing

a number of layer specific QoS

managers responsible for the fine

grained monitoring and maintenance

of their associated protocol entities;

- Flow management plane responsible

for flow establishment, QoS mapping,

and QoS scaling.

(From Aurrecoechea, C., Campbell, A.T. and L. Hauw, "A Survey of QoS Architectures", ACM/Springer

Verlag Multimedia Systems Journal , Special Issue on QoS Architecture, Vol. 6 No. 3, pg. 138-151, May 1998.)

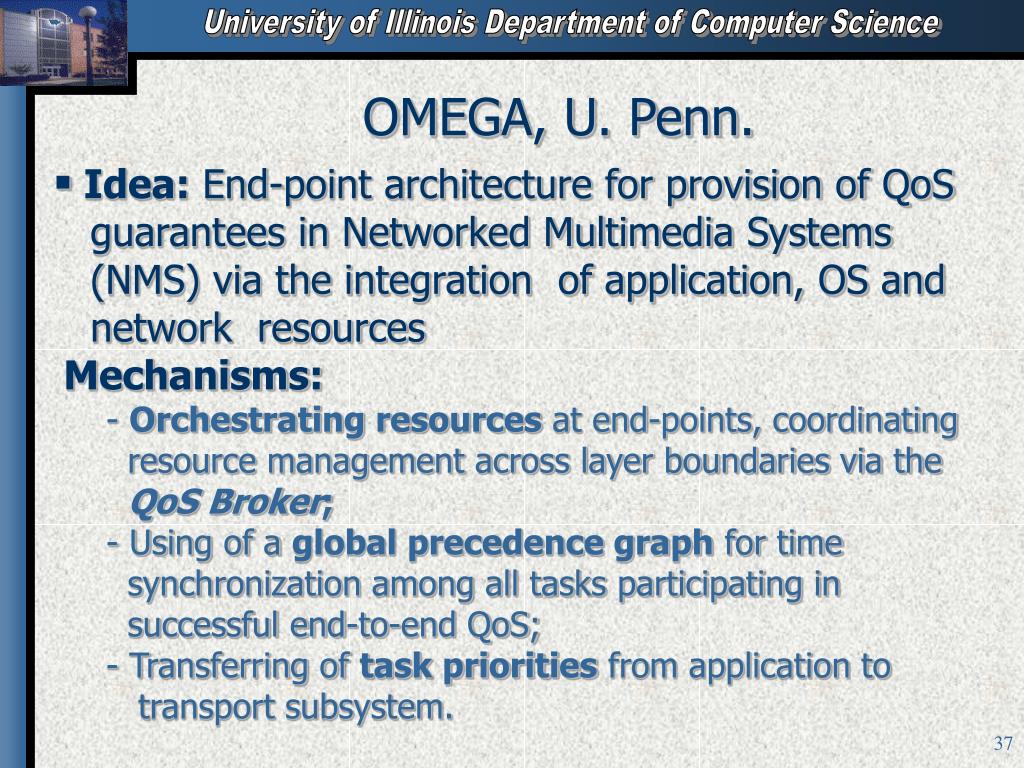

omega u penn
OMEGA, U. Penn.
  • Idea: End-point architecture for provision of QoS

guarantees in Networked Multimedia Systems

(NMS) via the integration of application, OS and

network resources

Mechanisms:

- Orchestrating resources at end-points, coordinating

resource management across layer boundaries via the

QoS Broker;

- Using of a global precedence graph for time

synchronization among all tasks participating in

successful end-to-end QoS;

- Transferring of task priorities from application to

transport subsystem.

omega
OMEGA
  • Architecture:

(From Klara Nahrstedt, Jonathan M. Smith, “Design, Implementation and Experiences with the OMEGA

End-point Architecture”, IEEE Journal on Selected Areas in Communication, Vol. 17, No. 7, September

1996, pp. 1263-1279.)

qosme columbia u
QoSME, Columbia U.
  • Idea: A QoS management framework for distributed

multimedia applications with a Language-level

abstractions

  • Mechanisms:

- Enabling the specification of how to allocate, monitor,

analyze and adapt to delivered QoS via Quality Assurance

Language (QuAL);

- Automatically generating the instrumentation to monitor

QoS when the compiled applications use QoSockets and

QoSOS;

- Integrating QoS management with standard network

management framework.

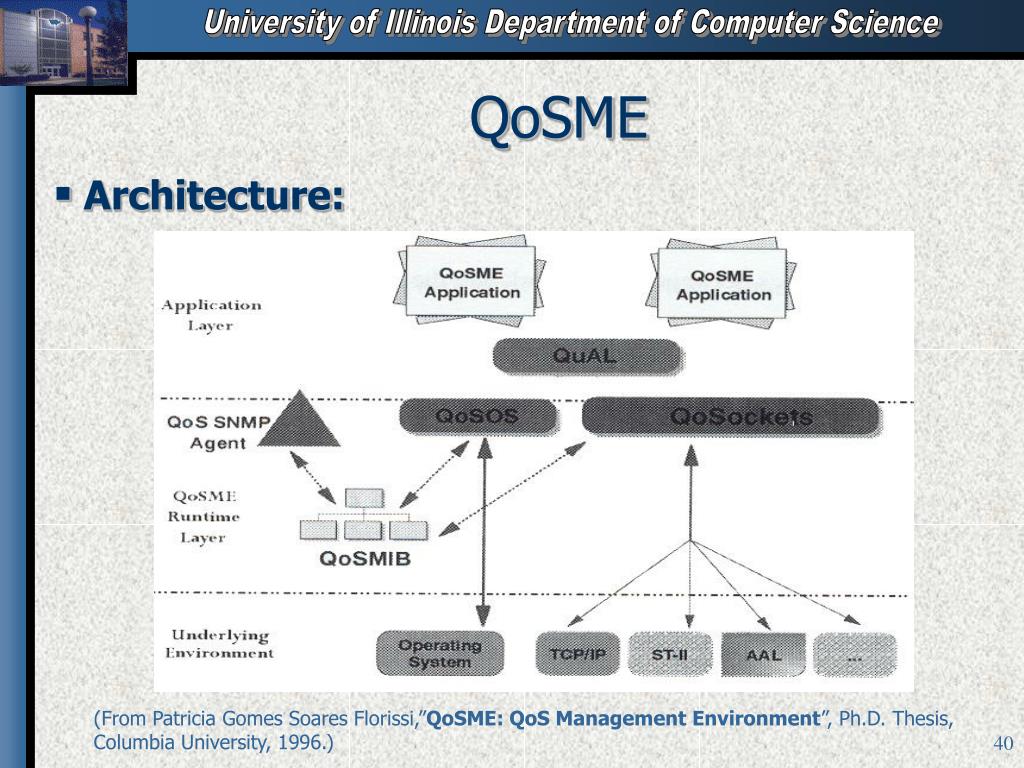

qosme
QoSME
  • Architecture:

(From Patricia Gomes Soares Florissi,”QoSME: QoS Management Environment”, Ph.D. Thesis,

Columbia University, 1996.)

summary of part 1
Summary of Part 1
  • We have talked about:
    • General Definition of QoS
    • Operations on QoS such as Negotiation, Translation
    • Relationship between QoS and Resources
    • Operations in QoS-aware Resource Management such as Resource Reservation, Admissions Control, Resource Scheduling, Adaptation
    • QoS Management, Algorithms and Protocols, Design Principles
    • Case Studies of QoS Management Architectures such as QoS-A, OMEGA, QOSME
