putting it all together the esri product line

Putting It All Together:The ESRI Product Line

Rudy Prosser

Aisha Jenkins

UC2009 Technical Workshop

overview
Overview
  • ESRI has many products
    • Which product or products is the right one for the job?
  • Goal is a framework for understanding
    • Provide some questions to get you started
  • Session is built around a scenario
  • Audience input and questions are expected

UC2009 Technical Workshop

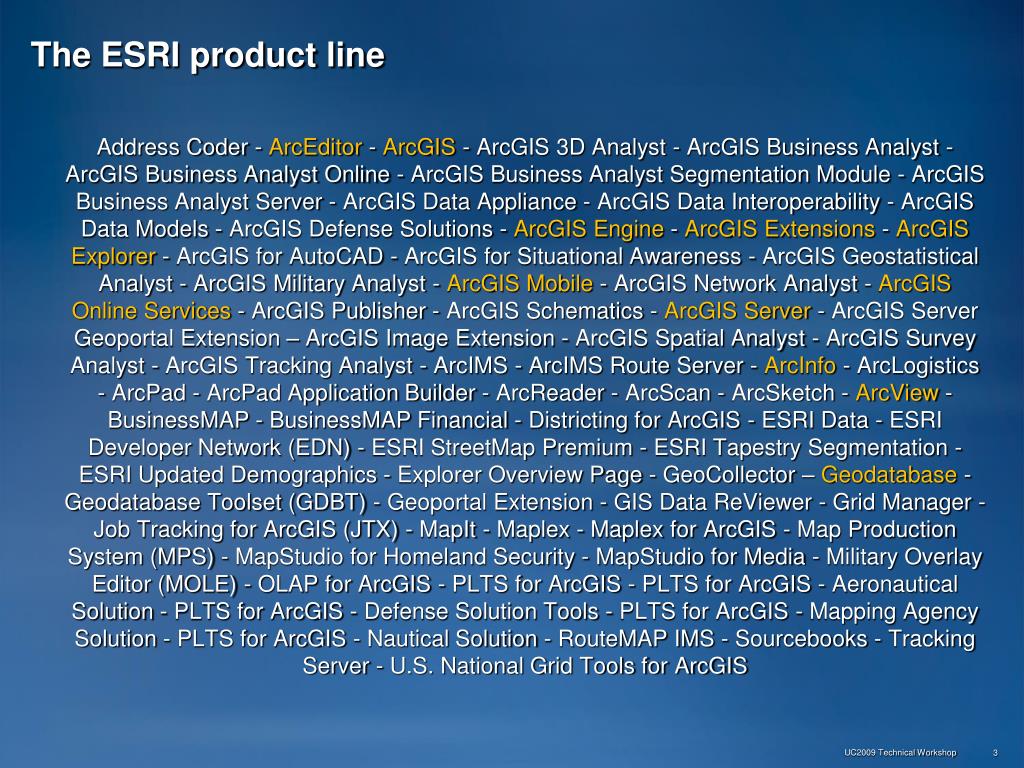

the esri product line
The ESRI product line

Address Coder - ArcEditor - ArcGIS - ArcGIS 3D Analyst - ArcGIS Business Analyst - ArcGIS Business Analyst Online - ArcGIS Business Analyst Segmentation Module - ArcGIS Business Analyst Server - ArcGIS Data Appliance - ArcGIS Data Interoperability - ArcGIS Data Models - ArcGIS Defense Solutions - ArcGIS Engine - ArcGIS Extensions - ArcGIS Explorer - ArcGIS for AutoCAD - ArcGIS for Situational Awareness - ArcGIS Geostatistical Analyst - ArcGIS Military Analyst - ArcGIS Mobile - ArcGIS Network Analyst - ArcGIS Online Services - ArcGIS Publisher - ArcGIS Schematics - ArcGIS Server - ArcGIS Server Geoportal Extension – ArcGIS Image Extension - ArcGIS Spatial Analyst - ArcGIS Survey Analyst - ArcGIS Tracking Analyst - ArcIMS - ArcIMS Route Server - ArcInfo - ArcLogistics - ArcPad - ArcPad Application Builder - ArcReader - ArcScan - ArcSketch - ArcView - BusinessMAP - BusinessMAP Financial - Districting for ArcGIS - ESRI Data - ESRI Developer Network (EDN) - ESRI StreetMap Premium - ESRI Tapestry Segmentation - ESRI Updated Demographics - Explorer Overview Page - GeoCollector – Geodatabase - Geodatabase Toolset (GDBT) - Geoportal Extension - GIS Data ReViewer - Grid Manager - Job Tracking for ArcGIS (JTX) - MapIt - Maplex - Maplex for ArcGIS - Map Production System (MPS) - MapStudio for Homeland Security - MapStudio for Media - Military Overlay Editor (MOLE) - OLAP for ArcGIS - PLTS for ArcGIS - PLTS for ArcGIS - Aeronautical Solution - PLTS for ArcGIS - Defense Solution Tools - PLTS for ArcGIS - Mapping Agency Solution - PLTS for ArcGIS - Nautical Solution - RouteMAP IMS - Sourcebooks - Tracking Server - U.S. National Grid Tools for ArcGIS

UC2009 Technical Workshop

the framework
The framework
  • Product groups - “Desktop to enterprise”
    • ArcGIS Desktop & extensions
    • Geodatabase & ArcSDE
    • ArcGIS Server & extensions
    • Client applications & developer APIs
  • Tasks - “Data collection, management, analysis, dissemination”
    • Performing analyses & presenting results
    • Sharing data & maps
    • Providing services
    • Building & providing applications

UC2009 Technical Workshop

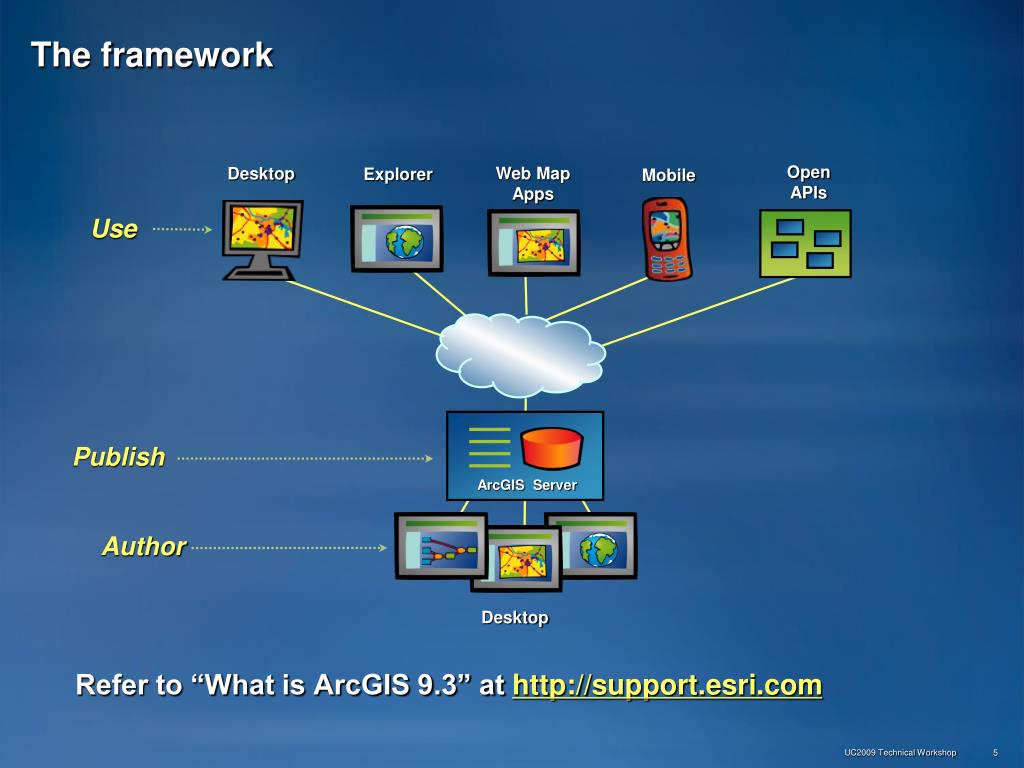

the framework5

ArcGIS Server

The framework

Open

APIs

Web Map

Apps

Mobile

Desktop

Explorer

Refer to “What is ArcGIS 9.3” at http://support.esri.com

Use

Publish

Author

Desktop

UC2009 Technical Workshop

the scenario
The scenario…
  • Starts with a single user and a problem…
  • Expands from there…

UC2009 Technical Workshop

arcgis focus on the desktop

ArcGIS Server

ArcGIS: focus on the Desktop

Open

APIs

Web Map

Apps

Mobile

Desktop

Explorer

Use

Publish

Author

Desktop

UC2009 Technical Workshop

arcgis desktop functionality

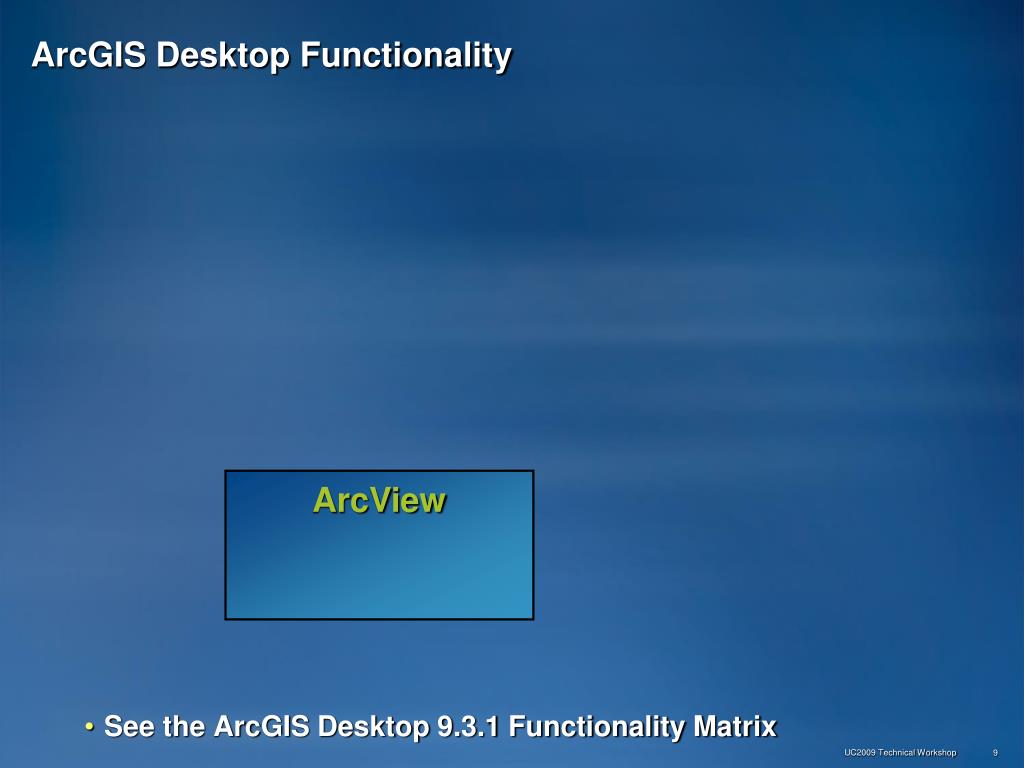

ArcGIS Desktop Functionality
  • See the ArcGIS Desktop 9.3.1 Functionality Matrix

ArcView

UC2009 Technical Workshop

arcgis desktop functionality10
ArcGIS Desktop Functionality
  • See the ArcGIS Desktop 9.3.1 Functionality Matrix

ArcEditor = ArcView +

ArcView

UC2009 Technical Workshop

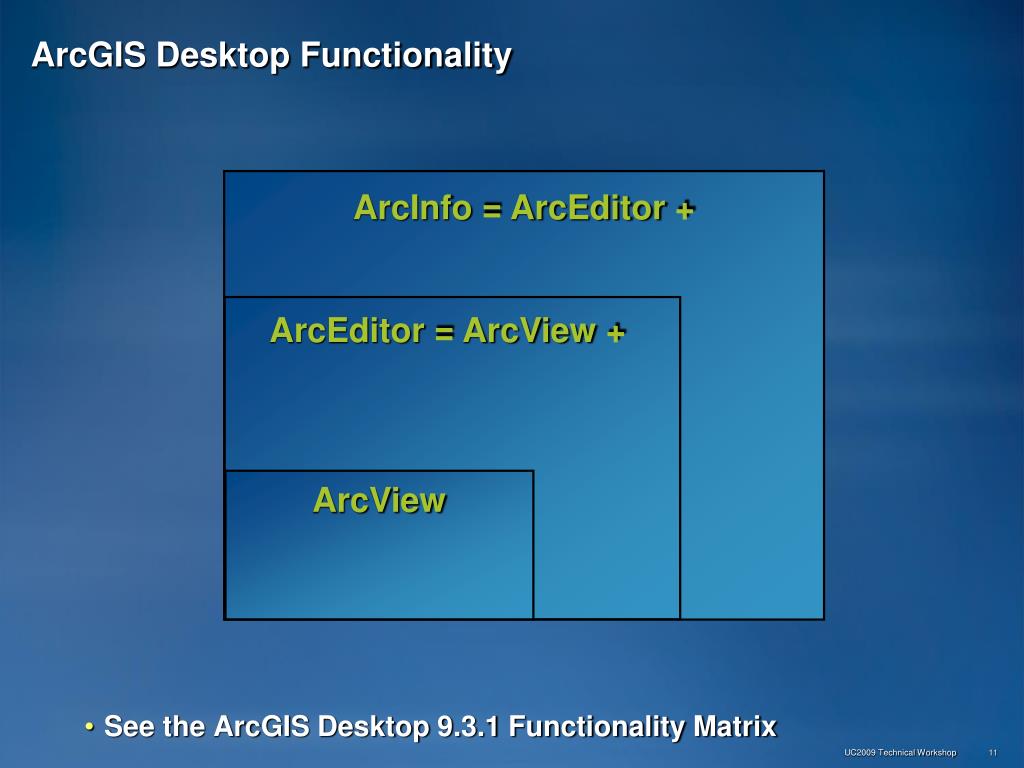

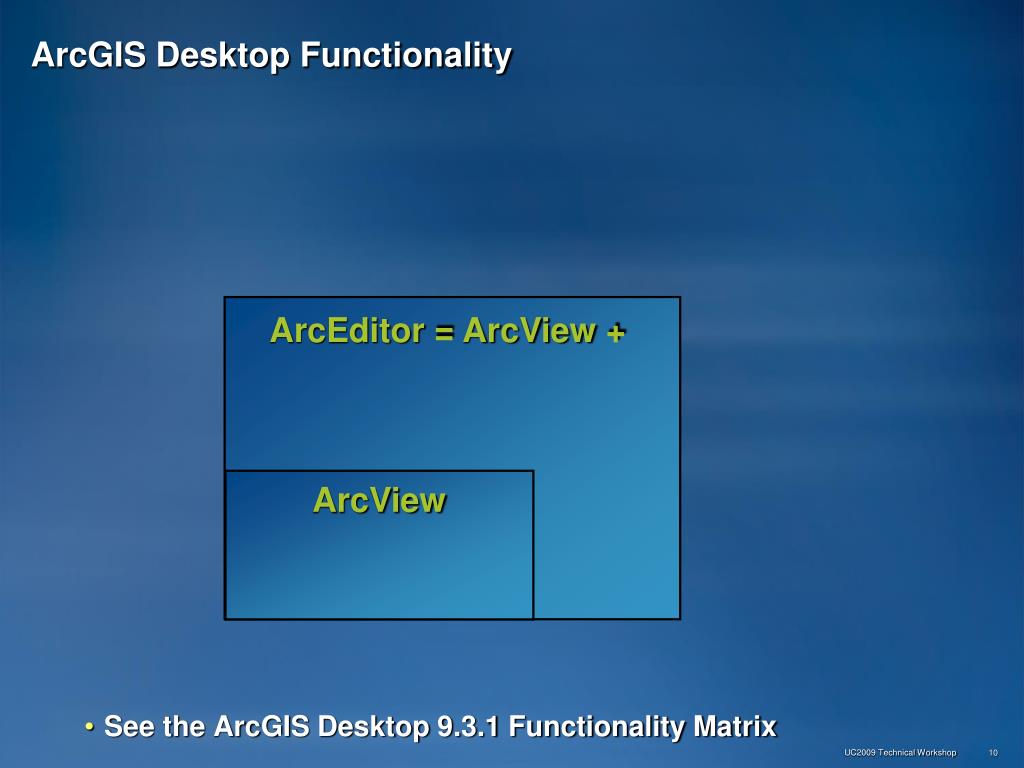

arcgis desktop functionality11
ArcGIS Desktop Functionality

ArcInfo = ArcEditor +

  • See the ArcGIS Desktop 9.3.1 Functionality Matrix

ArcEditor = ArcView +

ArcView

UC2009 Technical Workshop

if you want to
If you want to…
  • Display, analyze, manage, and store vector, raster and tabular data
  • Basic geoprocessing (~200 tools)

ArcView

Desktop

UC2009 Technical Workshop

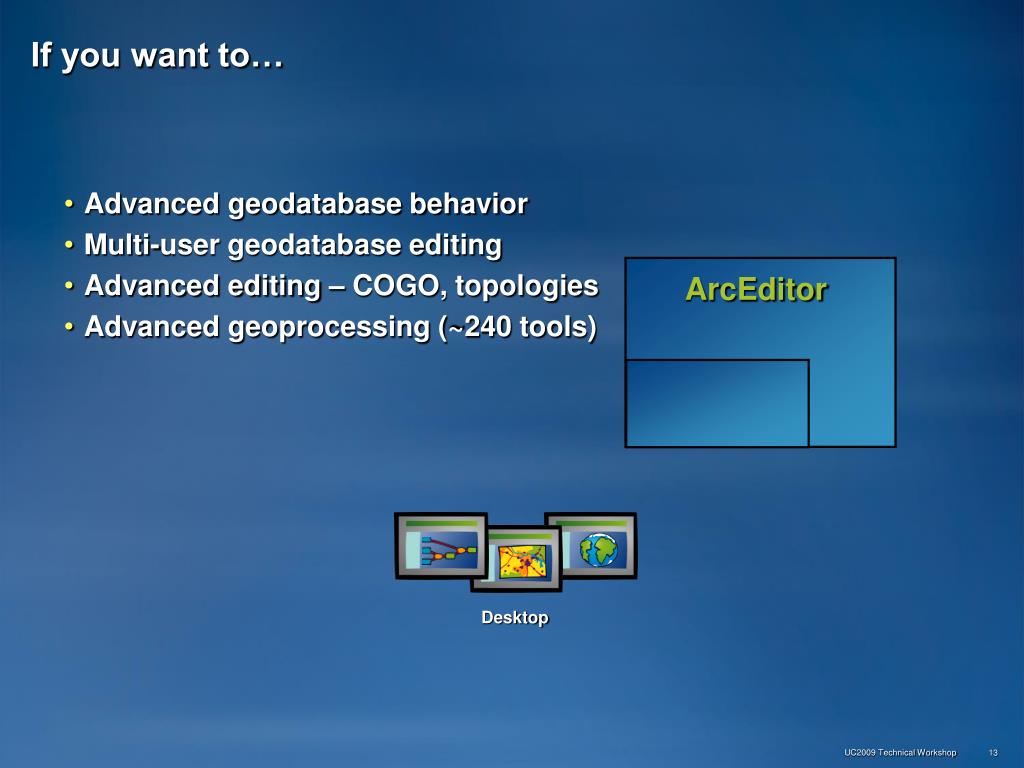

if you want to13
If you want to…
  • Advanced geodatabase behavior
  • Multi-user geodatabase editing
  • Advanced editing – COGO, topologies
  • Advanced geoprocessing (~240 tools)

ArcEditor

Desktop

UC2009 Technical Workshop

if you want to14

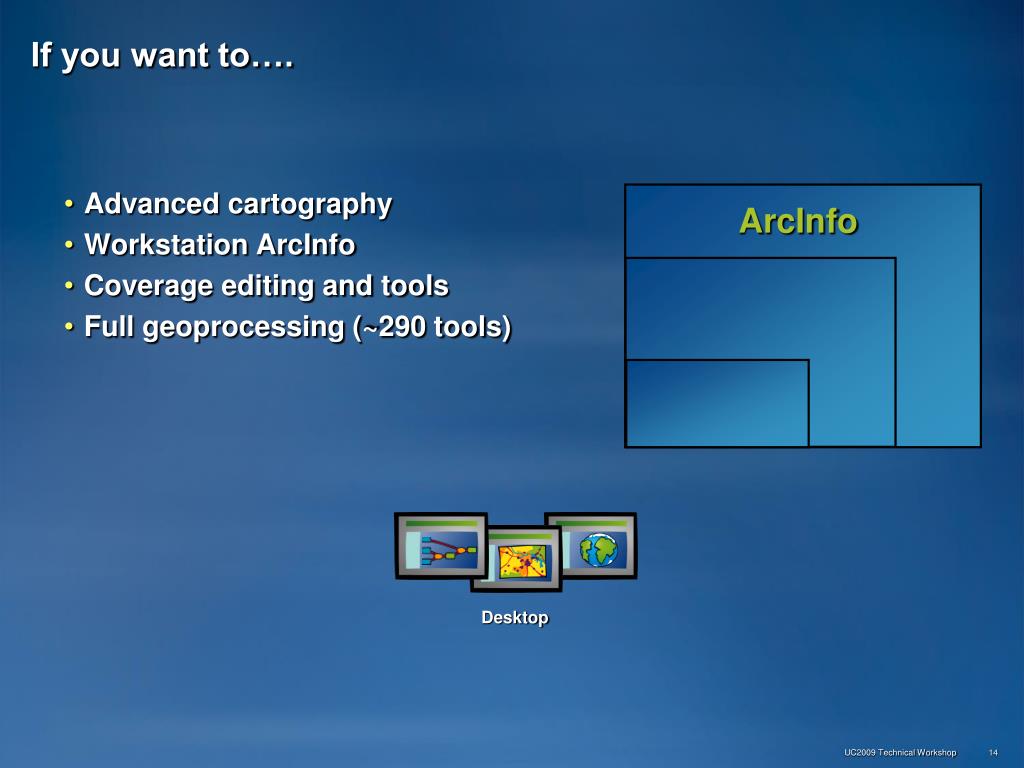

If you want to….
  • Advanced cartography
  • Workstation ArcInfo
  • Coverage editing and tools
  • Full geoprocessing (~290 tools)

ArcInfo

Desktop

UC2009 Technical Workshop

for additional functionality arcgis desktop extensions
For additional functionality ArcGIS Desktop Extensions…
  • Data Interoperability
  • Image Extension
  • Job Tracking Analyst
  • Network Analyst
  • 3D Analyst
  • Business Analyst
  • Geostatistical Analyst
  • ArcGIS Schematics
  • Spatial Analyst
  • Survey Analyst
  • Tracking Analyst
  • ArcGIS Publisher
  • ArcScan
  • Maplex
  • Tracking Analyst
  • ArcGIS Defense Solutions
  • Production Line Tool Set (PLTS)

UC2009 Technical Workshop

arcgis desktop resources

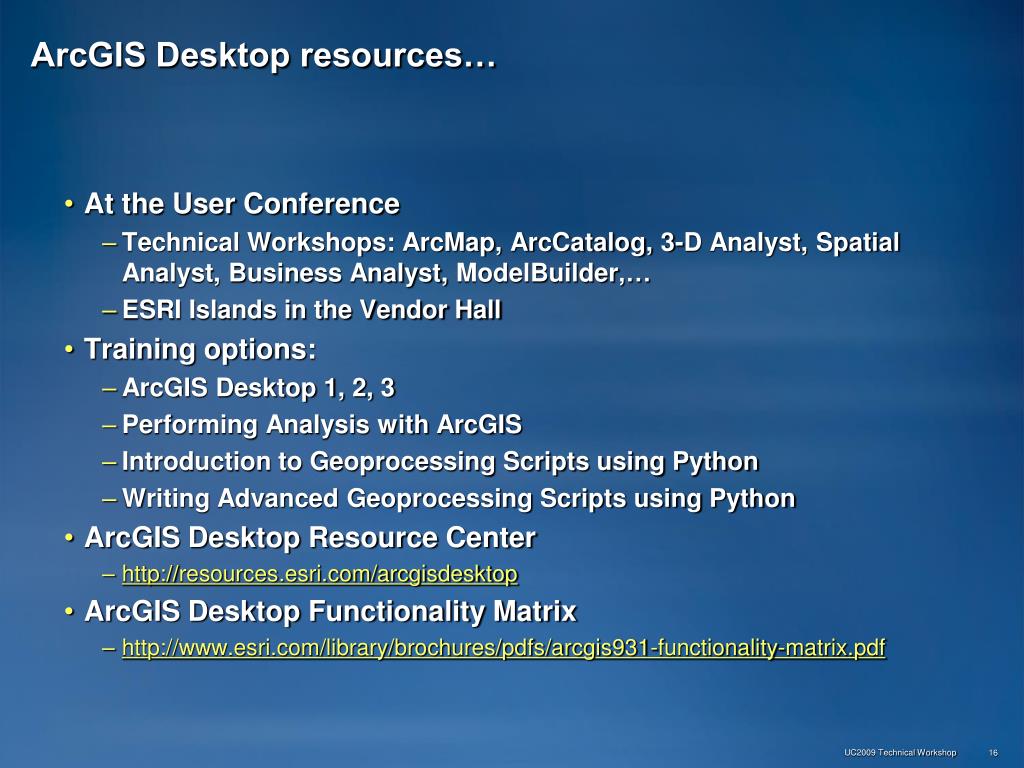

ArcGIS Desktop resources…
  • At the User Conference
    • Technical Workshops: ArcMap, ArcCatalog, 3-D Analyst, Spatial Analyst, Business Analyst, ModelBuilder,…
    • ESRI Islands in the Vendor Hall
  • Training options:
    • ArcGIS Desktop 1, 2, 3
    • Performing Analysis with ArcGIS
    • Introduction to Geoprocessing Scripts using Python
    • Writing Advanced Geoprocessing Scripts using Python
  • ArcGIS Desktop Resource Center
    • http://resources.esri.com/arcgisdesktop
  • ArcGIS Desktop Functionality Matrix
    • http://www.esri.com/library/brochures/pdfs/arcgis931-functionality-matrix.pdf

UC2009 Technical Workshop

selecting a desktop product
Selecting a desktop product
  • Work with geodatabase topology
  • Require advanced geoprocessing
  • Working with Network Analyst Extension
  • Use PLTS to generate maps

UC2009 Technical Workshop

selecting a desktop product18
Selecting a desktop product
  • Work with geodatabase topology
  • Require advanced geoprocessing
  • Working with Network Analyst Extension
  • Use PLTS to generate maps
  • Lets choose ArcGIS ArcEditor…

UC2009 Technical Workshop

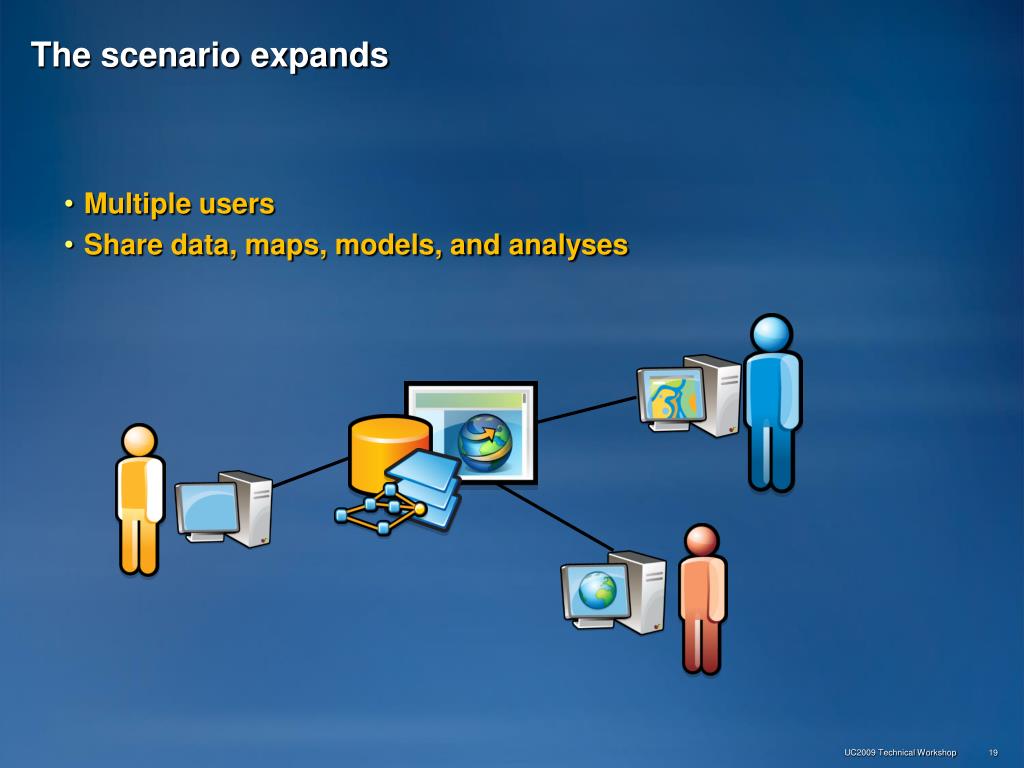

the scenario expands
The scenario expands
  • Multiple users
  • Share data, maps, models, and analyses

UC2009 Technical Workshop

which geodatabase should i choose
Which Geodatabase should I choose?

UC2009 Technical Workshop

arcgis focus on the geodatabase

ArcGIS Server

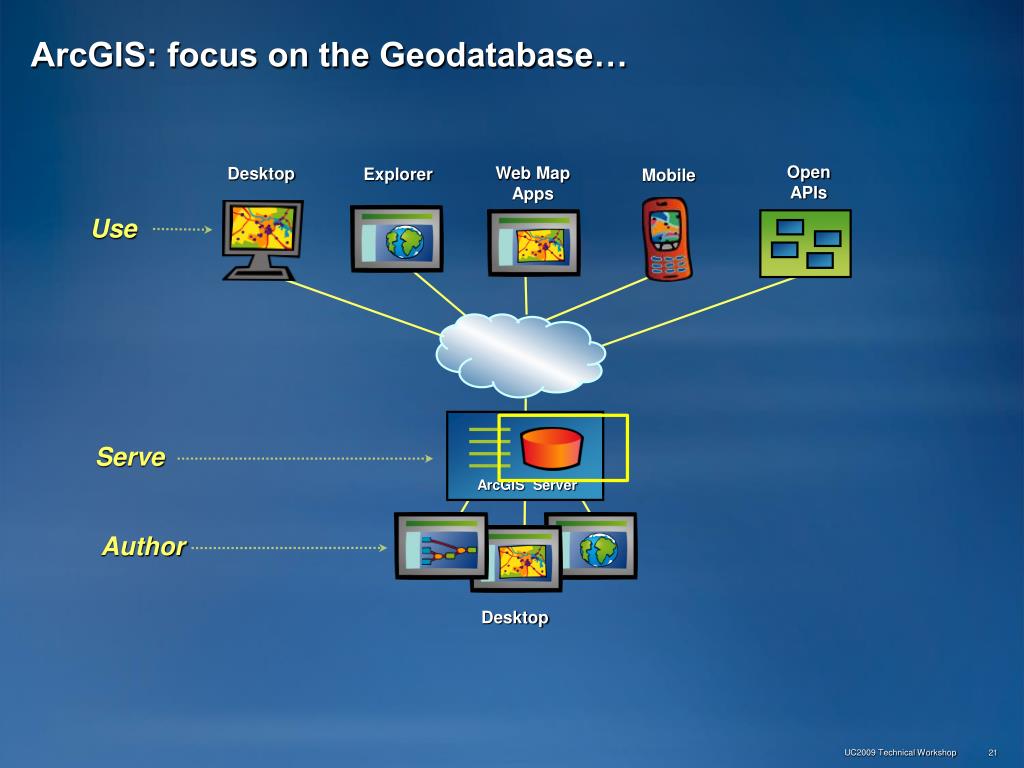

ArcGIS: focus on the Geodatabase…

Open

APIs

Web Map

Apps

Mobile

Desktop

Explorer

Use

Serve

Author

Desktop

UC2009 Technical Workshop

personal ms access geodatabase

ArcGIS Server

Personal

(Access)

Personal (MS Access)Geodatabase
  • Personal (MS Access)Geodatabase
    • Windows platform only
    • Supports geodatabase topology, raster catalogs, network and terrain datasets
    • Available at all license levels
    • 2 GB size limit
    • No multi-user editing

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

file geodatabase

ArcGIS Server

Personal

(Access)

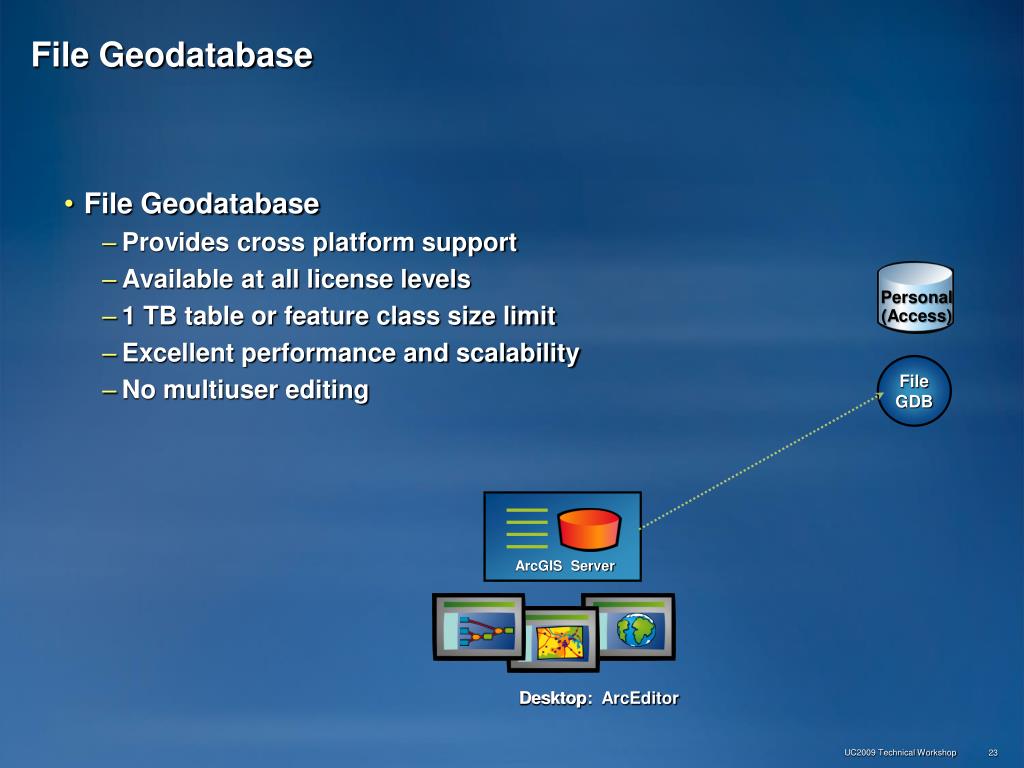

File Geodatabase
  • File Geodatabase
    • Provides cross platform support
    • Available at all license levels
    • 1 TB table or feature class size limit
    • Excellent performance and scalability
    • No multiuser editing

File

GDB

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

desktop arcsde geodatabase

ArcGIS Server

Personal

GDB

Personal

(Access)

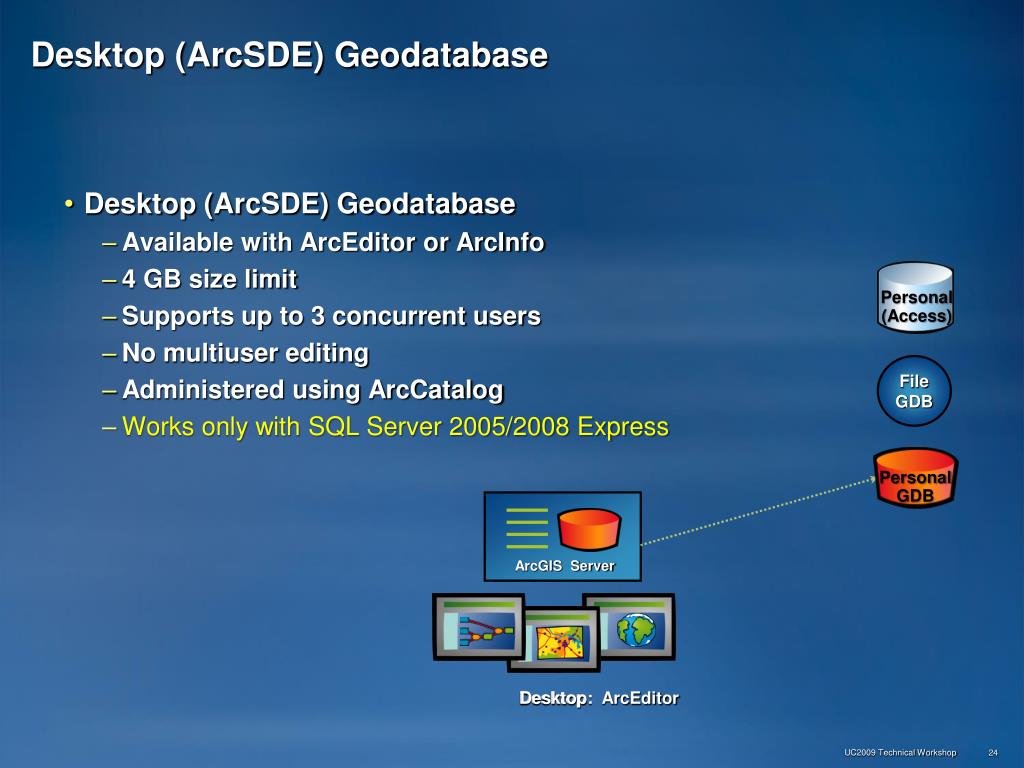

Desktop (ArcSDE) Geodatabase
  • Desktop (ArcSDE) Geodatabase
    • Available with ArcEditor or ArcInfo
    • 4 GB size limit
    • Supports up to 3 concurrent users
    • No multiuser editing
    • Administered using ArcCatalog
    • Works only with SQL Server 2005/2008 Express

File

GDB

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

workgroup arcsde geodatabase

Workgroup

GDB

ArcGIS Server

Personal

GDB

Personal

(Access)

Workgroup (ArcSDE) Geodatabase
  • Workgroup (ArcSDE) Geodatabase
    • Available with ArcGIS Server Workgroup Edition
    • 4 GB size limit
    • Supports up to 10 concurrent users, unlimited Internet
    • Support for multiuser editing
    • Administered using ArcCatalog (ArcEditor or ArcInfo)
    • Works only with SQL Server 2005/2008 Express

File

GDB

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

enterprise arcsde geodatabase

Enterprise

GDB

Workgroup

GDB

ArcGIS Server

Personal

GDB

Personal

(Access)

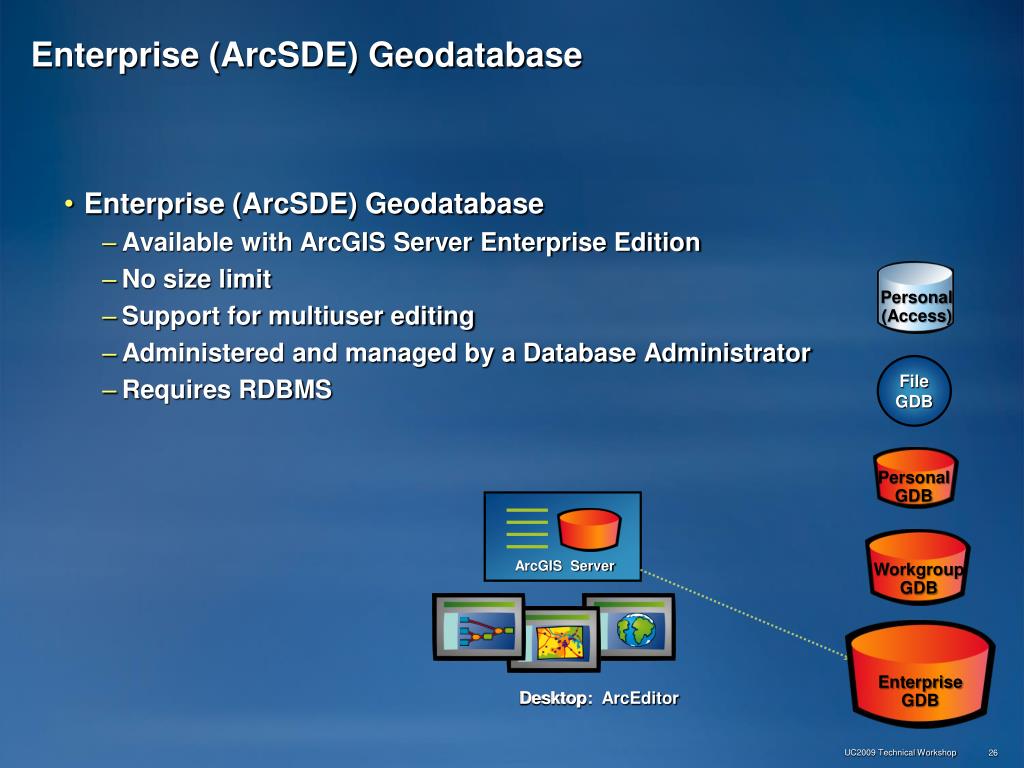

Enterprise (ArcSDE) Geodatabase
  • Enterprise (ArcSDE) Geodatabase
    • Available with ArcGIS Server Enterprise Edition
    • No size limit
    • Support for multiuser editing
    • Administered and managed by a Database Administrator
    • Requires RDBMS

File

GDB

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

arcgis supported geodatabases

Enterprise

GDB

Workgroup

GDB

Personal

GDB

Personal

(Access)

ArcGIS Supported Geodatabases

File

GDB

*Works only with SQL Server 2005/2008 Express

UC2009 Technical Workshop

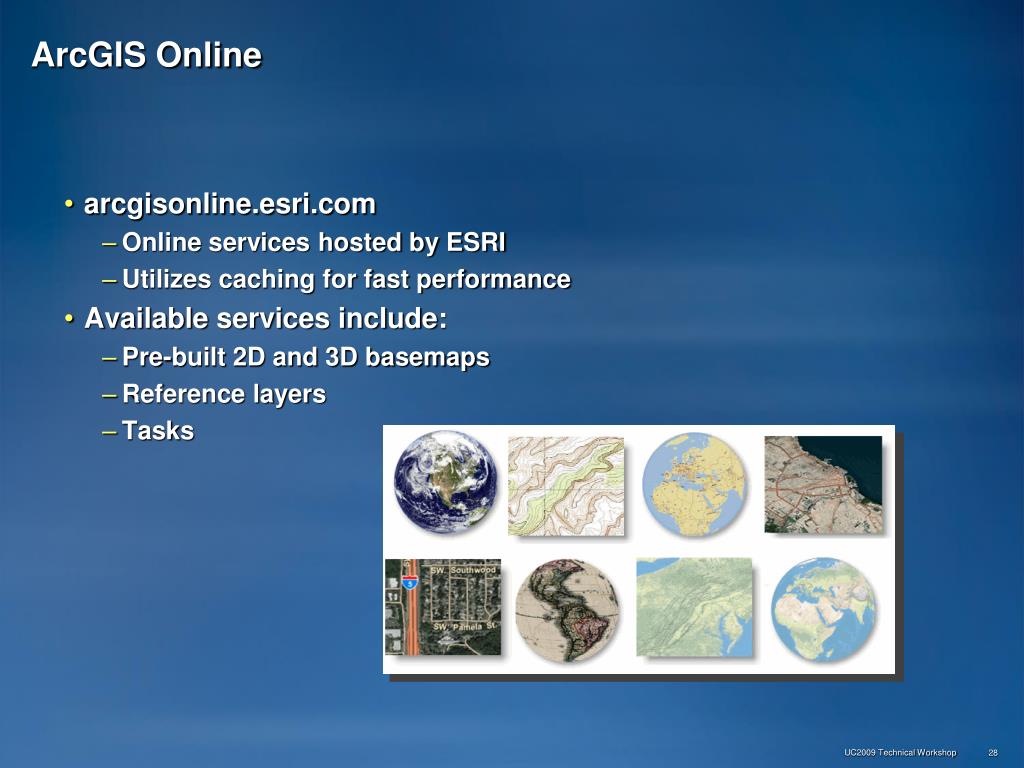

arcgis online
ArcGIS Online
  • arcgisonline.esri.com
    • Online services hosted by ESRI
    • Utilizes caching for fast performance
  • Available services include:
    • Pre-built 2D and 3D basemaps
    • Reference layers
    • Tasks

UC2009 Technical Workshop

geodatabase resources
Geodatabase resources…
  • At the User Conference
    • Technical Workshops: Geodatabase Essentials, ArcSDE Configuration, Administration for Oracle, SQL Server, PostgreSQL
    • Geodata Management at the Server Island
    • Getting Started with ArcGIS Online
  • Training options:
    • Building Geodatabases
    • Data Management in a Multiuser Geodatabase
    • Managing Editing Workflows in a Multiuser Geodatabase
    • ArcGIS Server Enterprise Configuration and Tuning for SQL Server or Oracle
  • Geodatabase Resource Center
    • http://resources.esri.com/geodatabase
  • Geodatabase Comparison
    • http://webhelp.esri.com/arcgisdesktop/9.3/index.cfm?TopicName=Types_of_geodatabase

UC2009 Technical Workshop

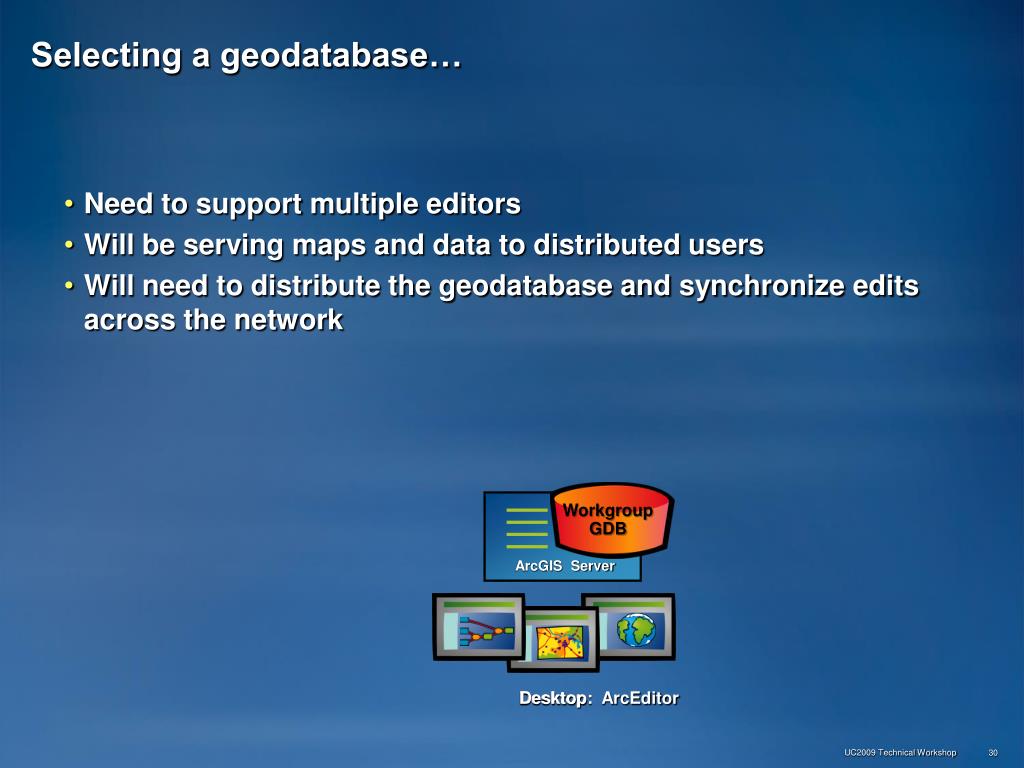

selecting a geodatabase

Workgroup

GDB

ArcGIS Server

Selecting a geodatabase…
  • Need to support multiple editors
  • Will be serving maps and data to distributed users
  • Will need to distribute the geodatabase and synchronize edits across the network

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

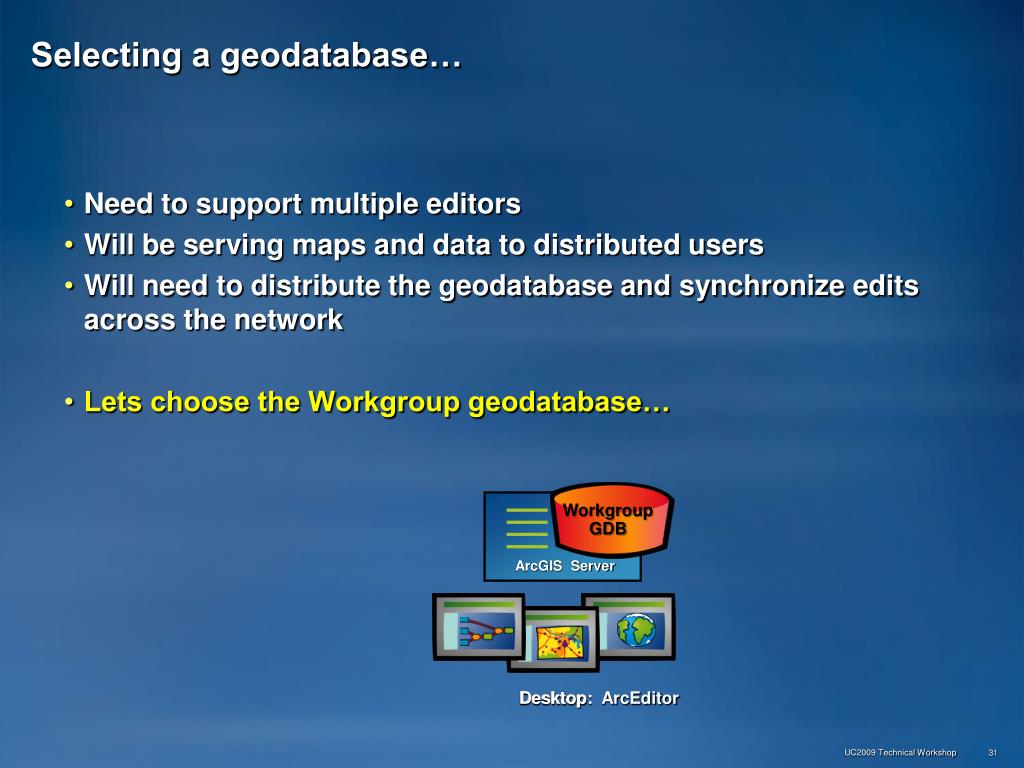

selecting a geodatabase31

Workgroup

GDB

ArcGIS Server

Selecting a geodatabase…
  • Need to support multiple editors
  • Will be serving maps and data to distributed users
  • Will need to distribute the geodatabase and synchronize edits across the network
  • Lets choose the Workgroup geodatabase…

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

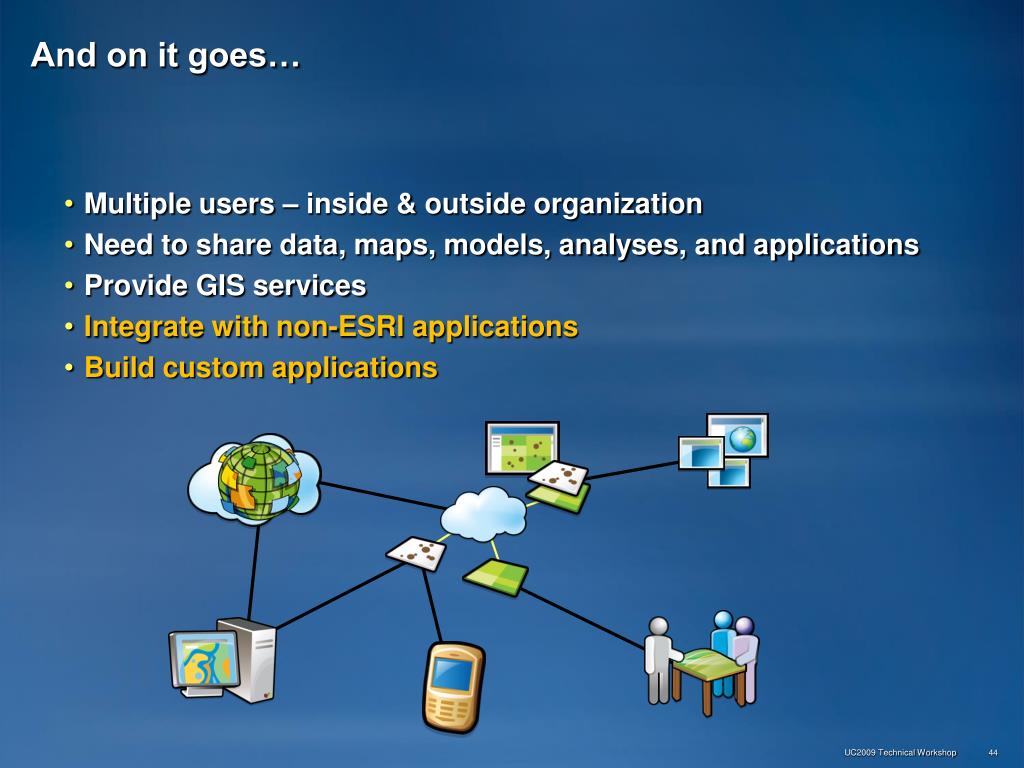

the scenario extends further

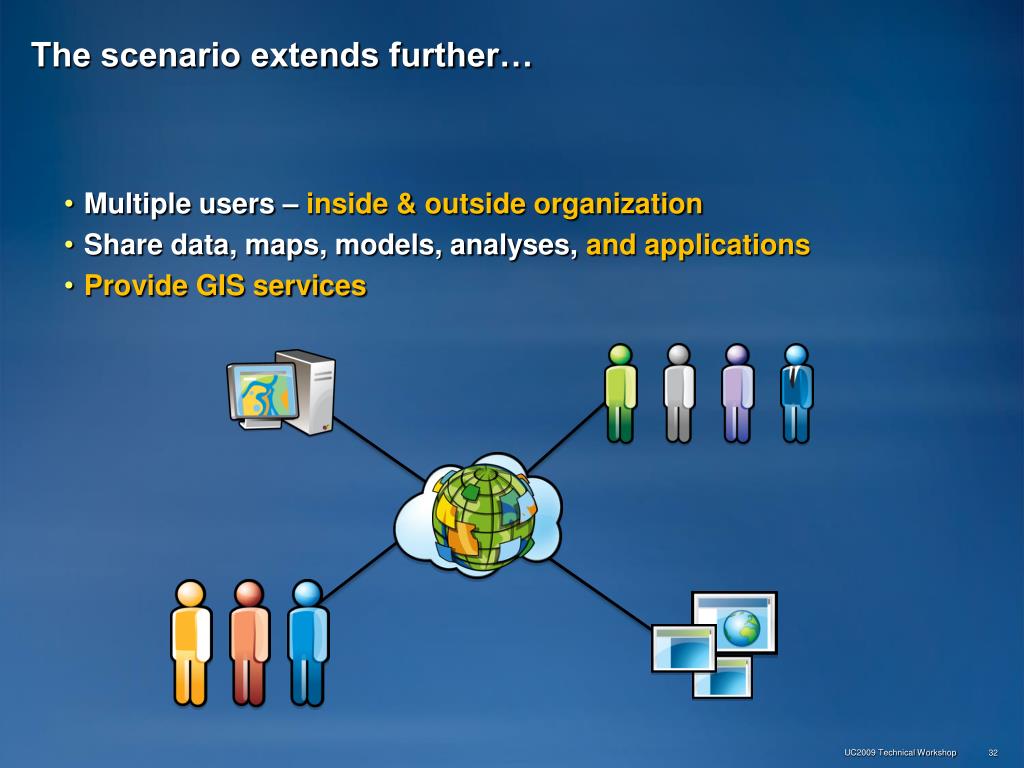

The scenario extends further…
  • Multiple users – inside & outside organization
  • Share data, maps, models, analyses, and applications
  • Provide GIS services

UC2009 Technical Workshop

arcgis focus on arcgis server

ArcGIS Server

ArcGIS: focus on ArcGIS Server

Open

APIs

Web Map

Viewer

Mobile

Desktop

Explorer

Use

Serve

Author

Desktop

UC2009 Technical Workshop

introducing arcgis server
Introducing ArcGIS Server
  • ArcGIS Server provides a framework for three major areas of GIS:
    • Data management
    • Resource sharing
    • Web Mapping Application development
  • Capacity support for Workgroup or Enterprise users
  • ArcGIS Server comes in three Editions:

Three Levels of Functionality

Advanced

Geoprocessing &Mobile

Standard

Mapping &Visualization

Basic

Data Management

UC2009 Technical Workshop

functionality matrix for arcgis server editions

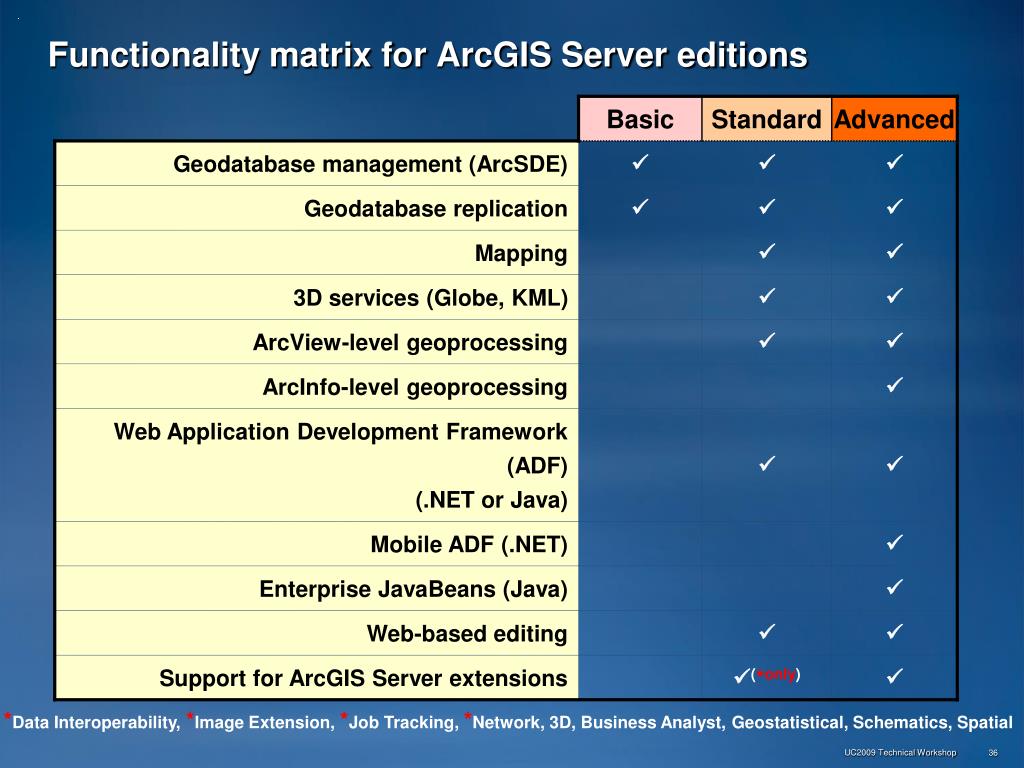

Functionality matrix for ArcGIS Server editions

*Data Interoperability, *Image Extension, *Job Tracking, *Network, 3D, Business Analyst, Geostatistical, Schematics, Spatial

UC2009 Technical Workshop

arcgis server basic edition

WkgrpGDB

ArcGIS Server Basic Edition…
  • Need tools for managing spatial data sets in RDBMS
  • Provide access to geodatabases for data extraction and replication
  • Enable users to synchronize edits across a network

Basic

ArcGIS Server: Basic

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

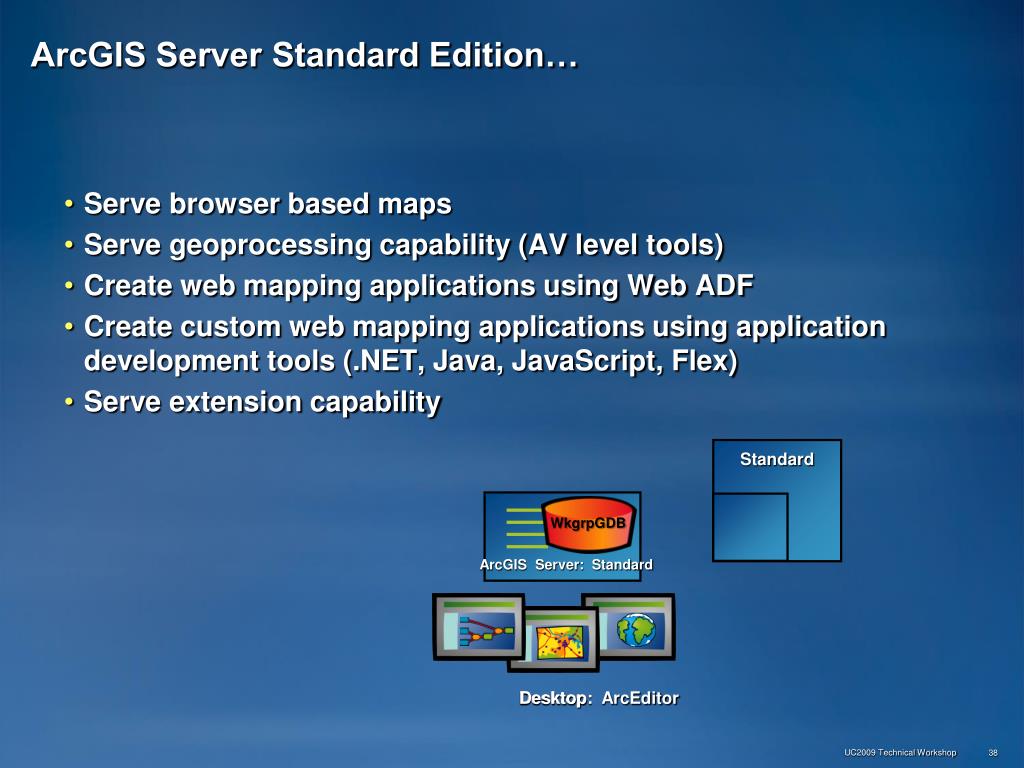

arcgis server standard edition

WkgrpGDB

ArcGIS Server: Standard

ArcGIS Server Standard Edition…
  • Serve browser based maps
  • Serve geoprocessing capability (AV level tools)
  • Create web mapping applications using Web ADF
  • Create custom web mapping applications using application development tools (.NET, Java, JavaScript, Flex)
  • Serve extension capability

Standard

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

arcgis server advanced edition

WkgrpGDB

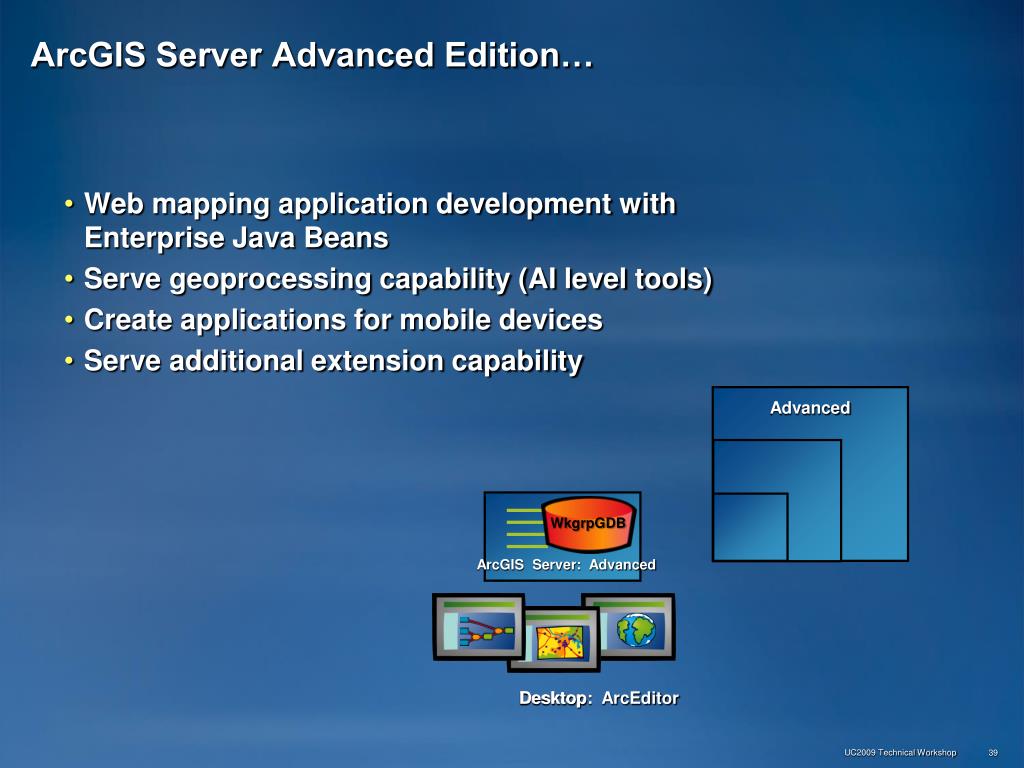

ArcGIS Server Advanced Edition…
  • Web mapping application development with Enterprise Java Beans
  • Serve geoprocessing capability (AI level tools)
  • Create applications for mobile devices
  • Serve additional extension capability

Advanced

ArcGIS Server: Advanced

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

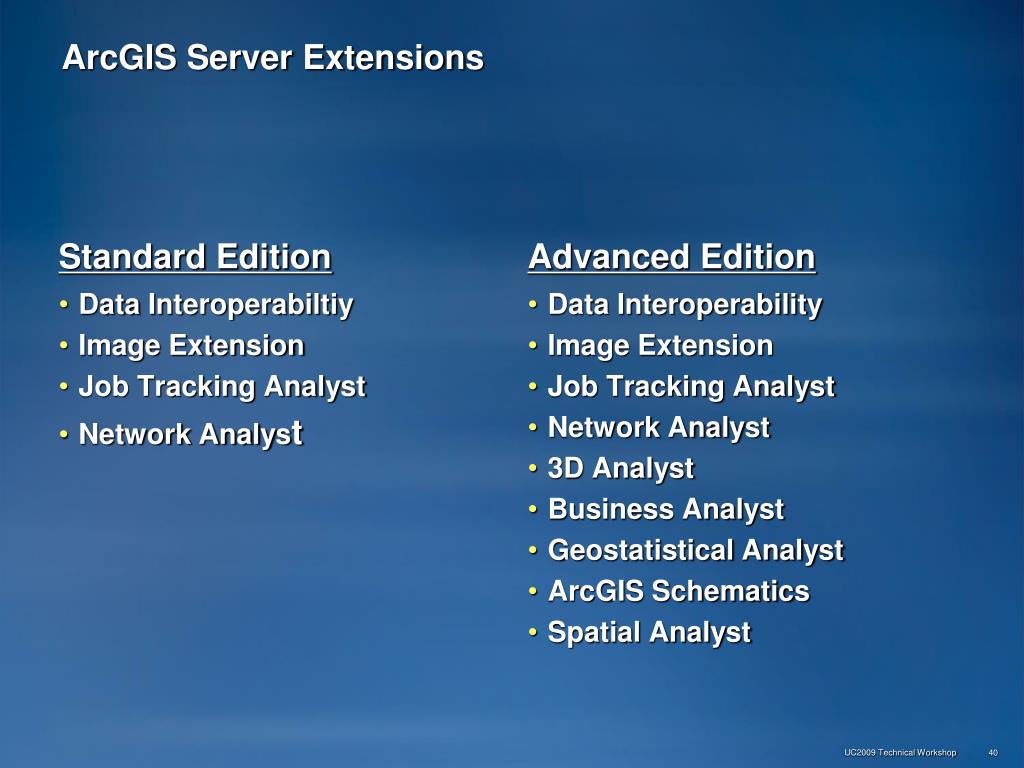

arcgis server extensions
ArcGIS Server Extensions

Standard Edition

Advanced Edition

Data Interoperability

Image Extension

Job Tracking Analyst

Network Analyst

3D Analyst

Business Analyst

Geostatistical Analyst

ArcGIS Schematics

Spatial Analyst

  • Data Interoperabiltiy
  • Image Extension
  • Job Tracking Analyst
  • Network Analyst

UC2009 Technical Workshop

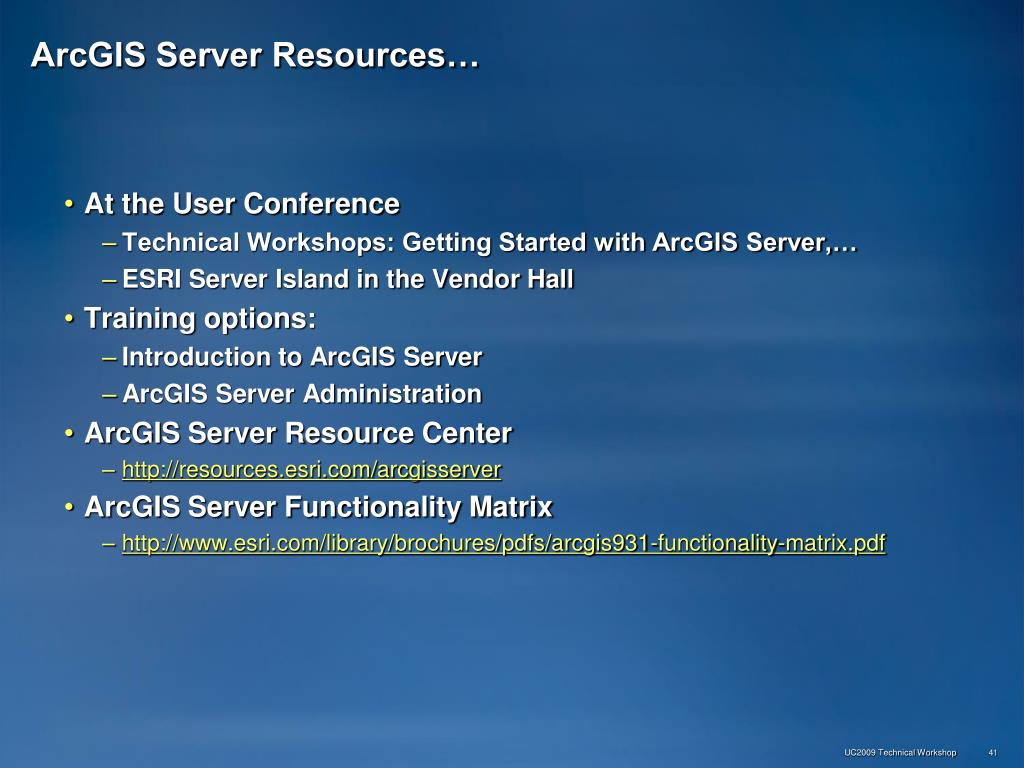

arcgis server resources
ArcGIS Server Resources…
  • At the User Conference
    • Technical Workshops: Getting Started with ArcGIS Server,…
    • ESRI Server Island in the Vendor Hall
  • Training options:
    • Introduction to ArcGIS Server
    • ArcGIS Server Administration
  • ArcGIS Server Resource Center
    • http://resources.esri.com/arcgisserver
  • ArcGIS Server Functionality Matrix
    • http://www.esri.com/library/brochures/pdfs/arcgis931-functionality-matrix.pdf

UC2009 Technical Workshop

selecting a server product

WkgrpGDB

Selecting a server product…
  • Serve browser based maps
  • Serve geoprocessing capability (AI level tools)
  • Create web mapping applications using Web ADF
  • Provide access to Network Analyst
  • Provide data access to field crews

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

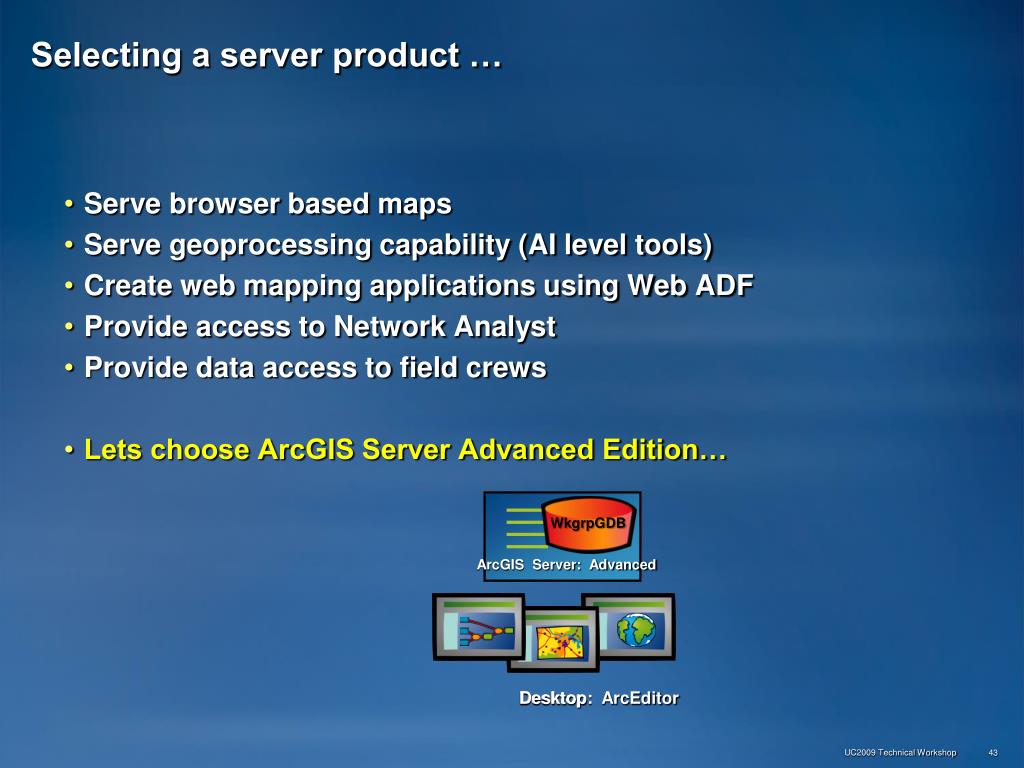

selecting a server product43

WkgrpGDB

ArcGIS Server: Advanced

Selecting a server product …
  • Serve browser based maps
  • Serve geoprocessing capability (AI level tools)
  • Create web mapping applications using Web ADF
  • Provide access to Network Analyst
  • Provide data access to field crews
  • Lets choose ArcGIS Server Advanced Edition…

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

and on it goes
And on it goes…
  • Multiple users – inside & outside organization
  • Need to share data, maps, models, analyses, and applications
  • Provide GIS services
  • Integrate with non-ESRI applications
  • Build custom applications

UC2009 Technical Workshop

arcgis focus on the clients

ArcGIS Server

ArcGIS: focus on the Clients…

Open

APIs

Web Map

Apps

Mobile

Desktop

Explorer

Use

Serve

Author

Desktop

UC2009 Technical Workshop

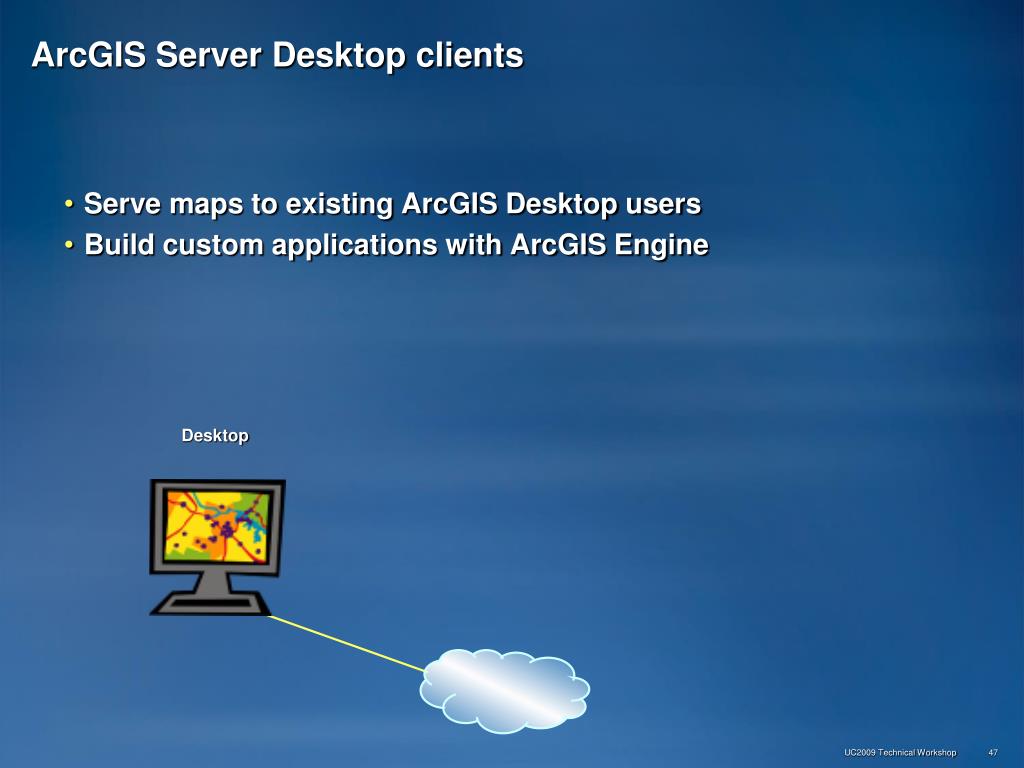

arcgis server desktop clients
ArcGIS Server Desktop clients
  • Serve maps to existing ArcGIS Desktop users
  • Build custom applications with ArcGIS Engine

Desktop

UC2009 Technical Workshop

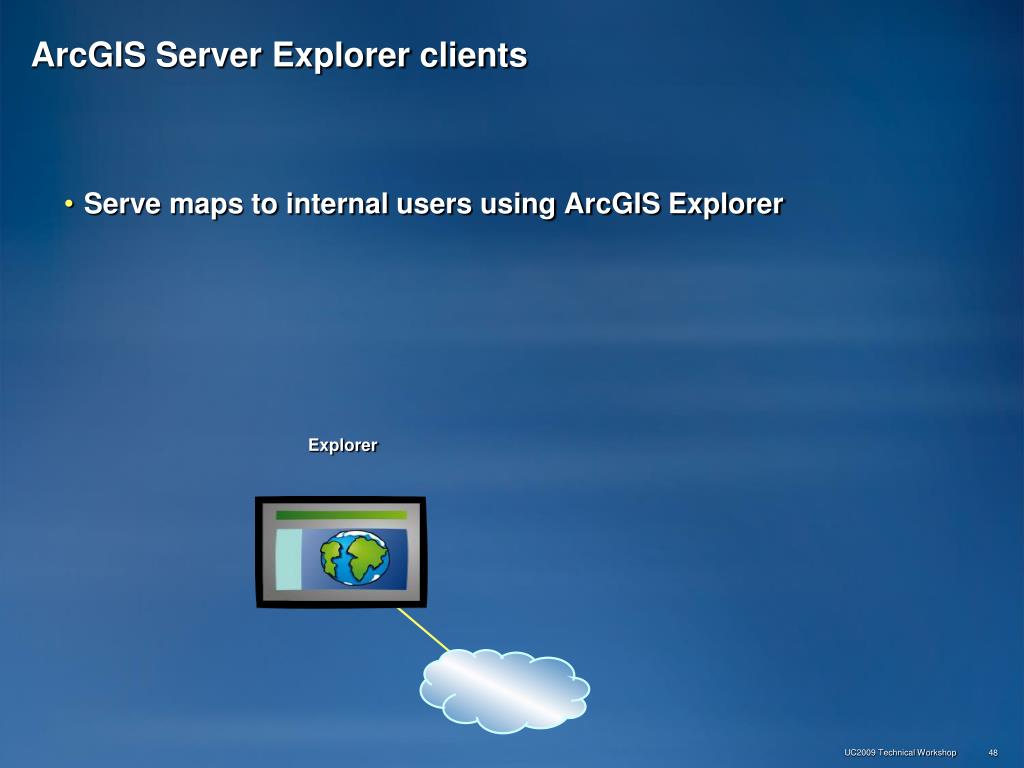

arcgis server explorer clients
ArcGIS Server Explorer clients
  • Serve maps to internal users using ArcGIS Explorer

Explorer

UC2009 Technical Workshop

arcgis server web mapping application clients
ArcGIS Server Web Mapping Application clients
  • Serve maps through intranet
  • Serve maps to general public through internet

Web Map

Application

UC2009 Technical Workshop

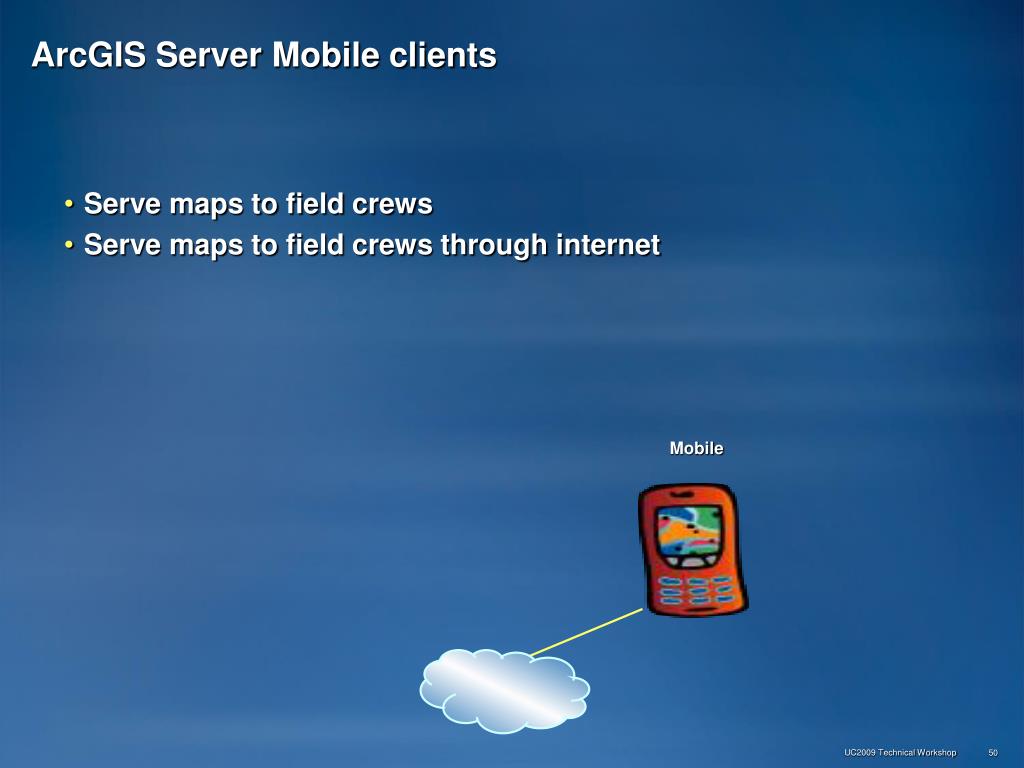

arcgis server mobile clients
ArcGIS Server Mobile clients
  • Serve maps to field crews
  • Serve maps to field crews through internet

Mobile

UC2009 Technical Workshop

arcgis server custom clients
ArcGIS Server Custom clients
  • Serve maps to custom clients built using supported APIs
    • Silverlight
    • Flex
    • JavaScript
    • Java
    • .NET

Open

APIs

UC2009 Technical Workshop

arcgis customization resources
ArcGIS Customization Resources…
  • At the User Conference
    • Technical Workshops: Mobile GIS Solutions Overview, Getting Started with ArcObjects, Developing Web Applications with .NET and Java, Building Applications with Flex
    • ESRI Mobile Island, ESRI Server Island
  • Training options:
    • Developing Apps. w/ ArcGIS Server Using the .NET Framework
    • Developing Apps. w/ ArcGIS Server Using the Java Platform
    • Building Web Maps Using the ArcGIS API for JavaScript
    • Building Rich Internet Applications with ArcGIS API for Flex (TS)
  • ArcGIS Server Resource Center for Web Applications
    • http://resources.esri.com/arcgisserver/index.cfm?fa=applications
  • ArcGIS Server Functionality Matrix
    • http://www.esri.com/library/brochures/pdfs/arcgis931-functionality-matrix.pdf

UC2009 Technical Workshop

selecting client applications
Selecting client applications…
  • Serve maps to existing ArcGIS Desktop and Engine users
  • Serve maps to internal users using ArcGIS Explorer
  • Serve maps through intranet
  • Serve maps to field crews
  • Serve maps to general public through internet

Web Map

App

Mobile

Desktop

Explorer

UC2009 Technical Workshop

selecting client applications54
Selecting client applications …
  • Serve maps to existing ArcGIS Desktop users
  • Serve maps to internal users using ArcGIS Explorer
  • Serve maps through intranet
  • Serve maps to field crews
  • Serve maps to general public through internet
  • Our clients will be Desktop, Explorer, Web Map and Mobile…

Web Map

App

Mobile

Desktop

Explorer

UC2009 Technical Workshop

our configuration

WkgrpGDB

ArcGIS Server: Standard

Our configuration…

Web Map

Apps

Mobile

Desktop

Explorer

Desktop: ArcEditor

UC2009 Technical Workshop

our configuration56

Workgroup GDB

Our configuration…

Web Map

App

Mobile

Desktop

Explorer

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

our configuration57

WkgrpGDB

ArcGIS Server: Advanced

Our configuration…

Web Map

App

Mobile

Desktop

Explorer

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

our configuration58

WkgrpGDB

ArcGIS Server: Standard

Our configuration…

Web Map

App

Mobile

Desktop

Explorer

Desktop

Desktop: ArcEditor

UC2009 Technical Workshop

questions you should ask yourself
Questions you should ask yourself
  • What’s is the problem?
  • What tasks are performed using spatial data?
  • What tasks are performed that do not currently use spatial data, but have a spatial component?
  • What tasks are not currently performed, but are desired?
  • Who will be using the system and what their roles will be?
  • What types of products the system will need to produce (maps, reports, etc.)?
  • What applications need to be developed?
  • What data will be needed to fulfill the stated tasks?
  • Will the data be shared among multiple users?
  • What special security measures are necessary?

UC2009 Technical Workshop

wrap up where to go for more information
Wrap-up: Where to go for more information
  • At the UC…
    • Demo theaters
    • Software Islands
    • Technical Sessions
    • Hands-on Learning Center
    • Technical Support
  • After the UC…
    • ESRI product overviews: http://www.esri.com
    • ESRI training options: http://training.esri.com
    • ESRI Resource Centers: http://resources.esri.com
    • Functionality Matrixes for ArcGIS Desktop and Server
    • Contact your account manager at your regional office

UC2009 Technical Workshop

and on and on it goes
And on and on it goes…

Thank you for attending, and Good Luck!

Putting It All Together:The ESRI Product Line

Rudy Prosser

Aisha Jenkins

UC2009 Technical Workshop
