slide1

INDUSTRY SPECIALITY CHEMICALS

PAPER CHEMICALS

WATER TREATMENT CHEMICALS

CHEMICAL RAW MATERIALS

slide2

INTRODUCTION

We have been developing specialty chemicals of various kinds that improve on a quality of paper,textile,water since 2002.

We produce and distribute all kind of paper processing

chemicals and additives of coated paper, surfactant and chemical raw materials,

textile, water management chemicals.

And now we have many customers who are using our product in Korea and Asian country.

For meeting of our customer’s requirement we will do our best in parts of the developing products and the rigid quality control systems.

We will concentrate our efforts development of new products

and the best products.

slide3

PAPER CHEMICALS

PRODUCTS

FEATURES

APPLICATION

Creping agent

Increase sheet hand feel properties , Increase blade shelf-life

Tissue (Yankee Dryer)

Releasing agent

Controlling Yankee Dryer release properties

Tissue (Yankee Dryer)

Wire Passivation/Felt Conditioning

Reduce Downtime , Increase Quality,Improve Clothing shelf-life

Clothing

Biocides

Reduce Downtime , Prevent the slime,Prevent the bacteria

Mixing chest, Machine chest

Antifoam

Improve Quality , Increase Drainage, Improve runability

Wet end, Coating starch

Scale control

Prevent Scale contamination, A wide scope Temperature, Consistency, PH

Stock preparation, Wet end

Softner

Improve Tissue Softness & Smoothness

Stock preparation

Wet & Dry Strength

Reduce fiber cost , Increase production. Enhance physical properties, Improve Quality & Strength

Stock preparation

Pitch/Sticky control

Reduce Downtime. Improve Quality

Wet end

Deinking

Improve ink removal , Improve paper Quality

Reduce Bleaching cost

Stock preparation

Surface sizing

Anionic emulsion , Resistance to water or ink Improving

Of printability

Size press

Water Repellent

Anionic wax emulsion

Excellent water-proof

Coating Additive

Cleaner

Reduces Maintenance

Increase Production

Process Equipment

Insolubilizer

Insolubilizer for Binder in Coating Color. Mottling and blistering resistance are improved and printing effect is maximized

Coating Color

Linting/Dusting

Improved dimension stability , Improved printability

Reduces linting

Stock preparation

(Machine chest)

Fixing agent

It can improve the efficiency of retention aids, Dry and wet strength agents, and internal sizing agents, or reduce their use amount while keeping the same effects.

Wet end

slide4

PAPER CHEMICALS

Paper Market Products :

TISSUE

FINE PAPER

NESPRINT

PACKAGING

WATER TREATMENT

  • CREPING/RELEASING
  • WIRE PASSIVATION
  • FELT CONDITIONING
  • BIOCIDES
  • ANTIFOAM
  • SCALE CONTROL
  • CLEANERS
  • WET STRENGTH
  • DRY STRENGTH
  • PITCH/STICKY
  • CONTROL
  • SOFTNER
  • BOILOUT
  • DUSTING CONTROL
  • WHITE WATER
  • CONTROL
  • DEINKING
  • FELT CLEANER
  • BIOCIDES
  • ANTIFOAM
  • SCALE CONTROL
  • CLEANERS
  • ROLL RELEASE
  • PITCH/STICKY
  • CONTROL
  • INSOLUBILIZER FOR
  • COATING COLOR
  • BOILOUT
  • WATER TREATMENT
  • SIZING
  • FELT CONDITIONING
  • STRENGTH
  • FELT CONDITIONING
  • CLEANER
  • BIOCIDES
  • ANTIFOAM
  • SCALE CONTROL
  • LINTING/DUSTING
  • CONTROL
  • ROLL RELEASE
  • PITCH/STICKY
  • CONTROL
  • WATER CLARIFICATION
  • BOILOUT
  • DEINKING
  • FIXING AGENT
  • SCALE CONTROL
  • FELT CONDITIONING
  • WIRE PASSIVATION
  • BIOCIDES
  • ANTIFOAM
  • CLEANERS
  • ROLL RELEASE
  • PITCH/STICKY
  • CONTROL
  • INSOLUBILIZER FOR
  • COATING COLOR
  • BOILOUT
  • WATER TREATMENT
  • WATER REPELLENT
  • WET/DRY STRENGTH
  • DEINKING
  • COAGULANT
  • FLOCCULANT
  • BIOCIDES
  • ANTIFOAM
  • SLUDGE DEWATERING
  • CLEANERS
  • ORDOUR CONTROL
  • FRESH WATER
  • STERILIZATION
  • SCALE CONTROL
  • BOILER TREATMENT
slide5

PAPER CHEMICALS

TISSUE Creping Agent

Products : HISOFT – C SERIES

Hisoftis a cationic polyamide adhesive in an aqueous solution. It is one of a series of specialty formulated crepe adhesive used in

the manufacturing of tissue and towel products. It is compatible with all crepe releasing agents, to provide the proper balance for

effective creping. It has excellent rewet properties, Yankee surface protection, and adhesive. It can increase sheet hand feel properties

and blade shelf-life.

TISSUE Softener and Crepe Release Agent

Products : HISOFT – Q & R SERIES

Hisofthave been designed specifically to be added to paper stock by wet end addition for the purpose of softening tissue and

absorbent papers or by the surface spray application method to improve Yankee dryer crepe release properties.

It contains a blend of fully refined mineral oil, esters and nonionic surfactants that makes this product easily emulsify in water.

It is specifically formulated as an effective crepe release in the MFG of tissue and towel products. It is compatible with all commercial

crepe adhesives, to provide the proper balance for effective creping.

slide6

PAPER CHEMICALS

Name of Products

Composition

Appearance

Ionic Activity

Solid Contents

Properties&Features

FETROL DF-105

Fatty alcohol

&fatty acid

Ester mixture

Milk-white

emulsion

Weak

anionic

18%

Foam control for membrane and high

temp. water treatment.

FETROL DF -610

30%

Foam control for membrane and high

temp. water treatment.

Name of Products

Composition

Appearance

Ionic

Activity

Solid

Contents

Properties&Features

FETROL DF -506

30%

Foam control for papermaking.

Used cold water system.

FETROL DF -500

Silicone oil

compound

Translucent

gray

Nonionic

100%

100% active content, effective in

nonaqueous system.

FETROL DF -612

30%

Foam control for papermaking.

Used relatively hot water system.

FETROL DF -110

Silicone

Emulsion

Milk-white

Weak

Anionic

16%

Foam control for paper and waste water treatment industrial process.

FETROL DF -620

30%

Foam control for papermaking.

Used hot water system.

FETROL DF -130

Silicone

Emulsion

Milk-white

Weak

Anionic

25%

Foam control for waste water treatment

industrial process.

FETROL DF -220

Silicone

Emulsion

Milk-white

Weak

Anionic

14%

Foam control for paper and waste water treatment industrial process.

Defoamer

Products : FETROL – DF SERIES

Mixture of aliphatic hydroxy compounds and hydrocarbons in the form of an aqueous emulsion(water soluble & oil types)

slide7

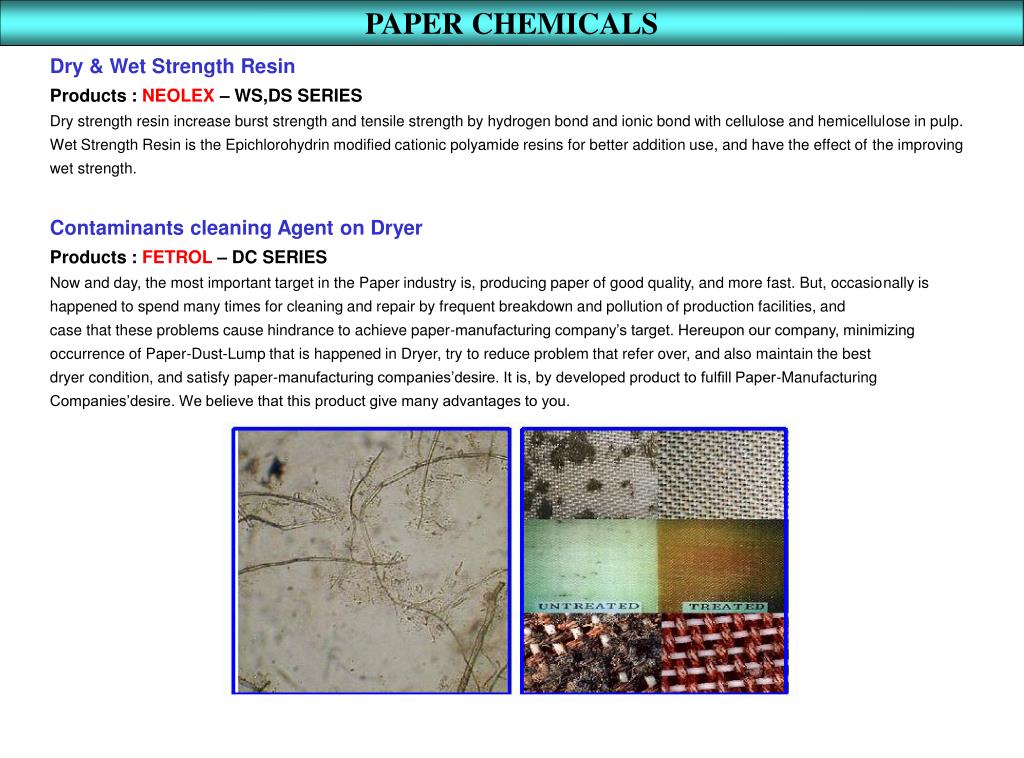

PAPER CHEMICALS

Dry & Wet Strength Resin

Products : NEOLEX – WS,DS SERIES

Dry strength resin increase burst strength and tensile strength by hydrogen bond and ionic bond with cellulose and hemicellulose in pulp.

Wet Strength Resin is the Epichlorohydrin modified cationic polyamide resins for better addition use, and have the effect of the improving

wet strength.

Contaminants cleaning Agent on Dryer

Products : FETROL – DC SERIES

Now and day, the most important target in the Paper industry is, producing paper of good quality, and more fast. But, occasionally is

happened to spend many times for cleaning and repair by frequent breakdown and pollution of production facilities, and

case that these problems cause hindrance to achieve paper-manufacturing company’s target. Hereupon our company, minimizing

occurrence of Paper-Dust-Lump that is happened in Dryer, try to reduce problem that refer over, and also maintain the best

dryer condition, and satisfy paper-manufacturing companies’desire. It is, by developed product to fulfill Paper-Manufacturing

Companies’desire. We believe that this product give many advantages to you.

slide8

PAPER CHEMICALS

Contaminants Control Machine Clothing

Products : FETROL – WP,MC,SC,DC,FC SERIES

Prevention of pitch, stickies, glues, scale and other wet end contaminants on the Wire, Felts, Machine, Pipe or eliminates deposit accumulation resulting in improved sheet quality and extended life. Improved machine runnability.

Biocide

Products : FETROL – BC SERIES

The expected benefits of Biocide are as follows.

- Excellent for removing fungi and algae which form slime

- Prevents the slime from further development with maintaining its property long

- Works well all over the PH range

- Can be effectively used with other chemicals with optimal compatibility

Deinking Agent

Product : DEINKING – DI SERIES

As the Deinking agent of ONP(Magazine + Newsprint + Ground wood free, etc) used,

DEINKING chemical to be developed suitable for flotation/washing process system is dispersant/collecting nonionic surfactant.

This surfactant specifically designed to maximize ink removal for printed recycled fiber and office waste deinking system.

This product has demonstrate excellent dirt removal capability by effectively conditioning the inks found in white ledger furnishes.

The presence of kneading or dispersion enhances its performance. This product is intended for paper industry use only.

1. It is a nonionic surfactant of special alcohol delivative that maximized ink aeration in flotation cells 2. It is very excellent in absorbing ink into foams by preventing ink particles from re-adhering to foams 3. It has very little loss of textile during processes, and minimizes foam troubles during deinking process 4. Easy to treat waste water and good bio-degradability

slide9

PAPER CHEMICALS

Insolubilizer

Products : NEOLEX – CI SERIES

There are many chemically different types of insolubilizers, but they all have the same function – to add Water Resistance.

Water resistance is particularly important in offset printing, but also for wallpaper and in storage of board packages.

In double-coated board, crosslinkers are used in the pre-coating to impart water resistance against the topcoat.

The water resistance can be measured as wet rub and wet pick or seen as less pick, print mottle, or binder migration.

The water sensitivity of paper and board coating originates from the fact that water-soluble binders tend to lose their binding

power in contact with water and dissolve. This water sensitivity of binders can be described as the amount of O-atoms

in the molecule (in hydroxyl and carboxyl groups). The water sensitivity can be decreased by crosslinking the soluble binders

together with insolubilizers or by building an insoluble net around the binders.

It causes ionization of coating color to delay through hydrogen bonding with water molecules and enhances liquidity.

After drying is started and water is removed, rapid ionic bonding between cationic ion and anionic ion makes floating point lower

and binder migration is restricted. Therefore, coating layer becomes thicken and multi-porous. Mottling and blistering

resistance are improved and printing effect is maximized.

Surface Sizing Agent

Products : EX– SERIES

EX is a surface sizing agent for paper and paperboard. This product is added alone or combined with starch on unsized or internally sized paper, acid or neutral. It is slightly anionic and does not need alum, which does not reduce the efficiency.

Water Repellent

Products : POLYFIX– PW SERIES

POLYFIX is water repellent of paraffin wax type. This product is can be used with starch

And binder and have a good stability of emulsification.

slide10

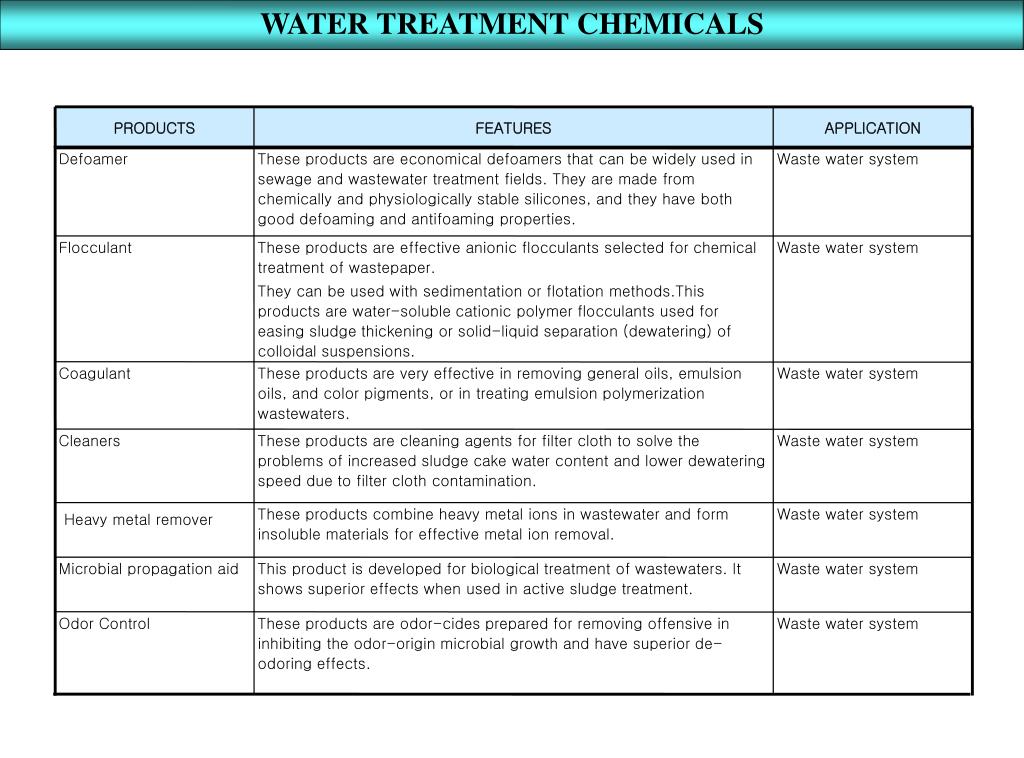

WATER TREATMENT CHEMICALS

PRODUCTS

FEATURES

APPLICATION

Defoamer

These products are economical defoamers that can be widely used in sewage and wastewater treatment fields. They are made from chemically and physiologically stable silicones, and they have both good defoaming and antifoaming properties.

Waste water system

Flocculant

These products are effective anionic flocculants selected for chemical treatment of wastepaper.

They can be used with sedimentation or flotation methods.This products are water-soluble cationic polymer flocculants used for easing sludge thickening or solid-liquid separation (dewatering) of colloidal suspensions.

Waste water system

Coagulant

These products are very effective in removing general oils, emulsion oils, and color pigments, or in treating emulsion polymerization wastewaters.

Waste water system

Cleaners

These products are cleaning agents for filter cloth to solve the problems of increased sludge cake water content and lower dewatering speed due to filter cloth contamination.

Waste water system

These products combine heavy metal ions in wastewater and form insoluble materials for effective metal ion removal.

Waste water system

Heavy metal remover

Microbial propagation aid

This product is developed for biological treatment of wastewaters. It shows superior effects when used in active sludge treatment.

Waste water system

Odor Control

These products are odor-cides prepared for removing offensive in inhibiting the odor-origin microbial growth and have superior de-odoring effects.

Waste water system

slide11

CHEMICAL RAW MATERIALS

ITEMS

FE-50

FE-70

FE-150

FE-250

FE-350

FE-400

FE-550

FE-700

Appearance

Clear

Clear

Clear

Clear

Clear

Clear

Clear

Clear

Saybolt Color

30

30

30

30

30

30

30

30

Specific Gravity, 15/4℃

0.822

0.835

0.843

0.847

0.856

0.858

0.864

0.868

Flash Point, C.O.C ℃

166

202

230

250

260

266

270

280

Pour Point, ℃

-36

-28.0

-18.0

-18.0

-18.0

-18.0

-18.0

-15.0

Kinematic Viscosity, 40.0℃ cSt

7.748

12.21

30.5

44.5

71

75

103.5

143

Refractive Index, D20

1.4755

1.4605

1.466

1.467

1.471

1.4715

1.474

1.477

Carbonizable Substance

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

Polynuclear Compounds, 260-350nm

PASS

PASS

PASS

PASS

PASS

PASS

PASS

PASS

White Mineral Oils

1)FDA(a) Grade

2)FDA(b) Grade

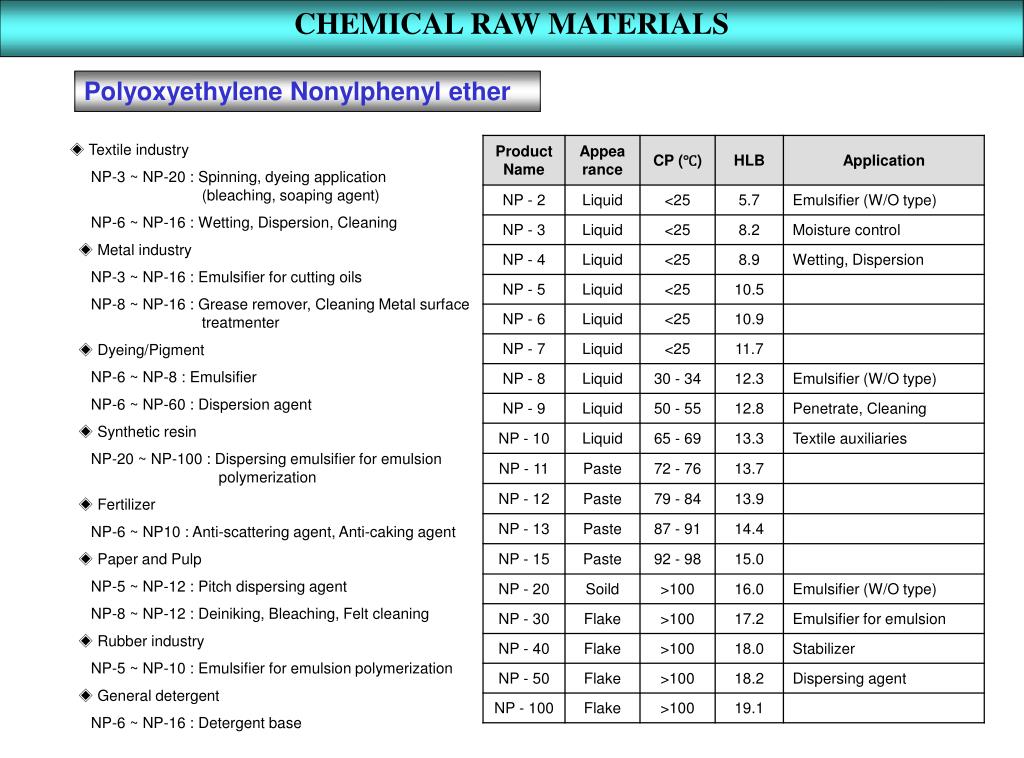

slide12

CHEMICAL RAW MATERIALS

Polyoxyethylene Nonylphenyl ether

slide13

CHEMICAL RAW MATERIALS

Polyoxyethylene Glycol

◈ Textile industry

Softener, Antistatic agent, Cleaner, Dispersant, Emulsifier, Dyeing auxiliaries, sizing agent

Release agent for Rubber foam or Latex foam Release agent for Tire molding, Lubricants for

extruder molding

◈ Rubber industry

◈ Metal industry

Rust inhibitor, additives for grease, lubricants

◈ Paper industry

PEG-200,300,400 : Softener, wetting agent, PEG-1500 : Lubricant for calendering

◈ Wood industry

Shrinkage inhibitor, treatmenter for wood

◈ Cosmetics

Intermediate for cosmetics, Additives and base material for handcream shampoo, lotion

Base material for cream, lnjection solvent, Emulsifier, Dispersant, Cleaner, Lubricant, Plasticizer

◈ Pharmaceuticals

Antistatic, Plasticizer, Synthetic leather modifier, Base material for polyurethane, Special diol for

polyester synthesis

◈ Surfactant industry

◈ Ink industry

Viscosity controller, Absorption agent

◈ Agricultural chemicals

Dispersant, Emulsifier, Setting agent

slide14

CHEMICAL RAW MATERIALS

Polyoxyethylene Alkyl Ether

slide15

AMAZON PAPYRUS KOREA

HEAD OFFICE : 757-7,Bongsan-Dong, Yuseong-Gu, Daejeon,305-506,KOREA

TEL : +82 42 822 9551 FAX : +82 42 822 9552
