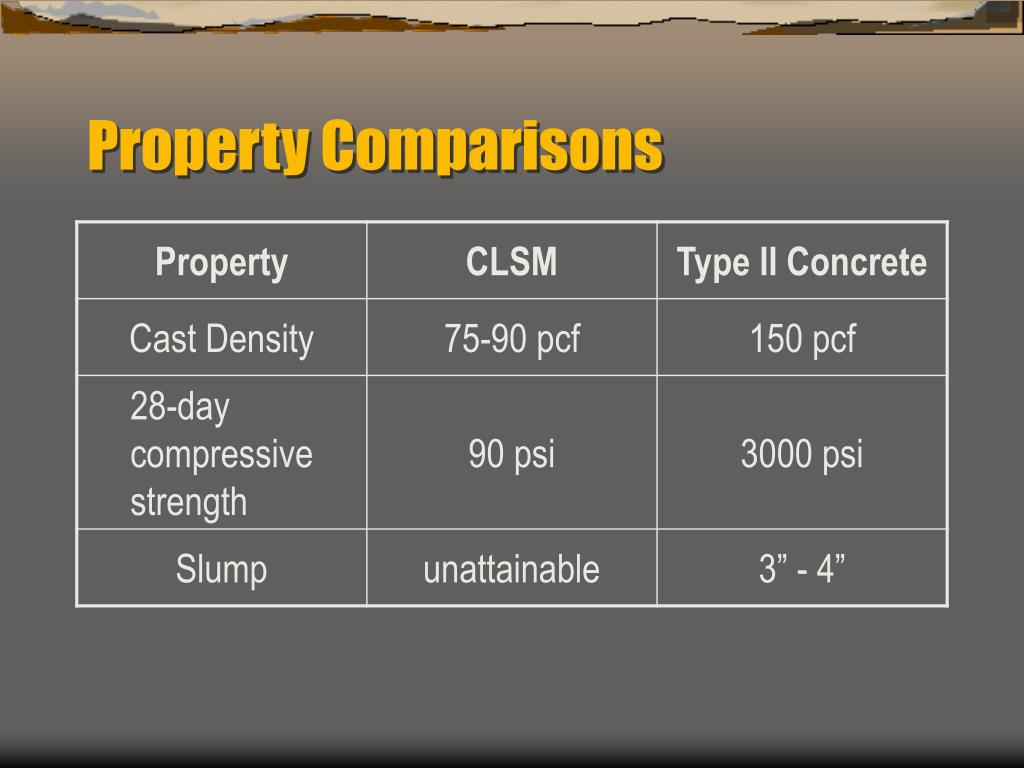

Presented by: Daniel Garza. Controlled Low Strength Material (CLSM) aka ‘Flowable Fill’. Composition of Concrete Fill. Cement Sand Water Air-Entraining Additive Elastizell Engineered Fill Darafill. Property Comparisons. Specific Job Use. Corpus Christi Seawall Project.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Controlled Low Strength Material (CLSM) aka ‘Flowable Fill’' - Anita


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
composition of concrete fill
Composition of Concrete Fill
  • Cement
  • Sand
  • Water
  • Air-Entraining Additive
    • Elastizell Engineered Fill
    • Darafill
specific job use
Specific Job Use
  • Corpus Christi Seawall Project
mixing procedure
Mixing Procedure
  • Admixture added at site

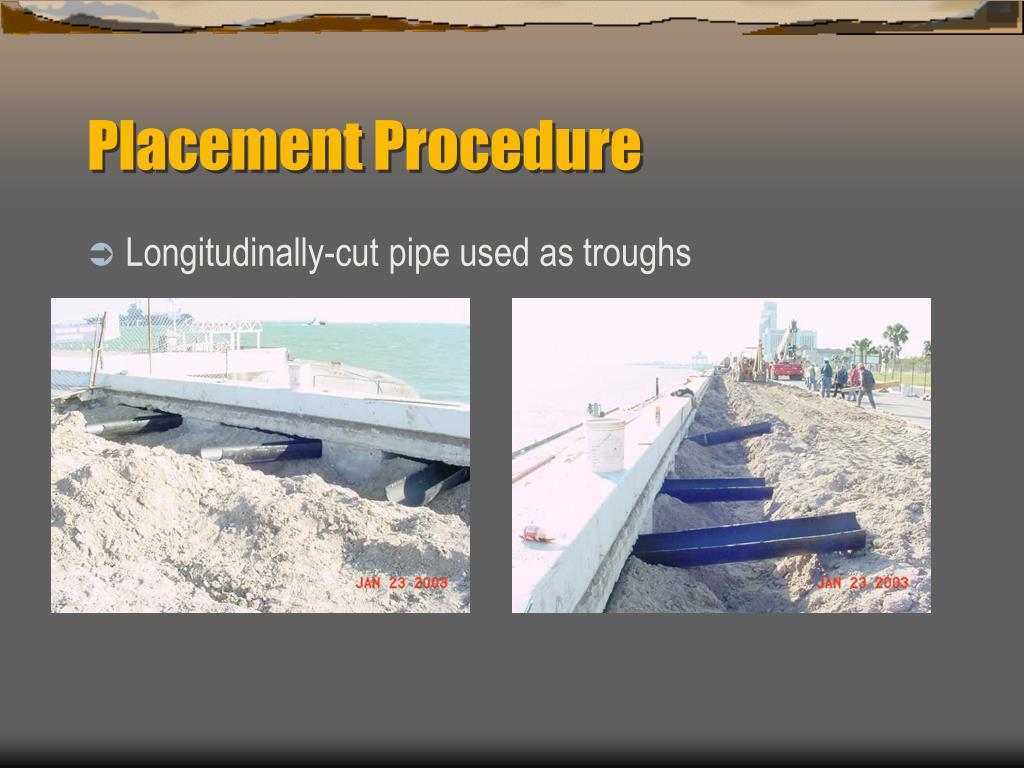

placement procedure
Placement Procedure
  • Longitudinally-cut pipe used as troughs
placement procedure7
Placement Procedure
  • Flow of concrete similar to water
voids before placement
Voids Before Placement
  • Bulkheading required to contain flow

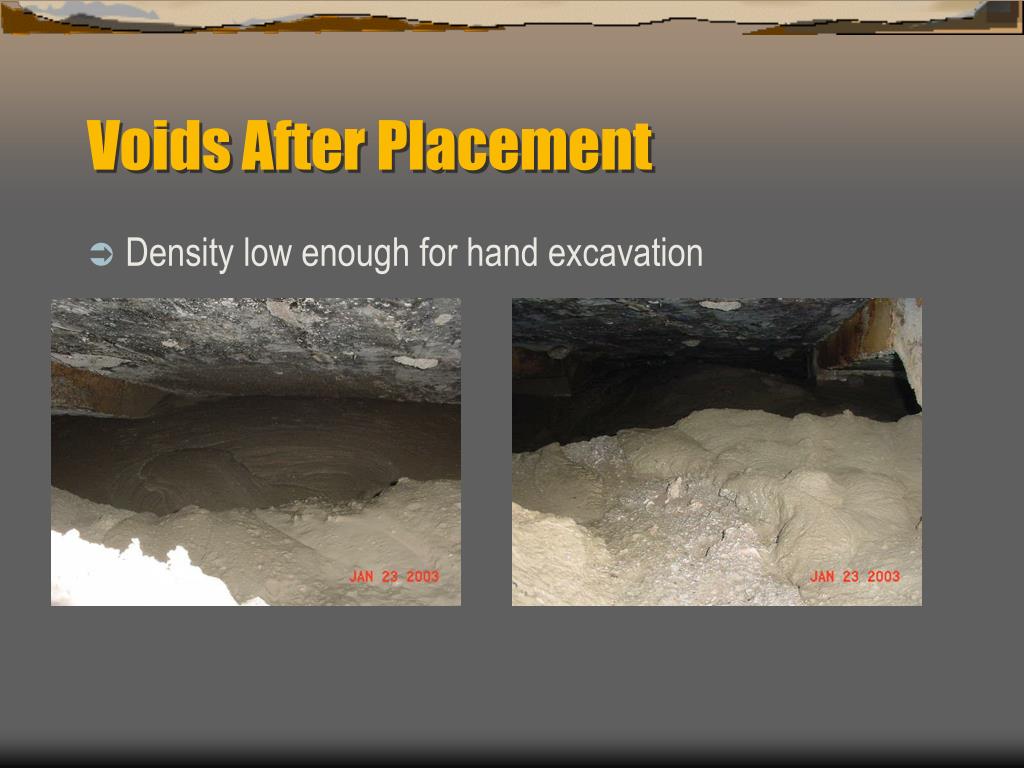

voids after placement
Voids After Placement
  • Density low enough for hand excavation
finished section
Finished Section
  • Used as formwork for concrete placement

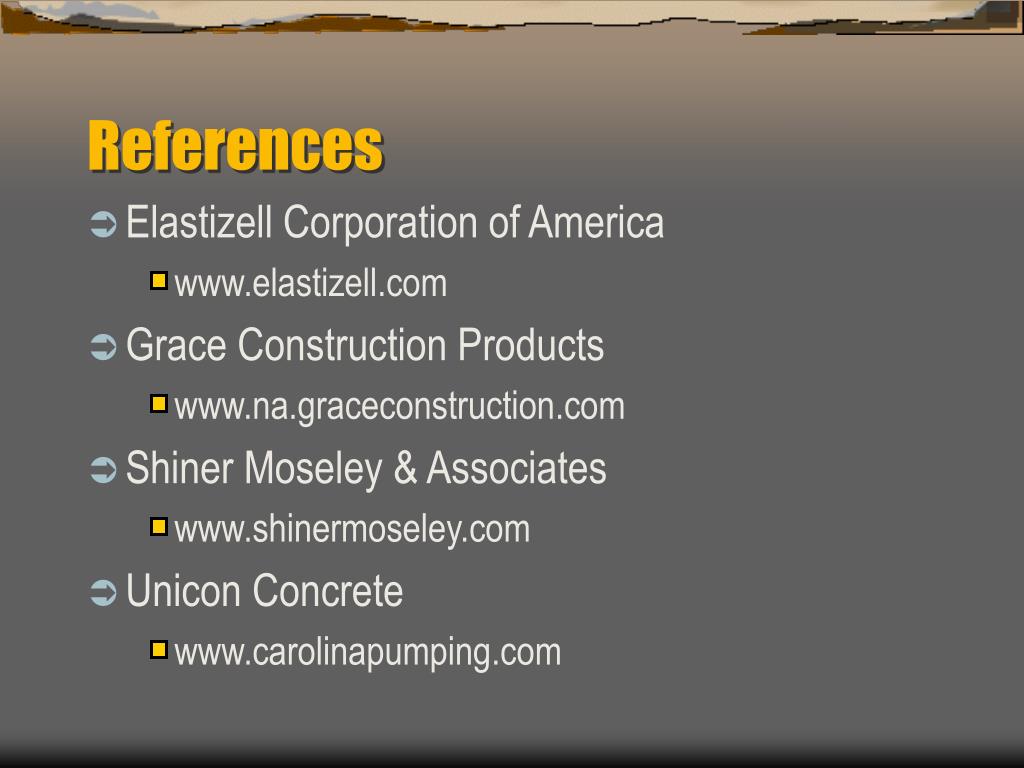

references
References
  • Elastizell Corporation of America
    • www.elastizell.com
  • Grace Construction Products
    • www.na.graceconstruction.com
  • Shiner Moseley & Associates
    • www.shinermoseley.com
  • Unicon Concrete
    • www.carolinapumping.com
