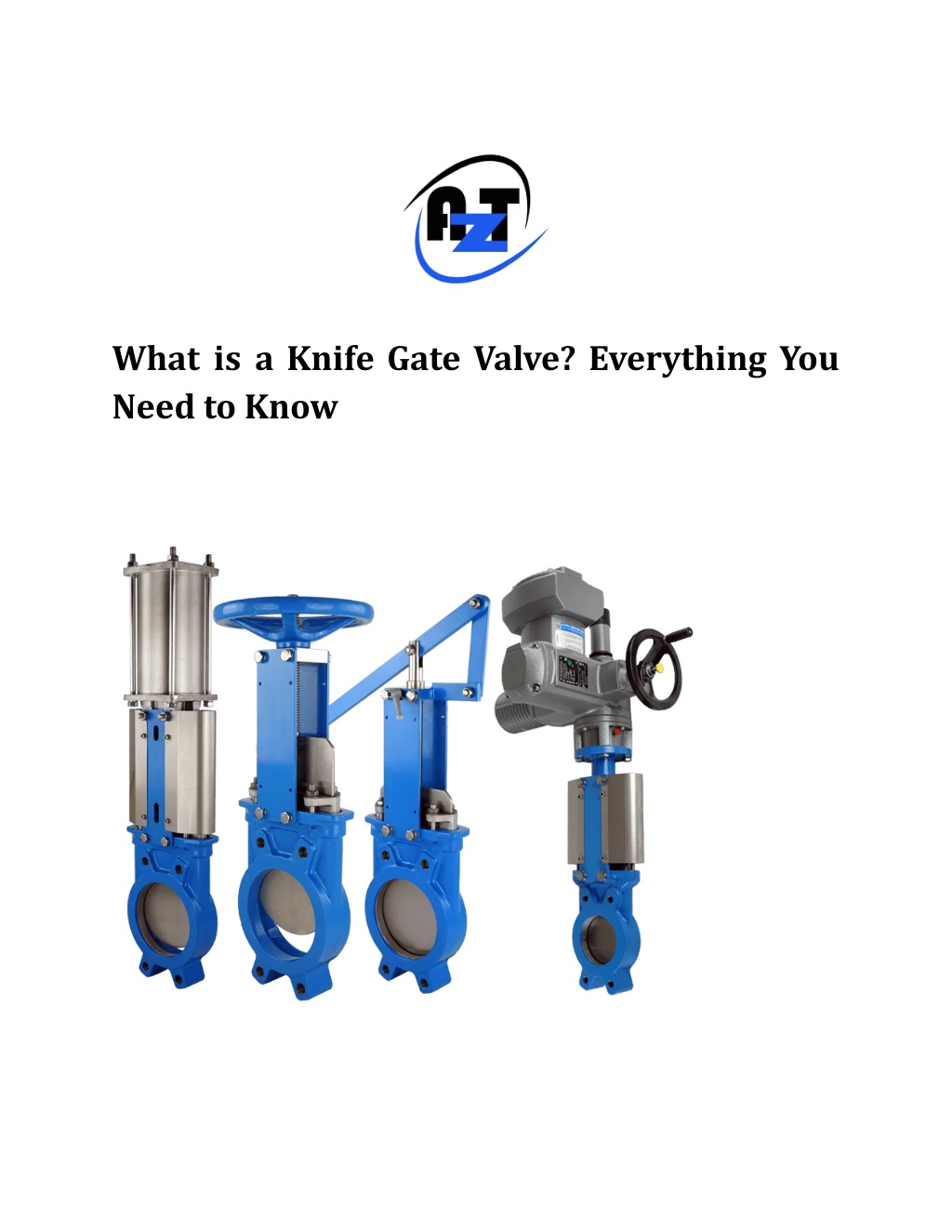

What is a Knife Gate Valve? Everything You Need to Know

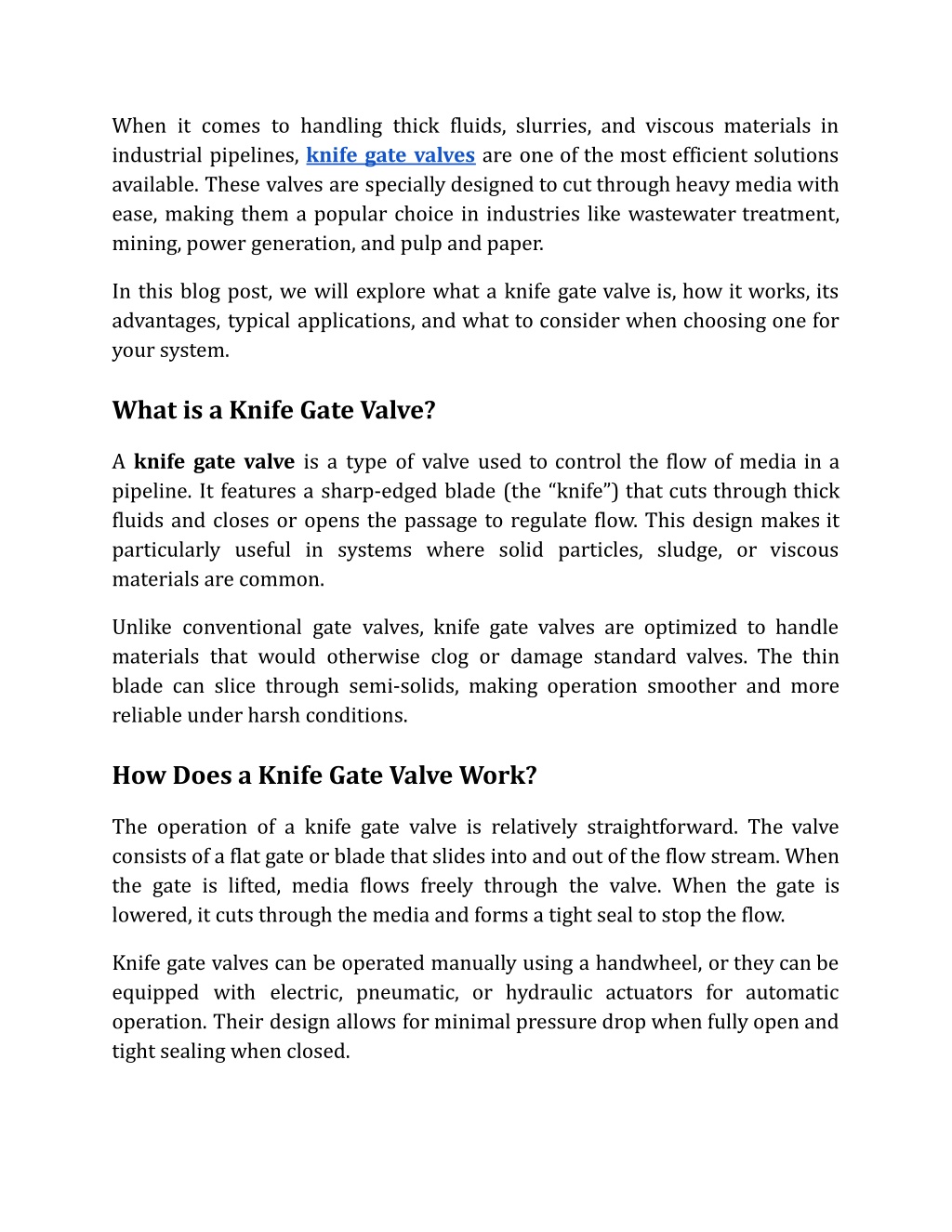

When it comes to handling thick fluids, slurries, and viscous materials in industrial pipelines, knife gate valves are one of the most efficient solutions available. These valves are specially designed to cut through heavy media with ease, making them a popular choice in industries like wastewater treatment, mining, power generation, and pulp and paper. In this blog post, we will explore what a knife gate valve is, how it works, its advantages, typical applications, and what to consider when choosing one for your system. What is a Knife Gate Valve? A knife gate valve is a type of valve used to control the flow of media in a pipeline. It features a sharp-edged blade (the “knife”) that cuts through thick fluids and closes or opens the passage to regulate flow. This design makes it particularly useful in systems where solid particles, sludge, or viscous materials are common. Unlike conventional gate valves, knife gate valves are optimized to handle materials that would otherwise clog or damage standard valves. The thin blade can slice through semi-solids, making operation smoother and more reliable under harsh conditions. How Does a Knife Gate Valve Work? The operation of a knife gate valve is relatively straightforward. The valve consists of a flat gate or blade that slides into and out of the flow stream. When the gate is lifted, media flows freely through the valve. When the gate is lowered, it cuts through the media and forms a tight seal to stop the flow. Knife gate valves can be operated manually using a handwheel, or they can be equipped with electric, pneumatic, or hydraulic actuators for automatic operation. Their design allows for minimal pressure drop when fully open and tight sealing when closed.

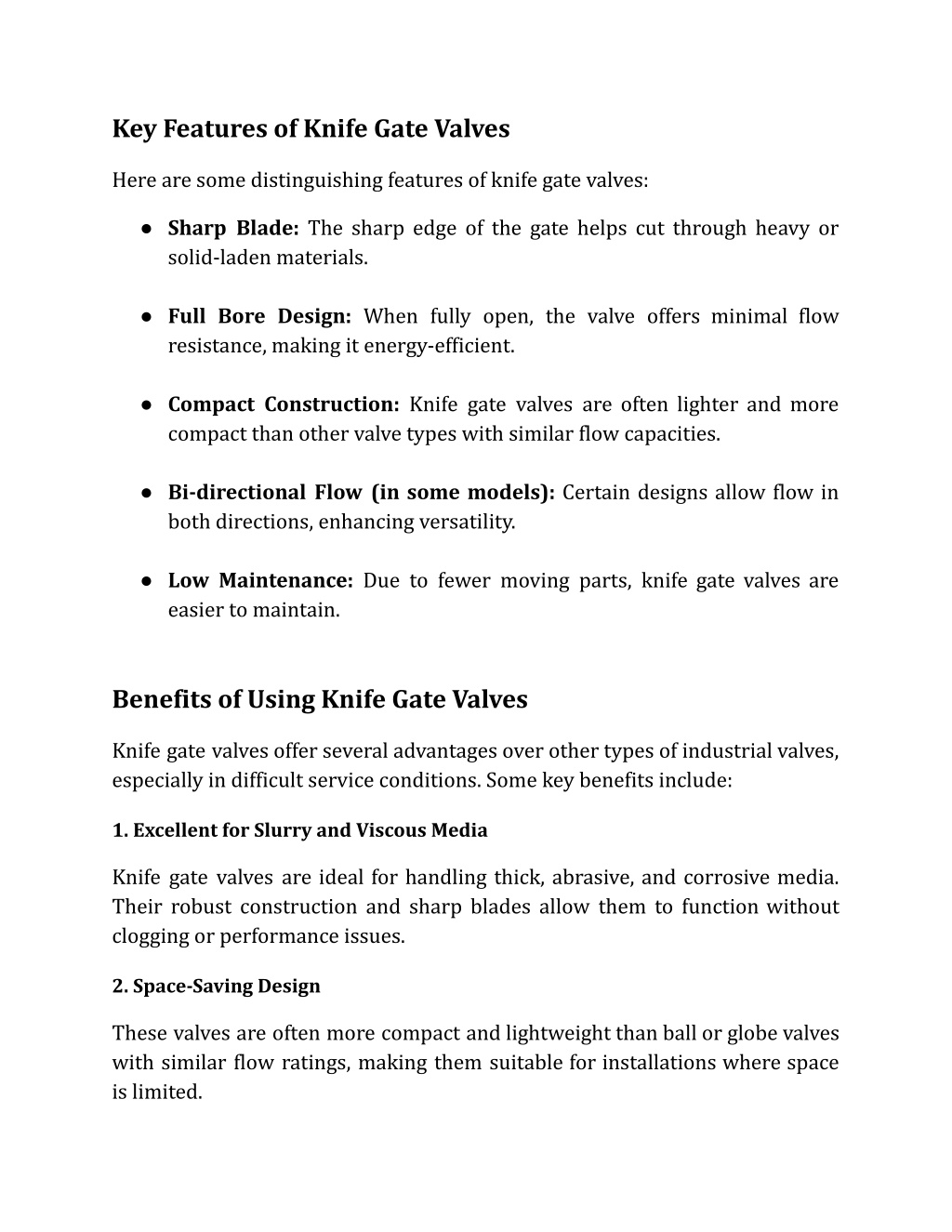

Key Features of Knife Gate Valves Here are some distinguishing features of knife gate valves: ● Sharp Blade: The sharp edge of the gate helps cut through heavy or solid-laden materials. ● Full Bore Design: When fully open, the valve offers minimal flow resistance, making it energy-efficient. ● Compact Construction: Knife gate valves are often lighter and more compact than other valve types with similar flow capacities. ● Bi-directional Flow (in some models): Certain designs allow flow in both directions, enhancing versatility. ● Low Maintenance: Due to fewer moving parts, knife gate valves are easier to maintain. Benefits of Using Knife Gate Valves Knife gate valves offer several advantages over other types of industrial valves, especially in difficult service conditions. Some key benefits include: 1. Excellent for Slurry and Viscous Media Knife gate valves are ideal for handling thick, abrasive, and corrosive media. Their robust construction and sharp blades allow them to function without clogging or performance issues. 2. Space-Saving Design These valves are often more compact and lightweight than ball or globe valves with similar flow ratings, making them suitable for installations where space is limited.

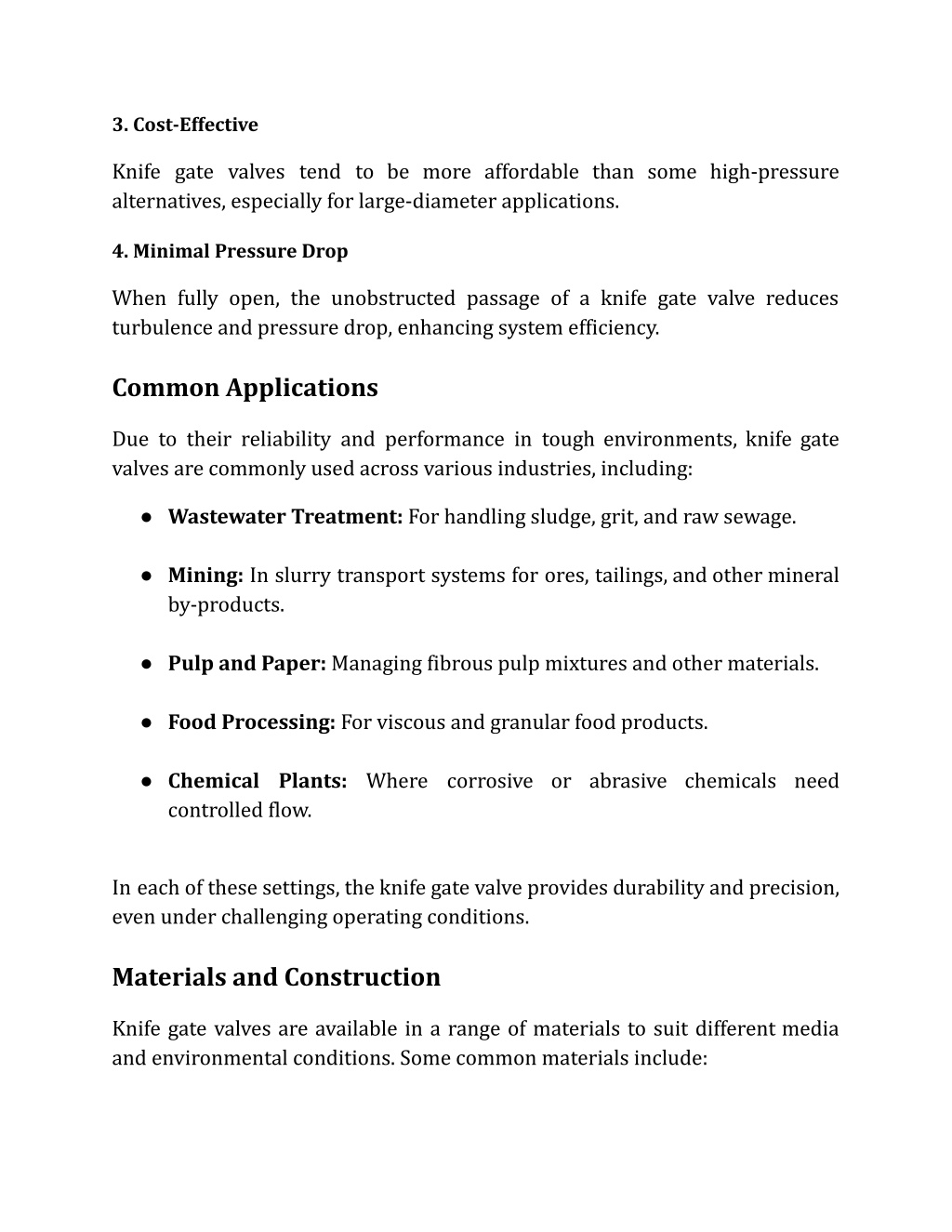

3. Cost-Effective Knife gate valves tend to be more affordable than some high-pressure alternatives, especially for large-diameter applications. 4. Minimal Pressure Drop When fully open, the unobstructed passage of a knife gate valve reduces turbulence and pressure drop, enhancing system efficiency. Common Applications Due to their reliability and performance in tough environments, knife gate valves are commonly used across various industries, including: ● Wastewater Treatment: For handling sludge, grit, and raw sewage. ● Mining: In slurry transport systems for ores, tailings, and other mineral by-products. ● Pulp and Paper: Managing fibrous pulp mixtures and other materials. ● Food Processing: For viscous and granular food products. ● Chemical Plants: Where corrosive or abrasive chemicals need controlled flow. In each of these settings, the knife gate valve provides durability and precision, even under challenging operating conditions. Materials and Construction Knife gate valves are available in a range of materials to suit different media and environmental conditions. Some common materials include:

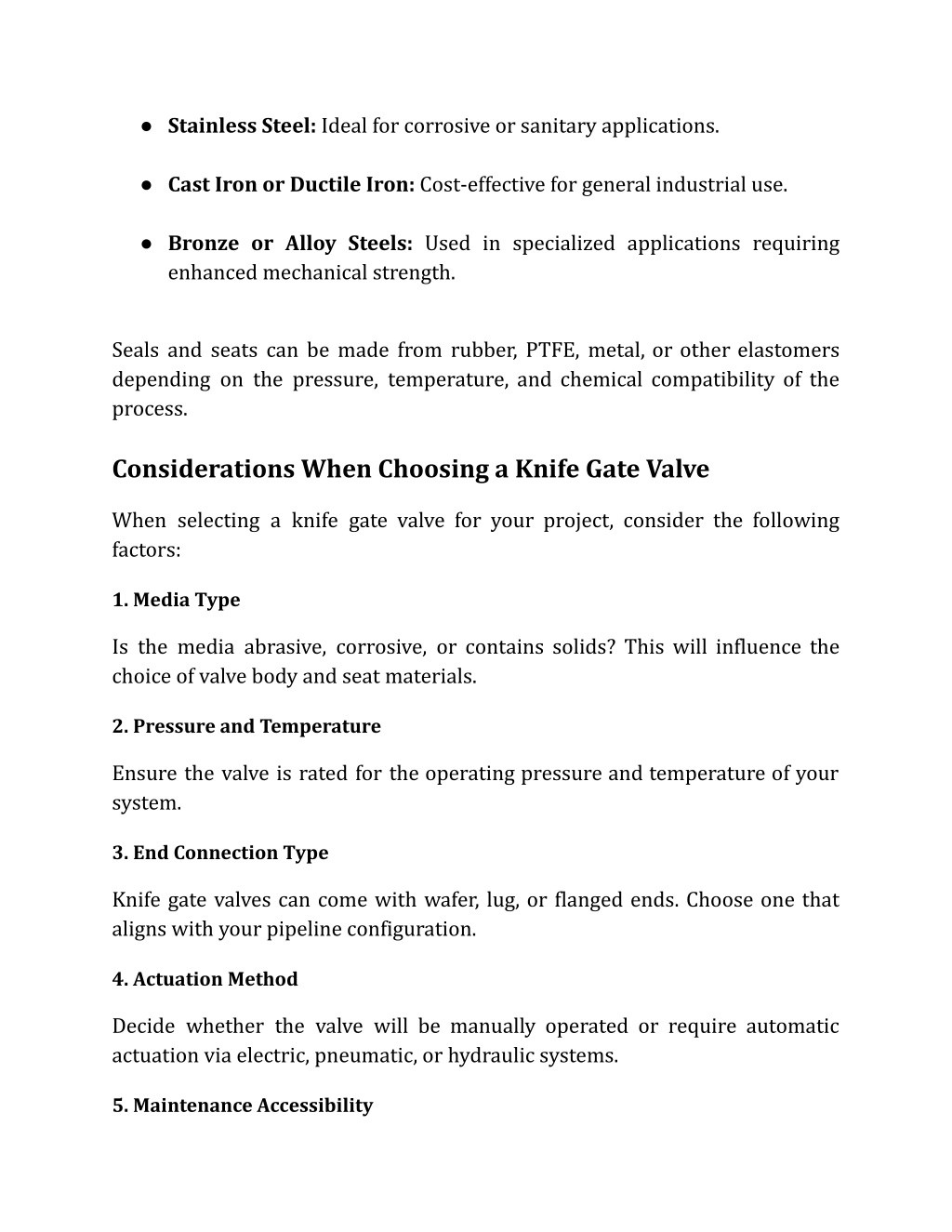

● Stainless Steel: Ideal for corrosive or sanitary applications. ● Cast Iron or Ductile Iron: Cost-effective for general industrial use. ● Bronze or Alloy Steels: Used in specialized applications requiring enhanced mechanical strength. Seals and seats can be made from rubber, PTFE, metal, or other elastomers depending on the pressure, temperature, and chemical compatibility of the process. Considerations When Choosing a Knife Gate Valve When selecting a knife gate valve for your project, consider the following factors: 1. Media Type Is the media abrasive, corrosive, or contains solids? This will influence the choice of valve body and seat materials. 2. Pressure and Temperature Ensure the valve is rated for the operating pressure and temperature of your system. 3. End Connection Type Knife gate valves can come with wafer, lug, or flanged ends. Choose one that aligns with your pipeline configuration. 4. Actuation Method Decide whether the valve will be manually operated or require automatic actuation via electric, pneumatic, or hydraulic systems. 5. Maintenance Accessibility

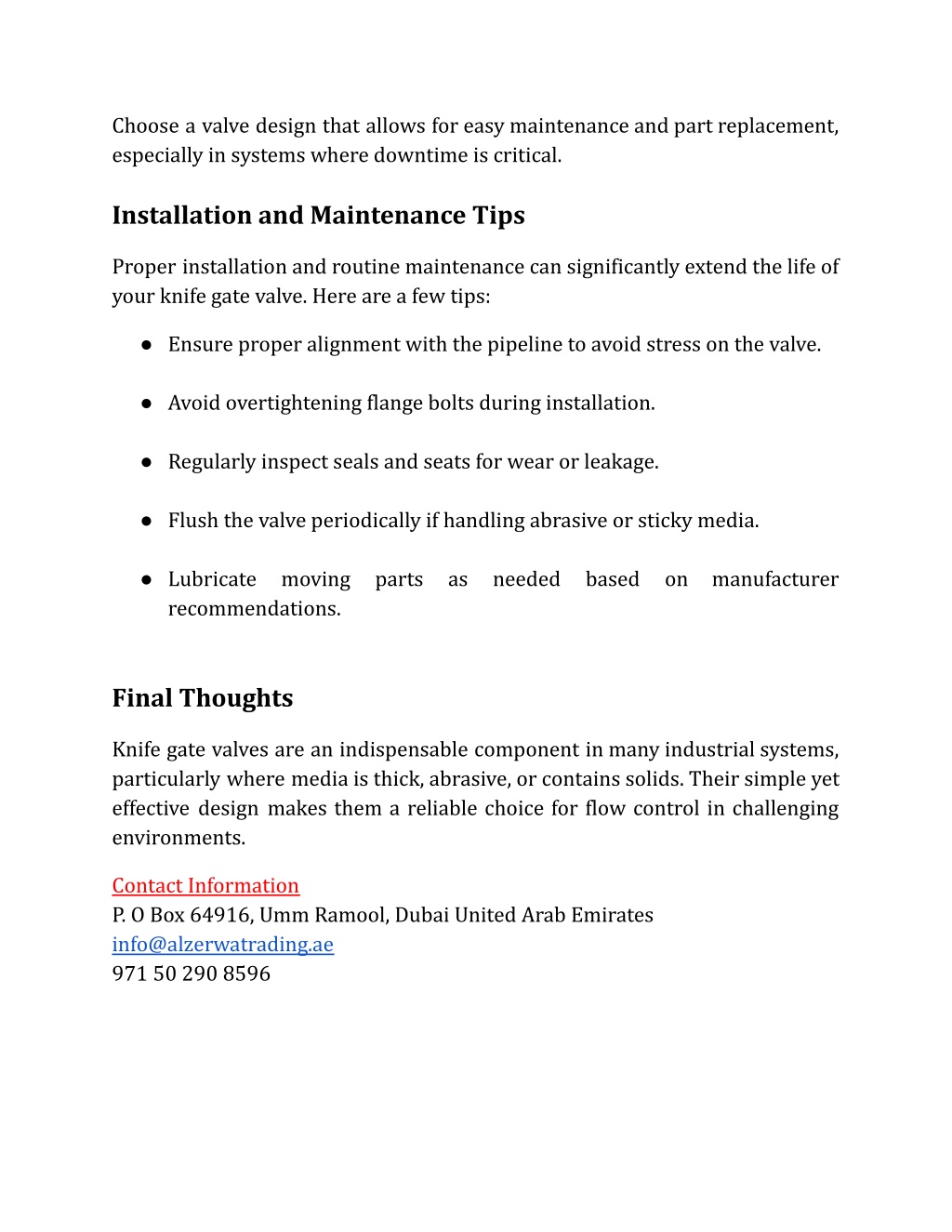

Choose a valve design that allows for easy maintenance and part replacement, especially in systems where downtime is critical. Installation and Maintenance Tips Proper installation and routine maintenance can significantly extend the life of your knife gate valve. Here are a few tips: ● Ensure proper alignment with the pipeline to avoid stress on the valve. ● Avoid overtightening flange bolts during installation. ● Regularly inspect seals and seats for wear or leakage. ● Flush the valve periodically if handling abrasive or sticky media. ● Lubricate moving parts as recommendations. needed based on manufacturer Final Thoughts Knife gate valves are an indispensable component in many industrial systems, particularly where media is thick, abrasive, or contains solids. Their simple yet effective design makes them a reliable choice for flow control in challenging environments. Contact Information P. O Box 64916, Umm Ramool, Dubai United Arab Emirates info@alzerwatrading.ae 971 50 290 8596
