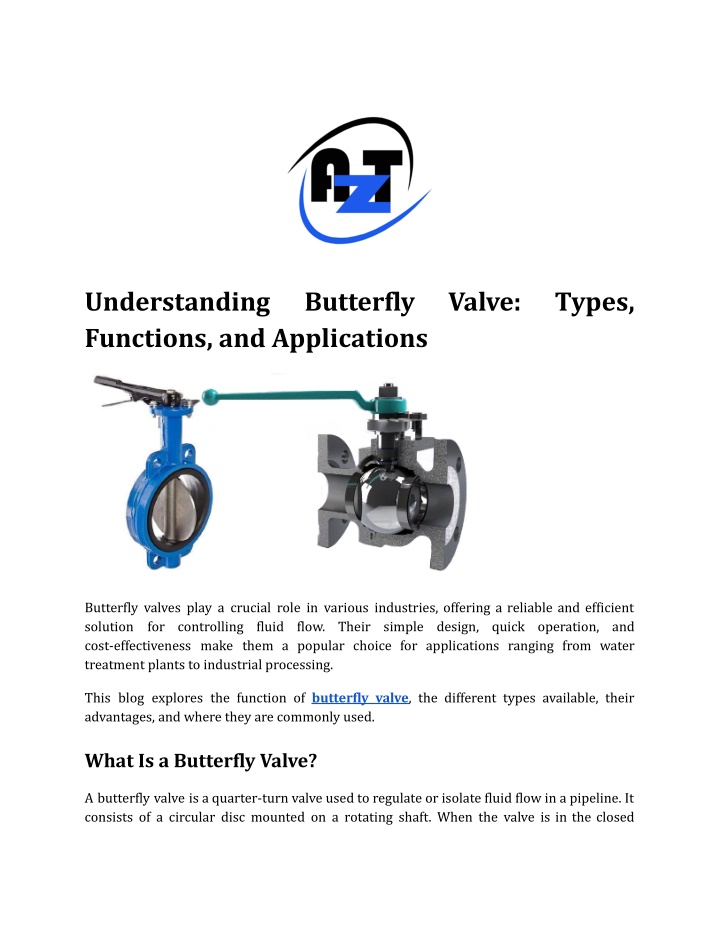

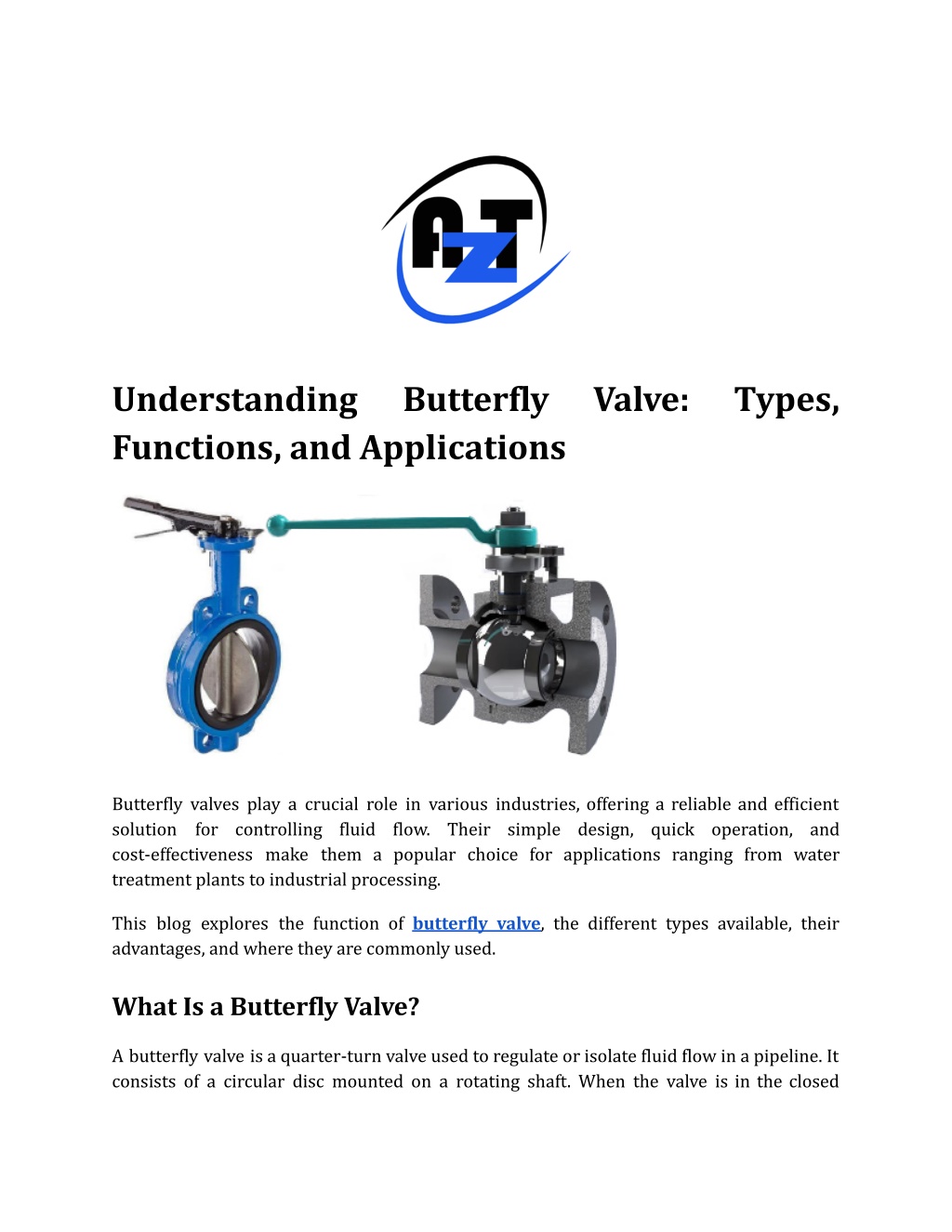

1. Understanding Functions, and Applications Butterfly Valve: Types, Butterfly valves play a crucial role in various industries, offering a reliable and efficient solution for controlling fluid flow. Their simple design, quick operation, and cost-effectiveness make them a popular choice for applications ranging from water treatment plants to industrial processing. This blog explores the function of butterfly valve, the different types available, their advantages, and where they are commonly used. What Is a Butterfly Valve? A butterfly valve is a quarter-turn valve used to regulate or isolate fluid flow in a pipeline. It consists of a circular disc mounted on a rotating shaft. When the valve is in the closed

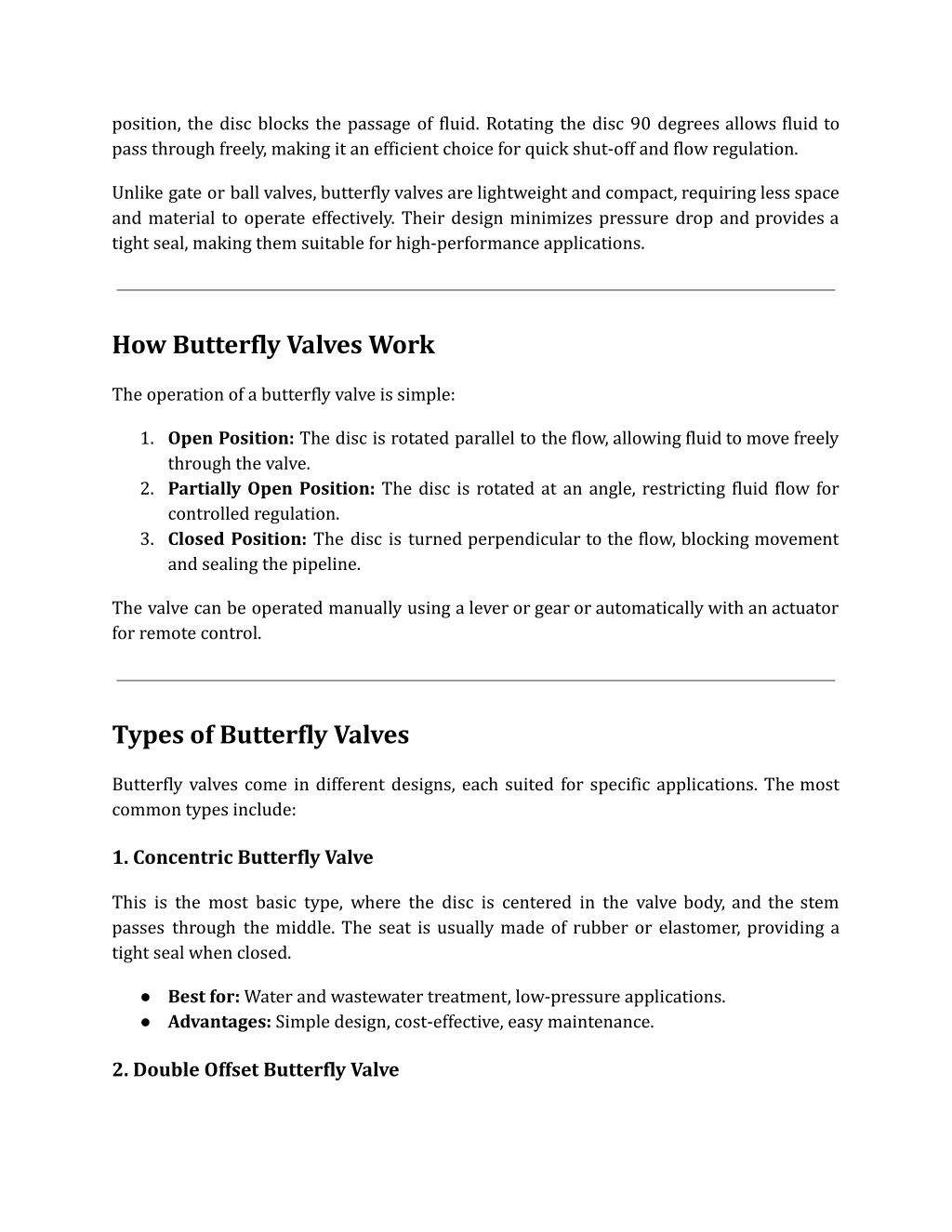

2. position, the disc blocks the passage of fluid. Rotating the disc 90 degrees allows fluid to pass through freely, making it an efficient choice for quick shut-off and flow regulation. Unlike gate or ball valves, butterfly valves are lightweight and compact, requiring less space and material to operate effectively. Their design minimizes pressure drop and provides a tight seal, making them suitable for high-performance applications. How Butterfly Valves Work The operation of a butterfly valve is simple: 1.Open Position: The disc is rotated parallel to the flow, allowing fluid to move freely through the valve. 2.Partially Open Position: The disc is rotated at an angle, restricting fluid flow for controlled regulation. 3.Closed Position: The disc is turned perpendicular to the flow, blocking movement and sealing the pipeline. The valve can be operated manually using a lever or gear or automatically with an actuator for remote control. Types of Butterfly Valves Butterfly valves come in different designs, each suited for specific applications. The most common types include: 1. Concentric Butterfly Valve This is the most basic type, where the disc is centered in the valve body, and the stem passes through the middle. The seat is usually made of rubber or elastomer, providing a tight seal when closed. ● Best for: Water and wastewater treatment, low-pressure applications. ● Advantages: Simple design, cost-effective, easy maintenance. 2. Double Offset Butterfly Valve

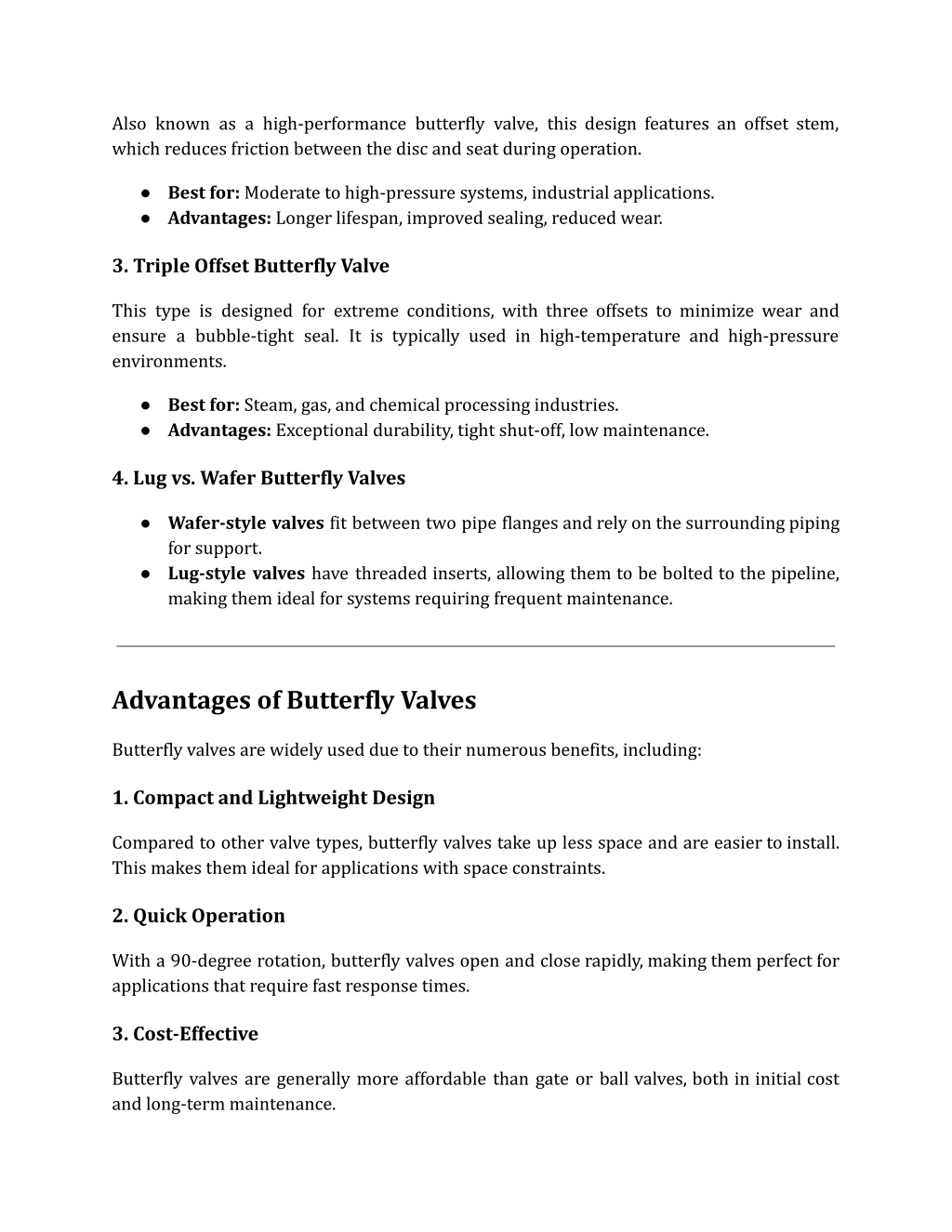

3. Also known as a high-performance butterfly valve, this design features an offset stem, which reduces friction between the disc and seat during operation. ● Best for: Moderate to high-pressure systems, industrial applications. ● Advantages: Longer lifespan, improved sealing, reduced wear. 3. Triple Offset Butterfly Valve This type is designed for extreme conditions, with three offsets to minimize wear and ensure a bubble-tight seal. It is typically used in high-temperature and high-pressure environments. ● Best for: Steam, gas, and chemical processing industries. ● Advantages: Exceptional durability, tight shut-off, low maintenance. 4. Lug vs. Wafer Butterfly Valves ● Wafer-style valves fit between two pipe flanges and rely on the surrounding piping for support. ● Lug-style valves have threaded inserts, allowing them to be bolted to the pipeline, making them ideal for systems requiring frequent maintenance. Advantages of Butterfly Valves Butterfly valves are widely used due to their numerous benefits, including: 1. Compact and Lightweight Design Compared to other valve types, butterfly valves take up less space and are easier to install. This makes them ideal for applications with space constraints. 2. Quick Operation With a 90-degree rotation, butterfly valves open and close rapidly, making them perfect for applications that require fast response times. 3. Cost-Effective Butterfly valves are generally more affordable than gate or ball valves, both in initial cost and long-term maintenance.

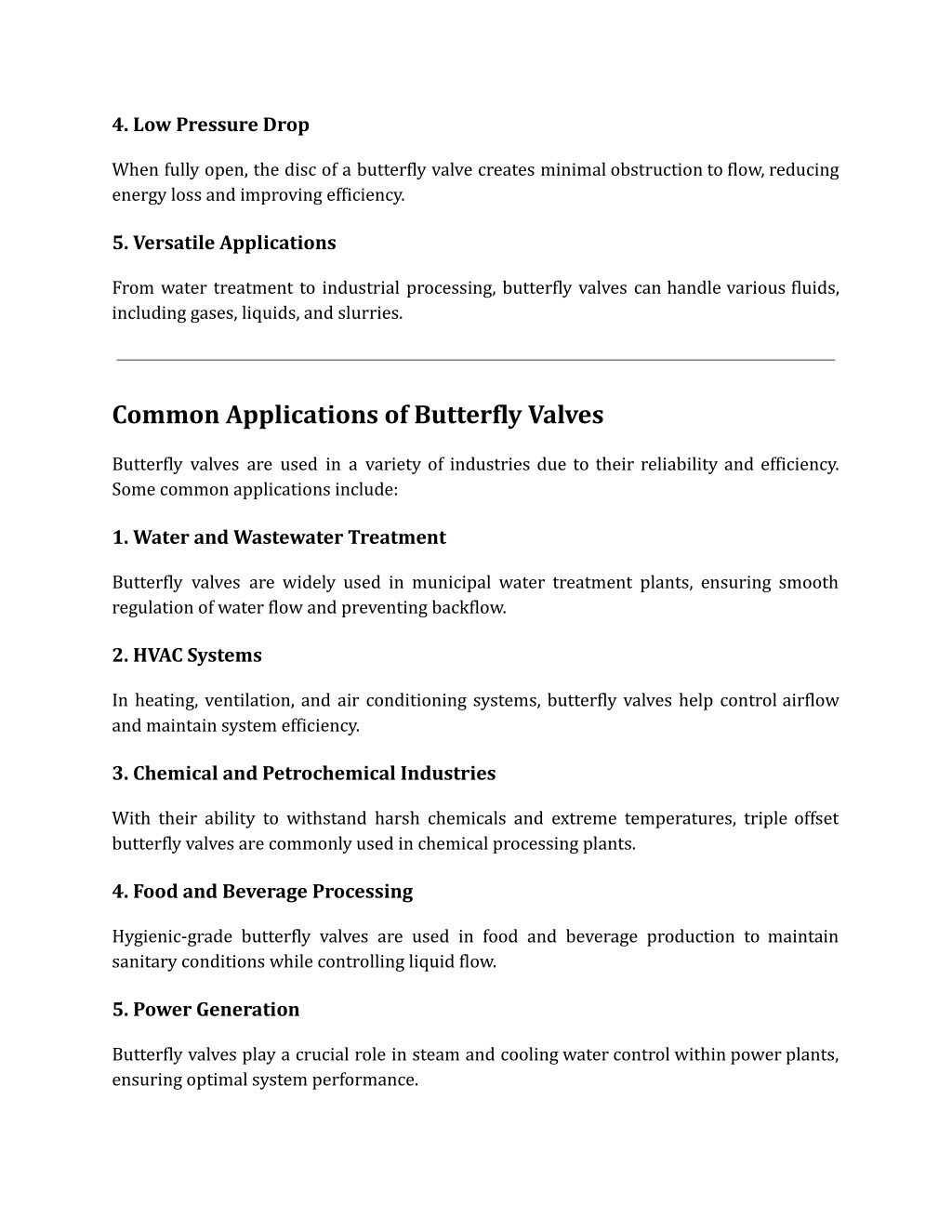

4. 4. Low Pressure Drop When fully open, the disc of a butterfly valve creates minimal obstruction to flow, reducing energy loss and improving efficiency. 5. Versatile Applications From water treatment to industrial processing, butterfly valves can handle various fluids, including gases, liquids, and slurries. Common Applications of Butterfly Valves Butterfly valves are used in a variety of industries due to their reliability and efficiency. Some common applications include: 1. Water and Wastewater Treatment Butterfly valves are widely used in municipal water treatment plants, ensuring smooth regulation of water flow and preventing backflow. 2. HVAC Systems In heating, ventilation, and air conditioning systems, butterfly valves help control airflow and maintain system efficiency. 3. Chemical and Petrochemical Industries With their ability to withstand harsh chemicals and extreme temperatures, triple offset butterfly valves are commonly used in chemical processing plants. 4. Food and Beverage Processing Hygienic-grade butterfly valves are used in food and beverage production to maintain sanitary conditions while controlling liquid flow. 5. Power Generation Butterfly valves play a crucial role in steam and cooling water control within power plants, ensuring optimal system performance.

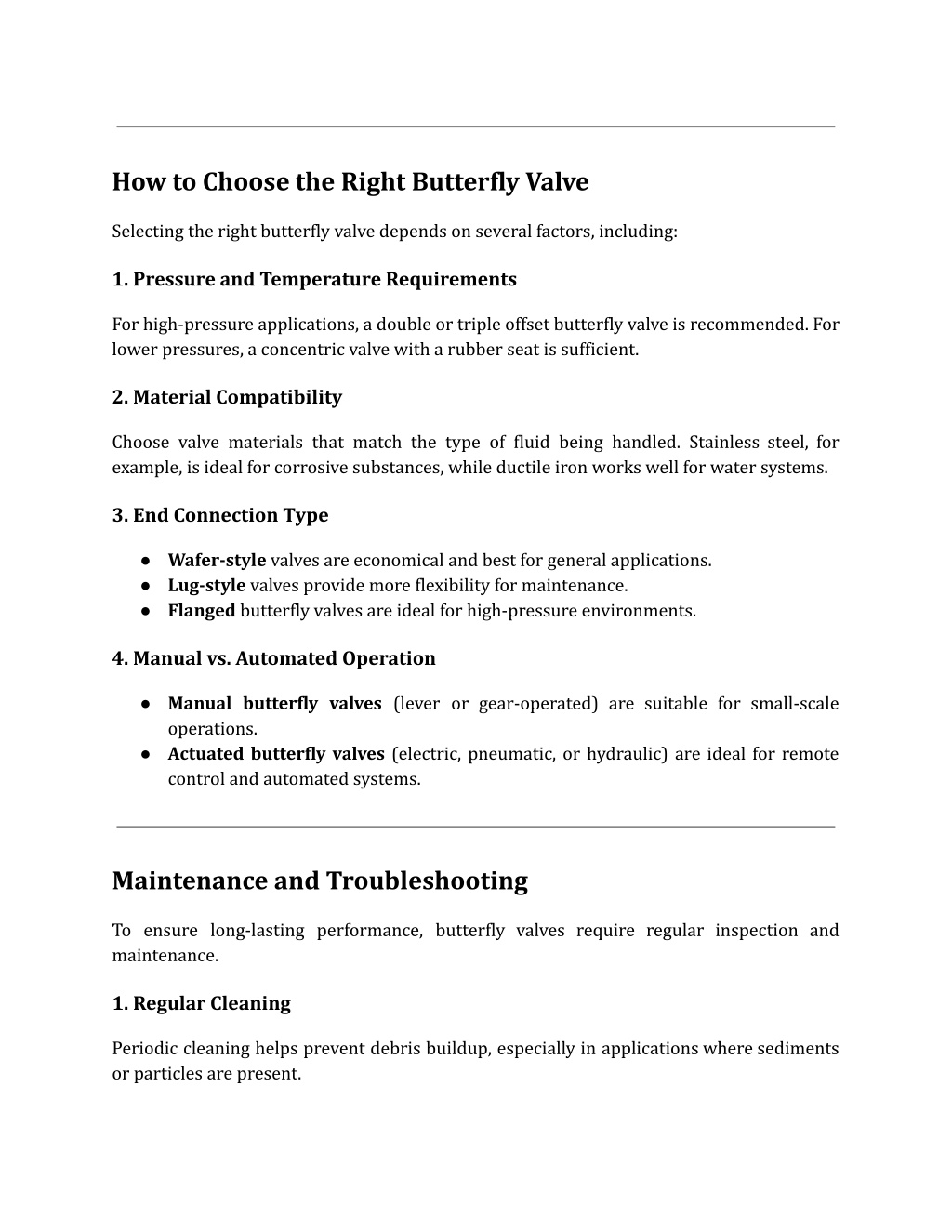

5. How to Choose the Right Butterfly Valve Selecting the right butterfly valve depends on several factors, including: 1. Pressure and Temperature Requirements For high-pressure applications, a double or triple offset butterfly valve is recommended. For lower pressures, a concentric valve with a rubber seat is sufficient. 2. Material Compatibility Choose valve materials that match the type of fluid being handled. Stainless steel, for example, is ideal for corrosive substances, while ductile iron works well for water systems. 3. End Connection Type ● Wafer-style valves are economical and best for general applications. ● Lug-style valves provide more flexibility for maintenance. ● Flanged butterfly valves are ideal for high-pressure environments. 4. Manual vs. Automated Operation ● Manual butterfly valves (lever or gear-operated) are suitable for small-scale operations. ● Actuated butterfly valves (electric, pneumatic, or hydraulic) are ideal for remote control and automated systems. Maintenance and Troubleshooting To ensure long-lasting performance, butterfly valves require regular inspection and maintenance. 1. Regular Cleaning Periodic cleaning helps prevent debris buildup, especially in applications where sediments or particles are present.

6. 2. Seal and Gasket Inspection Check the rubber or elastomer seals for wear and replace them when necessary to maintain a tight shut-off. 3. Lubrication For gear-operated or actuated butterfly valves, proper lubrication ensures smooth operation and extends lifespan. 4. Leak Detection If a butterfly valve is leaking, inspect the disc alignment and sealing surface for damage. In some cases, tightening the bolts or replacing the seat can resolve the issue. Conclusion Butterfly valves offer an efficient, cost-effective solution for controlling fluid flow in a wide range of industries. With different types available—including concentric, double offset, and triple offset designs—these valves provide versatility, durability, and reliable performance. Choosing the right butterfly valve depends on factors like pressure requirements, material compatibility, and application needs. Regular maintenance ensures optimal functionality and longevity, making butterfly valves a valuable component in industrial and commercial systems. Whether used in water treatment, HVAC, or chemical processing, butterfly valves continue to be a vital tool for efficient flow control.
