ESR Analyzers -ZESR-A13

Zimed ESR Analyzer processes 40 samples per hour with 20 channels for simultaneous testing. It uses optical technology to minimise errors, ensuring reliable results. Features include a 7-inch touchscreen, random sample testing, built-in printer, temperature compensation, and autosave.<br><br>

Alissa3
Download Presentation

ESR Analyzers -ZESR-A13

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

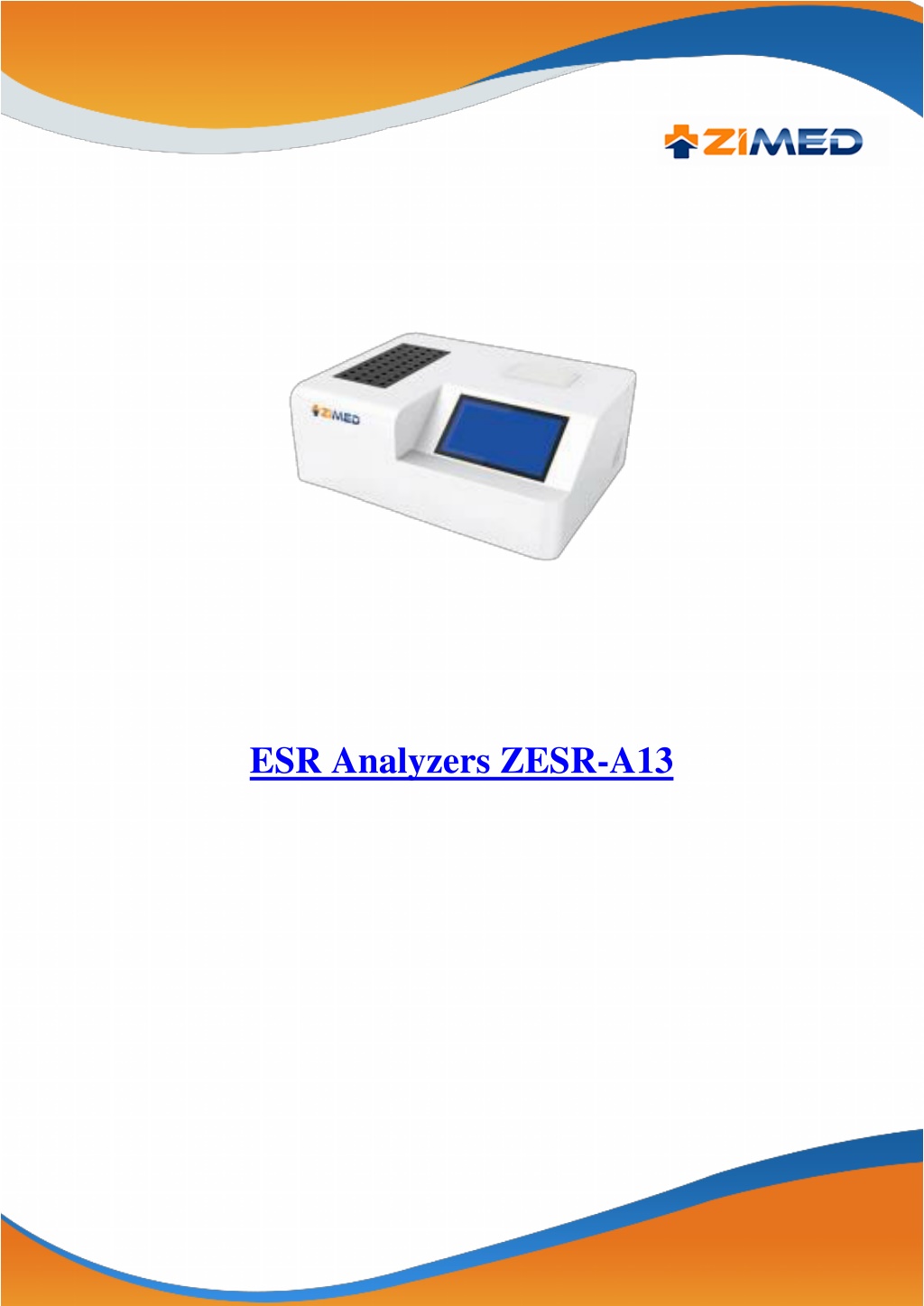

  1. ESR Analyzers ZESR-A13

  2. ESR Analyzers ZESR-A13 ESR Analyzers ZESR-A13 offers an accurate measuring rate of 0 to 150 mm/h with an accuracy of 0.2 mm. It provides a throughput of 40 samples per hour using 20 channels for simultaneous testing. Utilizes advanced optical testing technology to reduce errors from manual methods for reliable and consistent results. Our analyzer features a 7-inch color LCD touchscreen for clear visualization and easy navigation. Features: Random sample testing for flexibility Built-in thermal printer for quick printing Automatic temperature compensation for accuracy Autosave function for result storage Applications: ESR Analyzers are used to analyze the erythrocyte sedimentation rates in a variety of healthcare settings, including hospitals, clinical laboratories, and research facilities.

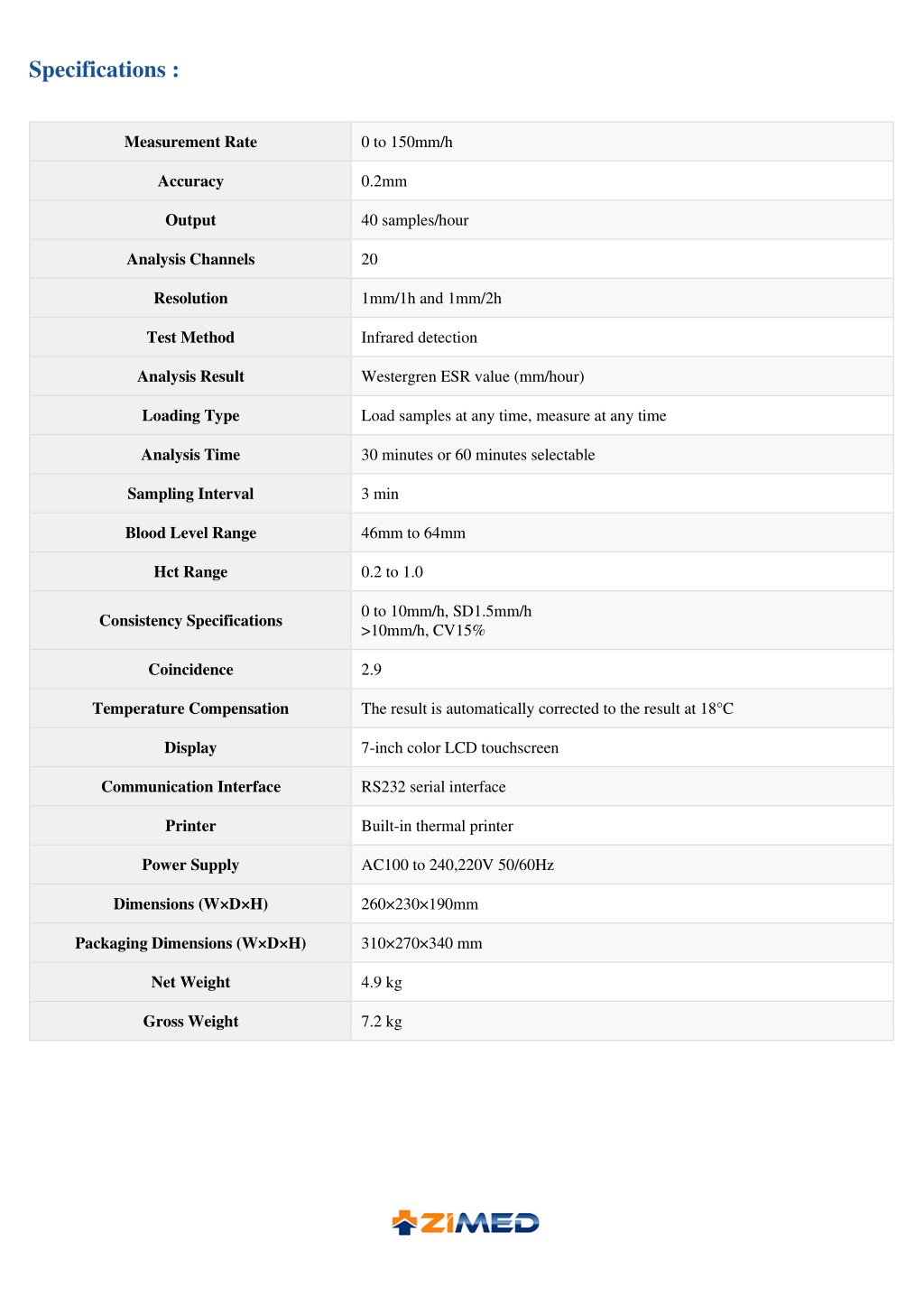

  3. Specifications : Measurement Rate 0 to 150mm/h Accuracy 0.2mm Output 40 samples/hour Analysis Channels 20 Resolution 1mm/1h and 1mm/2h Test Method Infrared detection Analysis Result Westergren ESR value (mm/hour) Loading Type Load samples at any time, measure at any time Analysis Time 30 minutes or 60 minutes selectable Sampling Interval 3 min Blood Level Range 46mm to 64mm Hct Range 0.2 to 1.0 0 to 10mm/h, SD1.5mm/h >10mm/h, CV15% Consistency Specifications Coincidence 2.9 Temperature Compensation The result is automatically corrected to the result at 18°C Display 7-inch color LCD touchscreen Communication Interface RS232 serial interface Printer Built-in thermal printer Power Supply AC100 to 240,220V 50/60Hz Dimensions (W×D×H) 260×230×190mm Packaging Dimensions (W×D×H) 310×270×340 mm Net Weight 4.9 kg Gross Weight 7.2 kg

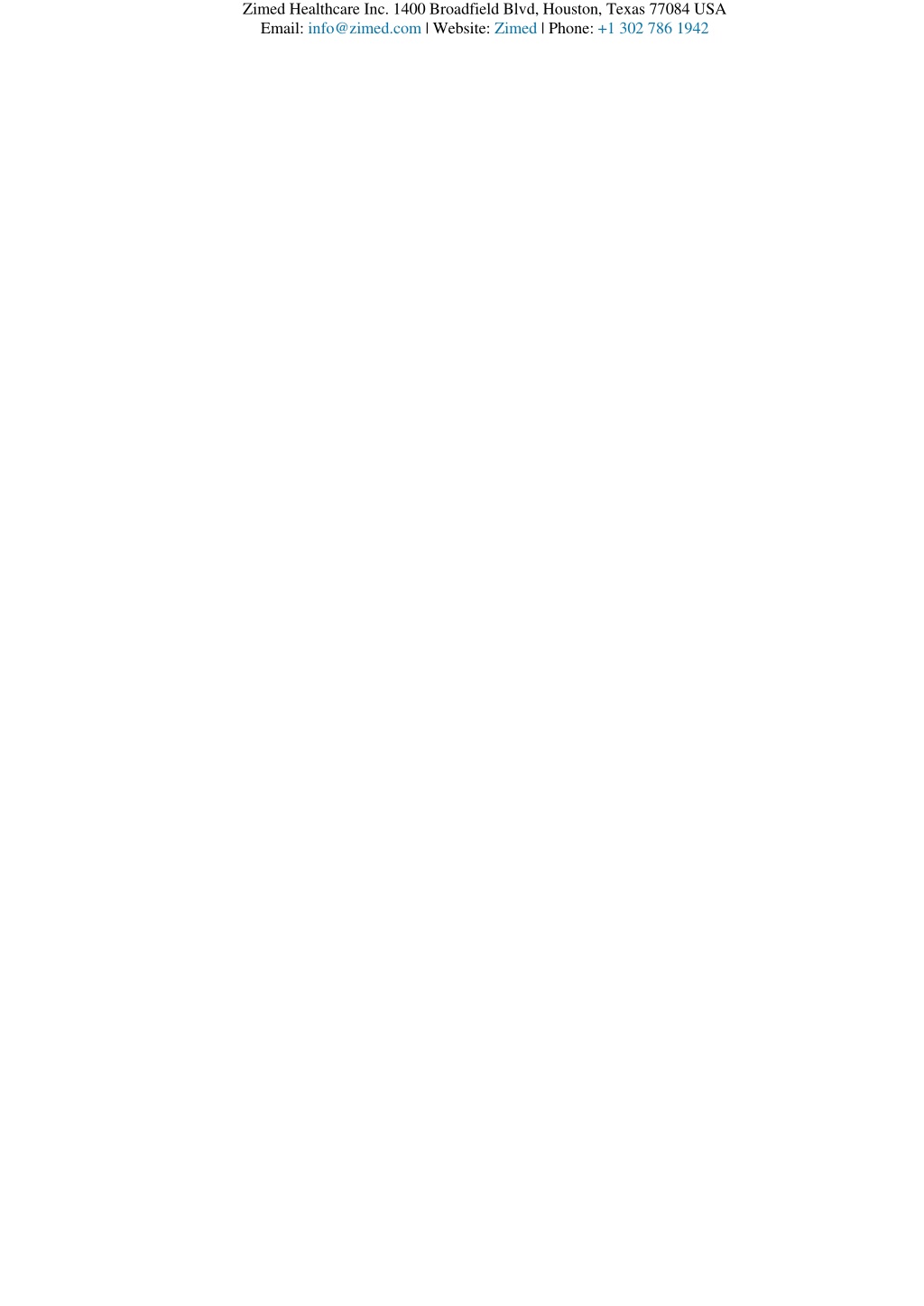

  4. Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
