ESR analyzer ZESR-A12

Zimed ESR Analyzer delivers fast and accurate erythrocyte sedimentation rate results, featuring an easy-to-use interface, automated functions, and reliable performance, making it ideal for clinical laboratories and medical facilities.

Alissa3
Download Presentation

ESR analyzer ZESR-A12

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

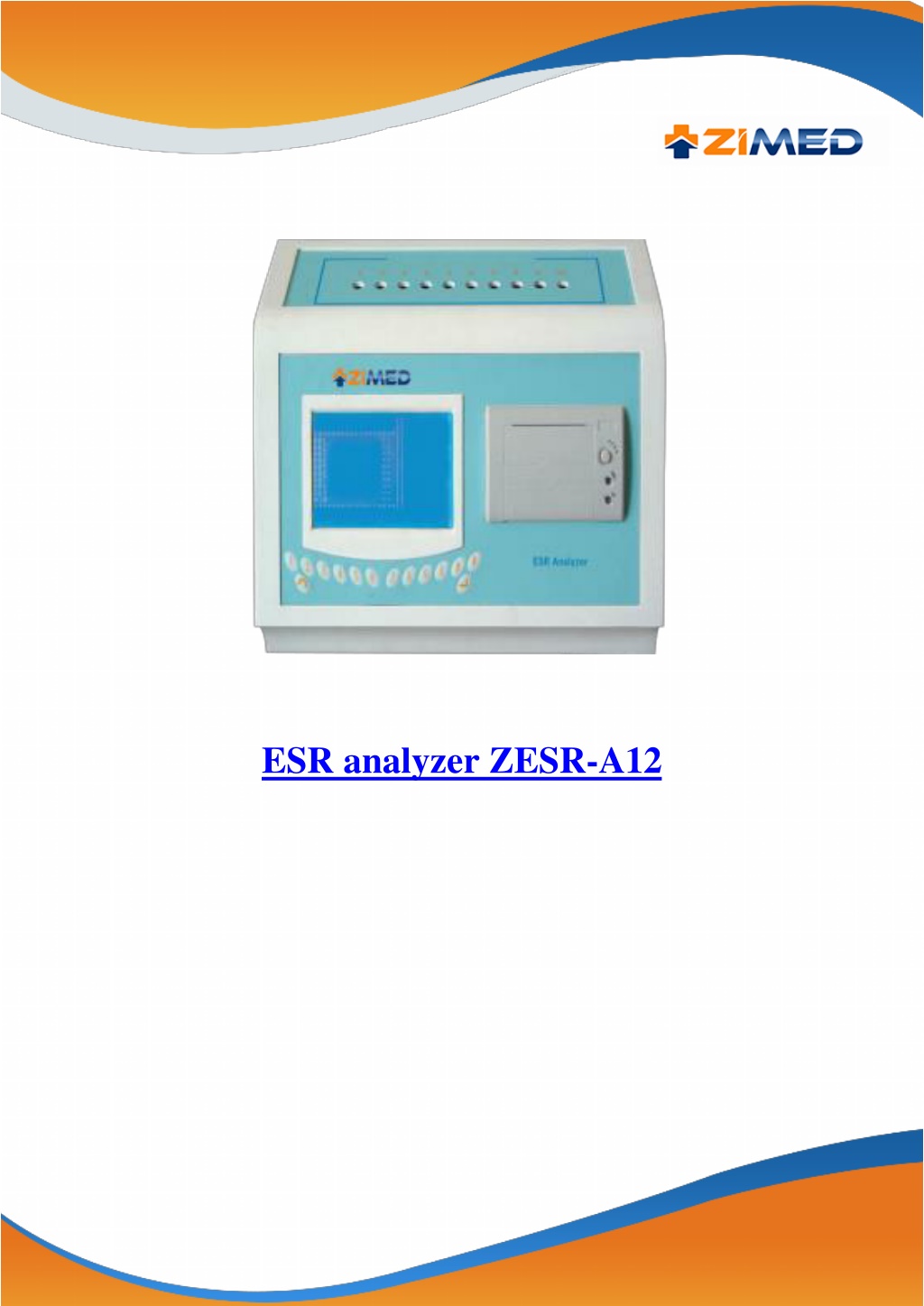

  1. ESR analyzer ZESR-A12

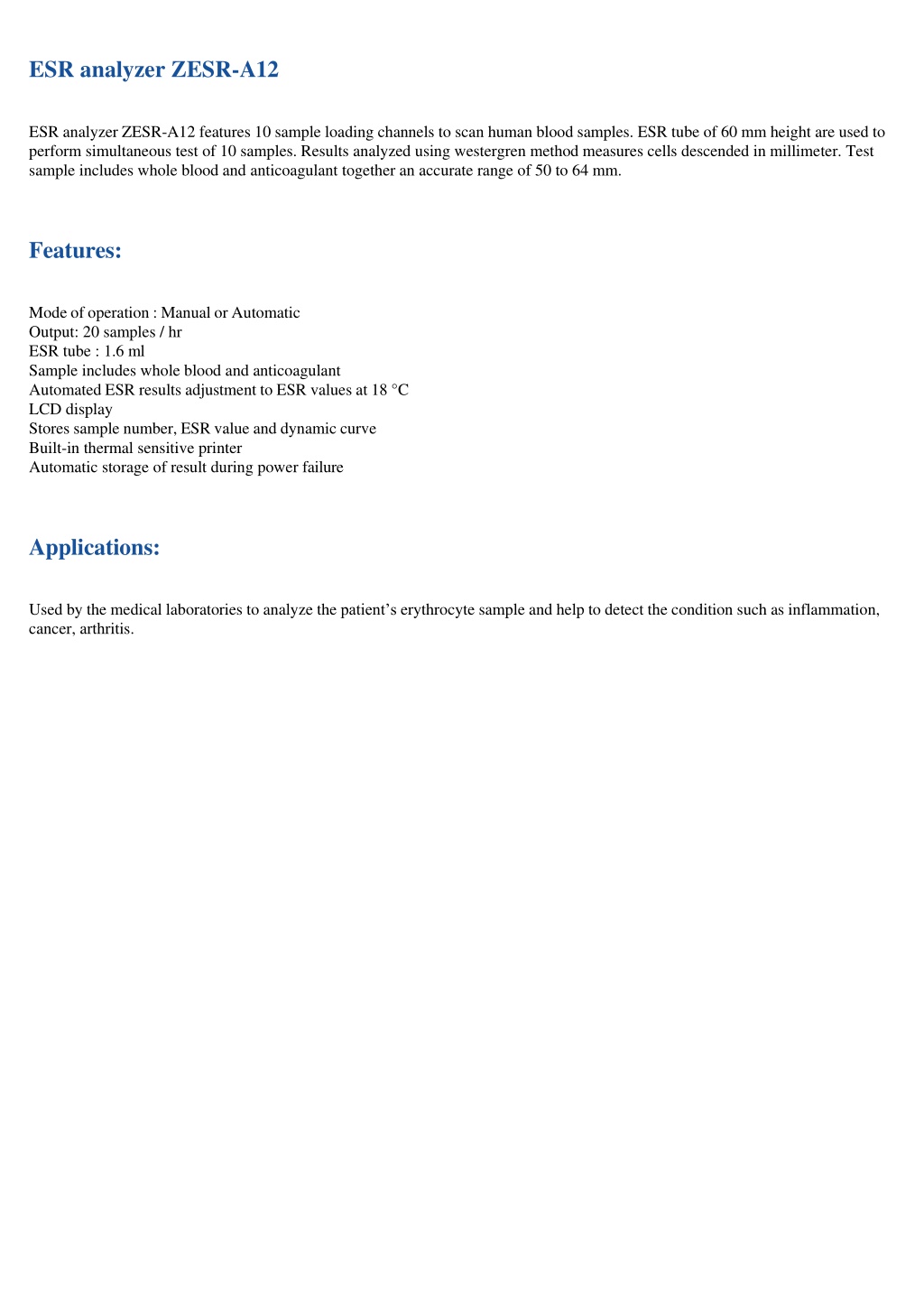

  2. ESR analyzer ZESR-A12 ESR analyzer ZESR-A12 features 10 sample loading channels to scan human blood samples. ESR tube of 60 mm height are used to perform simultaneous test of 10 samples. Results analyzed using westergren method measures cells descended in millimeter. Test sample includes whole blood and anticoagulant together an accurate range of 50 to 64 mm. Features: Mode of operation : Manual or Automatic Output: 20 samples / hr ESR tube : 1.6 ml Sample includes whole blood and anticoagulant Automated ESR results adjustment to ESR values at 18 °C LCD display Stores sample number, ESR value and dynamic curve Built-in thermal sensitive printer Automatic storage of result during power failure Applications: Used by the medical laboratories to analyze the patient’s erythrocyte sample and help to detect the condition such as inflammation, cancer, arthritis.

  3. Specifications : Output 20 samples / hr Test channels 10 Sample volume 1.6 ml ( 1.28 ml blood + 0.32 Anticoagulant ) 30 min ( Westergren 1 Hr ) 60 min ( Westergren 2 Hr ) Test time ( adjustable ) Temperature 15 °C to 30 °C ( ± 2.5 °C ) Measurement range 0 to 140 mm / hr Sample range 50 mm to 64 mm Read resolution ± 0.2 mm Read interval 1 min Repeatability ( Coefficient of Variation ) 3 % Linear coefficient ? 0.98 Display LCD Storage capacity 150 results Power supply 12 V Dimensions 310 × 190 × 180 mm Weight 4.8 kgs Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
