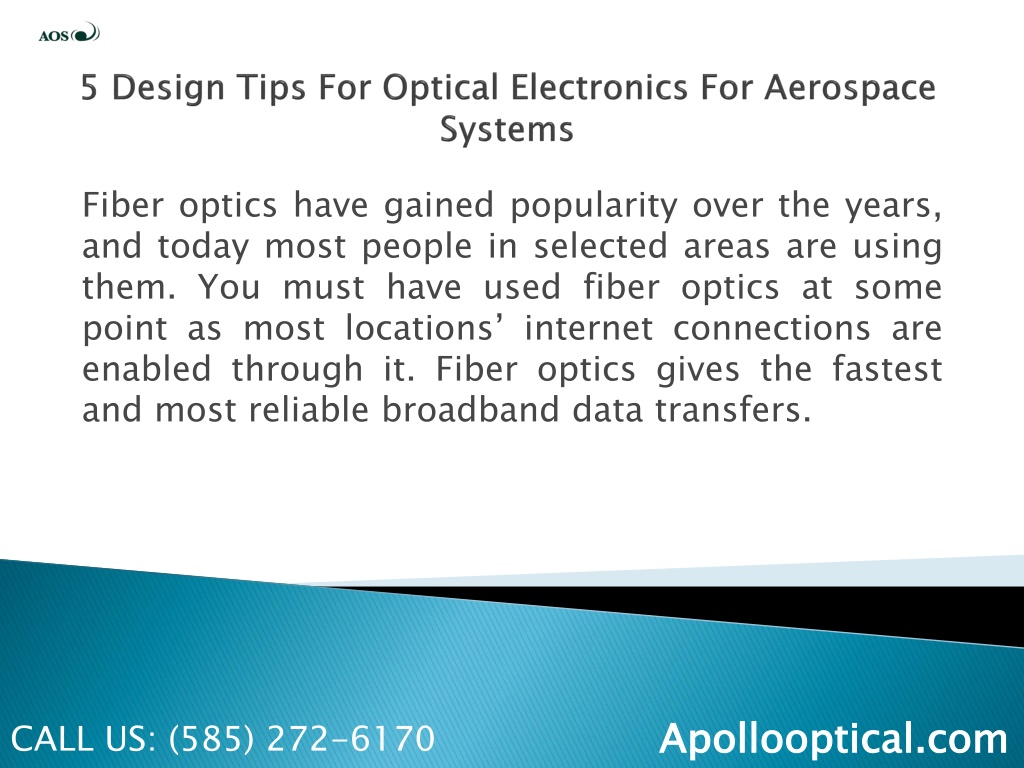

  1. 5 Design Tips For Optical Electronics For Aerospace Systems Fiber optics have gained popularity over the years, and today most people in selected areas are using them. You must have used fiber optics at some point as most locations’ internet connections are enabled through it. Fiber optics gives the fastest and most reliable broadband data transfers. Apollooptical.com CALL US: (585) 272-6170

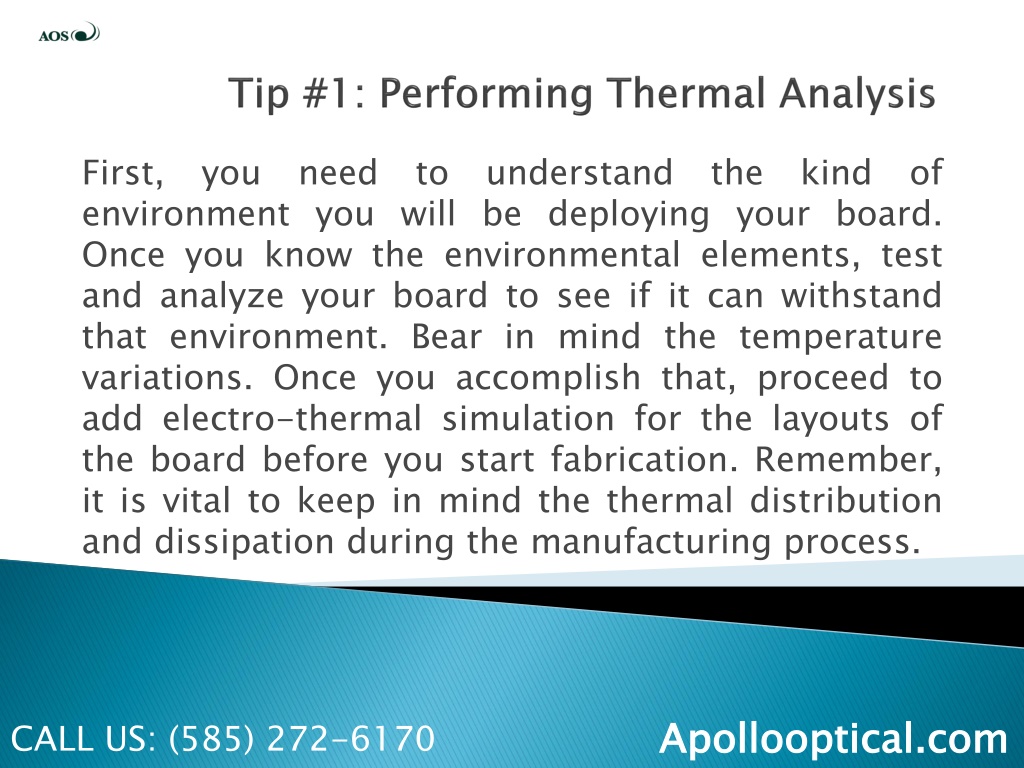

  2. Tip #1: Performing Thermal Analysis First, you need to understand the kind of environment you will be deploying your board. Once you know the environmental elements, test and analyze your board to see if it can withstand that environment. Bear in mind the temperature variations. Once you accomplish that, proceed to add electro-thermal simulation for the layouts of the board before you start fabrication. Remember, it is vital to keep in mind the thermal distribution and dissipation during the manufacturing process. Apollooptical.com CALL US: (585) 272-6170

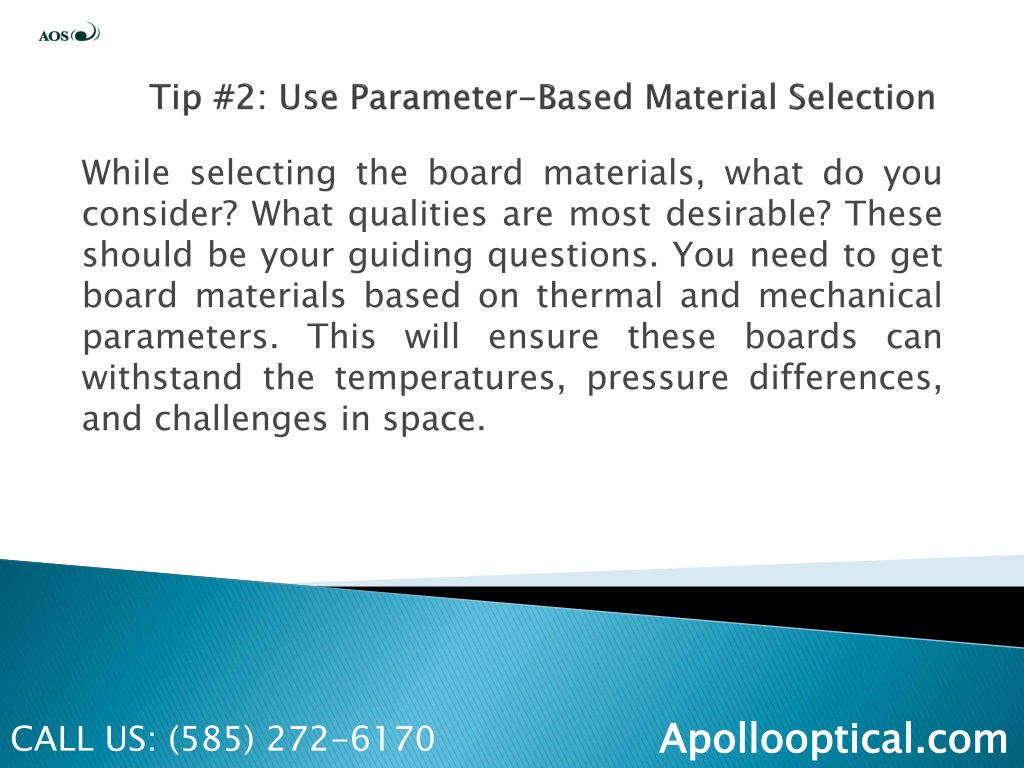

  3. Tip #2: Use Parameter-Based Material Selection While selecting the board materials, what do you consider? What qualities are most desirable? These should be your guiding questions. You need to get board materials based on thermal and mechanical parameters. This will ensure these boards can withstand the temperatures, pressure differences, and challenges in space. Apollooptical.com CALL US: (585) 272-6170

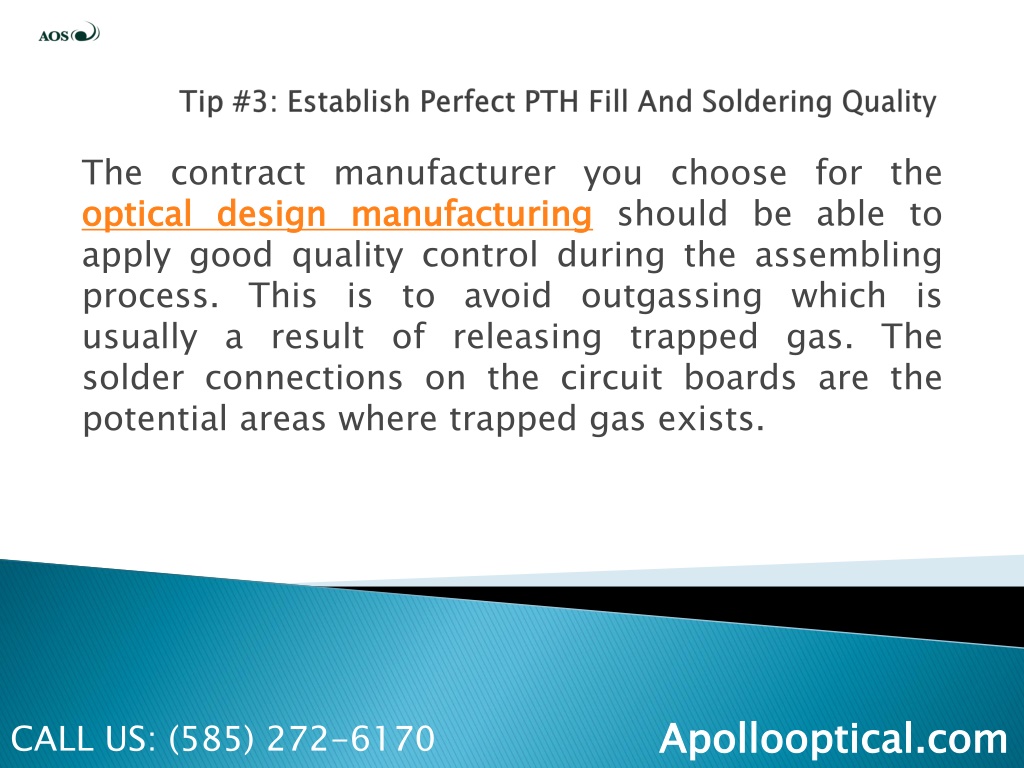

  4. Tip #3: Establish Perfect PTH Fill And Soldering Quality The contract manufacturer you choose for the optical design manufacturing should be able to apply good quality control during the assembling process. This is to avoid outgassing which is usually a result of releasing trapped gas. The solder connections on the circuit boards are the potential areas where trapped gas exists. Apollooptical.com CALL US: (585) 272-6170

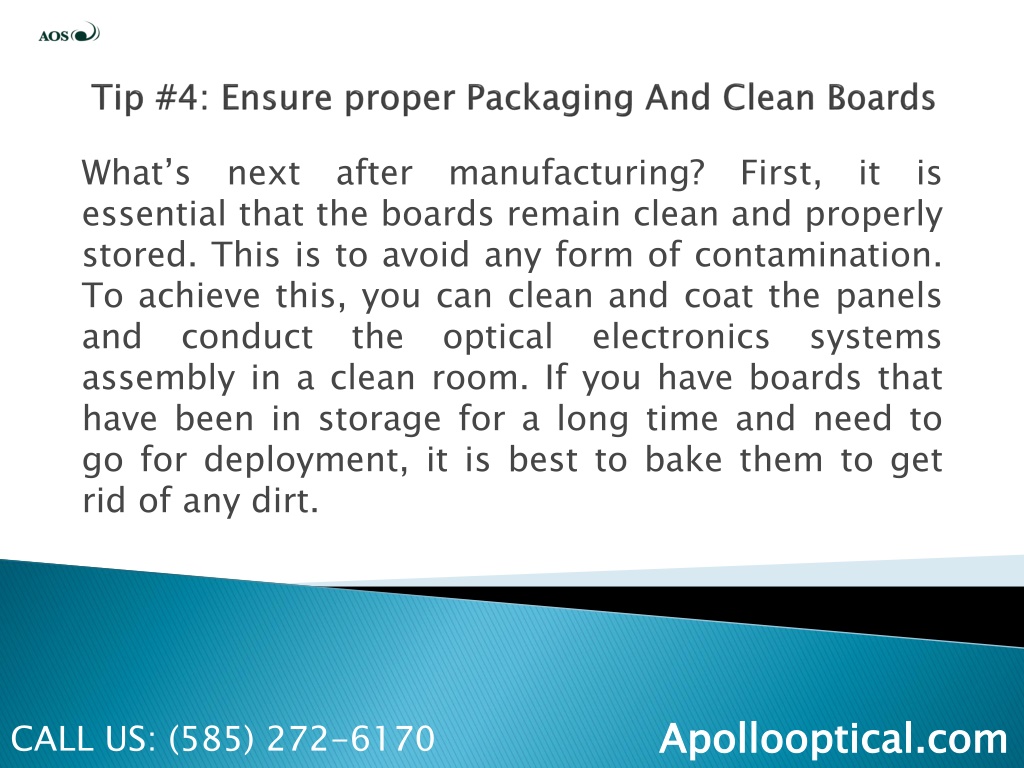

  5. Tip #4: Ensure proper Packaging And Clean Boards What’s next after manufacturing? First, it is essential that the boards remain clean and properly stored. This is to avoid any form of contamination. To achieve this, you can clean and coat the panels and conduct the optical electronics systems assembly in a clean room. If you have boards that have been in storage for a long time and need to go for deployment, it is best to bake them to get rid of any dirt. Apollooptical.com CALL US: (585) 272-6170

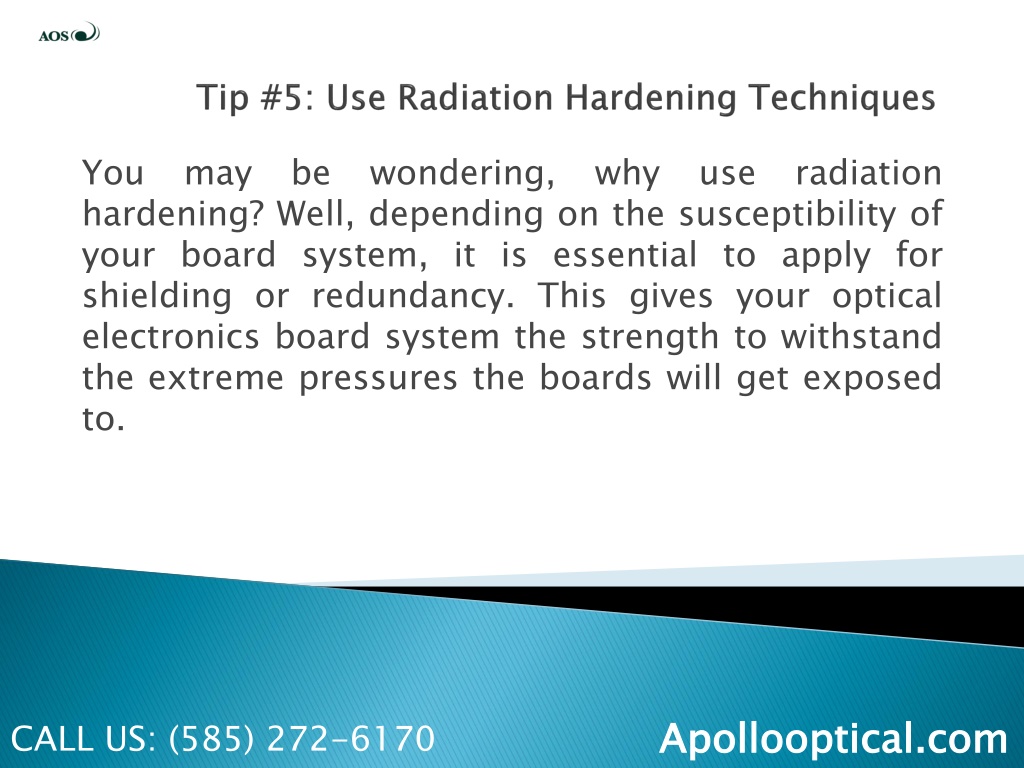

  6. Tip #5: Use Radiation Hardening Techniques You may be wondering, why use radiation hardening? Well, depending on the susceptibility of your board system, it is essential to apply for shielding or redundancy. This gives your optical electronics board system the strength to withstand the extreme pressures the boards will get exposed to. Apollooptical.com CALL US: (585) 272-6170

  7. thank you for visit us Apollooptical.com CALL US: (585) 272-6170
